Fanless Industrial Mini PCs
Rugged, wide-temperature Mini PCs with zero-fan passive cooling and rich industrial I/O — built for factory floors, automation, and 24/7 edge deployments.
WHY FANLESS
Engineered for reliability, not compromises
01
Fanless Passive Cooling
All-aluminum chassis with zero moving parts — silent, dust-resistant, and vibration-proof for continuous operation.
02
Wide-Temperature Operation
Industrial components rated for operation as low as -20°C on select models — built to run reliably in unventilated enclosures, cabinets, and harsh environments.
03
Rich Industrial I/O
Native COM (RS232/422/485), GPIO, CAN Bus, and dual-LAN connectivity for direct sensor and machine control — no adapters.
04
Built for 24/7
Fanless passive cooling and an all-aluminum chassis mean fewer failure points for around-the-clock operation.
MODEL LINEUP
Six fanless series, one trusted platform

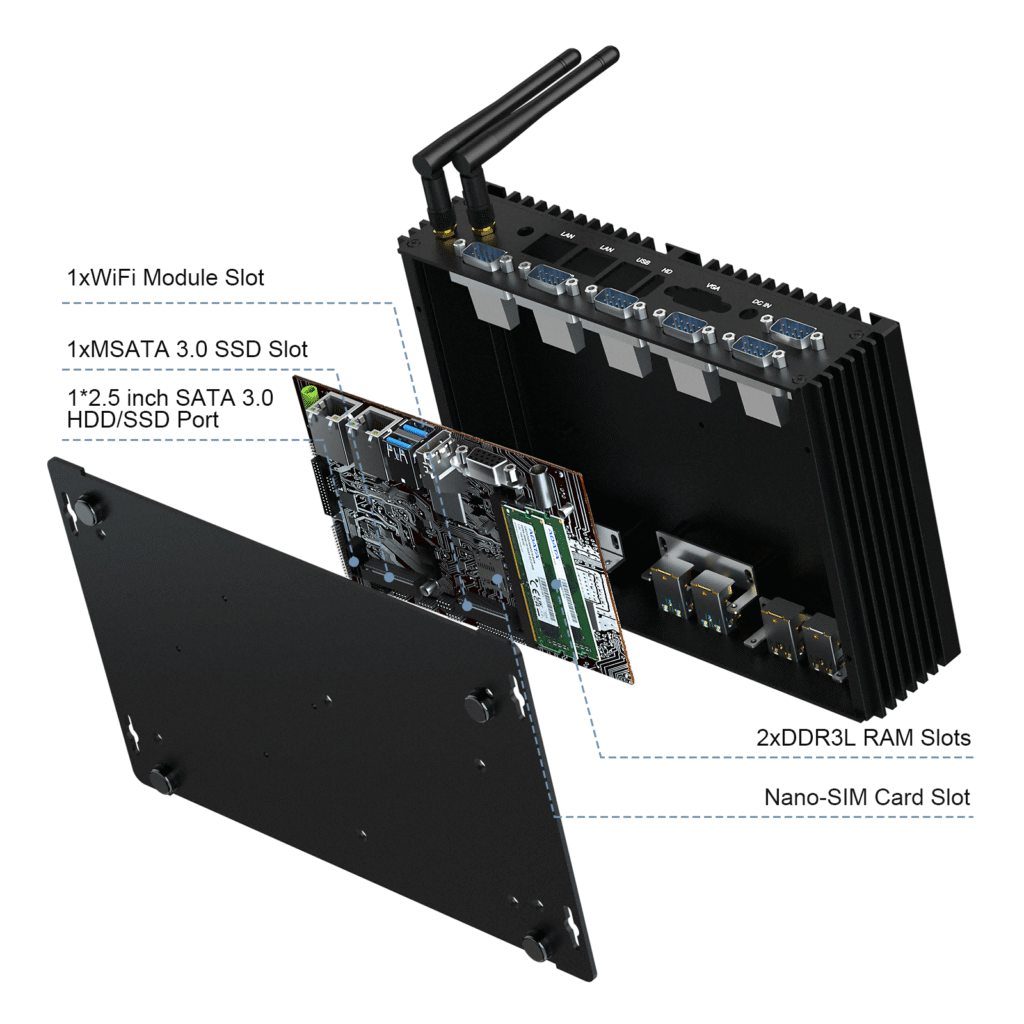

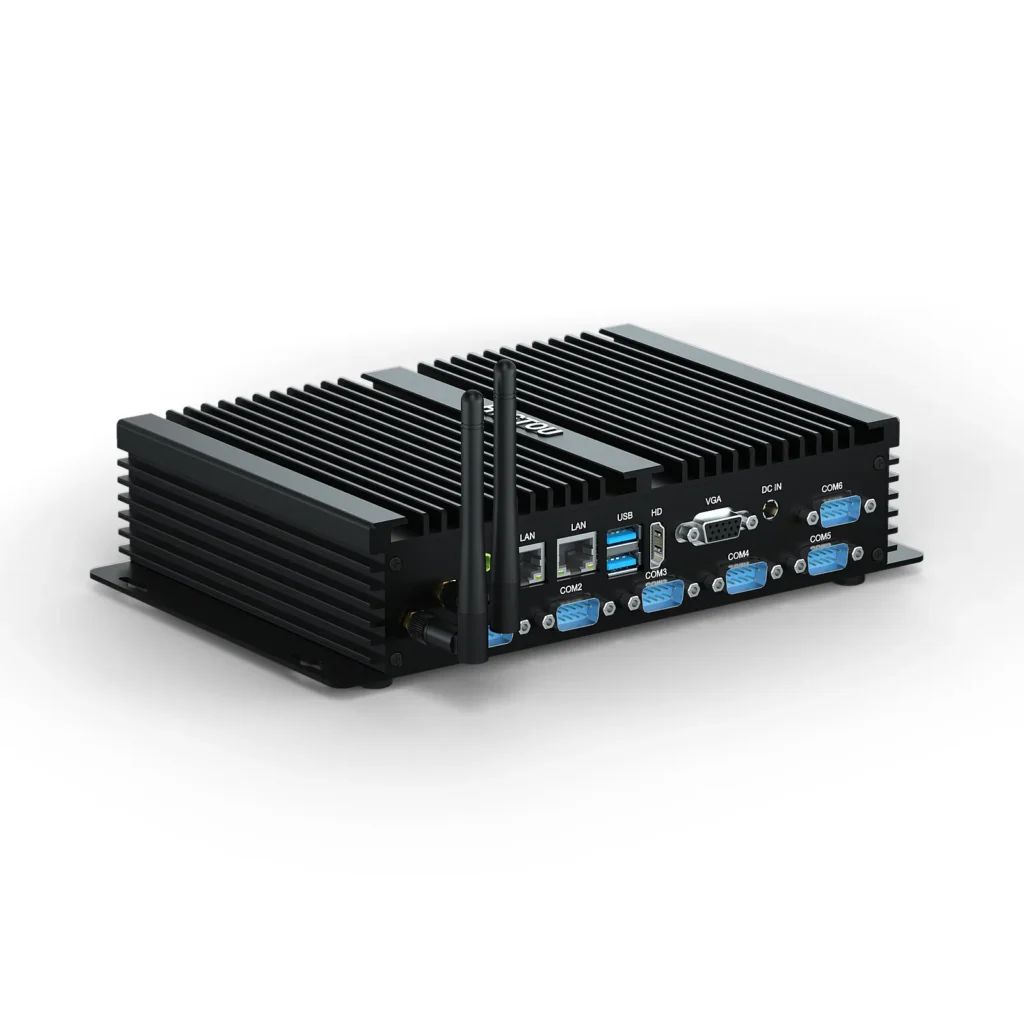

K4 Series
- 6× RS232 COM
- 2× 2.5GbE LAN (Intel i225-V)
- HDMI + VGA, -20~60°C

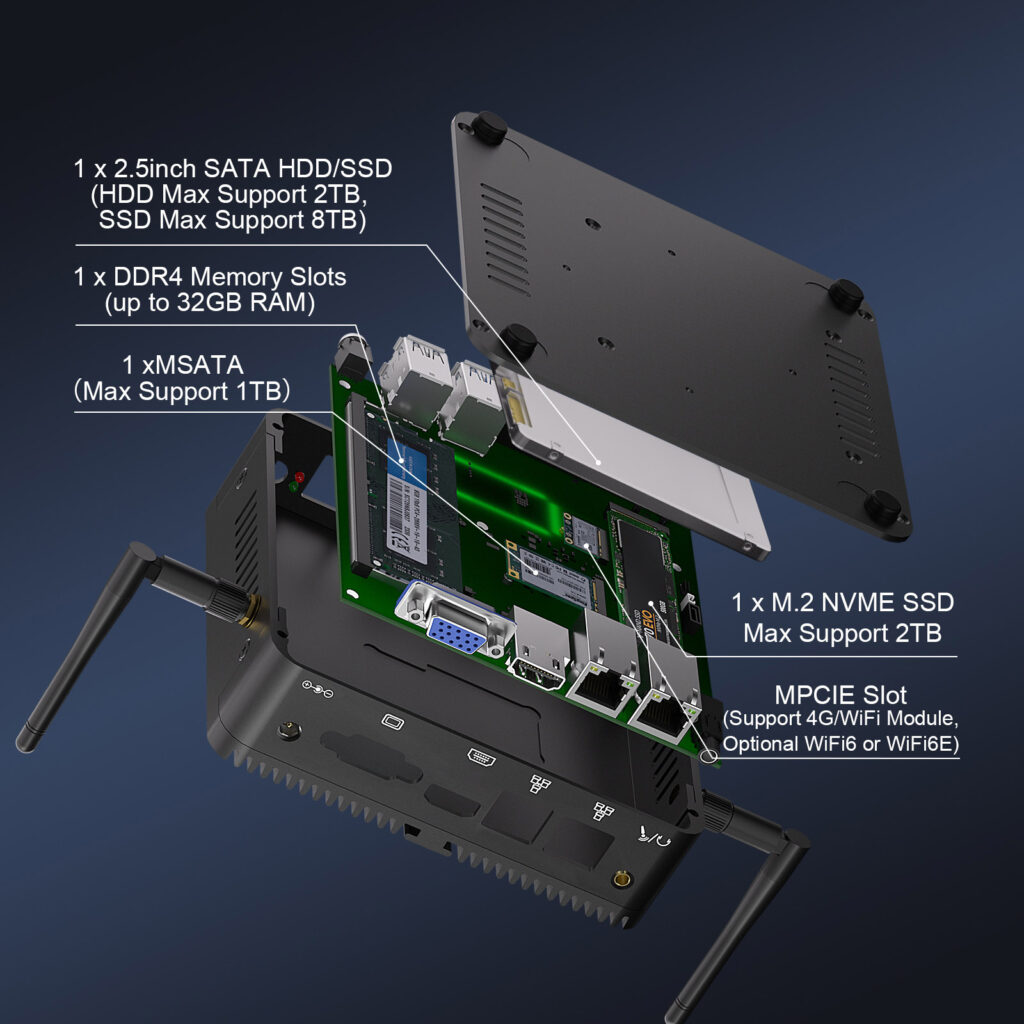

H3 Series
- 2× Gigabit LAN, 2× RS232 COM
- HDMI 2.0 + VGA dual display
- 135×127×39 mm ultra-compact

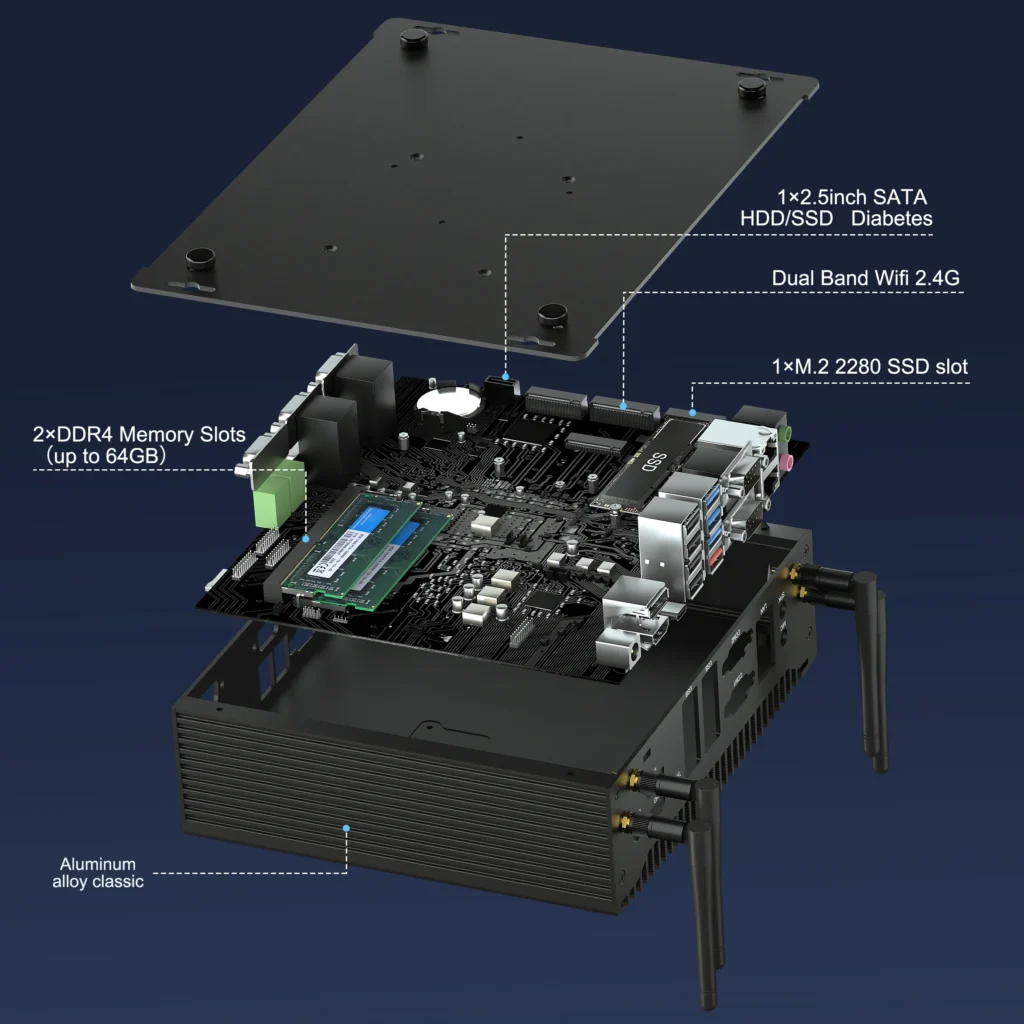

H4T Series
- 6× COM (RS232/422/485), 8-bit GPIO
- 2× CAN Bus (optional)
- HDMI + eDP + Type-C triple display
H6 12th Gen
- DP + 2× HDMI, triple 4K display
- 2× COM + 14-pin GPIO
- PCIe 4.0 NVMe, up to 64GB DDR4
H6 Series
- DP + 2× HDMI, triple 4K display
- 2× COM + 14-pin GPIO
- Dual LAN, up to 64GB DDR4
H7-8th
- 2× HDMI with audio
- 2× GbE LAN, 2× RS232 COM
- 8× USB, 170×126×58 mm chassis
Compare Specifications
Choose the right model
| Specification | H3-N100 | H4T | H6 12th | H6 | H7-8th | K4 |
|---|---|---|---|---|---|---|
| Processor | Intel N100 | i5-10210U / 10310U | i5-1235U | i7-10810U | i5-8350U | i5-4200U |
| Cores / Threads | 4C / 4T | 4C / 8T | 10C / 12T | 6C / 12T | 4C / 8T | 2C / 4T |
| TDP | 6 W | 15 W | 15 W | 15 W | 15 W | 15 W |
| Memory (Max) | 1× DDR4 · 32 GB | 2× DDR4 · 64 GB | 2× DDR4 · 64 GB | 2× DDR4 · 64 GB | 1× DDR4 · 32 GB | 2× DDR3L · 16 GB |
| Ethernet | 2× GbE (Realtek) | 2× GbE (Intel I210/211) | 2× GbE (Realtek) | 2× GbE (Realtek) | 2× GbE (Realtek) | 2× 2.5GbE (Intel i225-V) |
| COM Ports | 2× RS232 | 6× RS232/422/485 | 2× RS232/485 | 2× RS232/485 | 2× RS232 | 6× RS232 |
| GPIO / CAN | — | 8-bit GPIO + 2× CAN (opt.) | 14-pin GPIO | 14-pin GPIO | — | — |
| Display | HDMI 2.0 + VGA | HDMI + eDP + Type-C | DP + 2× HDMI | DP + 2× HDMI | 2× HDMI | HDMI + VGA |
| Storage | M.2 + mSATA + SATA | M.2 + SATA 3.0 | M.2 PCIe4.0 + SATA 3.0 | M.2 + SATA 3.0 | M.2 + SATA 3.0 | mSATA + SATA 3.0 |
| Power Input | 12V 5A | 19V 4.74A | 12~19V DC | 12V 6A | 12V 5A | 12V 5A |
| Operating Temp | -20~50°C | -10~55°C | -10~60°C | -10~60°C | -10~50°C | -20~60°C |
| Dimensions (mm) | 135×127×39 | 230×182×65 | 220×127×55 | 190×126×60 | 170×126×58 | 240×150×57 |
| Mounting | Desktop / VESA | Desktop / Wall / VESA | VESA / Rail / Wall | Desktop / Wall | Desktop / Wall / VESA | Desktop / Wall / VESA |
Full technical specs are available on each product page. Contact our engineers for custom configurations.
Applications
Built for demanding environments

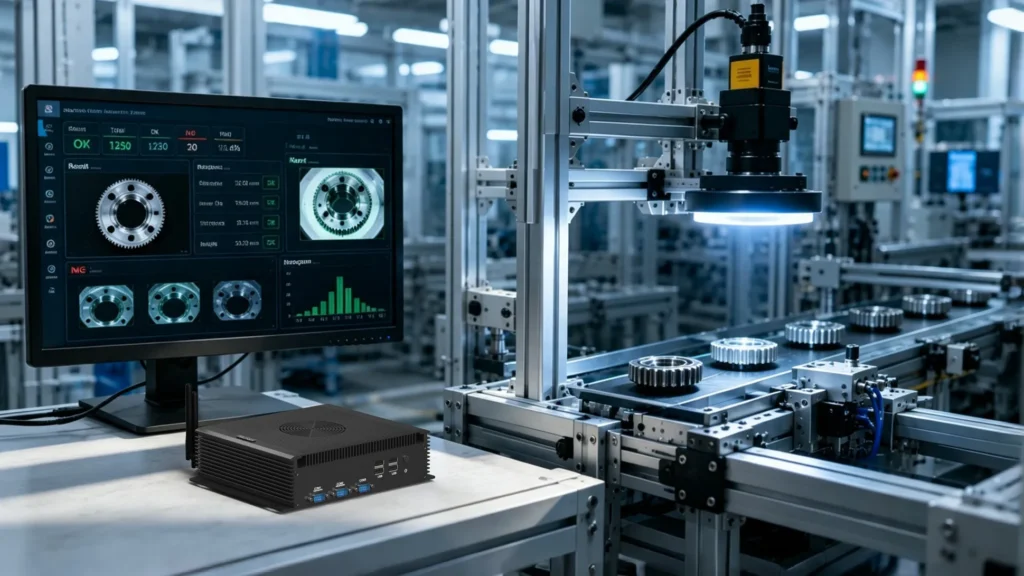

Factory Automation
Drive HMI panels, MES/SCADA systems, and production-line controllers.
IoT Gateways
Aggregate sensor data with dual LAN and on-site edge processing.
Digital Signage
Silent, fanless 24/7 operation for retail and transit displays.

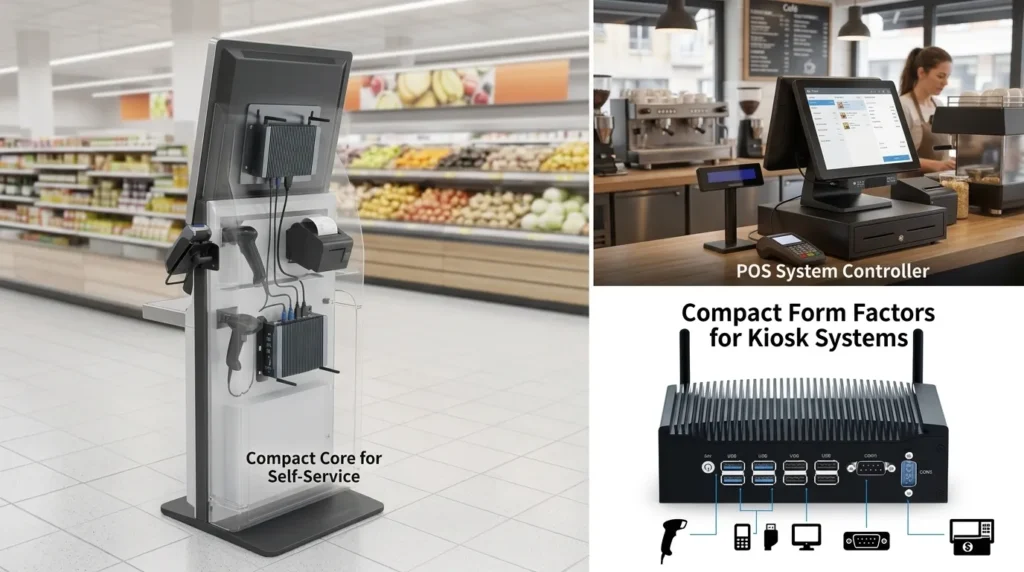

Kiosk Systems
Compact form factors for self-service and point-of-sale kiosks.
Certifications
Certified & credentialed
FAQ
Fanless Industrial PC FAQ
How does HYSTOU's fanless design prevent overheating?
Our fanless Mini PCs use a chassis-as-heatsink design: the aluminum housing dissipates heat passively, so there is no fan to wear out. This removes the leading cause of mechanical failure, reduces dust ingress, and enables silent operation — important for medical, lab, and AV environments.
What does wide-temperature operation mean in practice?
Our industrial Mini PCs are rated for wide-temperature operation down to as low as -20°C depending on the model — see the comparison table. That means reliable operation in unheated warehouses, outdoor enclosures in hot climates, and inside machinery cabinets where heat builds up.
Can these Mini PCs run 24/7 without failure?
Yes. A fanless design removes the fan — the leading mechanical failure point — while an aluminum chassis radiates heat and wide-input DC power keeps the unit stable around the clock. This is a proven platform: HYSTOU has built industrial PCs since 2013, and across 48,473 units shipped in 2025, only 336 were returned for service (a sub-0.7% field return rate). Ask our engineers to configure the exact components for your duty cycle.
Which model is right for my application?
For entry-level signage or gateways, start with the H3 or K4. For multi-COM industrial automation with GPIO and CAN, choose the H4T. For high-performance edge workloads and multi-4K displays, the H6 12th Gen or H6 i7 are ideal. Unsure? Our engineers can match a model to your exact spec — contact us for a free consultation.
Do you support OEM/ODM customization?
Yes. We offer CPU/RAM/storage configuration, BIOS customization, I/O and port changes, OS pre-installation, and branding. Contact our team for MOQ and lead time based on your configuration.
How long does a standard order take?
In-stock orders are typically processed within 1–2 business days and shipped in 3–8 business days depending on destination — roughly 7–14 days from order to delivery. Back-ordered items add 4–6 business days of processing; we keep you posted by email. Custom or bulk OEM builds have their own lead time — contact our team for a firm quote.
Request Technical Support
Our engineers respond to all industrial inquiries within 12 hours.
