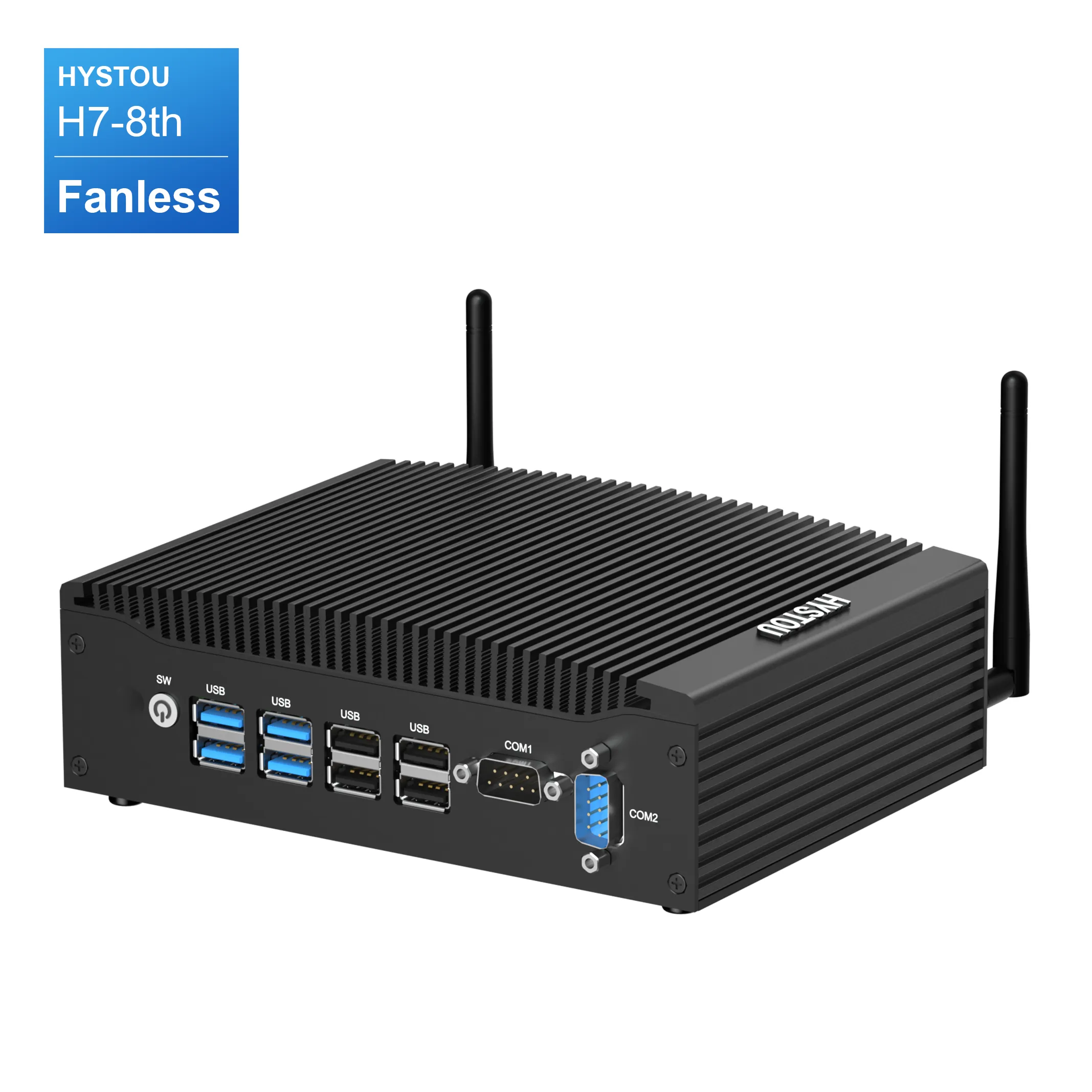

HYSTOU H7-8th Fanless Industrial Mini PC with Intel Core i5-8350U
Categories: Industrial Mini PC, Office Mini PCs
- Absolute Silence & Dustproof: Fanless passive cooling with a premium aluminum alloy chassis ensures zero noise, zero mechanical failure, and maximum lifespan in harsh environments.
- High-Speed Dual Gigabit LAN: Powered by dual Realtek 8168/8111 Gigabit Ethernet controllers—perfect for advanced soft routers, pfSense firewalls, and home lab deployments.
- Hardware RAID Data Protection: Supports hardware RAID 0/1 modes via dual SATA interfaces to balance ultra-fast data access and secure mirroring backups.
- Industrial-Grade Expansion: Equipped with an Intel Core i5-8350U processor, DDR4 SODIMM slot (up to 32GB), NVMe PCIe 3.0, and an integrated Nano-SIM slot for 3G/4G connectivity.
- Multi-Display & Space-Saving: Dual HDMI 1.4 ports support dual displays for digital signage and monitoring, paired with a pocket-sized chassis that is fully VESA mount-ready.
| Range | Discount |
|---|---|
| 1 - 5 | $347.34 |
| 6 - 50 | $345.34 |
| 51 - 100 | $343.34 |
| 101 + | $340.34 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HYSTOU H7-8th Fanless Mini PC
Fanless|Industrial-Grade| Built for 24/7 Operation.
Engineered for soft routers, firewalls, NAS storage, and industrial automation—the H7 delivers enterprise-class performance in absolute silence.

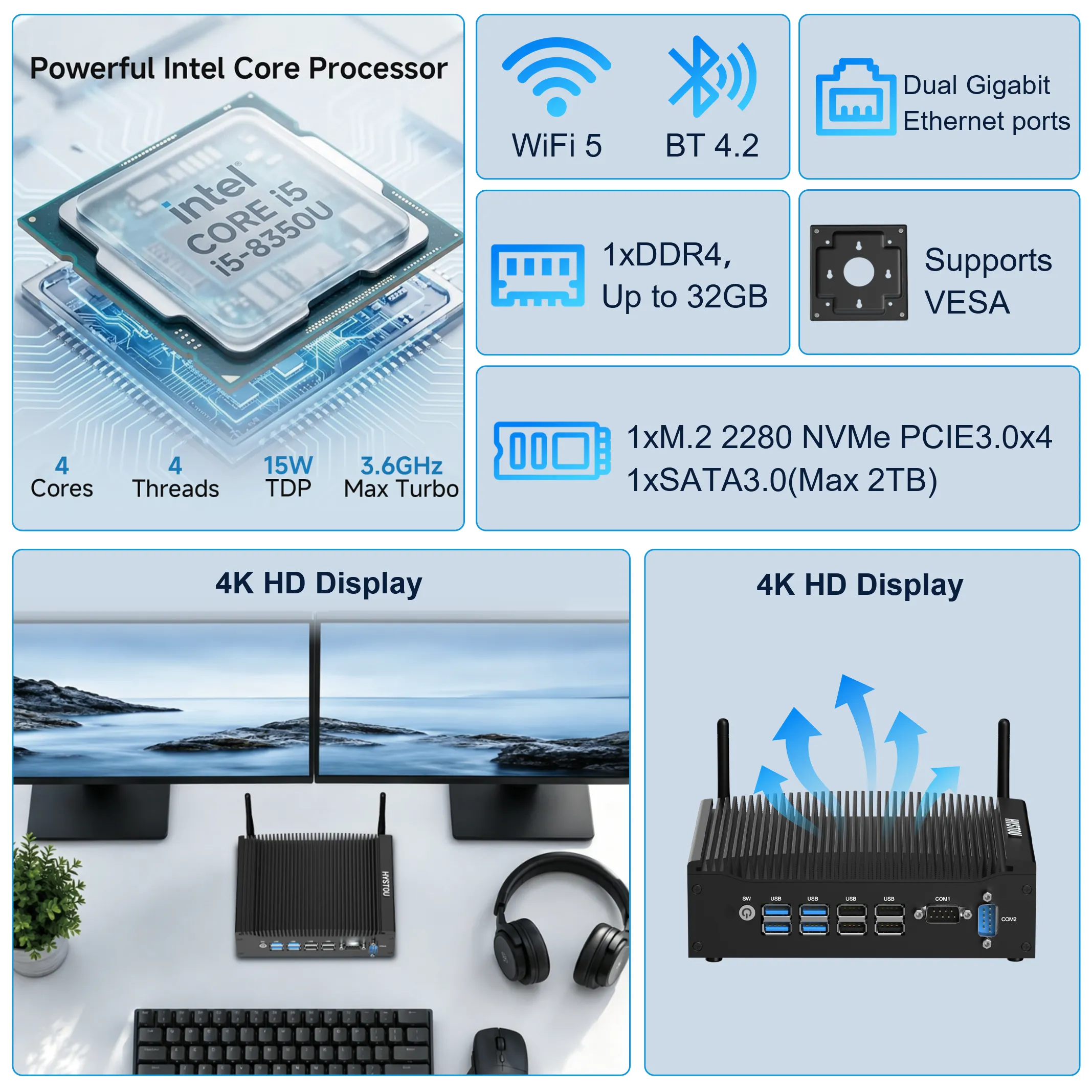

First Look
Low power design
1×DDR4，Up to 32GB
1xM.2 2280 NVMe PCIE3.0 x4
WiFi 5
BT 4.2
Fanless|No Noise
Dual Gigabit Ethernet ports
Supports VESA
Balanced Performance for Demanding Workloads

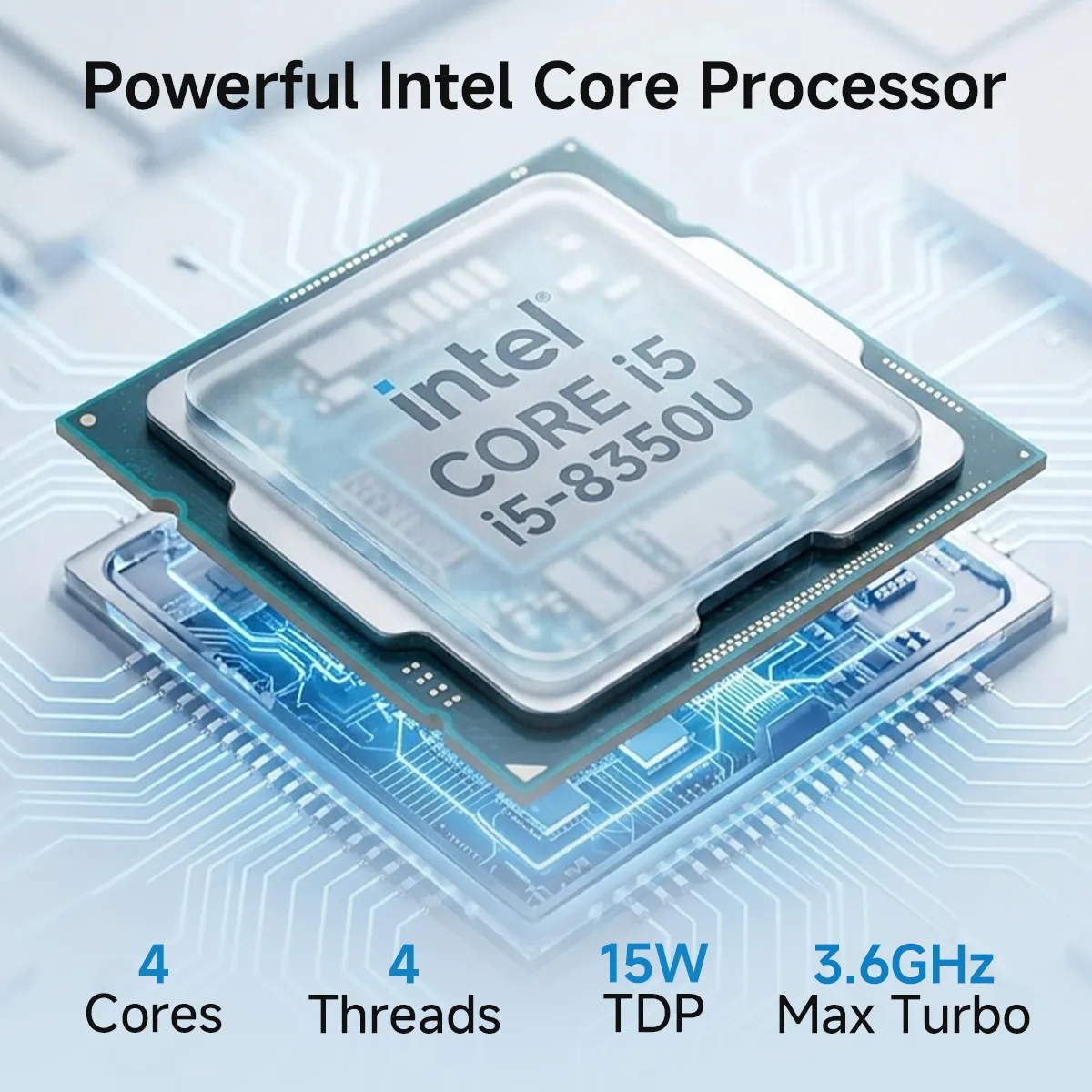

Equipped with a 4-core, 8-thread architecture and a 15W TDP low-power design, the Intel Core i5-8350U precisely balances processing power and energy consumption. This makes the H7 an ideal hardware platform for edge computing, IoT gateways, and lightweight virtualization without thermal throttling.

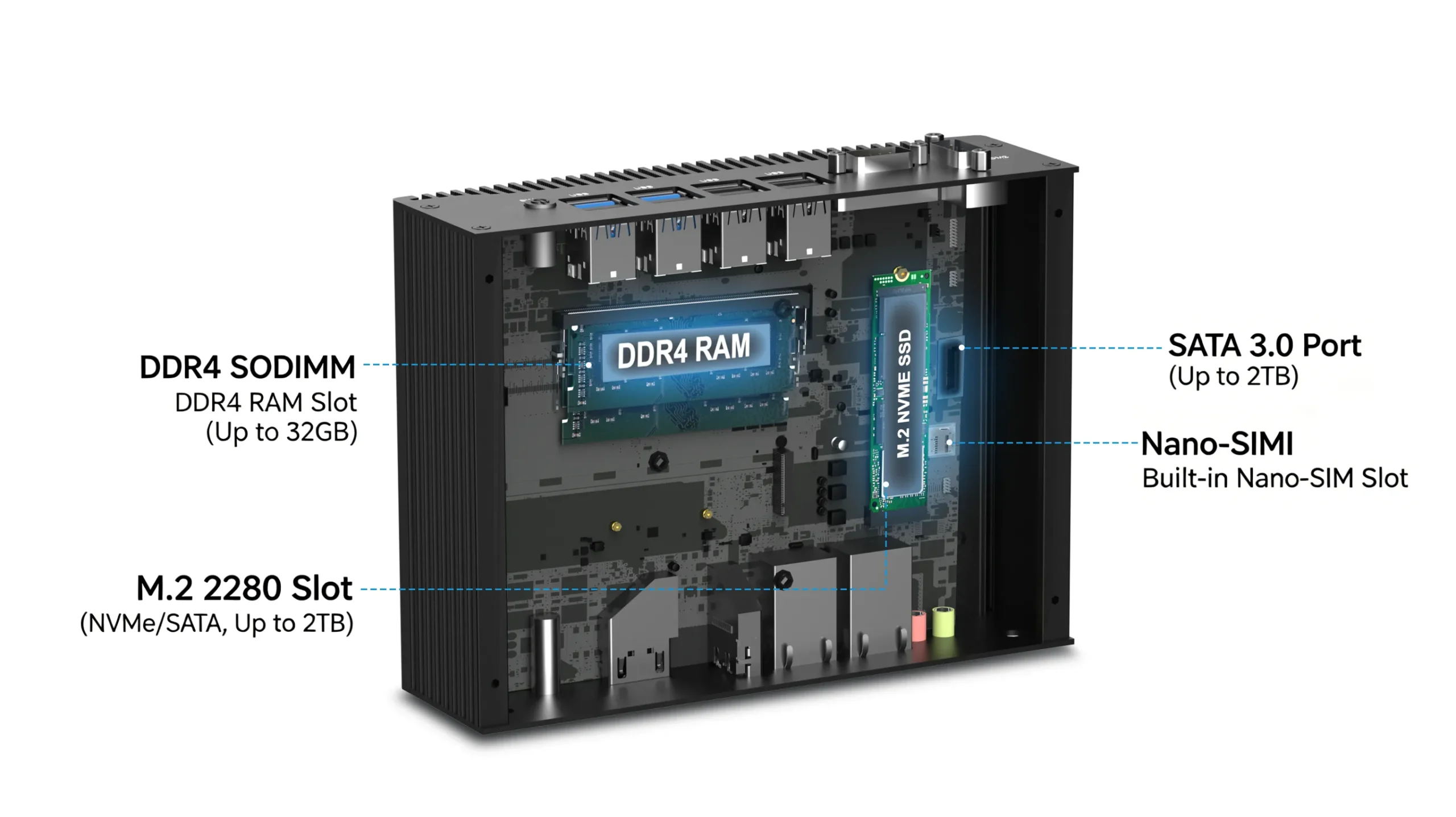

Grow With Your Needs
The H7 adapts to your evolving requirements—from initial deployment to advanced configurations.

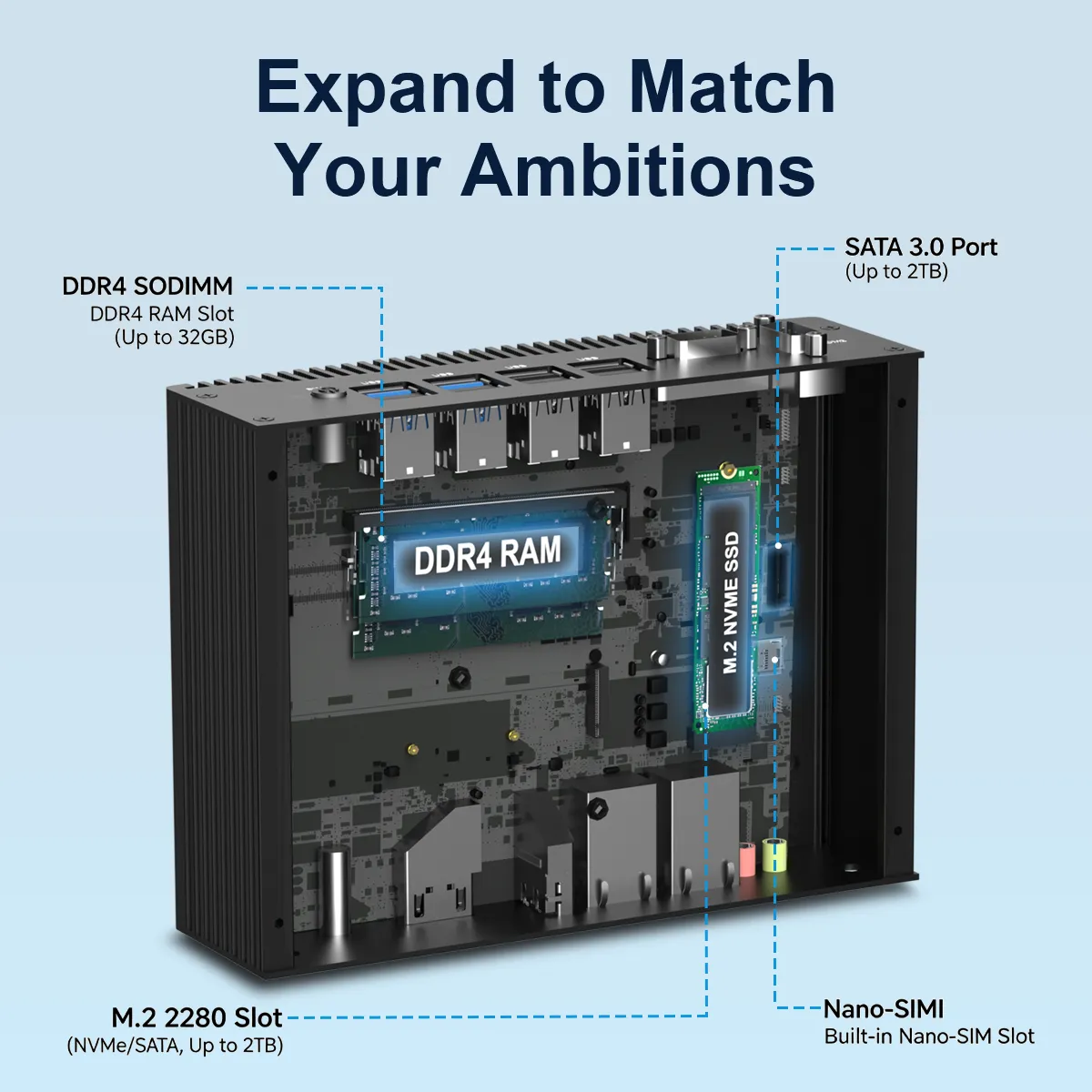

RAM
The H7 mini PC is equipped with 1 DDR4 260‑pin SODIMM slot, supporting up to 32GB DDR4 memory.
Storage
1 × M.2 2280 slot: Supports NVMe PCIe 3.0 ×4 / SATA SSD, up to 2TB
1 × SATA 3.0 port: Supports 2.5‑inch SSD/HDD (≤7mm), up to 2TB
Combined with RAID 0/1 support, it delivers fast system response and enhanced data security.
SIM
This device integrates a built‑in Nano‑SIM slot (9mm × 12mm), compatible with 4G / 3G modules via the M.2/MPCIE interface.
Secure Your Data, Boost Your Speed
The H7 supports dual-storage RAID 0/1. Using two SATA drives, you can prioritize either faster transfer speeds (RAID 0) or enhanced data security (RAID 1).
RAID 0 (Striping): Combines two drives into one logical volume for increased read/write performance. Ideal for applications requiring fast data access.
RAID 1 (Mirroring): Creates an exact copy of data on two drives. If one drive fails, the other continues to operate, ensuring data integrity and business continuity.

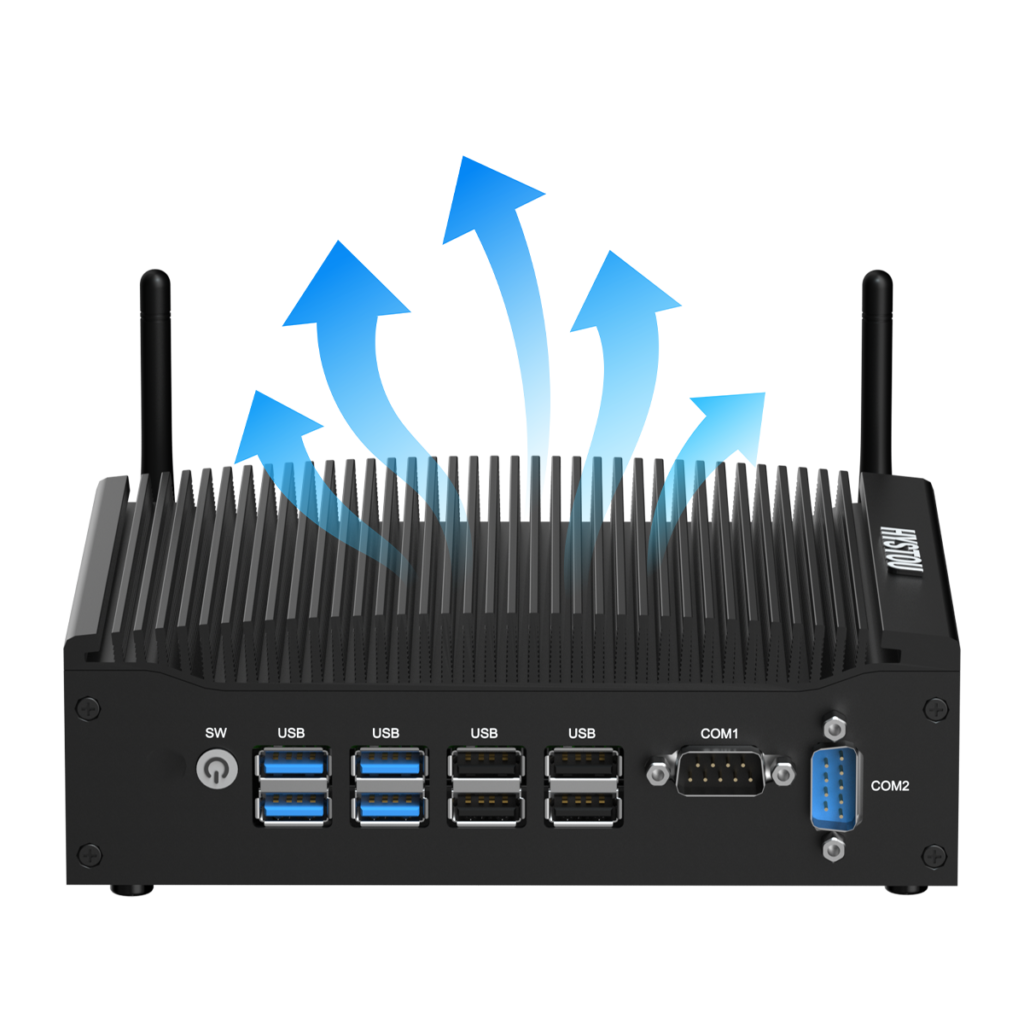

Engineered in Silence
Precision-machined aluminum alloy chassis with top fin-type passive cooling design, delivering a stable and silent operating environment
- Fanless, Zero Noise: As quiet as a whisper
- Zero Mechanical Failures: Fanless design eliminates the risk of fan damage, significantly extending product lifespan
- Dustproof Structure: Sealed chassis blocks dust intrusion, making it exceptionally suitable for industrial environments
- 24/7 Stable Operation: Runs continuously without CPU throttling, no risk of thermal runaway

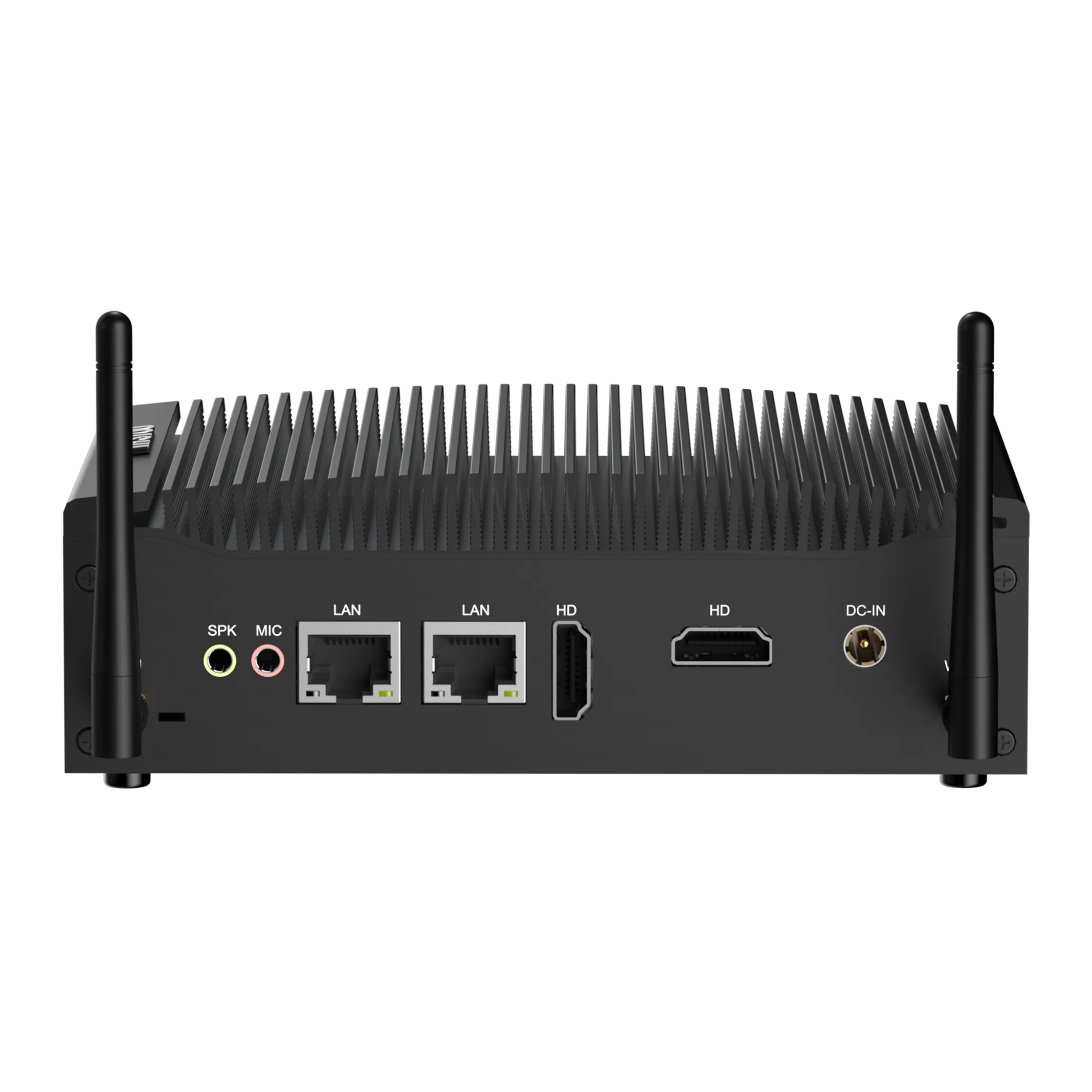

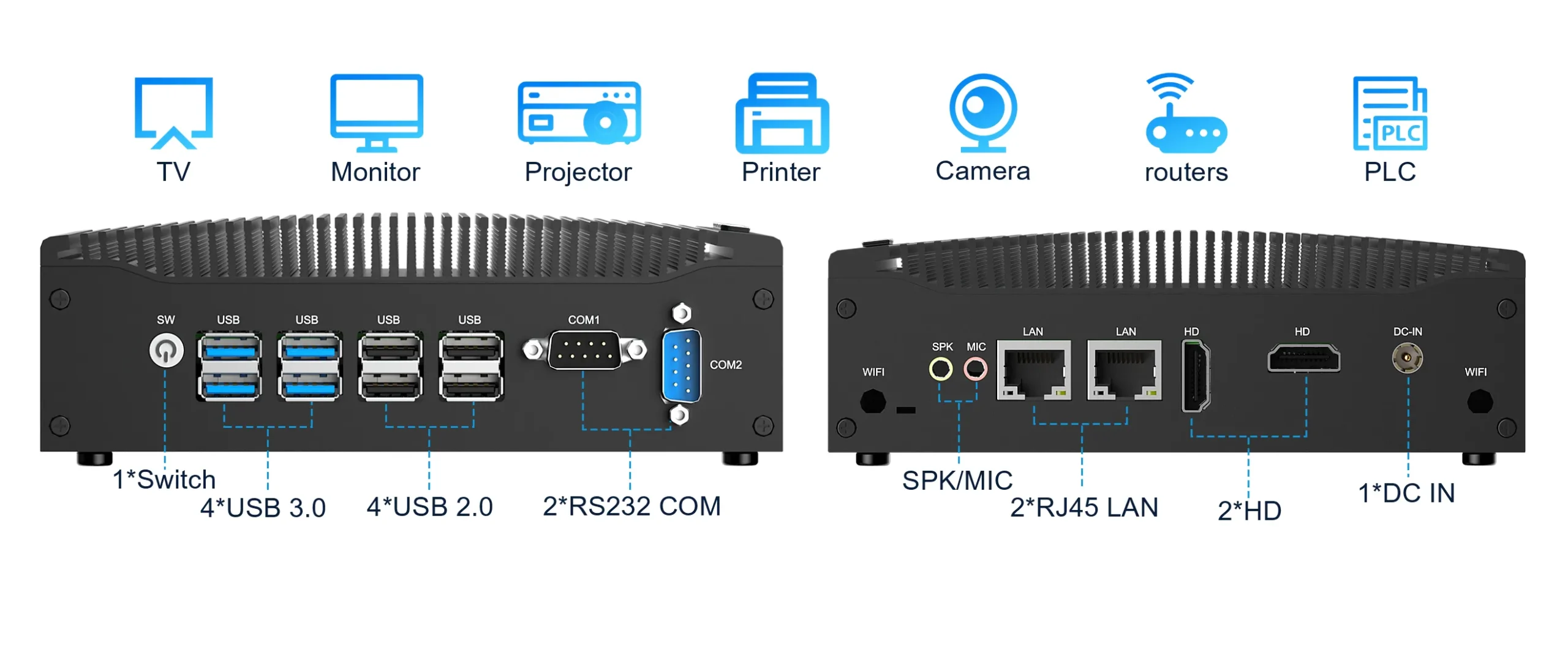

Every Port You Need
A comprehensive suite of front and rear I/O ports ensures seamless integration with your existing infrastructure.

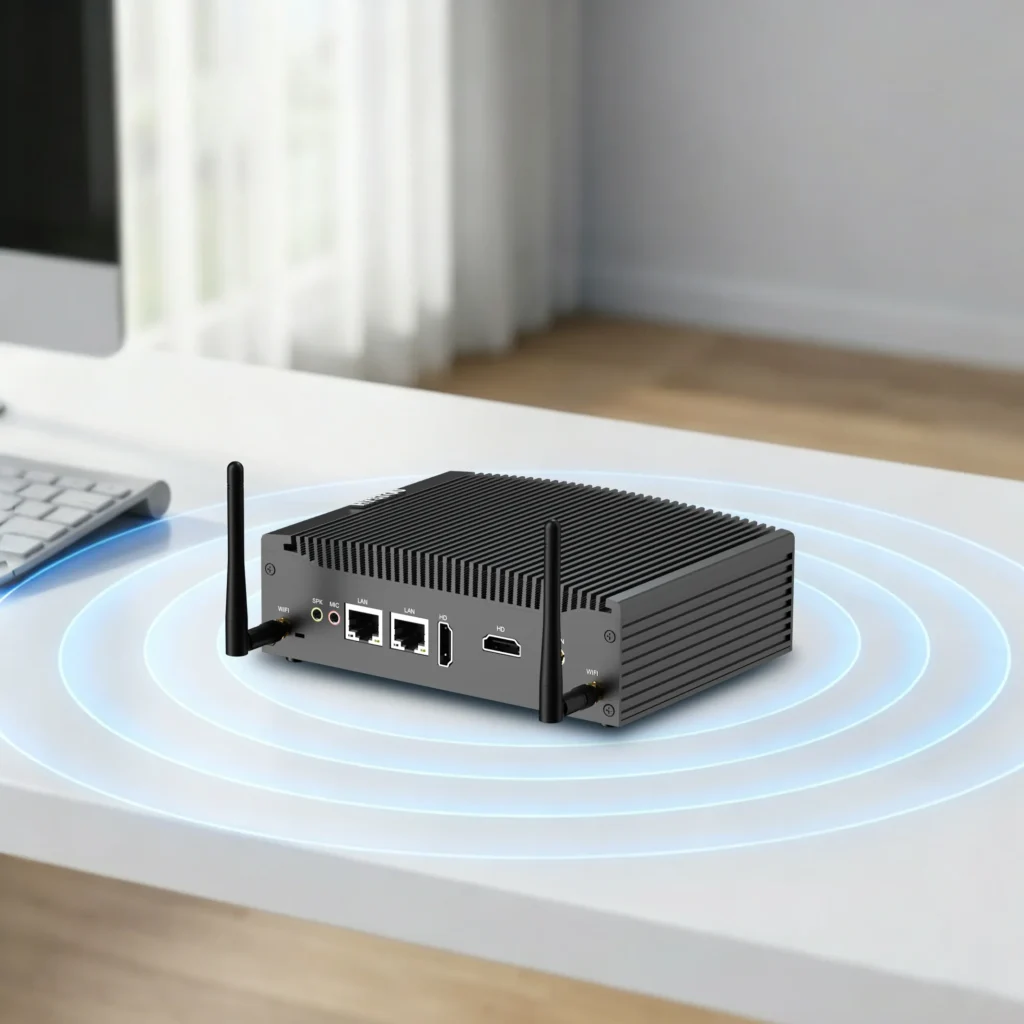

Built for the Perfect Home Lab
The H7 comes equipped with dual Realtek 8168/8111 Gigabit Ethernet controllers, delivering reliable, high-speed network connectivity for your most demanding router and firewall applications.

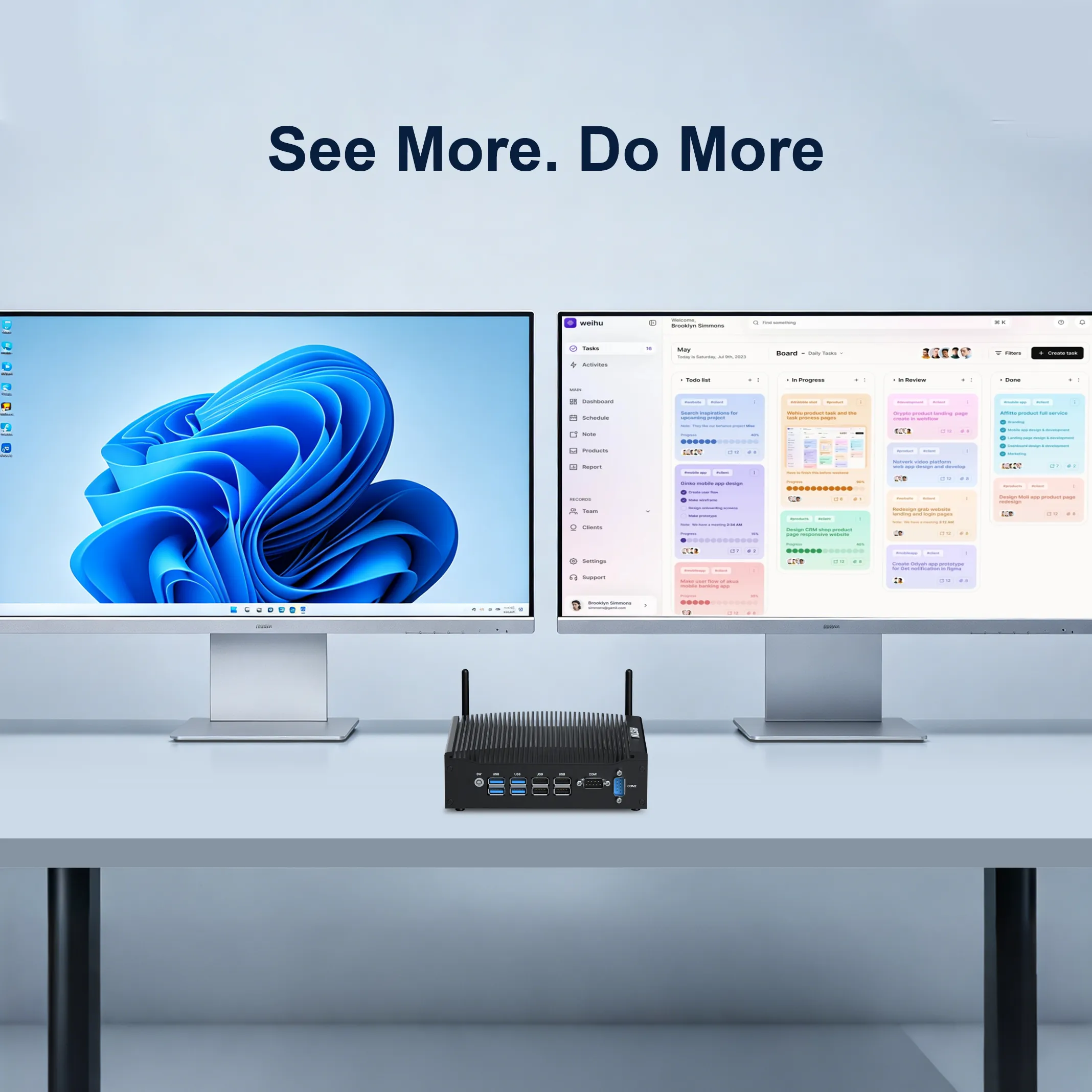

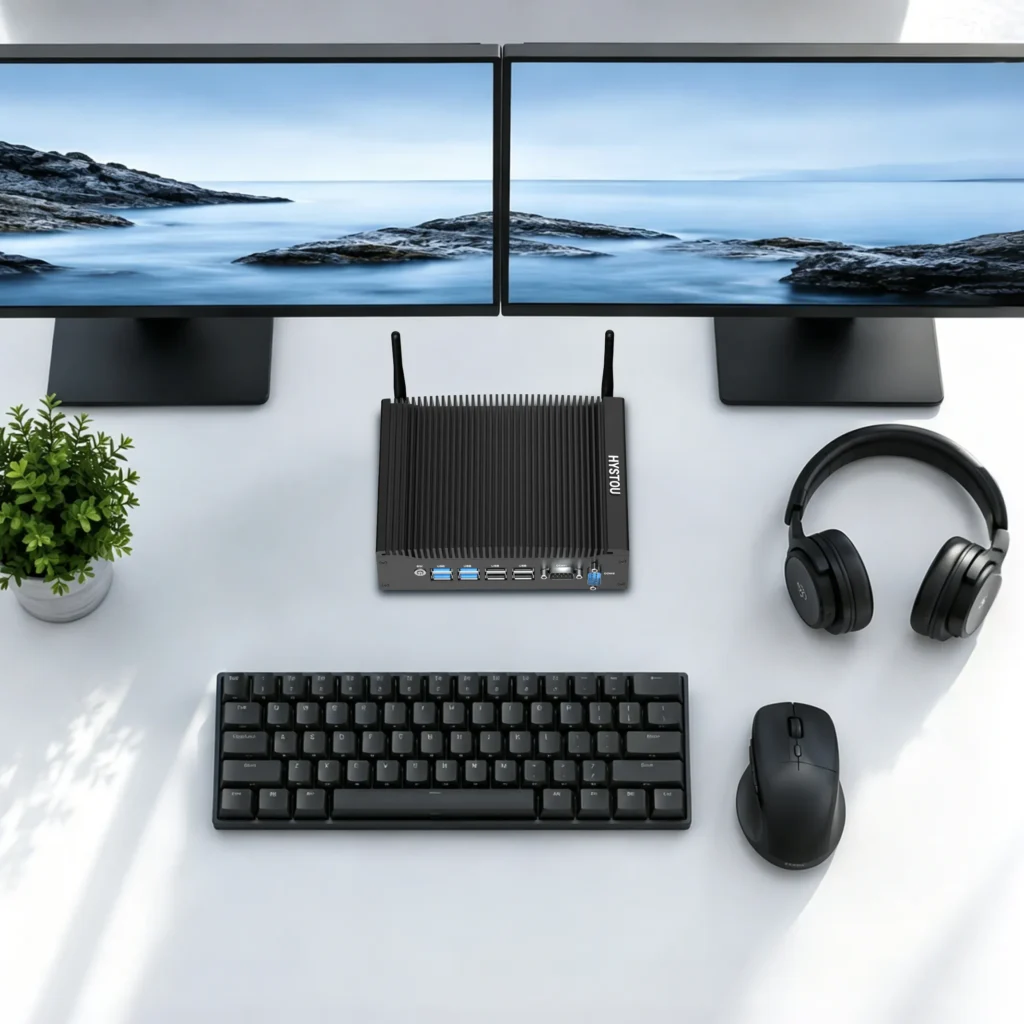

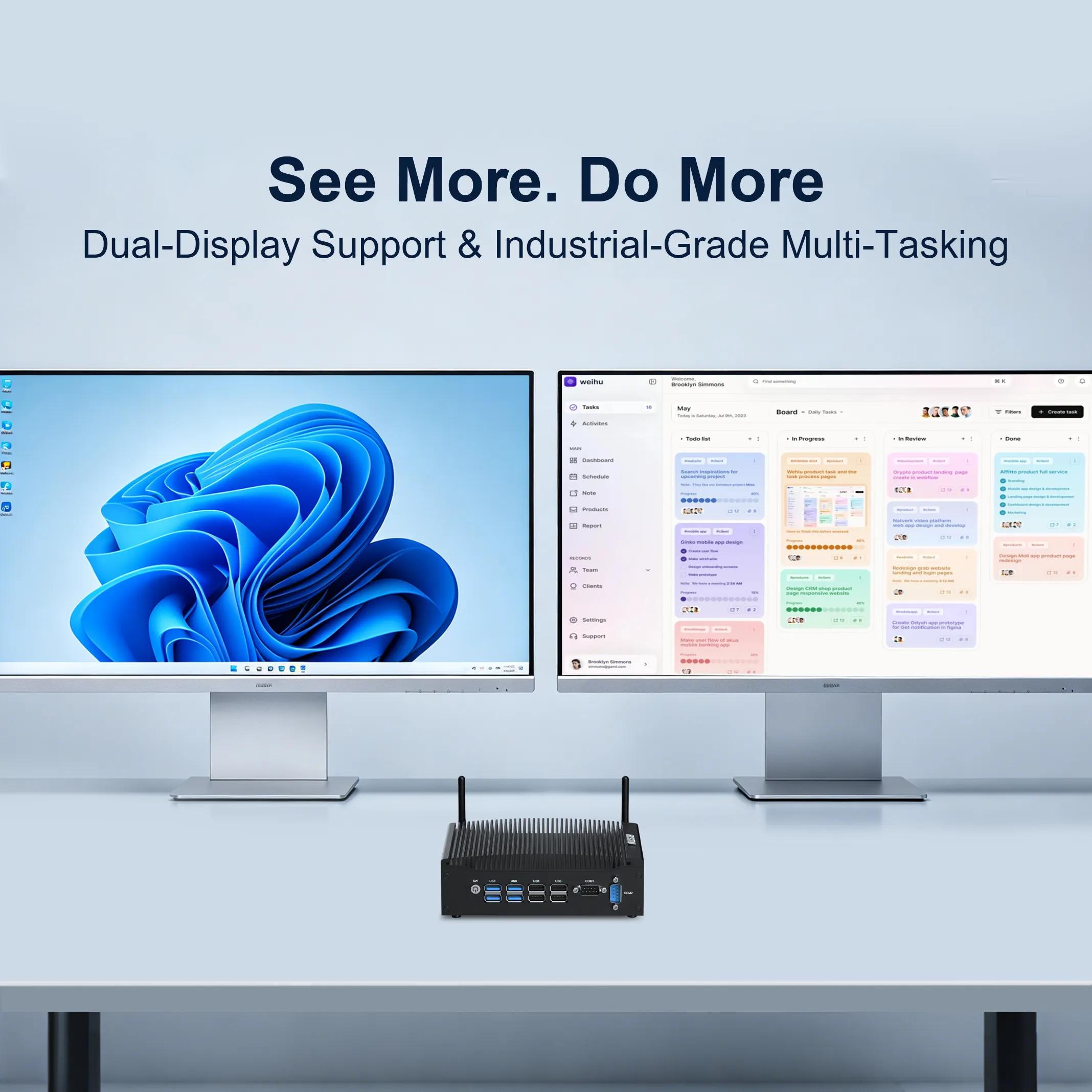

See More. Do More
Two screens. Two HDMI ports. Zero compromise on clarity.

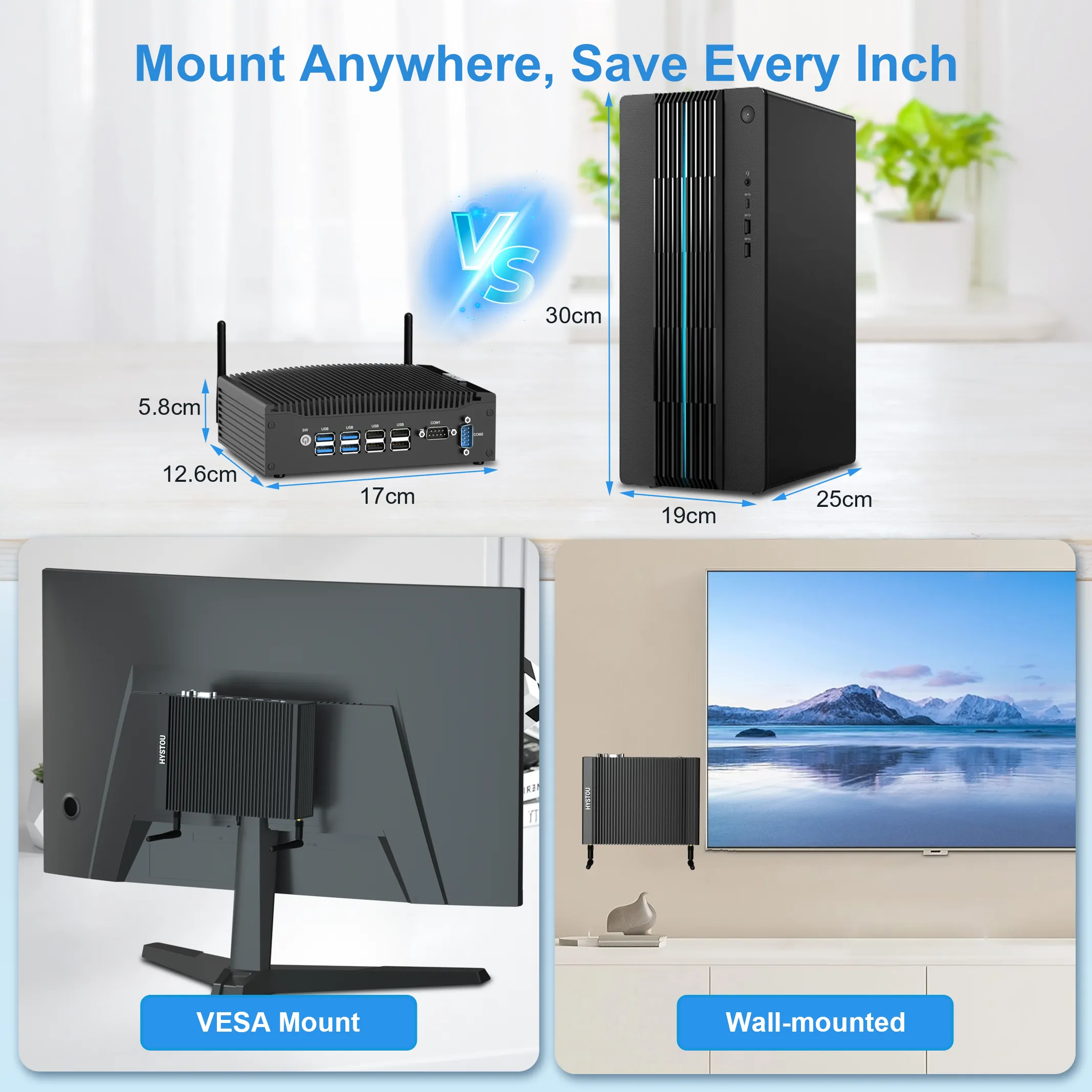

Small Footprint, Big Impact
Measuring just 170×126×58mm and weighing 1.1kg, the H7 fits anywhere—on your desk, behind your monitor, or mounted on the wall.

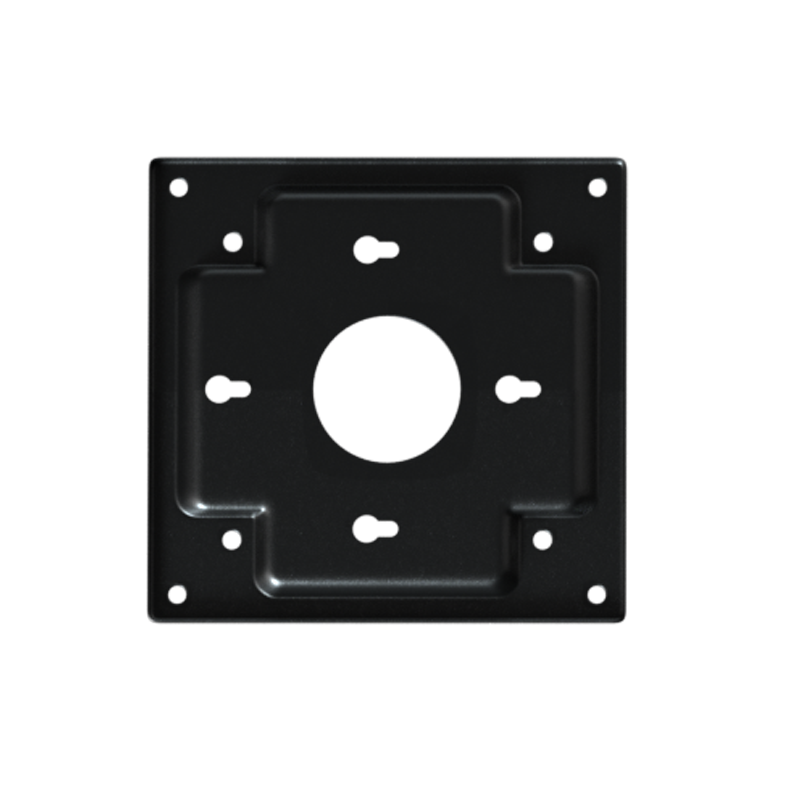

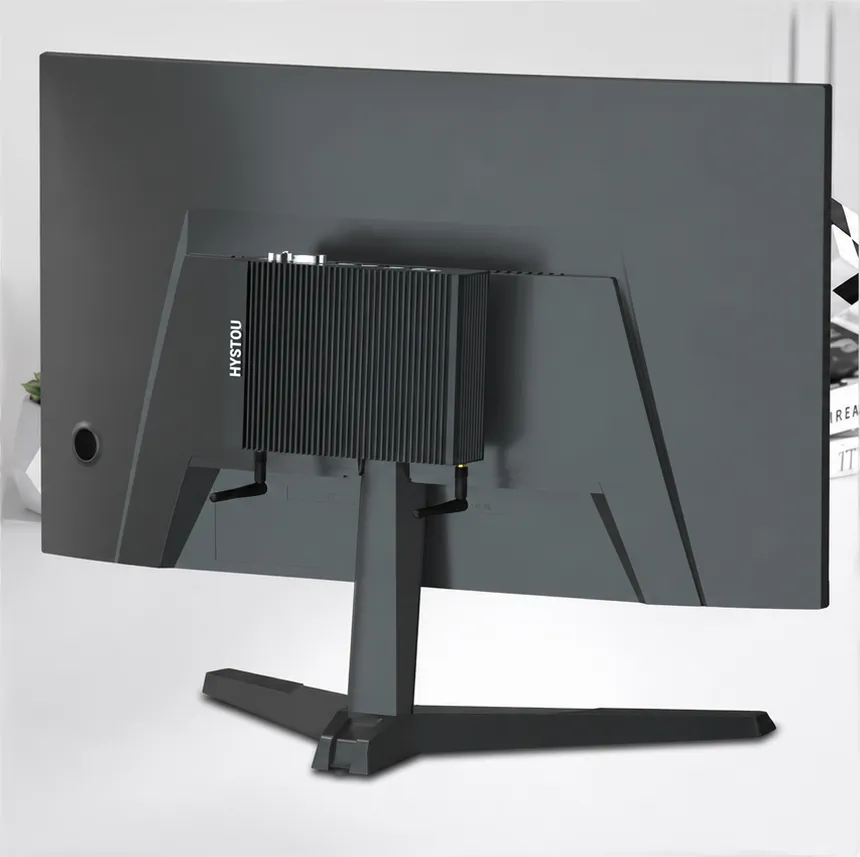

VESA Mount

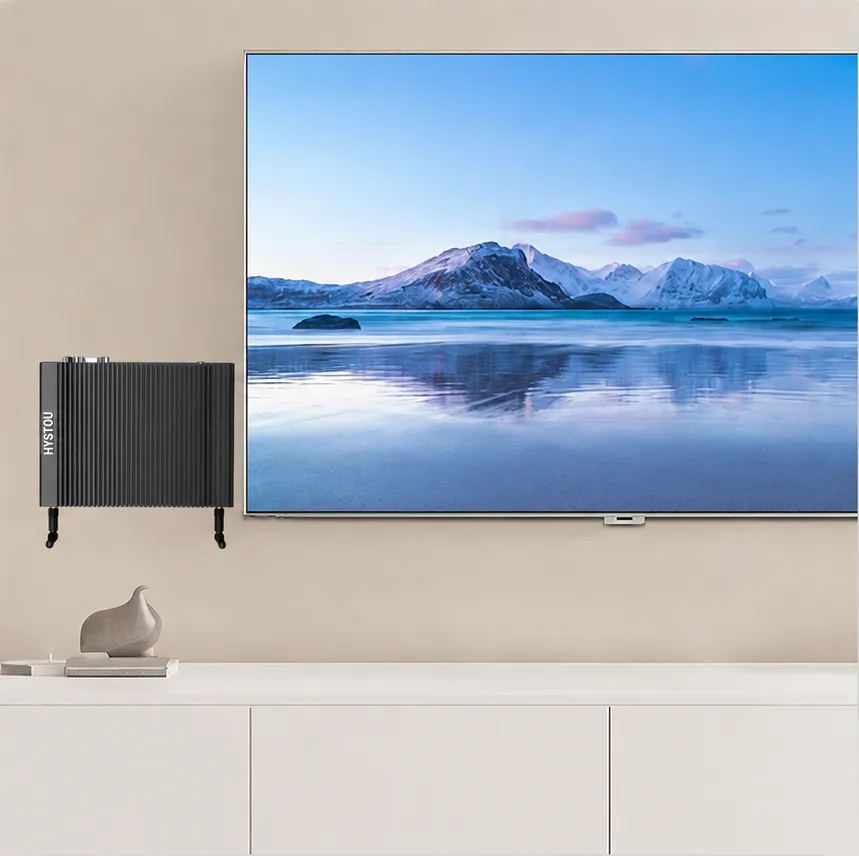

Wall-mounted
Specifications
| Category | Details |
|---|---|
|
Processor |
Intel Core i5-8350U (4C/8T, 1.7-3.6GHz) |
|
Memory |
1×DDR4 2400MHz SODIMM (max 32GB) |
|
Storage |
1×M.2 2280 NVMe PCIE3.0 ×4（Max 2TB） |
|
Graphics |
Intel® UHD Graphics 620 |
|
Networking |
2×RJ45（10/100/1000M）, default WiFi 5/BT4.2 |
|
Operating System |
Windows 10/11/Linux(Ubuntu\Centos\Pfsense\opnsense\VMWare Exsi)\Qubes Os |
|
Power Supply |
12V 5A |
|
Dimensions |
170×126×58mm |
|
Weight |
1.1kg (net), 1.9kg (with accessories) |
|
Material |
Aluminum alloy |
|
l/O ports |
4xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/3G/4G modules. |
|
Kensinaton Lock |
Yes |
|
Accessory |
VESA mount、Wall-mounted |
|
Working environment temperature |
-10°C~50°C |
|
Cooling system CPU fan DB (MAX) |
Fanless, Odb |
Frequently Asked Questions
What operating systems are compatible with the H7 Mini PC?
The Hystou H7 fully supports Windows 10/11, Linux distributions (Ubuntu, CentOS), and specialized networking/virtualization platforms including pfSense, OPNsense, Proxmox VE, Qubes OS, and VMware ESXi.
Does the H7 support cellular connectivity for remote deployment?
Yes. The motherboard includes an internal mini-PCIe slot for 3G/4G LTE modules and a physical Nano-SIM card slot (9mm x 12mm), enabling reliable cellular backup or remote IoT edge gateway operations.
Can Hystou customize this Mini PC for bulk industrial orders?
Absolutely. We offer comprehensive OEM/ODM customized services for enterprise clients, including custom laser-engraved logos, specialized BIOS modifications (such as Auto Power On or PXE Boot default settings), and tailored hardware specifications.
Does the H7 Mini PC support Auto Power On after a power failure?
Yes, absolutely. The Hystou H7 motherboard features hardware-level Power-on Self-Starting (Auto Power On) functionality, ensuring the system automatically reboots as soon as power is restored. This setting can be easily toggled via the BIOS. Combined with its support for Wake-on-LAN (WoL) and PXE Boot, the H7 is engineered for reliable 24/7 uptime, making it ideal for remote deployments, unattended server rooms, and industrial automation networks.
How do I utilize the built-in SIM card slot for 3G/4G connectivity?
To activate cellular network capabilities, you need to install a compatible Mini-PCIe 3G/4G LTE module into the internal expansion slot and insert a standard Nano-SIM card into the physical slot. This setup provides excellent network redundancy or primary internet access for remote IoT deployments.
