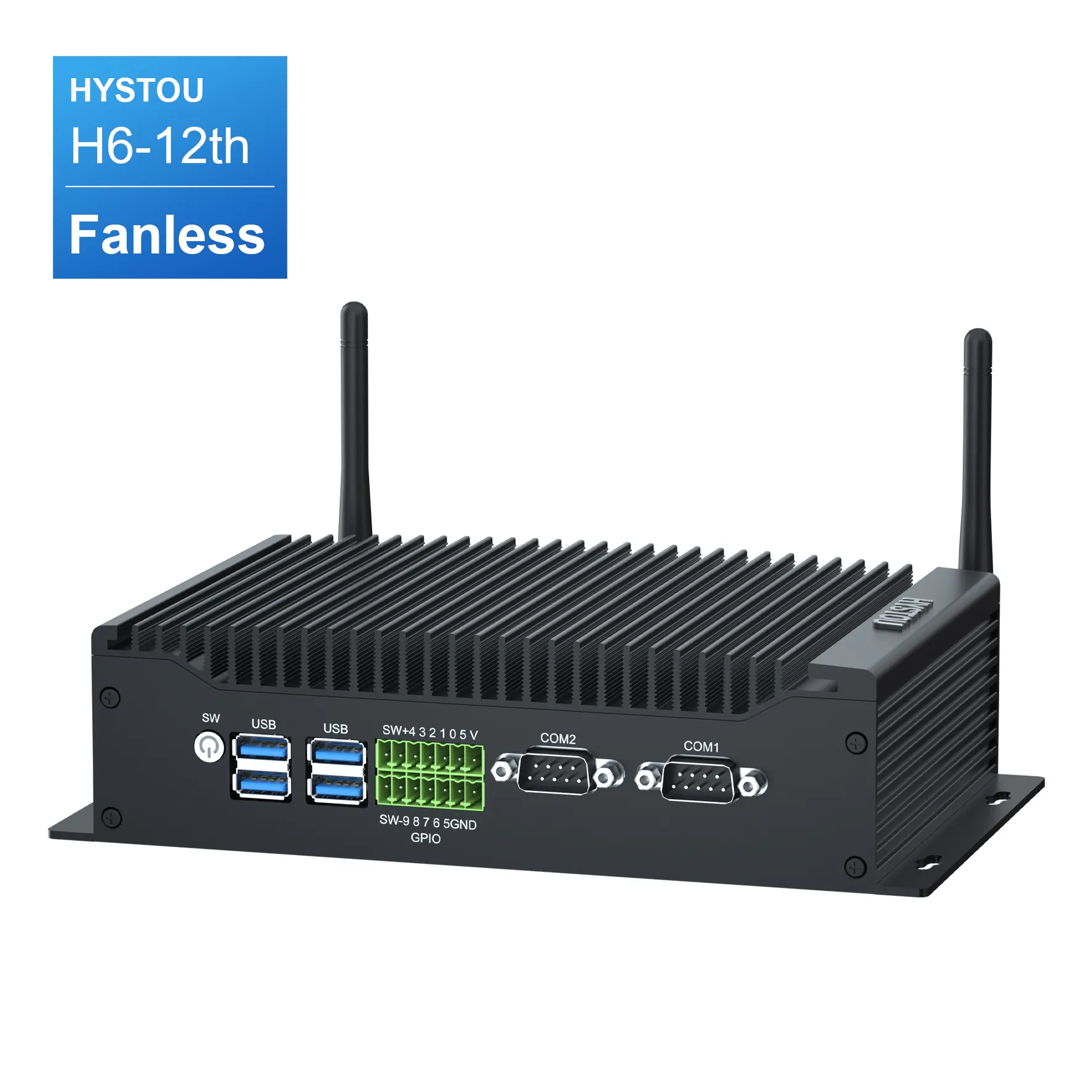

HYSTOU H6-12th Fanless Embedded Mini PC with Intel® Core™ i5-1235U
Categories: Industrial Mini PC, Office Mini PCs
- Intel Core i5 Computing Hub: Powered by Intel i5-1235U & Iris Xe Graphics, balancing responsive multi-tasking performance with energy-efficient 15W TDP.
- Maintenance-Free 0dB Fanless Design: Fully enclosed dustproof structure eliminates fan failure risks, ensuring long-term 24/7 reliability in high-dust public spaces.
- Wireless Smart Office Integration: Features cutting-edge Wi-Fi 6E and Bluetooth 5.2 for clutter-free pairing with wireless conference equipment and high-speed file sharing.
- Industrial Automation Connectivity: Equipped with Dual Gigabit LAN for network isolation and 2x 9-pin DB serial ports (RS232/RS485) for seamless PLC integration.
- Unattended Remote Operation: Fully supports Auto Power On, Wake-on-LAN (WOL), and UEFI PXE Network Boot to eliminate the need for on-site manual operation.
| Range | Discount |
|---|---|
| 1 - 5 | $463.02 |
| 6 - 50 | $461.02 |
| 51 - 100 | $459.02 |
| 101 + | $456.02 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HYSTOU H6-12th Fanless
100%Silent, Industrial-Grade 24/7 Stability
Intel® Core™ i5-1235U Processor
Hybrid 10-Core / 12 Threads / 4.4GHz Max Turbo.
Intel® Iris® Xe Graphics
High-Performance Integrated GPU / Fluid 4K Rendering.
Dual Gigabit LAN
Dual-Channel Slots / Upgradeable High-Bandwidth Memory.
Wi-Fi 6E
High-Speed 6GHz Spectrum / Ultra-Fast & Interference-Free.
0dB Fanless Cooling
All-Aluminum Chassis / Passive Heat Dissipation / Dustproof & Silent.
Dual Gigabit LAN
Dual Network Interfaces / Secure Data Isolation / Network Redundancy.
DB Industrial Serial
Native COM Interfaces / RS232 & RS485 Serial Communication.
Bluetooth 5.2
Low Energy / Instant & Reliable Wireless Peripheral Pairing.
Uncompromised Power, Ultimate Efficiency
Featuring a hybrid 10-core (2P+8E) & 12 threads structure with up to 4.4GHz turbo boost. This energy-efficient fanless mini PC delivers lag-free multitasking, making it the ideal hardware solution for industrial automation, smart office, and edge computing gateways.
Blazing-Fast Memory & Expandable Storage
- Dual DDR4 SODIMM slots, support up to 64GB 3200MHz high-frequency memory for seamless multi-tasking
- 1x M.2 2280 slot with PCIe 4.0 x4 interface, supports NVMe Gen4 SSD (up to 4TB), sequential read/write speeds up to 3500MB/s, 3x faster than PCIe 3.0
- 1x SATA 3.0 port for 2.5-inch SSD/HDD (up to 4TB), flexible expansion for mass data storage
- No capacity limits beyond hardware specs, ideal for long-term industrial data recording and surveillance storage

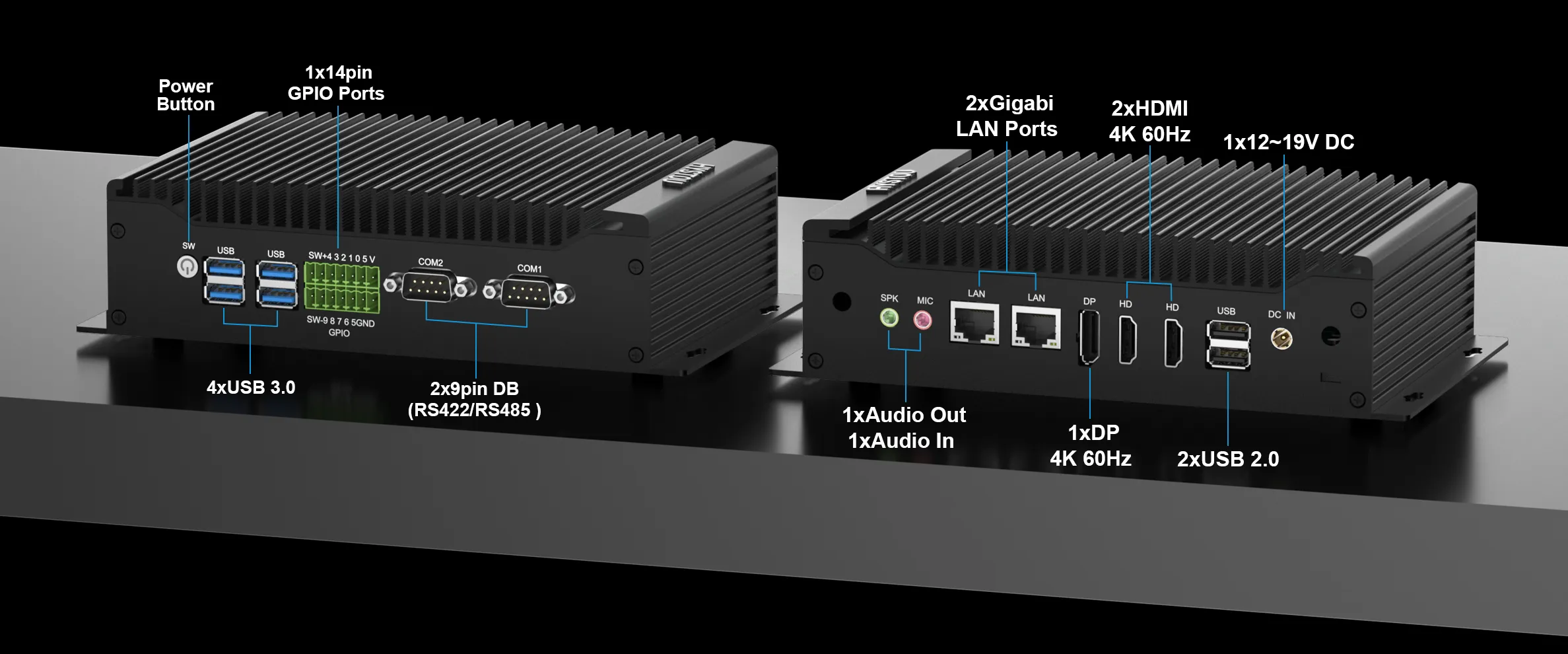

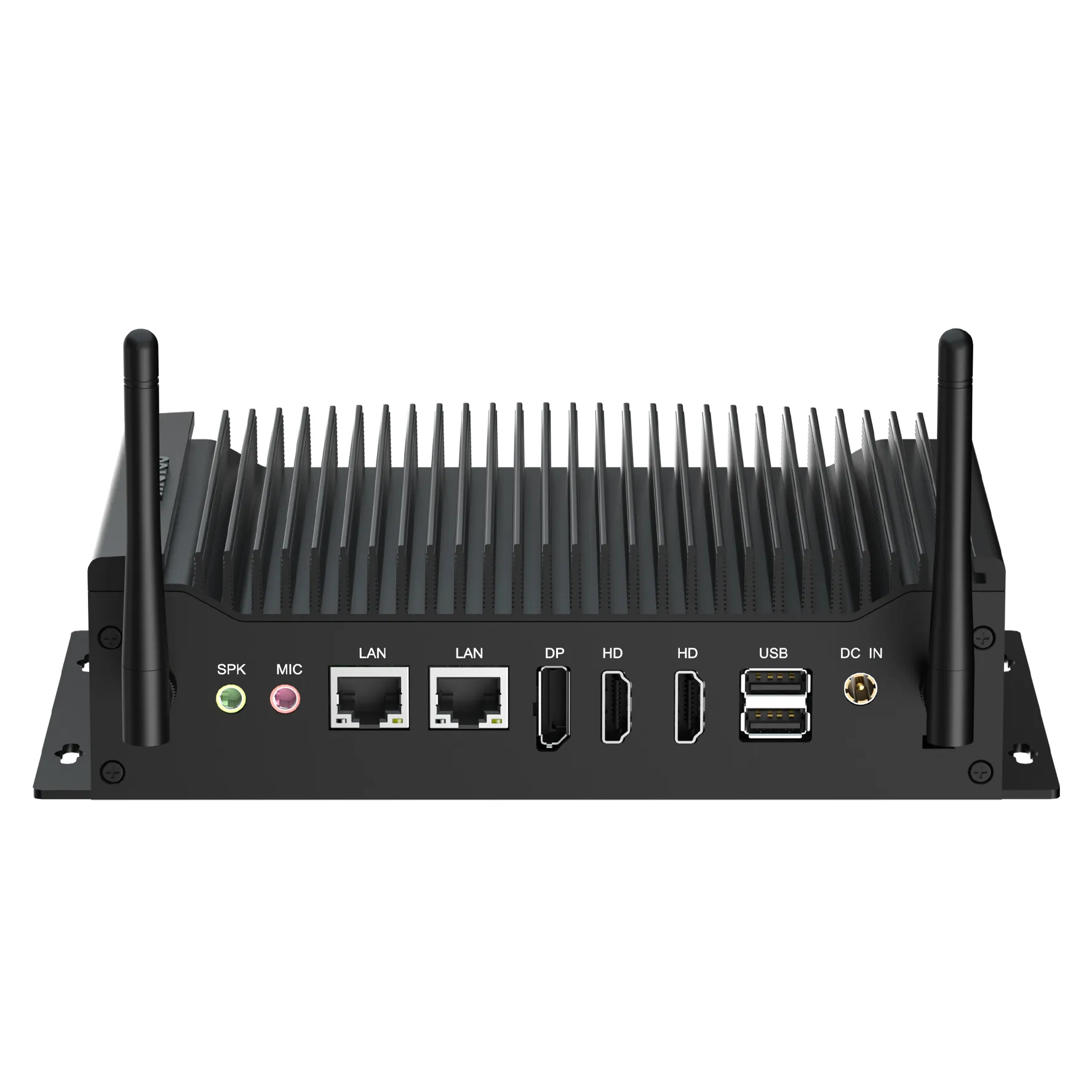

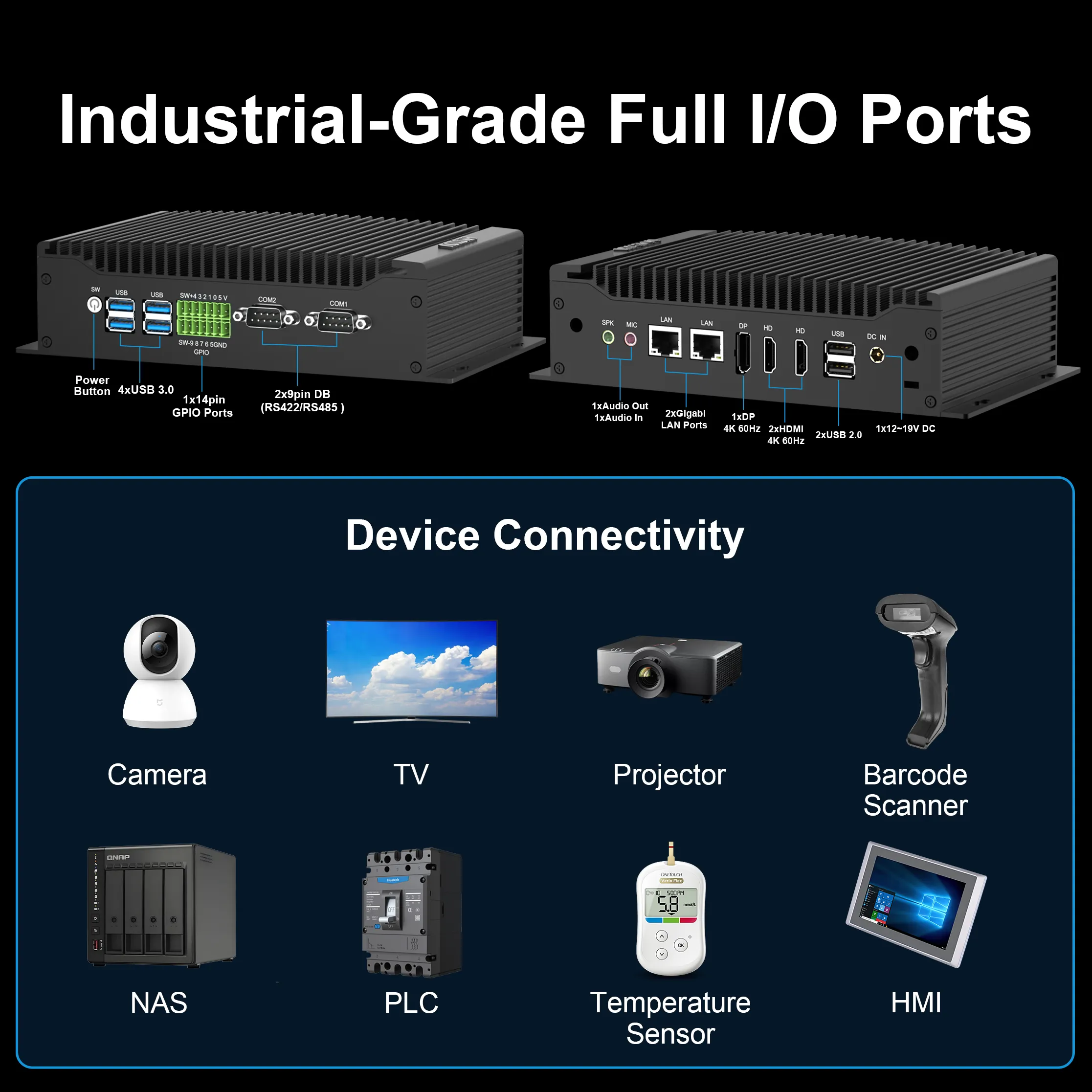

Industrial-Grade Full I/O Ports
Display Interface
2×HDMI 2.0 4K 60Hz
1×DP 1.2 4K 60Hz
Network Interface
2× RJ45, Realtek 8168/8111(10/100/1000M), supporting network redundancy and load balancing
USB
2×USB 2.0
2×USB 3.0
Industrial Expansion Ports
2×9pin DB Serial Ports, RS232/RS422/RS485
1×14pin GPIO Port, default(0-4 Output, 5-9 Input)

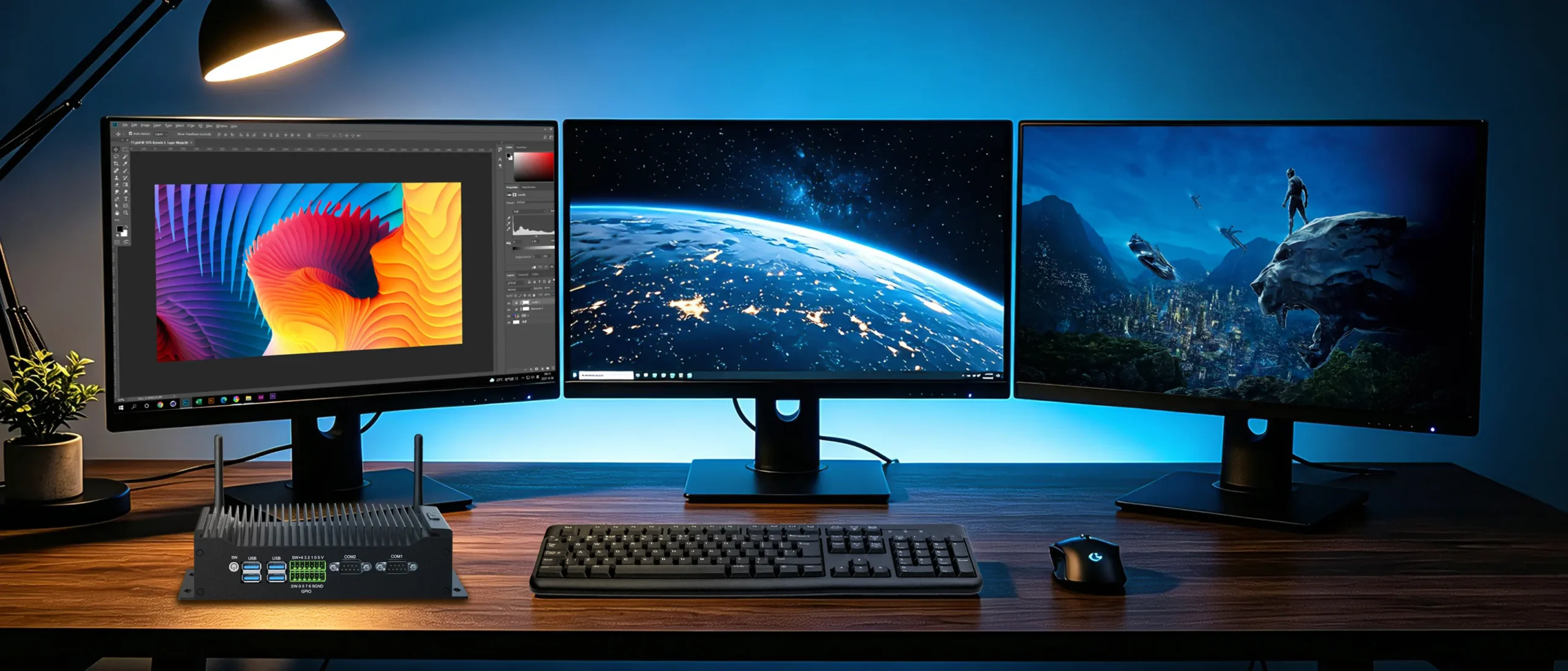

Triple the Productivity, Stunning Visuals
Drive Up to 3 Screens Simultaneously with Crystal-Clear 4K Ultra HD, No Compromises

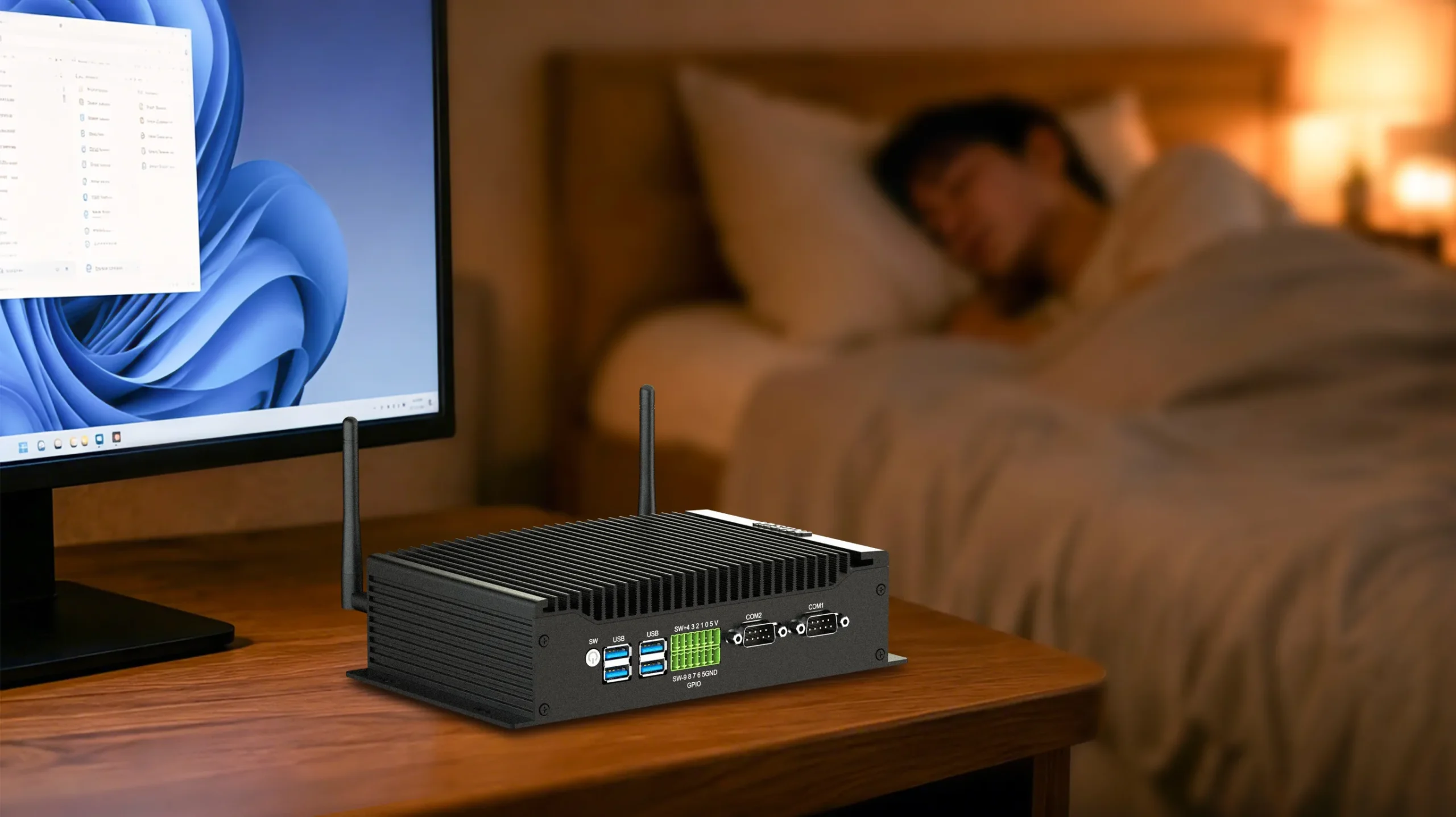

Zero Noise, Maximum Reliability
The H6-12th is built with a premium all-aluminum chassis and passive heatsink cooling to deliver 100% silent operation, ideal for noise-sensitive spaces. Its fully enclosed dustproof structure protects internal parts, prolongs service life, and ensures stable performance in demanding industrial settings with a wide temperature range of -10°C to 60°C.
-10°C ~ 60°C
no noise, 0db
Flexible Installation Options

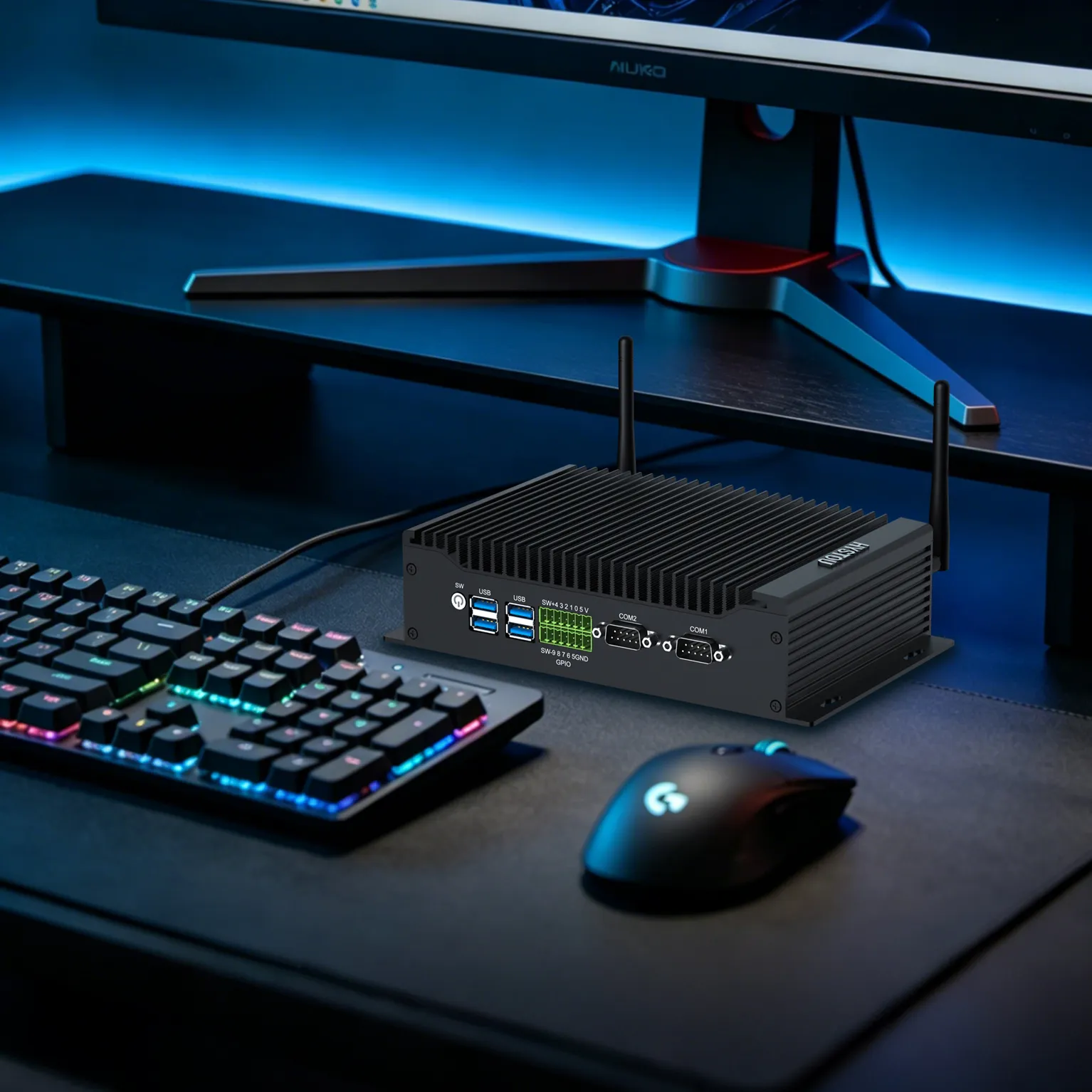

Desktop Mount

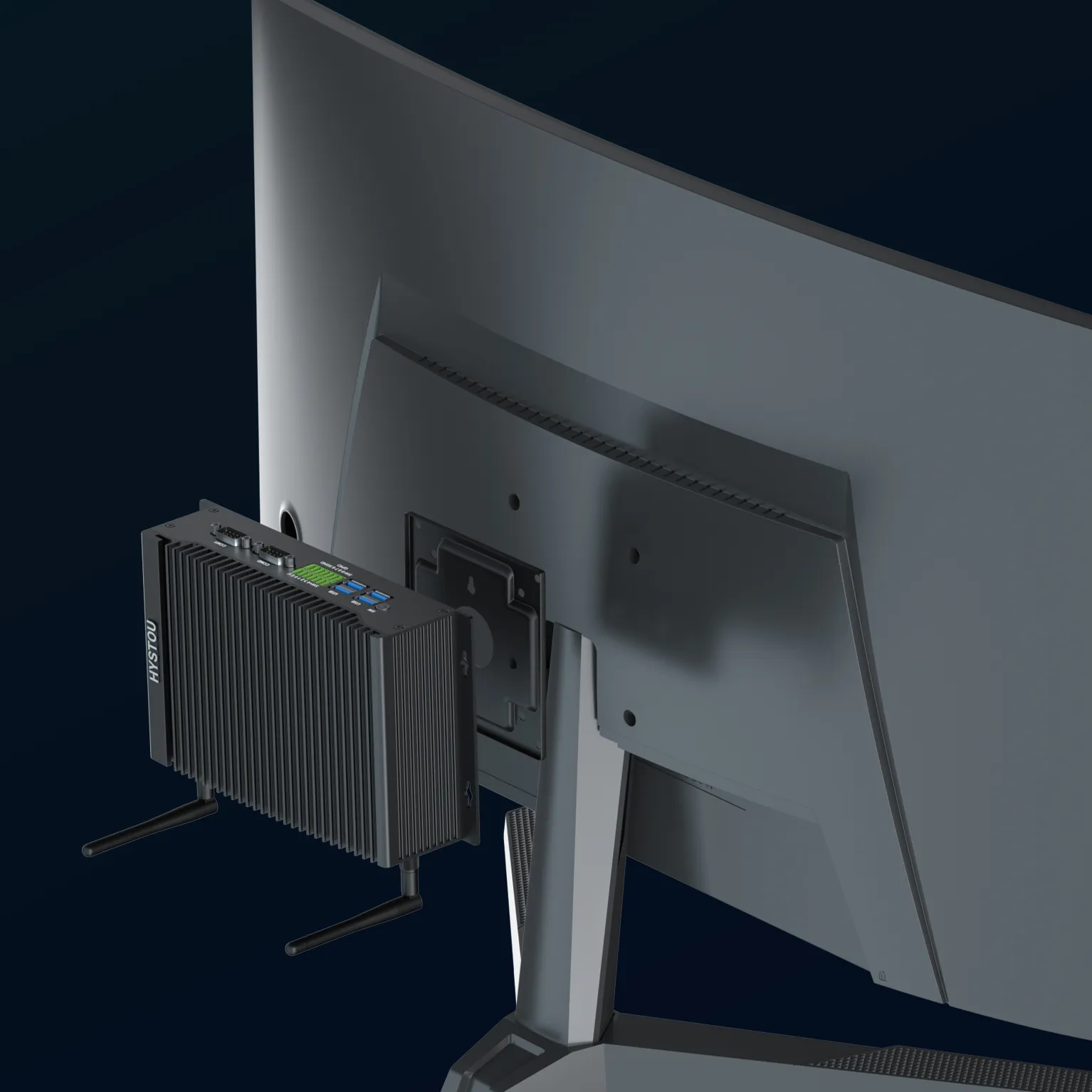

VESA Mount

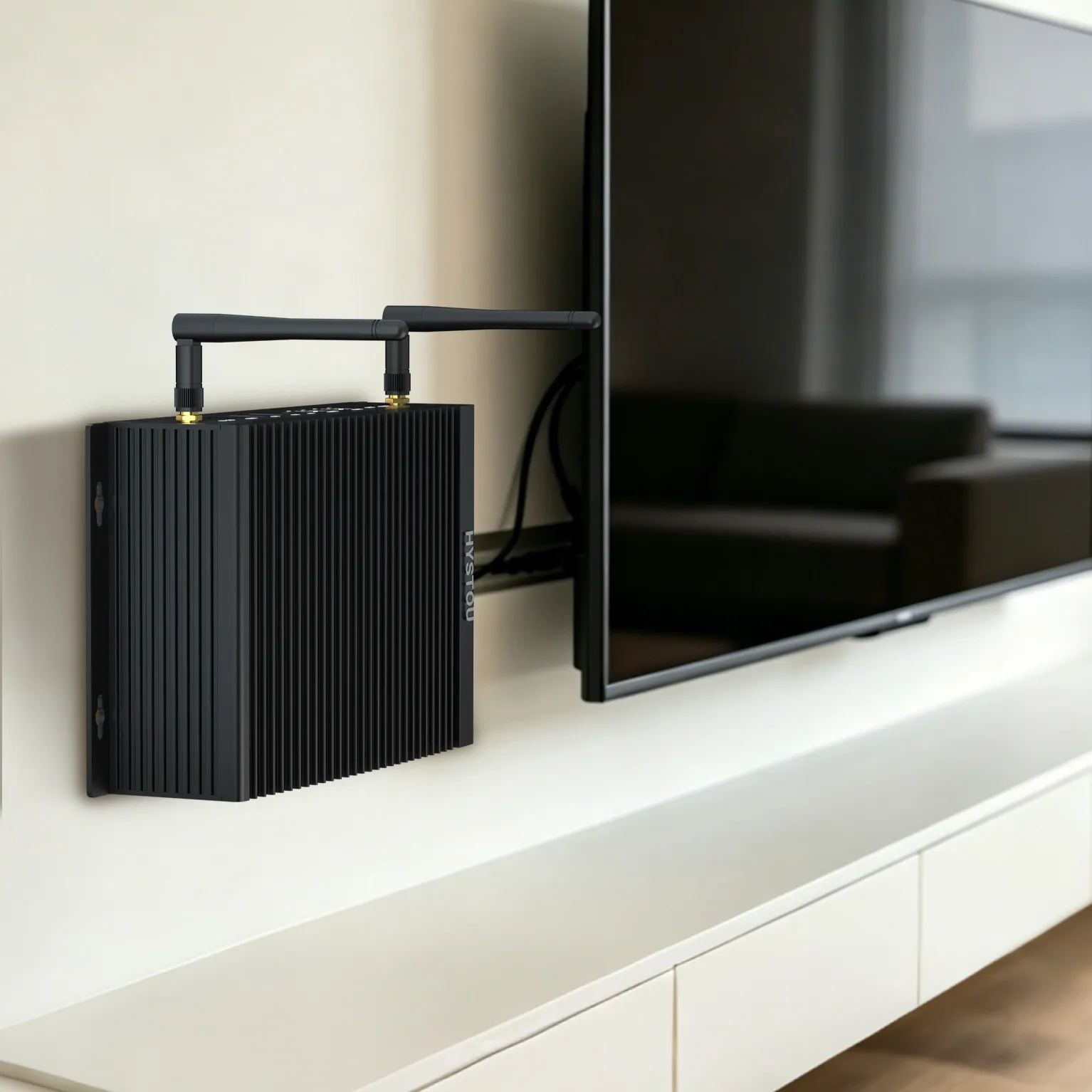

Wall Mount

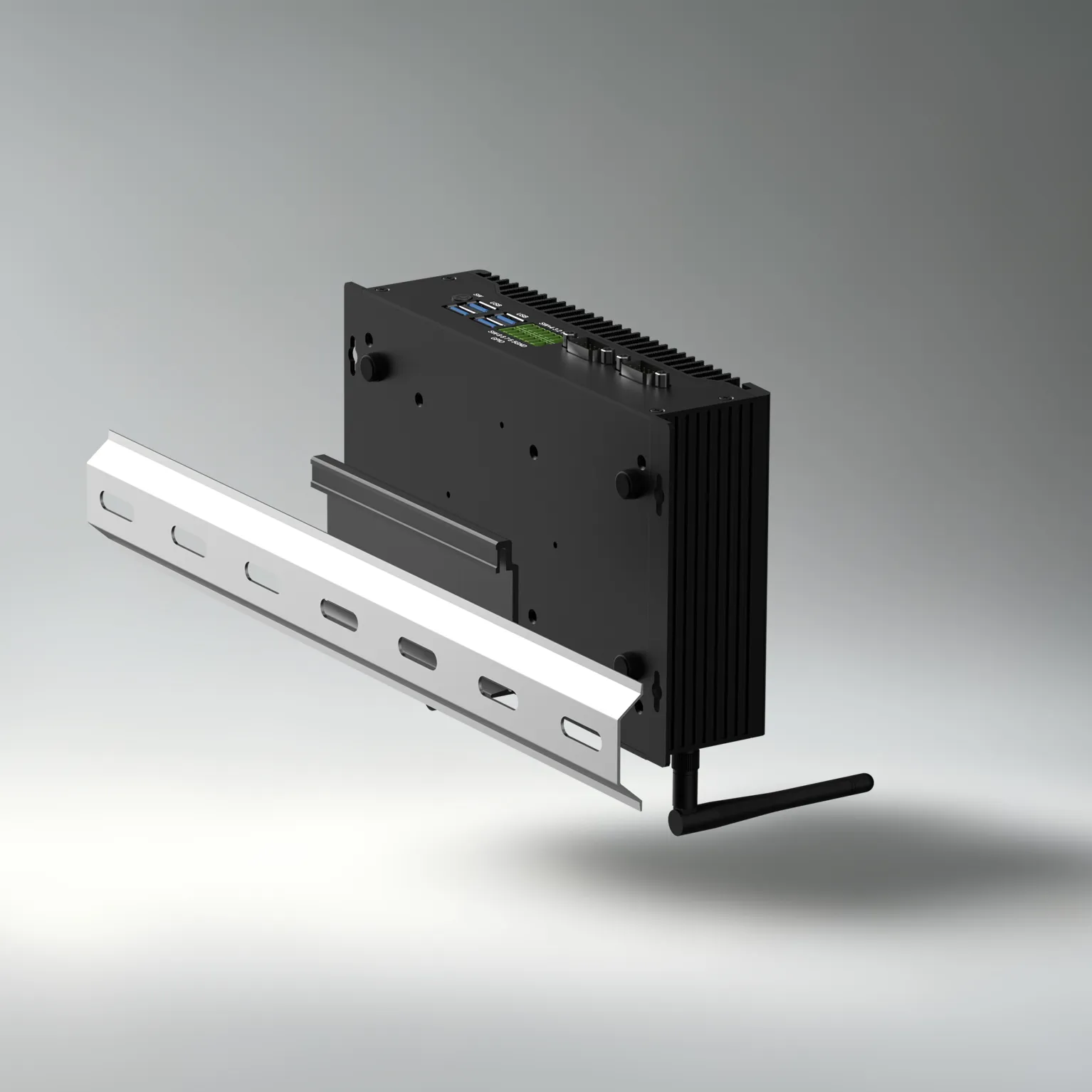

Din Rail Mount
Blazing-Fast Wireless, Ultra-Low Latency
WiFi 6E delivers up to nearly 3x the speed of WiFi 5 on the 6GHz band, with ultra-low latency and minimal interference. Ideal for 4K streaming, remote desktop, and high-bandwidth industrial data.

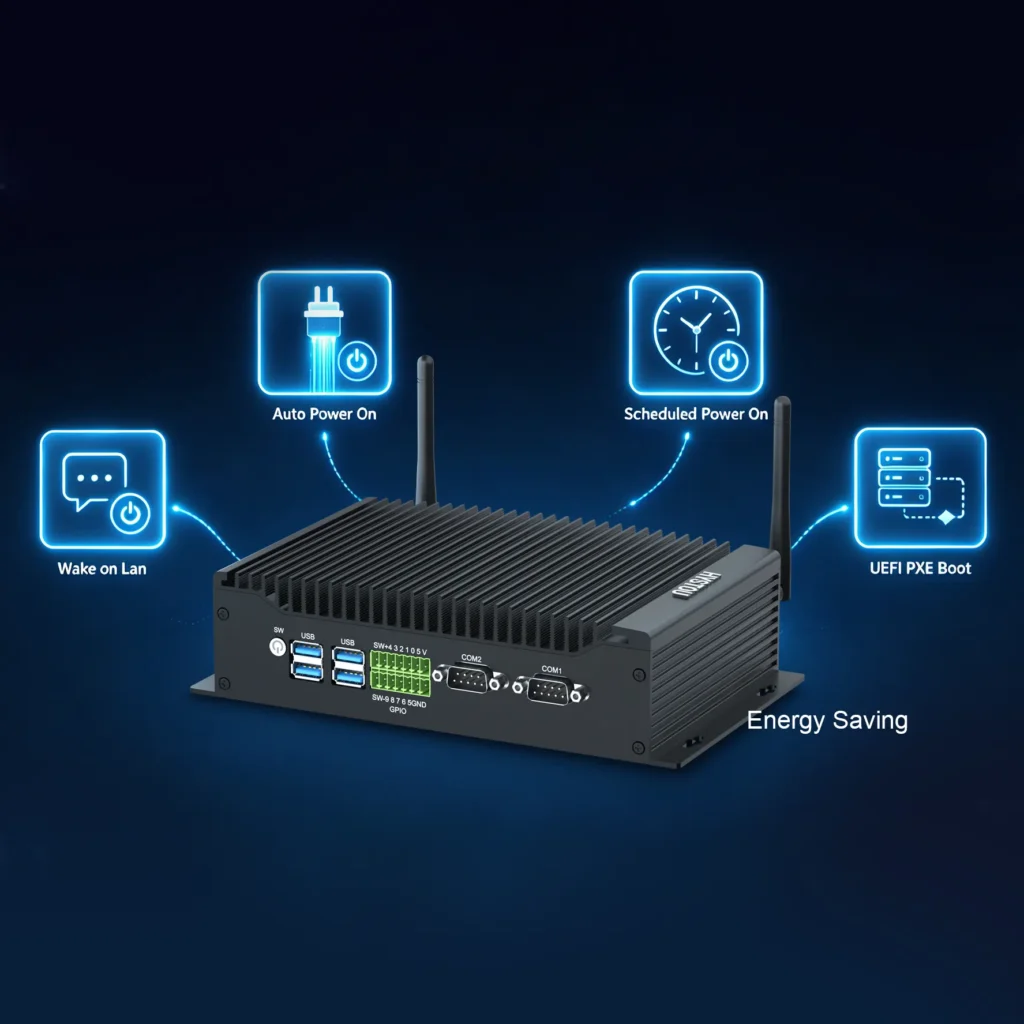

Simplify Management, Enhance Security
Wake on Lan (WOL): Remotely power on the device from any shutdown mode, enabled by default in BIOS.
Auto Power On: Auto boot when power is restored, configurable via BIOS or jumper, ideal for unattended digital signage and industrial control
Scheduled Power On: Set fixed auto boot time via BIOS for fixed-schedule operation scenarios
UEFI PXE Network Boot: Support network boot for batch system deployment and enterprise-level IT management
One Mini PC, Endless Applications
Specifications
| Category | Details |
|---|---|
|
Processor |
Intel Core i5-1235U |
|
Memory |
2x DDR4 3200MHz SODIMM Slots (Max 64GB) |
|
Storage |
1x M.2 2280 NVMe PCIE 4.0 + 1x SATA 3.0 (2.5 inch) |
|
Graphics |
Single memory module: Intel® UHD Graphics |
|
Networking |
2×Gigabit Ethernet port (Realtek 8111/8168) |
|
Operating System |
Win10/Win11/Linux |
|
Power Supply |
Standard 12V 6A, |
|
Dimensions |
220×127×55mm |
|
Weight |
1.3kg (net), 2.0kg (with accessories) |
|
Material |
Aluminum |
|
l/O ports |
2xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/3G/4G modules. |
|
Kensinaton Lock |
No |
|
Accessory |
VESA、Din Rail Mounting、Wall Mount |
|
Working environment temperature |
-10°C~60°C |
|
Cooling system CPU fan DB (MAX) |
Fanless, 0db |
Frequently Asked Questions
Does the H6-12th fanless support stable wireless connections for office video conferencing?
Yes. The H6-12th integrates next-generation Wi-Fi 6E and Bluetooth 5.2 technology. Wi-Fi 6E utilizes the wider 6GHz band to deliver ultra-fast, interference-free internet speeds for lag-free video conferencing, while Bluetooth 5.2 ensures stable, instant pairing with wireless conference microphones, speakers, and mice.
How does the fanless design ensure reliability in industrial environments?
Our mini PC features a 0dB fanless cooling design paired with a rugged, premium all-aluminum chassis. By replacing mechanical fans with passive cooling heatsinks, the fully enclosed, ventless structure completely prevents dust and debris accumulation, making it 100% maintenance-free and highly reliable for 24/7 continuous operations.
Do you offer customized Mini PC services for bulk commercial or OEM orders?
Yes, we provide full OEM/ODM and customized hardware services for volume business orders. We can customize the CPU model, RAM, and storage capacities, pre-install specific operating systems, engrave your custom brand logo onto the aluminum chassis, and tailor internal I/O configurations to fit your exact project requirements.
What kind of warranty and technical support do you provide for this industrial mini PC?
We offer a reliable 3-Year Warranty backed by a 2D planar shield security standard for all our industrial fanless mini PCs. In addition to hardware coverage, our professional engineering team provides long-term technical support for hardware troubleshooting, BIOS updates, and industrial peripheral integration.
Does this fanless mini PC support Windows 11 Pro and Auto Power On?
Yes. The hardware is fully compatible with both Windows 11 Pro (equipped with hardware-level TPM 2.0 security) and mainstream Linux distributions like Ubuntu. Furthermore, it supports advanced BIOS-level power management features including Auto Power On, Wake-on-LAN (WoL), and PXE boot, which are essential for unattended remote industrial deployment.
