The Ultimate Buyer’s Guide: Hystou H7 12th Gen i5 Industrial Mini PC Review for Industrial Automation & Edge Computing
Introduction to Industrial Mini PCs: Why Hystou H7 Stands Out
In today’s rapidly evolving industrial automation and Smart Factory landscape, computing hardware faces an uncompromising challenge. On one hand, modern software stacks—ranging from real-time SCADA systems and AI vision inspection to complex PLC network management—demand higher processing power than ever before. On the other hand, factory floors, outdoor control cabinets, and transport hubs present brutal operating environments with high ambient temperatures, dust, vibration, and electromagnetic interference (EMI).
Traditional commercial desktops quickly crumble under these conditions due to thermal overload, inadequate port isolation, and moving parts susceptible to mechanical failure. Enterprise engineers and system integrators have long had to compromise: choose a heavy, power-hungry traditional industrial rack server, or accept the limited performance of low-power embedded units.
Enter the Hystou H7 Industrial Mini PC. Powered by Intel’s 12th Generation Core i5 architecture, the Hystou H7 bridges the historic gap between high-performance computing and industrial-grade ruggedness. In this comprehensive evaluation, we unpack the Hystou H7’s hardware architecture, connectivity options, thermal design, and real-world industrial application scenarios to determine whether this compact unit is the right investment for your next deployment.
Technical Specifications at a Glance
Before diving deep into performance and practical applications, here is a detailed breakdown of the internal and external hardware specifications of the Hystou H7:
Processor: Intel® Core™ i5-1235U (10 Cores / 12 Threads, 2 Performance Cores up to 4.40 GHz, 8 Efficient Cores up to 3.30 GHz, 12 MB Smart Cache, 15W Base TDP)
Graphics: Intel® Iris® Xe Graphics eligible / Intel® UHD Graphics
System Memory: 1x DDR5 4800MHz SODIMM Slot (Supports up to 32GB)
Storage Options: 1x M.2 NVMe 2280 PCIe SSD Slot + 1x 2.5-inch SATA 3.0 Internal Drive Bay (Supports up to 4TB combined capacity)
Serial Interfaces: 2x DB9 RS232 COM Ports (Direct motherboard header integration)
Network Connectivity: 2x Realtek 8168/8111 Gigabit Ethernet RJ45 Ports (Wake-on-LAN and PXE boot support)
Wireless Expansion: 1x Mini PCIe / M.2 Slot supporting optional dual-band WiFi 5/6, Bluetooth 4.2/5.2, or 3G/4G LTE cellular modems with SIM card integration
Display Output: 2x HDMI 1.4 Ports (Supports dual independent 4K displays @ 30Hz)
Peripherals I/O: 4x USB 3.0 Ports, 4x USB 2.0 Ports, 3.5mm Audio Line-In / Line-Out
Thermal Management: Active hybrid cooling system with high-conductive aluminum alloy chassis for heat dissipation
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Power Supply: 12V 6A DC Input (19V 4.74A broad voltage compatibility)
Dimensions & Weight: 170 mm x 126 mm x 58 mm | Net Weight: 1.1 kg (Chassis only)
Operating System Support: Pre-installed Windows 10/11 Pro; certified for Linux (Ubuntu, Debian, CentOS, RHEL)
Core Architecture & Processing Performance: Intel 12th Gen Alder Lake Advantage
At the core of the Hystou H7 lies the 12th Gen Intel Core i5-1235U processor. Unlike older monolithic CPU designs found in legacy industrial PCs, the Alder Lake architecture utilizes a hybrid performance topology. Featuring 2 high-performance Performance-cores (P-cores) dedicated to heavy single-threaded tasks and 8 energy-efficient Efficient-cores (E-cores) for background processing, the i5-1235U delivers an impressive balance of raw processing capability and thermal efficiency.
Breakthrough Multitasking for Edge AI and Automation
With a peak turbo clock of up to 4.40 GHz and 12 processing threads, the Hystou H7 achieves CPU benchmarks that easily surpass previous-generation Core i7 industrial units while running at a baseline TDP of just 15W. This high efficiency translates to real-world operational benefits:
Edge AI & Machine Vision: The integrated Intel graphics engine handles image pre-processing from industrial USB or IP cameras for automated defect detection on assembly lines.
Simultaneous Operations: The hybrid architecture allows heavy tasks—such as processing SCADA telemetry or running local machine learning models—to run on P-cores, while telemetry data logging and network reporting run seamlessly on E-cores without causing system stutter.
Next-Gen Memory: DDR5 Acceleration
Upgrading from legacy DDR4, the Hystou H7 incorporates high-speed DDR5 4800MHz memory support (up to 32GB). The massive increase in memory bandwidth ensures that time-sensitive industrial applications access incoming sensor data instantly, eliminating bottlenecks in high-frequency data acquisition environments.
Industrial-Grade Reliability: Thermal Design & Chassis Engineering
Hardware failure on an industrial floor causes costly downtime. A mini PC operating in an automated environment must withstand long-term heat buildup, physical vibration, and hostile ambient conditions.
Heavy-Duty Aluminum Alloy Enclosure
The Hystou H7 is housed in a dense, precision-machined aluminum alloy chassis weighing 1.1 kg. Beyond offering structural protection against physical impacts and high electromagnetic interference (EMI), the aluminum housing acts as a primary heatsink, pulling internal thermal energy away from sensitive surface-mounted components.
Broad Operating Temperature Range (-10°C to 50°C)
Built to withstand the harshest industrial environments, the Hystou H7 combines advanced thermal engineering with rugged construction to deliver uninterrupted performance in challenging conditions.
Wide Temperature Range Operation: Adapting to Extreme Environments
Tested for continuous deployment in extreme environments, the H7 operates reliably within a wide temperature envelope ranging from -10°C in unheated cold-storage facilities to 50°C in high-temperature factory enclosures.

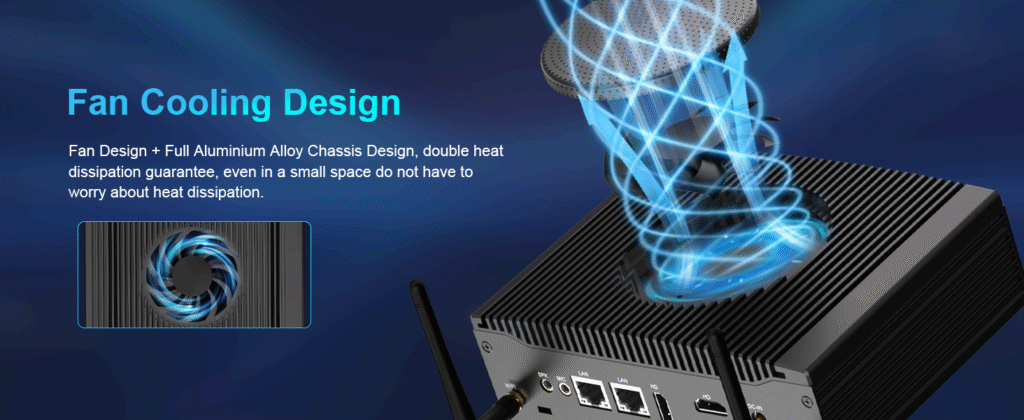

Engineered Dual Thermal Management
To prevent CPU thermal throttling during prolonged 100% CPU utilization, the Hystou H7 combines active internal air circulation with passive aluminum chassis dissipation. This hybrid cooling mechanism ensures rapid heat removal, keeping the CPU within safe operating limits during 24/7/365 continuous heavy-duty cycles.

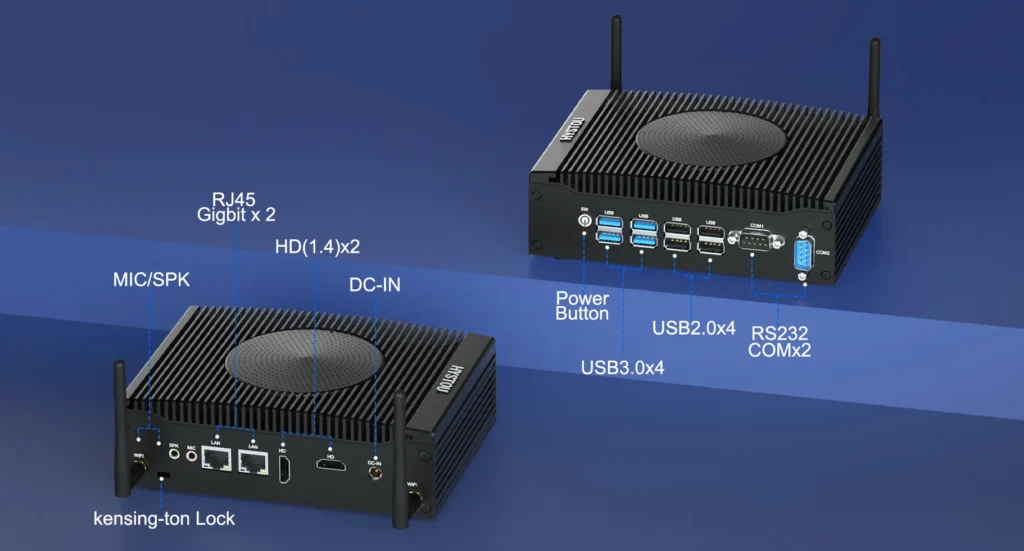

Comprehensive Industrial I/O: Seamless Integration with Legacy and Modern Systems
A true industrial computer is defined by its ability to interface with field equipment. The Hystou H7 provides an extensive array of industrial I/O interfaces, eliminating the need for unstable third-party dongles or external converters.
Dedicated DB9 RS232 Serial Communications
The unit features 2x native DB9 RS232 COM ports mounted directly onto the rear panel. These ports are essential for communicating with legacy field devices, including:
Programmable Logic Controllers (PLCs)
Industrial barcode scanners and RFID readers
CNC machinery and motorized actuators
Laboratory analytical instrumentation

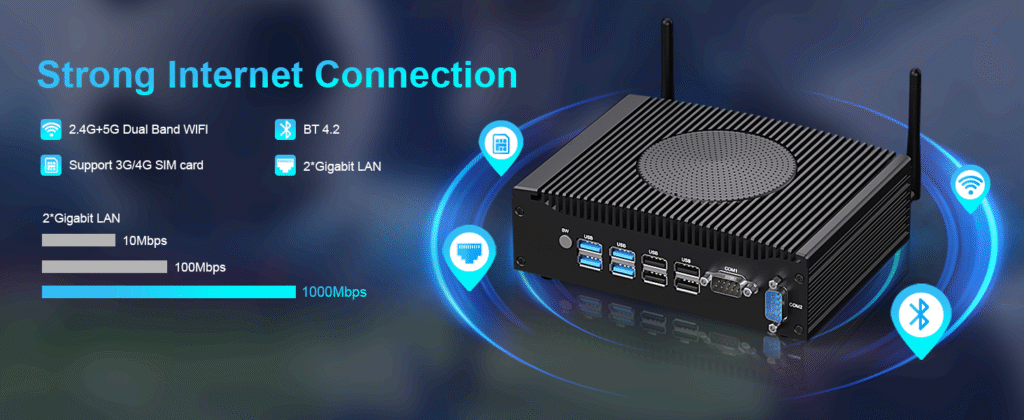

Dual Gigabit Ethernet for Network Segmentation
Equipped with dual Realtek Gigabit LAN controllers, the Hystou H7 allows engineers to configure an isolated network architecture:
Port 1 (OT Network): Dedicated strictly to local operational technology (PLCs, sensors, control networks), keeping field devices offline and immune to external cyber threats.
Port 2 (IT Network): Connects to enterprise local networks or cloud servers for secure remote monitoring, reporting, and management.
Flexible Expansion & Wireless Modularities

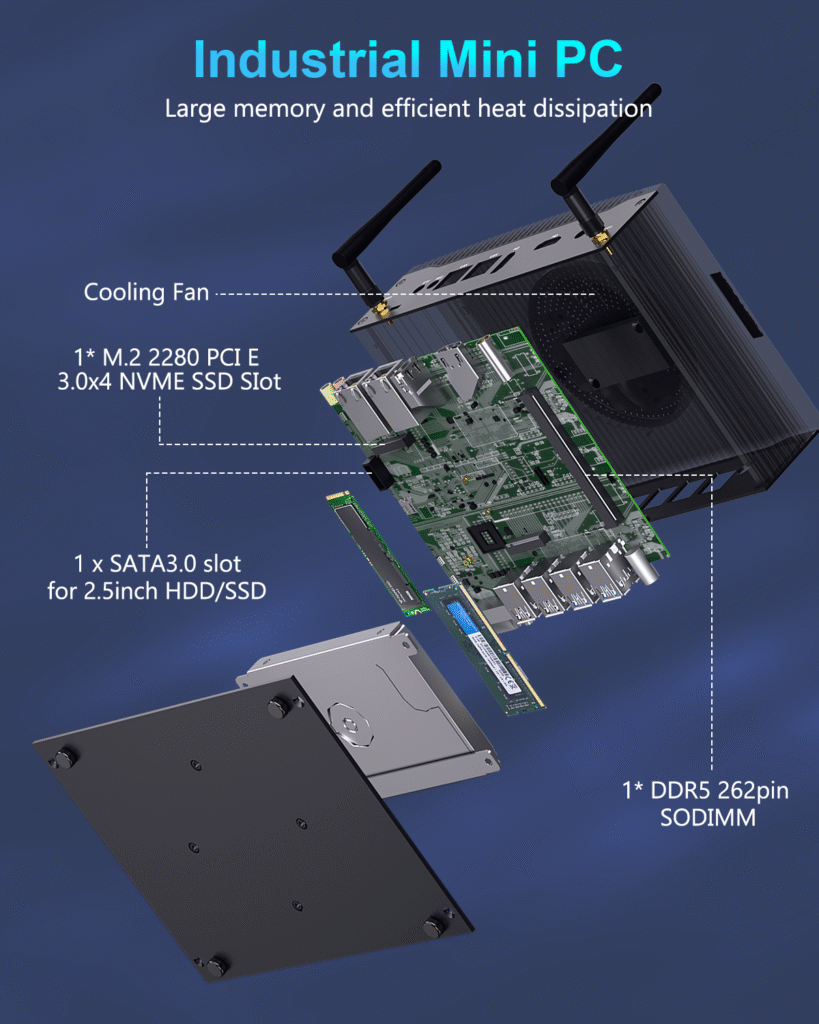

Dual Storage Capability: Combines an ultra-fast M.2 NVMe 2280 SSD slot for OS booting and rapid app launching with a 2.5-inch SATA 3.0 bay for local high-capacity data storage (up to 4TB total).
Wireless Connectivity Options: The internal Mini PCIe expansion slot paired with an integrated SIM card slot allows system builders to install WiFi 5/6, Bluetooth, or 3G/4G LTE cellular modules for remote deployments in locations lacking wired infrastructure.
Key Target Application Scenarios
The versatility and high port density of the Hystou H7 make it a ideal solution across various commercial and industrial sectors.
Factory Automation & SCADA Control
With its compact footprint (170 x 126 x 58 mm) and VESA mounting options, the H7 mounts directly inside control cabinets or on machine frames. It serves as an ideal edge controller for running SCADA software, managing assembly line PLCs, and streaming telemetry to enterprise ERP networks.
Digital Signage & Commercial Kiosks

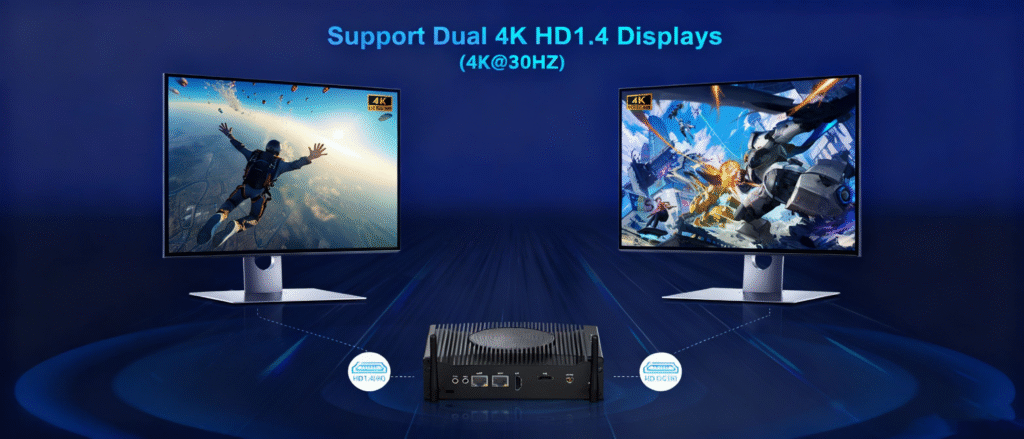

Featuring dual HDMI ports capable of driving two independent 4K display monitors, the H7 handles multi-screen digital signage installations in airport terminals, shopping malls, and corporate control rooms requiring steady 24/7 visual broadcasting.
IIoT Gateways & Remote Edge Computing
In utility monitoring, agriculture, or remote energy sites, the H7 acts as an IIoT gateway. It aggregates data from field sensors via serial ports, processes the telemetry locally, and transmits structured data to cloud servers over 4G LTE or dual LAN networks.
Frequently Asked Questions
Is the Hystou H7 suitable for 24/7 continuous industrial deployment?
Yes. The Hystou H7 is specifically built with industrial-grade components and optimized thermal management to support 24/7/365 uninterrupted operation in industrial environments.
Does the Hystou H7 support Linux and specialized OS?
Absolutely. While pre-installed with Windows 10/11 Pro, the Hystou H7 is fully compatible with Ubuntu, Debian, CentOS, and other Linux distributions commonly used in automation control.
Can I customize the Hystou H7 with custom branding or specific I/O configurations?
Yes. Hystou offers OEM/ODM customization services, including custom logo printing, BIOS customization, and RAM/storage pre-configuration for bulk enterprise orders.
Can the Hystou H7 be mounted in space-constrained environments?
Yes, the H7 includes VESA mount compatibility, allowing for flexible installation in space-constrained industrial environments. Its compact dimensions (170×126×58mm) make it easy to integrate into existing setups without requiring significant space.
