HYSTOU H7 12th Gen i5 Industrial Mini PC with Dual 4K Display
Categories: Industrial Mini PC
- Processor: Intel Core i3-1215U/i5-1245U
- Graphics Card: Intel UHD Graphics (dual 4K@30Hz output support)
- Memory: DDR5 4800MHz (single SODIMM slot, max 32GB)
- Storage: 1×M.2 NVMe 2280 + 1×SATA3.0 (up to 4TB total)
- Network: Dual Gigabit Ethernet (Realtek chipsets), optional WiFi 5/BT4.2 module
- Additional Features:Industrial-grade wide temperature design (-10°C to 50°C), 7×24 operation capable，Dual cooling system (active fan + full aluminum chassis), 50W total power consumption
- 3-Year Warranty
- 24/7 Tech Support
- Certificate

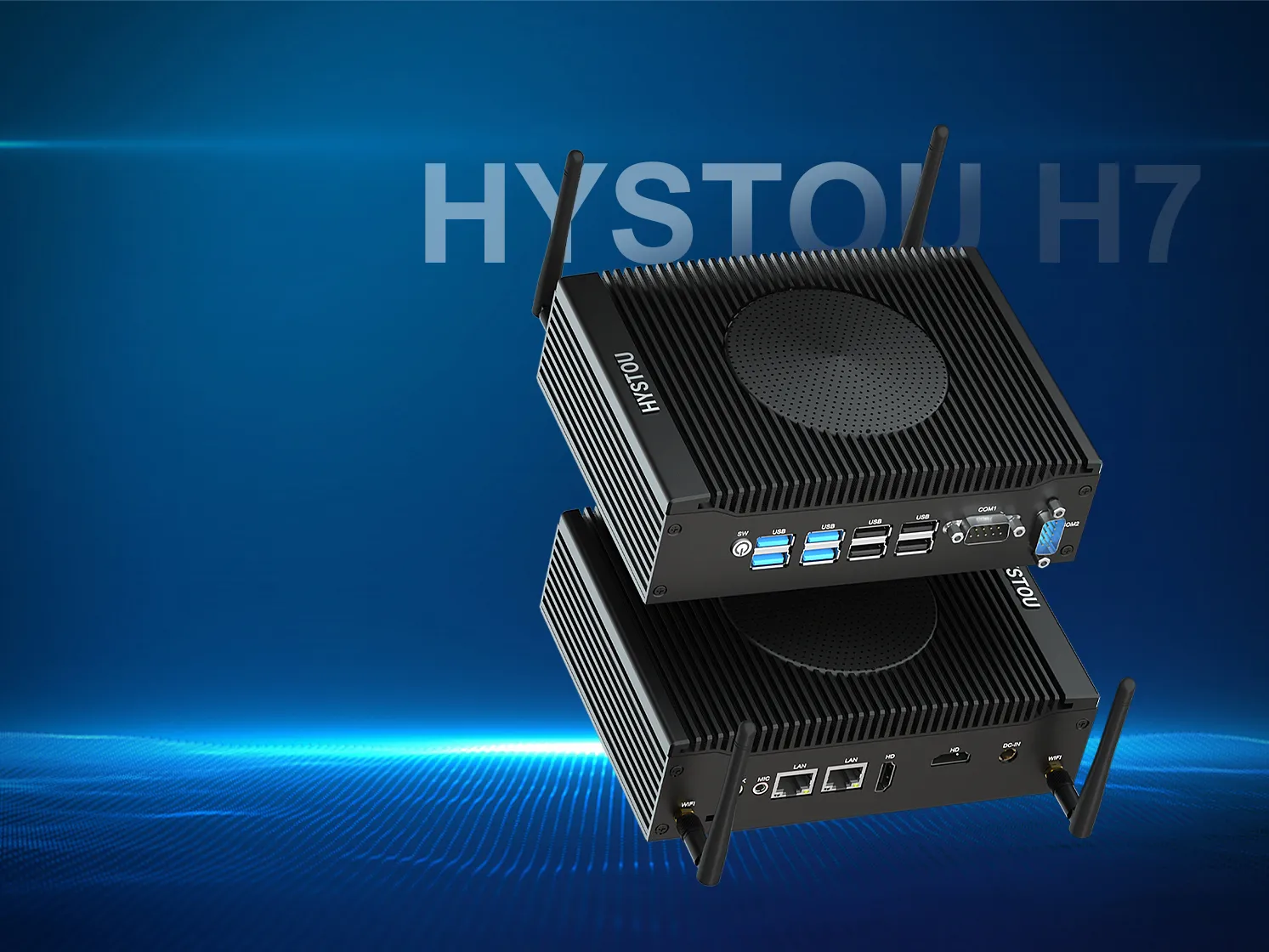

HYSTOU H7 Fan
The Hystou H7 is a high-performance mini PC engineered for industrial automation and commercial applications.
HYSTOU H7 Fan
The Hystou H7 is a high-performance mini PC engineered for industrial automation and commercial applications.
WI-FI 5
BT 4.2
Win11 PRO
Efficient Cooling
Dust-Free Fan Design
Full Range of Interfaces
Rugged Design, Uncompromised Speed
Powered by the Intel® 12th Gen Core™ i3-1215U, the H7 delivers seamless, lag-free performance for demanding industrial workloads. Featuring advanced hybrid architecture, it effortlessly handles complex data acquisition and heavy multitasking. Paired with high-speed DDR5 4800MHz RAM, it provides high bandwidth and lower latency, making it a reliable and future-proof engine for edge automation. Powered by the Intel® 12th Gen Core™ i5-1235U, the H7 delivers seamless, lag-free performance. Despite its mobile architecture, it “outperforms previous-gen desktop CPUs” in both single and multi-core tasks. Paired with high-speed “DDR5 4800MHz RAM”, it effortlessly handles complex data acquisition and heavy multitasking.

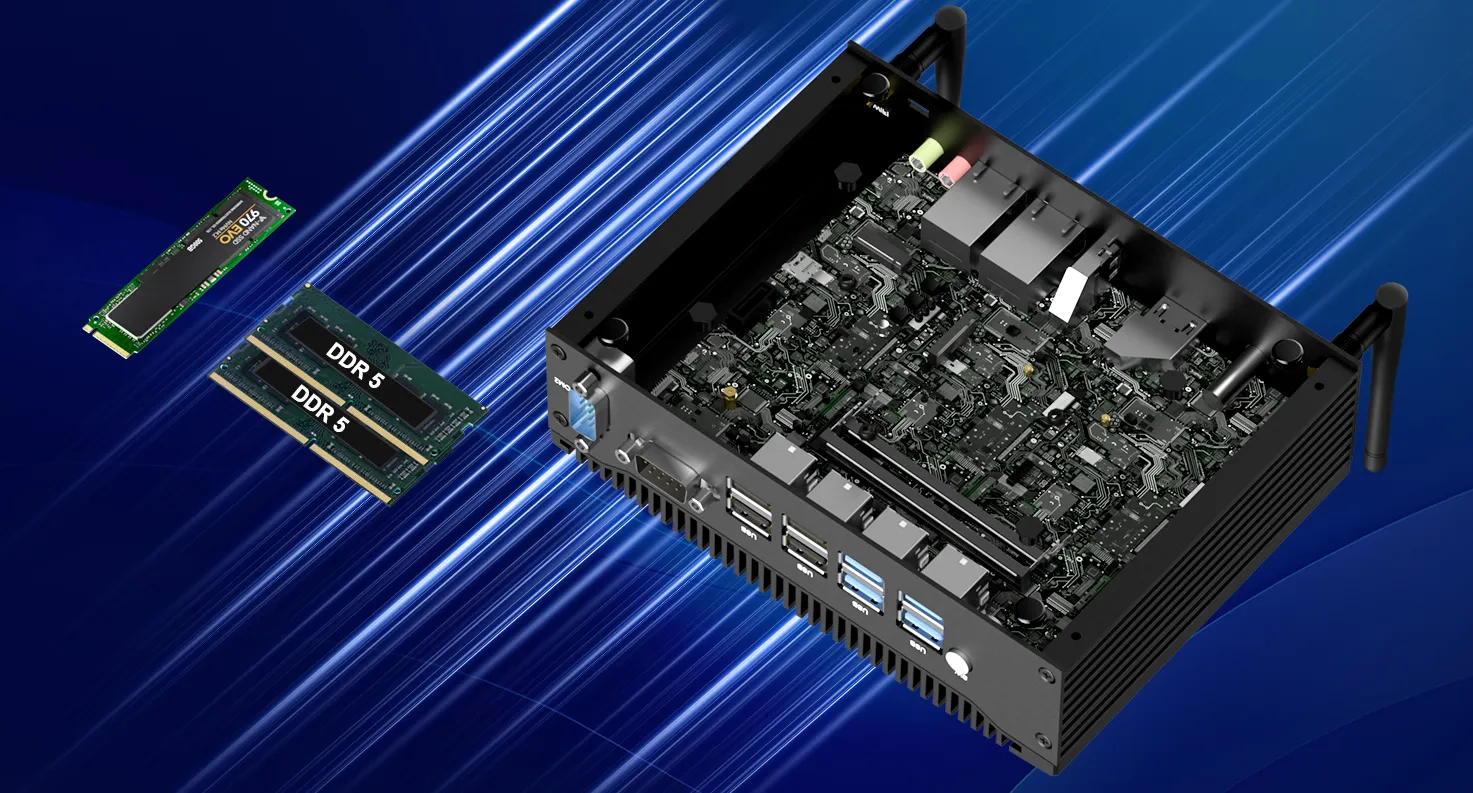

More Storage More Porfermance

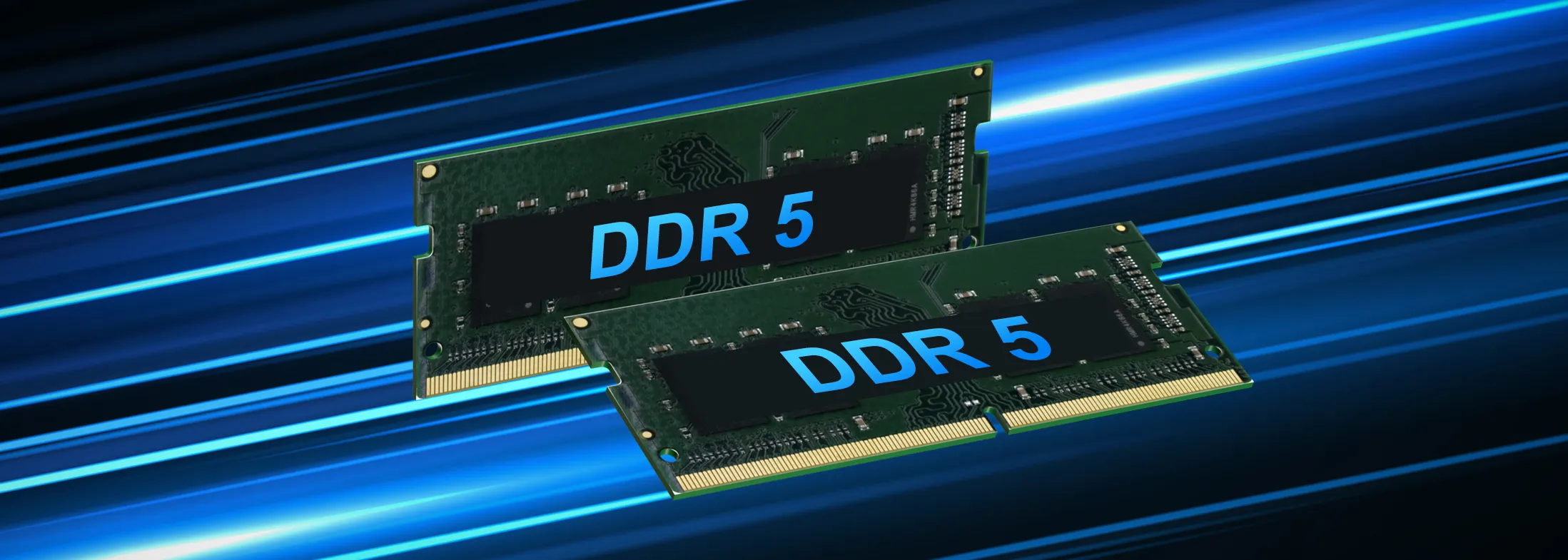

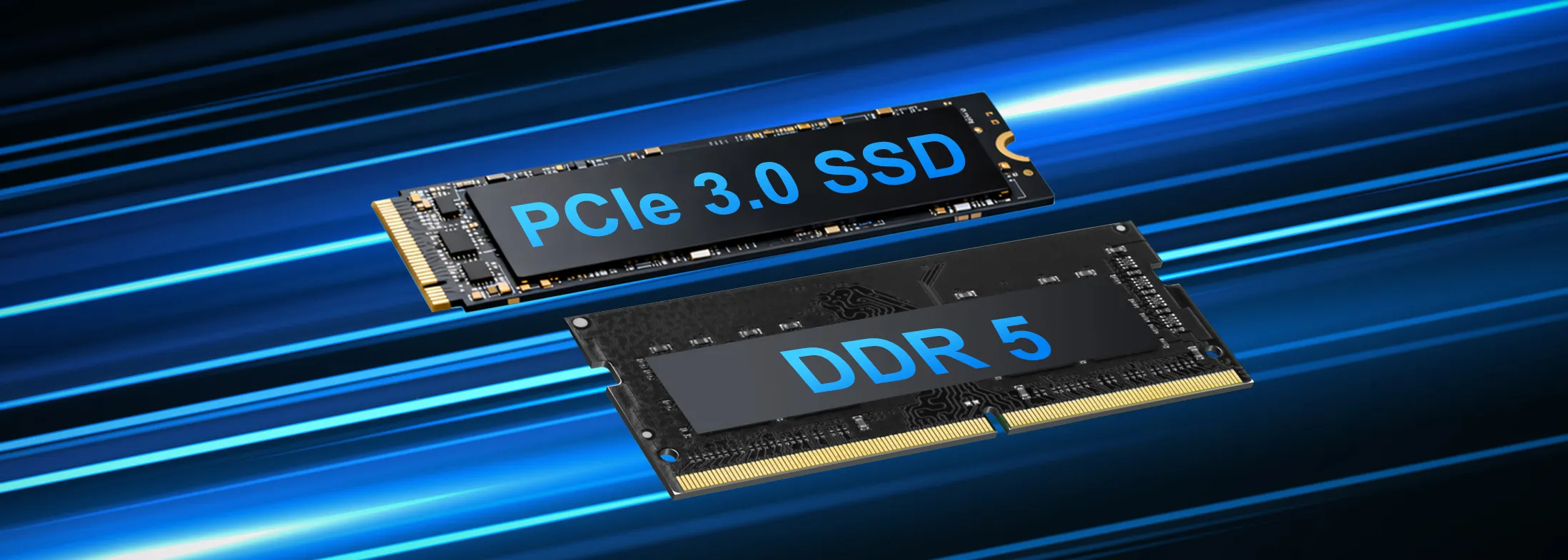

DDR5 4800MHz Memory:

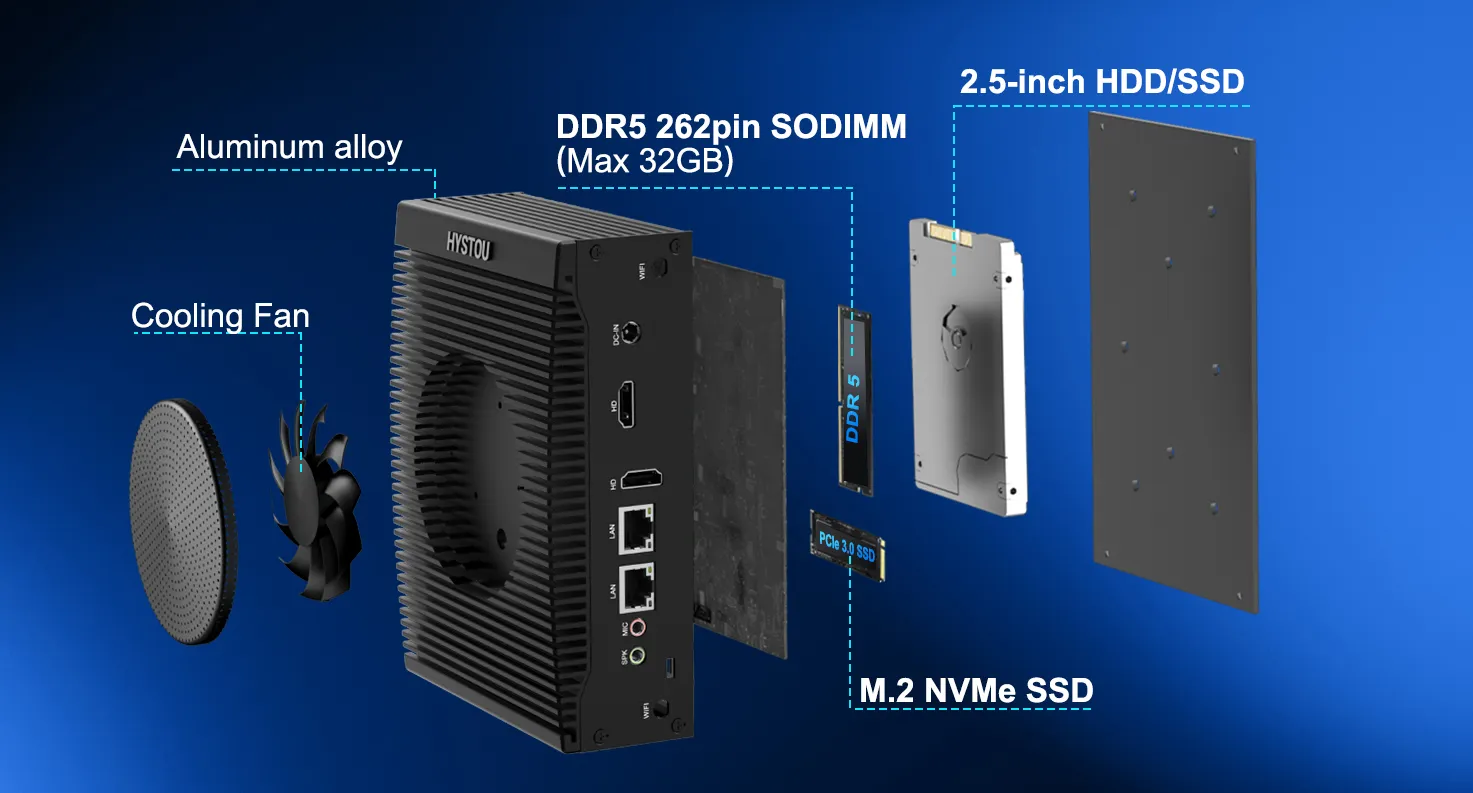

Equipped with 1× 262-Pin SODIMM slot, supporting up to 32GB DDR5 4800MHz RAM for faster data transfers and minimal latency.
Dual Storage Capacity:
1× M.2280 PCIE 3.0×4 NVME SSD slot(Max 2 TB)
1× SATA3.0 slot for 2.5inch HDD/SSD(Max 2TB)
Robust & Flexible Networking Solution
High-Speed Wired
2× Realtek Gigabit RJ45 LAN Ports
Cellular Connectivity
Integrated Nano-SIM Slot (Supports 3G/4G LTE Modules)
Wireless Connection
2.4GHz / 5GHz Dual-Band Wi-Fi
Peripheral Control
Bluetooth 4.2 Support

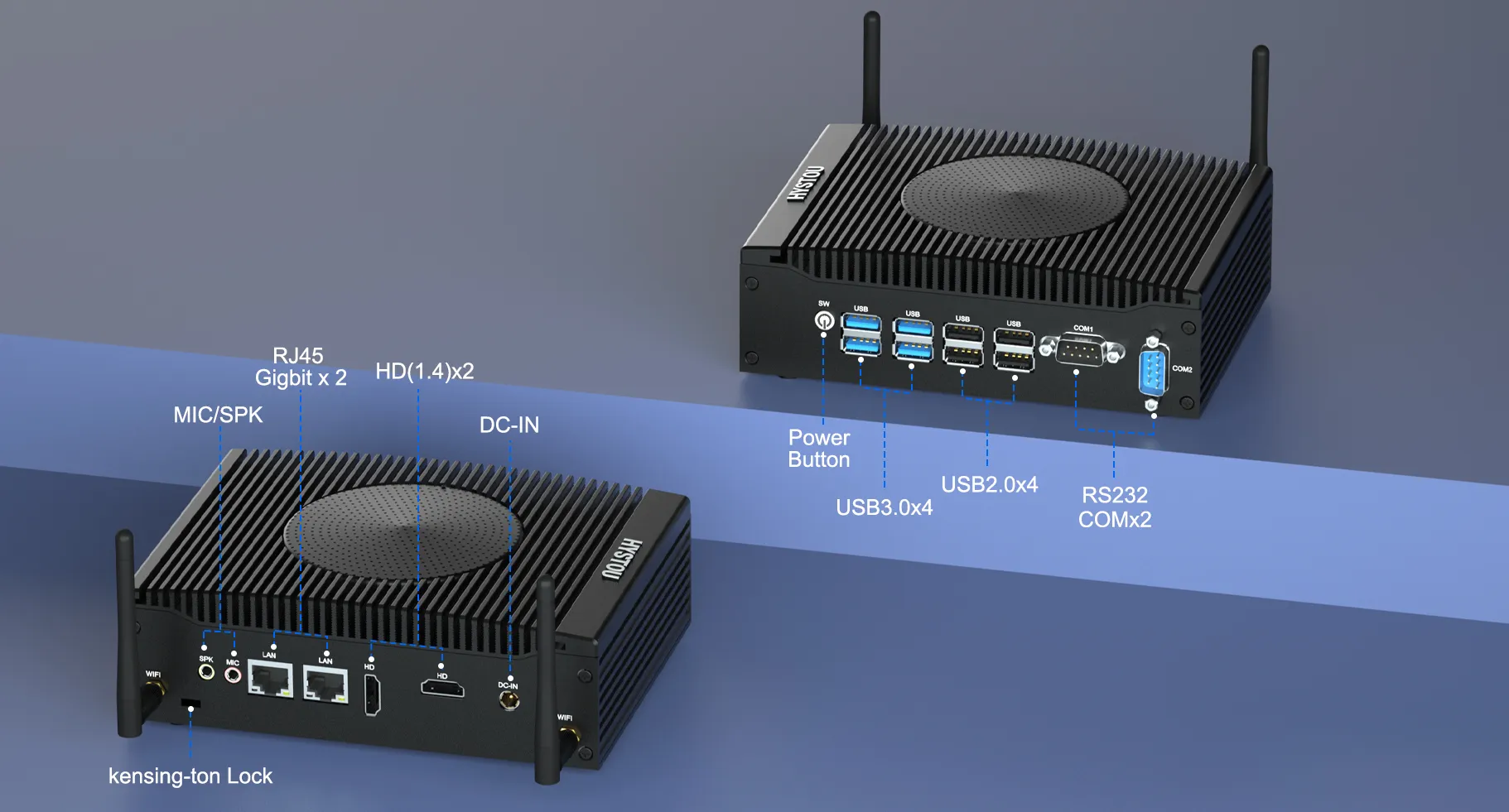

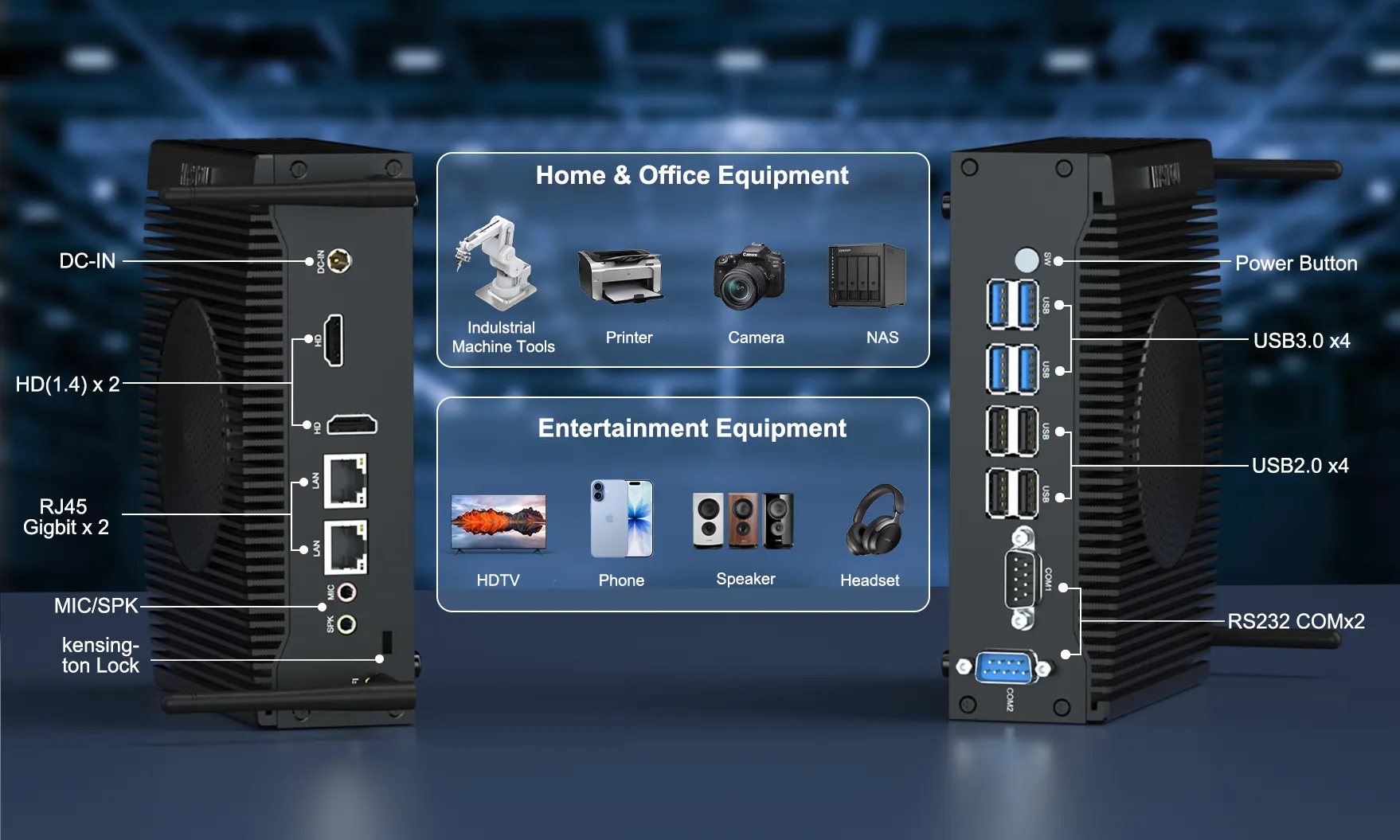

Versatile Connections for Modern & Legacy Systems
Engineered for maximum versatility, the HYSTOU H7 packs rich industrial interfaces into a compact, palm-sized aluminum chassis. It seamlessly bridges the gap between high-speed modern peripherals and legacy automation machinery

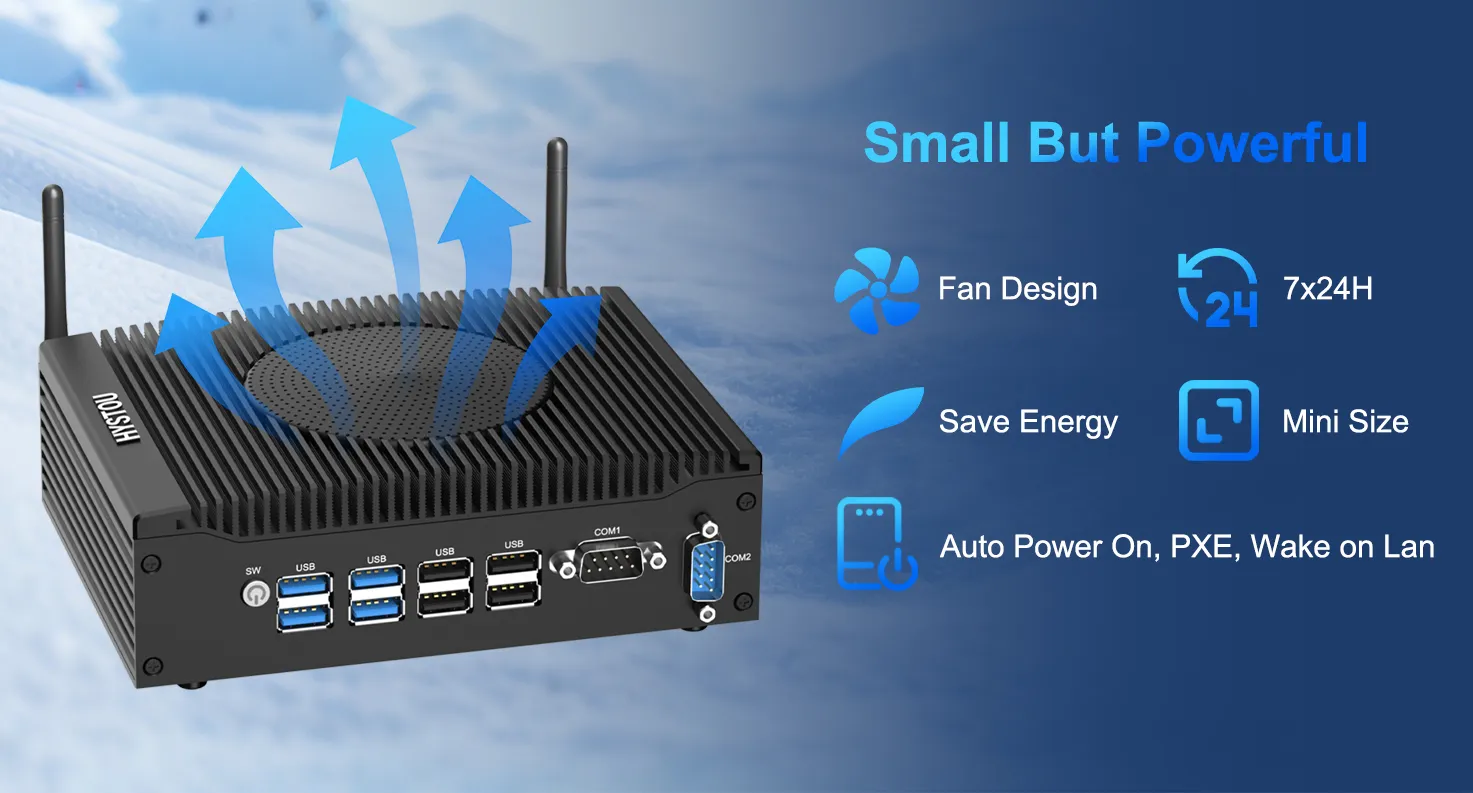

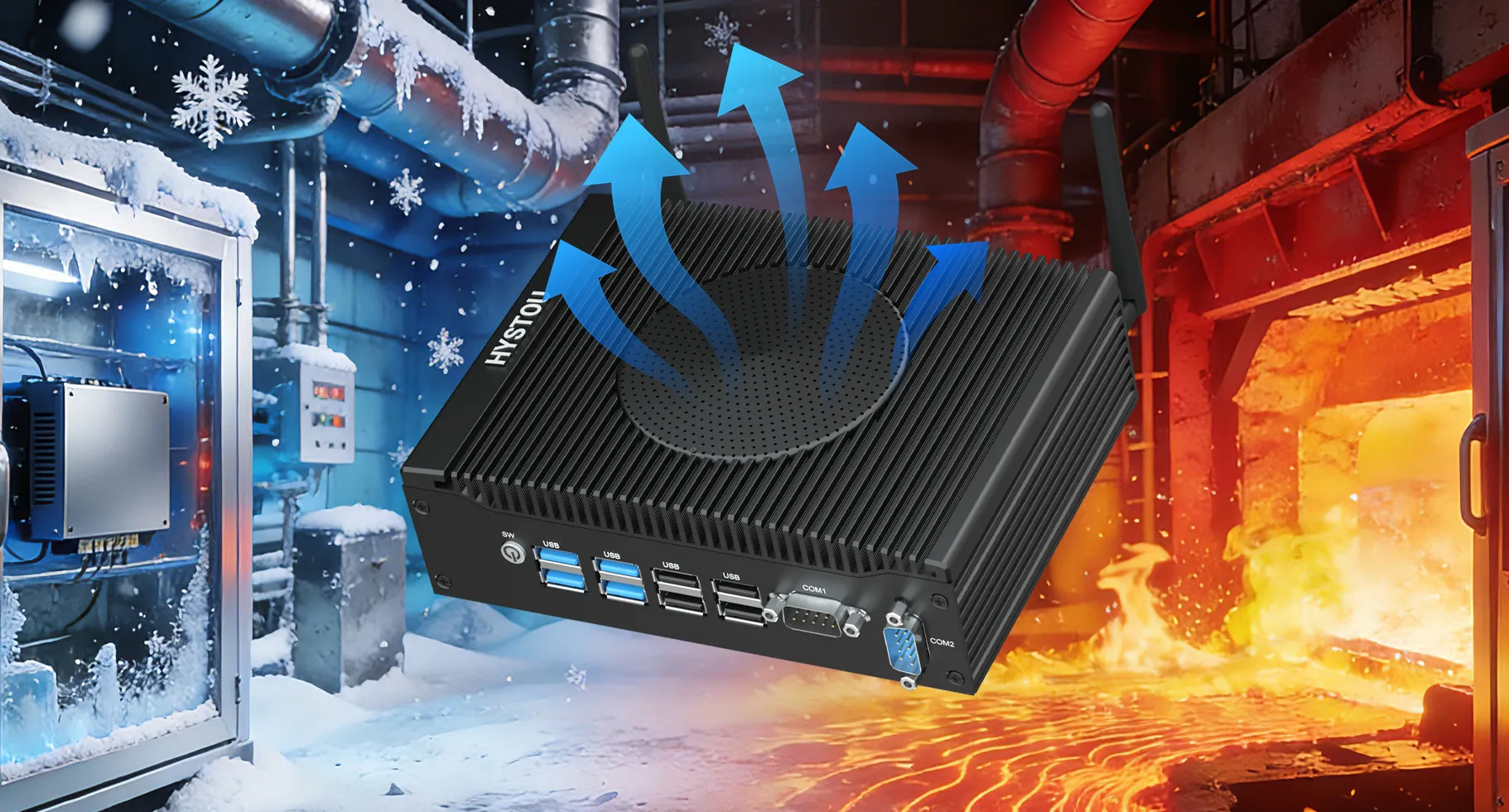

Thrive in Any Environment

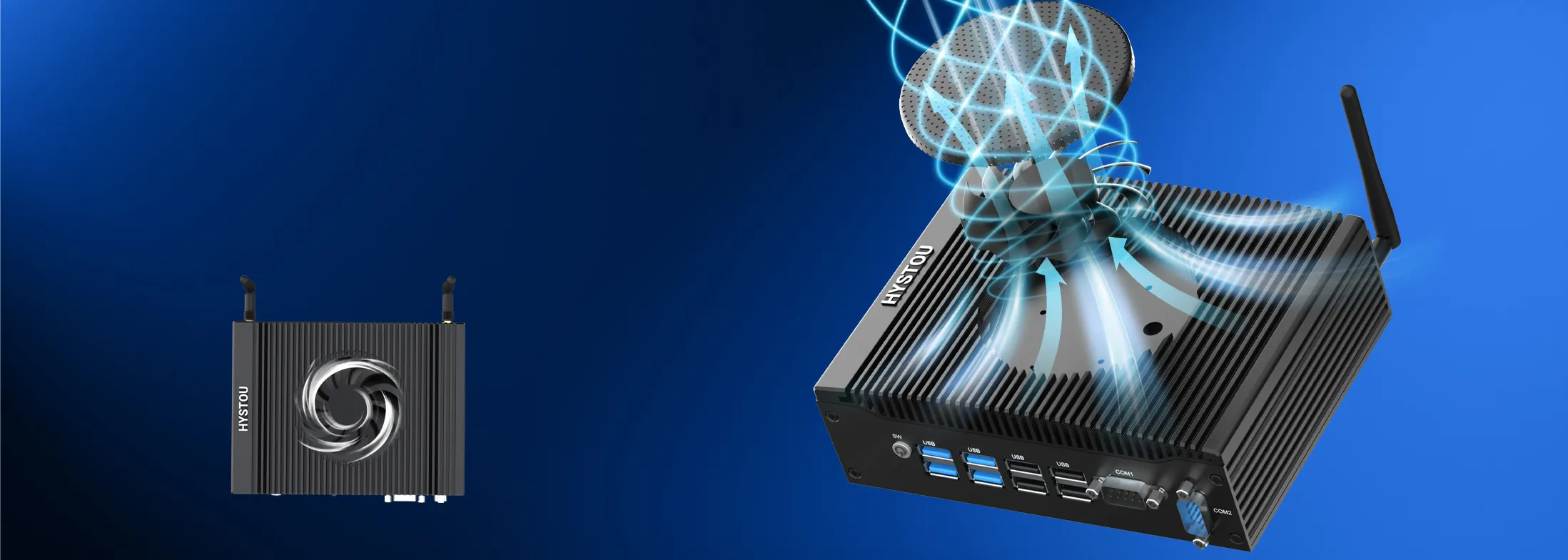

Crafted with a premium all-aluminum alloy chassis, the HYSTOU H7 utilizes its entire body as an efficient heat sink. Paired with an externally mounted smart cooling fan, it achieves optimal thermal management while preventing internal dust accumulation. Successfully tested from -10°C to 50°C, it guarantees 24/7 uninterrupted performance in both frigid cold storage and scorching factory floors.
Versatile Applications: Engine for Industry & Commercial Automation
- Industrial Automation: Connect PLCs and CNC machine tools, and use RS232 for device control and data acquisition.

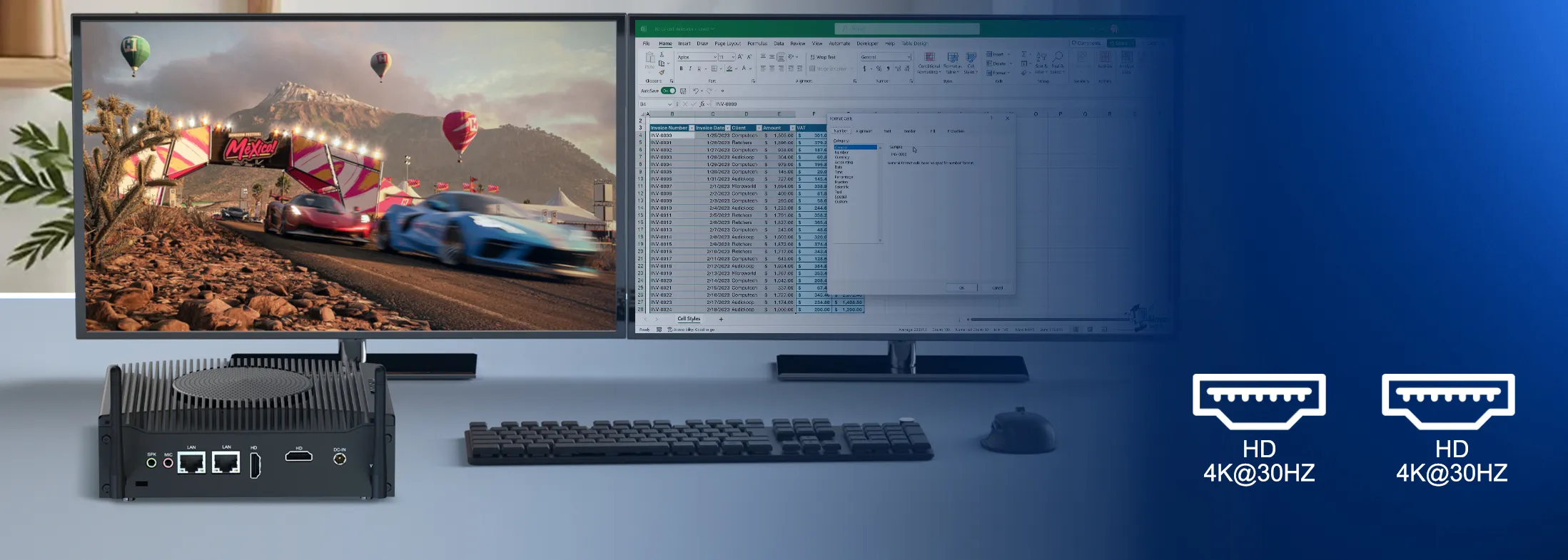

- Digital Signage/Advertising Machines: Dual-screen 4K advertising playback in shopping malls and airports.
- Edge Computing Gateway: Act as a data relay station for the Internet of Things (IoT), processing sensor data and uploading it to the cloud.
- Soft Router/Firewall: Use dual gigabit Ethernet ports to install PfSense/OpenWRT, serving as high-performance routers for home or enterprise use.
- Self-Service Terminal (Kiosk): Embedded inside ATMs, self-service vending machines, or queuing and calling machines.
End-to-End Reliability & Assurance

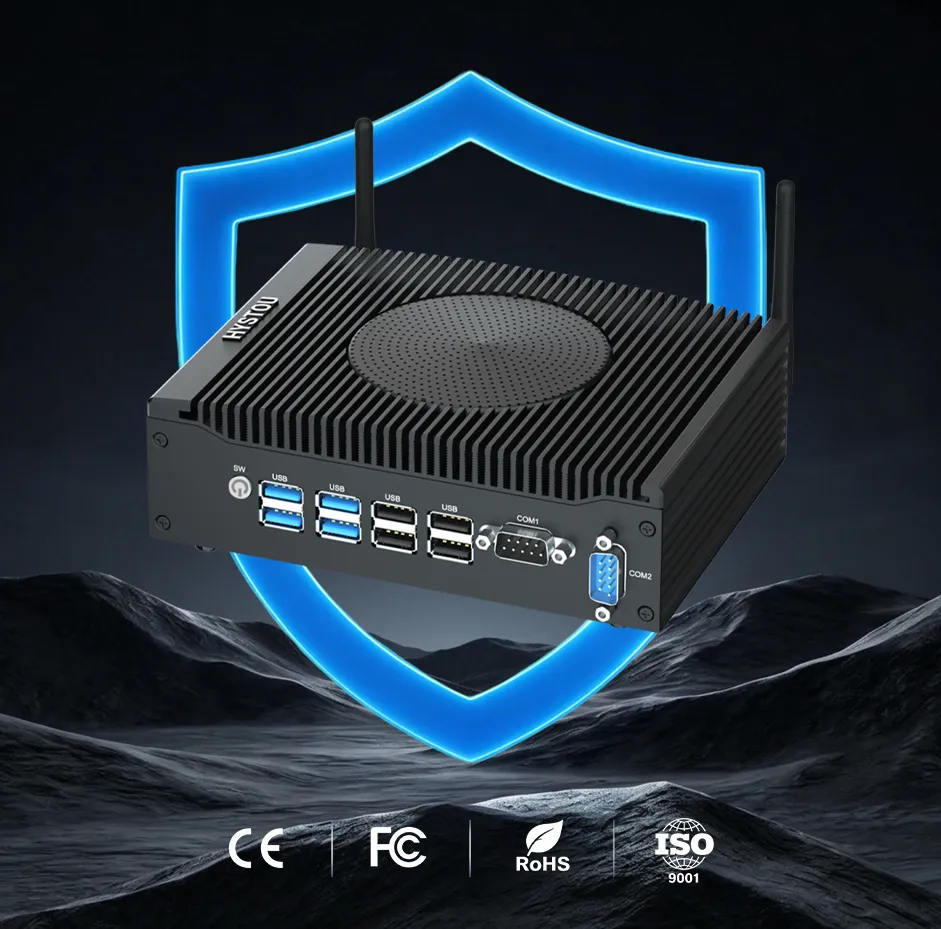

Engineered for zero-downtime environments, every HYSTOU H7 Mini PC undergoes 100% full-load burn-in testing and thermal validation. Backed by a full 3-Year Hardware Warranty and strict compliance with CE, FCC, and RoHS international standards, ensuring seamless global deployment for systems integrators.
Hardware purchase is just the beginning. HYSTOU provides total technical support through every stage of your project lifecycle—from initial BIOS/OS customization to long-term hardware maintenance.
Technical Specifications
| Category | Details |
|---|---|
|
Processor |
Intel Core i3-1215UU (6C/8T, 1.2-4.4GHz) |
|
Memory |
1×DDR5 4800MHz SODIMM (max 32GB) |
|
Storage |
1×M.2 NVMe 2280 + 1×SATA3.0 (4TB total) |
|
Graphics |
Intel UHD Graphics |
|
Networking |
2×Gigabit Ethernet, optional WiFi 5/BT4.2 |
|
Operating System |
Windows 10/11 Pro, Linux compatible |
|
Power Supply |
Supports 12V 6A, standard 19V 1.74A |
|
Dimensions |
170×126×58mm |
|
Weight |
1.1kg (net), 1.9kg (with accessories) |
|
Material |
Aluminum alloy |
|
l/O ports |
4xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/3G/4G modules. |
|
Kensinaton Lock |
Yes |
|
Accessory |
VESA mount、Wall-mounted |
|
Working environment temperature |
-10°C~50°C |
|
Cooling system CPU fan DB (MAX) |
Fan Cooling |
Frequently Asked Questions
For more technical details or customization options, please contact our industrial solutions team at operations@hystou.com
The H7 supports up to 32GB of DDR5 4800MHz RAM through its single SODIMM slot.
Yes. In addition to Dual Gigabit LAN (2× RJ45) and 2.4G/5G Dual-Band Wi-Fi + BT4.2, the H7 features an integrated Nano-SIM card slot (mPCIe), allowing you to deploy 3G/4G LTE cellular modules for remote IoT data transmission and failover networking.
Windows 10/11 Pro (pre-installed), plus Linux distributions (Ubuntu/CentOS recommended). Driver integration required for specialized systems like VMWare ESXi.
Absolutely. The dual cooling system and industrial-grade components are specifically engineered for continuous operation in demanding environments.
The H7 utilizes an all-aluminum alloy body as an active heat sink. It features an externally mounted smart cooling fan that actively cools the chassis fins while keeping the internal motherboard completely sealed from dust, oil mist, and debris, ensuring reliable 24/7 continuous operation.
Yes, the H7 includes VESA mount compatibility for flexible installation in space-constrained environments.
Standard 3-year manufacturer warranty with optional extended coverage available through HYSTOU support.
