STRHIGP H6 Fanless Industrial Mini PC
Categories: Accessories
- Processor: Intel Core i7-10810U, providing flexible performance options for industrial monitoring, office computing, edge applications and other workloads.
- Graphics: Intel UHD Graphics, supporting 4K UHD output at up to 4096×2160@60Hz and triple-display connectivity for multi-screen monitoring, data visualization and productivity.
- Memory: Supports up to 64GB DDR4 RAM, providing ample capacity for multitasking, industrial software, monitoring dashboards and memory-intensive applications.
- Storage: Built-in M.2 2280 SSD support with an additional 2.5-inch SSD expansion option, offering fast local storage and flexible capacity for applications, files and operational data.
- Network: Equipped with 2× Gigabit Ethernet ports, dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 4.2, providing flexible wired and wireless connectivity for industrial networks, peripherals and connected devices.
| Range | Discount |
|---|---|
| 1 - 5 | $742.85 |
| 6 - 50 | $740.85 |
| 51 - 100 | $738.85 |
| 101 + | $735.85 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
STRHIGP H6 Fanless
Silent Cooling · Dual LAN · Triple Display · Up to 64GB DDR4

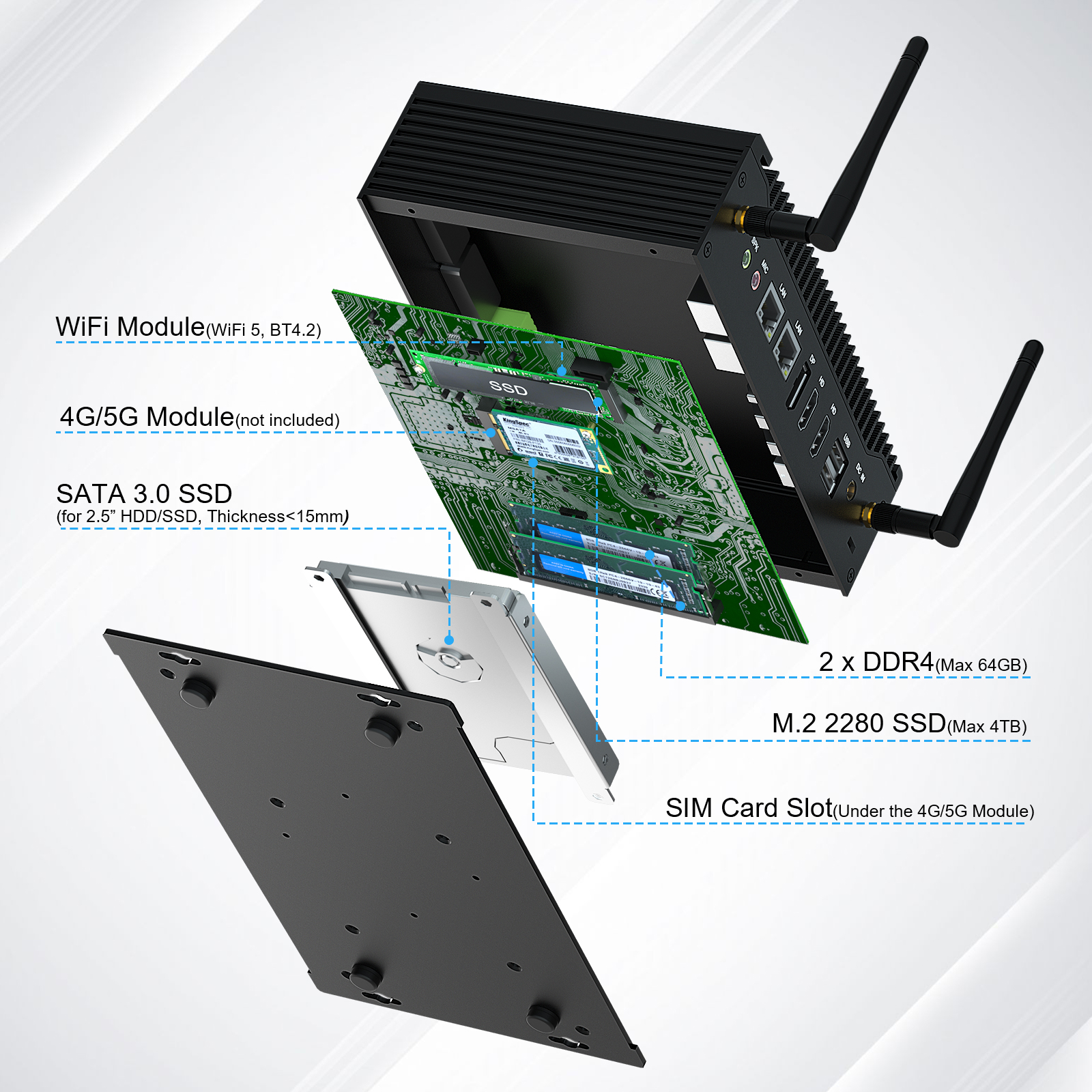

Memory, Speed & Connectivity – Seamless Performance
More Memory. More Flexibility. More Possibilities.
With up to 64GB of DDR4 memory and M.2 2280 SSD support, HYSTOU H6 is built to handle demanding multitasking, industrial monitoring, edge computing, and data processing workloads. Need more local storage? Add a 2.5-inch SSD to expand capacity for applications, files, and operational data.

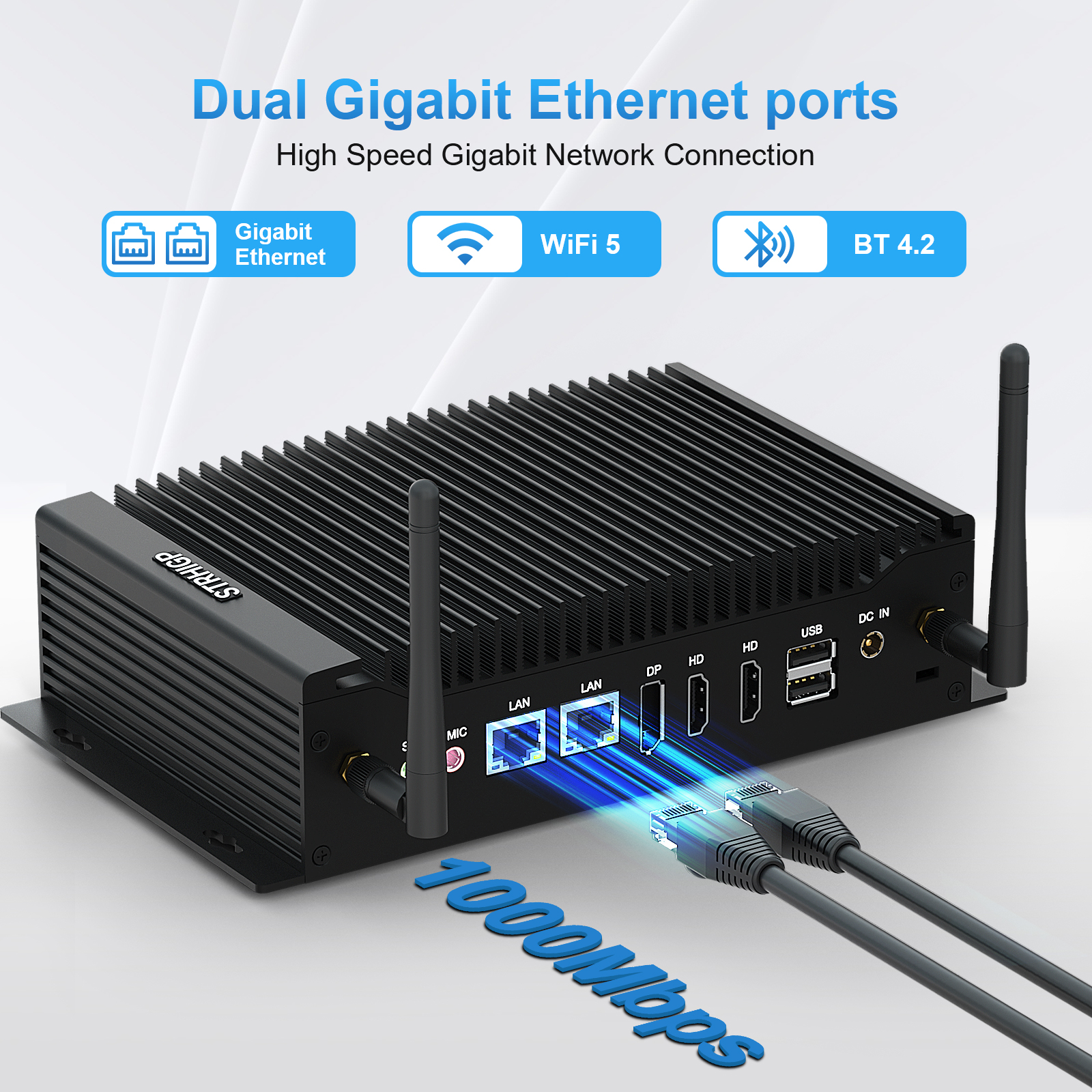

Dual LAN. Greater Network Flexibility.
HYSTOU H6 provides flexible wired and wireless connectivity for industrial and commercial deployments. Two Gigabit Ethernet ports support separate networks, industrial gateways and connected devices, while dual-band Wi-Fi and Bluetooth provide convenient wireless connectivity for compatible peripherals and network access.

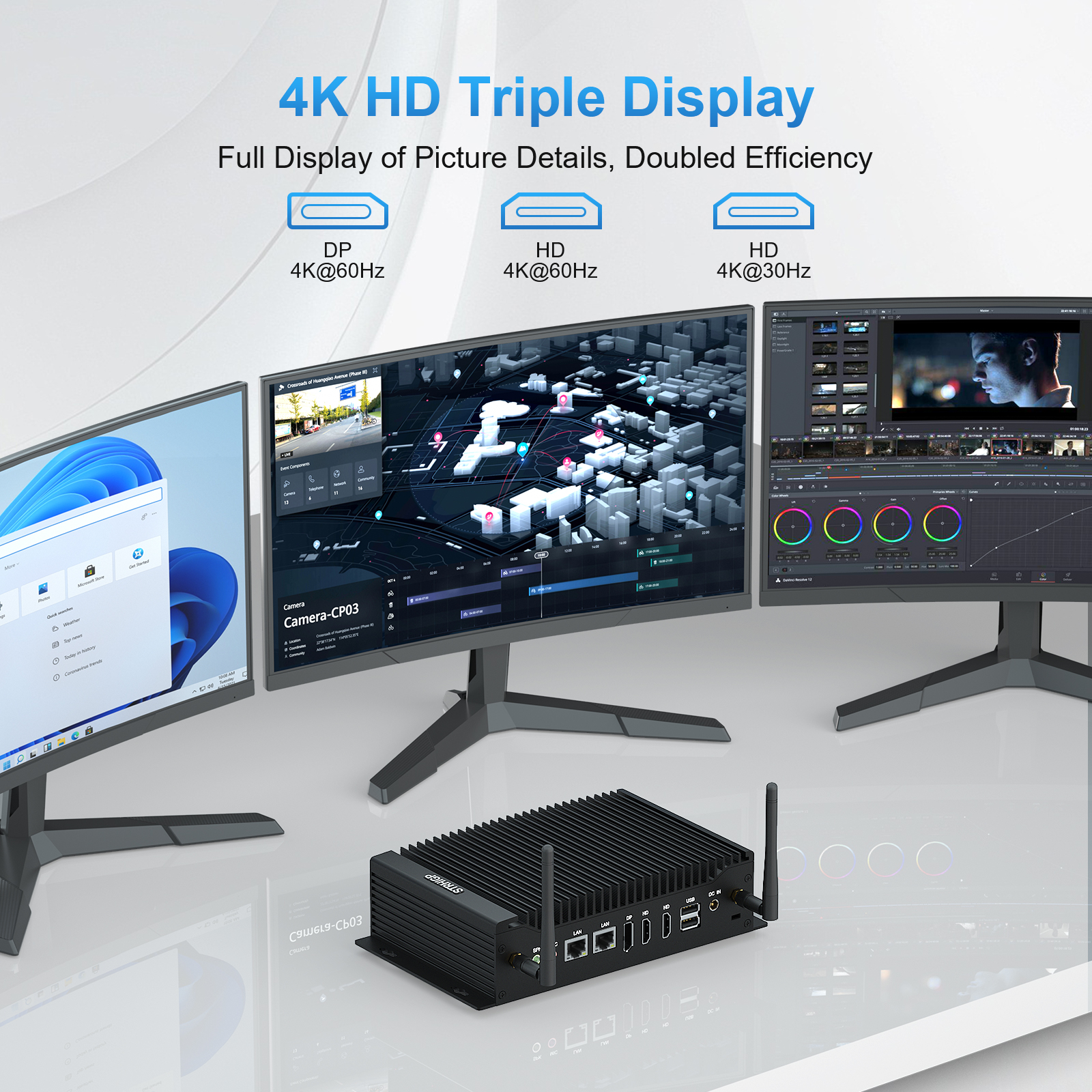

More Screens. More Visibility. More Control.
Triple-Display Support with 4K UHD Graphics
STRHIGP H6 integrates Intel UHD Graphics with support for 4K UHD output, giving you the visual capability needed for detailed dashboards, monitoring interfaces and multi-screen workflows. Connect up to three displays to organize applications, visualize real-time data, manage control interfaces or extend your workspace across multiple screens. Beyond industrial and business applications, the H6 can also handle everyday multimedia tasks, remote meetings, content playback and home entertainment.

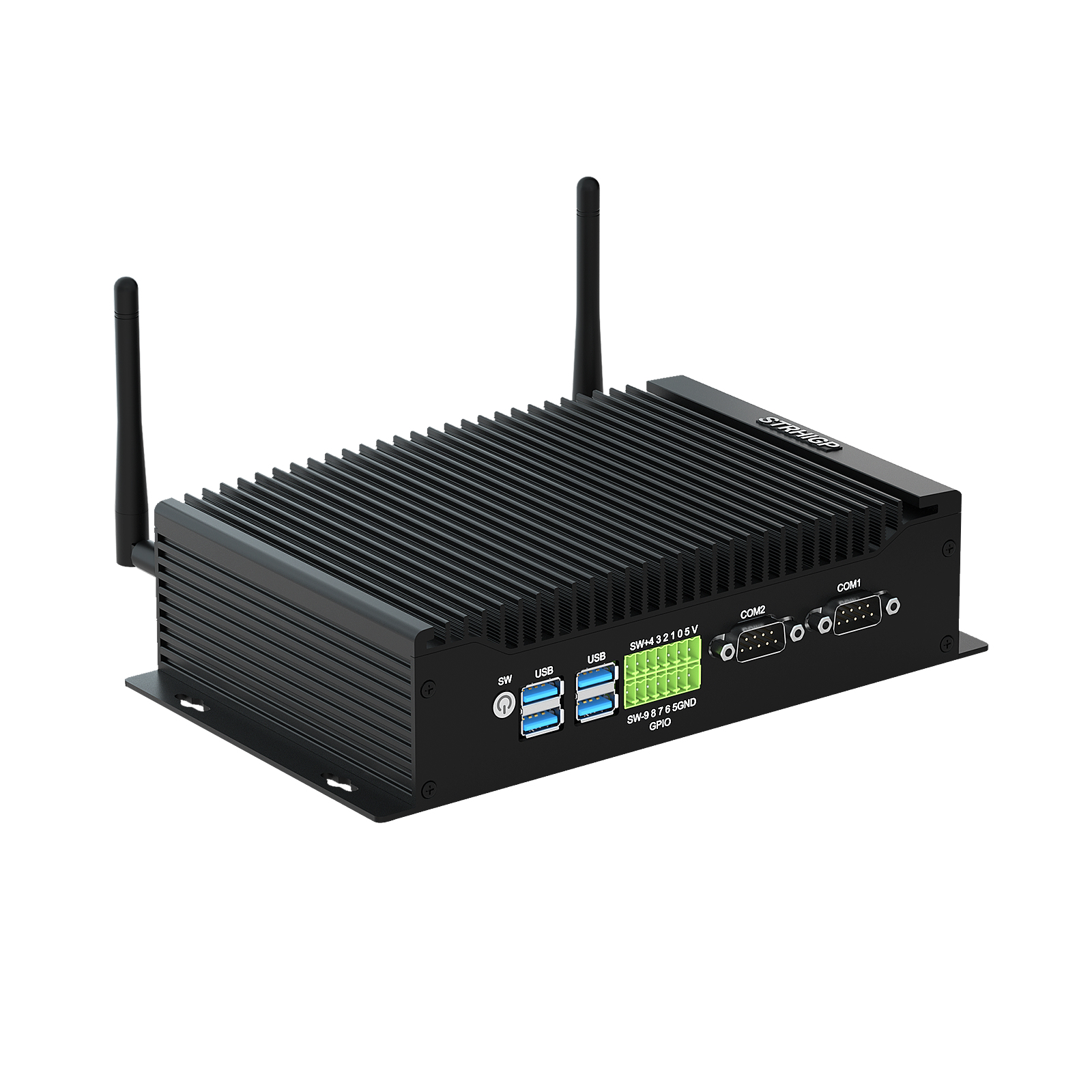

One Compact PC. Multiple Ways to Connect.
From industrial controllers and serial equipment to displays and USB peripherals, HYSTOU H6 provides the connectivity needed for diverse deployment environments. With 6 USB ports, 2 COM ports, 2 Gigabit LAN ports, DP and HDMI outputs, H6 makes it easier to integrate multiple devices into a compact industrial computing platform.

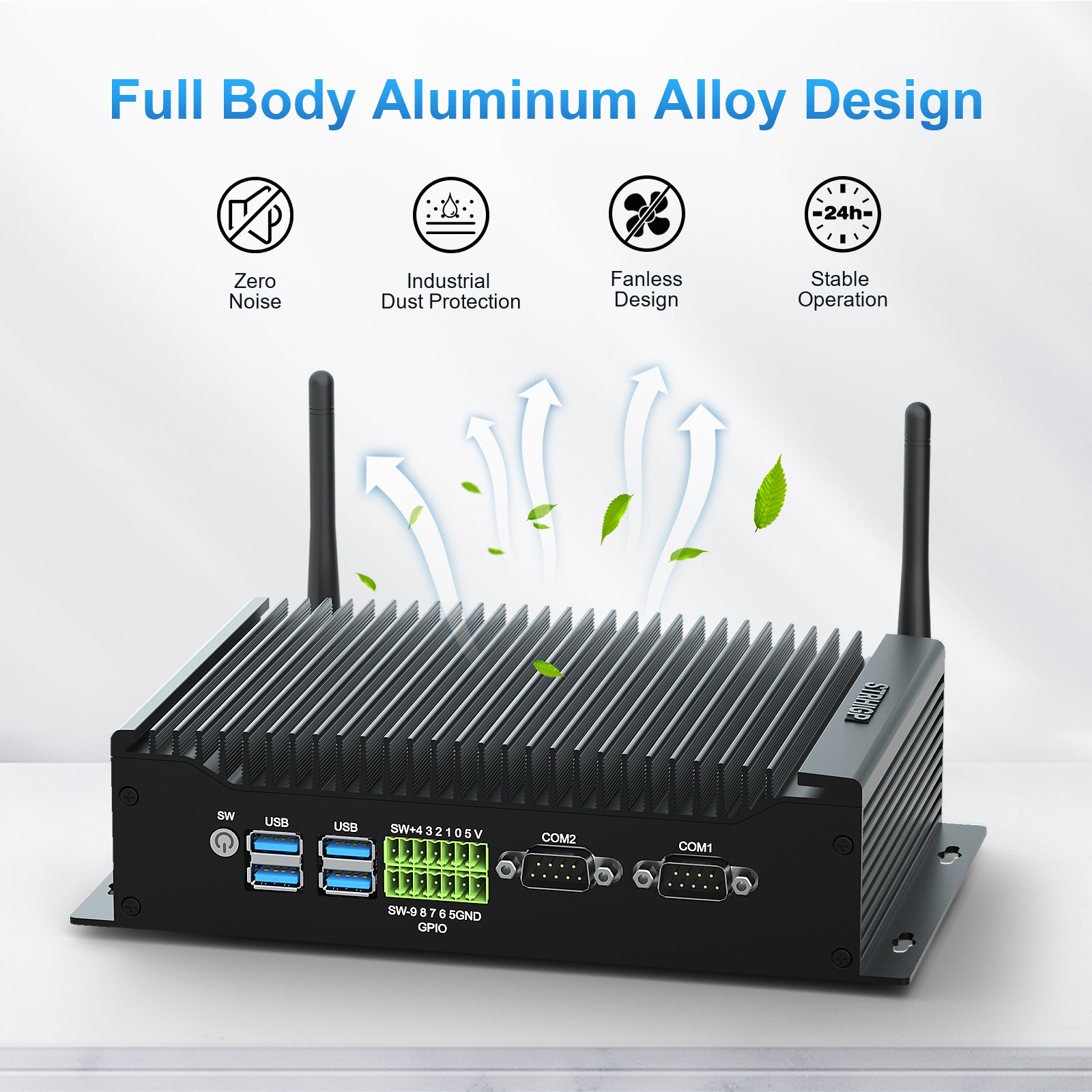

Passive Cooling, Silent Efficiency
Our fanless Mini PC features advanced passive cooling technology, dissipating heat efficiently via large-area heat sinks. Dense heat fins are visible on the top and sides of the chassis—these fins maximize air contact area to boost cooling performance. Additionally, the case is crafted from specialized thermal conductive material, which rapidly transfers internal heat to the exterior for reliable, effective heat management.
Specifications
| Category | Details |
|---|---|
|
Processor |
i3-8140Ui7-10510U |
|
Memory |
2×DDR4 (max 64GB) |
|
Storage |
1×M.2280 slot， Supports M.2 SATA or PCIe (NVMe) channels SSD |
|
Graphics |
Intel UHD Graphics 620 |
|
Networking |
2×Gigabit Ethernet
WIFI 5, Supports WIFI6/WIFI6E
Bluetoothv4.2 |
|
Operating System |
Win10/Win11/Linux/ |
|
Power Supply |
12V 6A (Additional support for 19V) |
|
Dimensions |
205×126×58mm |
|
Weight |
1.15kg (net) |
|
Material |
Aluminum alloy |
|
l/O ports |
2×USB 2.0 |
|
Internal Slot |
1×M.2 2230 slot for installing a Wi-Fi/Bluetooth module |
|
Kensinaton Lock |
No |
|
Accessory |
VESA mount、Wall-mounted |
|
Working environment temperature |
-10°C~60°C |
|
Cooling system CPU fan DB (MAX) |
Fanless, 0db |
