Hystou M2 Dual LAN Mini PC | Intel N150/N305 Soft Router & Edge Gateway
Categories: Office Mini PCs
- Processor: Intel N150 (4 cores/4 threads, 0.8GHz base, up to 3.6GHz turbo)
- Graphics Card: Integrated graphics

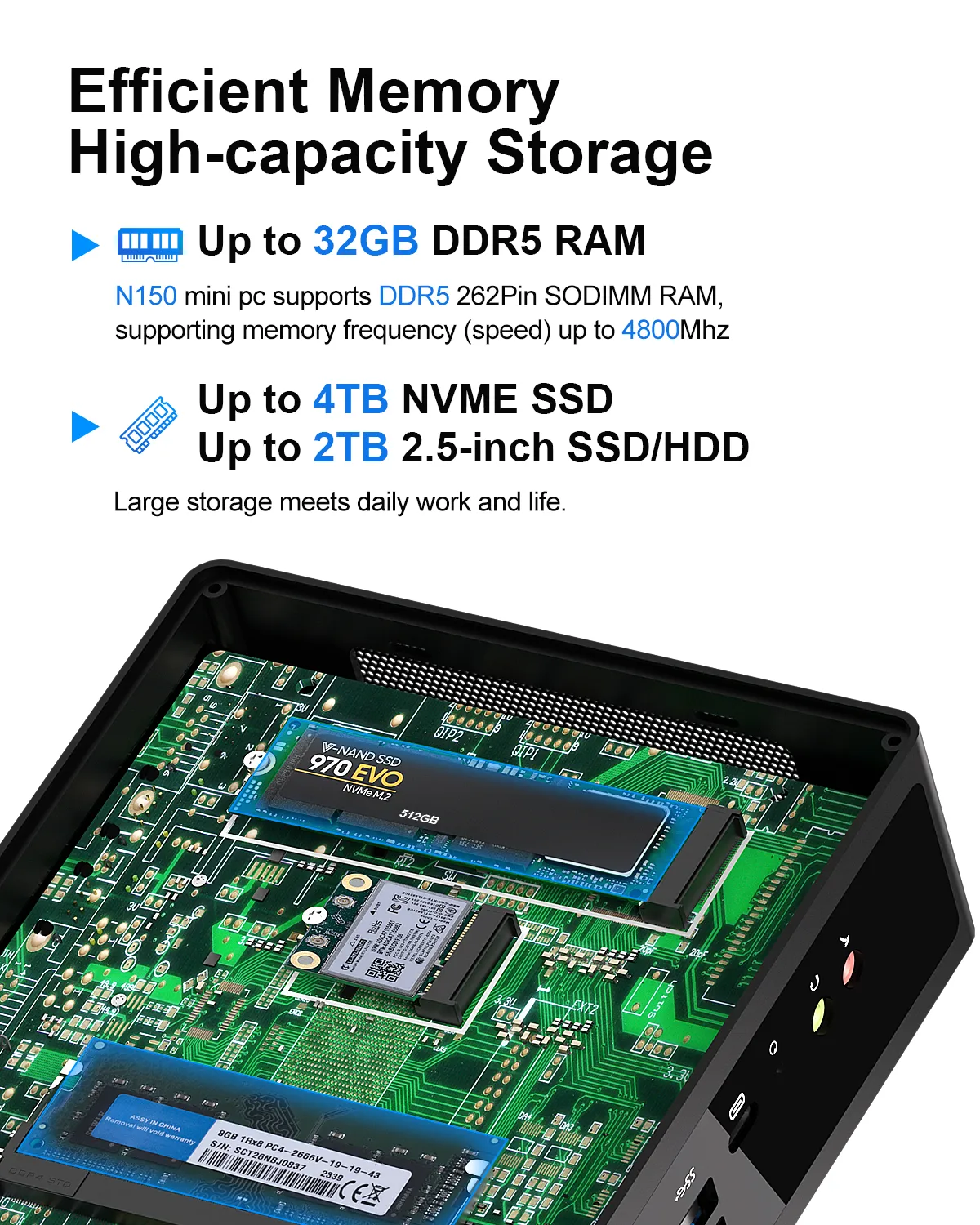

- Memory: 1×DDR5 262Pin SODIMM slot, supporting up to 32GB DDR5-4800MHz
- Storage: 1×M.2 NVMe SSD slot (2280 form factor, max 4TB) + 1×SATA3.0 port (2.5-inch HDD/SSD, max 7mm thickness)
- Network: Dual Gigabit Ethernet (Realtek RTL8168/8111), Wi-Fi 5 + Bluetooth 4.2 standard (optional upgrade to Wi-Fi 6 + Bluetooth 5.2)
- Additional Features: 4K triple display output， VESA mount compatible， Low-noise cooling system
| Range | Discount |
|---|---|
| 1 - 5 | $225.71 |
| 6 - 50 | $223.71 |
| 51 - 100 | $221.71 |
| 101 + | $218.71 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
Hystou M2 Mini PC
Intel® Alder Lake-N Series | Dual Gigabit Ethernet | DDR5 Speed | Pocket-Sized
Small Footprint, Next-Gen Efficiency
Powered by Intel Alder Lake-N processors and high-speed DDR5 4800MHz memory (up to 32GB), the Hystou M2 Series delivers responsive desktop responsiveness in a pocket-sized form factor. Operating at an ultra-low 6W TDP, it provides exceptional memory bandwidth and whisper-quiet performance—making it the ideal continuous-duty platform for modern office multitasking, 4K display workflows, and high-efficiency network routing.

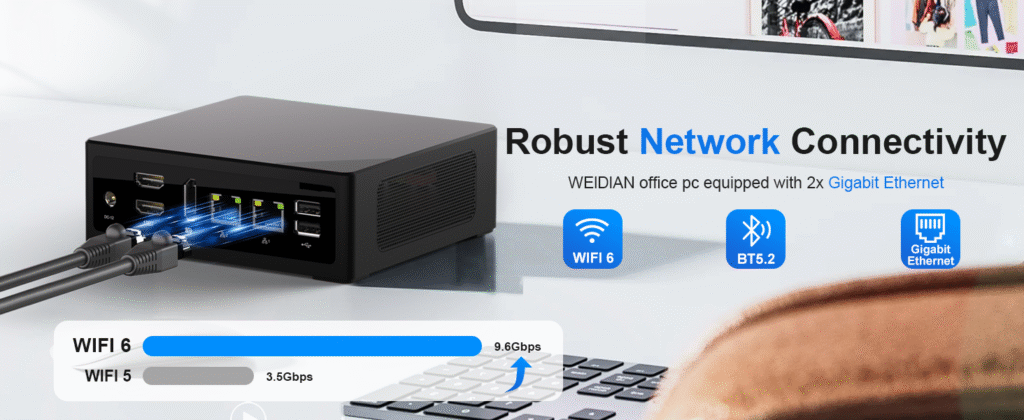

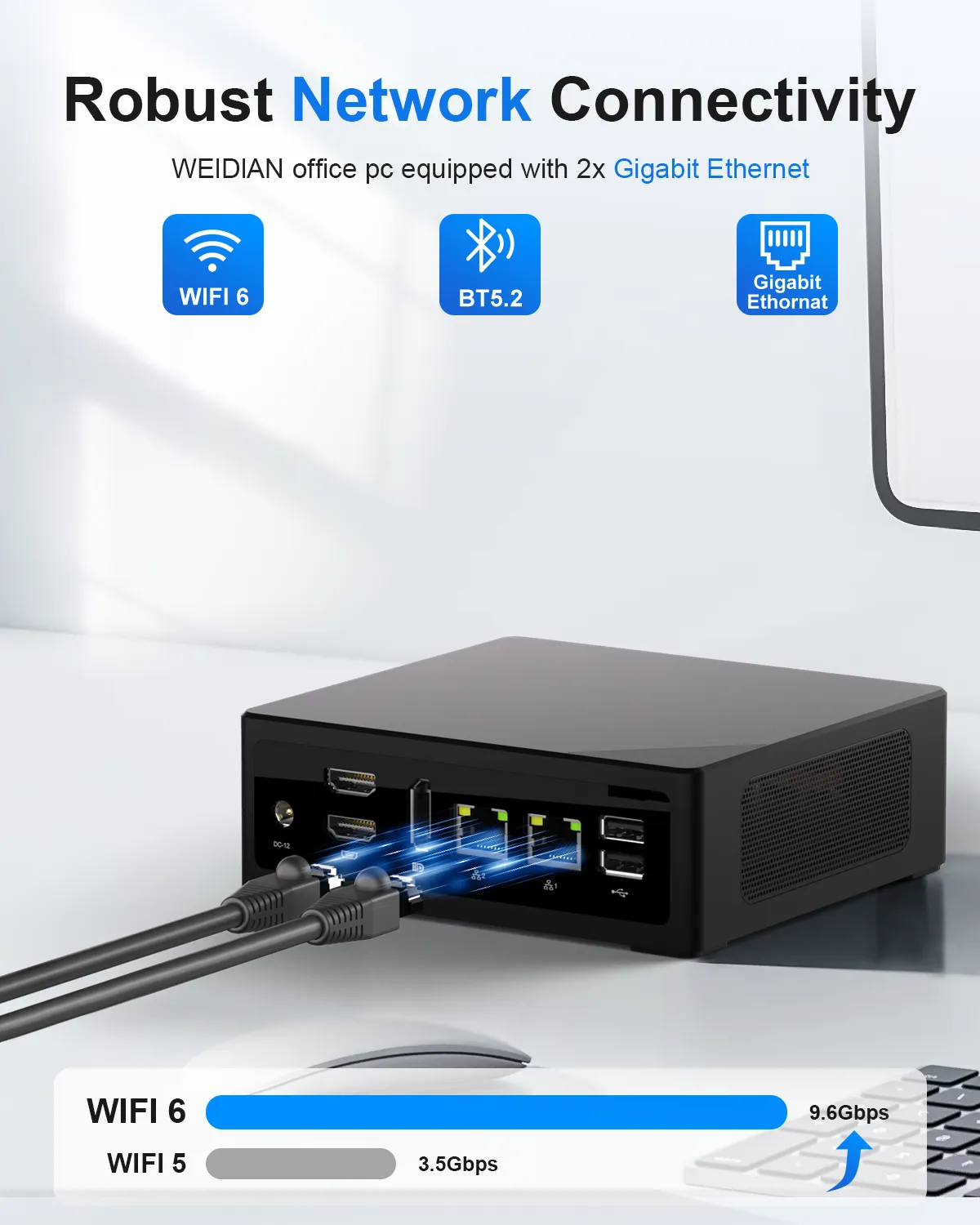

The Ultimate Soft Router & Network Gateway
Featuring dual Gigabit RJ45 Ethernet ports alongside WiFi 6 expansion capability, the Hystou M2 is built to handle high-throughput network tasks with ease. Whether deployed as a dedicated hardware firewall with pfSense/OPNsense, a high-bandwidth soft router, or an isolated edge node, it delivers rock-solid wired performance and seamless traffic management for business and home network environments.

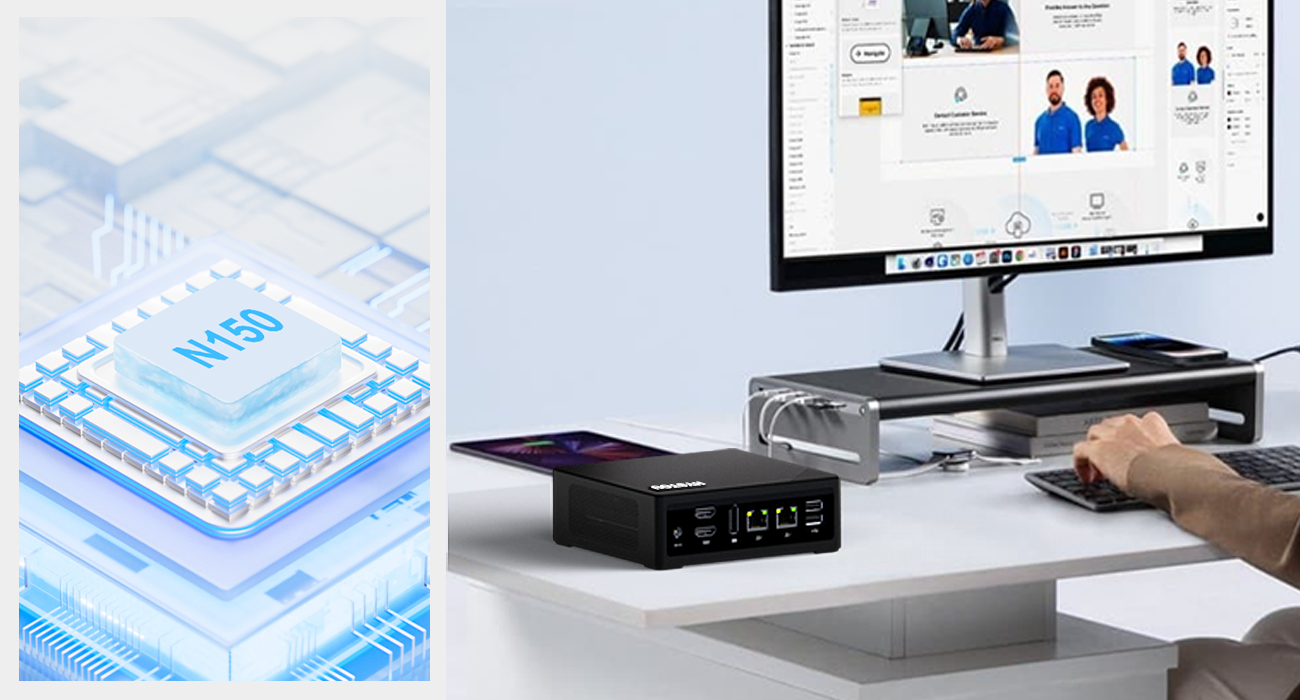

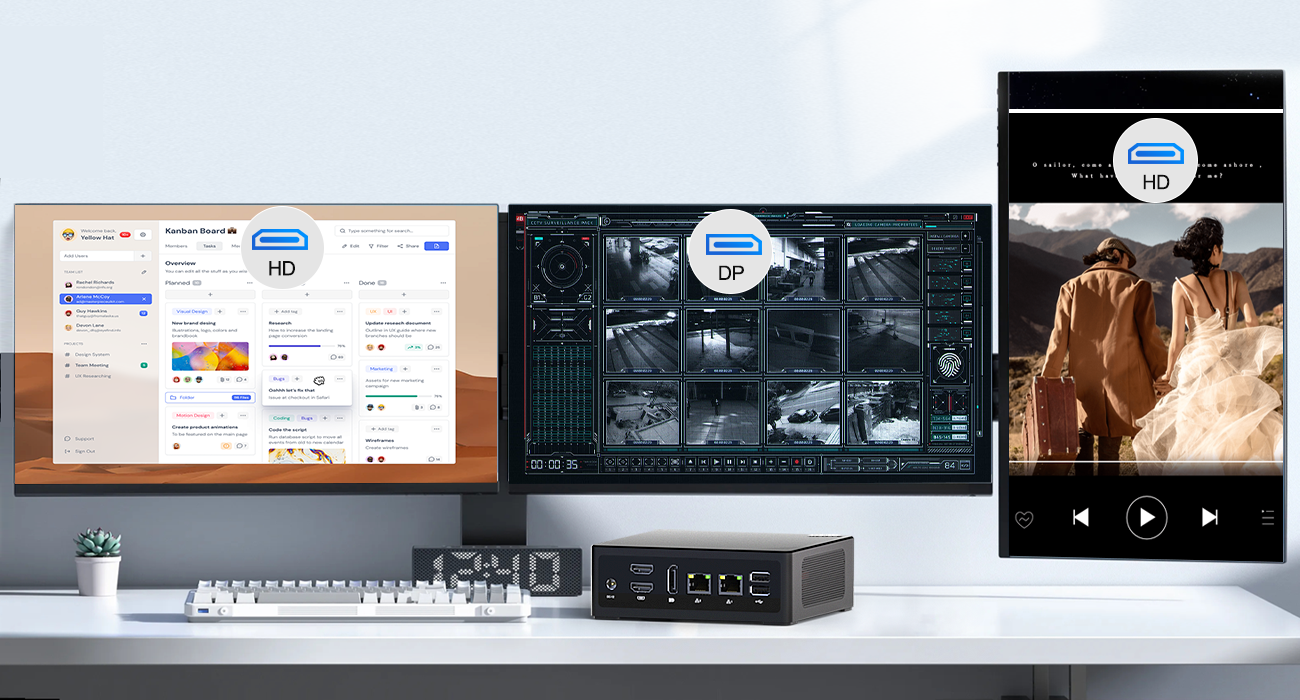

Three Independent Displays, One Small Footprint
The M2 drives up to three monitors simultaneously through two HDMI ports and one DisplayPort, eliminating constant window switching during multitasking.
2×HDMI 1.4
4K@30Hz
1×DP 1.2
4K@60Hz

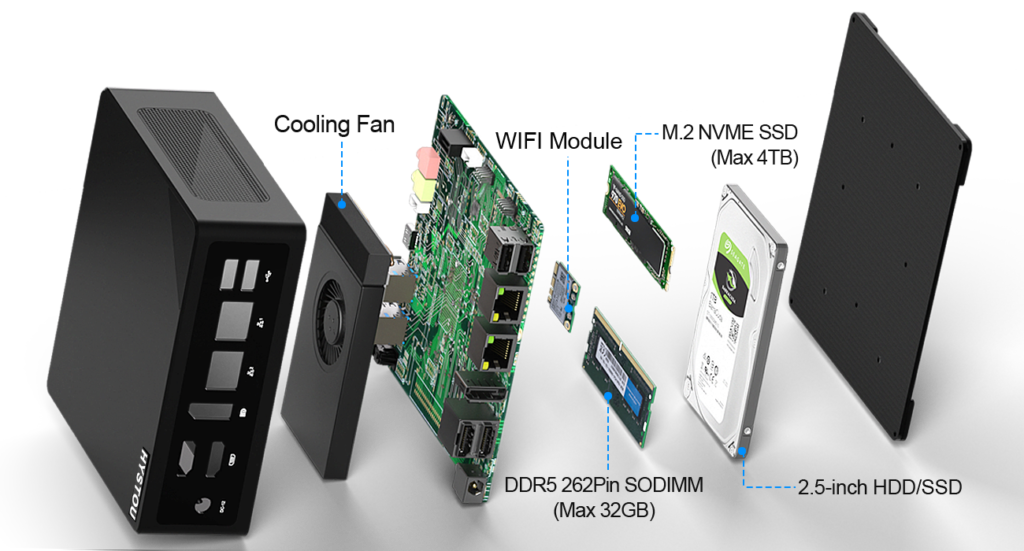

Flexible Expansion & Industrial-Grade Features (TPM 2.0)

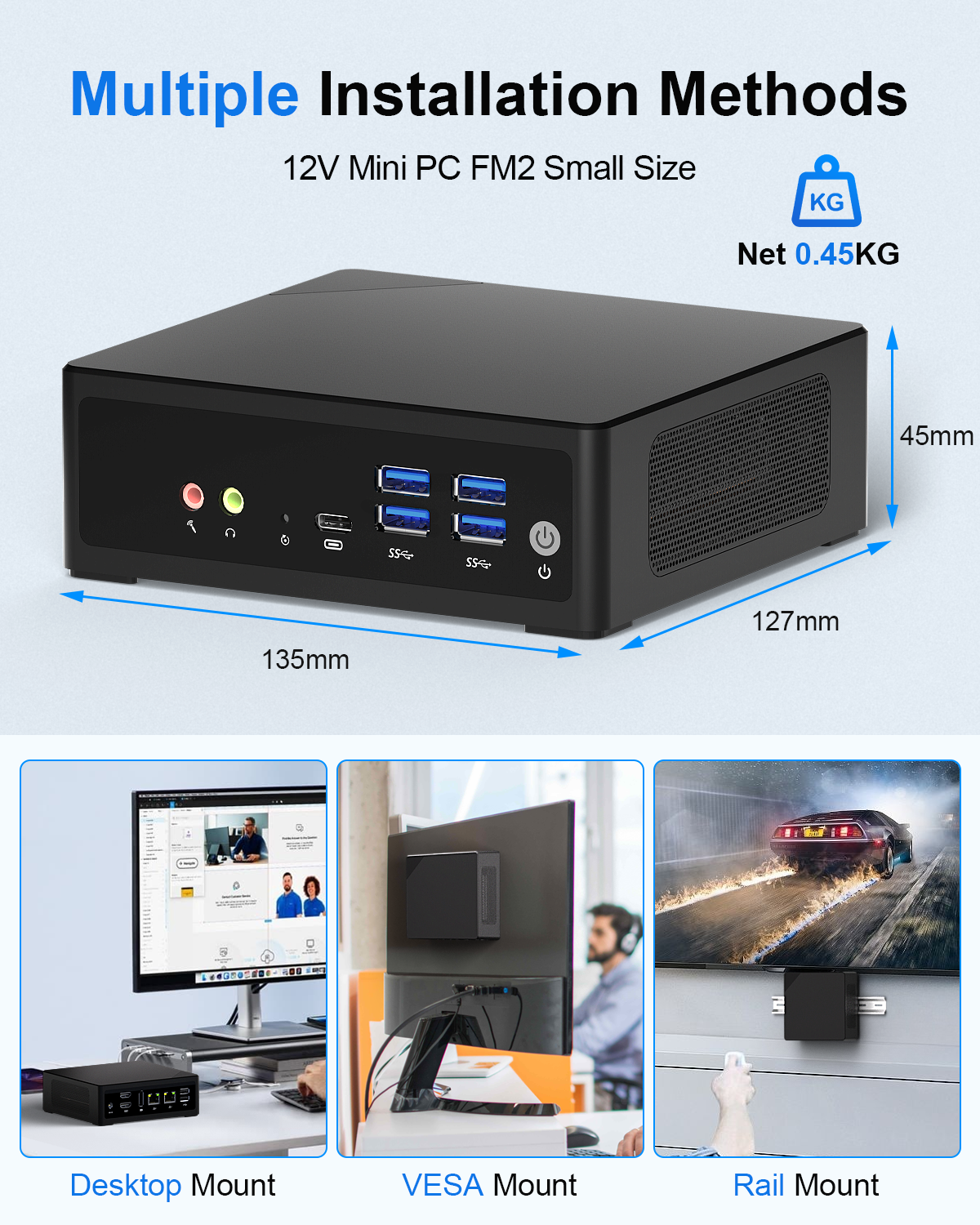

Compact Yet Expandable: Despite its ultra-compact 135mm x 127mm footprint, the M2 offers robust dual-storage capability, accommodating 1x M.2 NVMe SSD and 1x 2.5-inch SATA HDD/SSD.
Mission-Critical Reliability: Engineered for commercial stability. Essential features include Auto Power On, Watchdog Timer, and a TPM 2.0 security module, ensuring secure, unattended operation in demanding business environments.

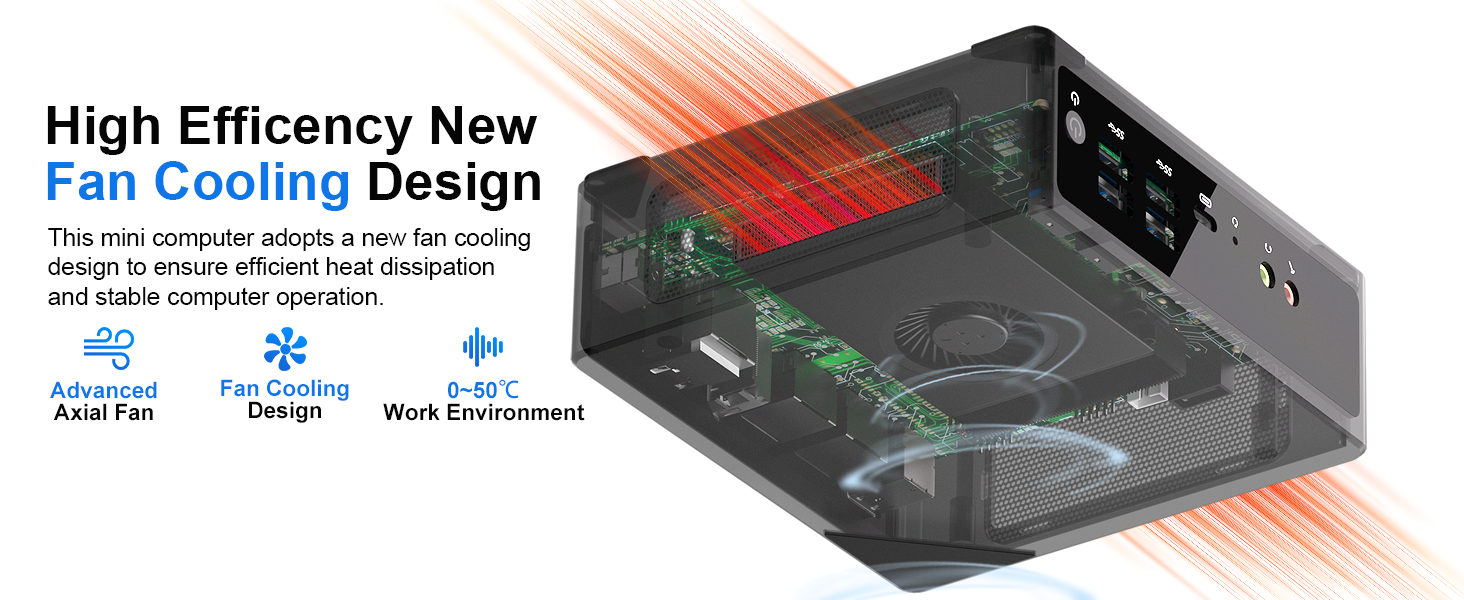

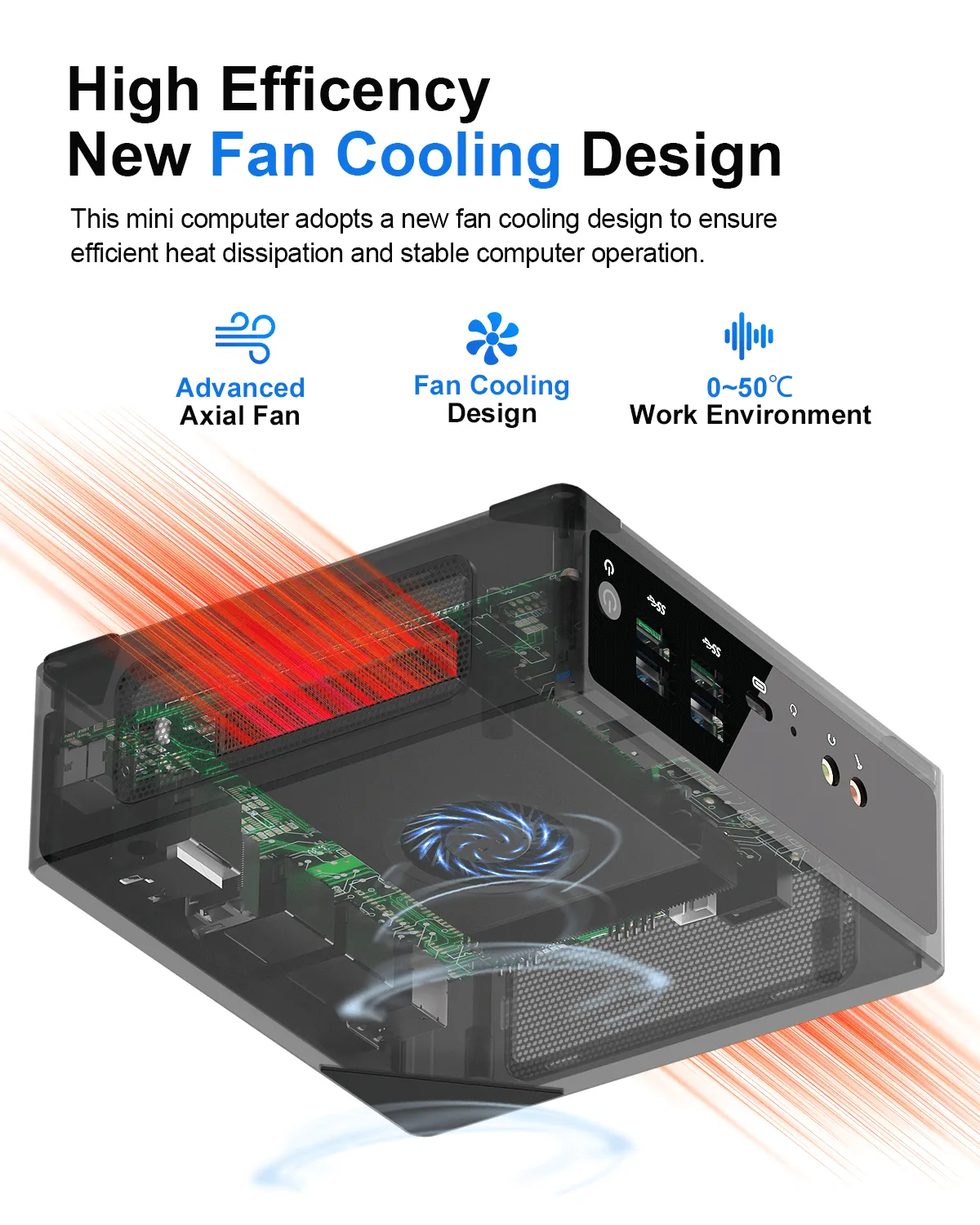

Quiet Under Load, Efficient Always On
The M2 uses a compact axial fan tuned for minimal acoustic noise rather than maximum airflow. At typical office workloads, the fan stays nearly inaudible; under full load, noise levels measure approximately 30 dB at 1 meter

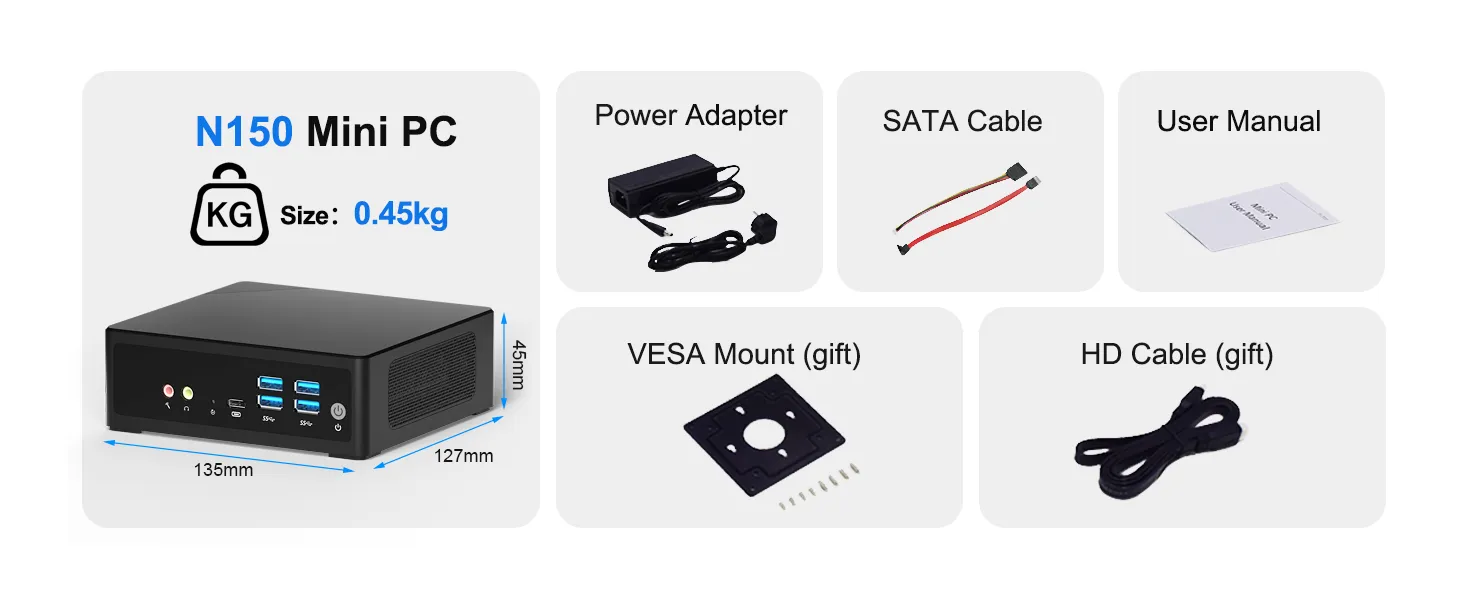

Packing List:
Technical Specifications
| Category | Details |
|---|---|
|
Processor |
Intel N150 (4C/4T, 0.8-3.6GHz) |
|
Memory |
1x DDR5 SO-DIMM Slot, Max 32GB, 4800MHz Speed |
|
Storage |
1x M.2 2280 NVMe SSD (PCIe 3.0, Max 4TB) |
|
Graphics |
Intel UHD Graphics |
|
Networking |
2x Realtek RTL8168/8111 Gigabit Ethernet Ports |
|
Operating System |
Windows 10/11, Windows Server, Ubuntu, pfSense, OPNsense |
|
Power Supply |
12V 5A（Only supports 12V DC input） |
|
Dimensions |
135×127.6×45mm |
|
Weight |
0.45kg (net), 1.3kg (with accessories) |
|
Material |
Aluminum alloy + ABS |
|

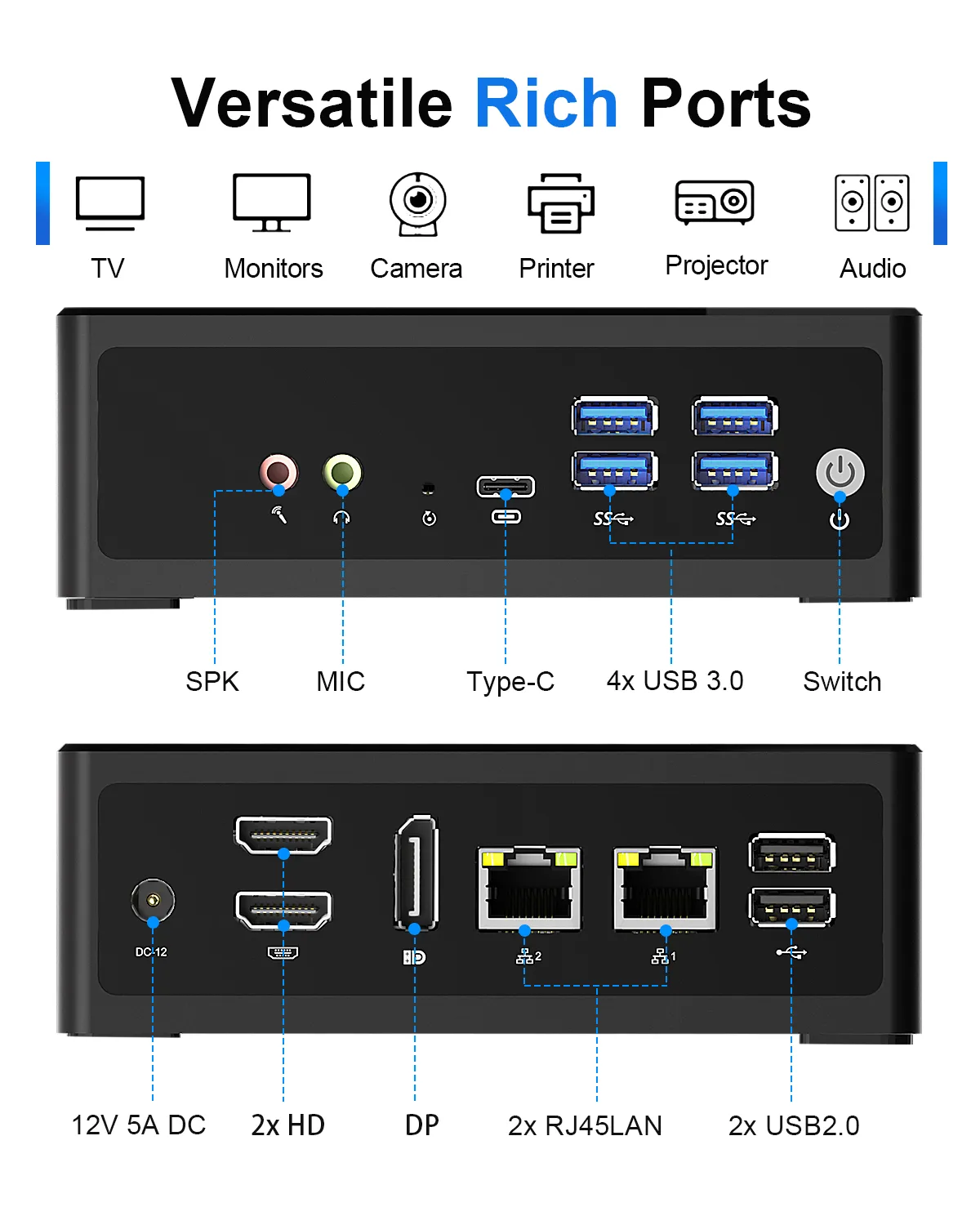

l/O ports |
2xUSB 2.0 |
|
Internal Slot |
1×9 pin (2mm pitch) serial header, can be used to expand DB9 pin serial port (RS232) |
|
Kensinaton Lock |
Yes |
|
Accessory |
VESA mount |
|
Working environment temperature |
-0°C~50°C |
|
Cooling system CPU fan DB (MAX) |
Fan Cooling |
Frequently Asked Questions
Does the Hystou M2 support pfSense or OPNsense as a soft router?
Yes. The M2 is equipped with two Realtek RTL8168/8111 Gigabit Ethernet ports and supports popular router/firewall distributions including pfSense, OPNsense, and OpenWrt. The 6W TDP Intel N150 is designed for continuous network throughput, making it well-suited as a dedicated firewall, router, or edge gateway.
Does the M2 come with WiFi 6 standard?
The base configuration includes WiFi 5 (802.11ac) + Bluetooth 4.2. WiFi 6 + Bluetooth 5.2 is available as a factory upgrade option. For wired network use (soft router, firewall), the Ethernet ports are the primary connection and WiFi is not required.
What is the actual power consumption?
At idle, the M2 draws approximately 6W. Under typical office workload it runs at 8–12W, and under full CPU load it reaches about 15W. It ships with a 12V 5A power adapter.
What is the warranty and return policy?
The HYSTOU M2 comes with a 3-year warranty and 24/7 technical support. We offer a 15-day return window for orders shipped within the US and Canada. OEM/ODM customization is available for bulk orders — contact our engineering team for MOQ and pricing.
Does HYSTOU offer custom hardware configurations or OEM/ODM branding?
Yes. We offer flexible OEM/ODM services for bulk orders, including custom BIOS settings (such as Auto Power On or Wake on LAN), customized RAM/SSD capacities, custom logo printing, and specialized packaging.
