HYSTOU P09B-4L | Industrial Firewall Mini PC 4-LAN DDR5
Categories: Office Mini PCs
- Processor: Intel Alder Lake N100 （4 cores，4 threads，6M cache， up to 3.40GHz）
- Graphics Card: Intel UHD Graphics
- Memory: DDR5 memory technology（higher frequency and bandwidth support）
- Storage: 1*M.2 PCIE 3.0 SSD slots 1*SATA3.0 2.5inch
- Network: 4*LAN ports
- Additional Features：Fanless cooling system for silent operation and low power consumption，Blutooth and Wi-Fi connectivity

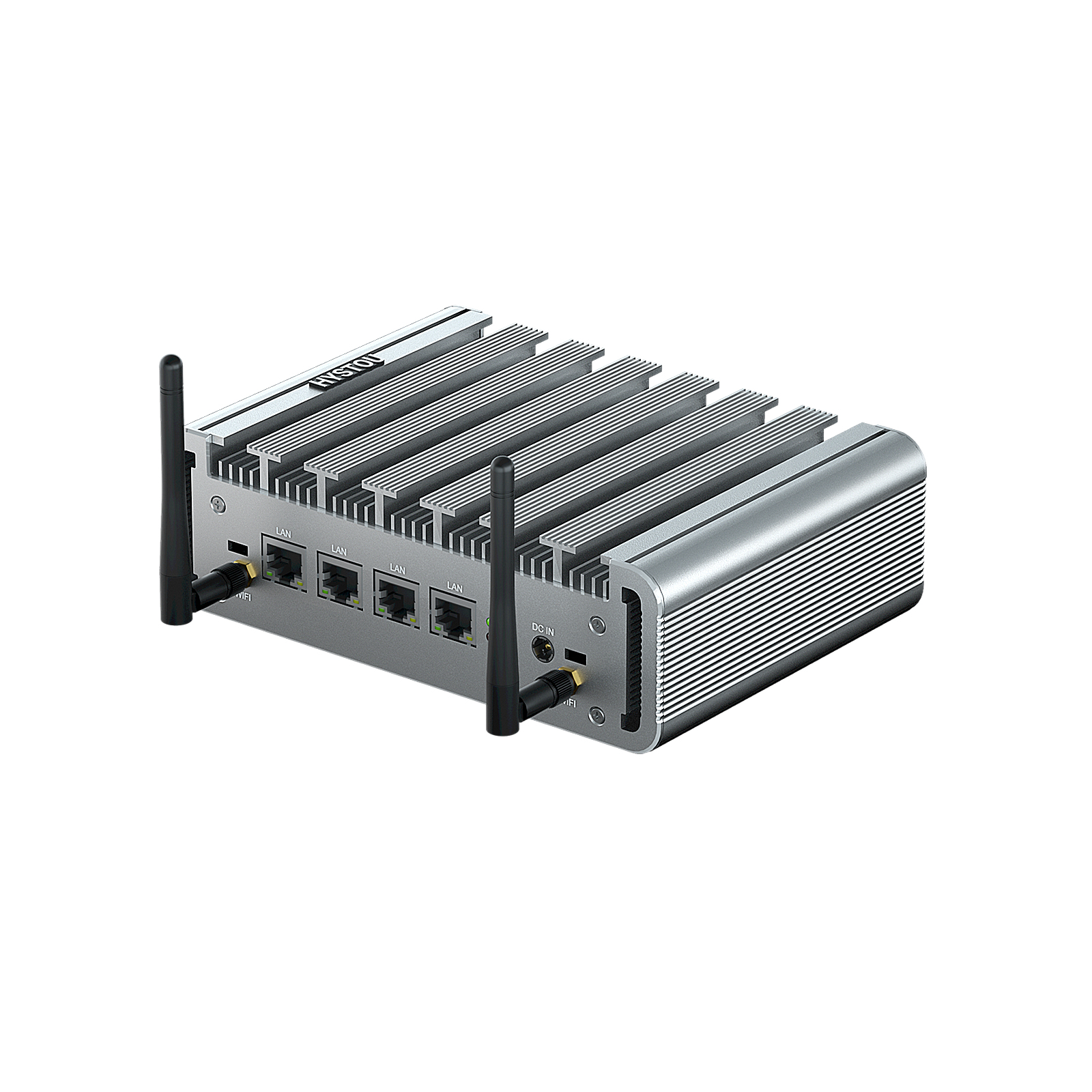

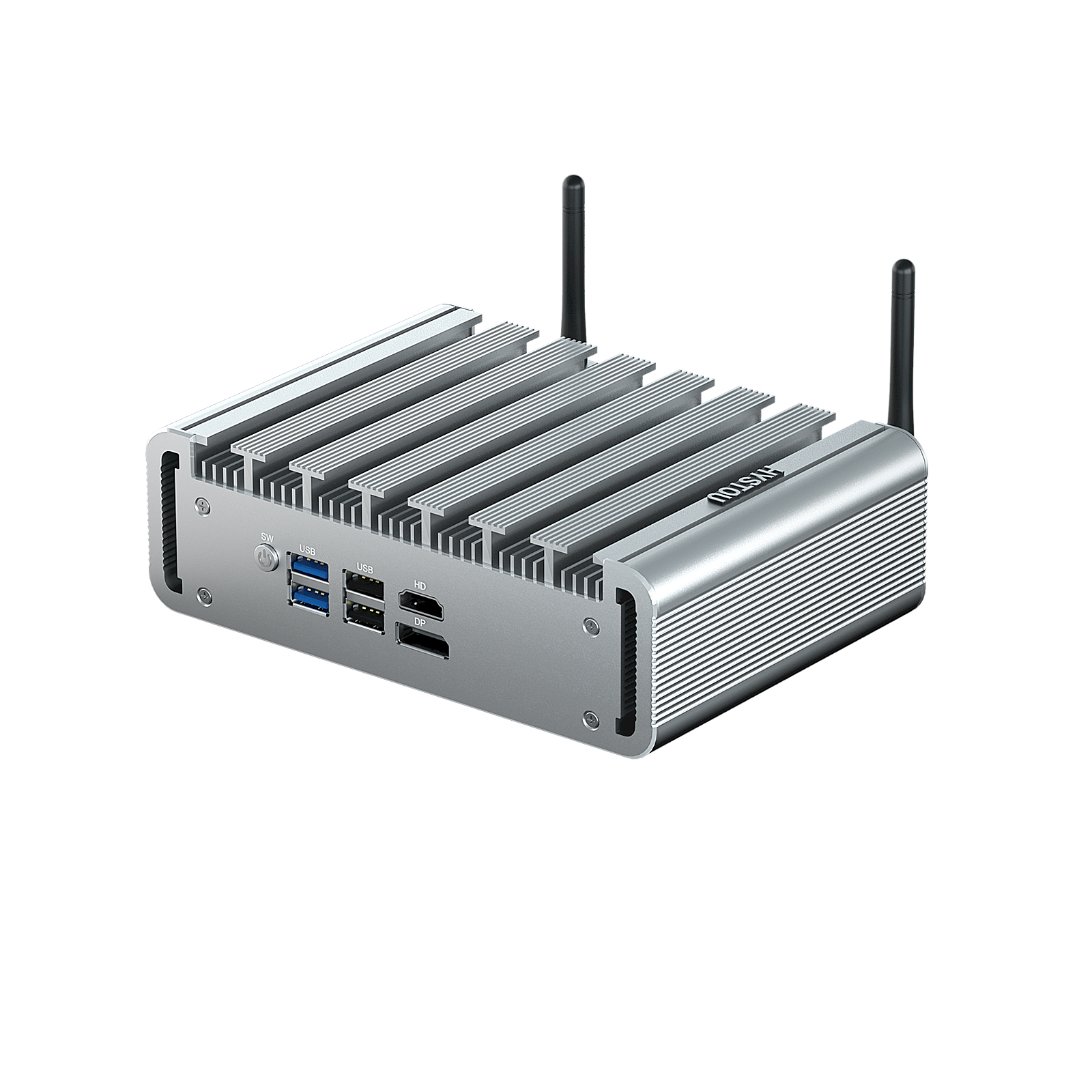

HYSTOU P09B-4L
Industrial-Grade Fanless Firewall Mini PC
Why choose HYSTOU P09B-4L
A cost-effective choice for SMB gateways
- 4 industrial-grade 2.5G LAN ports enable direct four-segment physical isolation, replacing the combination of “entry-level gateway + switch” with one device and reducing hardware procurement costs by 50%.
- The fanless passive cooling design achieves zero-noise operation, perfectly suitable for office environments.
- The 12th-gen Intel N100 processor + DDR5 4800MHz memory can run firewall systems and lightweight OA virtual machines simultaneously, balancing security protection and office collaboration without additional server deployment.
For the harsh demands of industrial scenarios
- Industrial-grade wide-temperature design (operating at -20℃~50℃) + all-metal dustproof body can resist high temperatures, dust and electromagnetic interference in workshops, reducing failure rates by 80% compared to consumer-grade devices;
- It supports DIN rail mounting, which can be directly embedded into industrial control cabinets, saving cabinet space and adapting to compact production line deployment;
- 4 industrial-grade LAN ports can independently divide each production line network segment, and with firewall systems, achieve precise traffic control to ensure safe and uninterrupted production line data interaction.
A reliable guarantee for remote unattended scenarios
- The fanless zero-mechanical-failure design prevents dust accumulation and component wear, enabling stable operation for months without intervention and significantly reducing on-site maintenance frequency.
- The whole machine operates with low power consumption, adapting to the limited power supply environment of remote sites and reducing electricity costs.
- The dual-storage interface (M.2 NVMe + 2.5-inch SATA) can be paired with a large-capacity SATA hard drive for long-term network log archiving, and supports industrial-grade hard drives resistant to high and low temperatures for safer data storage.
- It supports wall-mounted/desktop dual-mode installation, which can be completed by a single person without the need for professional technicians on-site.
Intel Alder Lake N100
DDR5 4800MHz, up to 32GB
M.2 2280 and 2.5 Inch SSD,up to 4TB
Supports multiple systems
VESA option
WIFI 4/5
Bluetooth 4.2

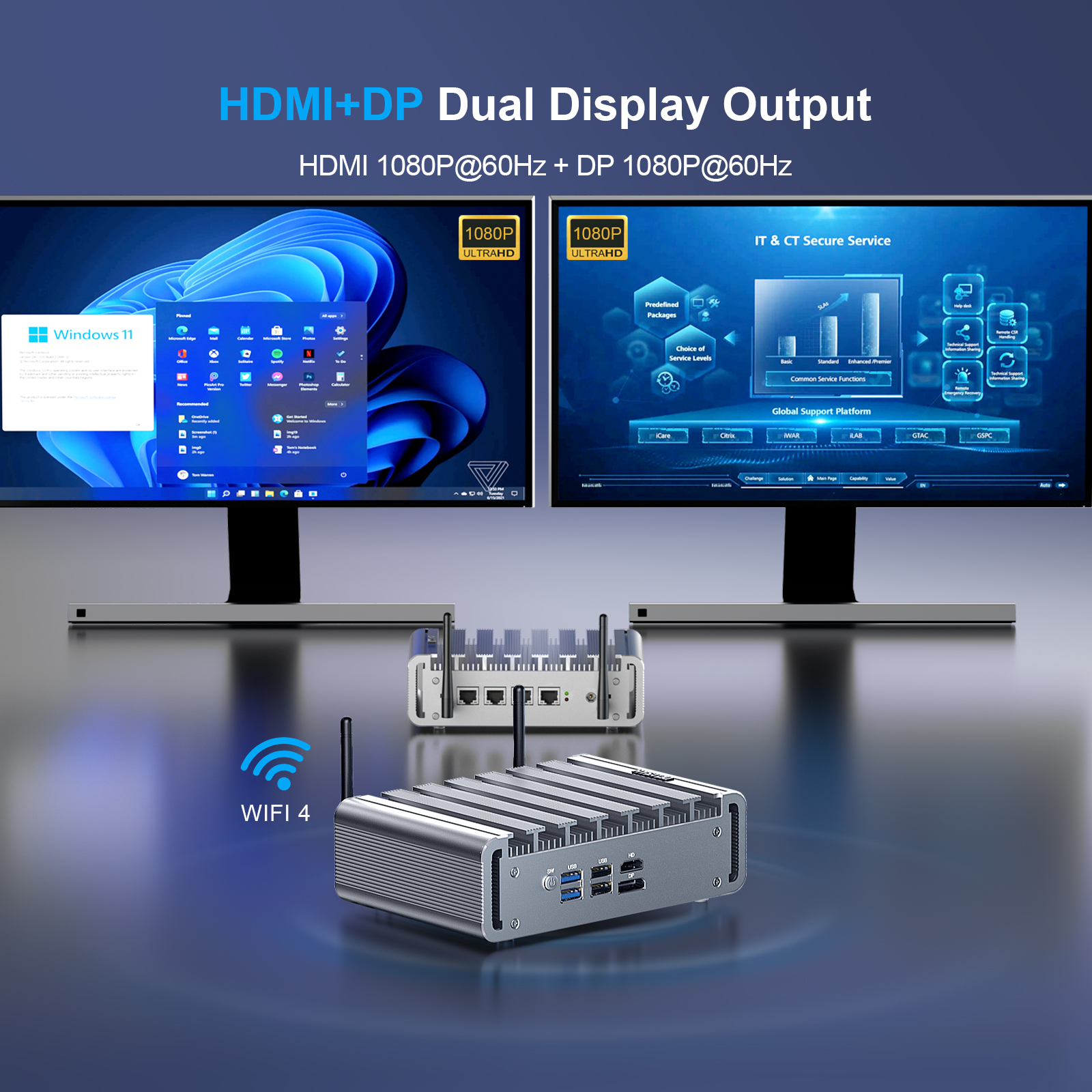

Dual-screen Output
Fanless design
4 x 100/1000/2500Mbps 2.5G RJ45 LAN Ports
3-Year Warranty
Multitask Unbound. Consume Minimal

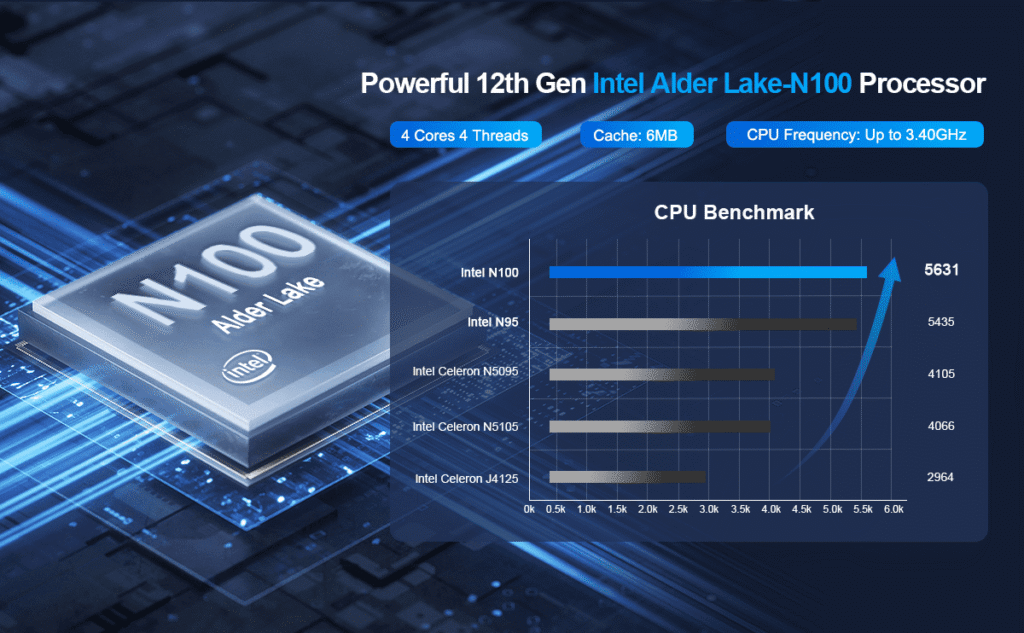

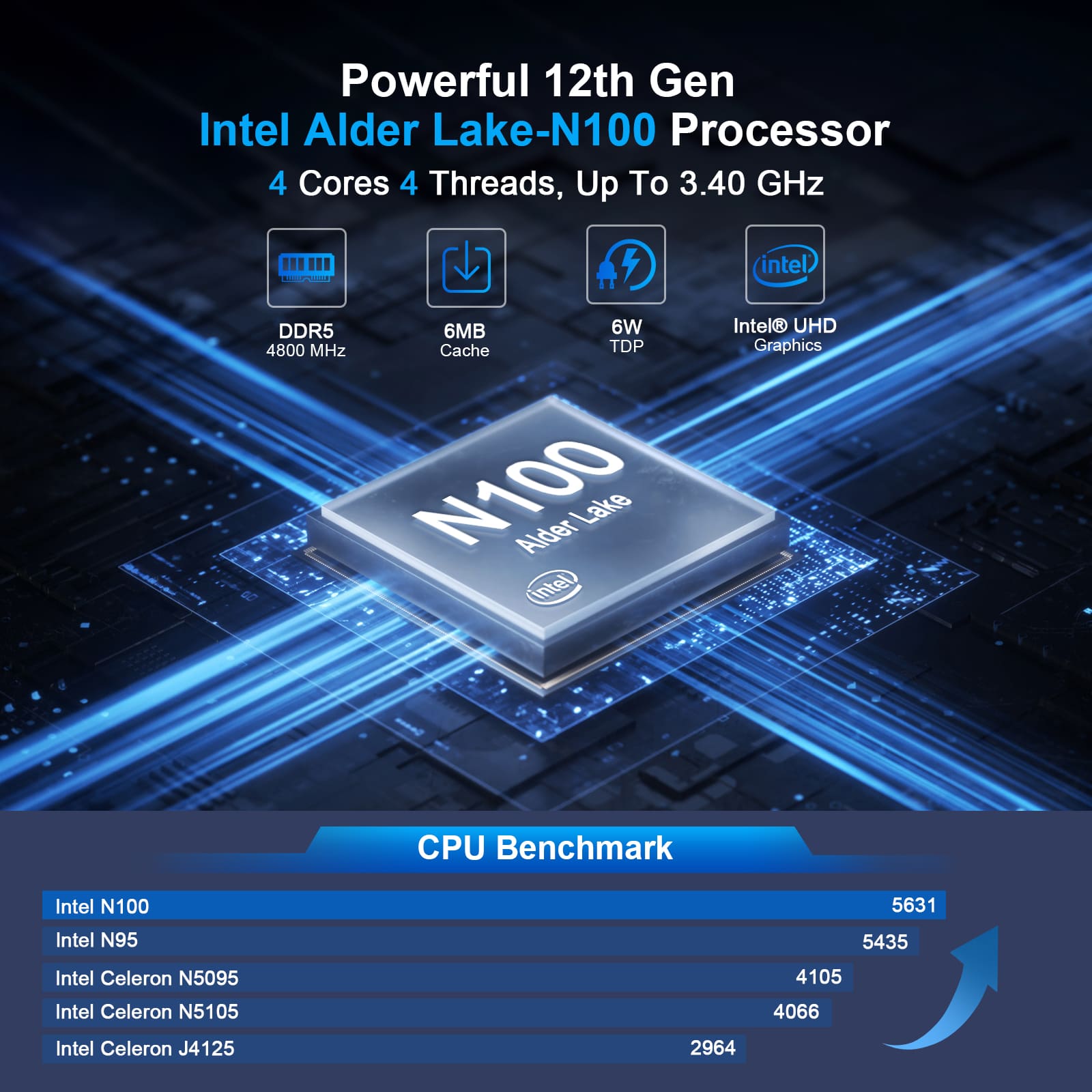

Powered by the 12th-gen Intel Alder Lake N100 processor—HYSTOU P09B-4L’s performance core—this chip delivers robust computing for industrial firewall and multi-network tasks. It handles concurrent network operations (such as traffic filtering and multi-segment isolation) with effortless efficiency. What’s more, its optimized energy-efficiency balance ensures top-tier performance with minimal power draw, reducing long-term operational costs while extending the device’s service life in industrial or office environments.
Network Unbound. Secure Unrivaled
The HYSTOU P09B-4L includes 4 industrial-grade 2.5G Gigabit LAN ports—no extra expansion needed for multi-scenario deployments. Unlike 2-port models, it enables hardware-level segmentation (internal LAN, WAN, DMZ, IoT subnets) to cut cross-network breach/virus risks. 2.5G bandwidth ensures lag-free high-volume data transfer, handling SMB multi-device use and industrial production line exchanges.
Boost Efficiency. Store Reliably
DDR5 Memory Performance:
Deliver faster data transfer speeds and lower latency, ensuring that firewall systems and virtual services can perform multitasking smoothly.
It supports single-module expansion up to 32GB to meet growing business needs.

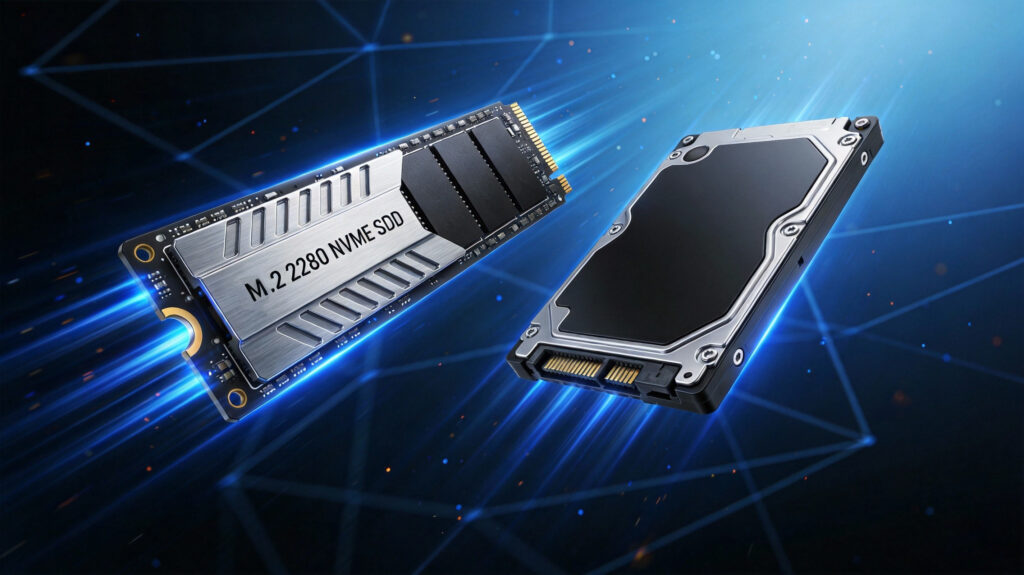

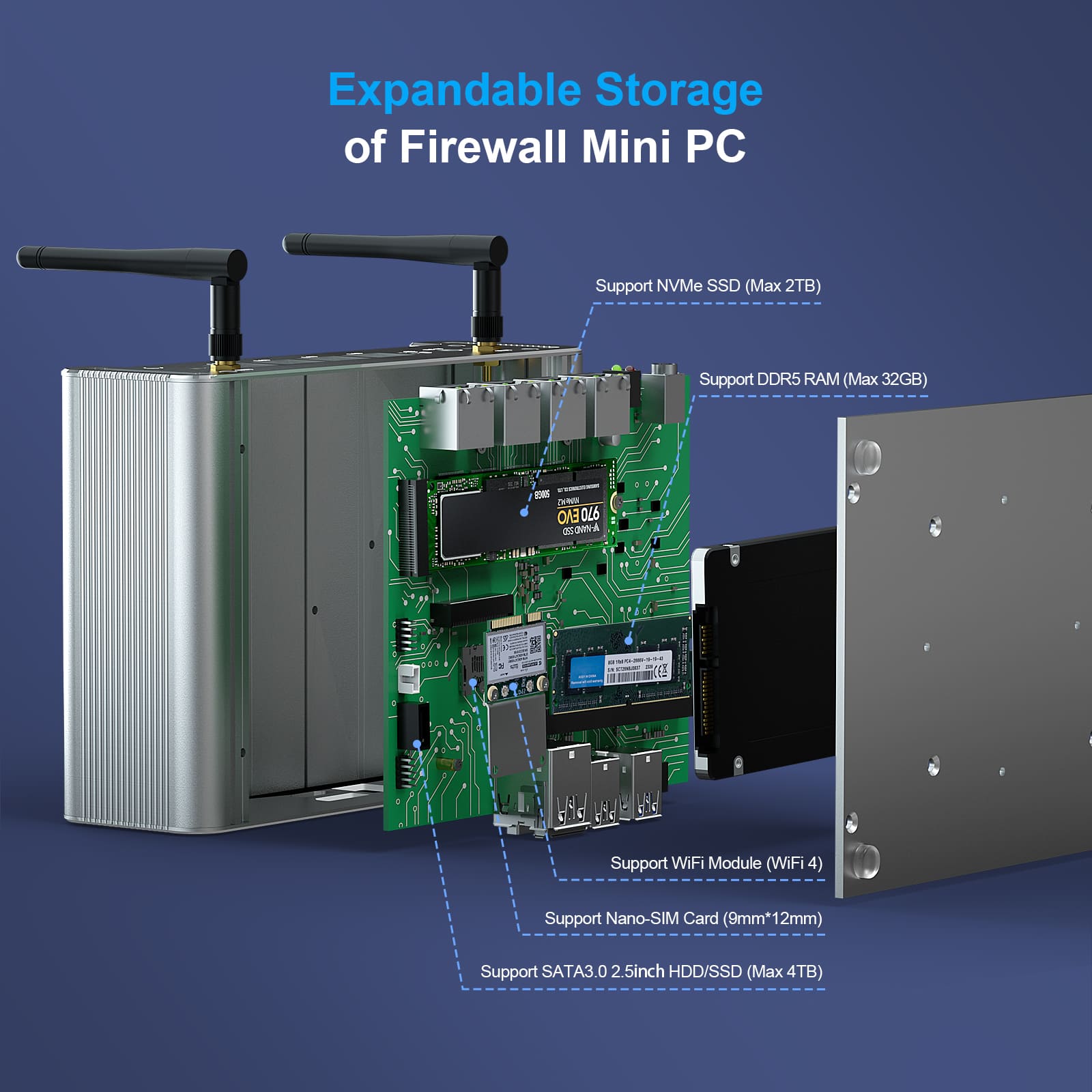

Flexible Storage Architecture:
(M.2 NVMe + 2.5-inch SATA) let you customize your setup: opt for a high-speed NVMe SSD to boost system responsiveness, or a large-capacity SATA hard drive for storing network logs and surveillance footage.
The ports are compatible with industrial-grade drives, offering vibration and interference resistance for long-term operation in harsh environments.
Run Silent. Perform Steady
The HYSTOU P09B-4L features an all-metal fanless passive cooling design, eliminating fan noise and mechanical failure risks at the source. The fanless structure prevents dust ingress, significantly reducing hardware wear. Combined with industrial-grade heat-dissipating materials, it operates stably in a wide temperature range of -20℃~50℃, perfectly suitable for scenarios requiring quietness and cleanliness, such as server rooms, offices, and industrial workshops.

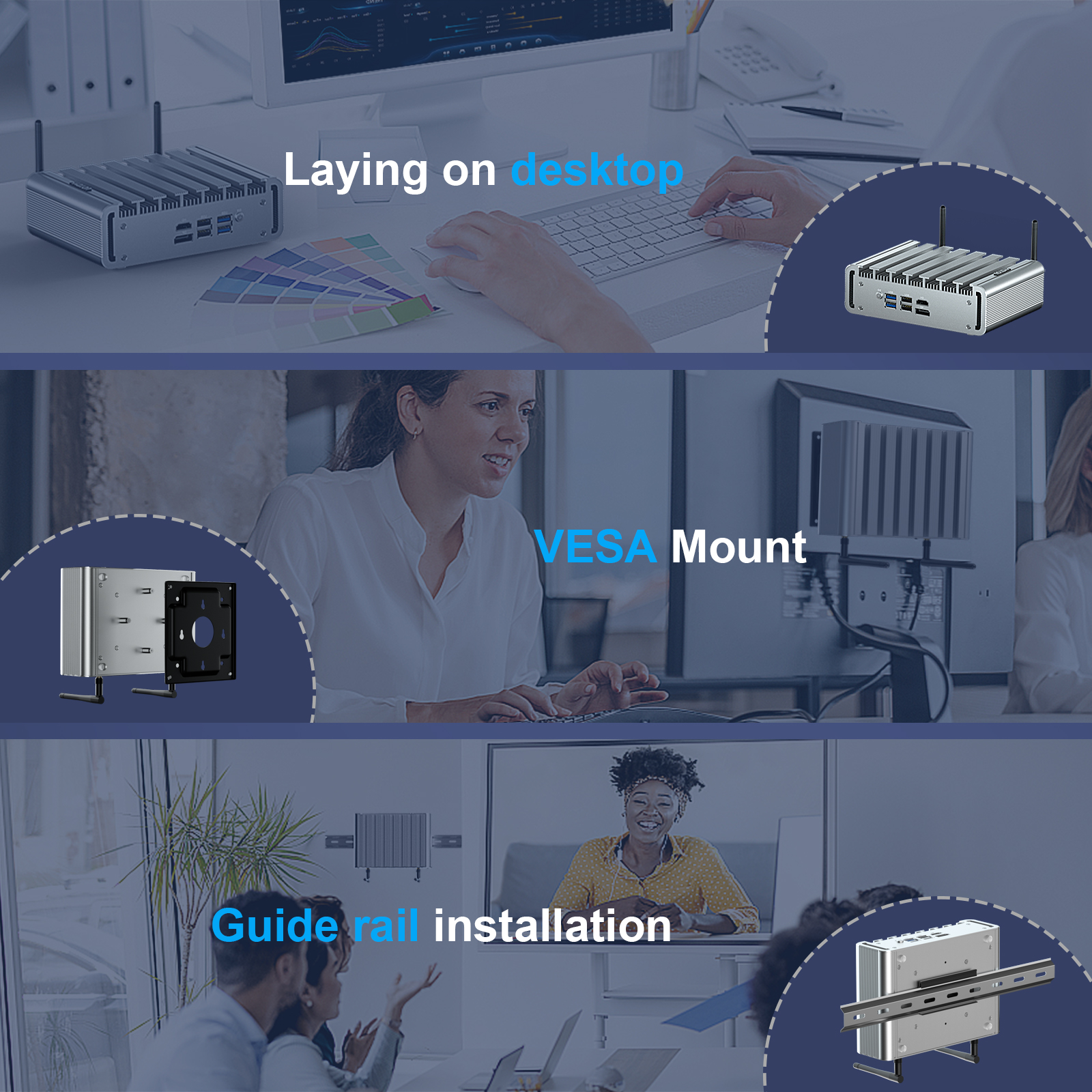

Place Freely. Save Space Effortlessly.
Desktop placement
wall-mounted installation
DIN rail mounting
Plug & Play. Connect Without Delay

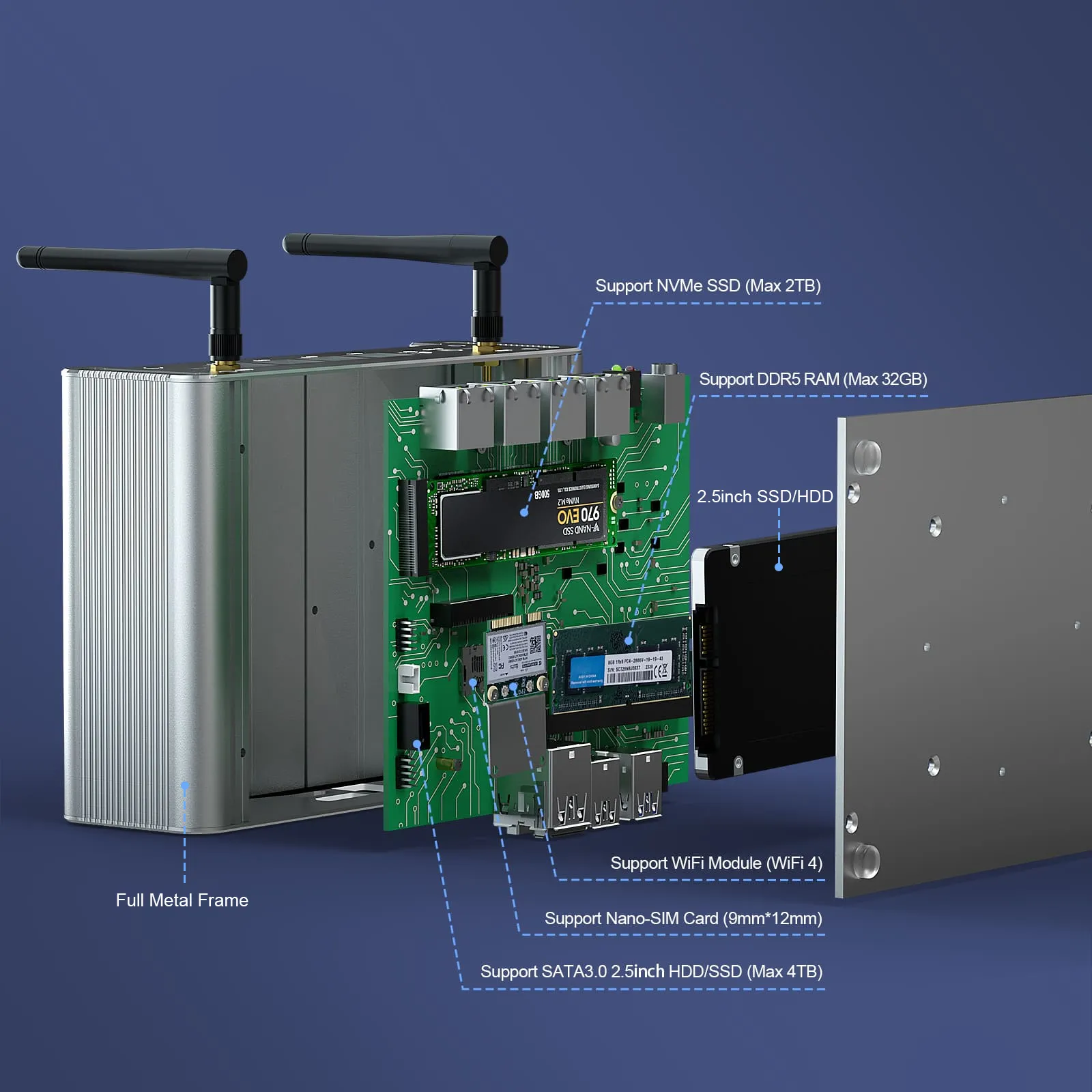

Product Structure
3-Year Warranty Coverage. Authoritative Certifications Backed.
We provide a 3-year full-machine warranty and lifelong technical support, ensuring a worry-free experience from purchase to use. Certified by multiple international authoritative certifications, including CE, FCC, and RoHS, it strictly complies with industrial-grade quality and safety standards.
What is in the box
Specifications
Dimensions | 177mm*125mm*55mm |
Net Weight | 2.0Kg |
Material | Aluminum |
CPU | Intel Alder Lake N100 |
Graphics | Intel UHD Graphics |
Memory | single-DDR5 4800MHz up to 32GB |
Storage | 1×M.2280 slot， Supports PCIe 3.0 (NVMe) channels SSD 1×SATA 3.0 for 2.5-inch HDD/SSD（no more than 7mm） |
Ethernet | 4×Intel 2.5Gbps RJ45 |
Supported System | Win10/Win11/Linux/ |
Wireless LAN | WIFI 4, Supports WIFI5 |
Bluetooth Wireless Technology | Bluetoothv4.2 |
I/O Ports | 2×USB 2.0（back panel） 2×USB 3.0 (front panel) 1×HDMI 1.4 1080P 60HZ(back panel) 1×DP*1.2 1080P 60HZ (back panel) 4×2.5 Gigabit RJ45 LAN Port (back panel) 1×DC (5.5*2.5mm) (back panel) 2×External Antenna Ports |
Internal Slot | 1×M.2280 slot, Supports PCIe 3.0 (NVMe) channels SSD 1×SATA 3.0 for 2.5-inch HDD/SSD 1×MPCIE(51mm×30mm) slot for installing a WFI moduel/3G/4G module 1×SIM slot for Nano-SIM, 9mm×12mm 1×9pin USB 2.0 header， used to expand USB ports 1×13pin TPM1 header, used to expand the TPM encryption module. 1×4pin CPU fan header 1×8pin FP1 header, used to expand Power SW, Reset, Power LED, HDD LED |
Kensington Lock | Yes |
Accessory | VESA mount (option) |
Working environment temperature | -20°C~50°C |
Cooling system CPU fan DB (MAX) | Fanless, 0db |
Specifications
Dimensions
177mm*125mm*55mm
Net Weight
2.0Kg
Material
Aluminum
CPU
Intel Alder Lake N100
Graphics
Intel® UHD Graphics
Memory
signal-channel DDR5 4800MHz , up to 32GB
Storage
1×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）
1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm)
Ethernet
Intel 2.5Gbps RJ45
Supported System
Win10/Win11/Linux
Wireless LAN
WIFI 4, option WIFI 5 Bluetooth 4.2
I/O ports
2×USB 2.0（front panel）
2×USB 3.0 (front panel)
1×Kensington Lock hole (back panel)
1×HDMI 1.4 1080P 60HZ (back panel)
1×DP*1.2 1080P 60HZ (back panel)
4×2.5 Gigabit RJ45 LAN Port (back panel)
1×12V DC IN (back panel)
2×External Antenna Ports
Internal Slot
2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD
1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm)
1×M.2 key-E(22*30MM),default AC3165 Bluetooth 4.2,optional WIFI6 AX200 Bluetooth 5.2
1×M.2 key-B 5G/4G slot, compatible with 42mm*30mm adn 30mm*52mm
Kensington Lock
Yes
Accessory
VESA mount (option)
Working environment temperature
-10°C~55°C
Cooling system CPU fan DB (MAX)
Air-cooled Fan,55db
