HYSTOU M6 Ryzen 7 7840HS Mini PC
Categories: Industrial Mini PC
-
High-Performance Processing: Powered by the AMD Ryzen 7 7840HS (Zen 4 architecture, up to 5.1GHz) with an integrated Ryzen AI engine for local AI tasks, data processing, and heavy workloads.
-
Advanced Networking: Features Dual 2.5G Realtek LAN ports, ideal for soft routing, network appliances, edge gateways, and high-speed data transfer.
-
Triple 4K Display Support: Maximize productivity with HDMI 2.0, DP 1.4, and Type-C video outputs supporting up to 4K resolution for multi-screen environments.
-
Rugged & Space-Saving Build: Housed in a durable 0.88L aluminum alloy chassis with VESA mounting support (75×75 / 100x100mm) for seamless cabinet or behind-monitor deployment.
-
Enterprise Management Features: Supports Auto Power On, Wake-on-LAN, PXE boot, and TPM 2.0 for secure, unattended remote operations.
| Range | Discount |
|---|---|
| 1 - 5 | $600.31 |
| 6 - 50 | $598.31 |
| 51 - 100 | $596.31 |
| 101 + | $593.31 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
- Enterprise Edge Infrastructure
HYSTOU M6-R7
AMD Ryzen 7 7840HS
AI Mini PC
AMD Ryzen 7 7840HS
AI Mini PC
A compact AI workstation engineered for deterministic automation, machine vision, and enterprise edge deployment. Powered by AMD Zen 4 with integrated Ryzen AI NPU.
- Zen 4 / 8C 16T / 5.1GHz
- Dual 2.5GbE LAN
- DDR5 5600 / 64GB
- Ryzen AI NPU
- Triple 4K Display
- Dual NVMe Gen4+Gen3
Direct Factory Quote
CE
CE Certified
FC
Ro
RoHS Material
TP
TPM 2.0
9K
ISO 9001
Flexible Deployment and Installation
From desktop to wall-mount, the M6-R7 adapts to any workspace with VESA compatibility and dual-orientation support.
AMD Ryzen 7 7840HS

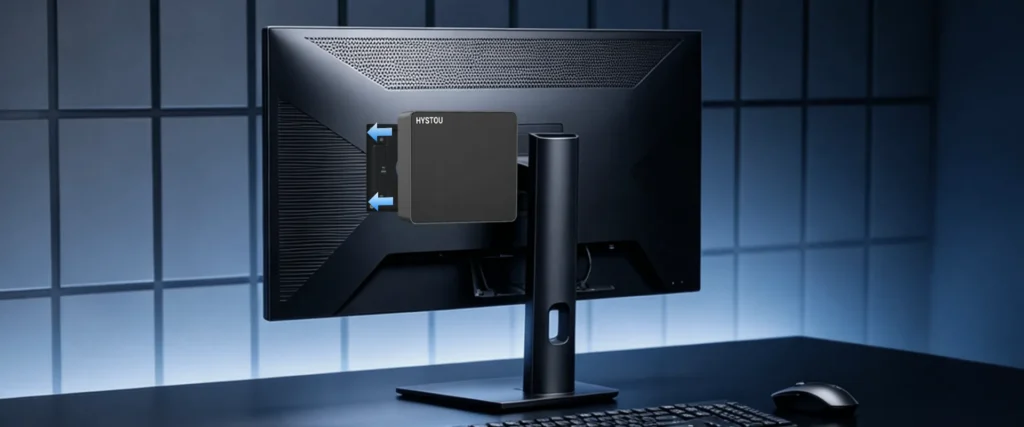

Mount behind any 75x75mm or 100x100mm VESA display for a clean, space-saving installation. Ideal for digital signage, kiosks, and compact workstations.

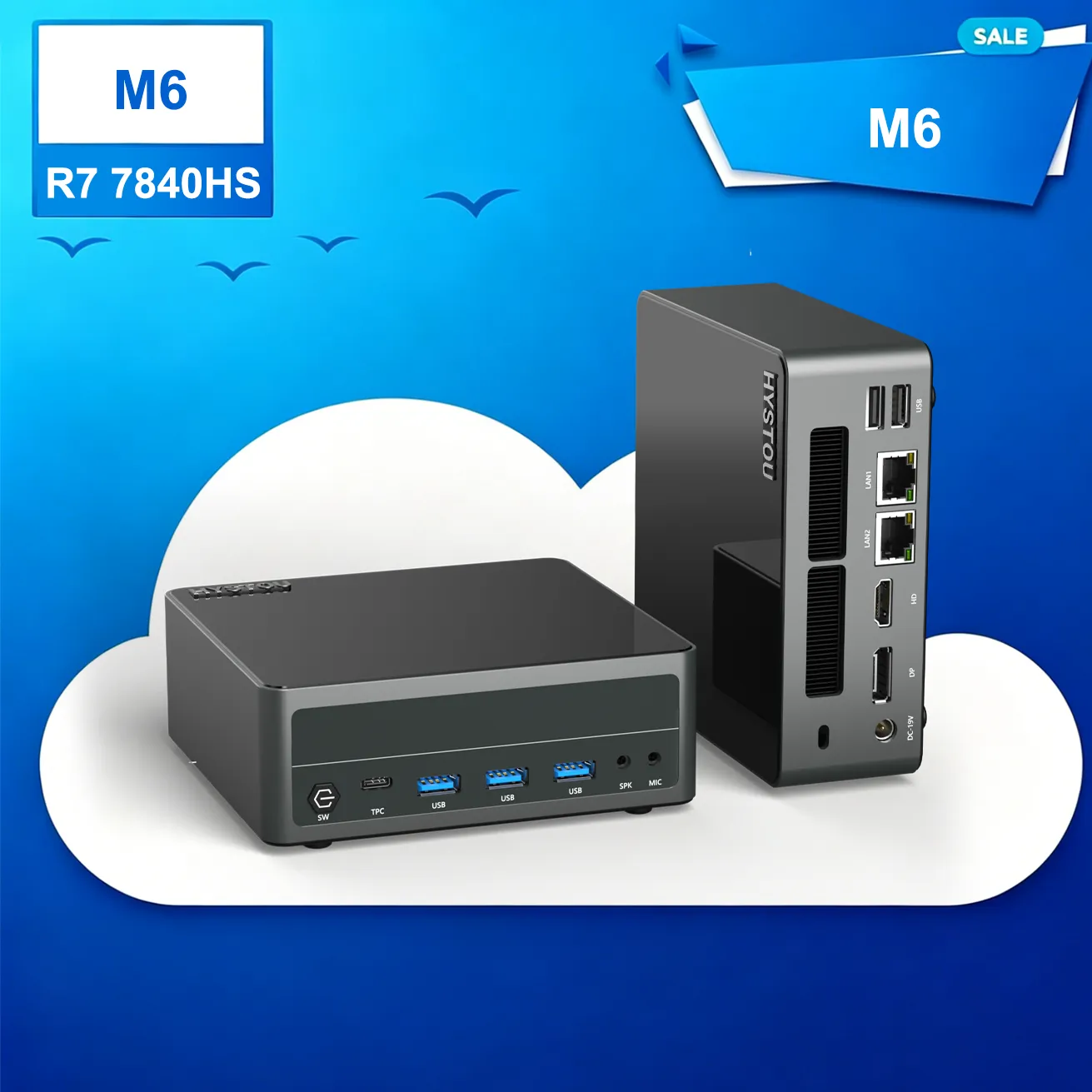

Dual Orientation Support
Place horizontally on a desk or stand vertically to save space. The compact 135x125x52mm form factor fits anywhere while maintaining full airflow.
Why M6-R7 for Your Next Deployment
Six core hardware advantages that set the M6-R7 apart from conventional Mini PC platforms in enterprise and industrial environments.

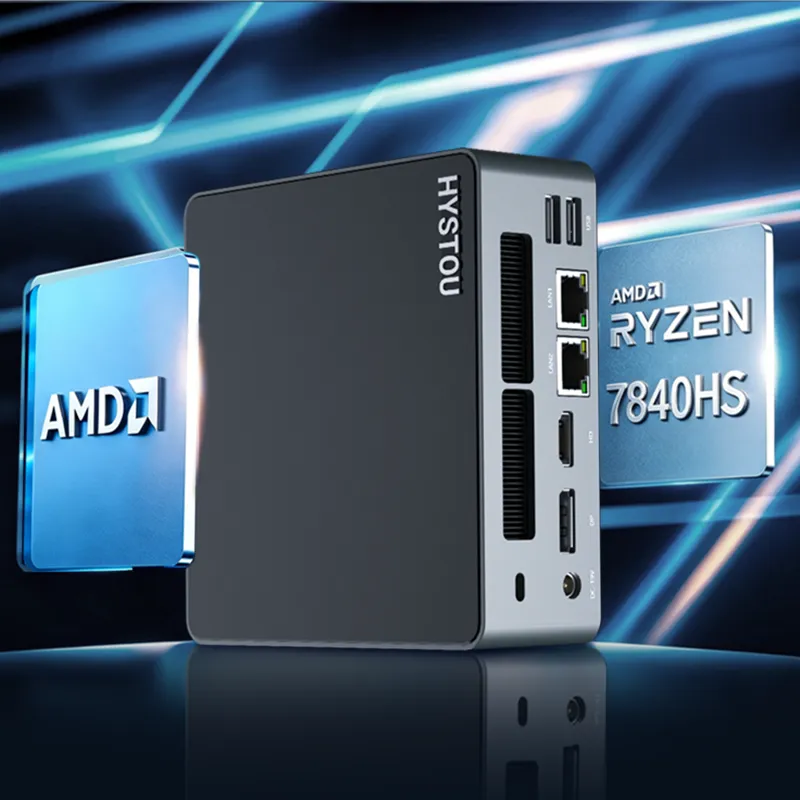

AMD Ryzen 7 7840HS
8-core 16-thread Zen 4 processor with 3.8GHz base and 5.1GHz boost. Desktop-class multi-core performance in a 135mm chassis for AI workloads, virtualization, and engineering software.
Ryzen AI NPU Engine
Dedicated hardware AI accelerator for local inference. Run computer vision, smart analytics, and intelligent automation on-device with lower latency and improved data privacy.

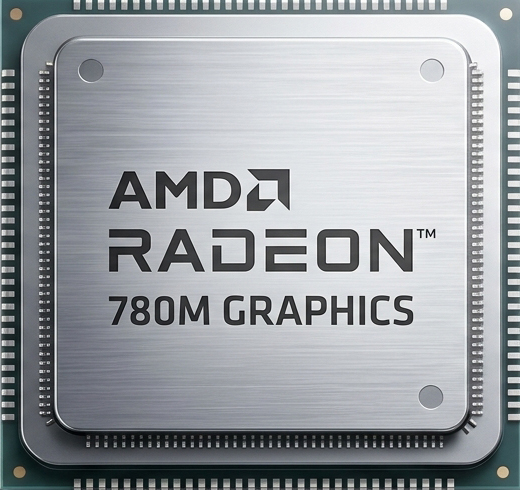

Radeon 780M Graphics
RDNA 3 integrated GPU with 12 compute units. Drives triple 4K displays simultaneously via HDMI 2.0, DisplayPort 1.4, and USB-C for control rooms and digital signage.

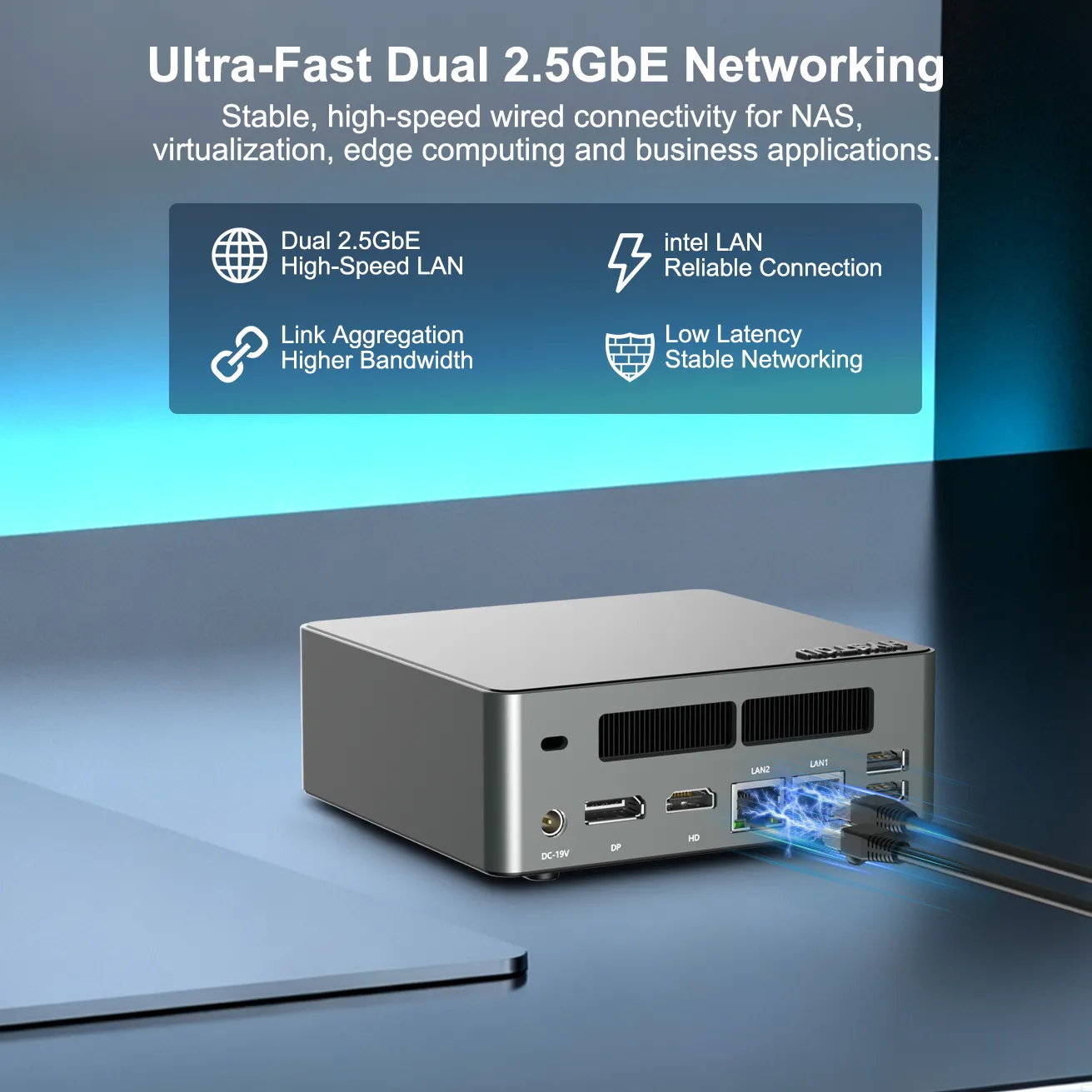

Dual 2.5GbE Networking
Two Realtek RTL8125 2.5Gbps Ethernet ports for link aggregation, network gateway, NAS, firewall, and air-gapped industrial OT/IT network isolation.

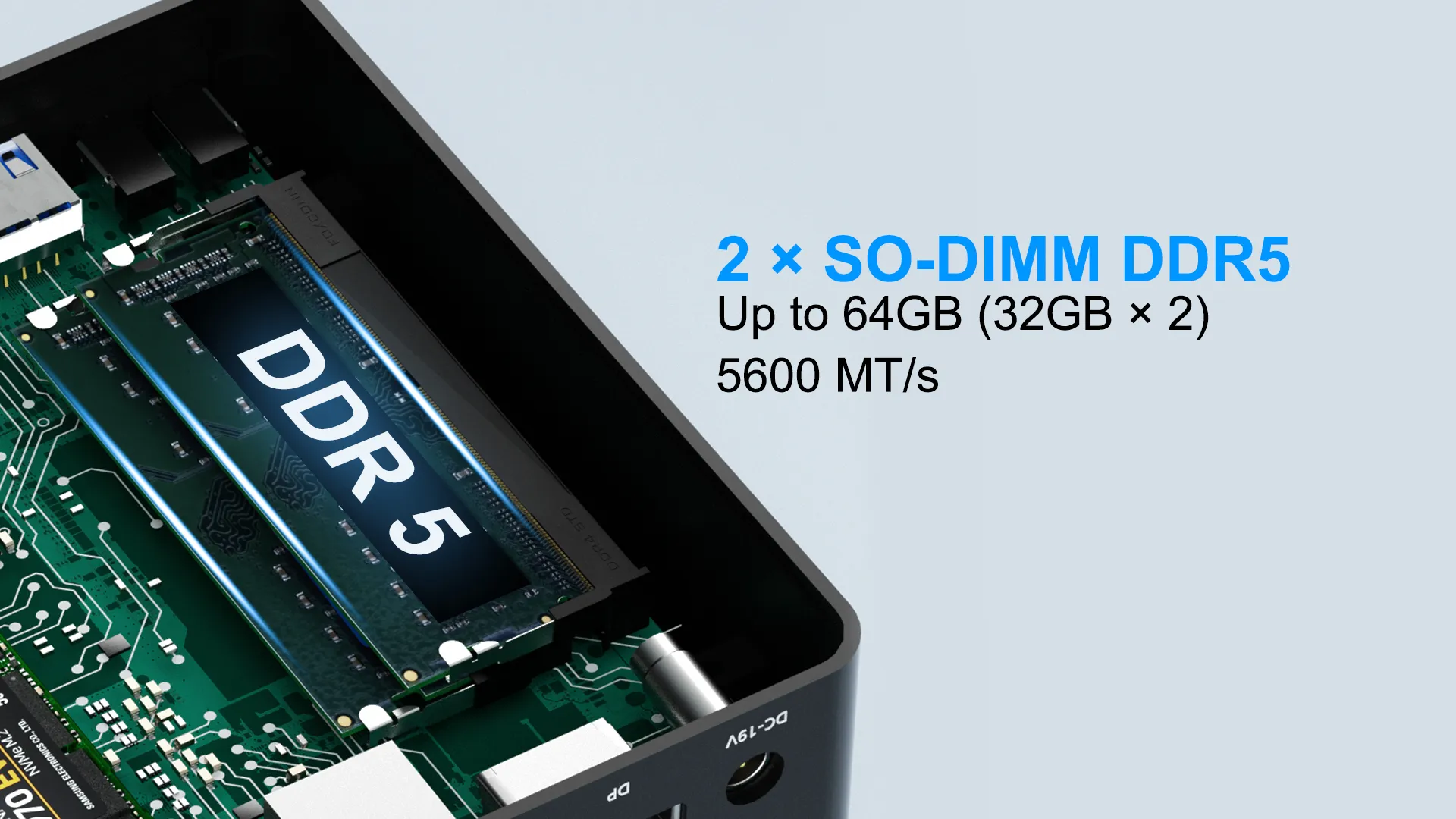

DDR5 5600 / 64GB
Dual-channel DDR5 SO-DIMM slots supporting up to 64GB at 5600 MT/s. Double the bandwidth of DDR4 for VM workloads, large datasets, and real-time processing.

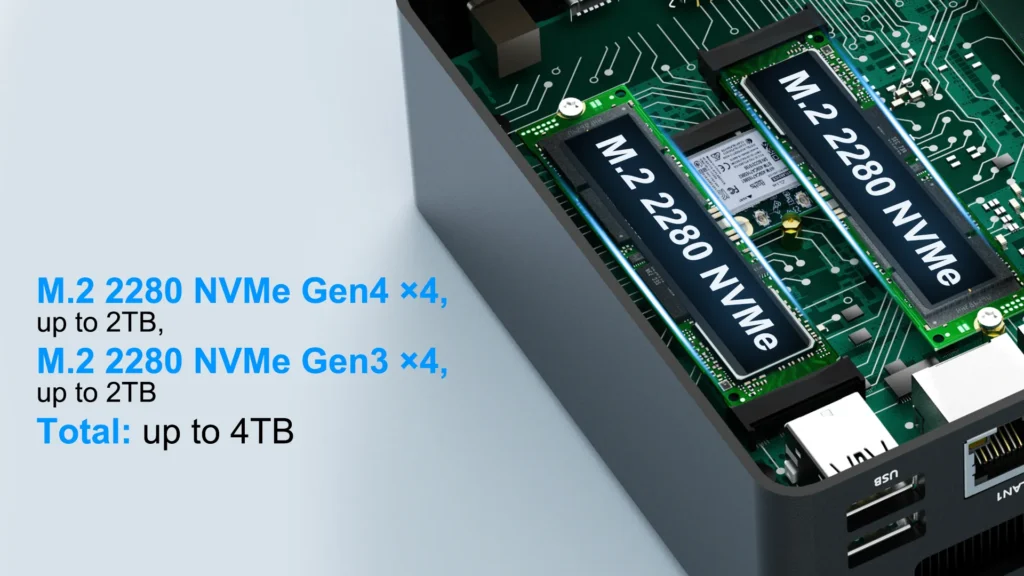

Dual NVMe Storage
Two M.2 2280 slots: PCIe Gen4 x4 (up to 2TB) and PCIe Gen3 x4 (up to 2TB). Separate OS and data drives for maximum throughput and reliability.
Built-in Ryzen AI NPU for Local Edge Intelligence
The M6-R7 integrates AMD Ryzen AI technology, enabling supported AI workloads to run directly on-device. This eliminates cloud dependency for latency-sensitive industrial applications while maintaining full data sovereignty.
- Sub-millisecond inference latency for real-time QC
- On-device data processing ensures full privacy
- Zero network dependency for remote deployments
- Parallel AI + CPU task execution without contention
AI Application Scenarios
- Machine vision defect detection
- Smart camera analytics and people counting
- AI-powered noise cancellation
- Intelligent automation and predictive maintenance
- Edge AI model inference and testing

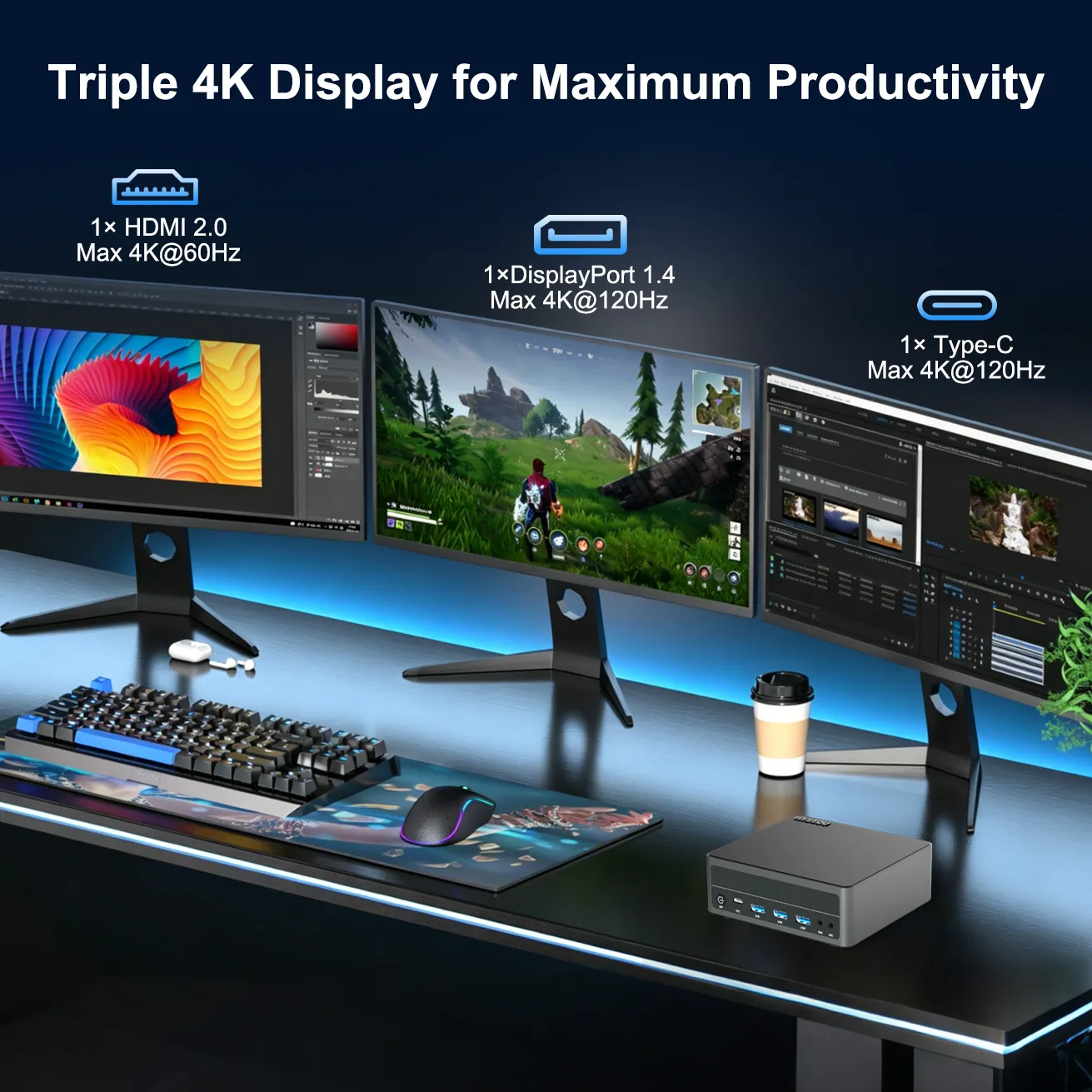

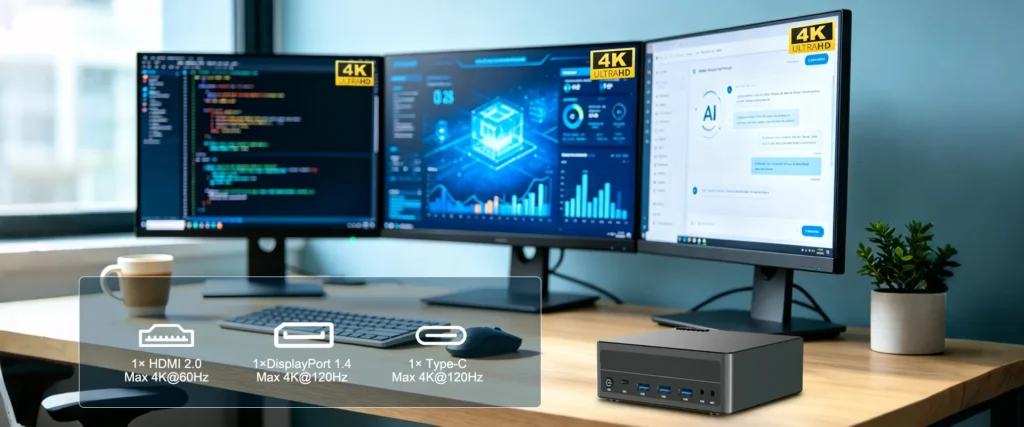

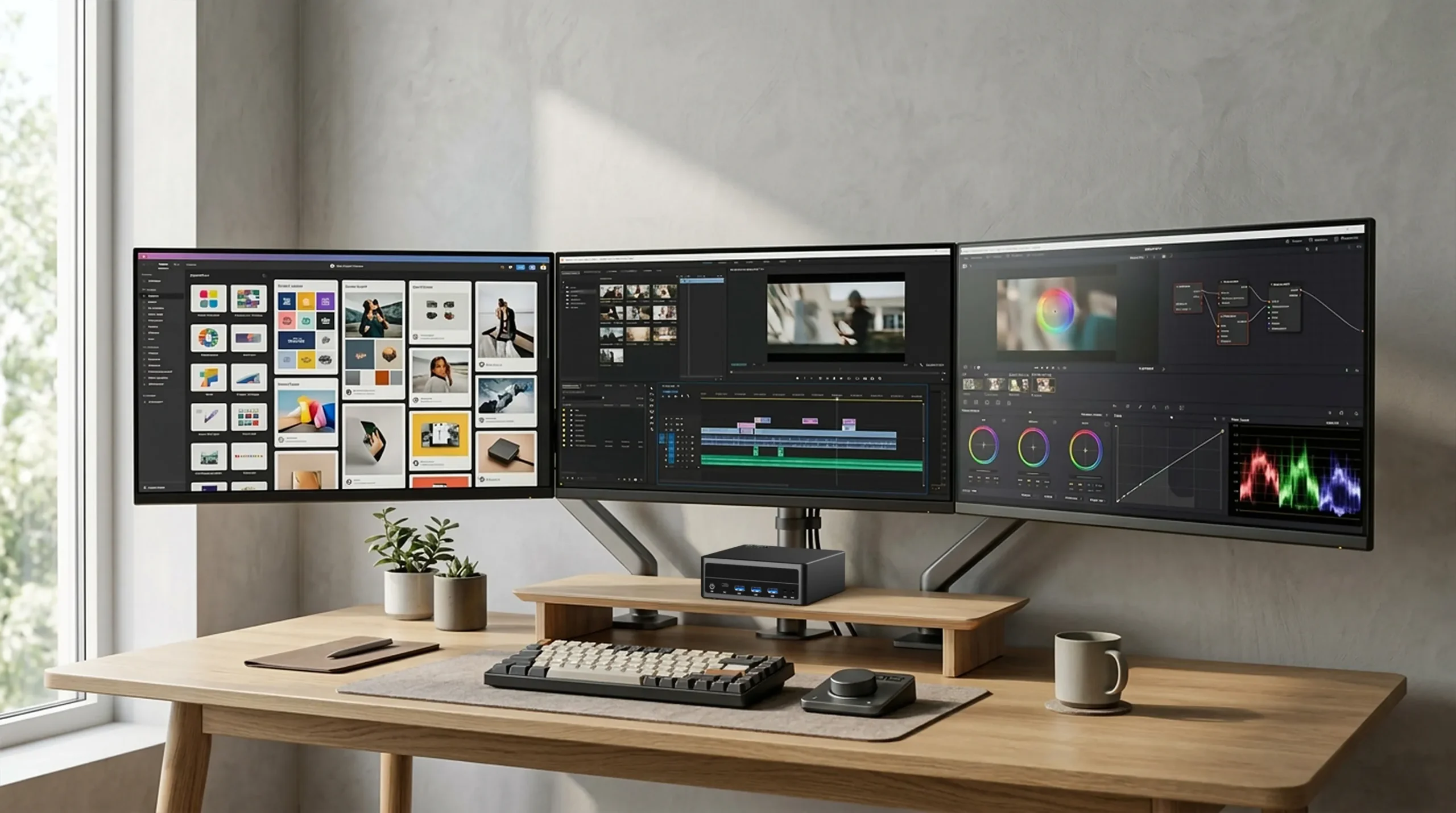

Triple 4K Display and Professional Visual Computing
AMD Radeon 780M RDNA 3 graphics drives three independent 4K outputs for control rooms, digital signage, and multi-monitor professional workspaces.
HDMI 2.0 Output
4K resolution at 60Hz. Compatible with commercial displays, projectors, and standard monitoring equipment for immediate deployment.
DisplayPort 1.4
4K resolution at 120Hz for high-refresh professional monitors. Ideal for real-time data visualization and precision engineering displays.
USB-C DisplayPort Alt Mode
4K at 120Hz via a single USB-C cable. Combines data transfer, video output, and power delivery for clean cable management.

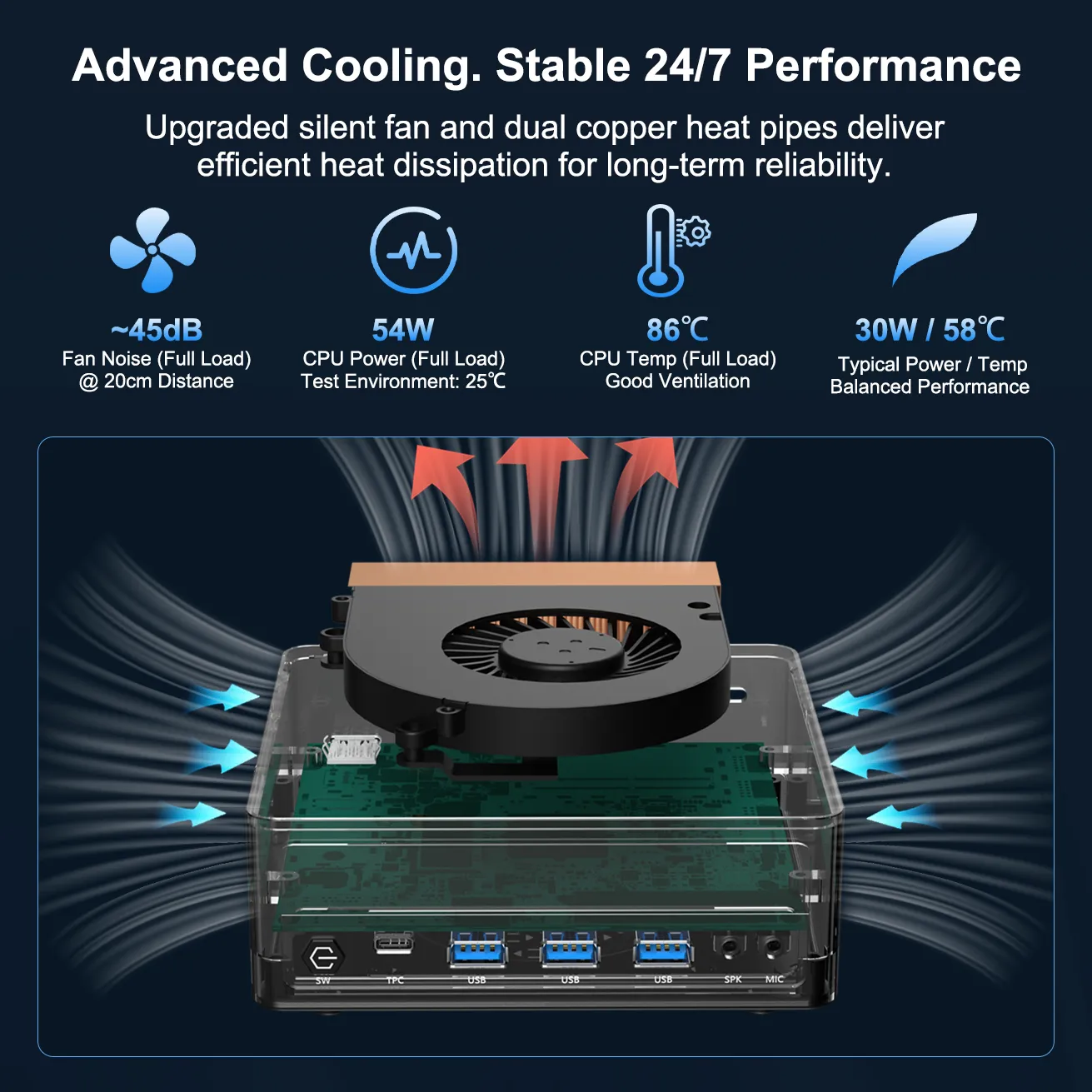

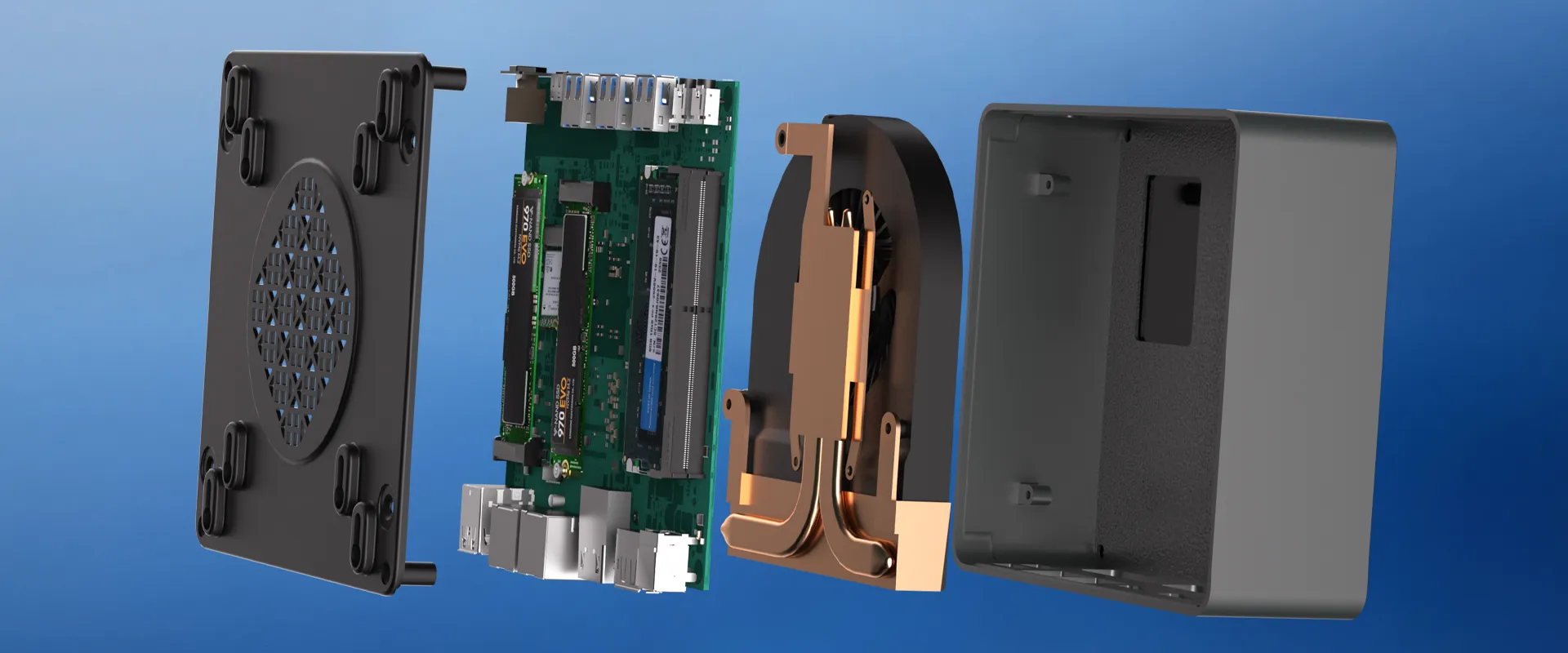

Dual 2.5GbE and Vapor Chamber Thermal Engineering
Purpose-built for 24/7 industrial operation. The M6-R7 combines dual high-speed Ethernet with an advanced copper vapor chamber cooling system that sustains 95W peak performance without thermal throttling.
- Pure copper PCM vapor chamber + turbofan
- Aluminum alloy chassis auxiliary dissipation
- 120W DC adapter (19V/6.32A) for full-load headroom
- Auto Power-On, Wake-on-LAN, PXE Boot (UEFI)
- VESA 75/100mm mount for behind-display installation

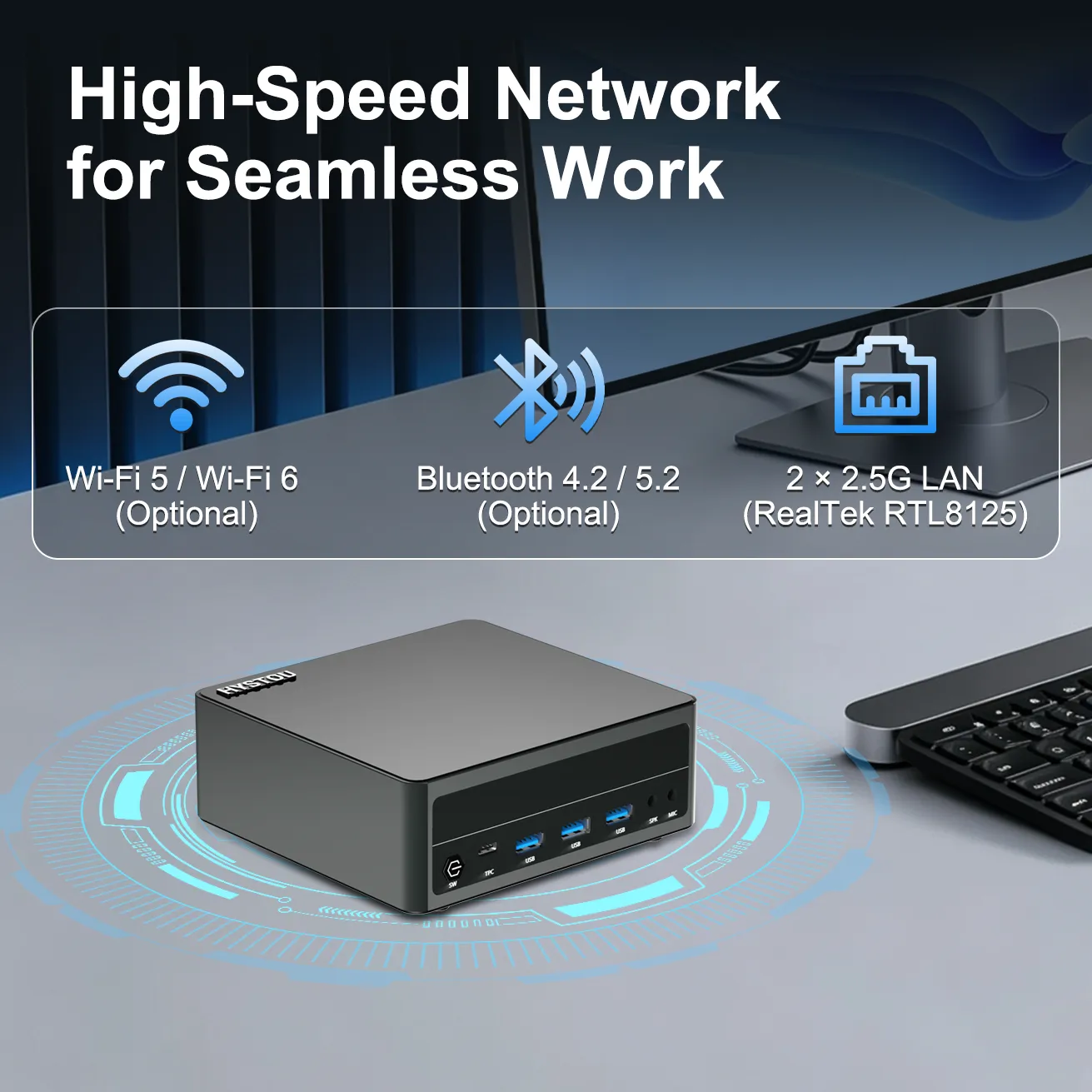

Network Architecture
- 2x Realtek RTL8125 2.5Gbps RJ45
- Link aggregation for bandwidth scaling
- OT/IT air-gap network isolation
- Software firewall / router / NAS gateway
- Optional Wi-Fi 6 + Bluetooth 5.2
Uncompromising Performance in Extreme Conditions
The M6-R7 is engineered for mission-critical deployments where failure is not an option. Its aluminum alloy chassis, copper vapor chamber cooling, and 120W power delivery sustain peak performance 24/7 in demanding industrial environments.
- 95W sustained without thermal throttling
- Aluminum alloy + ABS chassis for durability
- Operating temperature range for industrial use
- 3-year warranty protection included
M6-R7 vs Traditional Mini PC Platforms
A side-by-side comparison showing why enterprise buyers are migrating from legacy Mini PC solutions to the M6-R7 platform.
| Feature | HYSTOU M6-R7 | Traditional Mini PC |
|---|---|---|
| Processor | AMD Zen 4 / 8C 16T / 5.1GHz | Previous-gen Intel/AMD |
| AI Acceleration | Dedicated Ryzen AI NPU | None or limited |
| Graphics | Radeon 780M RDNA 3 (12 CU) | Basic integrated GPU |
| Networking | Dual 2.5GbE (RTL8125) | Single 1GbE LAN |
| Memory | DDR5 5600 / 64GB dual-channel | DDR4 3200 / 32GB |
| Storage | Dual M.2 NVMe (Gen4 + Gen3) | Single M.2 or SATA |
| Display Output | Triple 4K (HDMI+DP+USB-C) | Dual display typical |
| Thermal | Copper vapor chamber + 120W | Basic aluminum heatsink |
| Enterprise Features | TPM 2.0 / PXE / WoL / Auto Power-On | Limited or absent |

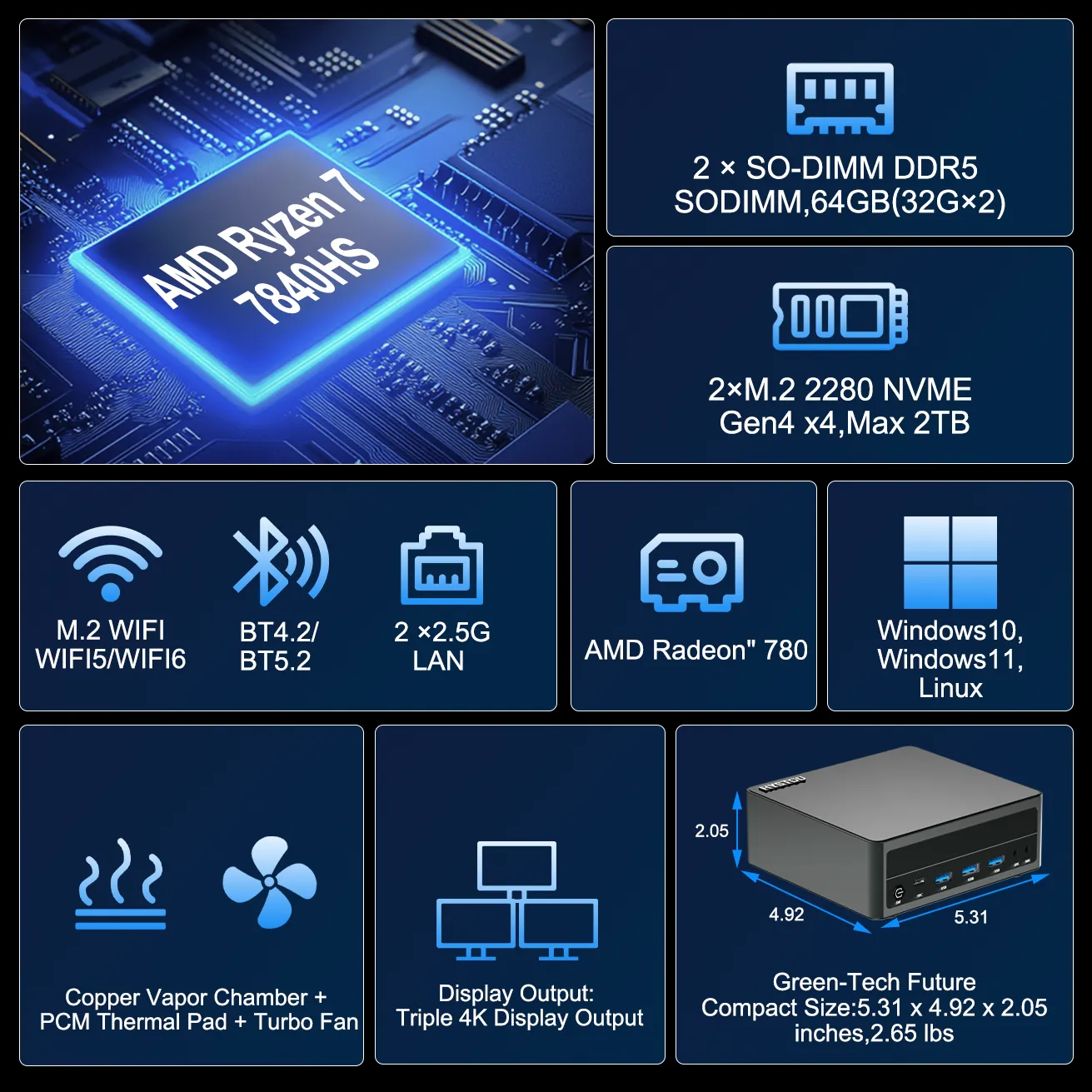

Complete Technical Specifications
Detailed hardware parameters for IT architects, system engineers, and procurement teams evaluating the M6-R7 platform.
| Processor | AMD Ryzen 7 7840HS — 8 Cores / 16 Threads, Zen 4 Architecture, Base 3.8GHz / Boost 5.1GHz |
|---|---|
| AI Engine | AMD Ryzen AI (NPU) — Dedicated hardware AI accelerator for local inference workloads |
| Graphics | AMD Radeon 780M — RDNA 3 Architecture, 12 Compute Units, Integrated GPU |
| Memory | 2x DDR5 SO-DIMM Slots, DDR5 5600MHz, Max 64GB (32Gx2) Dual-Channel |
| Storage | SSD1: M.2 2280 NVMe PCIe Gen4 x4 (up to 2TB) SSD2: M.2 2280 NVMe PCIe Gen3 x4 (up to 2TB) |
| Network | 2x 2.5GbE RJ45 (Realtek RTL8125), Optional Wi-Fi 6 + Bluetooth 5.2 (M.2 2230) |
| Front I/O | 1x USB-C (5Gbps, Data+Video), 3x USB 3.2 Gen1 Type-A (5Gbps), 1x 3.5mm Speaker, 1x 3.5mm Mic, Power Button with LED |
| Rear I/O | 2x USB 2.0 Type-A (480Mbps), 2x RJ45 2.5GbE, 1x HDMI 2.0, 1x DisplayPort 1.4, 1x DC Input (5.5x2.5mm), 1x Kensington Lock |
| Display Output | HDMI 2.0 (4K@60Hz) + DP 1.4 (4K@120Hz) + USB-C (4K@120Hz) — Triple simultaneous output |
| Audio | Realtek ALC897 HD Audio |
| Enterprise Features | Auto Power-On, PXE Boot (UEFI), Wake-on-LAN, TPM 2.0 |
| Operating System | Windows 10, Windows 11 Pro, Linux distributions |
| BIOS Shortcuts | Delete = BIOS Setup, F11 = Boot Menu |
| Board Form Factor | NANO-ITX (120 x 120mm) |
| Dimensions | 135 x 125 x 52mm (with rubber feet) |
| Weight | Net: 0.8kg / Gross: 1.2kg |
| Chassis Material | Aluminum alloy + ABS, VESA 75x75 / 100x100mm mount |
| Power Supply | External DC Adapter, AC 100-240V 50/60Hz, Output DC 19V / 6.32A (120W) |
| Power Consumption | Standby: ~20W / Typical: ~35W / Max: ~95W |

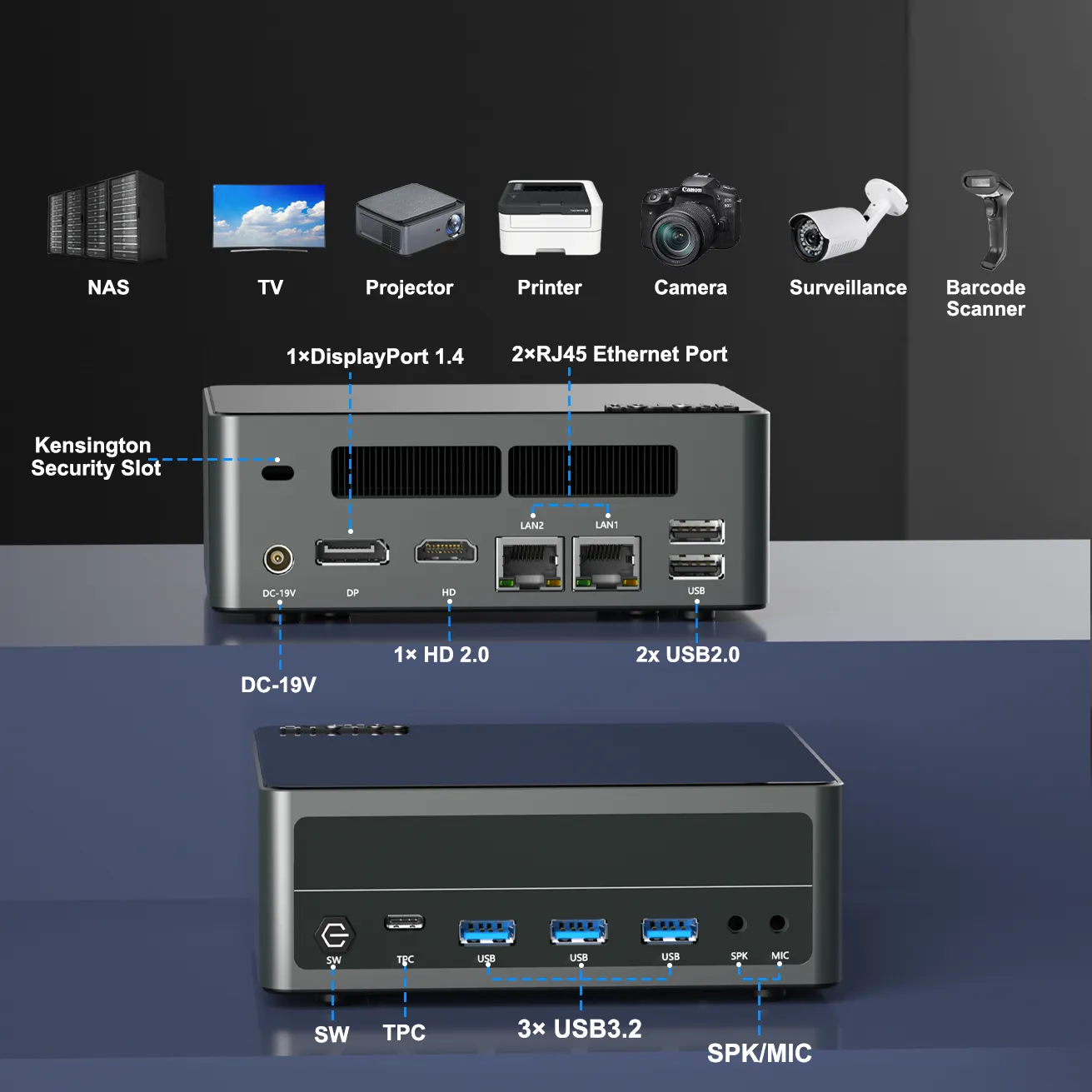

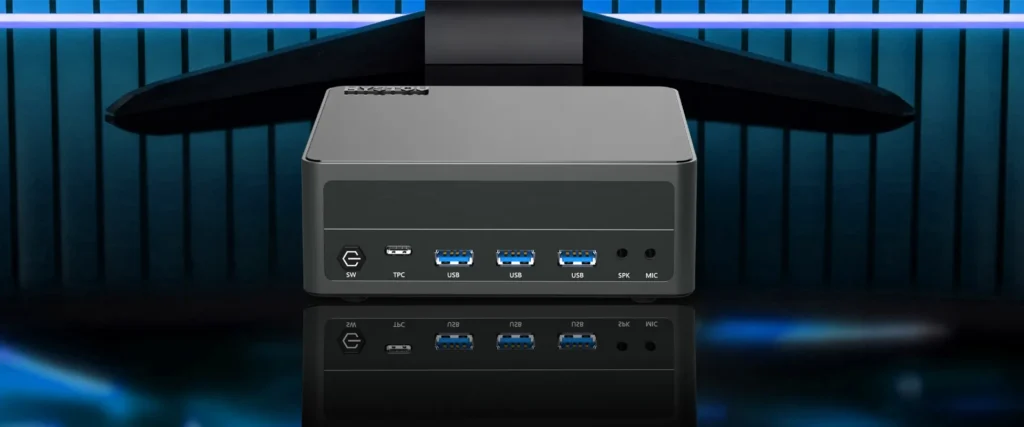

Front & Rear I/O Layout
Precision-labeled interface diagrams for system integrators and deployment planning
Built for Industrial Integration
High-throughput compute and network isolation for mission-critical operational technology environments across industries.
Machine Vision and AI QC
Offload defect detection algorithms to the Ryzen AI NPU, keeping CPU cores free for conveyor synchronization and real-time logic control on production lines.
SCADA and Automation Control
Leverage dual 2.5GbE ports to physically air-gap PLC/robotics networks from corporate IT, ensuring zero-trust security for industrial automation systems.
Control Room Dashboards
Drive triple 4K independent displays for comprehensive operational overviews across HDMI, DP, and USB-C simultaneously in monitoring centers.
Network Security Appliance
Dual LAN architecture supports software firewall, router, VPN gateway, and intrusion detection system deployments with hardware-level TPM 2.0 encryption.
Developer Workstation
Compact powerhouse for AI model testing, VM environments, container orchestration, and cross-platform development with Linux or Windows 11 Pro.
Digital Signage and Kiosk
VESA-mountable compact chassis behind displays, driving 4K commercial screens for retail analytics, interactive kiosks, and advertising systems.
OEM and ODM Customization Services
From hardware configuration to brand customization, HYSTOU supports complete Mini PC projects for system integrators and solution providers.
Hardware Customization
CPU/RAM/SSD configuration, wireless module selection, interface customization, and BIOS settings (Auto Power-On, PXE, custom splash screen) tailored to your deployment.
Brand and Packaging
Custom logo laser engraving, private label packaging, product labeling, and branded documentation. Full white-label solutions for channel partners and resellers.
Volume Production
Stable supply chain, rigorous quality control, and dedicated project management for long-term business partnerships. MOQ from 5 units for evaluation.
Frequently Asked Questions
Technical details, OEM integration, logistics, and deployment support for the HYSTOU M6-R7 platform.
What processor does the HYSTOU M6-R7 use?
The HYSTOU M6-R7 is powered by the AMD Ryzen 7 7840HS processor featuring Zen 4 architecture with 8 cores and 16 threads, a base clock 3.8GHz and boost up to 5.1GHz. It also integrates a dedicated Ryzen AI NPU for hardware-accelerated AI workloads.
Does the M6-R7 support Al edge computing?
Yes. The M6-R7 features an integrated AMD Ryzen AI NPU that enables local AI inference for computer vision, defect detection, smart monitoring, and intelligent automation without relying on cloud processing, reducing latency and improving data privacy.
What networking capabilities does the M6-R7 offer?
The M6-R7 includes dual 2.5GbE Ethernet ports powered by Realtek RTL8125 controllers, supporting link aggregation, network gateway, NAS, firewall, and air-gapped industrial network deployments. Optional Wi-Fi 6 and Bluetooth 5.2 are also available.
How much memory and storage does the M6-R7 support?
The M6-R7 supports up to 64GB DDR5 5600MHz dual-channel memory via 2x SO-DIMM slots, and dual M.2 2280 NVMe SSD storage (one PCIe Gen4 x4 and one PCIe Gen3 x4) for a combined maximum of 4TB.
Can the M6-R7 drive multiple 4K displays?
Yes. The M6-R7 supports triple 4K display output simultaneously via HDMI 2.0 (4K@60Hz), DisplayPort 1.4 (4K@120Hz), and USB-C with DisplayPort Alt Mode (4K@120Hz), ideal for control rooms, digital signage, and multi-monitor workstations.
Does HYSTOU offer OEM/ODM customization?
Yes. For orders of 100+ units, HYSTOU provides comprehensive OEM/ODM services, including custom BIOS configuration, chassis logo laser engraving, OS pre-installation, custom packaging, and tailored hardware configurations.
What cooling solution does the M6-R7 use?
The M6-R7 uses a pure copper vapor chamber (PCM) cooling system combined with a precision turbofan and aluminum alloy chassis for heat dissipation, sustaining 95W peak performance without thermal throttling during 24/7 operation.
What operating systems does the M6-R7 support?
The M6-R7 supports Windows 10, Windows 11 Pro, and Linux distributions. It also features TPM 2.0 for enterprise security and PXE network boot for remote fleet management.
