On Sale!
HYSTOU M6 AMD Ryzen™ 7 Mini PC
Categories: Office Mini PCs
- Powered by AMD Ryzen™ 7 3700U Processor (Up to 35W TDP)
- Dual 4K Display Output via HDMI 1.4 & DisplayPort 1.2
- Robust Full-Aluminum Case for Enhanced Heat Dissipation
- Advanced IT Features: TPM 2.0, Auto Power On, WOL, and PXE Boot
| Range | Discount |
|---|---|
| 1 - 5 | $139.99 |
| 6 - 50 | $137.99 |
| 51 - 100 | $135.99 |
| 101 + | $132.99 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
High-Performance Series

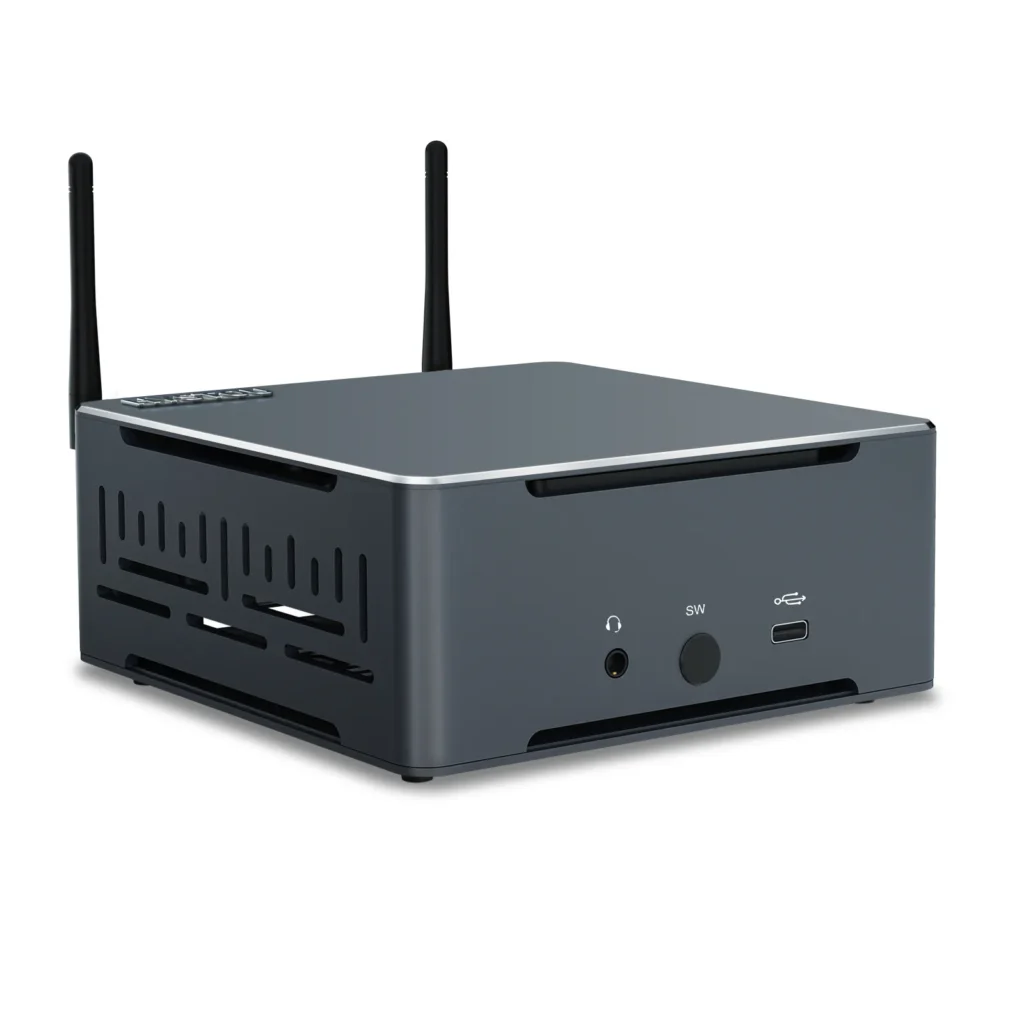

HYSTOU M6 AMD Ryzen™ 7 Mini PC
Premium Aluminum Chassis | Powerful Radeon™ RX Vega 10 Graphics | Enterprise-Grade Reliability
- Powered by AMD Ryzen™ 7 3700U Processor (Up to 35W TDP)
- Dual 4K Display Output via HDMI 1.4 & DisplayPort 1.2
- Robust Full-Aluminum Case for Enhanced Heat Dissipation
- Advanced IT Features: TPM 2.0, Auto Power On, WOL, and PXE Boot
Engineered for Enterprise & Industrial Automation
⚡
Ryzen™ Power & Vega 10
Driven by AMD R7 3700U (12nm) and Radeon™ RX Vega 10 Graphics with 2GB VRAM, providing powerful computing and smooth multi-tasking capabilities.
❄
Smart Active Cooling
Equipped with an efficient internal fan (2500RPM, ≤55dB) keeping CPU temps safely controlled under 85°C even during peak processing operations.
🛡
Hardware Security
Integrated TPM 2.0 support ensures strict encryption compliance, making it perfectly suited for secure Windows 11 enterprise deployments.
⚙
Industrial Automation Boot
Supports robust BIOS functions including Auto Power On, Wake on LAN (WOL from any power-off status), and PXE remote boot environments.
Who Is the HYSTOU M6 Best For?
🏢 Office Workstations
Run Microsoft Office, ERP systems, and CRM software efficiently without lag. Its compact size clears desk clutter while matching desktop-level performance.
🏭 Industrial Automation
Suitable for factory floor monitoring, HMI systems, and edge computing. The full-aluminum chassis protects against light impacts and dust ingress.
📺 Digital Signage
Drive dual 4K displays continuously (24/7 capability). Perfect for retail digital menus, airport information boards, and interactive kiosks.
🌐 Network Management
Reliable deployment for business networking environments utilizing its Gigabit LAN, Auto Power-On, and remote PXE boot capabilities.
Why Choose HYSTOU M6?
| Feature | HYSTOU M6 (Enterprise) | Typical Consumer Mini PC |
|---|---|---|
| Chassis Material | Full Aluminum Alloy (Heat Dissipating) | Plastic / Polycarbonate |
| Hardware Security | ✔ Built-in TPM 2.0 | Optional / Not Included |
| Industrial BIOS (Auto Power On / PXE) | ✔ Fully Supported | Limited / Unstable |
| Display Capabilities | ✔ Dual 4K Independent Output | Often Limited to 1080p or Single 4K |

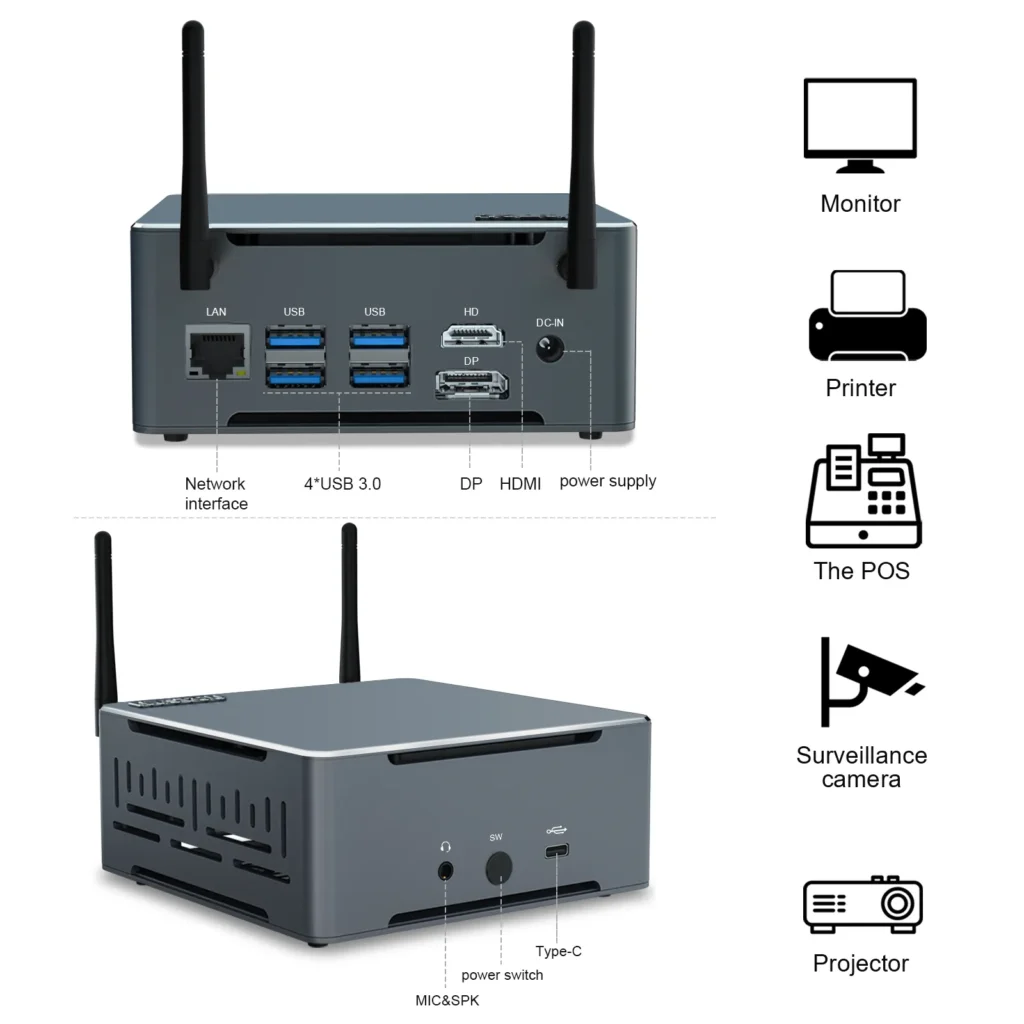

Versatile Connectivity & Rich I/O Interfaces
Uncompromised Expandability
Designed with a comprehensive array of ports to seamlessly integrate into your legacy office equipment or complex automation system setups.
- 4x USB 3.0 (Type-A)
- 1x Type-C (USB 3.1 Gen1)
- 1x Gigabit Ethernet LAN
- 1x HDMI 1.4 (4K@30Hz)
- 1x DisplayPort 1.2 (4K@60Hz)
- 2x External Antennas
Full Technical Specifications
Comprehensive hardware architecture and industrial feature compatibility matrix for enterprise deployment.
| Processor Options | Intel® Core™ i7-7820H (M5) / AMD Ryzen™ 7 3700U (M6) |
| Graphics Core | Intel® HD Graphics 630 / Radeon™ RX Vega 10 Graphics |
| Memory Support | Dual Channel DDR4 SO-DIMM Slots (Up to 64GB, 2400/2666MHz) |

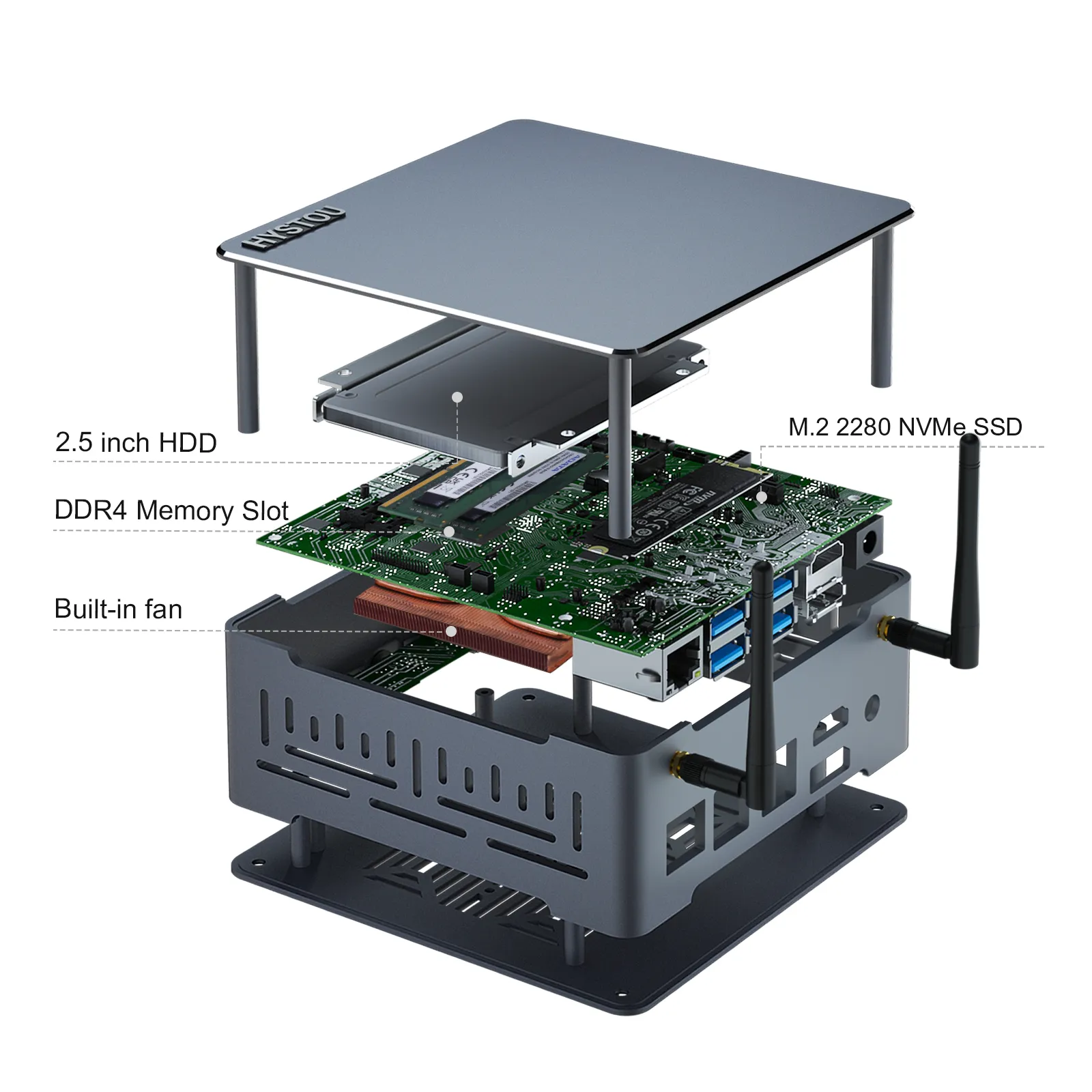

| Storage Expansion | 1x M.2 NVMe/PCIe High-Speed SSD Slot + 1x 2.5" SATA HDD/SSD Extended Bay |
| Display Output | Dual Display Synchronous/Asynchronous Support (HDMI + DP / VGA Model Dependent) |
| Network Interface | Realtek/Intel Gigabit RJ45 Lan Controller (Supports Dual LAN option customized) |
| USB Topology | 4x USB 3.0 SuperSpeed Ports, 2x USB 2.0 Ports, 1x Type-C Connector |
| Wireless Module | Dual-Band Wi-Fi + Bluetooth Internal Module with Dual External High-Gain Antennas |
| OS Compatibility | Windows 10 / 11 Pro, Linux Client, Ubuntu, CentOS Professional runtimes |
| Unattended Boot | Auto Power On (Restore AC Power Loss Status), Wake-on-LAN (WOL), PXE Network Boot |
| Hardware Security | Embedded Hardware TPM 2.0 Trusted Platform Module Security Encryption |
| Thermal Design | Heavy-duty Fanless Passive Thermodynamic Cooling / Intelligent Low-Noise Fan Control |
| Chassis Material | Industrial-grade Rugged Full-Aluminum Alloy Shell (Anti-corrosion, Anti-vibration) |
| Power Input Range | DC 12V-19V Wide Range Input, External AC/DC Power Supply Adaptor |
| Operating Temp | -10°C to 60°C (Extended industrial working thermal endurance) |

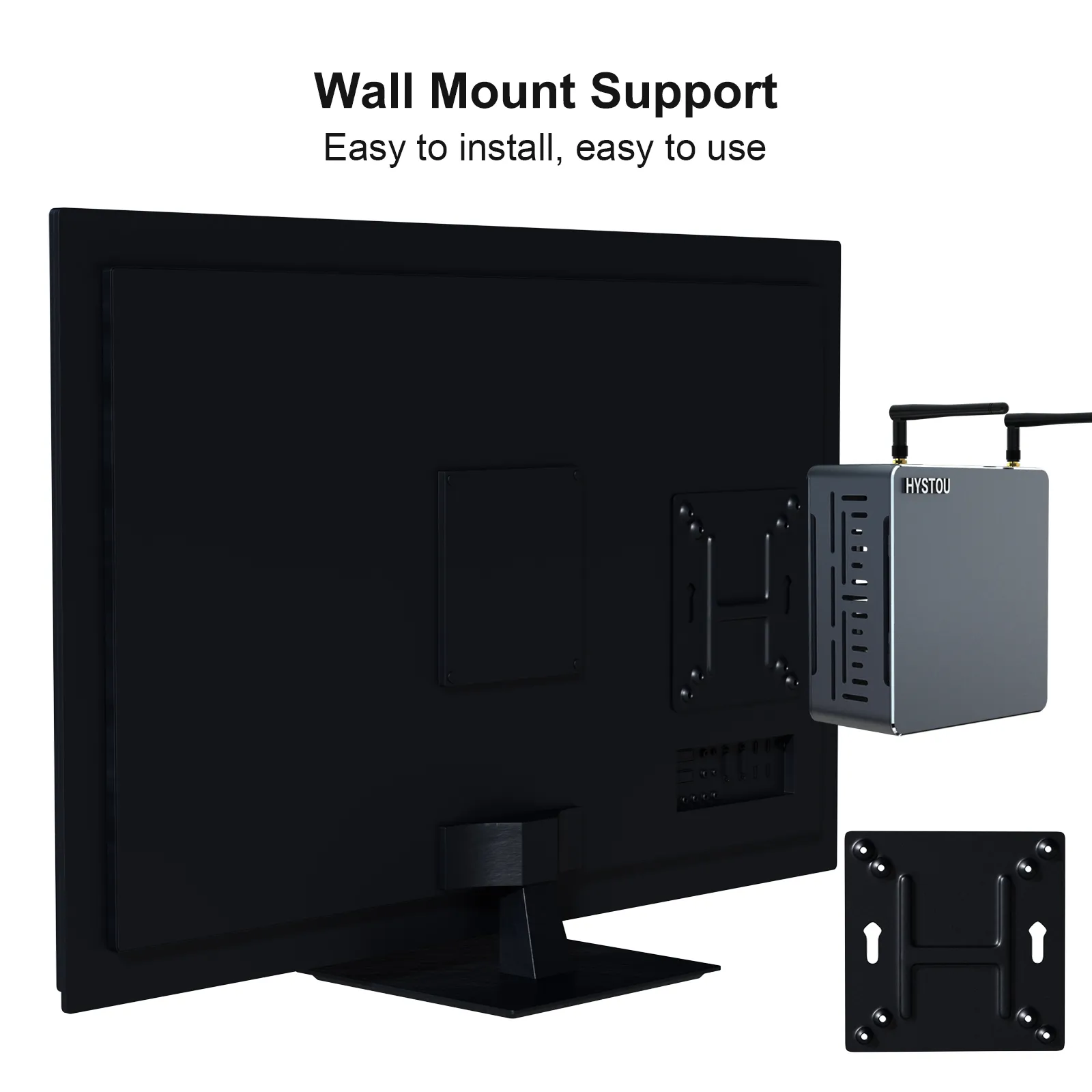

| Mounting Support | Standard VESA Mount Bracket Included (Wall, Desk, or Monitor-Back deployments) |
Frequently Asked Questions
Does the HYSTOU M6 support Windows 11?
Yes, the M6 is fully compatible with Windows 11 Pro. It features built-in TPM 2.0 hardware security, meeting Microsoft’s strict installation requirements for enterprise deployment.
Can I upgrade the memory and storage?
Absolutely. The system supports up to 32GB of DDR4 RAM across two SO-DIMM slots. For storage, it houses one M.2 2280 NVMe slot and space for an additional 2.5-inch SATA HDD/SSD.
Does the M6 support dual displays?

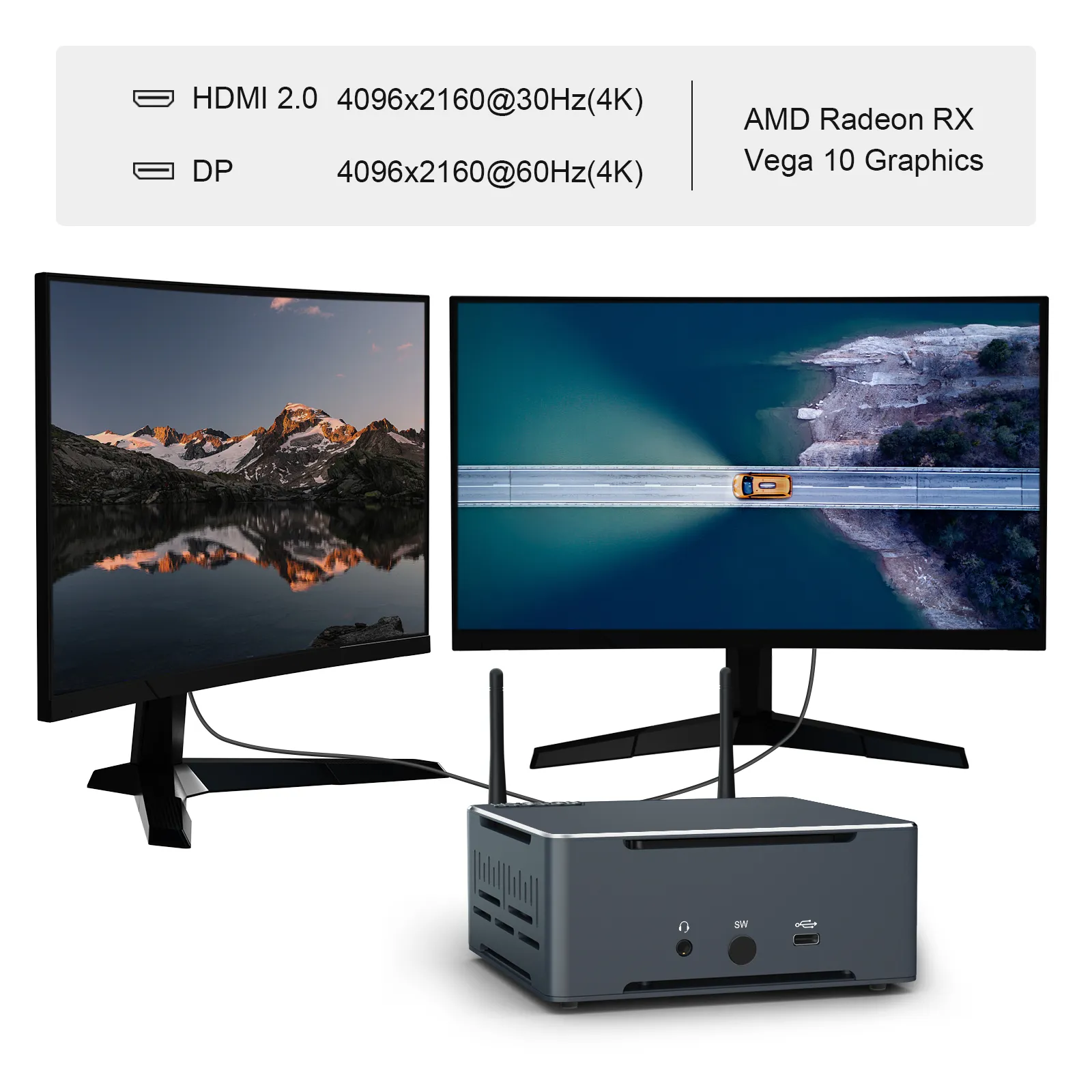

Yes, it supports dual independent 4K displays simultaneously using the HDMI 1.4 and DisplayPort 1.2 outputs, making it ideal for multi-monitor office setups or digital signage.
Can it run Linux distributions?
Yes, the hardware is highly compatible with major Linux distributions, including Ubuntu, Debian, and CentOS, which are commonly used in industrial and server environments.
Get a Custom Volume Discount Quote
Are you an IT procurement manager or automation system integrator? Contact our commercial sales department today for project-based volume discounts, custom component configuration options, and tailored shipping terms.
