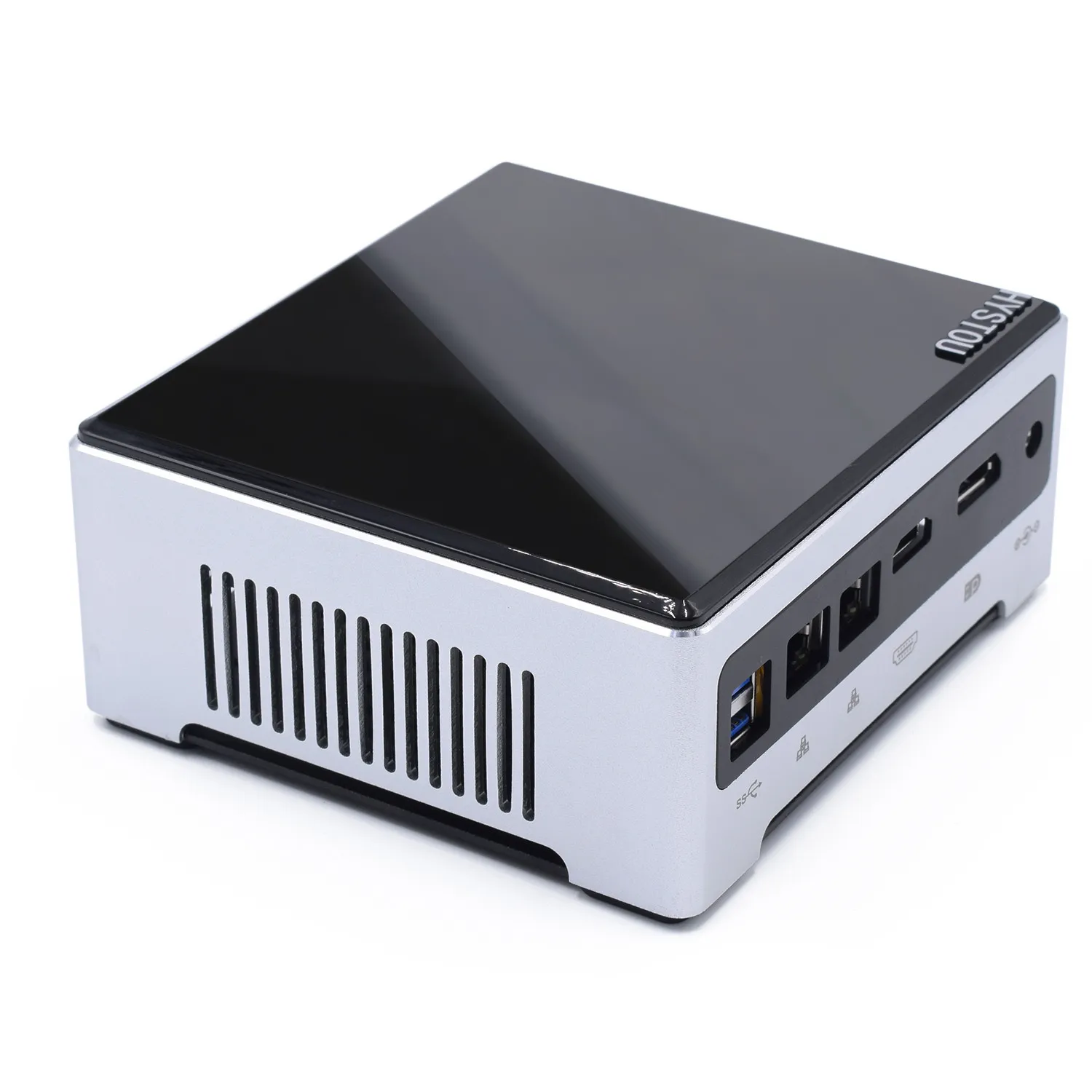

Industrial Mini PC with Dual LAN Powered by Intel Core i7-7820H
The HYSTOU M5 Industrial Mini PC is powered by Intel Core i7-7820H and features dual Gigabit LAN, dual M.2 SSD expansion and 4K dual-display support. Designed for industrial automation, edge computing, firewall systems and embedded applications.
Enterprise IT Notice: This model is natively optimized for Windows 10 Pro, Linux, and Windows 10 IoT Enterprise, delivering premium stability without the overhead or TPM hardware enforcement of Windows 11. An ideal, cost-effective drop-in replacement for legacy infrastructure and industrial control applications.
High-Speed Dual DDR4 Memory & Expandable Storage
✔ Next-Gen Memory Efficiency: Equipped with dual DDR4 SODIMM slots supporting up to 2400MHz. Benefit from up to 300% rank capacity and 30% IO power reduction compared to older DDR3 systems.
✔ Versatile Dual M.2 Slots: Features two M.2 2280 slots to eliminate data bottlenecks.

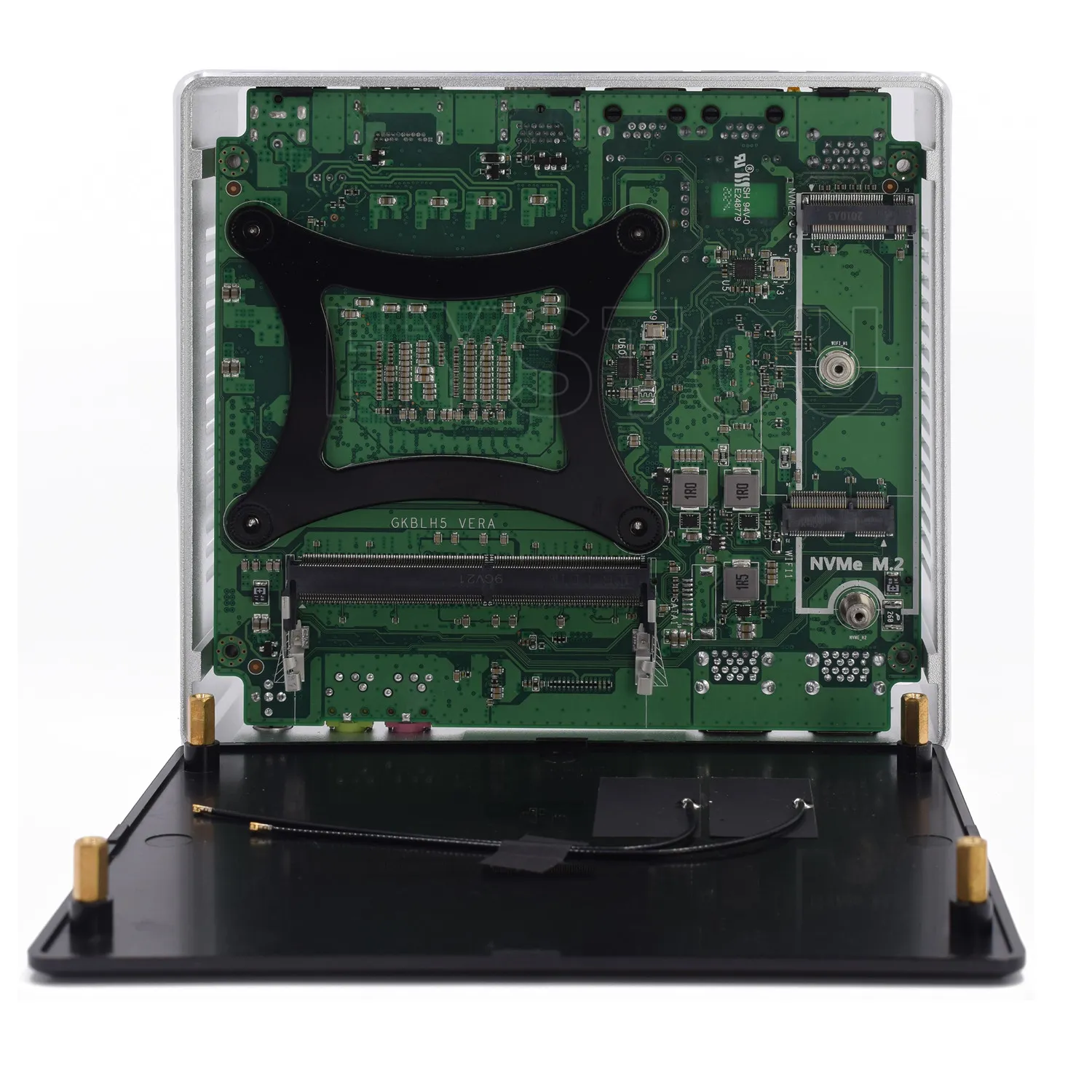

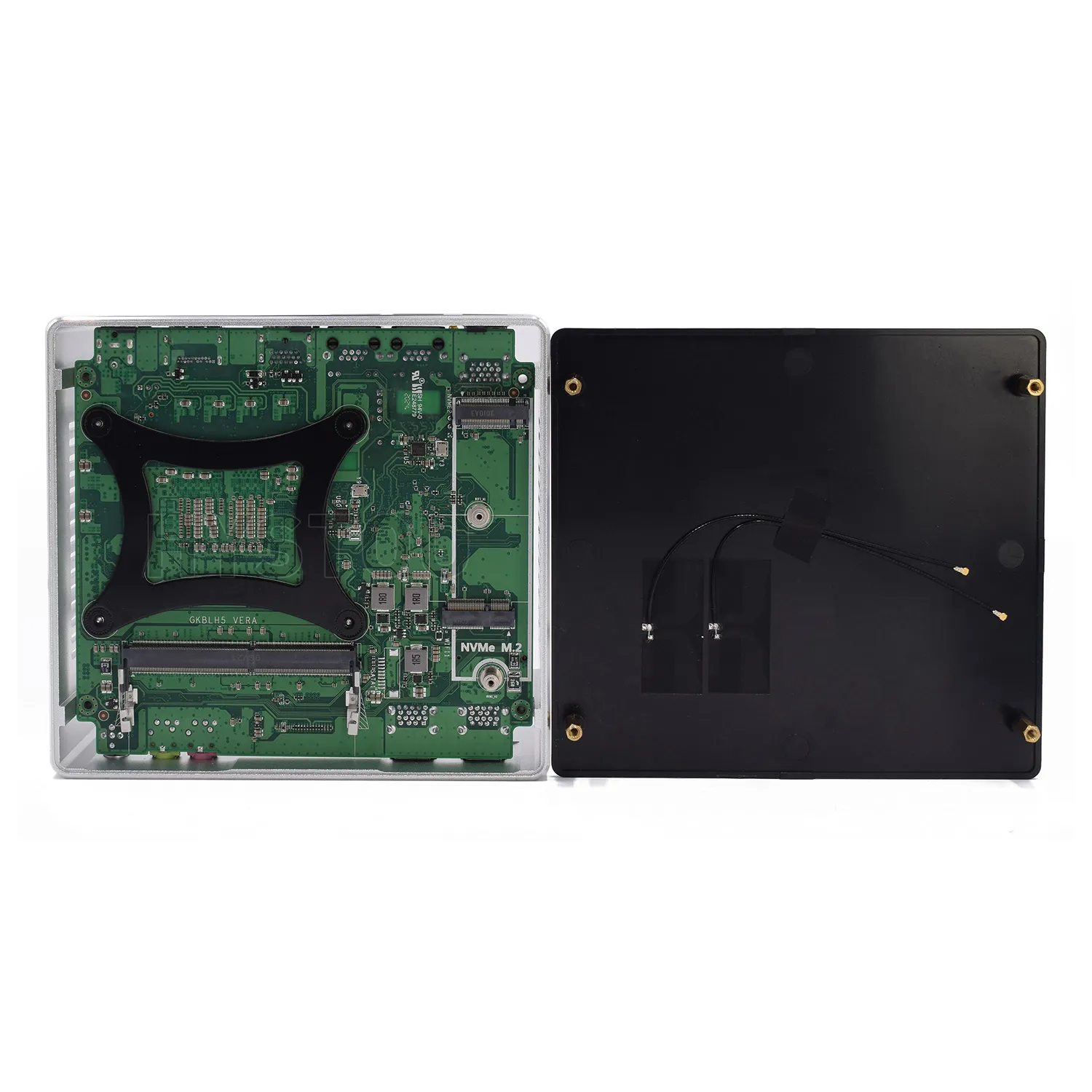

✔ Technical Precision: The primary top-facing slot supports ultra-fast PCIe NVMe SSDs exclusively. The secondary fan-side slot features a hybrid design supporting both NVMe and SATA protocols for flexible array expansion.
Dual 4K Display Outputs & Hardware Decoding
✔ Independent Dual Displays: Expand your workspace or power multi-screen human-machine interfaces (HMI) using the onboard HDMI 1.4 and DisplayPort 1.2 outputs.
✔ Smooth 4K Workflow: Supports full 4K H.265 hardware decoding for seamless dynamic multi-window switching across design, office, and monitoring suites.
✔ Pro Recommendation: We highly recommend utilizing the DisplayPort output to achieve a fluid 4K @ 60Hz refresh rate for the best visual experience.
Dual Gigabit Ethernet & High-Bandwidth Wireless Link
✔ Redundant Networking: Built-in Realtek RTL8168/8111/8112 Gigabit Ethernet controllers with dual LAN ports. Perfect for network isolation, firewall routing, or edge-computing redundancy.
✔ Stable Wireless Hub: Integrated Dual-Band Wireless AC 3165 (2.4G/5.0G WiFi) with internal high-gain antennas delivering up to 433 Mbps.
✔ Bluetooth Ready: Combined with Bluetooth 4.2 for effortless peripheral pairing in industrial or office environments.
24/7 Continuous Cooling & Space-Saving Design

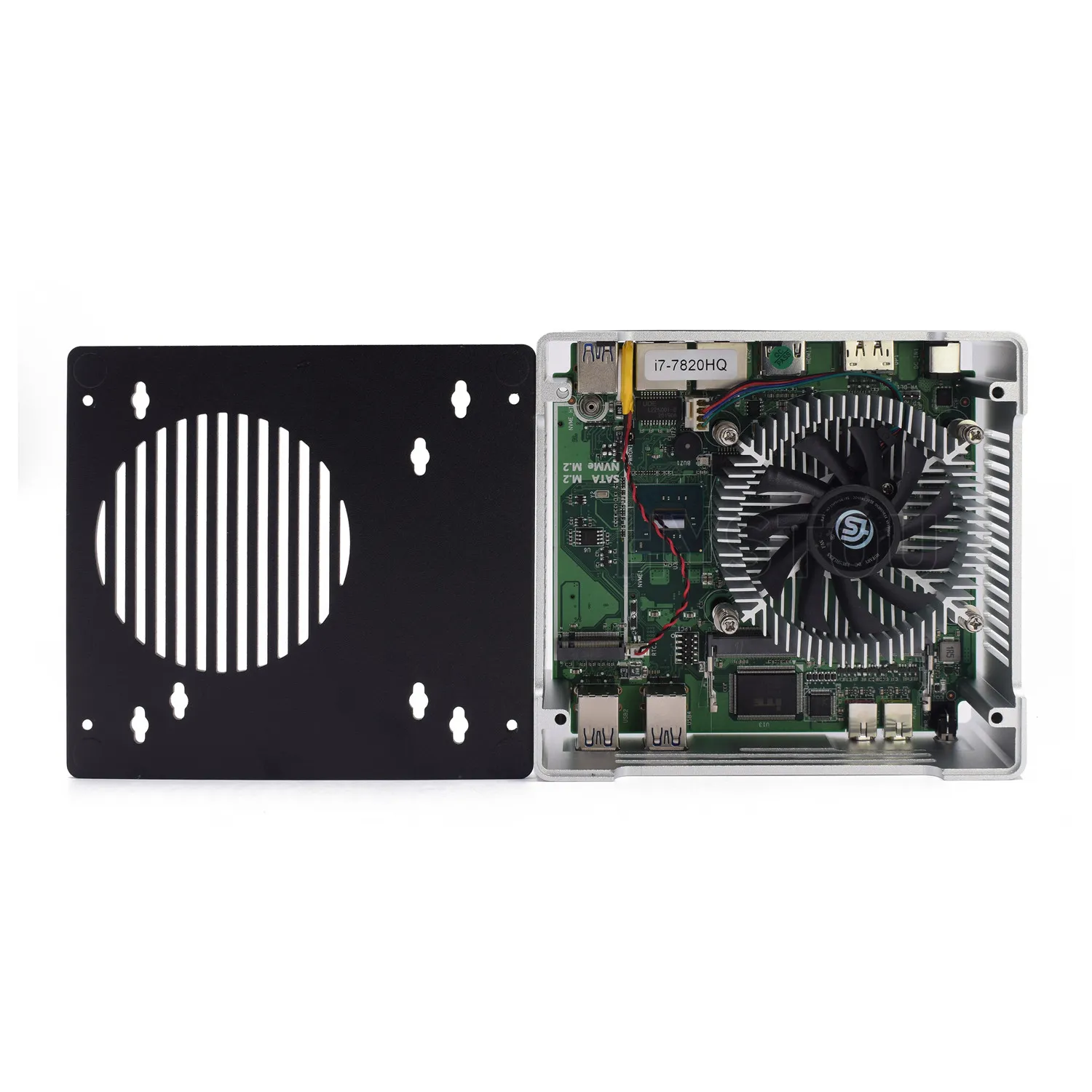

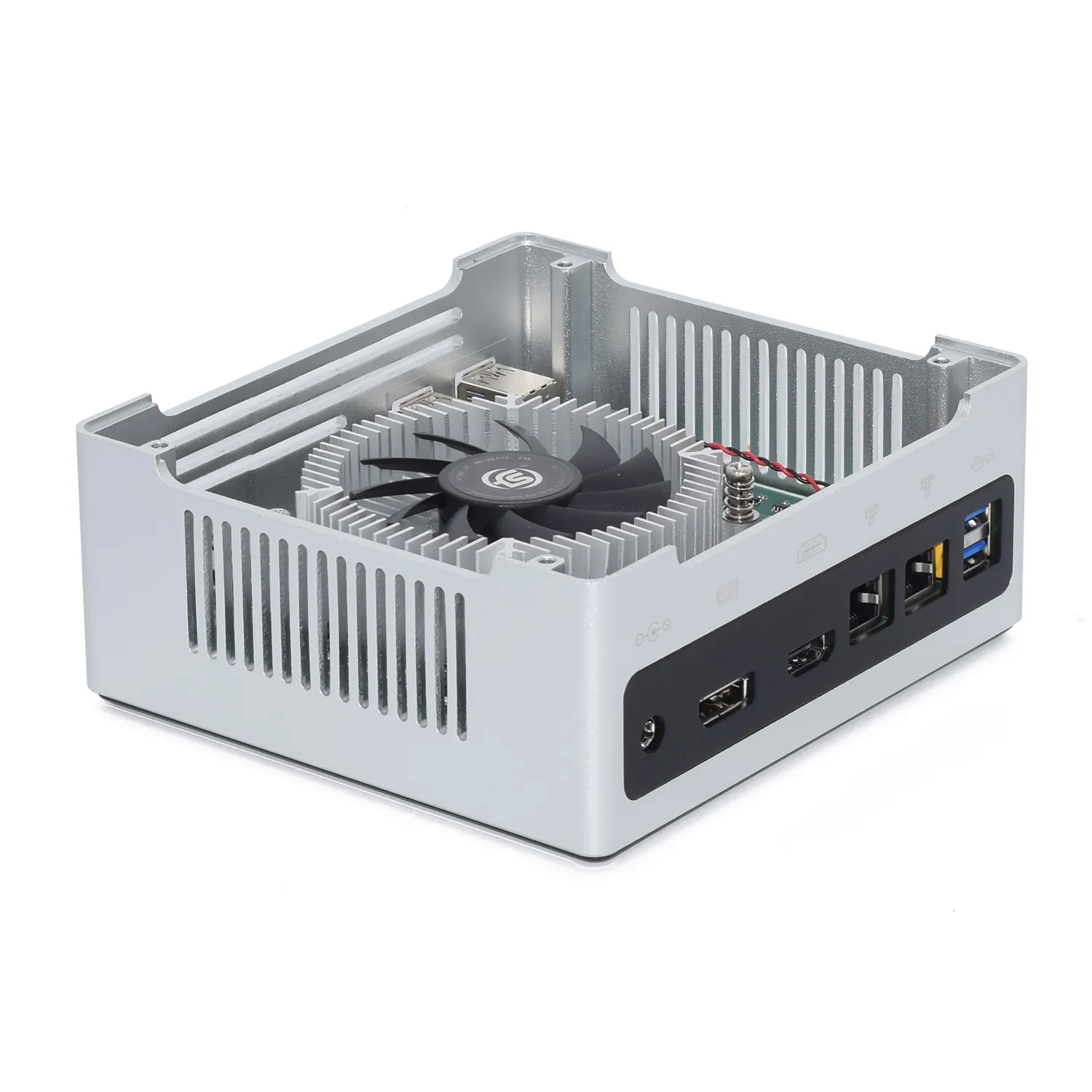

✔ Whisper-Quiet Active Thermal Management: Features an ultra-quiet internal circulating fan built for 24/7 continuous enterprise operation, maintaining low component temperatures without disrupting silent work environments.

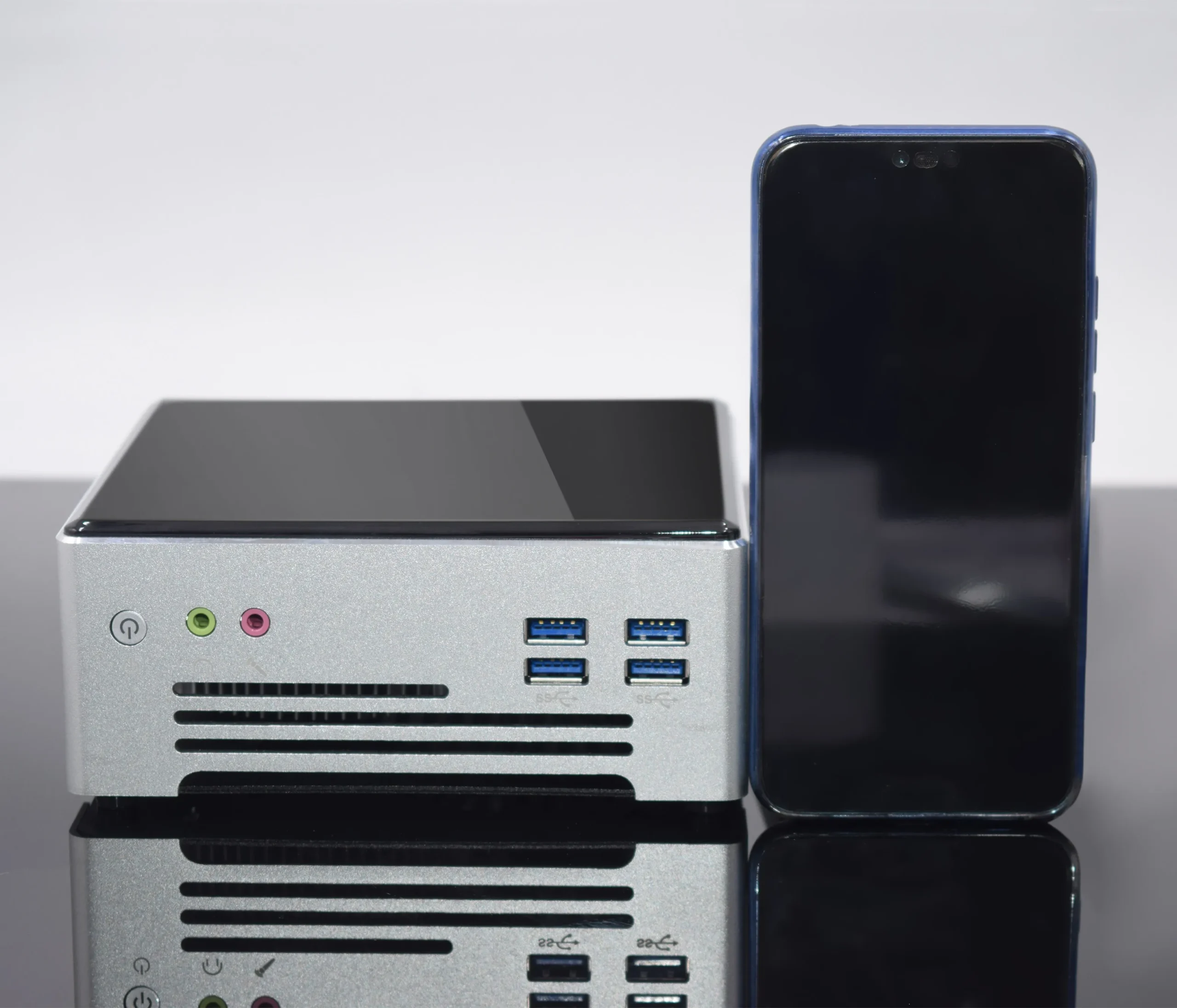

✔ Zero-Footprint Workspace: Compact chassis sizes measuring just 150mm × 137mm × 65mm.

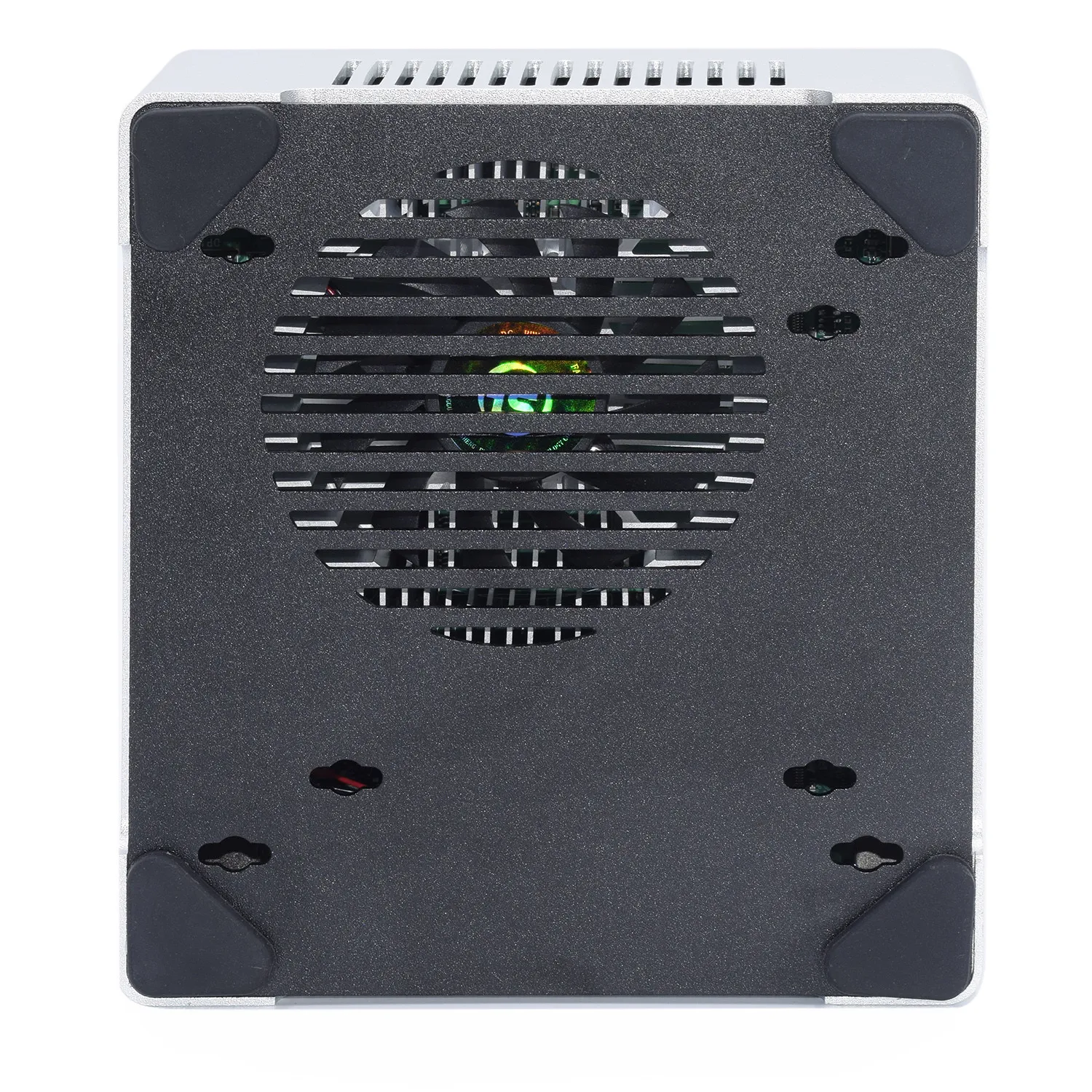

✔ VESA Mount Integration: Includes standard VESA mounting holes (7.5cm / 10cm spacing). Secure the Mini PC directly to the back of any standard monitor using 4 screws to completely clear your desk.
Comprehensive Product Specifications
| Processor | Intel® Core™ i7-7820H (4 Cores, 8 Threads, up to 3.90 GHz) |
|---|---|
| Graphics | Intel® HD Graphics 630 |
| Memory | Dual Channel DDR4 SODIMM Slots (Up to 32GB/64GB variant dependent) |

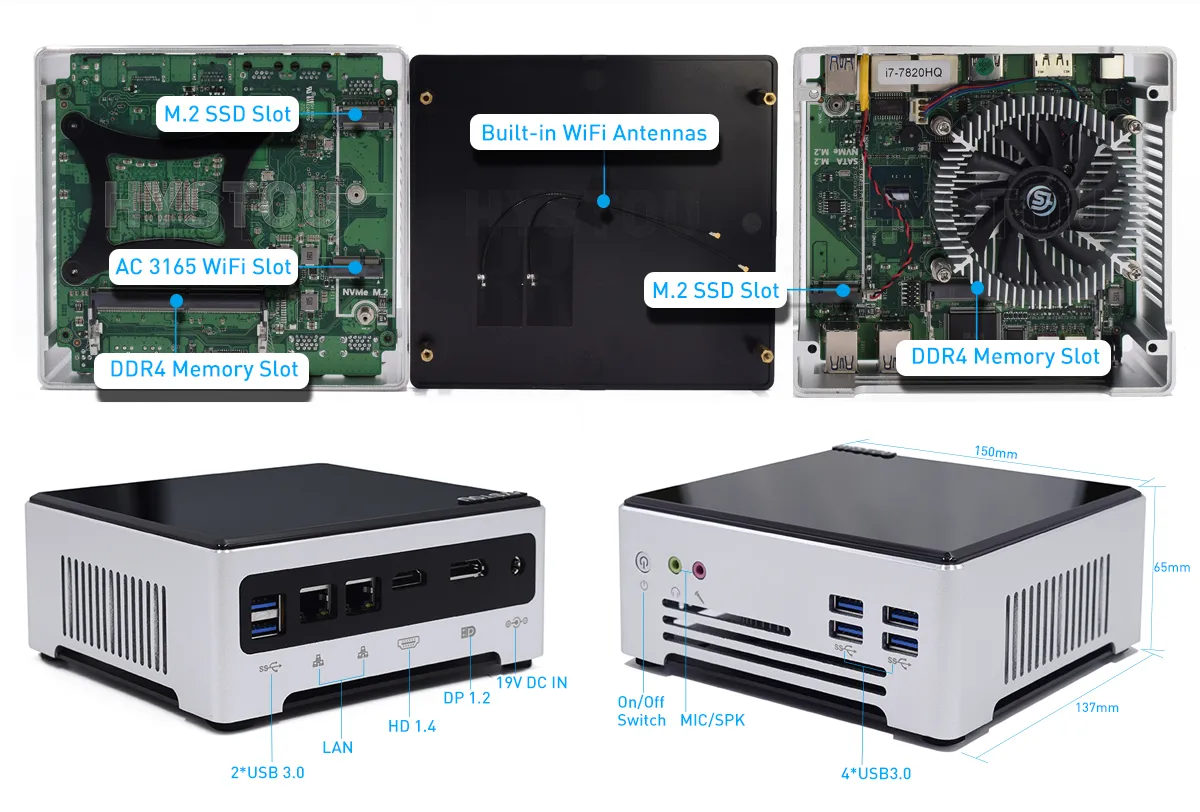

| Storage | 1x M.2 NVMe Slot + 1x M.2 NVMe/SATA Hybrid Slot (2280) |

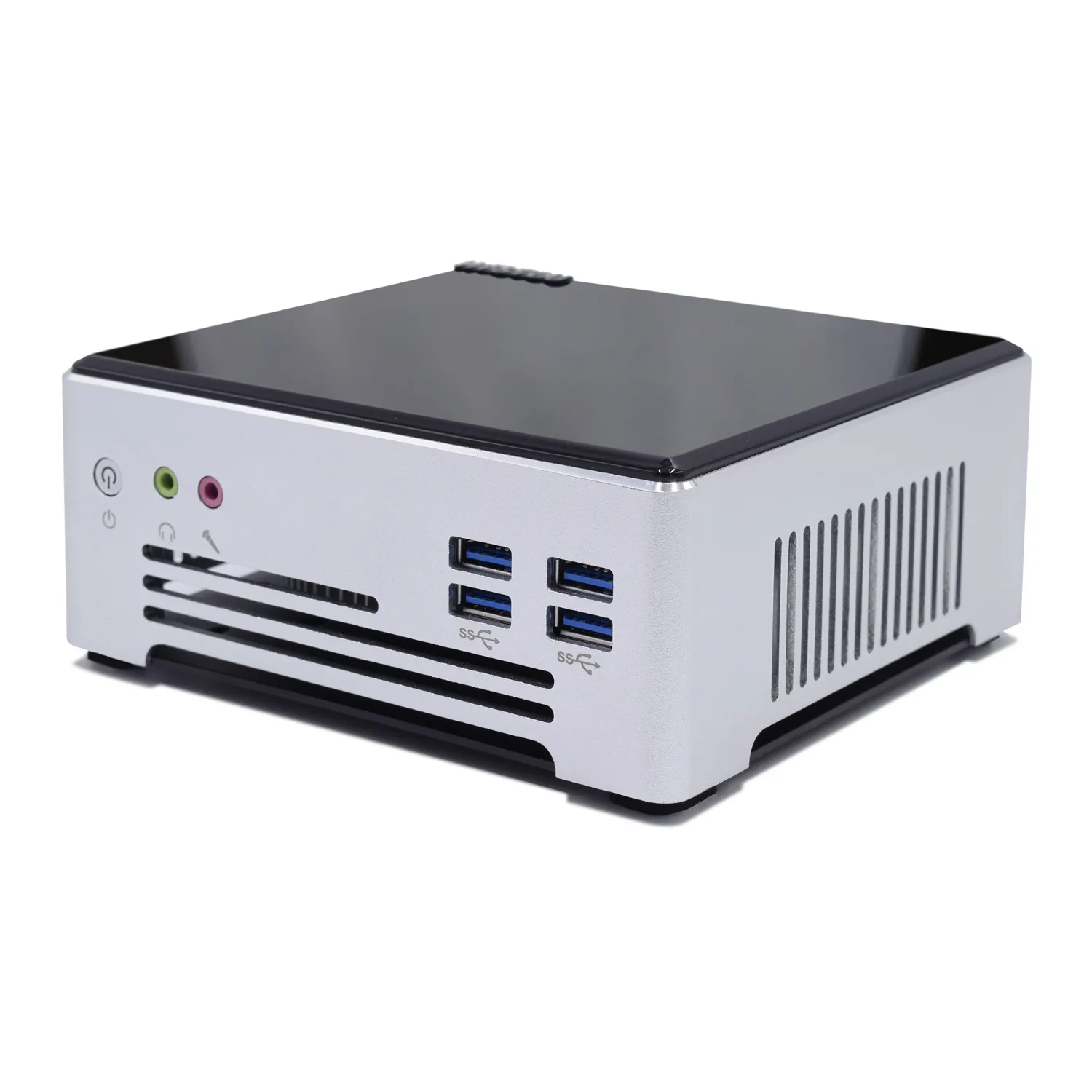

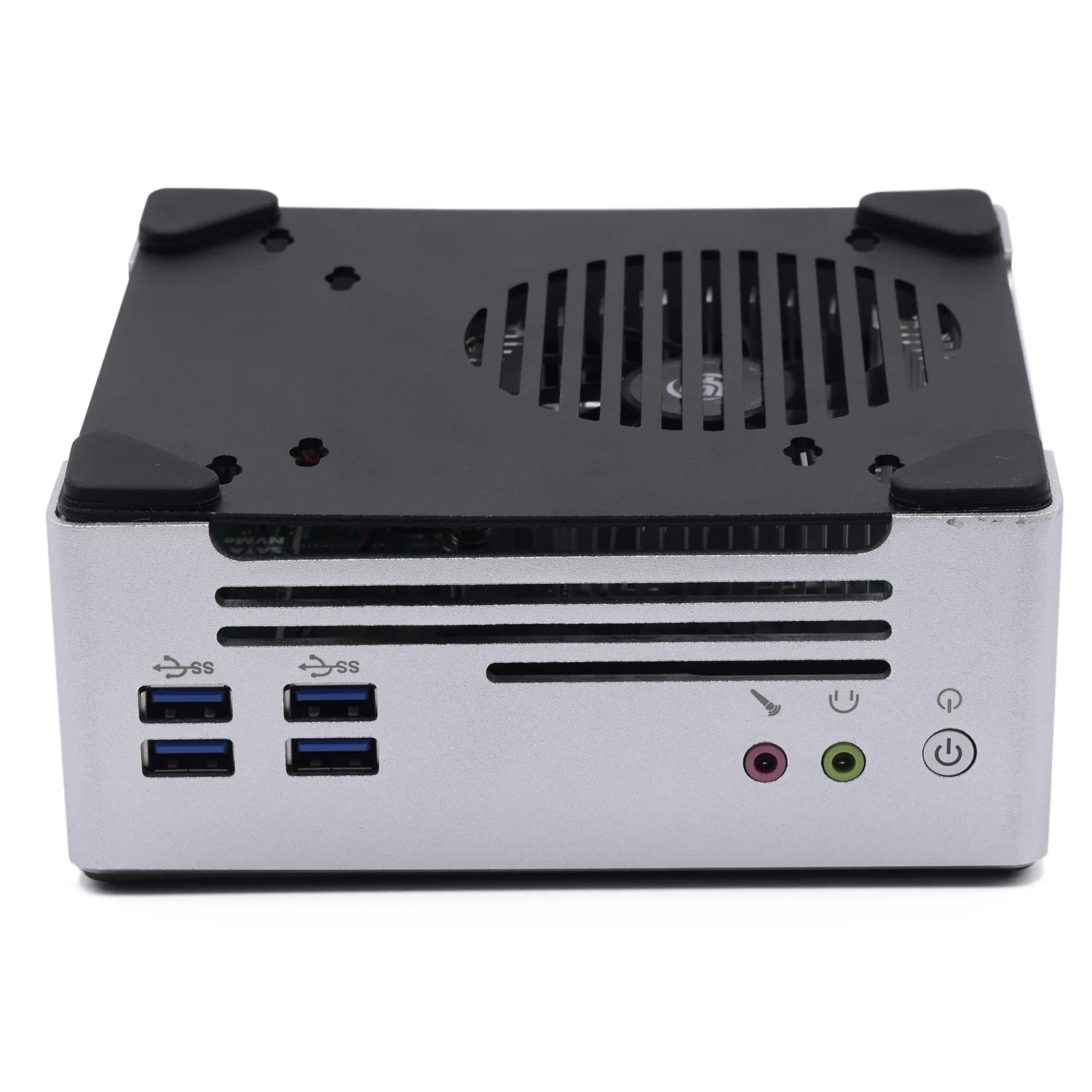

| Front I/O | 4x USB 3.0, 1x Audio Mic/Speaker Jack, Power Switch |
| Rear I/O | 2x USB 3.0, 2x RJ45 Gigabit LAN, 1x HDMI 1.4, 1x DP 1.2, 1x 19V DC In |
| Chassis Size | 150mm × 137mm × 65mm |
| Weight | Net Weight: 0.7 KG | Gross Weight: 1.6 KG |

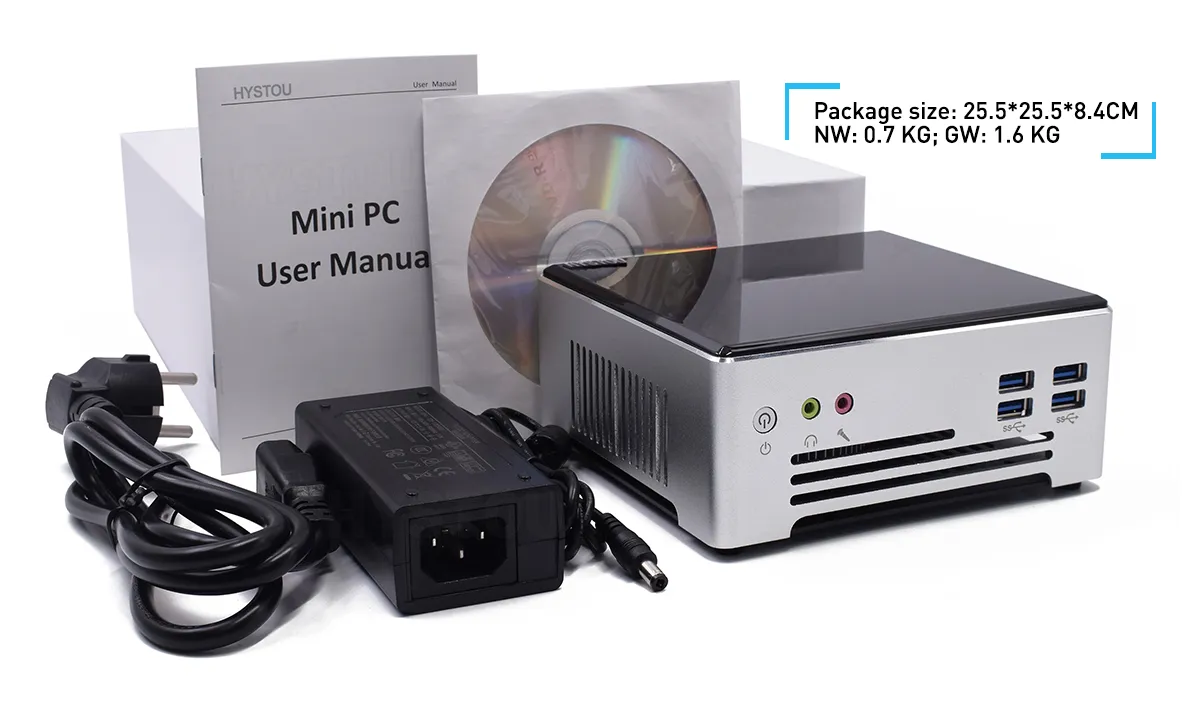

| Package List | 1x M5 Mini PC, 1x Power Adapter & Cord, 1x User Manual, 1x Driver CD |
Technical Support & Purchasing FAQ
Does the HYSTOU M5 (i7-7820H) support Windows 11 natively?
No, it does not natively support Windows 11 under Microsoft’s standard requirements, as the Intel 7th Gen CPU and the lack of a hardware TPM 2.0 module will trigger setup blocks. However, this system is 100% natively optimized for Windows 10 Pro, Linux, and Windows 10 IoT Enterprise. For clients who absolutely mandate Windows 11, the deployment restrictions can be bypassed using custom OS deployment images (such as Rufus bypass methods), though we recommend Windows 10 Pro for maximum industrial deployment stability.
What are the practical applications of the Dual Gigabit LAN ports?
The integrated dual Realtek Gigabit Ethernet controllers allow enterprise users to implement network isolation (e.g., separating internal industrial automation lines from public office networks), set up firewall routing, or configure network redundancy/teaming to prevent operational downtime in critical edge-computing environments.
Can this Mini PC output true 4K resolution on both display ports?
Yes, both ports support 4K output, but with different refresh capabilities. The DisplayPort 1.2 port supports full 4K @ 60Hz, providing a smooth and responsive user experience. The HDMI 1.4 port supports 4K @ 30Hz, which is highly efficient for static digital signage or background monitoring but may feel less fluid for active daily desktop workflows.
How do I configure the dual M.2 storage slots without compatibility issues?

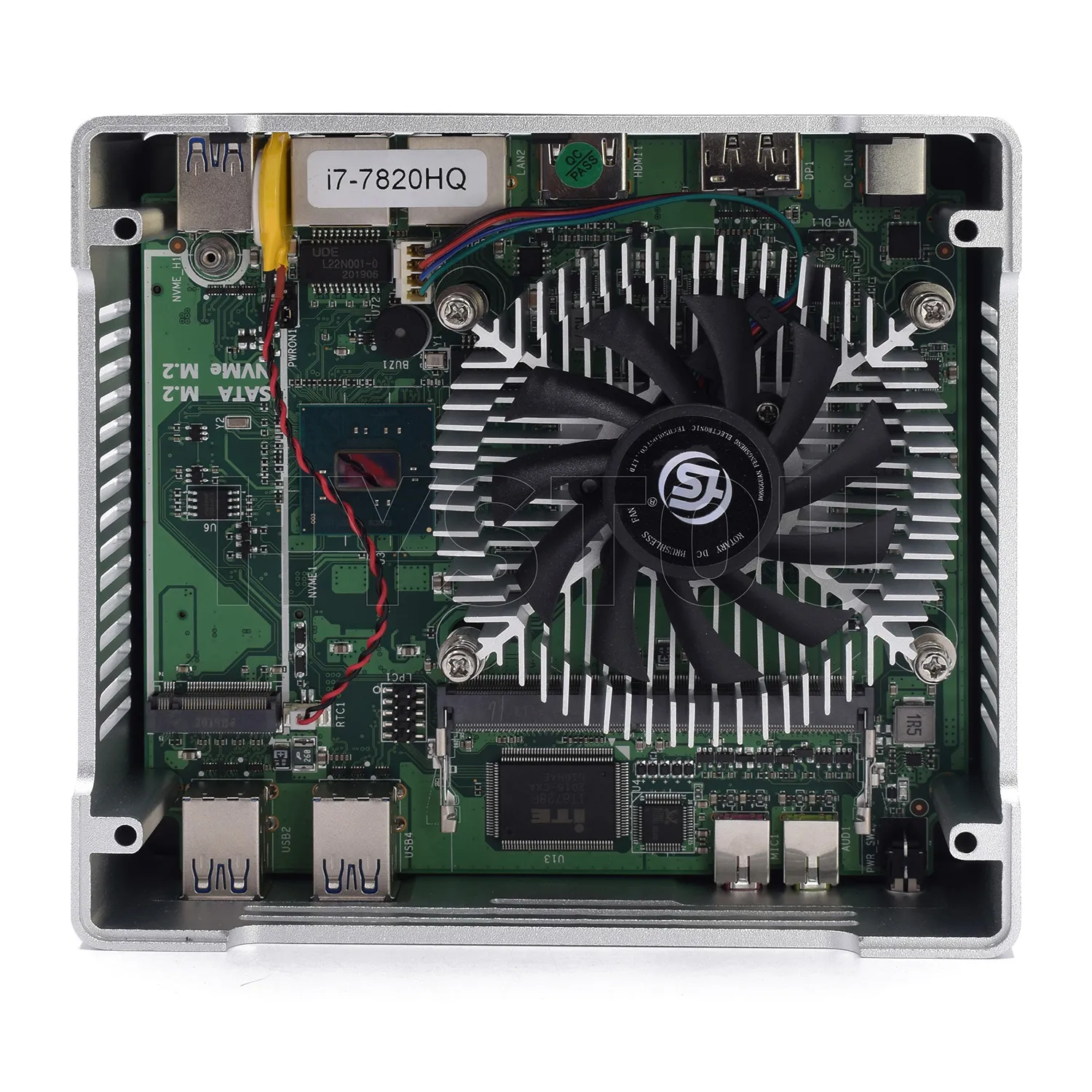

The M5 motherboard handles storage dynamically through two distinct buses. The primary top-facing M.2 2280 slot accepts PCIe NVMe SSDs only. The secondary slot located near the cooling fan is a hybrid slot that supports both NVMe and SATA M.2 SSD protocols. Ensure that any SATA-protocol M.2 drives are only installed in the secondary fan-side slot to guarantee recognition.
Do you support bulk customization and volume discounts for OEs/Integrators?
Absolutely. As a direct professional Mini PC supplier, HYSTOU offers structured bulk discounts starting at 5 units, with deeper incentives at the 50 and 100+ unit thresholds. We also provide custom hardware/BIOS configurations, custom master OS image pre-installation (including dynamic dual-audio drivers for Realtek/USB audio variations), and VESA mounting accessory packaging tailored for large-scale IT projects.
