HYSTOU H7 Industrial Mini PC with Intel® Core™ i5-8350U
Categories: Industrial Mini PC
- Commanding Performance: Intel Core i5-8350U processor (up to 3.60 GHz) delivers relentless processing power for edge computing and industrial control.
- High-Speed Multitasking: Tailored with a DDR4 SODIMM slot supporting up to 32GB high-frequency memory for seamless workflows.
- Uncompromised Dual Storage: Equipped with a dual-protocol M.2 2280 NVMe/SATA PCIe 3.0 x4 SSD slot (up to 2TB) plus an expandable 2.5-inch SATA bay.

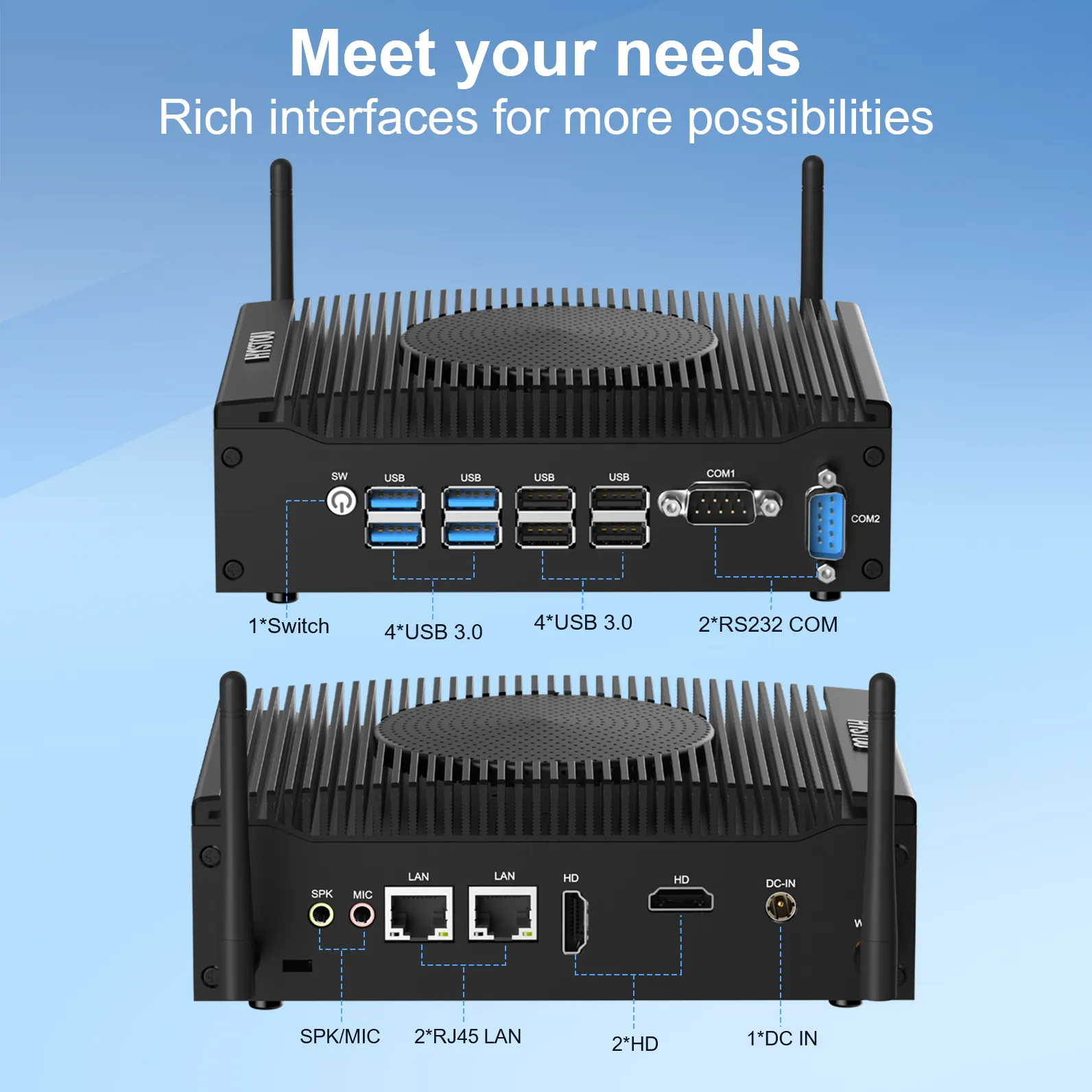

- Industrial-Grade Hub: Rich legacy and modern I/O synergy featuring 2*Gigabit LAN ports, 2*RS232 COM serial interfaces, and 8*USB (4x 3.0 + 4x 2.0) ports.
- 3-Year Warranty & Lifetime Support: Enjoy a 3-year official factory warranty and lifetime B2B technical support, eliminating any worries for bulk purchasing.
- Autonomous Operation Ready: Complete mission-critical hardware autonomy with Auto Power On, Wake-on-LAN (WoL), PXE network boot, and onboard enterprise TPM 2.0 security.
| Range | Discount |
|---|---|
| 1 - 5 | $353.22 |
| 6 - 50 | $351.22 |
| 51 - 100 | $349.22 |
| 101 + | $346.22 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate

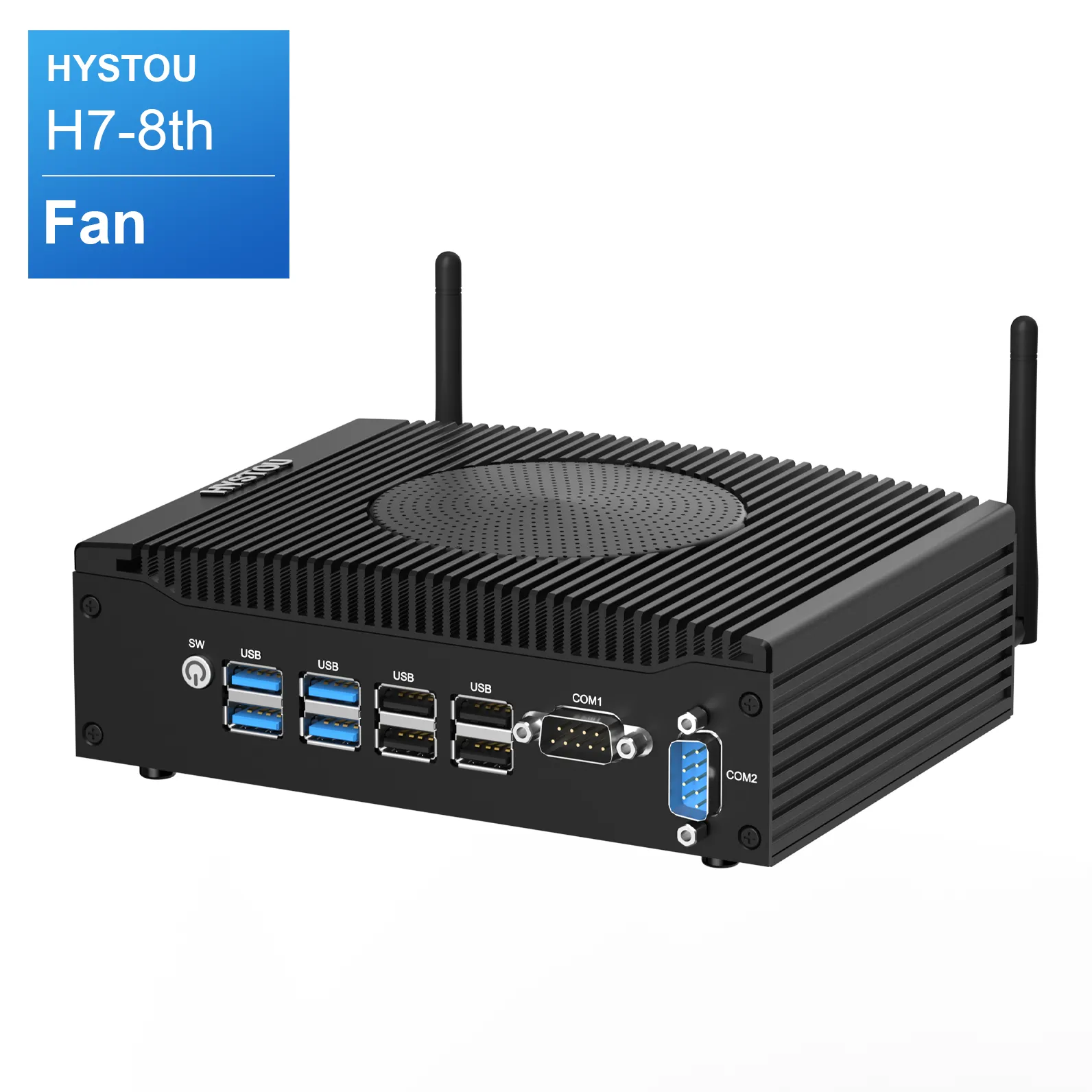

HYSTOU H7-8th Fan
Industrial-Grade Specs, Versatile for All Scenarios
Proven low‑power CPU
1×DDR4
M.2 2280 PCIe3.0
3-Year Warranty
Silent and efficient
Dual Gigabit Ethernet port
WiFi 5
Bluetooth 4.2

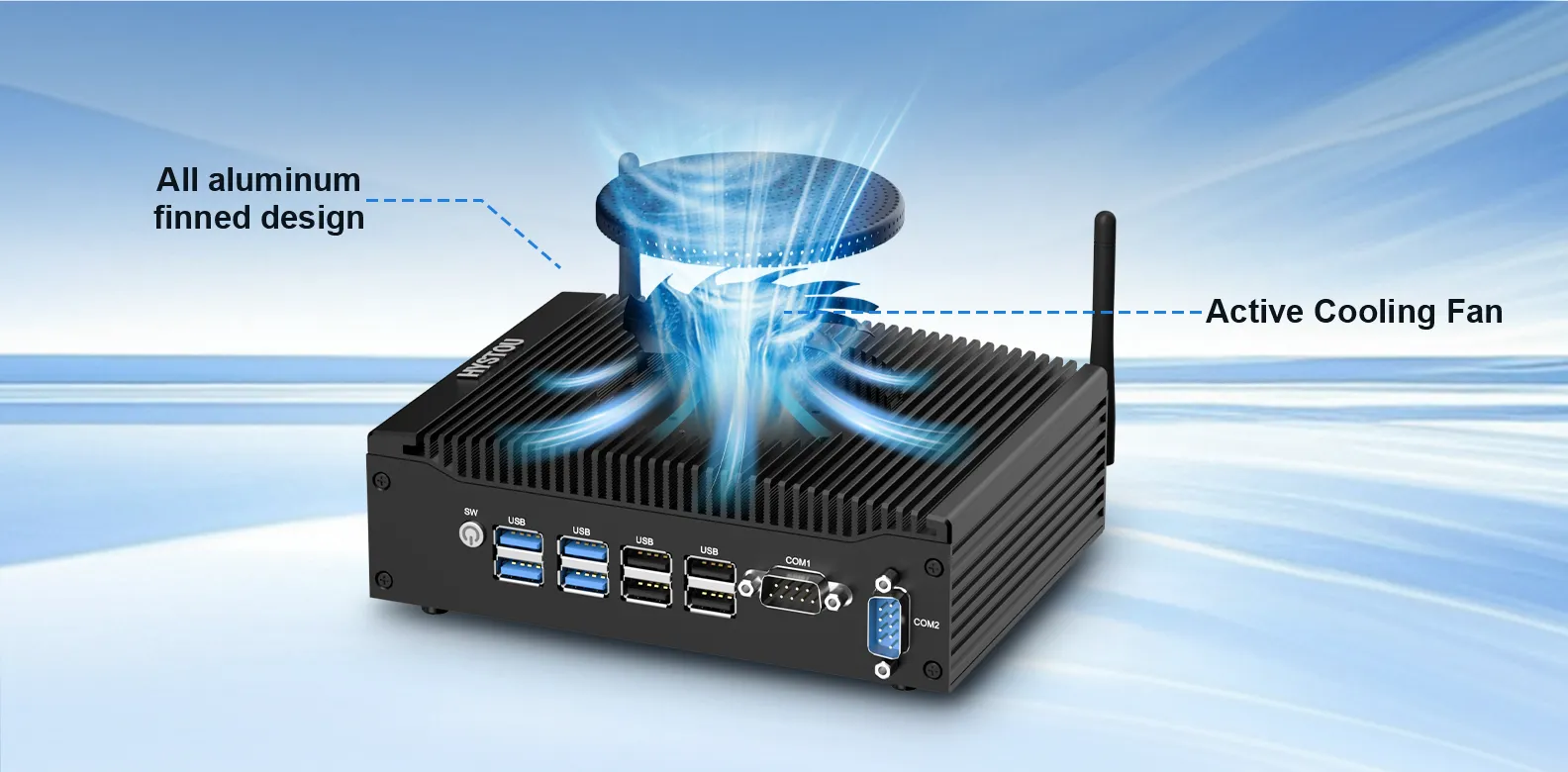

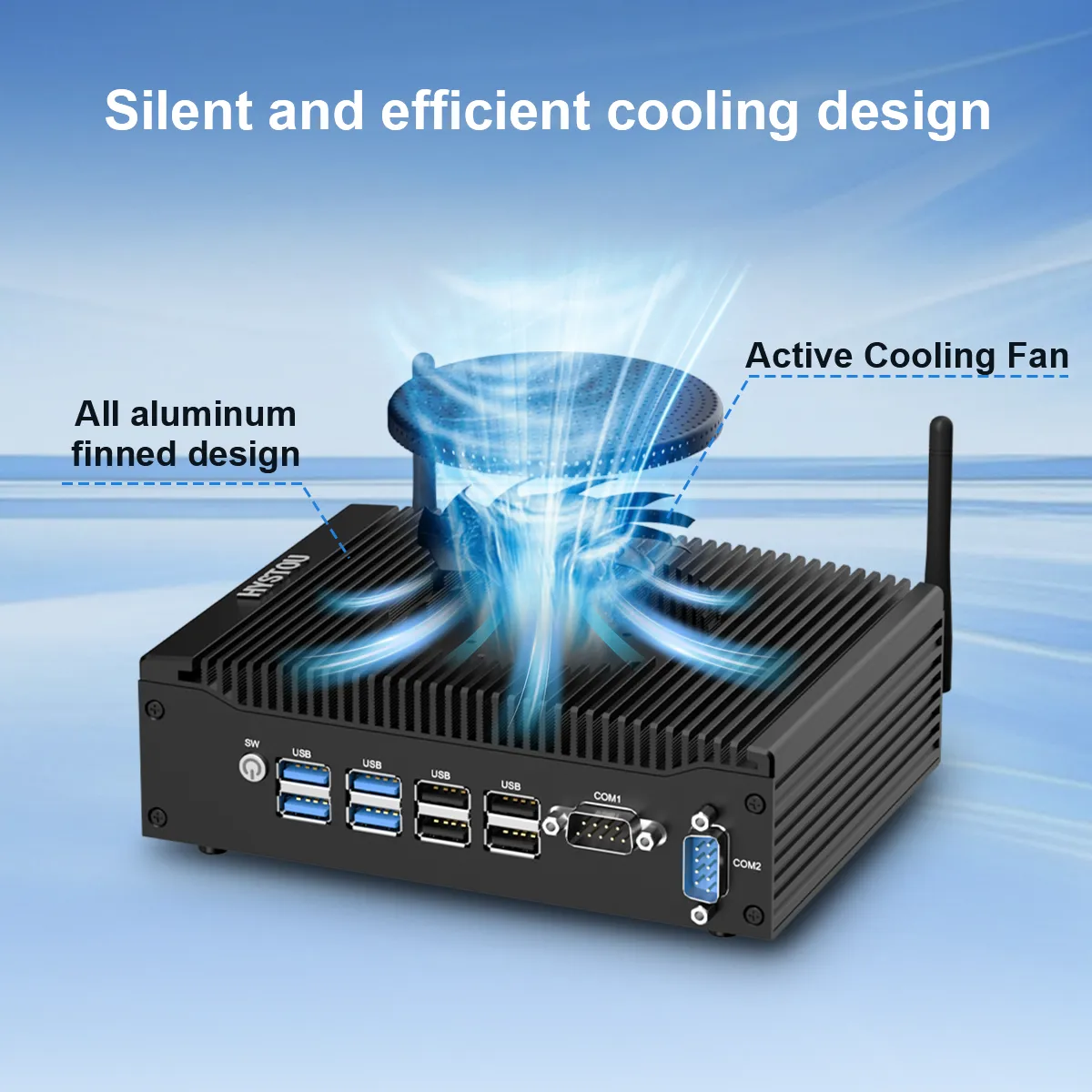

Smart Cooling, Quiet Performance
Equipped with intelligent fans, high‑density aluminum alloy and fin‑structured design for superior heat dissipation, it maintains noise under 40 dB and delivers long‑term stable performance.

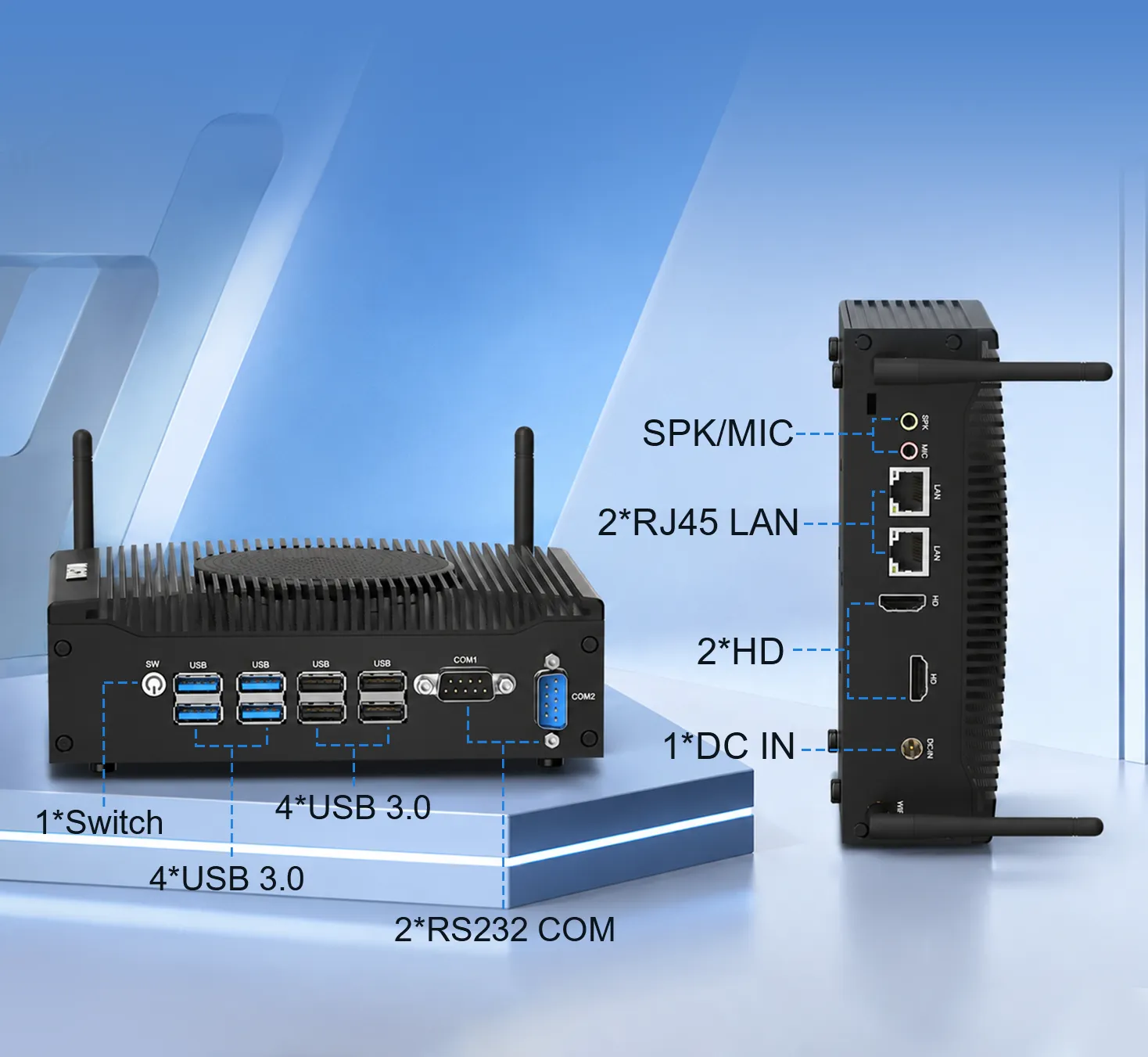

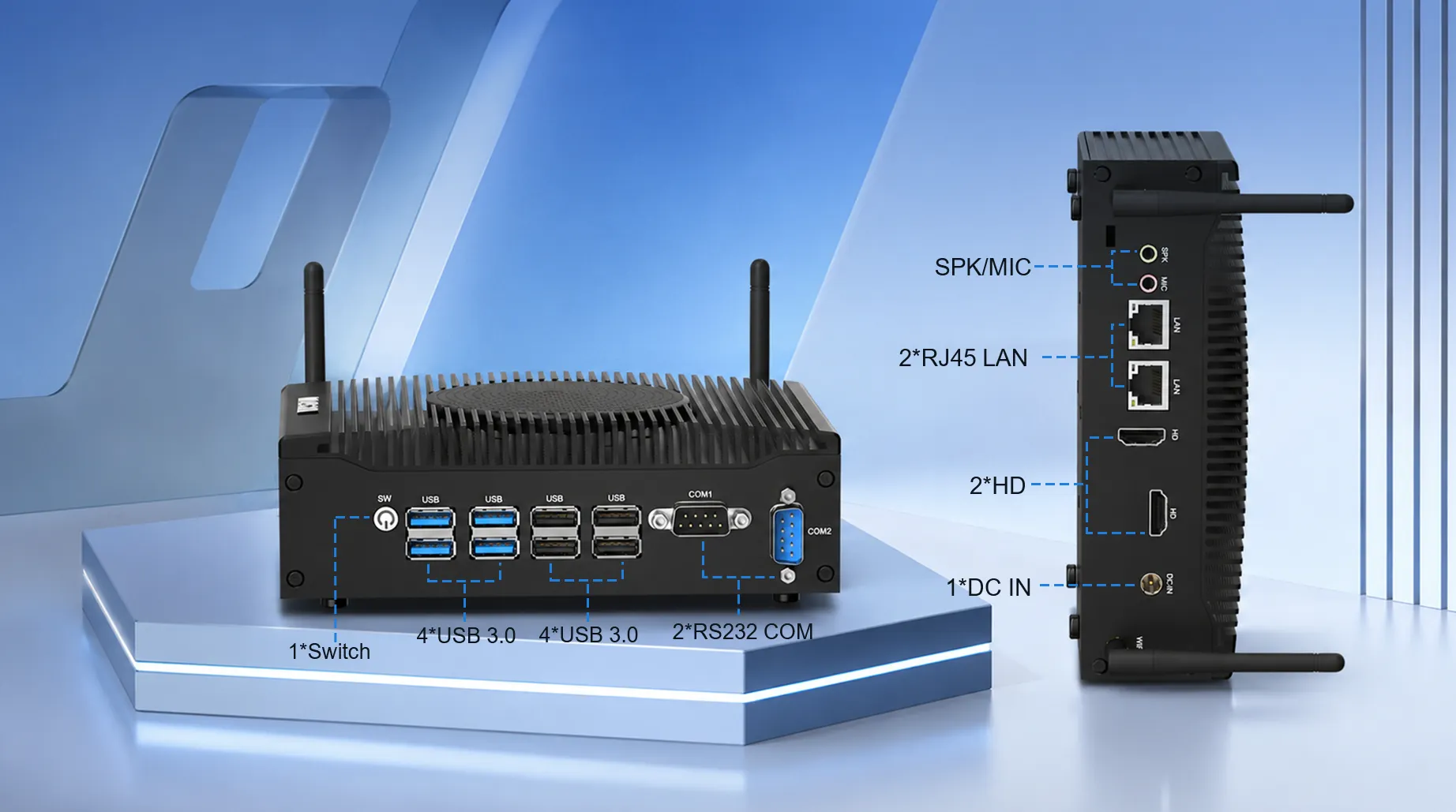

Connect Every Device for Your Workflow

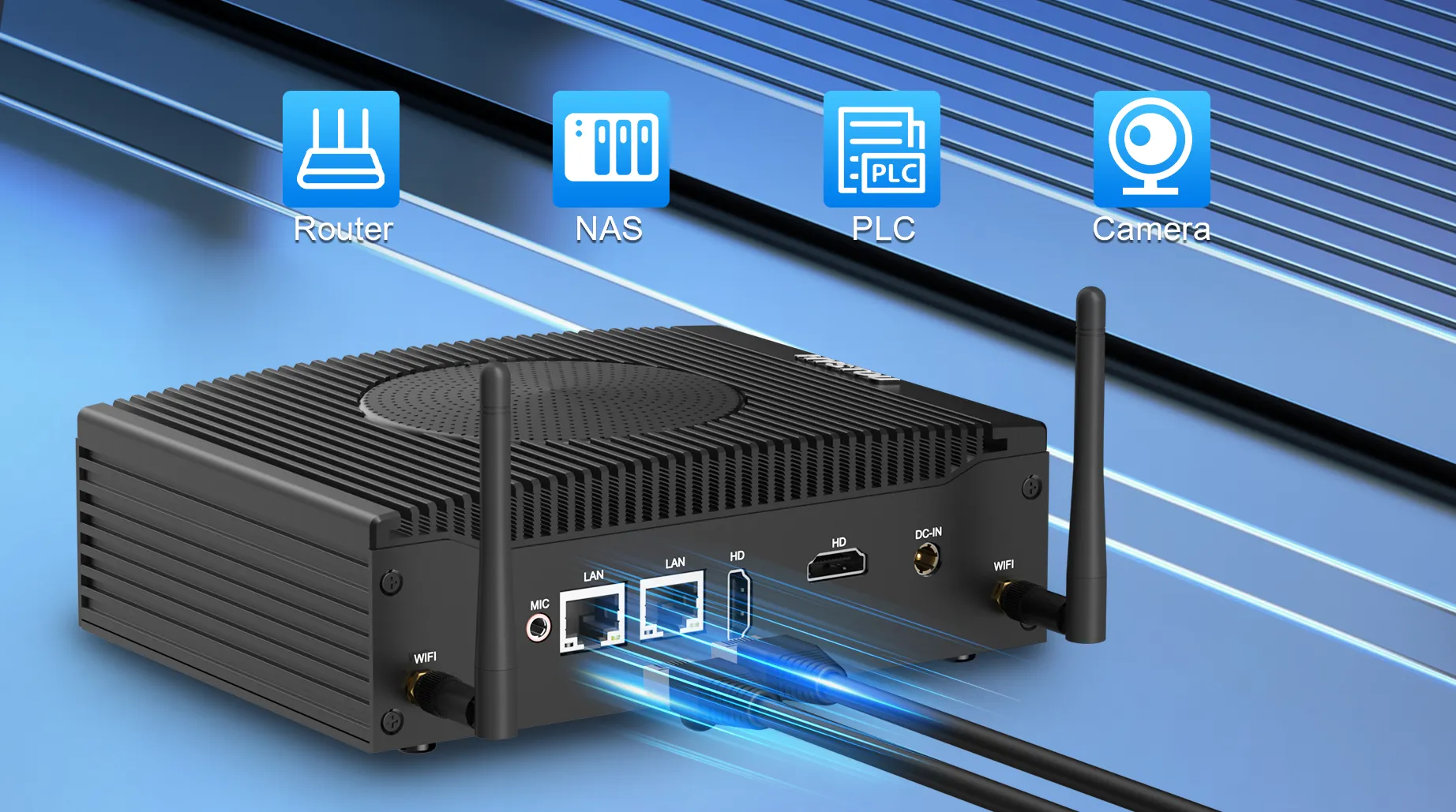

Dual Network Port, Unlock More Possibilities
Equipped with dual Gigabit Ethernet ports to provide faster and more stable network transmission. Whether used as a home software router, NAS storage, or an enterprise-level PXE diskless boot solution, it can handle everything with ease, ensuring network connectivity is no longer a bottleneck.
Massive Space, Total Control

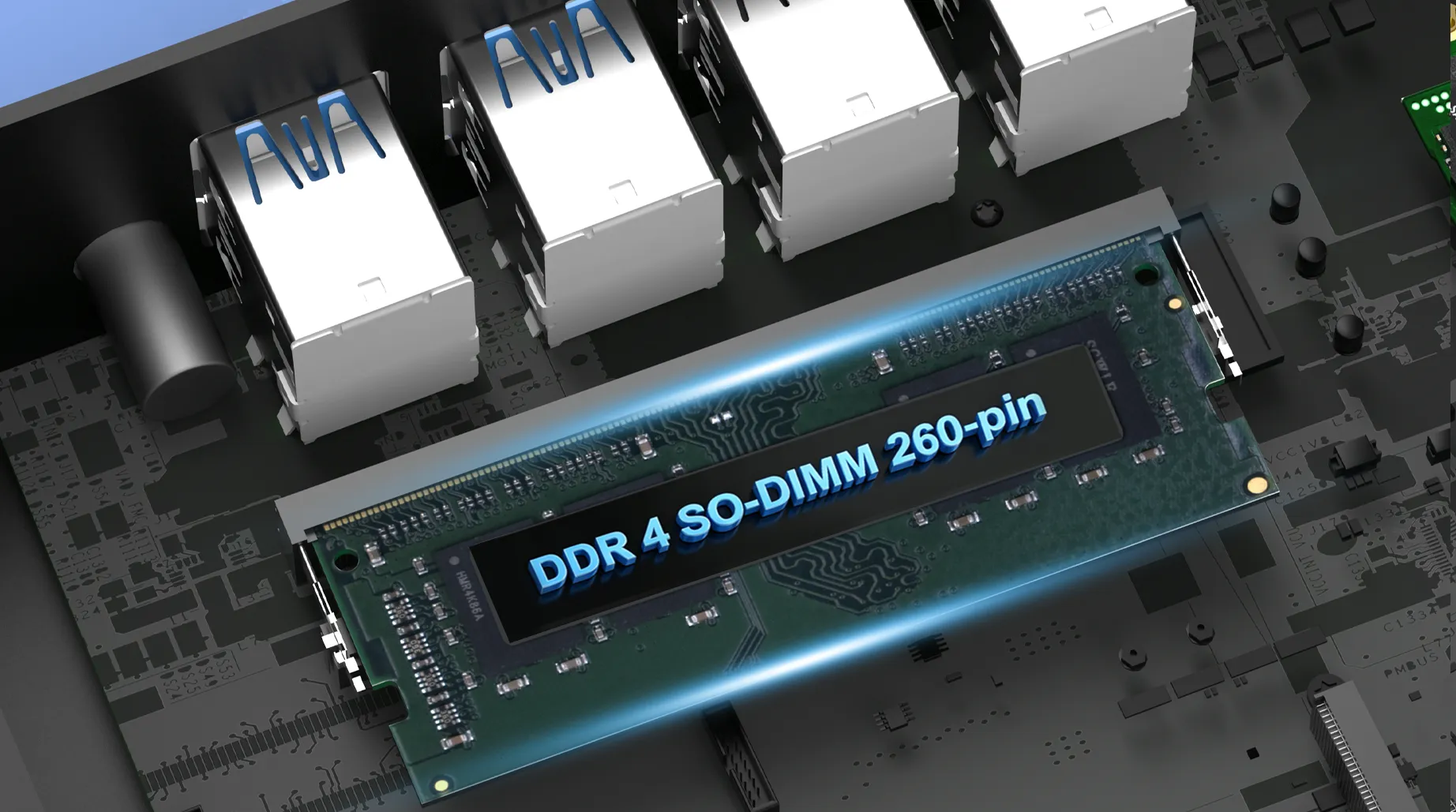

Single-slot design, easy expansion: Supports up to 32GB DDR4 memory. Utilizes standard laptop SODIMM specifications, making upgrades readily accessible

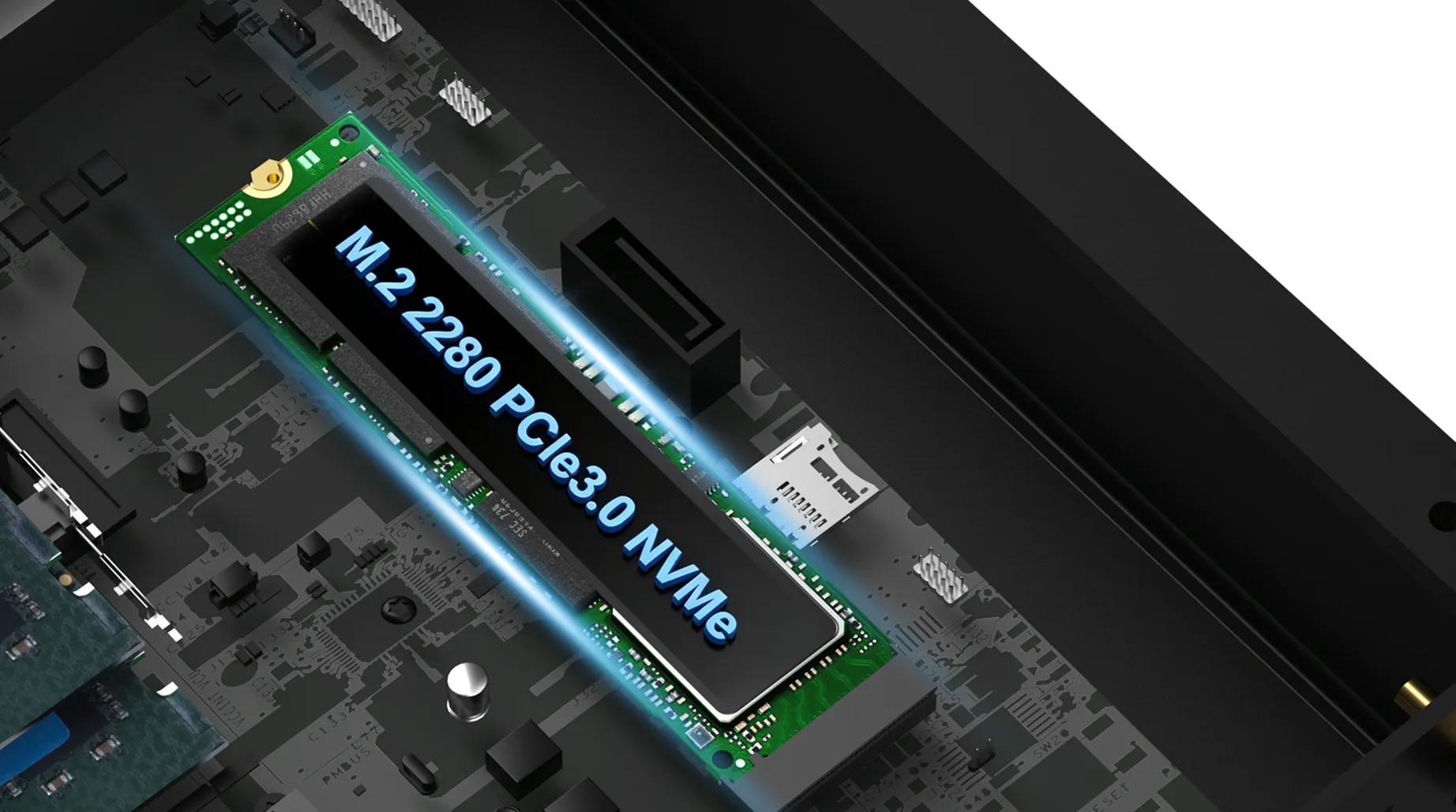

Massive storage, dual options: The M.2 2280 slot is compatible with both NVMe and SATA protocols for lightning-fast system startup; additionally supports a 2.5-inch SATA interface hard drive, easily expanding storage to the TB level. Supports RAID functionality for greater data security.

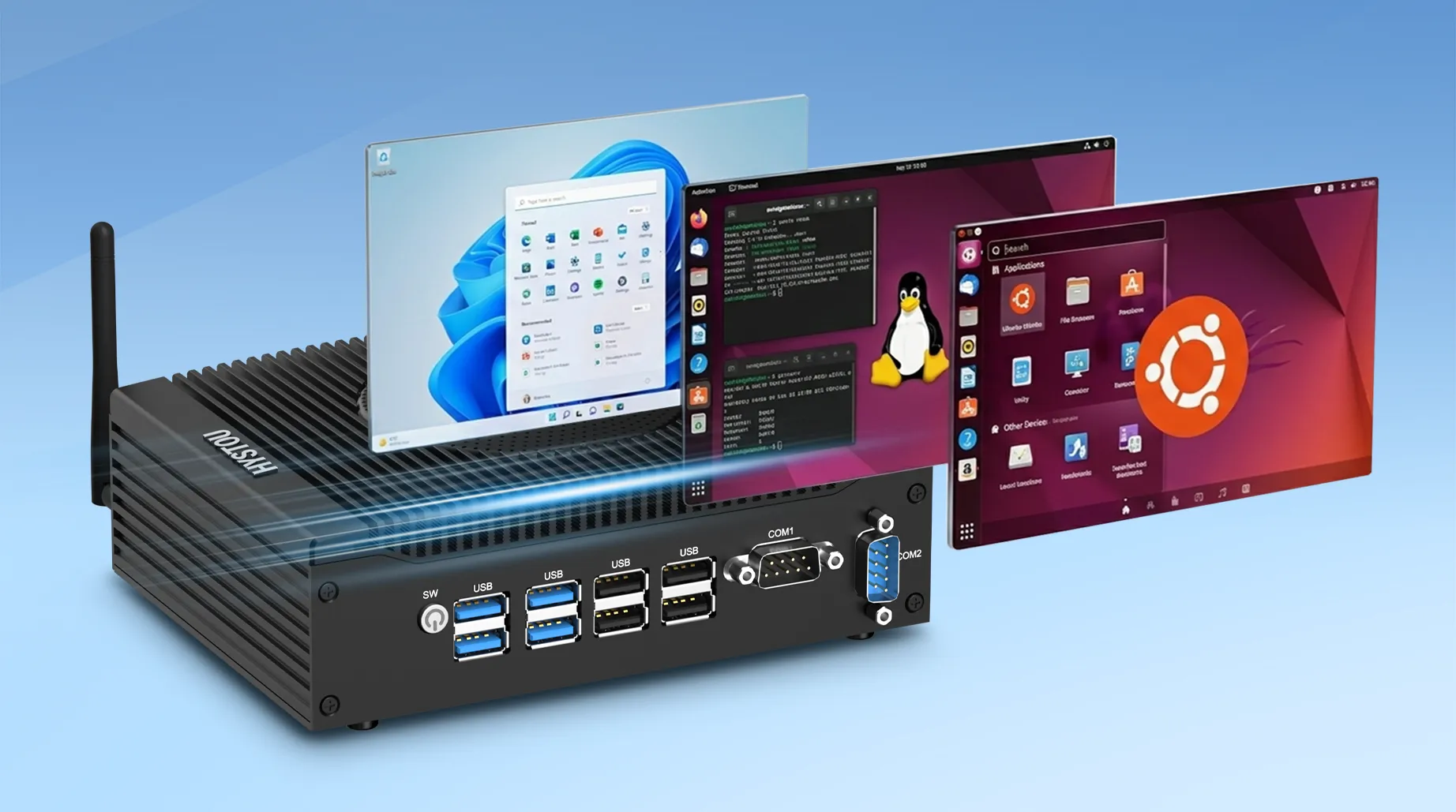

Free Ecosystem, Defined by You
The H7 not only comes pre-installed with Windows 11 but also perfectly supports mainstream operating systems such as Linux and Ubuntu. From daily office work to development environment setup, from lightweight server deployment to enthusiast exploration, the H7 grants you a high degree of system freedom to meet all your professional needs.
Built for 24/7 Non-Stop Operation
Wide Temperature Range
Operates reliably from -10°C to 50°C (14°F to 122°F). Suitable for factories, warehouses and outdoor installations.
Auto Power On
Automatically turns on when power is restored. Ideal for unattended applications like digital signage and industrial control.
Advanced Security
TPM 2.0 security chip + Intel AES-NI hardware encryption protects your sensitive business data.
Remote Management
Supports Wake on LAN and PXE network boot. Deploy and manage hundreds of devices remotely.
One Mini PC, Endless Possibilities
Worry-Free: 3-Year Warranty Promise
Every HYSTOU H7 Mini PC comes with a promise: a complete 3-year official manufacturer warranty, along with lifetime, professional technical support. We care not just about the product, but even more about your user experience.
Specifications
| Category | Details |
|---|---|
|
Processor |
Intel Core i5-8350U (4C/8T, 1.7-3.6GHz) |
|
Memory |
1×DDR4 2400MHz SODIMM (max 32GB) |
|
Storage |
1×M.2 2280 NVMe PCIE3.0 ×4（Max 2TB） |
|
Graphics |
Intel® UHD Graphics 620 |
|
Networking |
2×RJ45（10/100/1000M）, default WiFi 5/BT4.2 |
|
Operating System |
Windows 10/11/Linux(Ubuntu\Centos\Pfsense\opnsense\VMWare Exsi)\Qubes Os |
|
Power Supply |
12V 5A |
|
Dimensions |
170×126×58mm |
|
Weight |
1.1kg (net), 1.9kg (with accessories) |
|
Material |
Aluminum alloy |
|
l/O ports |
4xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/3G/4G modules. |
|
Kensinaton Lock |
Yes |
|
Accessory |
VESA mount、Wall-mounted |
|
Working environment temperature |
-10°C~50°C |
|
Cooling system CPU fan DB (MAX) |
Air-cooled fan, <4Odb |
Frequently Asked Questions
How does the cooling system of the Hystou H7 ensure 24/7 continuous operational reliability?
The Hystou H7 is equipped with an optimized active cooling system featuring a highly reliable CPU cooling fan paired with a premium aluminum alloy chassis for heat dissipation. With a low CPU TDP of 15W, this thermal design efficiently expels heat even under full workloads, preventing thermal throttling. The fan operates at an ultra-low decibel level, ensuring a whisper-quiet environment while maintaining enterprise-grade stability for 24/7 continuous deployment.
Does the Hystou H7 support Auto Power On after a sudden power failure?
Yes. The Hystou H7 features hardware-level Auto Power On (Power-on self-starting) functionality. It can be easily configured and toggled by adjusting the onboard 3-pin PWRON1 jumper position on the motherboard. This makes it an incredibly reliable hardware solution for unattended deployments such as industrial automation, remote IoT gateways, and digital signage.
What remote management and enterprise network features are available on this PC?
The system comes fully equipped with dual Realtek 8168/8111 Gigabit Ethernet ports. It natively supports Wake-on-LAN (WoL), which is enabled by default in the AMI BIOS across any shutdown mode. Additionally, it supports PXE network boot (Legacy mode) for rapid massive device deployment and offers hardware RAID 0 or RAID 1 configurations when deployed with dual SATA-channel drives for enhanced data redundancy.

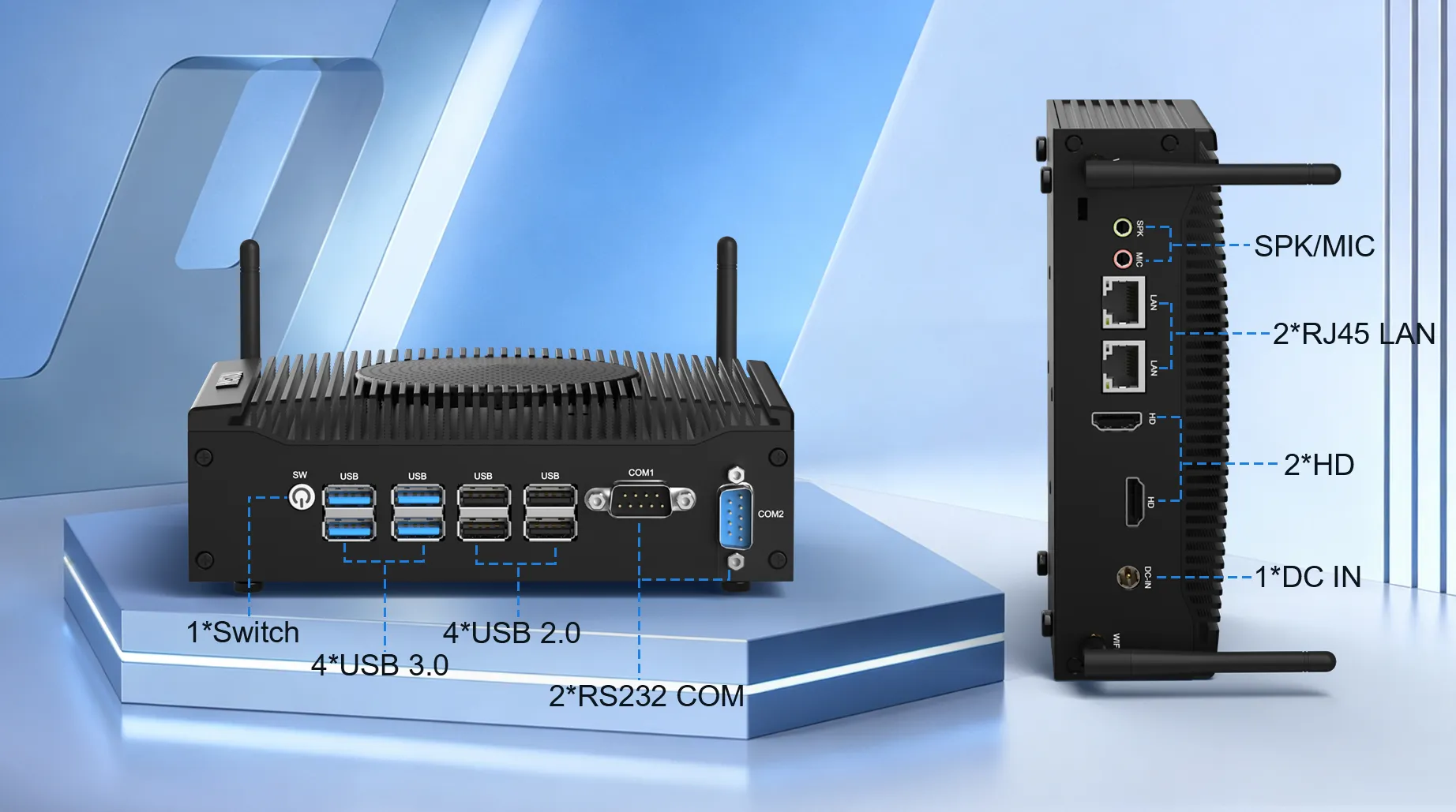

What are the industrial connectivity and network expansion options of the H7?
Designed as a versatile industrial hub, the Hystou H7 includes 2*DB9 RS232 COM ports for legacy industrial equipment interfacing, along with 4*USB 3.0 and 4*USB 2.0 ports. For wireless connectivity, it features a specialized Mini-PCIE slot paired with an onboard Nano-SIM slot (9mm*12mm), allowing flexible configuration among Wi-Fi, 3G, or 4G cellular modules to maintain constant remote network uplinks.

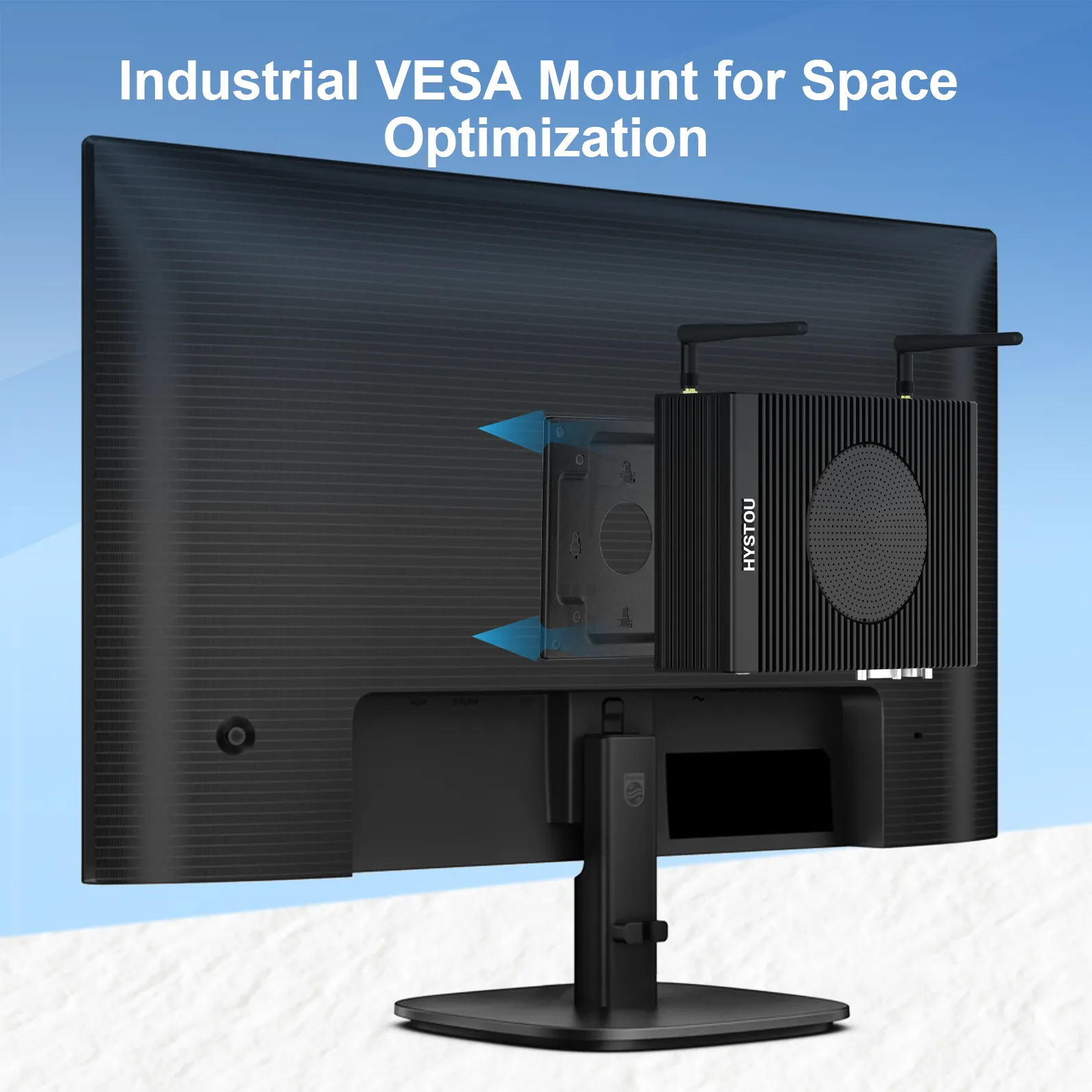

Can this mini PC be mounted behind a monitor or inside a control cabinet?
Yes, the Hystou H7 boasts an ultra-compact Nano-ITX form factor (motherboard size: 120mm*120mm; chassis size: 170mm*126mm*58mm) and weighs only 1.1kg net. It supports versatile installation environments out of the box, including standard desktop placement, wall-mounting, and standard VESA mounting behind commercial displays.
