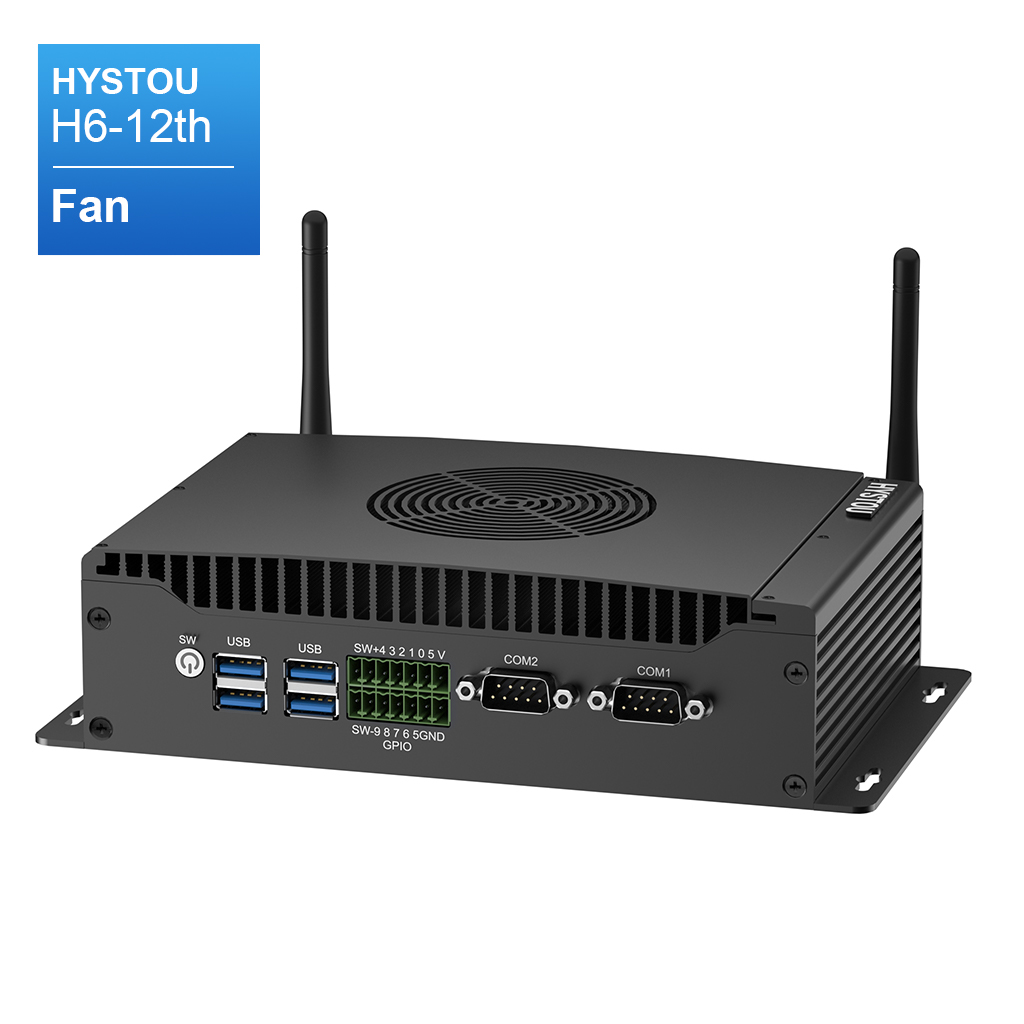

HYSTOU H6-12th Rugged Mini PC with Intel® Core™ i5-1235U
Categories: Industrial Mini PC
- 12th Gen Intel i5 Hybrid Power: Driven by Intel Core i5-1235U with 10 cores and 12 threads. Dynamically balances heavy multitasking performance with low power consumption.
- 15W TDP for 24/7 Operations: Optimized with a 15W ultra-low TDP design. Delivers highly energy-efficient and stable 24/7 continuous operation.
- 12V~19V Wide Voltage Guard: Supports 12V to 19V wide-range power input. Actively shields internal hardware against unpredictable industrial voltage fluctuations.
- Triple 4K @ 60Hz Display Channels: Equipped with 1x DP and 2x HDMI ports to drive 3 independent screens simultaneously. Perfect for multi-task monitoring and digital signage.
- Blazing PCIe 4.0 & Up to 8TB Dual Storage: Features 1x M.2 PCIe 4.0 NVMe slot and 1x 2.5-inch SATA 3.0 bay. Supports massive expansion up to 8TB (4TB + 4TB).
- Unattended Intelligent Remote Control: fully supports Auto Power On, Wake-on-LAN (WOL), Scheduled Boot, and UEFI PXE Network Boot. Eliminates the need for on-site operation.
- Rich Industrial I/O & Dual Gigabit LAN: Features dual RS232/422/485 serial ports, 14-pin GPIO, and 6x USB ports. Dual Gigabit LAN perfectly satisfies strict network isolation needs.
| Range | Discount |
|---|---|
| 1 - 5 | $487.39 |
| 6 - 50 | $485.39 |
| 51 - 100 | $483.39 |
| 101 + | $480.39 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HYSTOU H6-12th Fan
Powerful Performance, Industrial-Grade Reliability
12th Gen Intel® Core™ i5 Processors
10 Cores, 12 Threads, Up to 4.4GHz
Intel® Iris® Xe Graphics
Triple 4K Display Support
WiFi 6E
Bluetooth 5.2
High-speed DDR4, up to 64GB
M.2 2280 NVEM PCIe4.0 SSD, Max 4TB

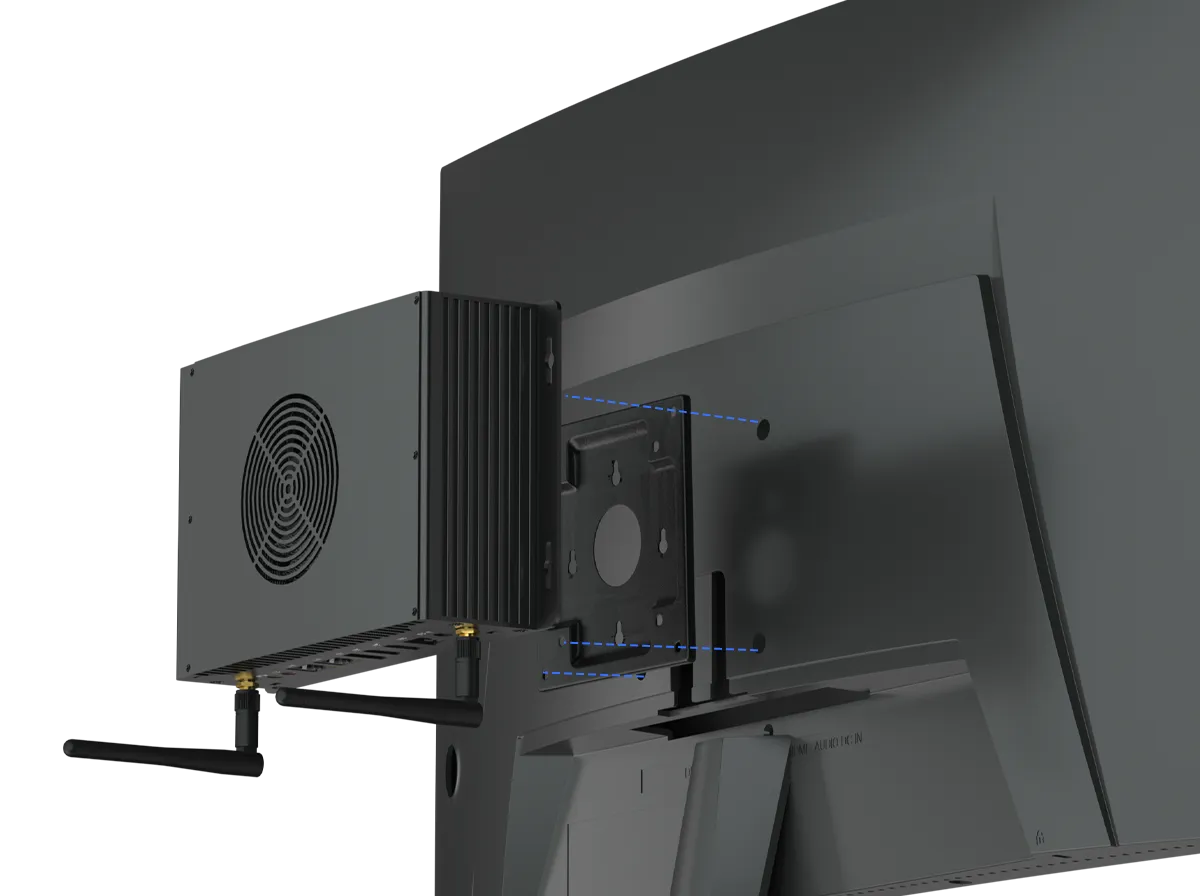

VESA Compatible
10-Core Hybrid Architecture
Featuring a 10-core hybrid design with both Performance-cores and Efficient-cores, this processor hits a max boost frequency of 4.4GHz for P-cores and 3.3GHz for E-cores. It supports fluid multi-task parallel operation, alongside a 15W low-power configuration that strikes an ideal balance between energy efficiency and steady sustained performance.

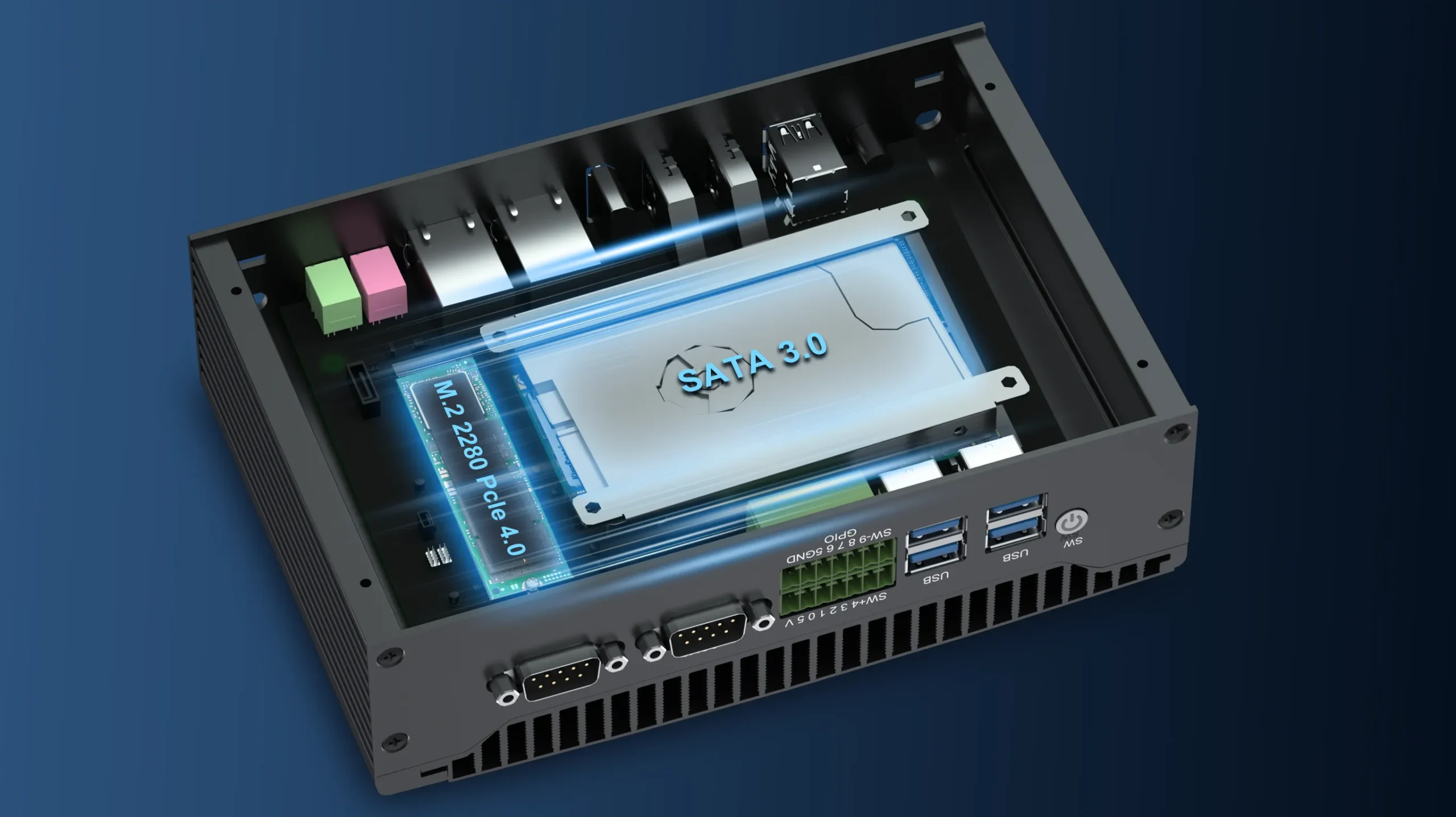

Double Bandwidth, Halve Latency
Dual storage slots: 1×M.2 2280 PCIe 4.0 NVMe slot with read/write speed double that of PCIe 3.0, delivering fast system startup and instant large file access. 1×SATA 3.0 port supports 2.5-inch SSD/HDD, with a combined maximum expandable capacity of 8TB (4TB + 4TB).

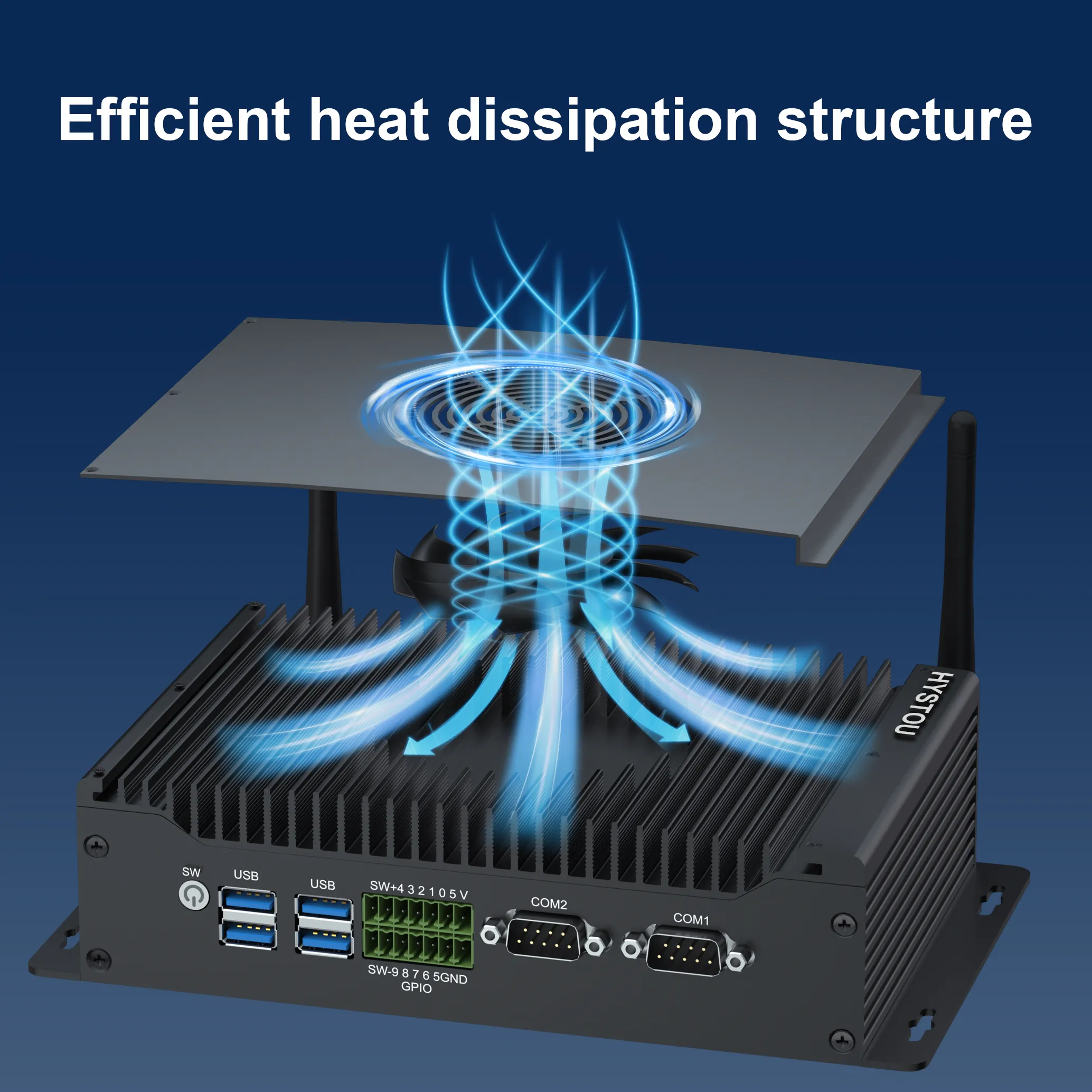

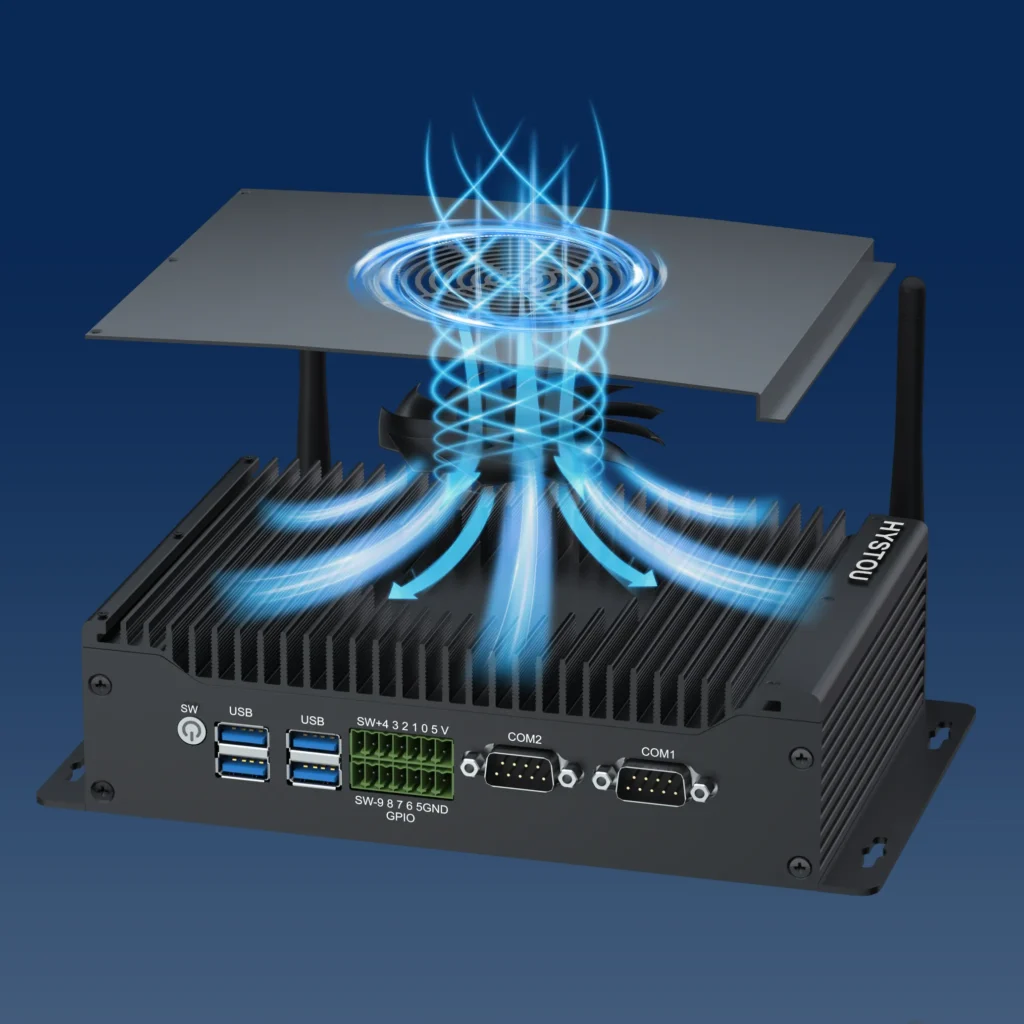

Ultra-low Noise Under Full Load, < 40 dB
Circular Fan Grille: A large circular fan grille is designed on the top of the chassis. It’s built-in fan actively and efficiently draws in cool external air.
Fin-Style Backplate: Featuring deep-grooved, high-density cooling fins, it greatly expands the effective surface area for heat dissipation.
All-Metal Thermal Conduction Structure: Constructed from high-thermal-conductivity aluminum alloy, it rapidly dissipates heat from core internal components, effectively extending the service lifespan of internal hardware parts.

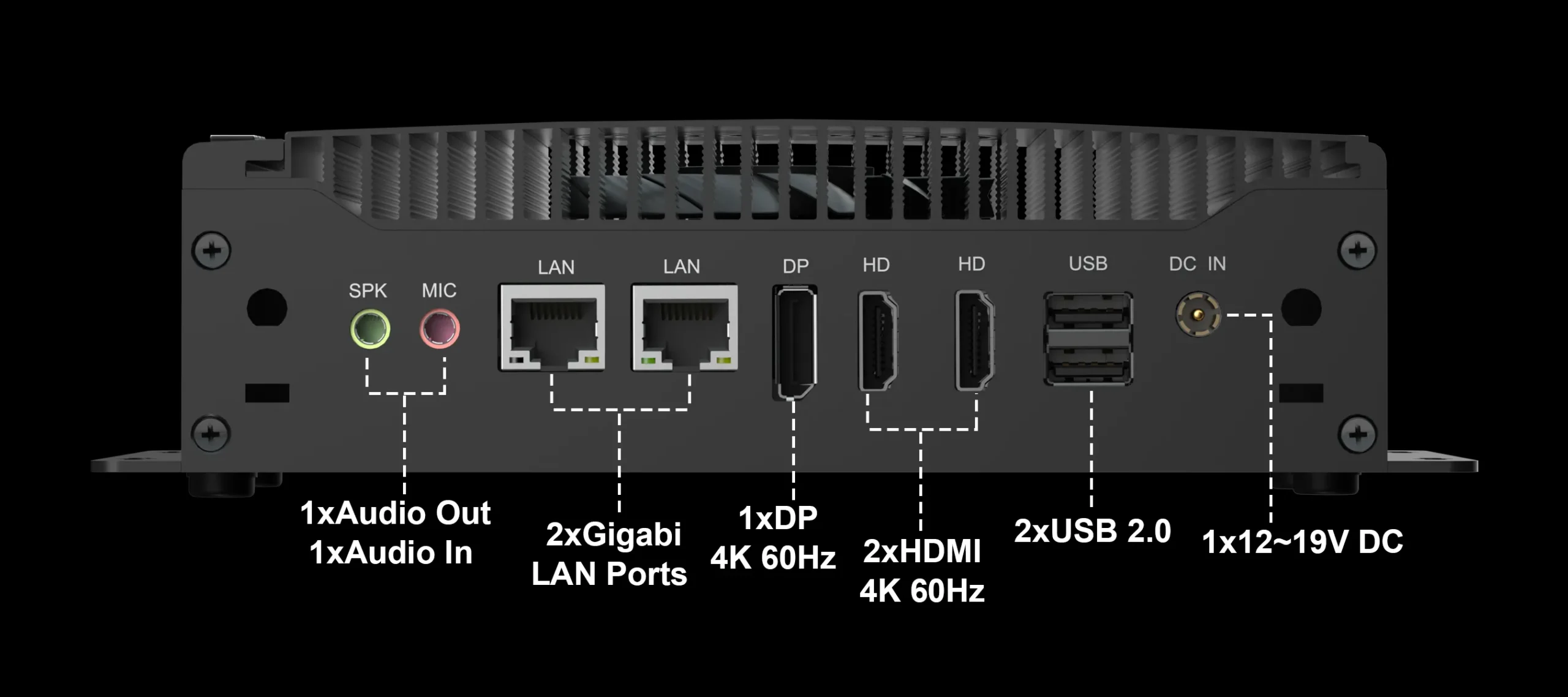

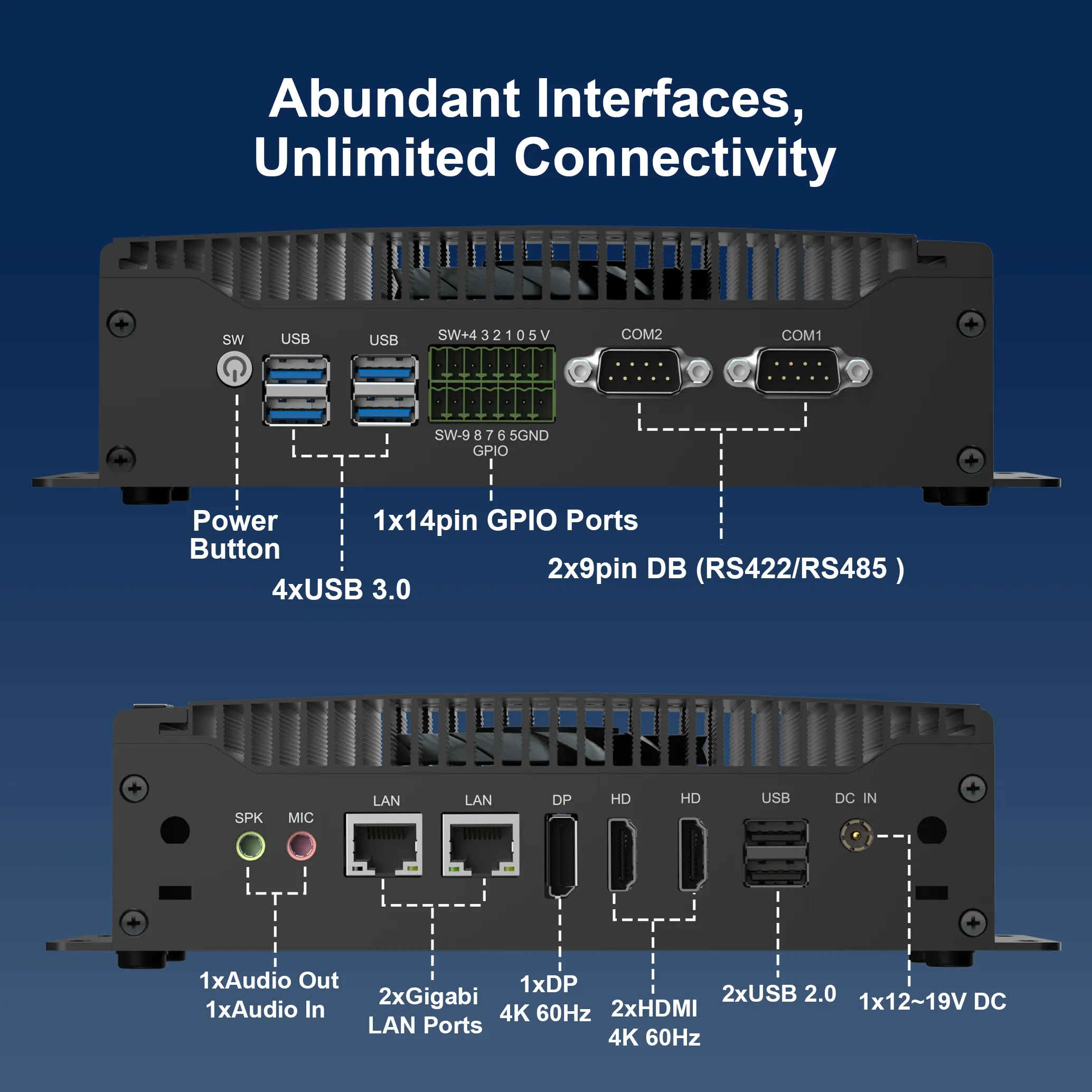

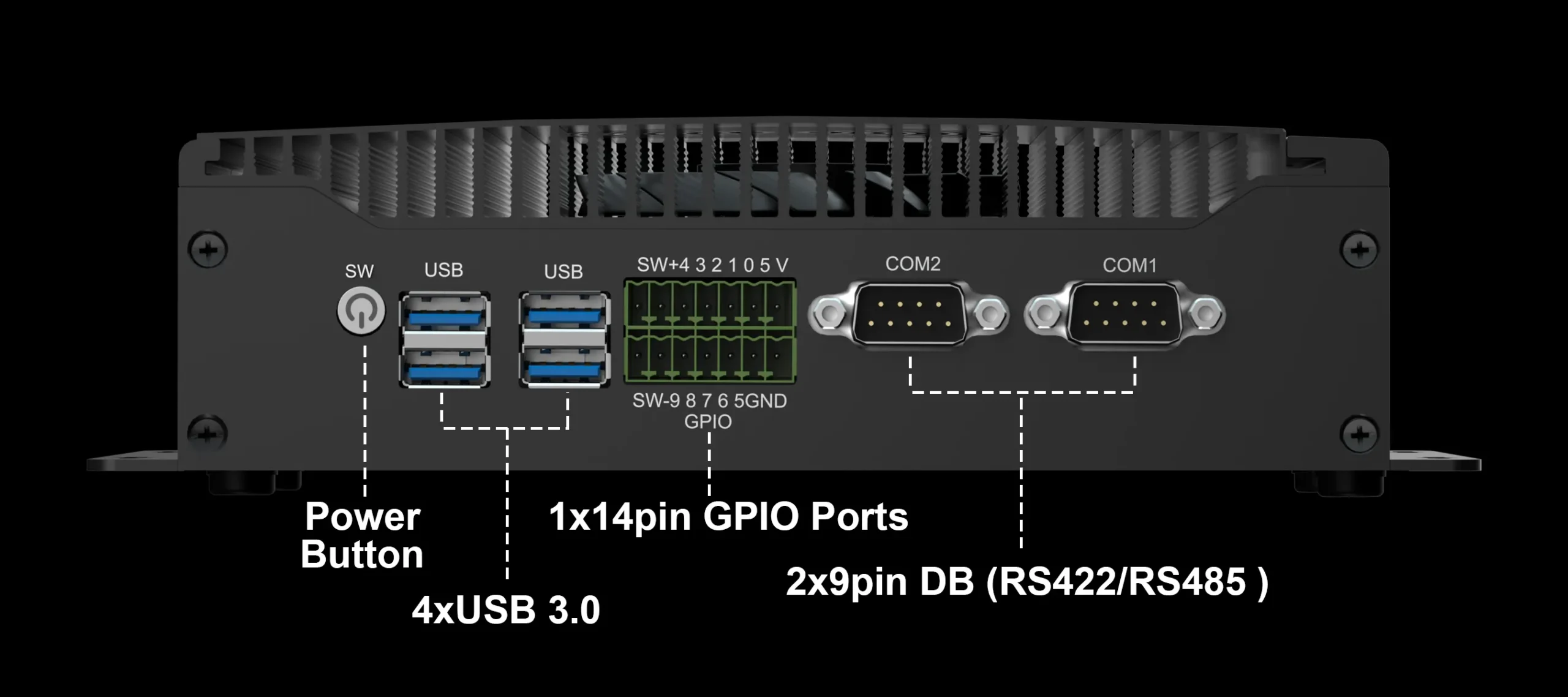

Full Interface Coverage, Unlimited Connectivity

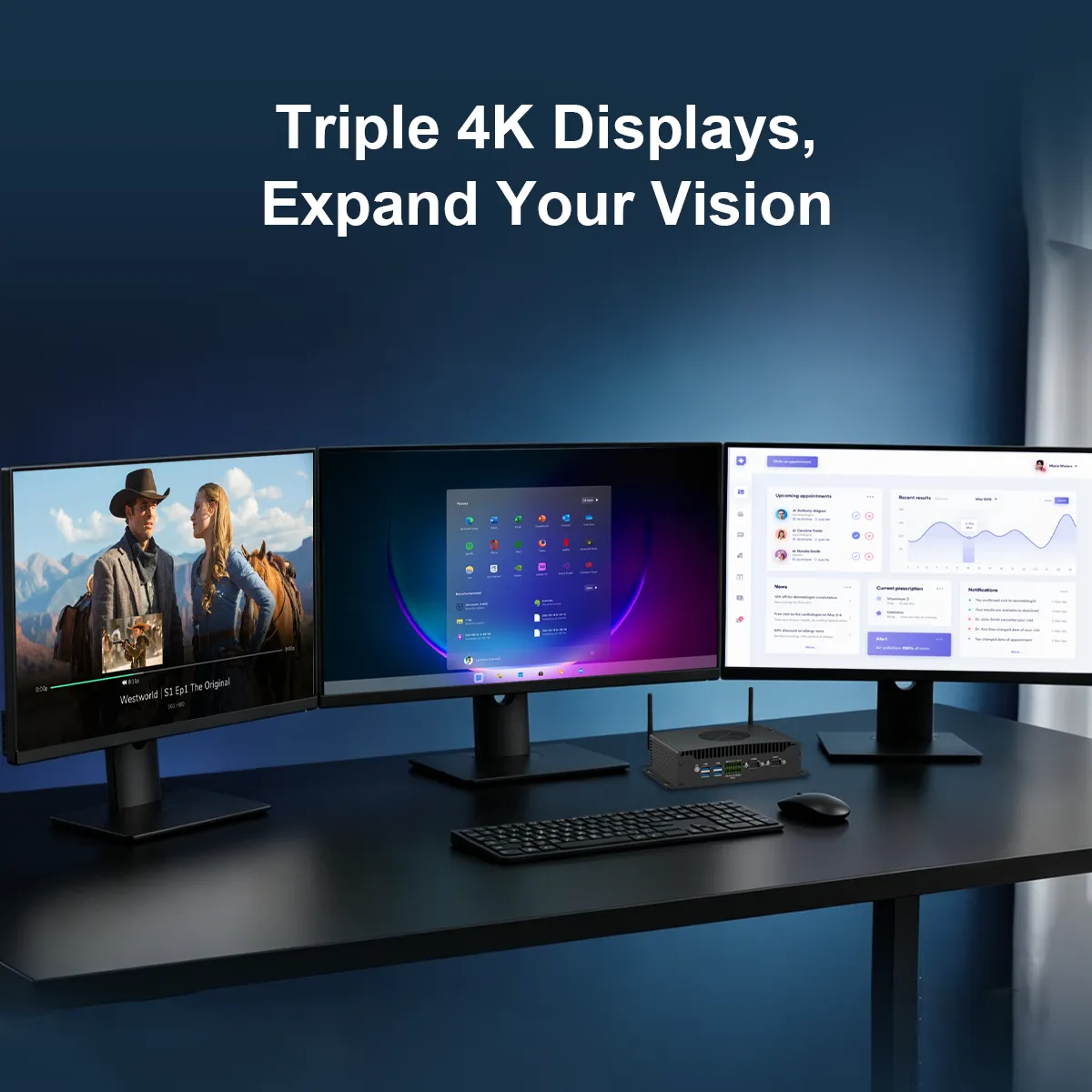

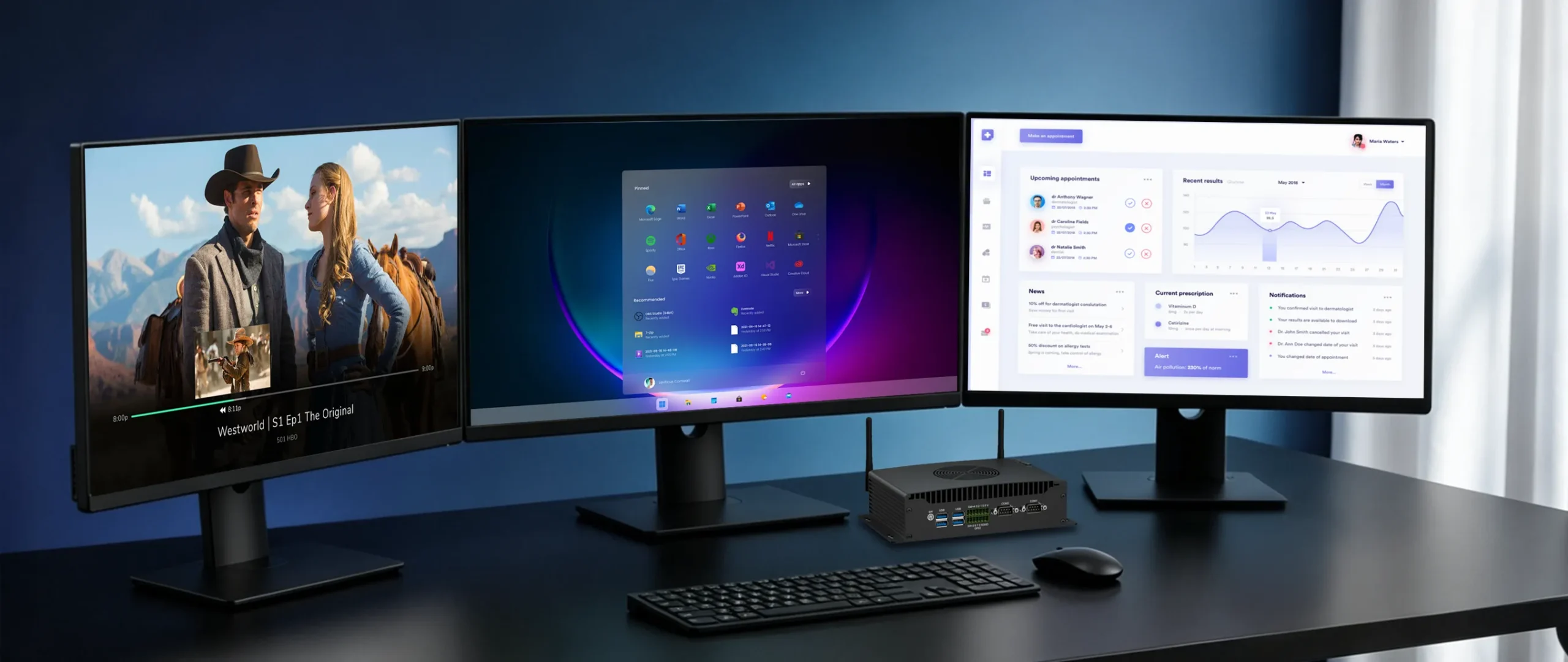

Triple 4K@60Hz Simultaneous Output
Boasting strong native output from the Intel i5-1235U integrated GPU, it facilitates triple 4K HD displays and smooth, low-latency multi-task window switching.

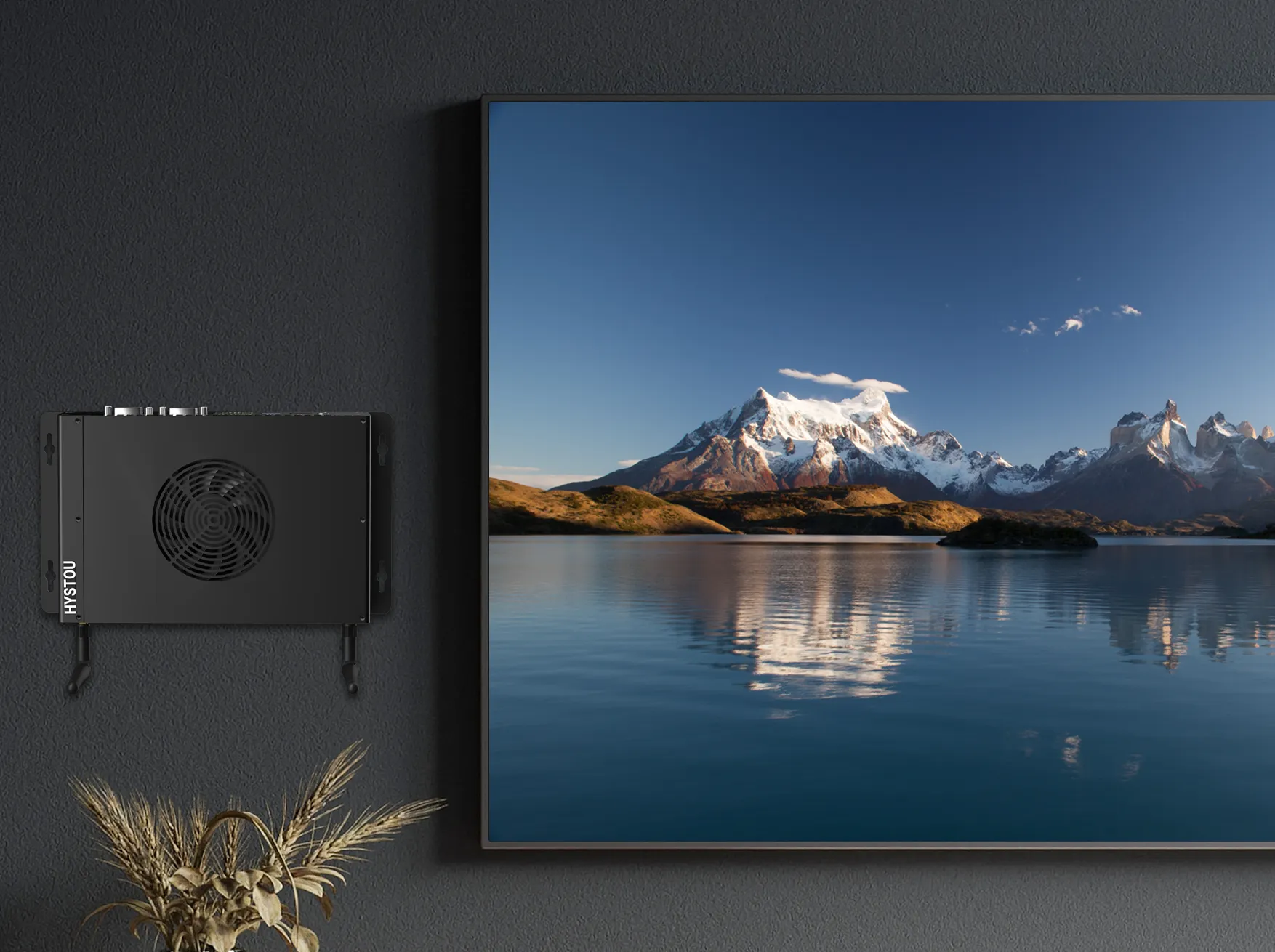

It goes wherever you need.
More Than A Mini PC
Empower Your Workspace
Say goodbye to bulky towers. This mini PC blends robust performance with a compact footprint, effortlessly handling multi-tasking and multi-display setups to redefine modern workflow efficiency.
Medical-Grade Precision & Trust.
Easily integrated into medical carts and tight clinical spaces. Built-in TPM 2.0 ensures top-tier data security for patient privacy, while powerful graphics deliver crystal-clear medical imaging for swift clinical decisions.
Ultimate Home Entertainment.
Designed for your living room cinema, it delivers stunning ultra-HD visuals with smooth, fluid playback. Whisper-quiet and energy-efficient, it seamlessly blends into your home as a smart entertainment hub.

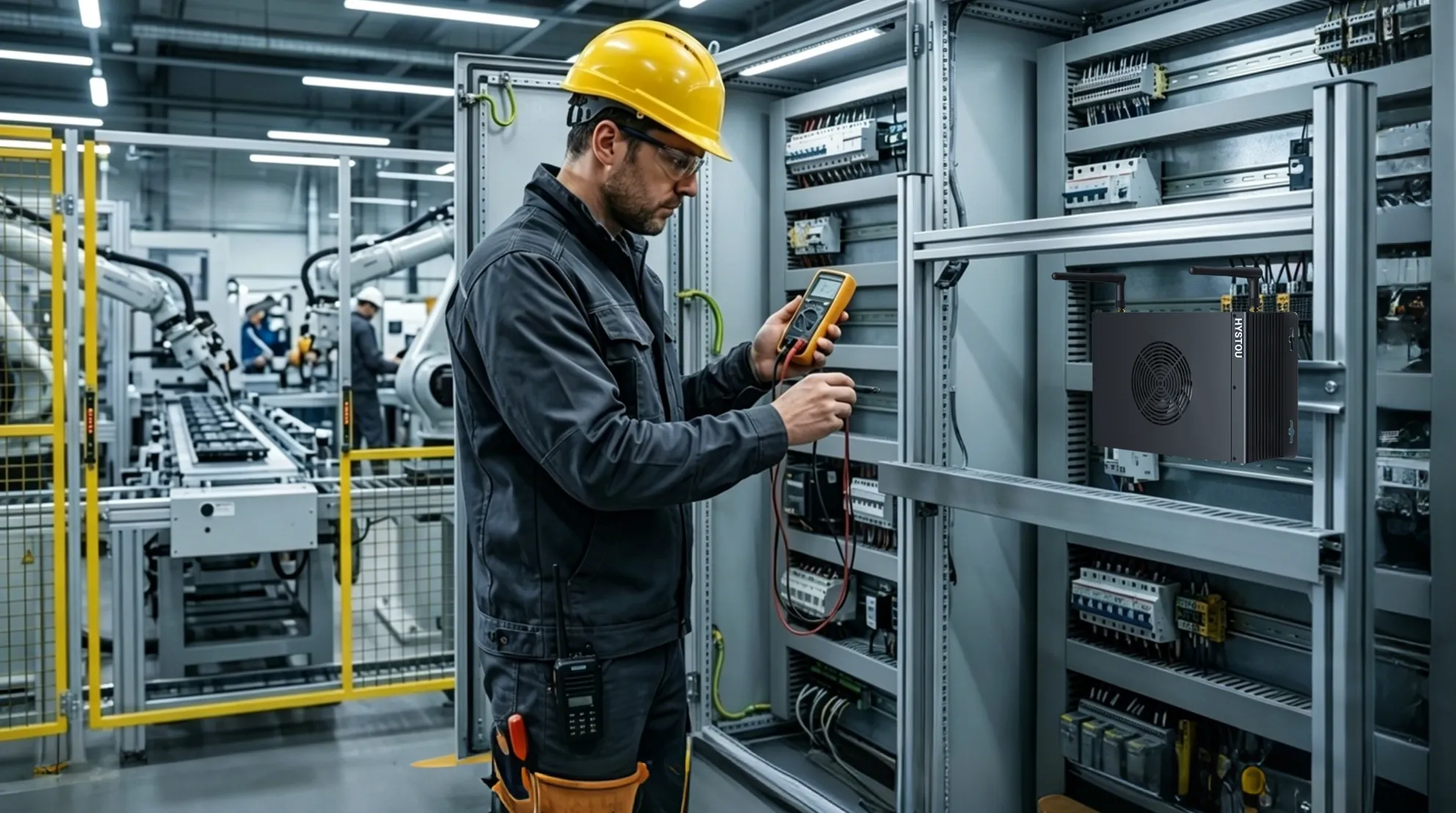

Industrial Reliability, Built Tough.
Engineered for harsh environments with dust, shock, and interference resistance. Featuring CAN Bus, rich COM ports, and dual LAN, it serves as a rock-solid edge computing core for 24/7 continuous operations.
Service & Quality Assurance
3-Year Warranty
All our mini PCs come with a full 3-year official manufacturer warranty.
Professional Delivery
Every parcel is packed with anti-shock customized cartons to protect devices against damage in transit.
Professional Q&A Support
Dedicated tech team for pre & post-sale consultation
Secure Payment
All payment channels adopt PCI-DSS certified encrypted transaction system.

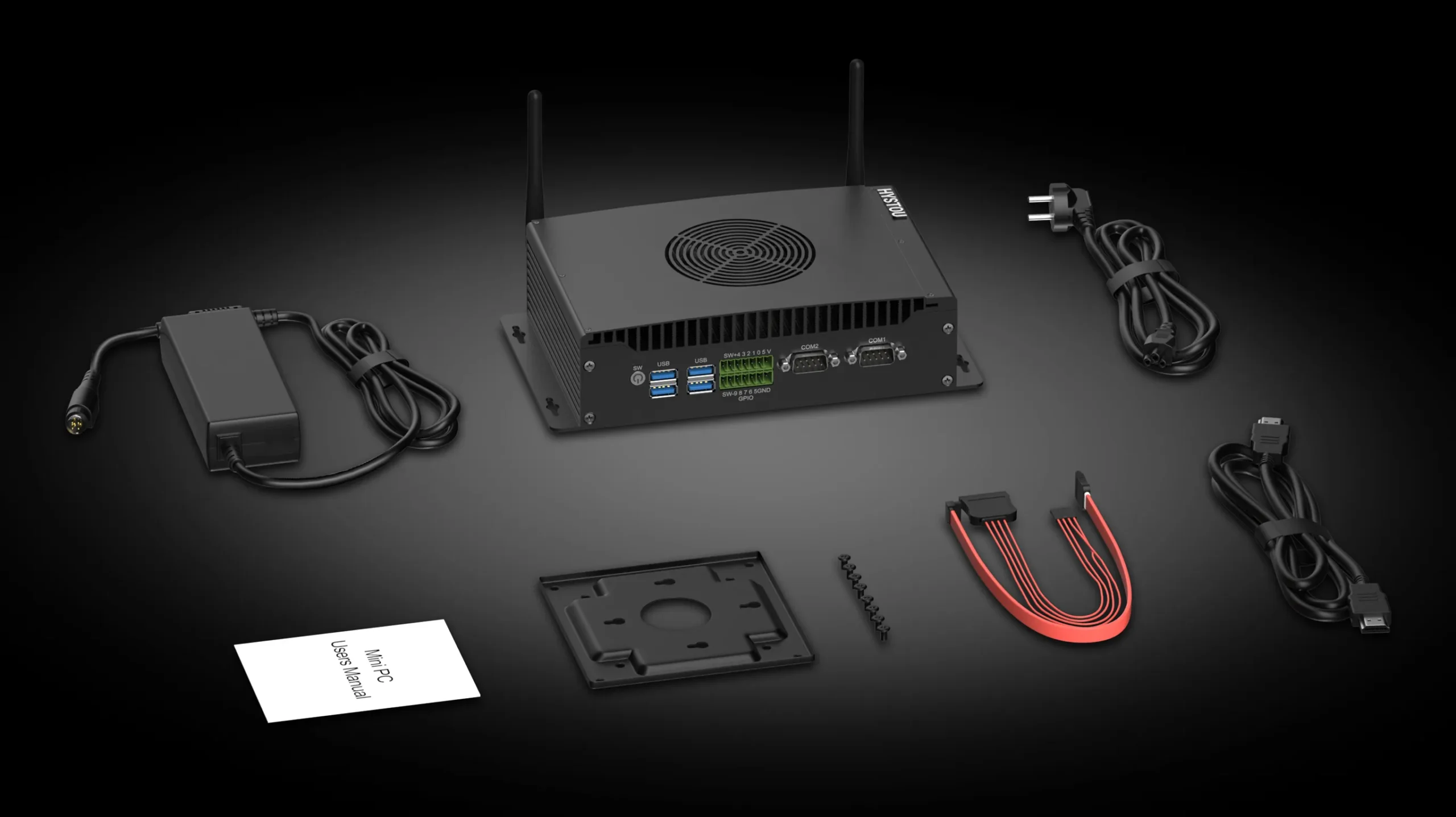

Packing List
Technical Specifications
| Category | Details |
|---|---|
|
Processor |
Intel Core i5-1235U |
|
Memory |
2x DDR4 3200MHz SODIMM Slots (Max 64GB) |
|
Storage |
1x M.2 2280 NVMe PCIE 4.0 + 1x SATA 3.0 (2.5 inch) |
|
Graphics |
Single memory module: Intel® UHD Graphics |
|
Networking |
2×Gigabit Ethernet port (Realtek 8111/8168) |
|
Operating System |
Win10/Win11/Linux |
|
Power Supply |
Standard 12V 6A, |
|
Dimensions |
220×127×55mm |
|
Weight |
1.4kg (net), 2.0kg (with accessories) |
|
Material |
Aluminum |
|
l/O ports |
2xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/3G/4G modules. |
|
Kensinaton Lock |
No |
|
Accessory |
VESA、Din Rail Mounting、Wall Mount |
|
Working environment temperature |
-10°C~60°C |
|
Cooling system CPU fan DB (MAX) |
Air-Cooling，<40db |
Frequently Asked Questions
What are the core upgrades of the HYSTOU H6-12th compared to previous generations (e.g., 8th-10th Gen models)?
The H6-12th represents a massive architectural leap forward:
- Next-Gen Architecture: Upgraded to the 12th Gen Intel Core i5-1235U processor featuring a 10-core, 12-thread hybrid architecture, whereas older models maxed out at 6 cores and 12 threads.
- Doubled Storage Bandwidth: Transitioned into the PCIe 4.0 era, offering twice the bandwidth and half the latency of PCIe 3.0, paired with faster 3200MHz memory.
- Leap in Graphics: Powered by Intel Iris Xe Graphics (when configured with dual-channel memory), rendering legacy UHD 620 graphics obsolete.
- Industrial Refinement: The chassis thickness is reduced to 55mm while adding essential industrial features like 12V~19V wide voltage input and fTPM 2.0 security encryption.
Since this mini PC uses a low-power processor, how does it handle multitasking and intensive workloads?
Don’t let the 15W low-TDP design fool you—the i5-1235U is highly capable. It utilizes an innovative hybrid architecture combining 2 Performance cores (P-cores) and 8 Efficient cores (E-cores). Light workloads and background tasks run exclusively on the E-cores to save energy, while demanding multitasking or heavy data calculations trigger the P-cores to boost up to 4.4GHz. Combined with Iris Xe Graphics, it effortlessly processes complex medical imaging, digital signage streams, and multi-display control rooms.
Industrial environments can be harsh and dusty. How do the cooling system and noise levels perform under load?
The H6-12th is built from the ground up for reliable 24/7 continuous operation in challenging environments.
- Thermal Design: It features a high-strength aluminum alloy chassis with a wide circular intake grille on top to actively draw in cool air, combined with deep-groove, high-density cooling fins on the backplate for rapid heat dissipation.
- Whisper-Quiet Operation: Even under full processing loads, the intelligent thermal module keeps operation noise below 40dB (equivalent to a quiet library). This prevents overheating-related downtime while ensuring a quiet environment for commercial or office deployment.
What hardware-level protections and interfaces does this PC provide for industrial automation?
To resolve common industrial pain points like voltage fluctuations and peripheral shortages, we have heavily ruggedized the H6-12th:
- Wide Temperature & Voltage: It supports a 12V to 19V wide-range power input to protect against factory or vehicular voltage spikes, and operates stably across an industrial temperature range of -10°C to 60°C.
- Rich Industrial I/O: The interface panel includes dual RS232/422/485 serial ports, a 14-Pin GPIO interface, 6x USB ports, and dual Gigabit LAN ports. It also supports the CAN Bus protocol, allowing one-stop, seamless integration with PLCs, sensors, scanners, robotic arms, and automated line controllers.
For unattended deployment (e.g., outdoor kiosks, remote server rooms), how can the device be managed if there is a power failure or a need for remote maintenance?
The H6-12th comes packed with a comprehensive suite of hardware-level Intelligent Control features for effortless, zero-on-site remote maintenance:
- Auto Power On (Restore on AC Power Loss): Configurable via both BIOS software and physical motherboard jumpers, ensuring the device automatically reboots when power returns—completely bypassing system freezes.
Wake-on-LAN (WOL): Enables remote wake-up from any off mode. It is enabled by default in the BIOS and comes with custom OS compatibility optimization to guarantee stable remote wake-ups.
Scheduled Boot (RTC): Driven directly by the pure BIOS layer independent of the OS, letting you schedule automatic boot times for periodic system maintenance.
UEFI PXE Network Boot: Fully supports diskless network booting, perfect for centralized server management and rapid, batch system deployment.
What operating systems are supported out of the box, and what does the warranty cover?
System Compatibility: The PC utilizes a mature, reliable AMI BIOS solution that is incredibly straightforward to operate. It runs seamlessly with all mainstream Windows 10/11 and Linux distributions (such as Ubuntu, CentOS, etc.) without complex driver debugging.
- Quality Assurance: Every single H6 unit undergoes rigorous factory testing before shipment, including high/low temperature cycles, prolonged full-load stress tests, I/O plug durability tests, and system compatibility verification.
- Warranty & Support: We back our product with a comprehensive 3-year warranty, backed by expert technical support and responsive after-sales problem-solving. For enterprise and commercial buyers, we also offer custom hardware and BIOS configuration options for bulk orders.
