Industrial Fanless Mini PC with 6 COM Ports | HYSTOU H4 Triple Display
Categories: Industrial Mini PC
- Processor & Thermal: Intel® 8th Gen Core™ i5-8250U / i7-8650U (15W TDP) | Heavy-Duty Fanless Aluminum Cooling
- Industrial I/O Connectivity: 6× DB9 COM Ports (RS232 / RS485 configurable) + 1× LPT Parallel Port
- Triple 4K Display: Independent 4K@60Hz outputs via HDMI 2.0, DP 1.2, and eDP
- High-Speed Memory: 2× DDR4 260-Pin SODIMM slots, dual-channel up to 64GB (2400MHz)
- Triple Storage Bays: 1× M.2 2280 NVMe/SATA SSD + 1× mSATA SSD + 1× 2.5″ SATA3.0 HDD/SSD (up to 6TB)
- Reliable Networking: Dual Intel® I210/I211 Gigabit Ethernet | M.2 E-Key for Wi-Fi 5/6 & Bluetooth 5.2
-
Harsh Environment Ready: Wide operating temperature range (-20°C to 60°C) | Wall & VESA Mountable
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HYSTOU H4-8th
Why choose HYSTOU H4-8
Dual-channel DDR4, an SSD
4K Triple-Screen Independent Display
Aluminum alloy
6*COM Ports
-20°C~60℃
[████▉_____]
Flexible storage combinations
High-Performance Edge Computing with Low Power Efficiency
Powered by the Intel® Core™ i5-8250U / i7-8650U quad-core processor, the system balances robust multi-tasking performance with exceptional energy efficiency. With a ultra-low TDP of just 15W, it minimizes heat generation—enabling 24/7 fanless, silent, and maintenance-free operation in demanding edge computing and industrial environments.

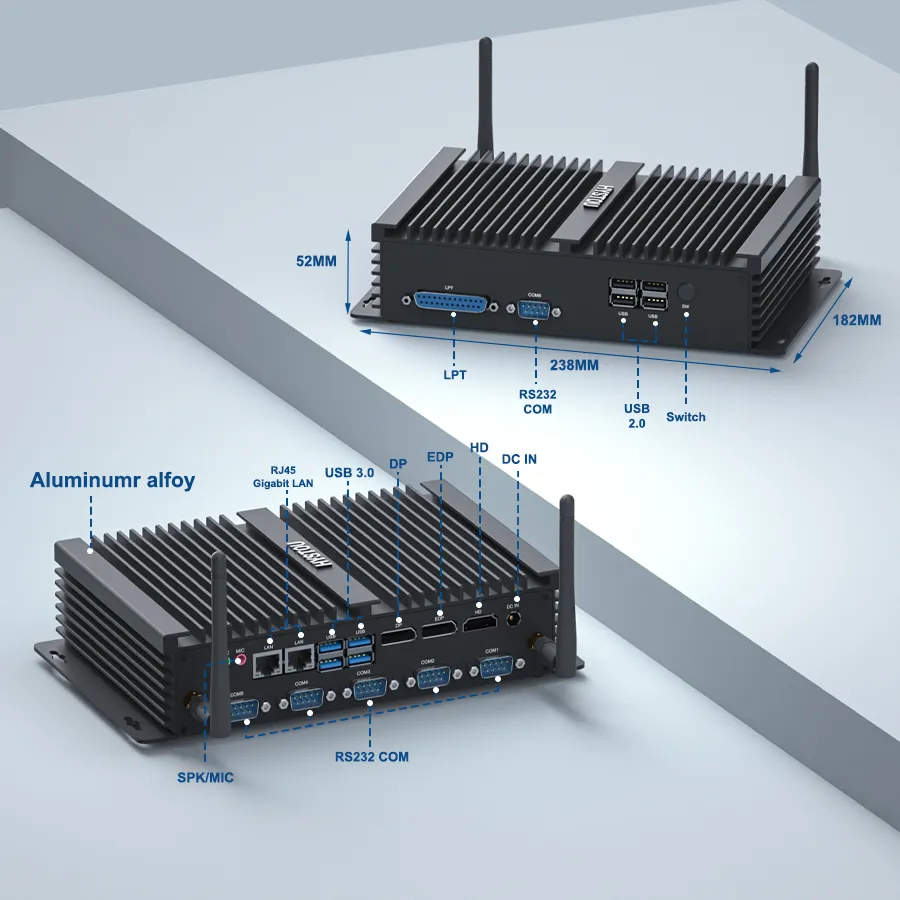

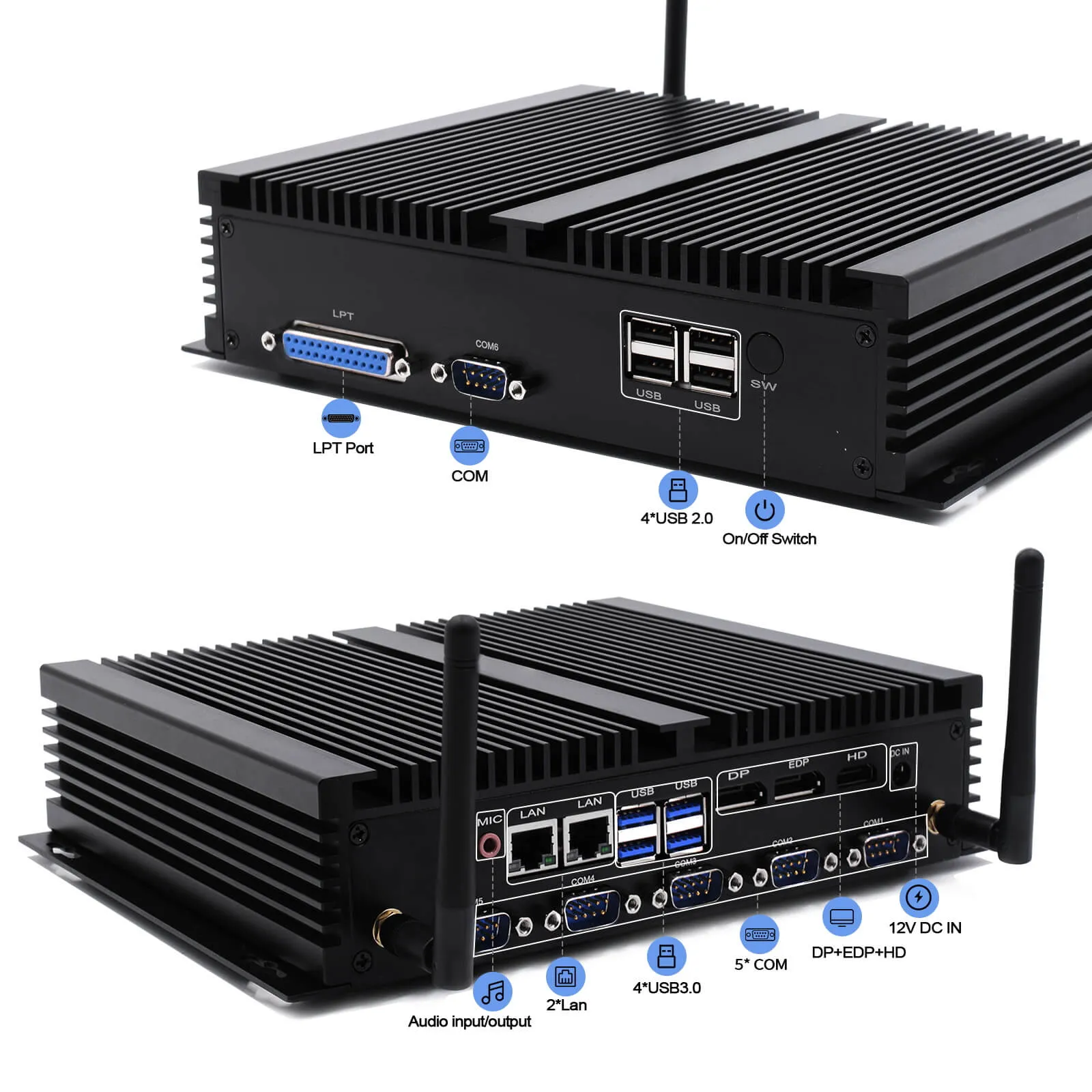

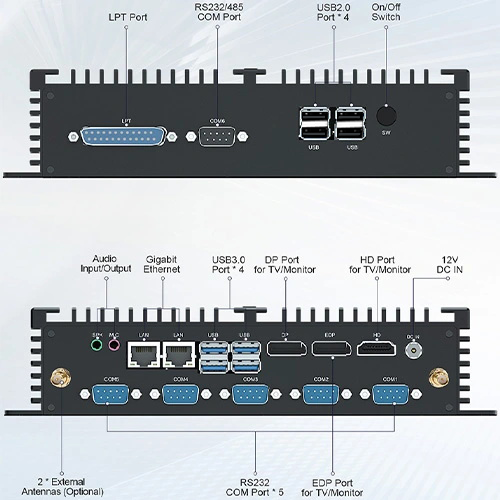

Superior Legacy Industrial Expandability

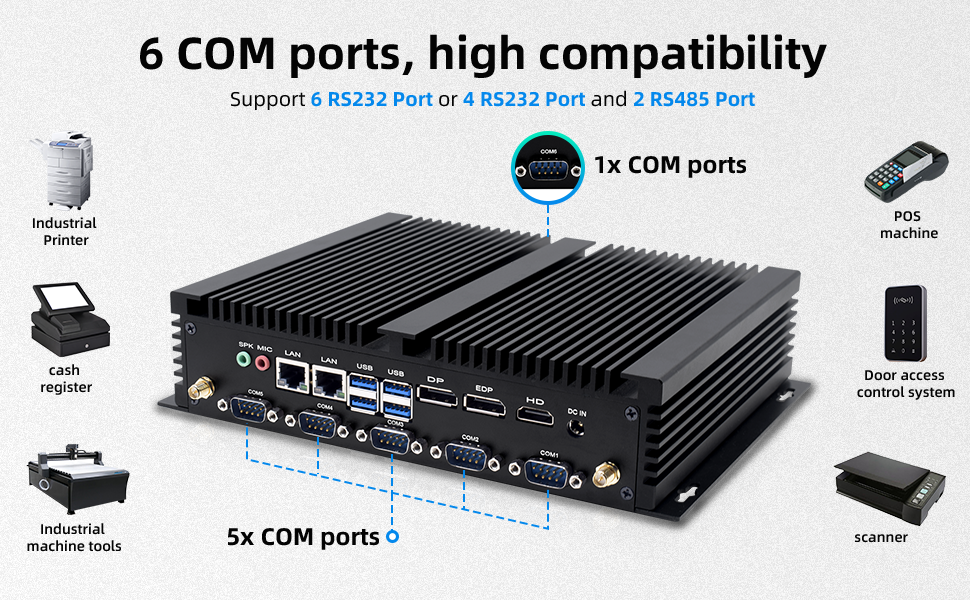

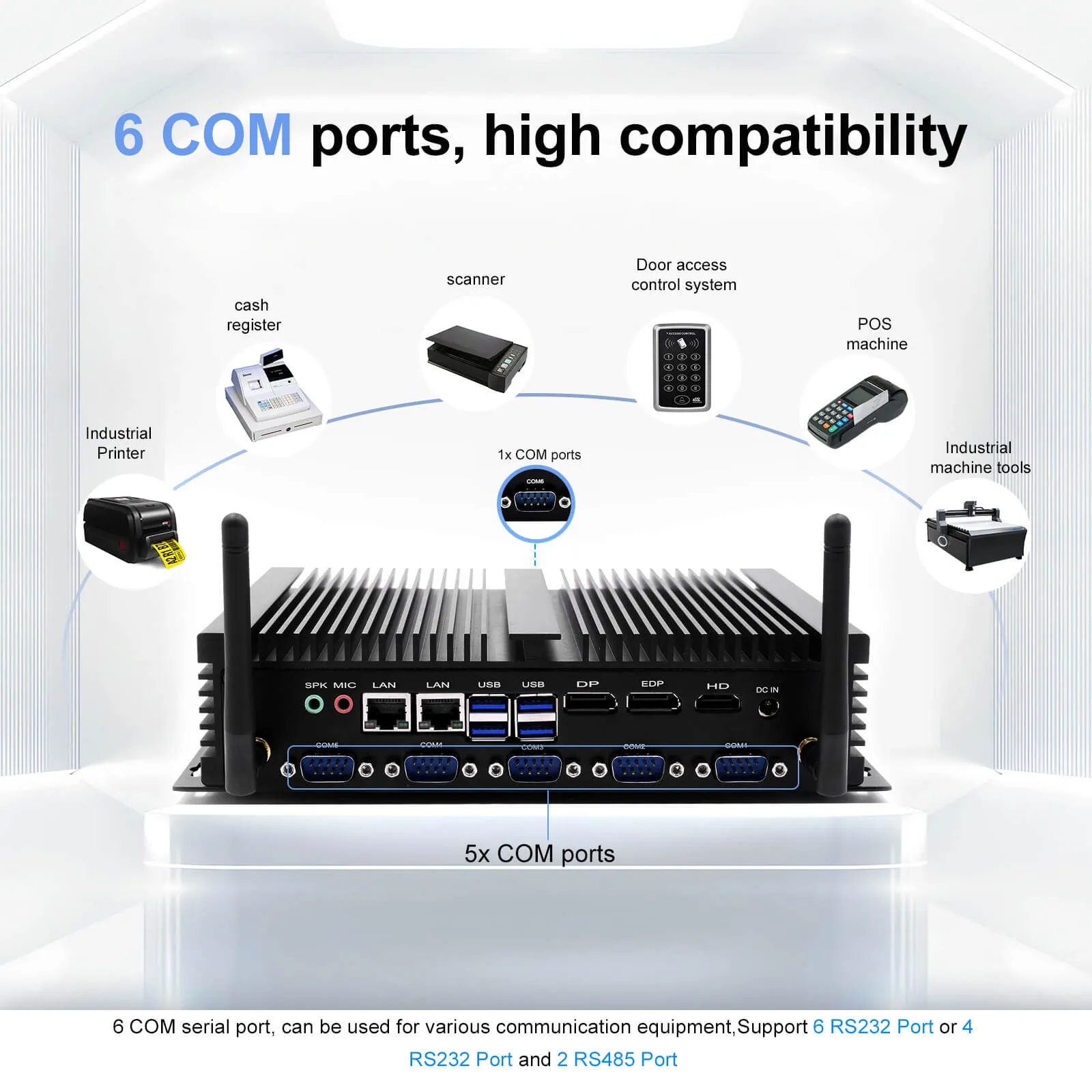

6x COM Ports (RS232/RS485): Configurable serial communication for PLCs & industrial automation.
8x USB Ports (4x USB 3.0 + 4x USB 2.0): Flexible connectivity for all user peripherals.

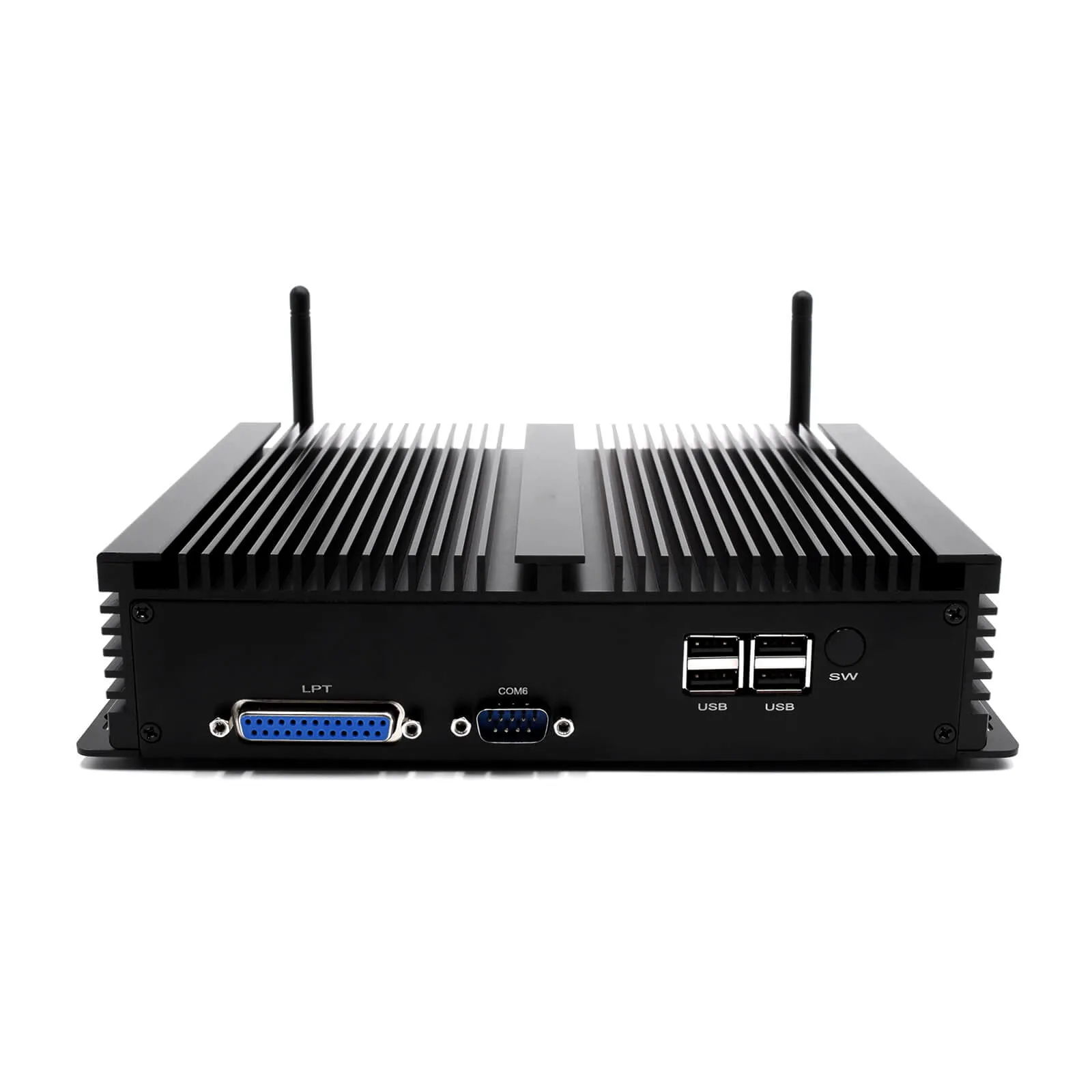

1x LPT Parallel Port: Full support for legacy mechanical equipment and specialized printers.
Dual Intel LAN & Triple 4K Display: High-reliability networking paired with multi-screen monitoring.

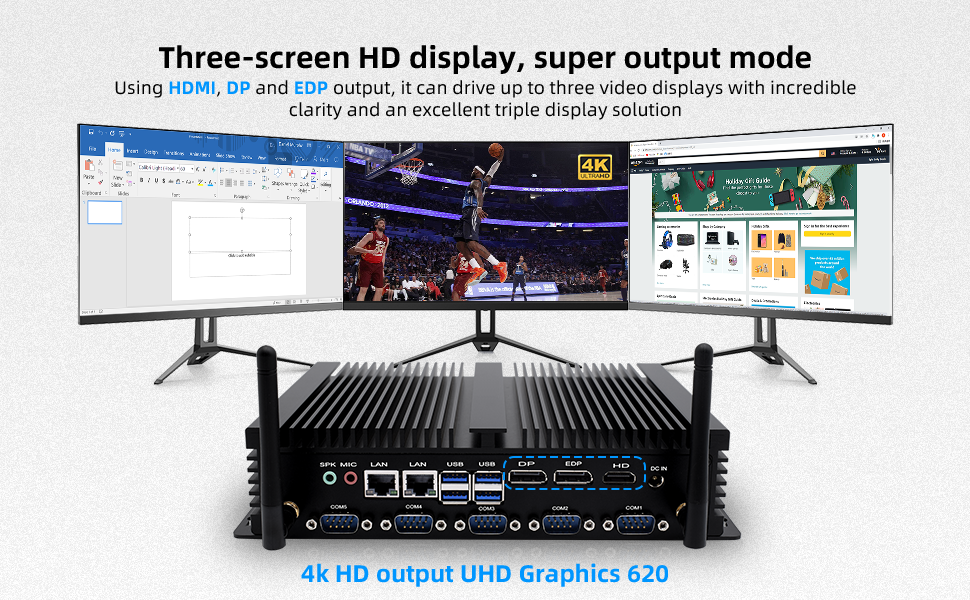

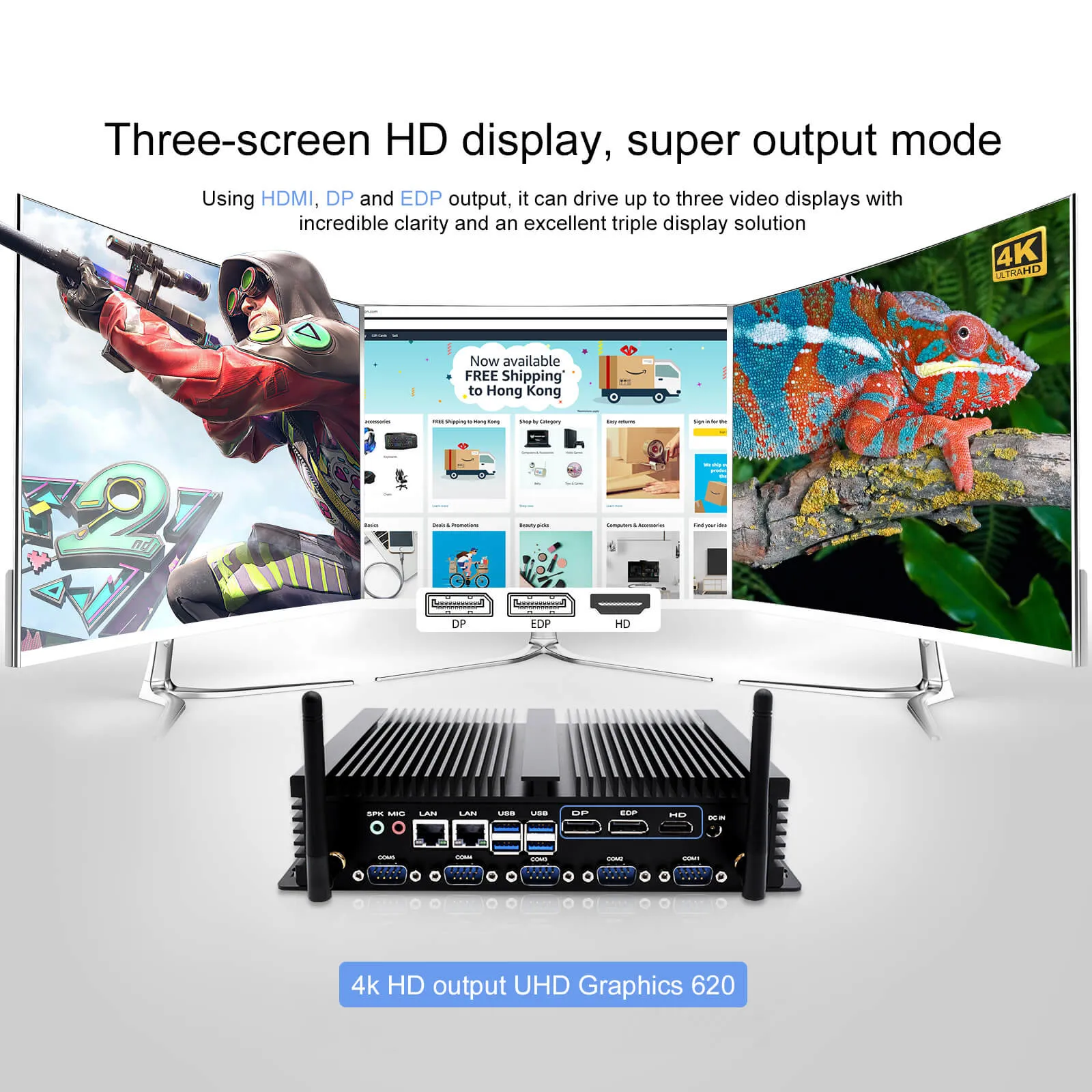

Triple 4K Display Output
The HYSTOU H4 Industrial Mini PC features powerful multi-monitor capabilities, supporting up to three independent 4K displays at 60Hz simultaneously. Built with HDMI 2.0, DisplayPort 1.2 (DP), and an embedded DisplayPort (eDP) interface, it is engineered for high-density visual monitoring, digital signage networks, and complex industrial edge computing environments requiring extensive screen real estate.

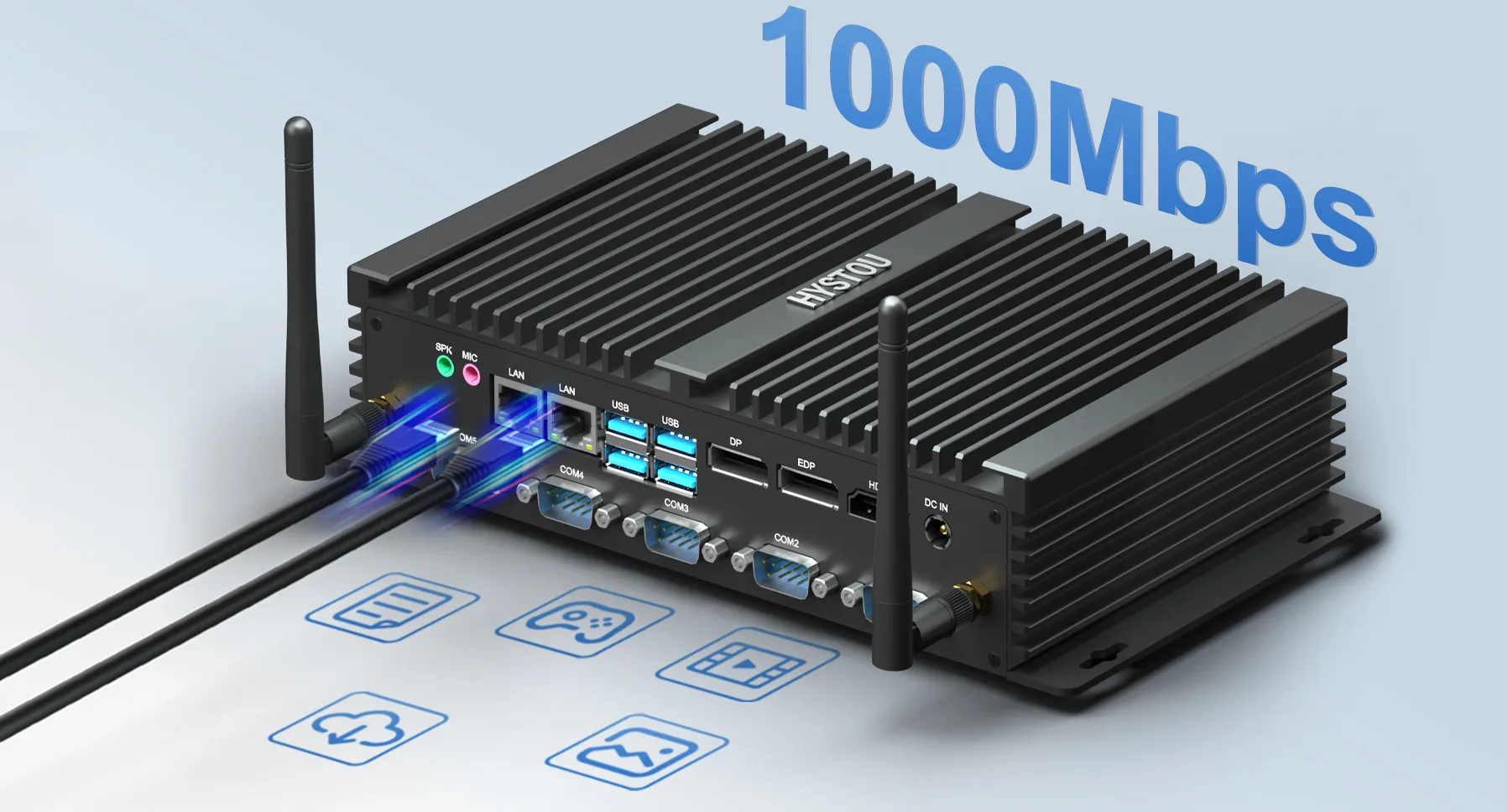

Industrial-Grade Reliable Networking
Engineered for reliable network communication in harsh environments, the HYSTOU H4 Industrial Mini PC is equipped with dual Intel® I210/I211 Gigabit Ethernet ports. Designed for maximum uptime, it supports network redundancy, link aggregation, and dual-IP routing. This dual-LAN architecture provides robust network isolation between field-level automation machinery and enterprise systems, making it an ideal hardware platform for IIoT gateways, industrial firewalls, and edge computing nodes.

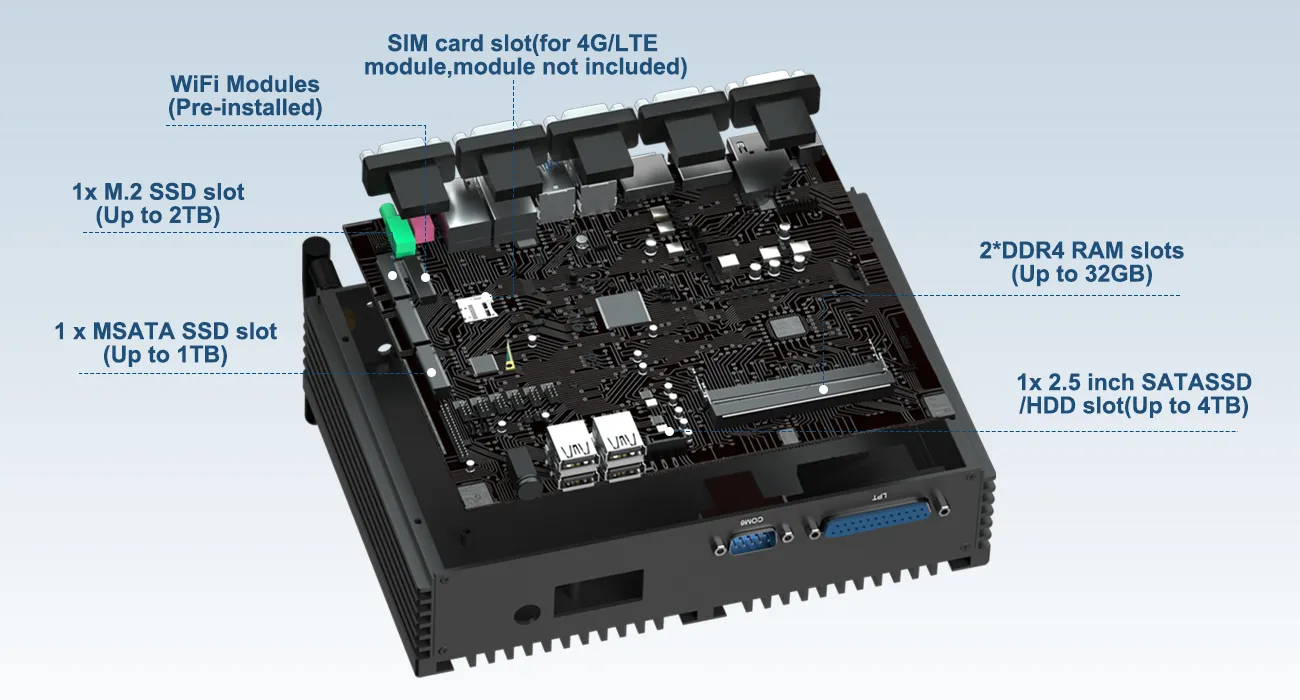

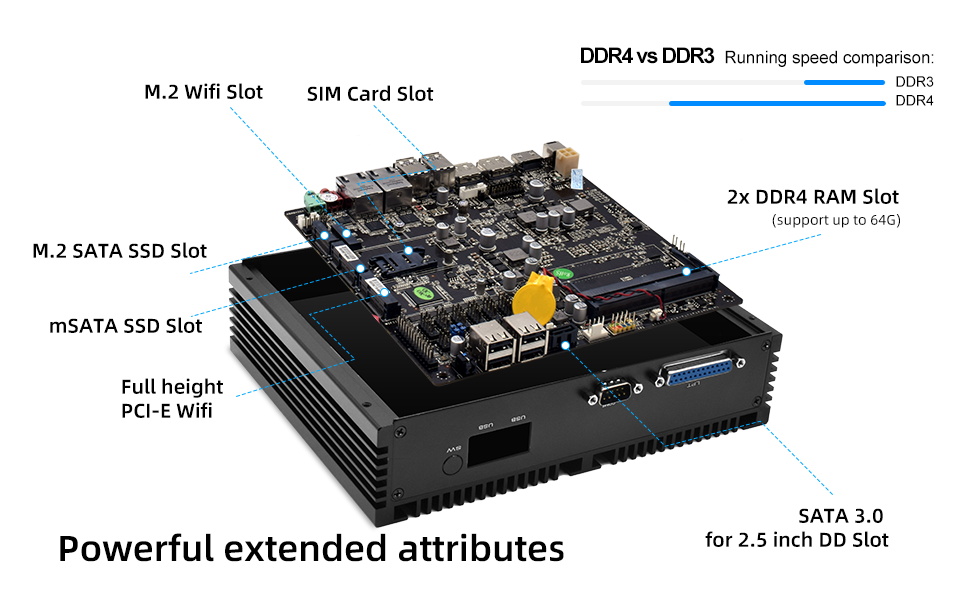

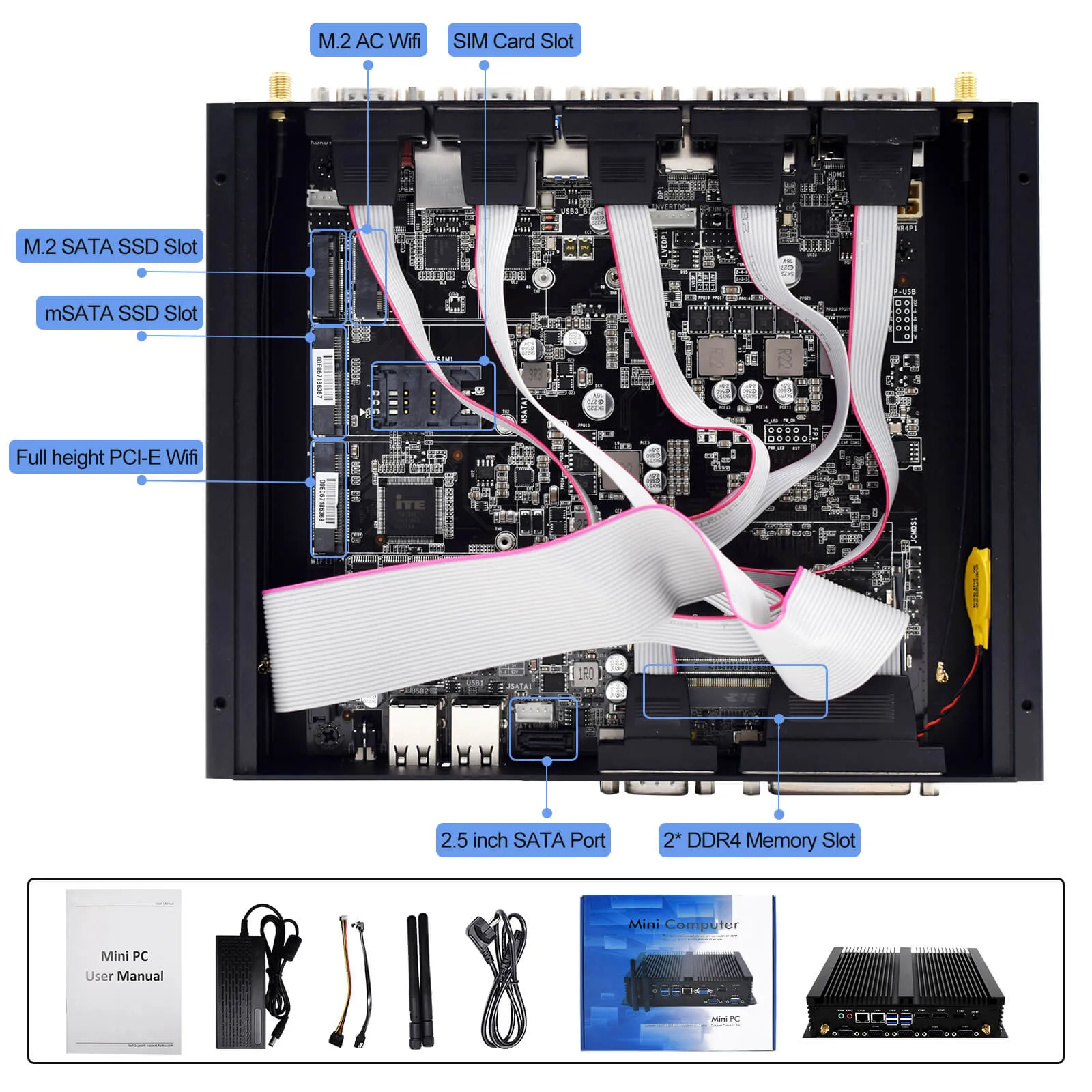

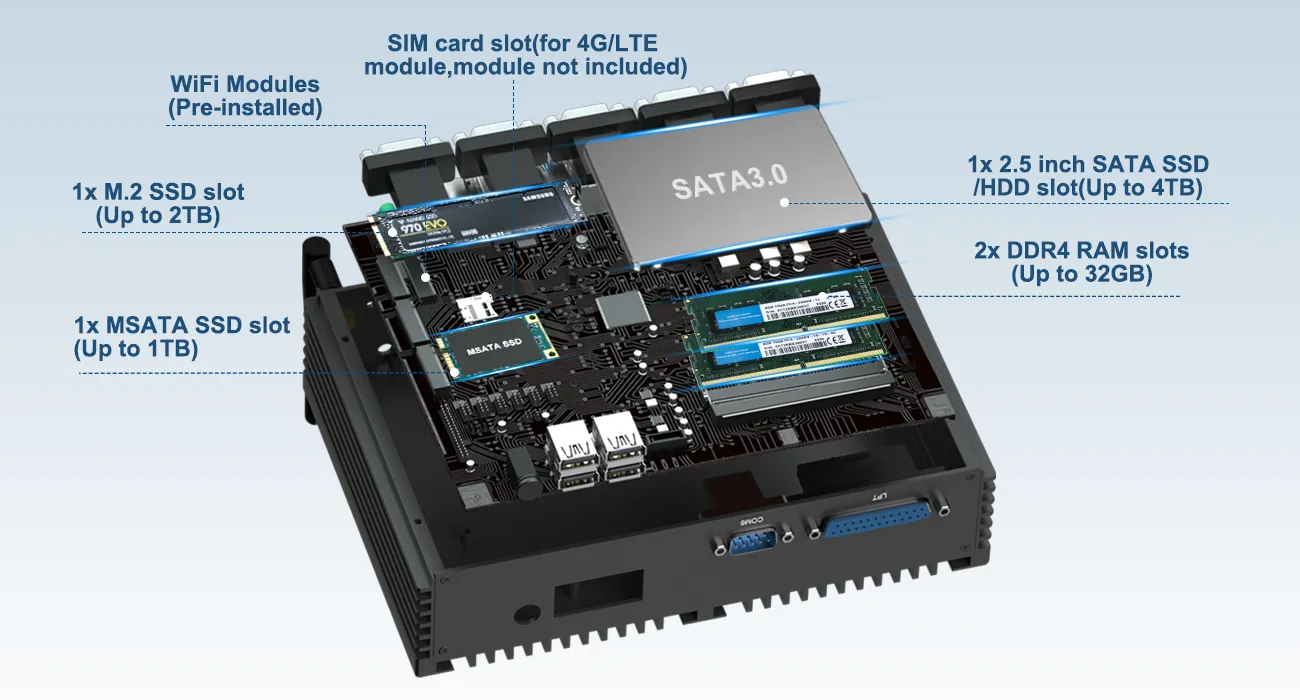

Triple Storage & Versatile Wireless Expansion
Triple Storage Drive Bay: 1x M.2 NVMe/SATA SSD (2280) + 1x mSATA + 1x 2.5″ SATA HDD/SSD.
Industrial Wireless Connectivity: M.2 E-key slot for Wi-Fi 6/Bluetooth modules.
Cellular Network Ready: Built-in Mini-PCIe slot & Nano-SIM card slot for 4G LTE expansion.
Technical Specifications
| Category | Details |
|---|---|
|
Processor |
I5-8250U\I7-8650U |
|
Memory |
2x DDR4 260-pin SODIMM, supports up to 64GB |
|
Storage |
1×M.2 2240/2260/2280 PCIe 3.0 x2/SATA, supporting NVMe/SATA protocol SSDs |
|
Graphics |
Intel UHD Graphics 620 |
|
Networking |
2×Gigabit Ethernet |
|
Operating System |
Win10\Win11\Linux |
|
Power Supply |
12V 5A/6A |
|
Dimensions |
238×182×52mm |
|
Weight |
1.6kg (net), 2.2kg (with accessories) |
|
Material |
Aluminum alloy |
|
l/O ports |
4xUSB 2.0 |
|
Internal Slot |
1xMPCIE slot for installing WIFI/4G modules. |
|
Kensinaton Lock |
No |
|
Accessory |
VESA mount、Wall-mounted |
|
Working environment temperature |
-20°C~60°C |
Frequently Asked Questions
What Ethernet controllers are used, and do they support network redundancy?
The system is equipped with dual Intel I210/I211 Gigabit Ethernet RJ45 ports. These industrial-grade Intel controllers deliver low-latency communication, broad driver compatibility, and support for network redundancy/bonding for mission-critical applications.
How do I enable Auto Power On (Restore on AC Power Loss)?
Auto Power On can be enabled either in the BIOS setup or via the onboard JPWR1 hardware jumper pin. Once configured, the Mini PC will automatically boot up whenever power is restored, ensuring zero-downtime operation in remote or unattended environments.
Does this device support remote booting and Watchdog timer functions?
Yes, the motherboard natively supports:
- Watchdog Timer: Prevents system lockup by automatically rebooting the system upon software frozen.
- Wake-on-LAN (WoL): Remotely power on the machine via network magic packets.
- PXE Boot: Supports network booting (UEFI mode only).
- RTC Alarm: Allows scheduled automatic system power-on.
Which operating systems and hypervisors are officially supported?
The H4 Mini PC supports a wide range of operating systems, including Windows 10, Windows 11, and Linux distributions (Ubuntu, Debian, Rocky Linux), as well as virtualization platforms like VMware ESXi.
Does HYSTOU offer custom hardware configurations or OEM/ODM branding?
Yes. We offer flexible OEM/ODM services for bulk orders, including custom BIOS settings (such as Auto Power On or Wake on LAN), customized RAM/SSD capacities, custom logo printing, and specialized packaging.
