HYSTOU H3-N100 Intel N100 Fanless Industrial Mini PC
Categories: Industrial & Rugged Mini PCs, Office Mini PCs
- Processor: Intel N100
- Graphics Card: Intel UHD Graphics (supports 4K resolution)
- Memory: DDR4 SODIMM slot, max 32GB @ 3200MHz
- Storage:
- M.2 NVMe slot (up to 2TB)
- MSATA slot (up to 1TB)
- SATA 3.0 interface (compatible with 2.5-inch HDD/SSD, ≤7mm thickness)
- Network: Dual Gigabit Ethernet (Realtek RTL8168/8111 controllers)
- Additional Features:
- Fanless design for silent operation
- Dual display outputs: HDMI 2.0 (4K@60Hz) + VGA (1080P@60Hz)
Intel N100 Industrial Mini PC - HYSTOU H3-N100 Fanless 4K Desktop
Overview
The HYSTOU H3-N100 industrial mini pc features Intel N100 4-core processor with 3.4GHz turbo frequency. This fanless mini computer supports dual LAN redundancy and 4K dual display, ideal for industrial automation and digital signage. With -20°C to +50°C operating range, it delivers stable performance in harsh environments.
Key Features
Powerful Processing
- Intel N100 Processor: 4 cores and 4 threads with a max turbo frequency of 3.4GHz, providing enough power for multitasking and industrial applications
- Intel UHD Graphics: Supports 4K resolution for crisp visuals and smooth video playback
- Efficient Power Consumption: 6W TDP processor with a maximum system power draw of just 40W, ensuring stable long-term operation without overheating

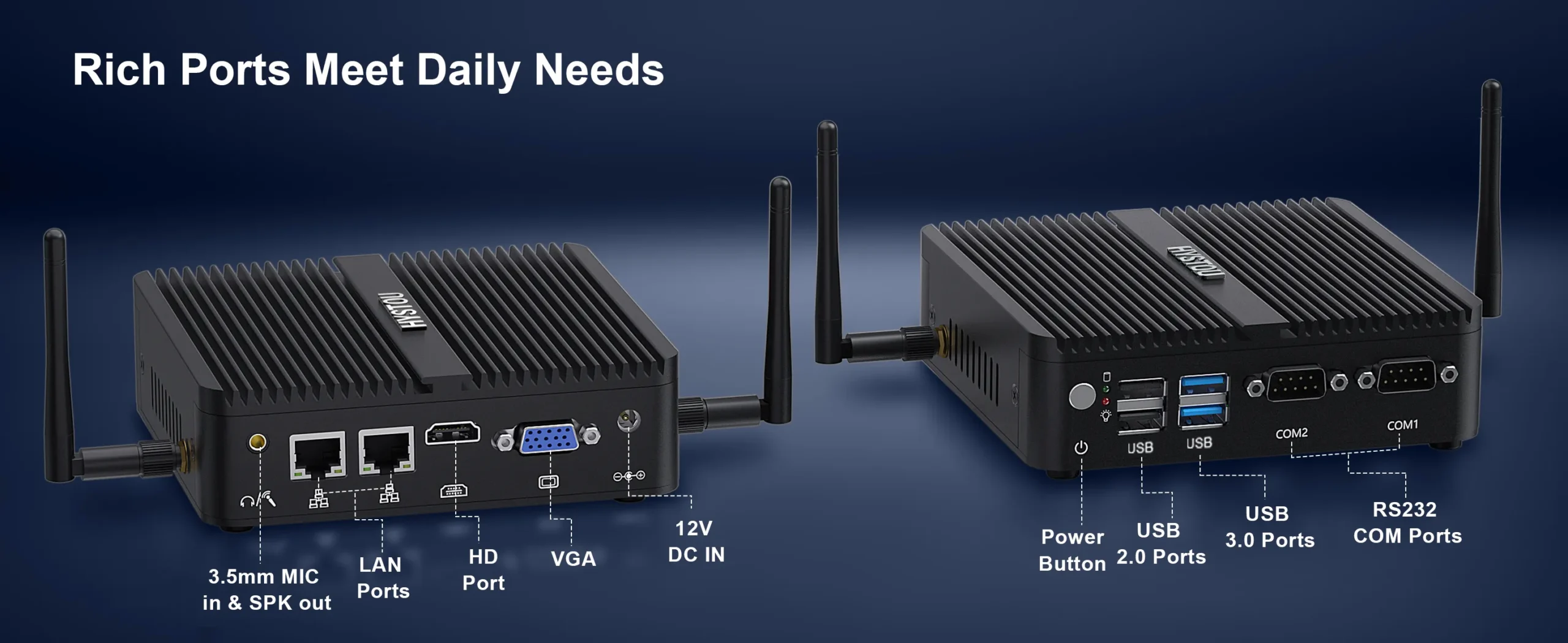

Versatile Connectivity

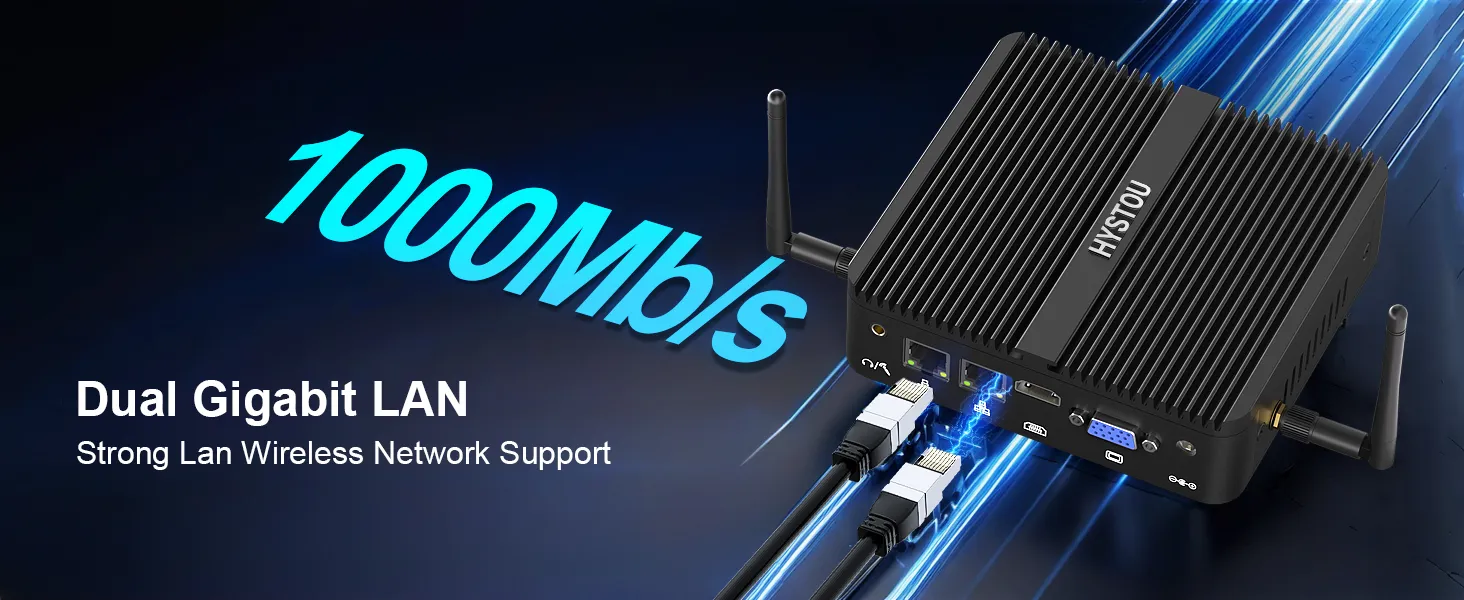

- Dual Gigabit LAN: Equipped with Realtek RTL8168/8111 Ethernet controllers for reliable network redundancy and high-speed data transfer
- Dual COM Ports: RS232 serial interfaces for seamless integration with industrial equipment and legacy devices
- Flexible Video Outputs: HDMI 2.0 (4K@60Hz) and VGA (1080P@60Hz) ports support dual display setups, expanding your workspace
- Bluetooth 4.2: Wireless connectivity for peripherals like keyboards, mice, and printers, reducing cable clutter

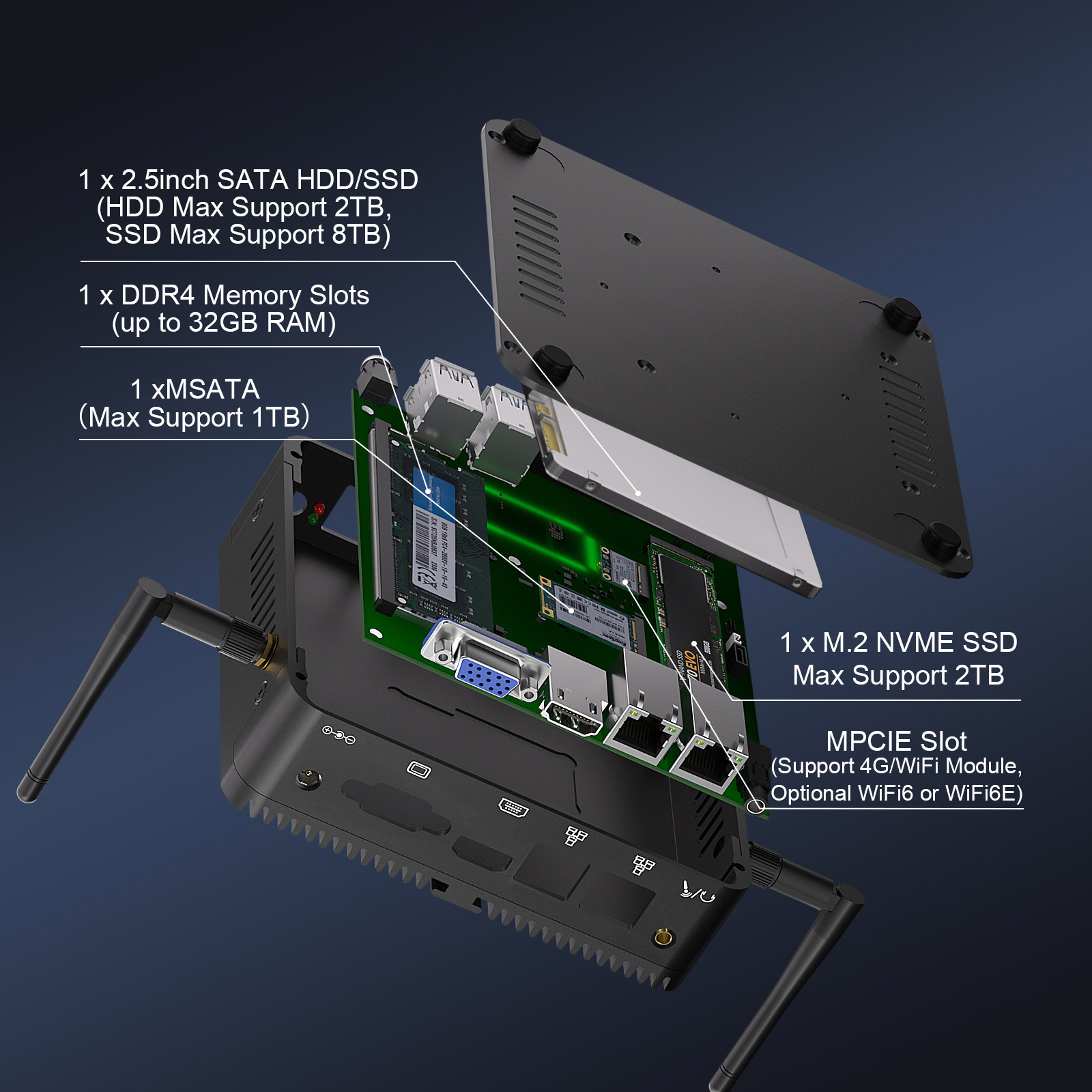

Flexible Storage Options
- M.2 NVMe Slot: Supports up to 2TB NVMe SSD for lightning-fast boot times and application loading
- MSATA Slot: Additional storage expansion with up to 1TB MSATA SSD for extra capacity
- SATA 3.0 Interface: Compatible with 2.5-inch HDD/SSD (maximum 7mm thickness) for versatile storage configurations

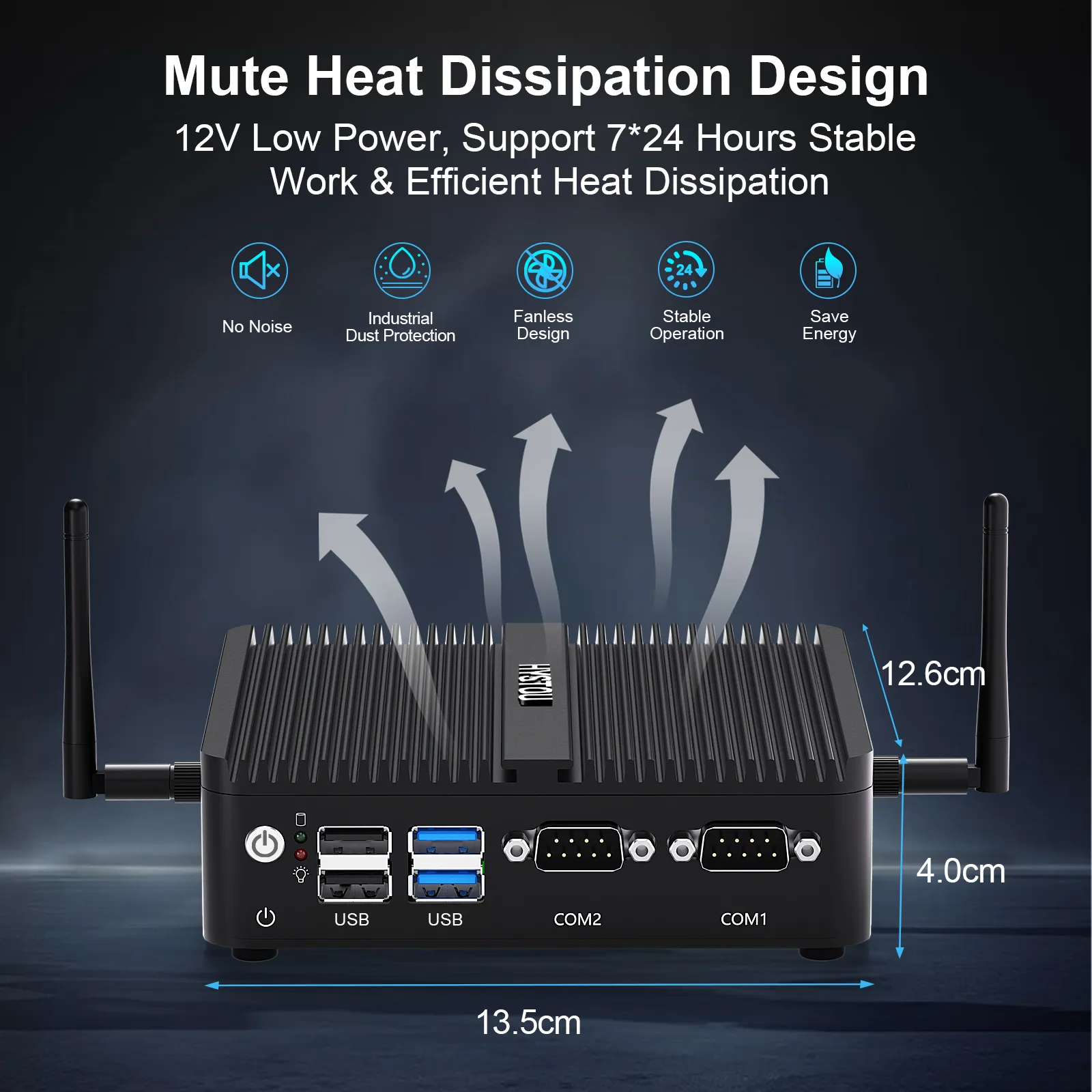

Robust Industrial Design
- Aluminum Casing: Durable construction with natural heat dissipation properties, eliminating the need for noisy fans
- Fanless Operation: Silent running design, perfect for noise-sensitive environments like offices and recording studios
- Wide Temperature Range: Reliable operation from -20°C to +50°C, suitable for harsh industrial environments
- VESA Mount Compatible: Can be mounted behind monitors or displays to save valuable desk space
Technical Specifications
| Specification | Details |
|---|---|
| Processor | Intel N100 (4 cores, 4 threads, up to 3.4GHz) |
| Memory | DDR4 SODIMM slot, max 32GB @ 3200MHz |
| Storage | M.2 NVMe (2TB), MSATA (1TB), SATA 3.0 (2.5″) |
| Networking | 2x Gigabit Ethernet (Realtek RTL8168/8111) |
| Video | HDMI 2.0 (4K@60Hz), VGA (1080P@60Hz) |
| USB Ports | 2x USB 3.0, 2x USB 2.0 |
| Serial Ports | 2x RS232 COM |
| Wireless | Wi-Fi 5, Bluetooth 4.2 (upgradable to Wi-Fi 6) |
| Power | 12V 5A DC input |
| Dimensions | 135 x 127 x 39 mm |
| Weight | 0.6kg (net), 1.2kg (gross) |
| Operating Temperature | -20°C to +50°C |

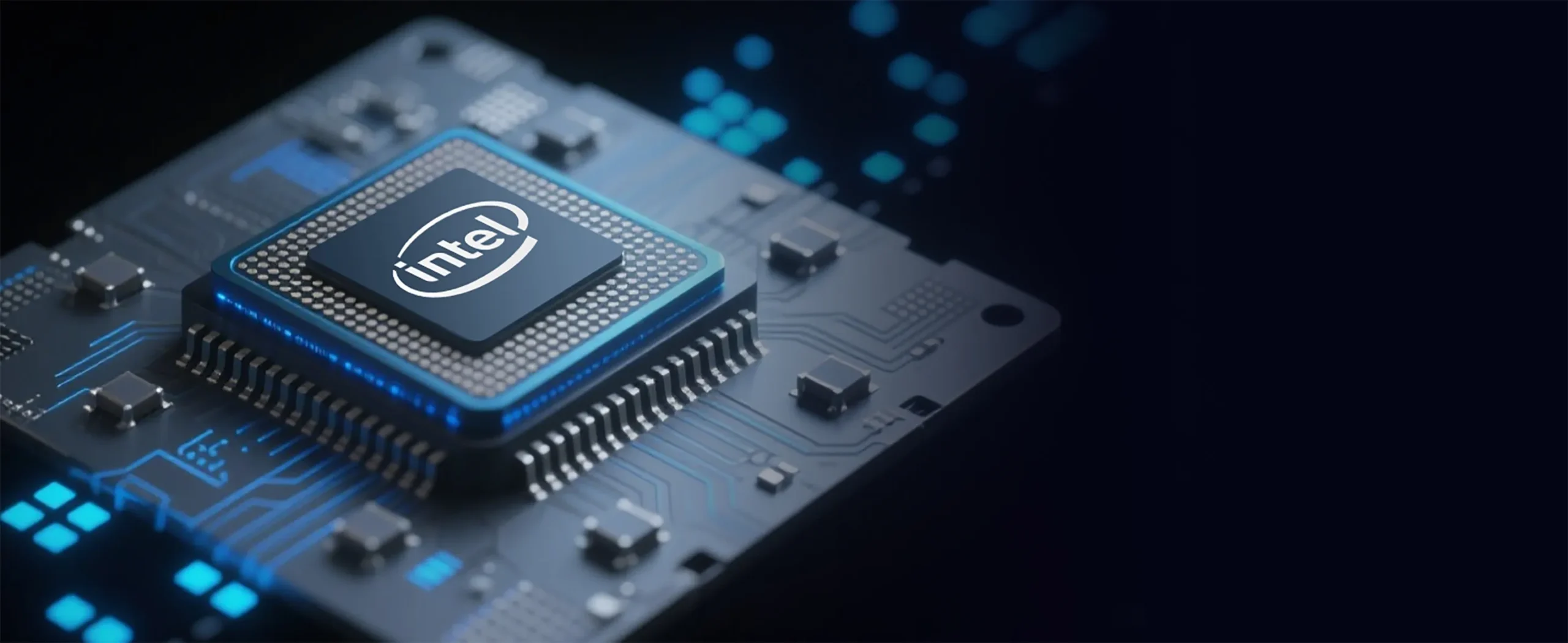

Intel N100 4-core processor optimized for fanless industrial mini pc applications

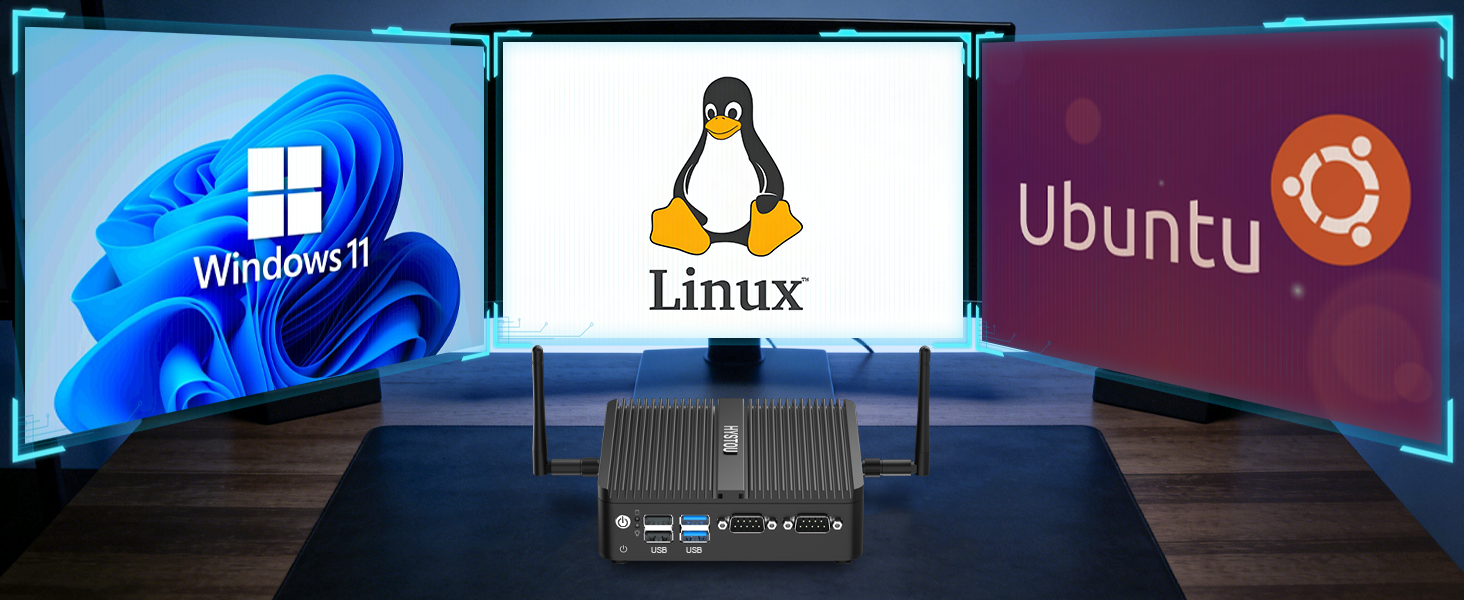

Compatible Operating Systems
- Windows: Windows 10, Windows 11, Windows Server
- Linux: Ubuntu 22.04, Debian 11-12, Linux Mint, Rocky Linux 9
- Firewall: pfSense, OPNsense
Ideal Use Cases
Industrial Automation
The wide temperature tolerance (-20°C to +50°C) and stable performance make this mini PC ideal for factory automation, process control systems, and industrial monitoring applications. Its fanless design eliminates the risk of dust accumulation, ensuring reliable operation in manufacturing environments.
Digital Signage & Media Centers
With 4K dual display support, this mini PC excels at powering digital signage, information kiosks, and home theater setups. The HDMI 2.0 port delivers smooth 4K video playback, while the compact size allows for discreet installation behind displays.
Office Productivity
Small enough to fit in tight workspaces yet powerful enough for daily office tasks, this mini PC handles document editing, web browsing, and video conferencing with ease. The dual display capability lets you multitask efficiently, keeping email and reference materials visible while working on main projects.
Advanced Features
Real-World Performance
Experience smooth multitasking with the Intel N100 processor, which handles everyday computing tasks with ease. Whether you’re running office applications, editing documents, or streaming 4K content, this mini PC delivers responsive performance without compromising on energy efficiency.
The combination of DDR4 memory (up to 32GB) and fast storage options ensures quick boot times and application launches. With support for multiple storage drives, you can configure the system to balance speed and capacity according to your needs.
Enhanced Productivity Features
- Dual Display Setup: Extend your workspace across two monitors with HDMI and VGA outputs, perfect for multitasking and increasing productivity.
- Wireless Connectivity: Stay connected with Wi-Fi 5 and Bluetooth 4.2, supporting wireless peripherals and internet access.
- Security Features: TPM 2.0 chip provides hardware-level security to protect sensitive data.
- Remote Management: PXE boot support allows for easy network deployment and management across multiple devices.
Customer-Focused Design
We’ve designed this industrial mini PC with your needs in mind:
- Quiet Operation: Fanless design ensures silent running, ideal for noise-sensitive environments like offices and recording studios.
- Space-Saving: Compact form factor takes up minimal desk space and can be mounted behind a monitor with the included VESA bracket.
- Easy Maintenance: Tool-less access to storage drives simplifies upgrades and maintenance.
- Longevity: Industrial-grade components and robust construction ensure reliable operation for years to come.
Whether you’re a small business owner looking for reliable office computers, a system integrator needing industrial-grade hardware, or a home user wanting a powerful yet compact PC, our Intel N100 Industrial Mini PC delivers the performance, reliability, and flexibility you need.
FAQ
Frequently Asked Questions
The HYSTOU N100 Mini PC is compatible with multiple operating systems including Windows 10/11/Server, Linux distributions (Ubuntu 22.04, Debian 11-12, Linux Mint, Rocky Linux 9), and firewall software like pfSense and OPNsense.

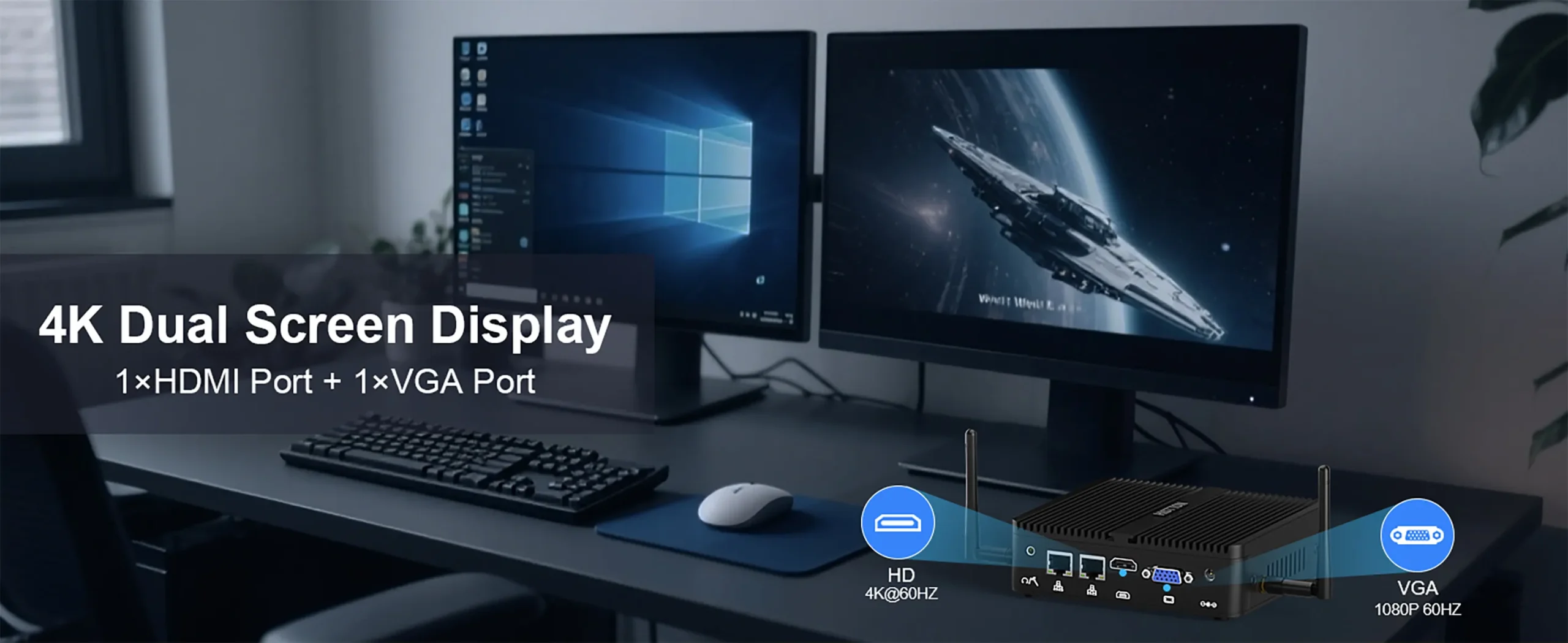

Yes, the mini PC features both HDMI 2.0 (4K@60Hz) and VGA (1080P@60Hz) ports, allowing you to connect two monitors simultaneously for enhanced productivity.
The system offers flexible storage configurations with:
- 1x M.2 NVMe slot (supports up to 2TB SSD)
- 1x MSATA slot (supports up to 1TB SSD)
- 1x SATA 3.0 interface (supports 2.5-inch HDD/SSD up to 7mm thickness)
Designed for industrial environments, this mini PC operates reliably in temperatures ranging from -20°C to +50°C (-4°F to 122°F).
Yes, the standard configuration includes Wi-Fi 5 and Bluetooth 4.2. There’s an option to upgrade to Wi-Fi 6 (AX200) with Bluetooth 5.2 for enhanced wireless performance.
The Intel N100 processor has a TDP of only 6W, with the entire system consuming a maximum of 40W, making it highly energy-efficient for 24/7 operation.
The compact design (135x127x39mm) supports both desktop placement and VESA mounting, allowing you to save space by mounting it behind a monitor.

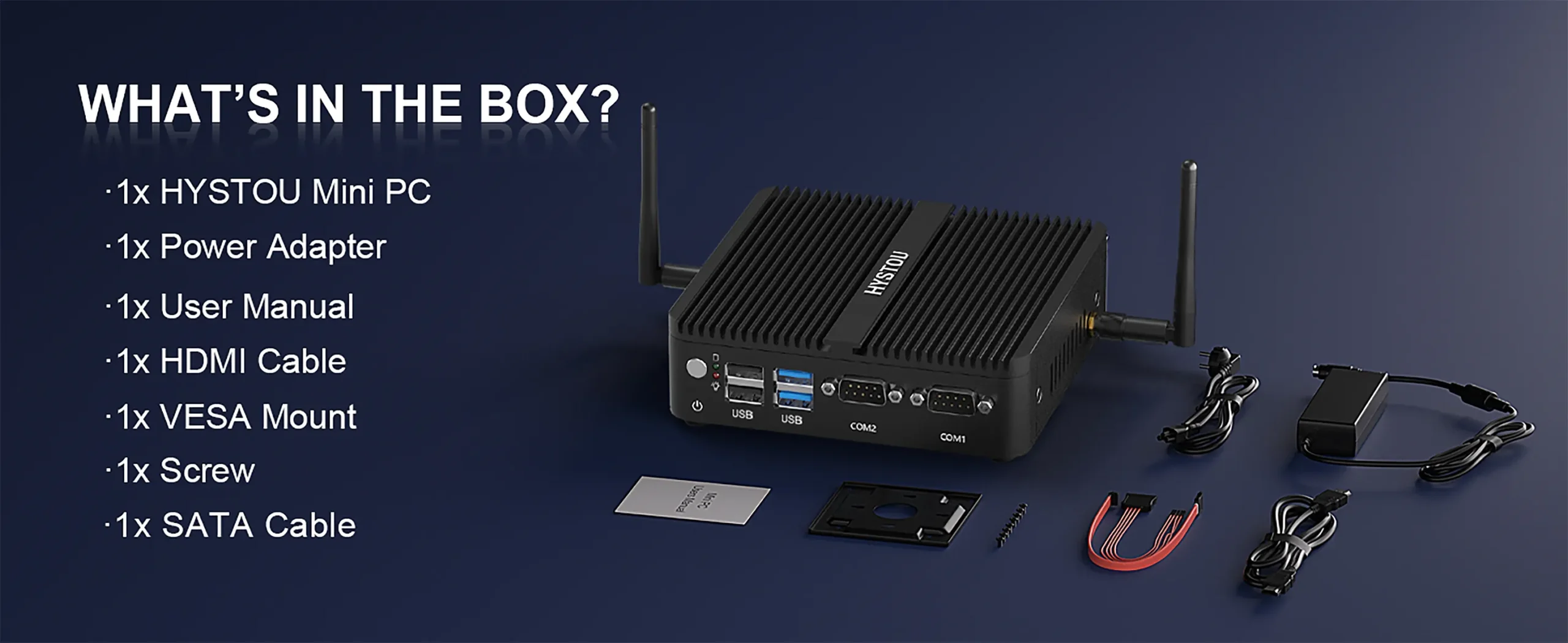

Each unit comes with the HYSTOU N100 Mini PC, 12V 5A power adapter, VESA mounting bracket, and quick start guide.
Yes, the mini PC features automatic power-on functionality that can be configured through BIOS settings or motherboard jumpers, ideal for unattended operation.
The system includes TPM 2.0 for hardware-level security, protecting your data against unauthorized access and ensuring compliance with security standards.
