HST-1501B 15″ Fanless Industrial Panel PC
Categories: Industrial Panel PC
-
15″ Industrial Display: True-flat front panel with IP65 waterproof and dustproof protection.
-
Fanless & Silent Cooling: Heavy-duty aluminum heatsink chassis for 24/7 reliable operation.
-
Rich & Flexible I/O: Dual LAN, HDMI, multiple USB 3.0/2.0, COM (RS232/422/485), and extended I/O.
-
Wide Voltage Input: Supports DC 9V–36V wide range power input with AT/ATX power mode switch.
-
High Scalability: Supports M.2 SSD, 2.5″ SATA HDD/SSD, and Wi-Fi/4G/5G wireless modules.
| Range | Discount |
|---|---|
| 1 - 5 | $597.48 |
| 6 - 50 | $595.48 |
| 51 - 100 | $593.48 |
| 101 + | $590.48 |
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HST-1501 15" Fanless Industrial Panel PC |
Engineered for mission-critical environments. The HST-1501 combines a 1024×768 display, a fanless aluminum chassis, and flexible Intel processor configurations to deliver reliable computing in factories, kiosks, and extreme conditions.
15" Display
IP65 Front
-20~60°C
Fanless
Built for Industrial Reliability
Every component of the HST-1501 is engineered to withstand the demands of 24/7 industrial operation.
IP65 Front Panel Protection
Dust-tight and water-jet resistant front panel ensures reliable operation in washdown environments and dusty factory floors.
Fanless Passive Cooling
Dust-tight and water-jet resistant front panel ensures reliable operation in washdown environments and dusty factory floors.
Fanless Passive Cooling
Dust-tight and water-jet resistant front panel ensures reliable operation in washdown environments and dusty factory floors.
Wide Temperature Range
Dust-tight and water-jet resistant front panel ensures reliable operation in washdown environments and dusty factory floors.
Engineered for the Real World
Precision-machined aluminum chassis, fanless thermal design, and industrial-grade I/O — every detail built to last.
Technical Specifications
Complete hardware specifications for the HST-1501 industrial panel PC.
CPU Configuration Options
Select the processor tier that matches your workload requirements, from lightweight data display to compute-intensive edge processing.
| CPU Model | Memory | Slots | USB Config | Platform Generation |
|---|---|---|---|---|
| J4125 | DDR4 SODIMM | ×1 | 2×USB3.0 + 4×USB2.0 | Gemini Lake / Elkhart Lake |
| N100 | DDR5 SODIMM | ×1 | 2×USB3.0 + 4×USB2.0 | Alder Lake-N / Twin Lake |
| i7-8560U | DDR4 SODIMM | ×2 | 4×USB3.0 + 2×USB2.0 | Whiskey Lake (8th Gen) |
| i5-10310U / i7-10510U | DDR4 SODIMM | ×2 | 4×USB3.0 + 2×USB2.0 | Comet Lake (10th Gen) |
| i5-1135G7 / i7-1165G7 | DDR4 SODIMM | ×2 | 2×USB3.0 + 4×USB2.0 | Tiger Lake (11th Gen) |
| i5-1235U / i7-1255U | DDR5 SODIMM | ×2 | 4×USB3.0 + 2×USB2.0 | Alder Lake (12th Gen) |
Storage Configuration
Three simultaneous storage interfaces for maximum flexibility.
M.2 SATA
2242 / 2260 / 2280 · SATA SSD
Supports multiple M.2 length specifications for flexible storage capacity.
2.5" SATA Bay
2.5-inch · HDD / SSD
Standard 2.5-inch drive bay for high-capacity HDD or fast SATA SSD.
M.2 NVMe
2280 · NVMe SSD
High-speed NVMe protocol for latency-sensitive industrial applications.
Motherboard Expansion Slots
Modular expansion for connectivity, communication, and industrial I/O.
M.2 WWAN
M.2 3042 / 3052 · 4G / 5G Module
Built-in SIM card slot
M.2 WiFi/BT
M.2 2230 · WiFi / Bluetooth
WiFi 5 & BT 4.2 pre-installed
Expansion I/O
Phoenix Terminal · 4×3-wire COM / 4×3-wire COM + 10×GPIO
Includes 1 remote power switch
Network Expansion
RJ45 · Additional 2×2.5Gbe
Expandable to 4 network ports

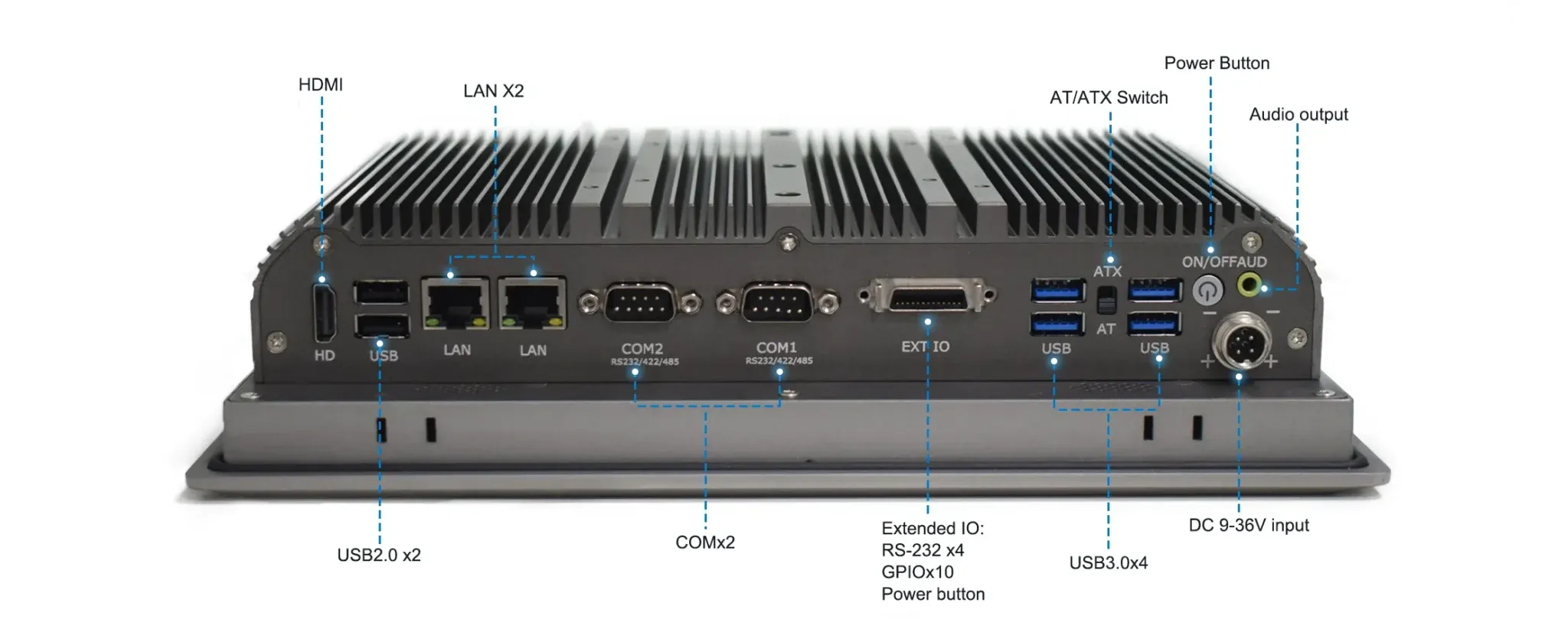

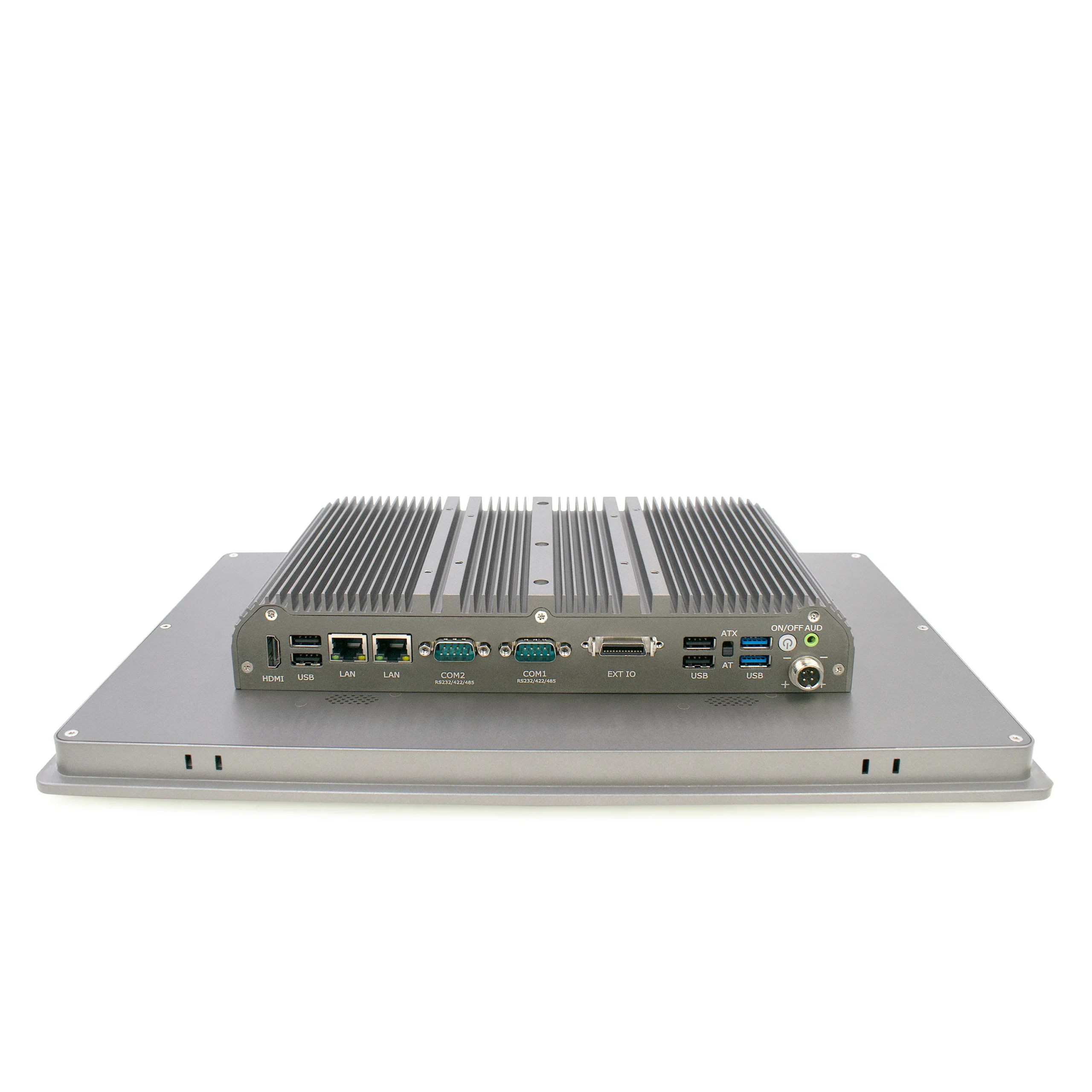

Platform Specifications
Universal platform features shared across all HST-1501 configurations.
2×2.5Gbe RJ45 (Intel i225V/i226V), expandable to 4 ports
LCD + HDMI dual display, sync/async modes
2×DB9 COM1 & COM2, RS-232/422/485
1×Audio Line-out
DC 9~36V wide voltage, 4-Pin aviation connector
AT/ATX DIP switch

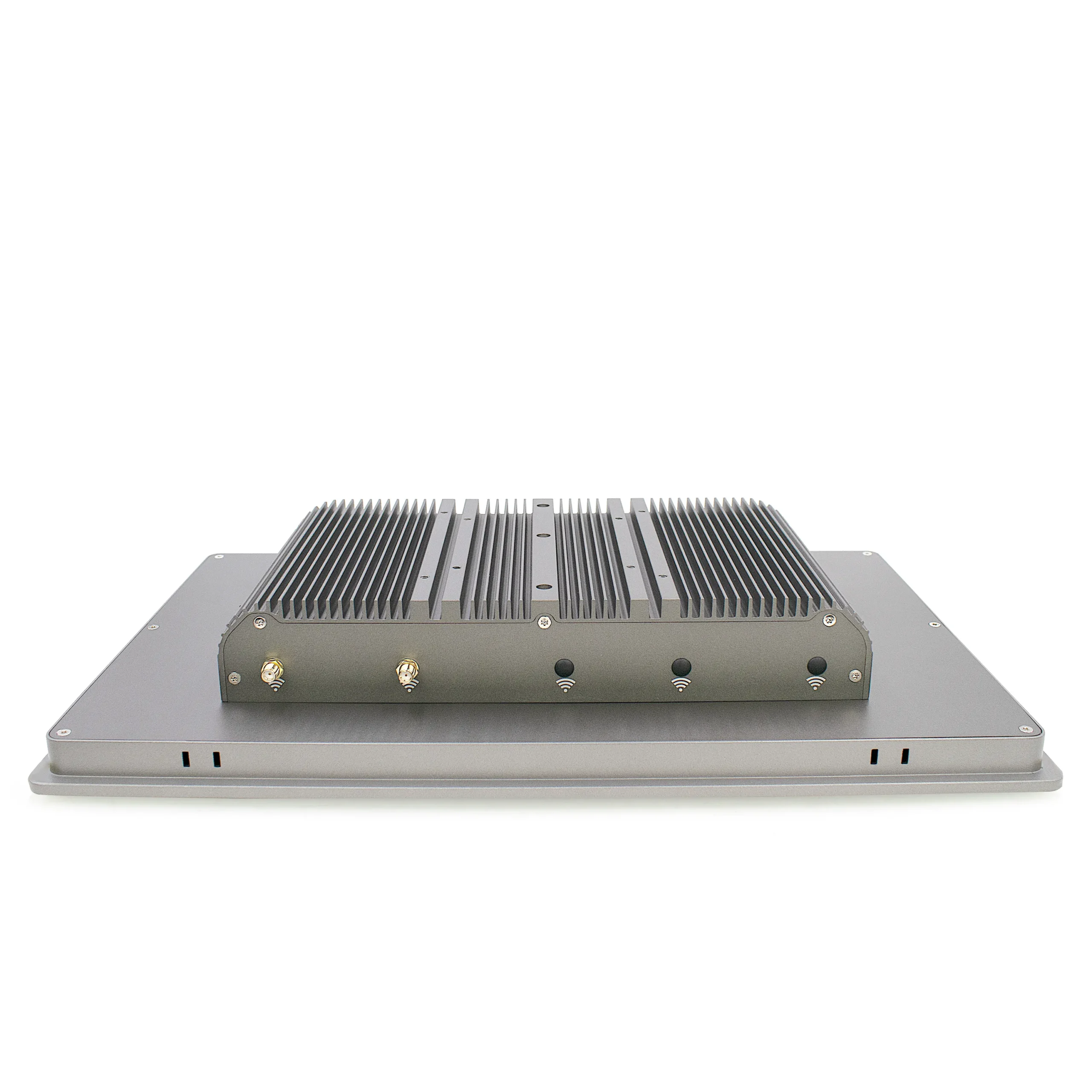

5× antenna interfaces (WiFi/BT/4G/5G)
Watchdog timer, PXE boot, touch screen (resistive/capacitive optional)
Industry Applications
The HST-1501 is deployed across industries where reliability, durability, and 24/7 uptime are non-negotiable.
- Factory Automation
MES terminals, SCADA HMI, production line monitoring, and quality inspection stations.
- Digital Kiosks
Self-service ordering, wayfinding, ticketing, and information display in public spaces.

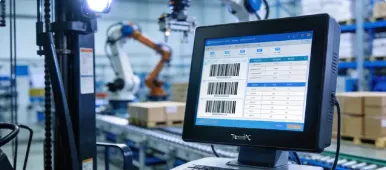

- Logistics & Warehousing
Inventory management terminals, shipping label stations, and fleet dispatch consoles.
- Healthcare
Patient check-in kiosks, medical imaging workstations, and nurse call stations.
- Transportation
Ticket vending machines, passenger information displays, and vehicle diagnostic terminals.

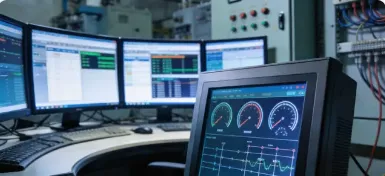

- Energy & Utilities
Power plant monitoring, substation control panels, and environmental data collection.
Frequently Asked Questions
Common questions about the HST-1501 industrial panel PC.
