HST1501-Inch Industrial-Grade Tablet PC
Categories: Industrial Panel PC
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HST1501-Inch Industrial-Grade Tablet PC
Powerful Internal Core | Fanless Heat Dissipation | Abundant Interface Expansion
Multi-Core Powerhouse, Performance Tailored to Demand
The HST1501 is equipped with an Intel Celeron J1900 or 4th/6th/7th/8th Gen Intel Core i3/i5/i7 processor, paired with on-board DDR3L 4GB memory (expandable to 8GB as an option), delivering robust computing power for your industrial applications.
Crafted with Precision · Built for Durability

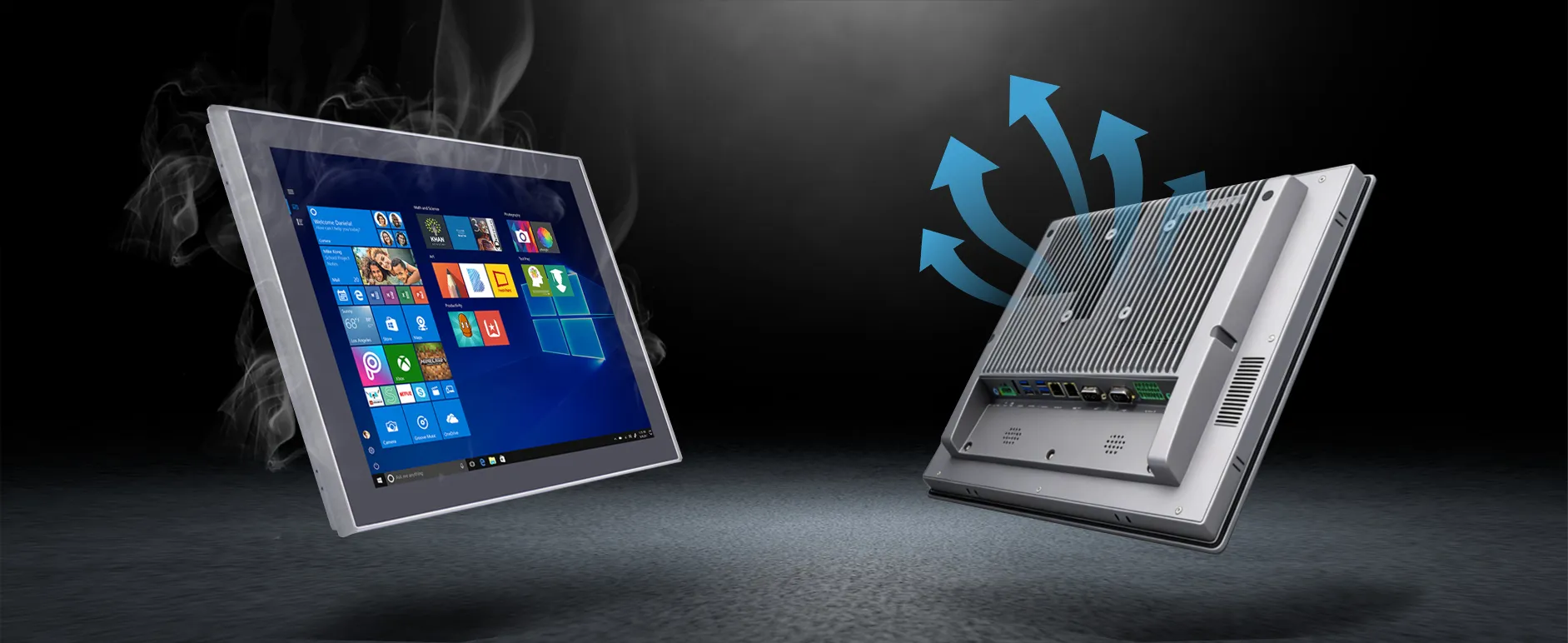

High-Efficiency Heat Dissipation: Full aluminum alloy chassis paired with large-area rear heat sink design, featuring fanless passive cooling that eliminates dust ingress and noise while extending overall device lifespan.
Rigorous Protection: Front panel meets IP65 protection rating, effectively shielding against water splashes and dust; operating temperature ranges from -20℃ to 60℃ for reliable performance in extreme hot and cold conditions.

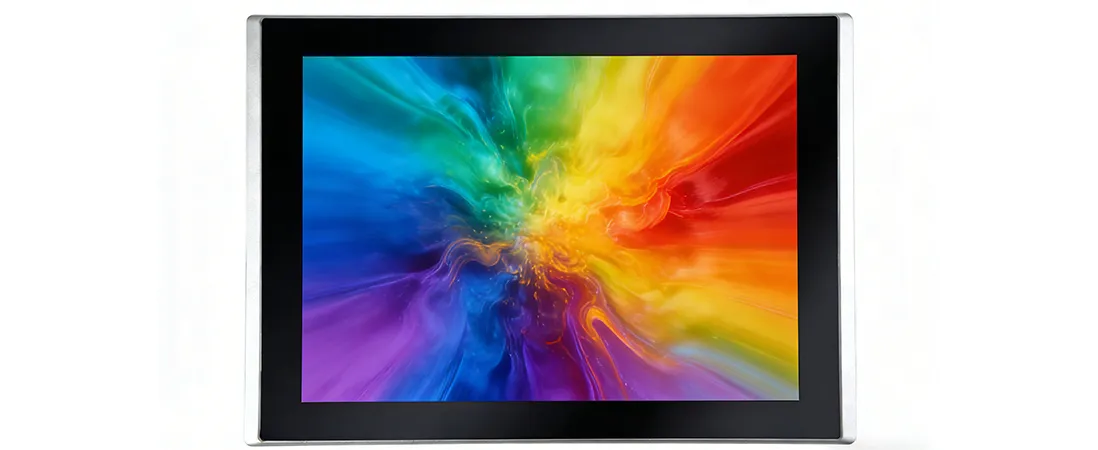

High-Definition Display · Accurate Multi-Touch Interaction
Equipped with a 15.1-inch TFT-LCD display boasting 1024×768 resolution, 16.7 million colors, and 350 cd/m² brightness, it delivers crisp, detailed visual experiences.
Featuring a 5-wire resistive touchscreen with 78% light transmittance, it ensures responsive performance and precise operation.

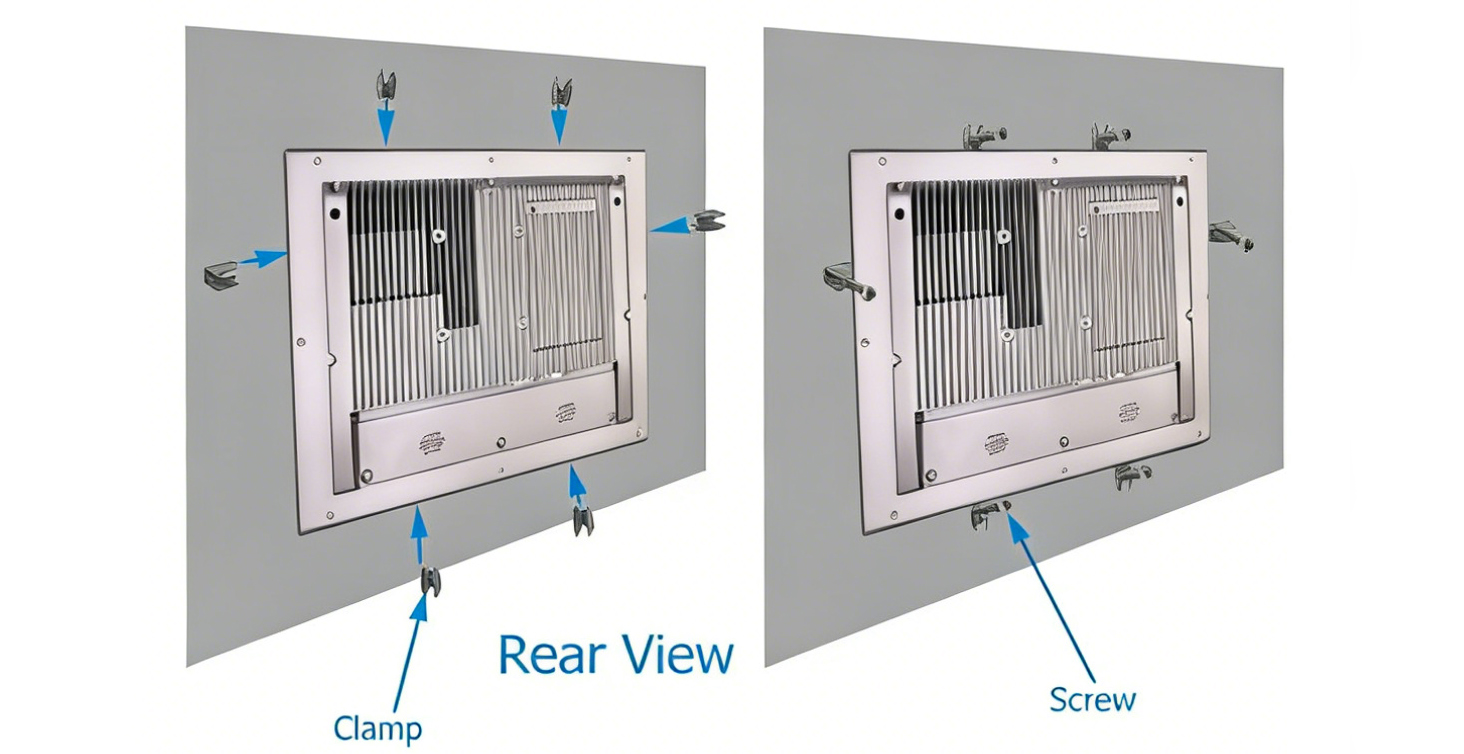

Flexible Mounting · Versatile Scene Adaptability

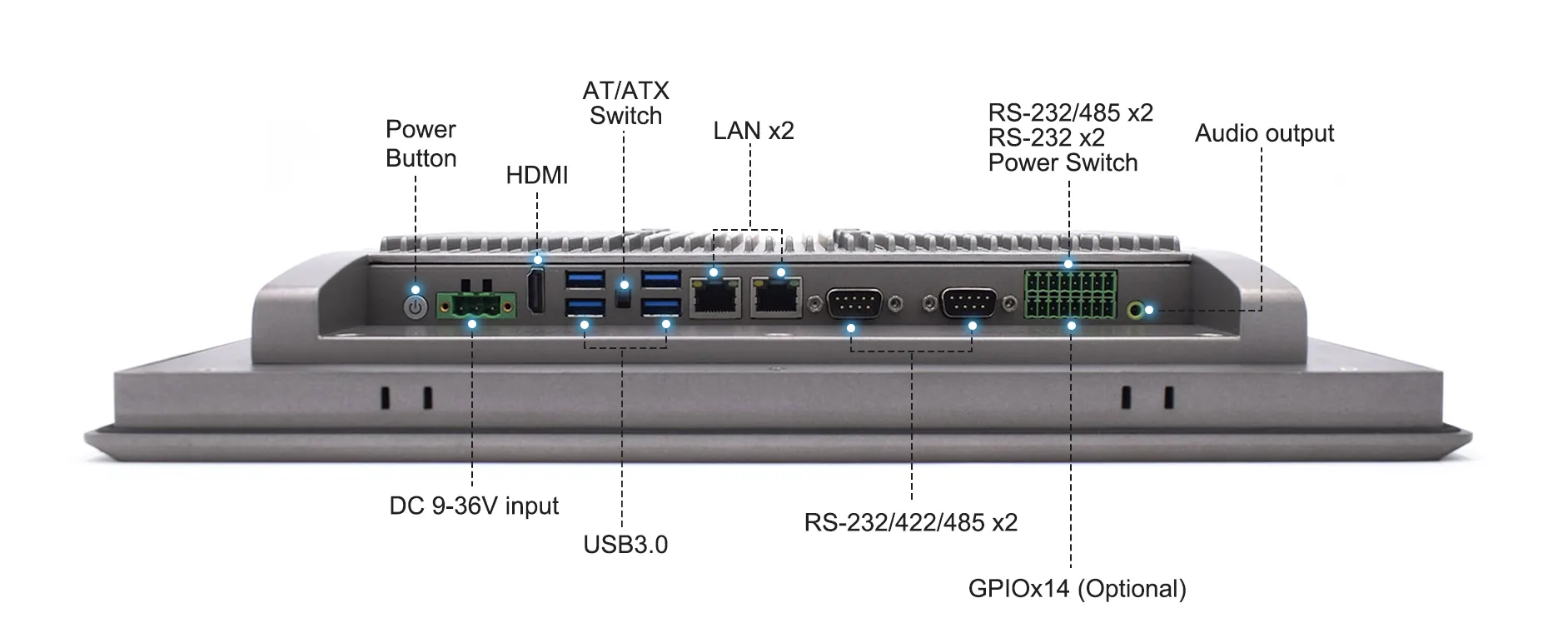

Rich Interfaces · Flexible Scalability
Empowering Digital & Intelligent Transformation Across Industries

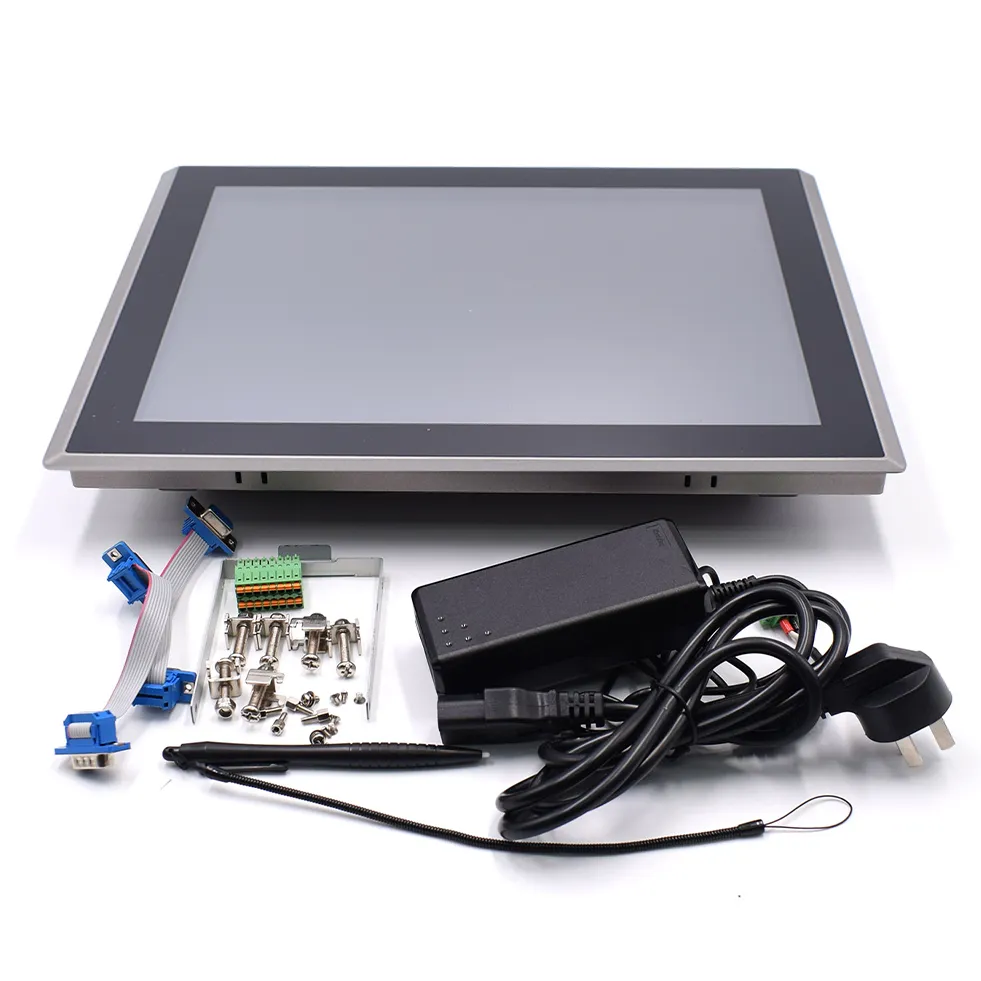

Packing list:
- 1 x Panel PC
- 1 x Power adapter(correct power plug based on buyer’s country)
- 1 x VESA bracket(some model not support)
- 1 x Sata power cable and data cable.(some model just support one Msata)
- 1 x Warranty card & user manual
Specifications
Processor | Intel Celeron J1900 4/6/7/8 gen Intel Core i3/i5/i7 CPU |
Memory | Onboard DDR3L 4G/DDR4 4G Optional 1 SODIMM Slot, max 8GB |
Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
Lan | 2*GbE RJ45 Intel@i211-AT |
Interface Port | 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface |
2*DB9-RS232/422/485 COM | |
2*3-wire RS232/485 COM phoenix terminal | |
2*3-wire RS232 COM phoenix terminal | |
1*Audio Line-out | |
2*8Ω 1W Speak out(Optional) | |
1*Phoenix Terminal DC 9-36V Input | |
1*AT/ATX Switch | |
1*HDMI Output | |
1*14bit GPIO(Optional) | |
WIFI | 1*full height Mini PCI-E, onboard SIM slot, support 3G/4G |
Watchdog timer | 1-255 seconds programmable setting |
Support OS | Windows 7/8/10, WES 7, Linux |
Resolution | 16.7M Color, 1024*768 |
Panel | TFT LCD (15.1″) |
Backlight Hour | (LED )50,000 |
Brightness | 350cd/m² |
Visual | -85~85°(H), -85~85°(V) |
Type | 5-wire resistance type |
Ttransmmittance | 78% |
Working Life | 250 g hits 10 million times |
Material | Aluminum alloy |
installation | VESA 75/ panel installation |
Dimension | Tablet 376.1*285.3*58.7MM(for 15.1”) Package 48.5 x 20.7 x 37.6 cm |
Weight | NW:4.5KG, GW:6.5kg |
