HST1001B Industrial Tablet PC
Categories: Industrial Panel PC
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HST1001B Industrial Tablet PC
Industrial-Grade Power for Smart Manufacturing
Multiple Core Options, Power to Meet Your Needs
⚡ Exceptional Energy Efficiency: Ultra-Low Power Consumption, Extended Battery Life
📖 Smooth Daily Usage: Effortlessly Handles Web Browsing, Document Editing, Online Learning & Video Playback
💰 Cost-Effective Choice: Budget-Friendly Pricing for Basic Productivity & Entertainment Needs
🚀Powerful Performance: High Clock Speed & Multi-Core Configuration, Effortlessly Handles Multitasking & Complex Applications
🎨 Creative Empowerment: Smoothly Runs Image Processing, Light Video Editing, Programming & Popular Online Games
🔄 Blazing-Fast Responsiveness: Dramatically Accelerates App Launch, File Loading & Task Switching Speeds
⚡ Exceptional Energy Efficiency: Ultra-Low Power Consumption, Extended Battery Life
📖 Smooth Daily Usage: Effortlessly Handles Web Browsing, Document Editing, Online Learning & Video Playback
💰 Cost-Effective Choice: Budget-Friendly Pricing for Basic Productivity & Entertainment Needs
🚀Powerful Performance: High Clock Speed & Multi-Core Configuration, Effortlessly Handles Multitasking & Complex Applications
🎨 Creative Empowerment: Smoothly Runs Image Processing, Light Video Editing, Programming & Popular Online Games
🔄 Blazing-Fast Responsiveness: Dramatically Accelerates App Launch, File Loading & Task Switching Speeds

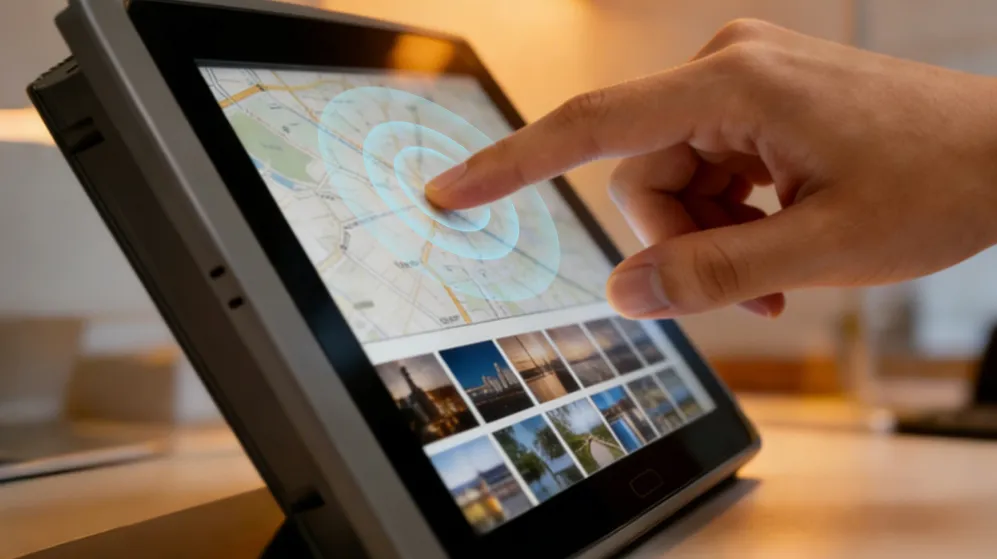

Built for Complex Environments, Stable & Reliable Display
- TFT-LCD Display with 1280×800 Resolution & 400 cd/m² Brightness – Crisp, Detailed Visuals.
- Dual Touch Options: 5-Wire Resistive (Excellent Anti-Interference, Glove-Friendly) or Projected Capacitive (PCAP, Multi-Touch, Smooth Responsiveness).

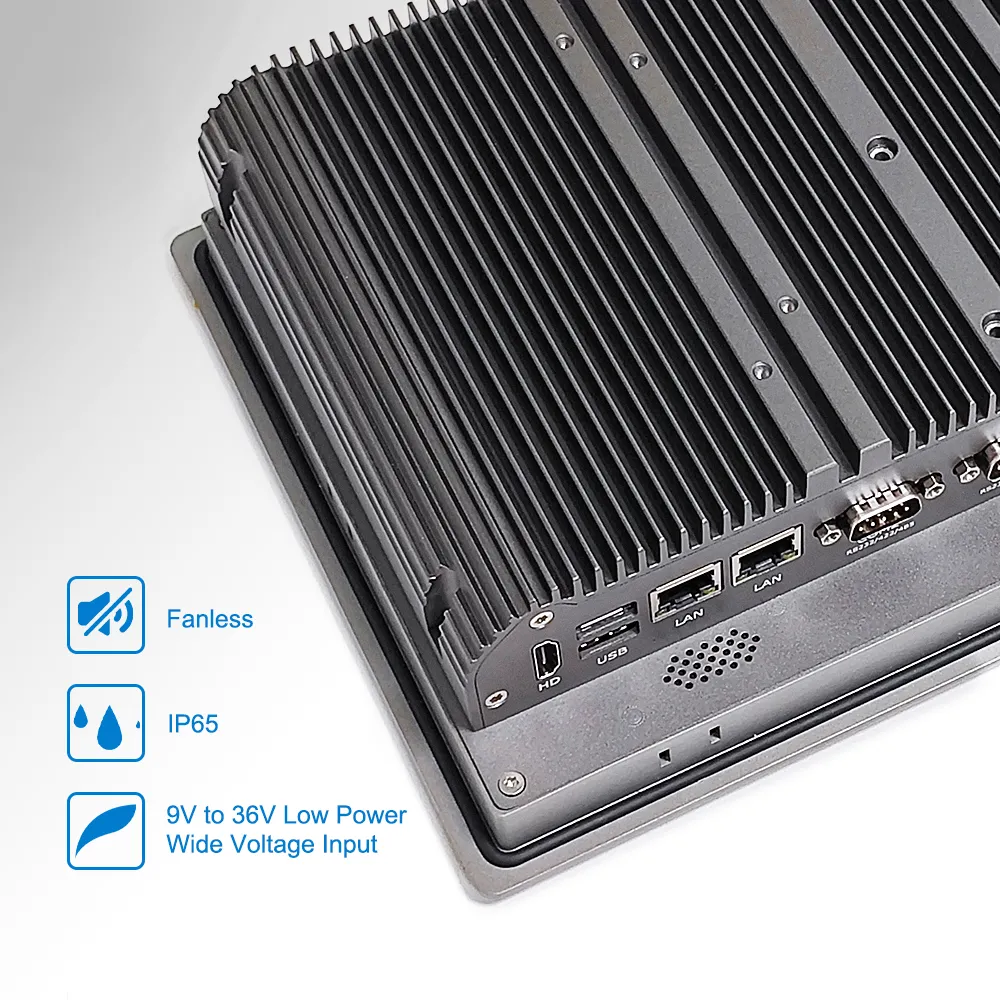

Full Aluminum Chassis, Rugged Against Harsh Environments
- Fanless Design: Zero Noise, Dust-Proof, Extended Lifespan & 24/7 Stable Operation
- IP65 Protection Rating: Flat Front Panel, Effectively Shields Against Water Splashes, Oil & Dust Intrusion
- Wide Temperature Range: Reliable Operation at Extreme Temperatures (-20°C to 60°C)
Flexible Deployment, Wide-Voltage Power Supply
- Wide Voltage Input: Supports DC 9–36V wide-range input, compatible with diverse power scenarios like forklifts and cabinets.

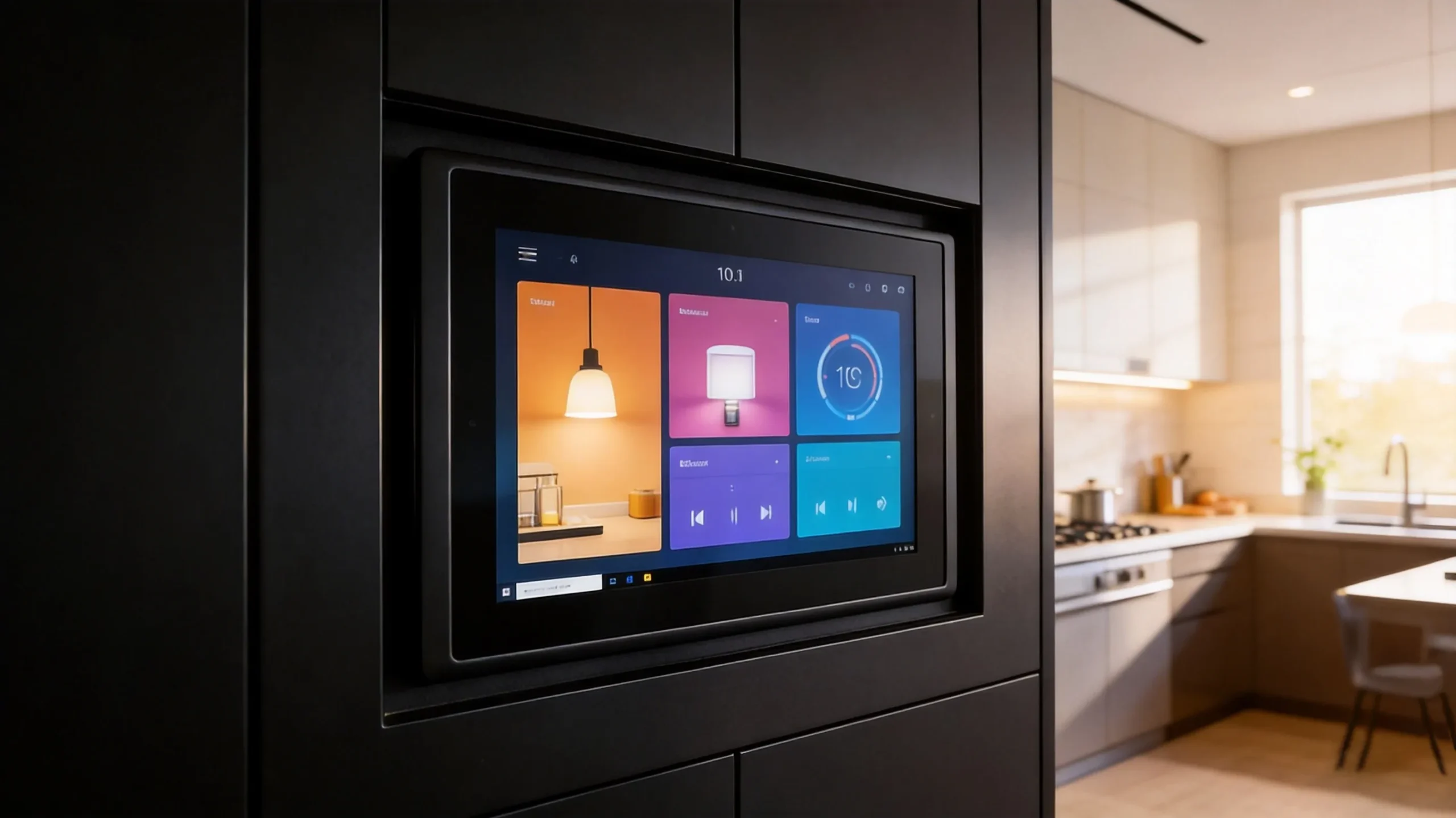

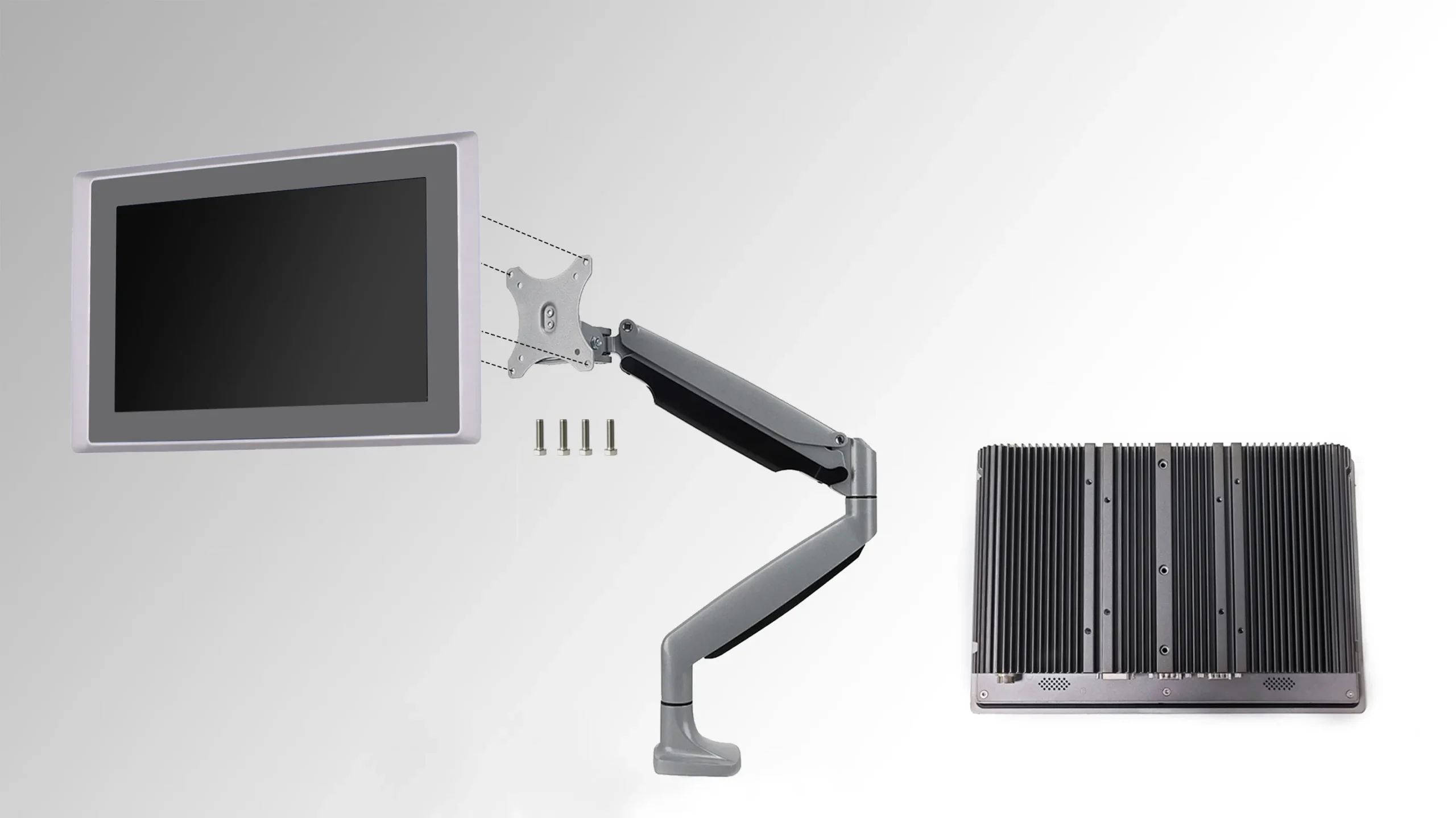

- Versatile Mounting Options: Compliant with standard VESA (75/100mm) wall mounting and panel mount installation, seamlessly integrating into your equipment.

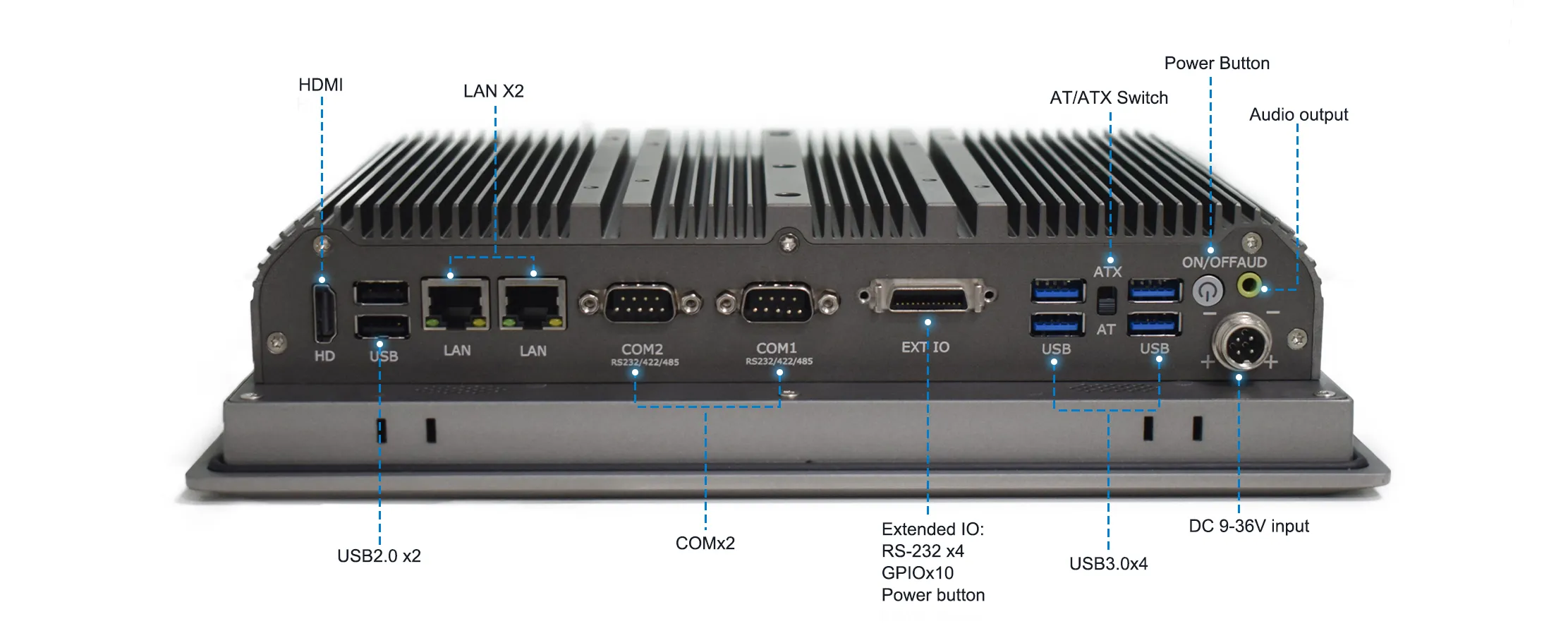

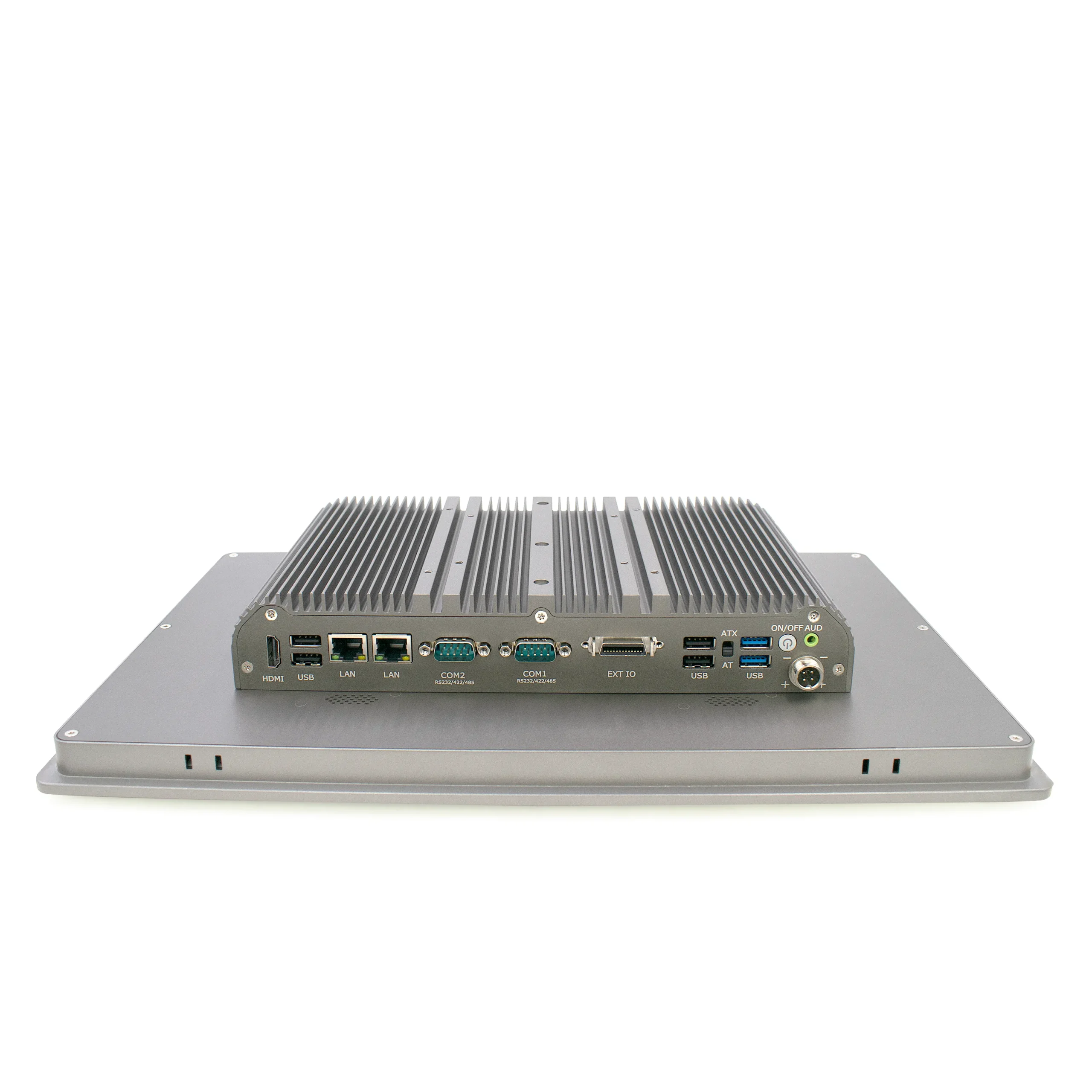

Abundant Ports, Effortless Expansion
Extended IO
RS-232 x4
GPIOx10
Power button
Network Interface
2 x 2.5GbE RJ45 Inteli225V
USB
4 × USB 3.0
2 × USB 2.0
Serial port
2 × RS232/422/485 serial ports, supporting industrial device connections
Multi-Scenario Use, Universal Compatibility
Specifications
Processor | Intel Celeron J1900 Intel Core 4/6/7/8 Gen-Intel i3/i75/i7 CPU |
Memory | Onboard DDR3L 4GB Optional 1 SODIMM Slot, max 8GB |
Storage | 1xM.2 2242/2260/2280 SATA 1XSATA(2.5″SATA) 1xM.2 2280 NVME |
Lan | 2*2.5 GbE RJ45 Intel® i225V (4 x2.5GbE RJ45 Intel i225V) |
Interface Port | 2*USB2.0, 4*USB3.0 |
2*DB-9 COM1&COM2, RS-232/422/485 | |
1*Audio Line-out | |
2*8Ω 1W Speak out (Optional) | |
1*AT/ATX Switch | |
1*HDMI | |
1*Expansion lO: Integrated 4-way 3-wire COM, 10-way GPlO, 1 remote switch | |
Watchdog timer | 1~65535 seconds programmable setting |
Support OS | Windows 7 /8/10, WES 7, LINUX |
Resolution | 1280*768 (optional 800×600) |
Panel | 12.1″ TFT LCD |
Backlight Hour | (LED ) 30,000 |
Brightness | 400cd/m² |
Visual | -85~85°(H), -85~85°(V) |
Type | 5-wire resistance type |
Ttransmmittance | 78% |
Working Life | 250 g hits 10 million times |
Material | Aluminum alloy |
installation | VESA 75/100 panel installation |
Dimension | Tablet 289.53*192.40*68.0MM (for 10.1”) Package 35.5 x 16.5x 31 cm |
Weight | GW:3.5kg |
