HST10.1 Industrial tablet pc
Categories: Industrial Panel PC
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
10.1 Industrial Tablet PC
Uncompromising Power. Industrial-Grade Resilience.
Blazing Performance, Effortless Complex Task Handling

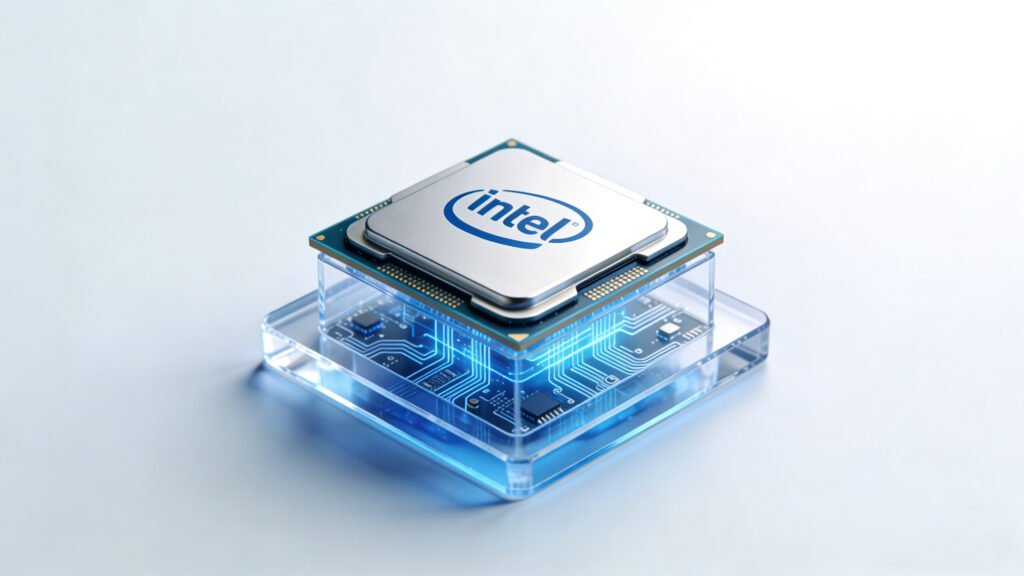

Intel Core i5/i7
DDR3L, up to 8 GB
1×MSATA; 1×M.2; 1×SATA
WIFI support
Bluetooth support
2×Gigabit RJ45
Intel UHD Graphics
4
Core
2.42GHz
Max Frequency
4
Threads
2.0GHz
Basic Frequency
2MB
Cache
10W
Basic Power
2
Core
2.6GHz
Max Frequency
4
Threads
1.6GHz
Basic Frequency
3MB
Cache
15W
Basic Power
2
Core
3.0GHz
Max Frequency
4
Threads
1.8GHz
Basic Frequency
4MB
Cache
15W
Basic Power

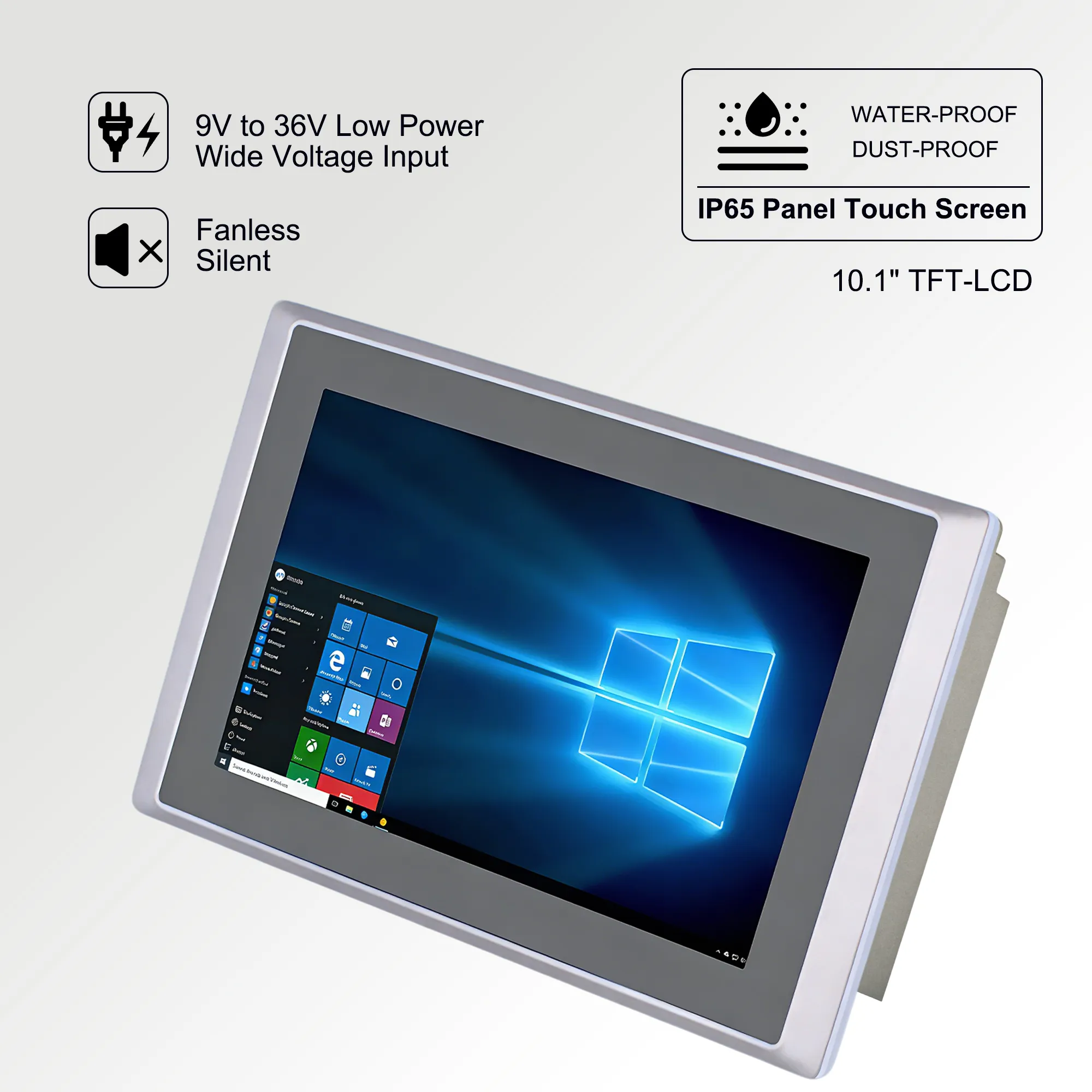

Steel-strong Body with Full-Range IP65 Protection.
- Dust & Water Resistance: Sealed chassis design easily withstands dust and water splashes
- Fanless Cooling: Large-area aluminum alloy back cover for heat dissipation, featuring silent operation, dust resistance and corrosion resistance, effectively reducing maintenance costs
- Shock & Drop Resistance: Industrial-grade housing material ensures stable connection and operation even when installed on heavily vibrating mechanical equipment

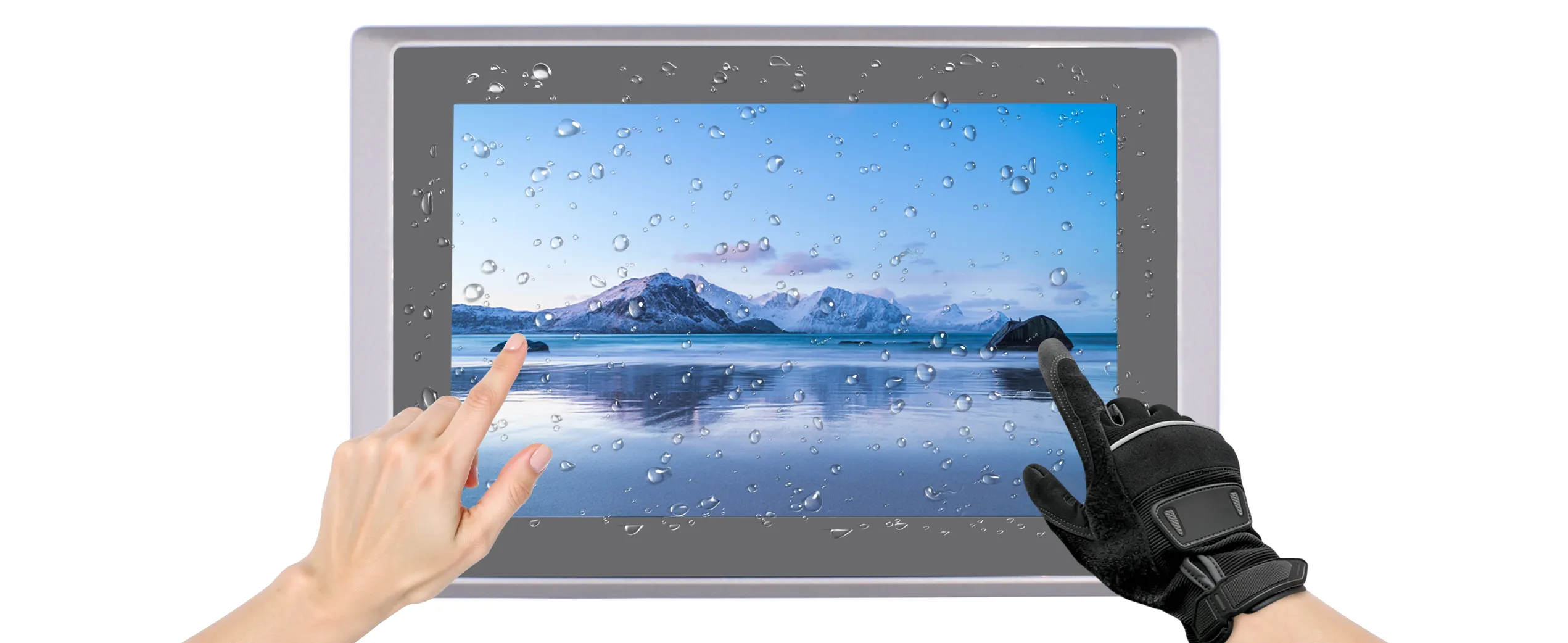

High-Definition Clarity. Responsive Touch.
The 10.1” 1280×800 IPS display offers wide viewing angles and high-brightness options for outdoor readability. The optimized 5-wire resistive touch screen boasts high precision, ensuring smooth performance even with industrial gloves or in damp conditions.

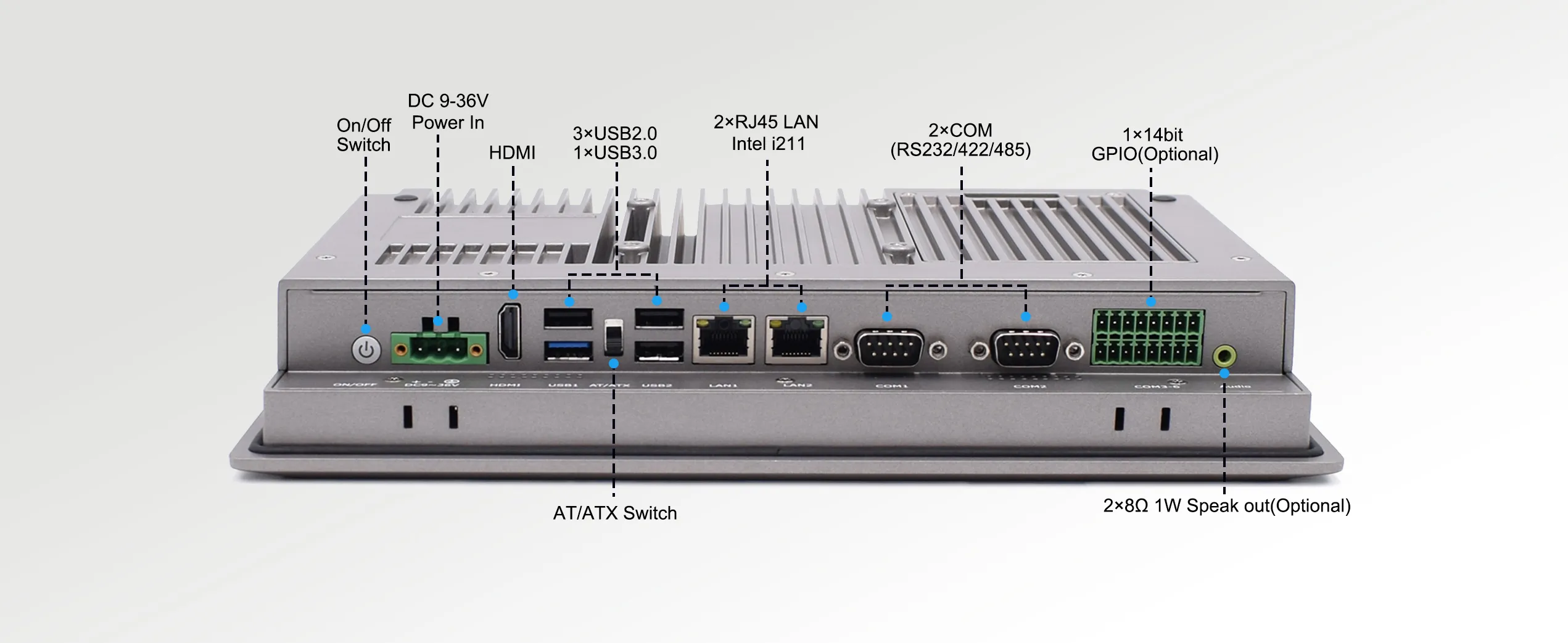

Versatile Industrial Interfaces, Seamless IoT Connectivity
No Adapters Required — Direct Connection to Industrial Sites. Standard-equipped with dual Gigabit Ethernet ports, RS232/485 serial ports, and multiple USB ports, with support for custom expansion as needed.
Flexible Mounting & Integration
Engineered to fit into your existing infrastructure with two robust mounting standards.

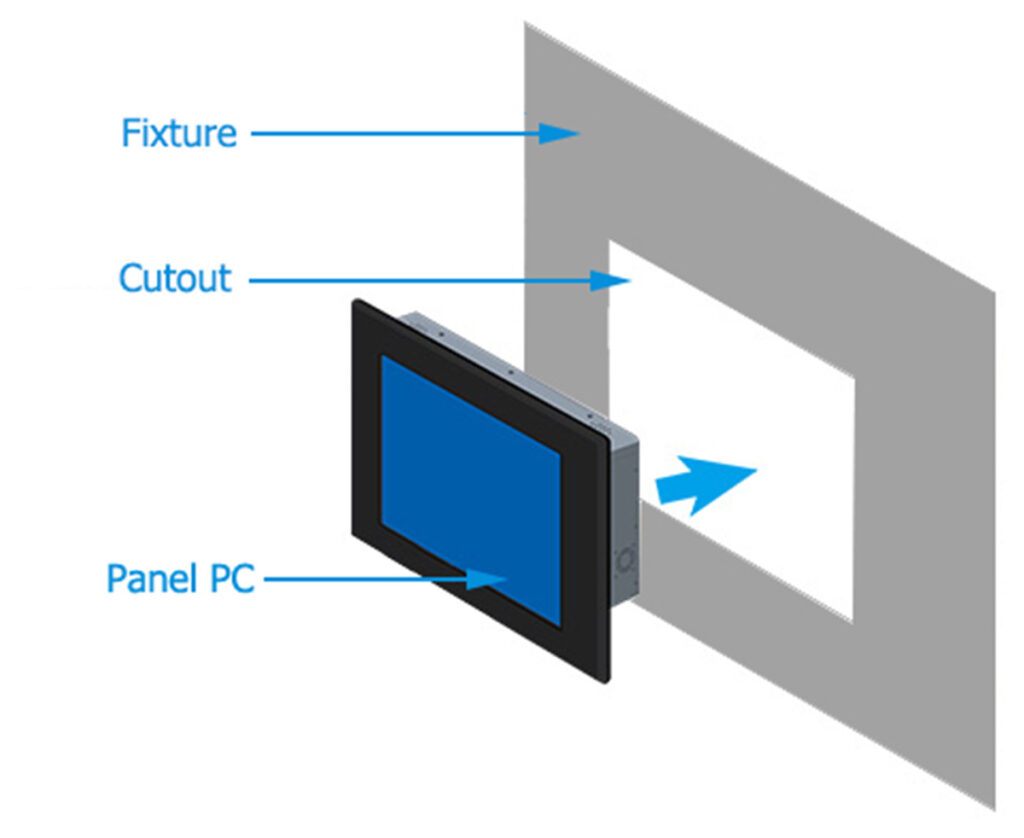

Flushed for Perfection: Industrial Panel Mounting
IP65 Frontal Protection: When panel-mounted, the front bezel provides a complete seal against water and dust ingress.
Vibration-Resistant: The heavy-duty clips ensure the tablet remains seated during intense machine vibrations.
Space-Saving: Ideal for thin-wall cabinets and space-constrained HMI applications.

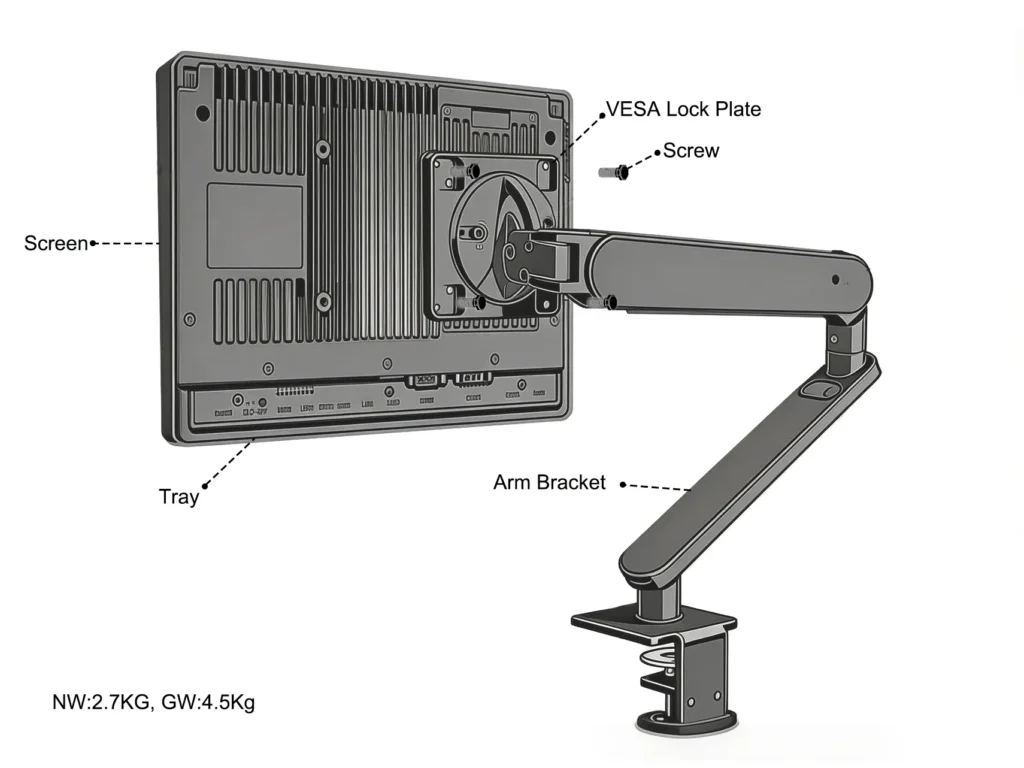

Universal Adaptability: VESA Mounting Standards
Standardized Compatibility: Works with 99% of industrial arms and stands (75mm).
Rapid Deployment: Quick-release compatibility for mobile workstations or field maintenance carts.
360° Ergonomics: Perfect for forklift terminals or overhead monitoring where adjustable viewing angles are critical.
Empowering Digital & Intelligent Transformation Across Industries
Specifications
Processor | Intel Celeron J1900/Intel Core i5 4200U/Intel Core i7 4500U |
Memory | Onboard DDR3L 4 GB Optional 1 SODIMM Slot, max 8GB |
Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
Lan | 2*GbE RJ45 Intel@i211-AT |
Interface Port | 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface |
2*DB9-RS232/422/485 COM | |
2*3-wire RS232/485 COM phoenix terminal | |
2*3-wire RS232 COM phoenix terminal | |
1*Audio Line-out | |
2*8Ω 1W Speak out(Optional) | |
1*Phoenix Terminal DC 9-36V Input | |
1*AT/ATX Switch | |
1*HDMI Output | |
1*14bit GPIO(Optional) | |
WIFI | 1*full height Mini PCI-E, onboard SIM slot, support 3G/4G |
Watchdog timer | 1-255 seconds programmable setting |
Support OS | Windows 7/8/10, Linux |
Resolution | 16.2M Color, 1280*800 ( 1024*600 optional) |
Panel | TFT LCD (support 10.1” 12.1” 15.1” 17”) |
Backlight Hour | (LED )30,000 |
Brightness | 400cd/m² |
Visual | -85~85°(H), -85~85°(V) |
Type | 5-wire resistance type |
Ttransmmittance | 78% |
Working Life | 250 g hits 10 million times |
Material | Aluminum alloy |
installation | VESA 75/ panel installation |
Dimension | Tablet 289.53*192.44*48.3MM(for 10.1”) Package 40.5 x 20.7 x 37.6 cm |
Weight | NW:2.7KG, GW:4.5kg |
