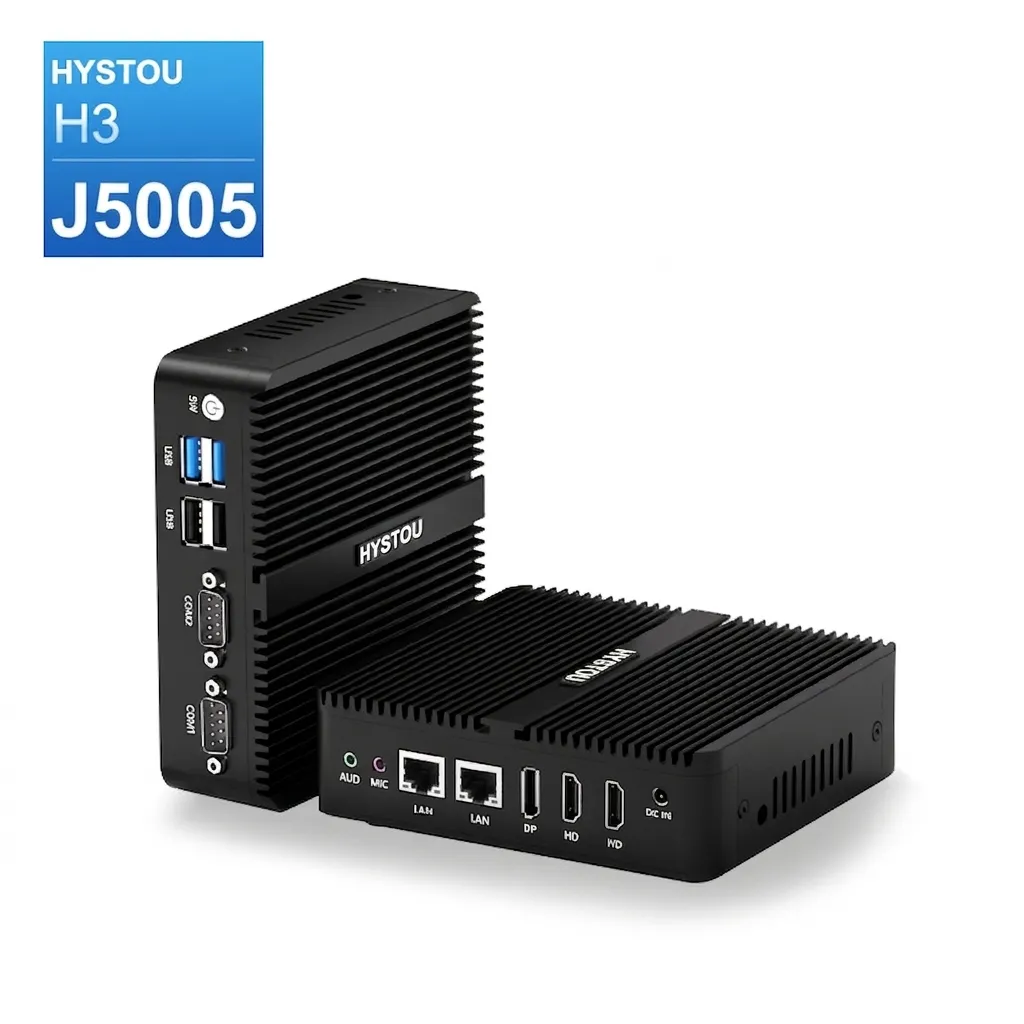

HYSTOU H3 Intel J5005 Fanless Industrial Mini PC
📦 Download Center: Get the latest drivers, motherboard documentation, and compliance certifications 🔧 Support Hub: Access troubleshooting guides optimized for industrial environments
- Specifications
| Category | Details |
|---|---|
|
Processor |
Intel J5005 (4C/4T, 1.5-2.8GHz) |
|
Memory |
1×DDR4 (max 32GB) |
|
Storage |
1×M.2280 slot， NVMe SSD, up to 2TB |
|
Graphics |
Intel UHD Graphics 605 |
|
Networking |
2×Gigabit Ethernet, optional WiFi 5/6, BT4.2/5.2 |
|
Operating System |
Win10/Win11/Linux/pfSense/OPNsense |
|
Power Supply |
12V 5A |
|
Dimensions |
135×127×39mm |
|
Weight |
0.6kg (net), 1.2kg (with accessories) |
|
Material |
Aluminum alloy |
|
l/O ports |
2×USB 2.0 |
|
Internal Slot |
1×M.2 Socket (Key E), supports Type 2230. |
|
Kensinaton Lock |
No |
|
Accessory |
VESA mount |
|
Working environment temperature |
-20°C~60°C |
|
Cooling system CPU fan DB (MAX) |
Fanless, 0db |
🛠️ Hardware & Configuration
What processor powers this Mini PC, and what is its power consumption?
This model is powered by the Intel® Pentium® Silver J5005 processor (4 Cores, 4 Threads, 1.50 GHz base frequency, up to 2.80 GHz burst). It features an ultra-low Thermal Design Power (TDP) of just 10W, ensuring highly efficient performance with minimal energy consumption.
What are the memory and storage expansion capabilities?
The system includes 1 x SO-DIMM slot supporting DDR4 2400MHz memory, upgradable to a maximum of 8GB. For storage, it provides flexible dual-drive support: 1 x mSATA SSD slot and 1 x 2.5-inch SATA interface for an additional HDD or SSD.
Does this model use a cooling fan?
No, it features a 100% fanless design. It utilizes a fully enclosed aluminum alloy chassis for passive heat dissipation, ensuring silent operation, zero dust accumulation, and enhanced reliability for long-term use.
🔌 Interfaces & Display
What display outputs are available, and does it support dual monitors?
The device is equipped with 1 x HDMI and 1 x VGA port. It fully supports dual independent displays, making it ideal for multitasking, digital signage, or complex monitoring setups.
Why does this model feature Dual LAN ports?
It comes equipped with 2 x Realtek 8111H Gigabit Ethernet ports. This dual-LAN configuration is perfect for network routing, hardware firewalls (like pfSense), industrial IoT gateways, or environments requiring separate internal and external networks.
What other external interfaces does this PC offer?
To meet versatile industrial and commercial needs, the I/O panel includes:
- 2 x USB 3.0 and 2 x USB 2.0 ports
- 2 x RS232 COM ports for legacy hardware and PLC connections
- 1 x Audio out & Mic in
- 1 x Mini-PCIe slot (for an optional WiFi/Bluetooth module)
💻 Systems & Functions
Which operating systems are compatible with this hardware?
The system is highly compatible with Windows 10 as well as various Linux distributions (including pfSense, Ubuntu, CentOS, etc.), making it highly adaptable for both standard desktop use and specialized routing/firewall applications.
Does it support automated power management for industrial use?
- Yes, the BIOS supports essential automation features, including Auto Power On (automatically boots up when power is restored after an outage), Wake-on-LAN (WOL), and PXE Boot.
What is the operating temperature range?
Built for harsh environments, this industrial Mini PC operates reliably in extreme temperatures ranging from -20°C to 60°C (-4°F to 140°F).
📏 Physical Specifications
What are the dimensions and weight of the chassis?
The Mini PC features an ultra-compact footprint, measuring just 136 x 126 x 43 mm. It has a net weight of 0.75 kg and a gross package weight of 1.5 kg, allowing it to fit into tight spaces effortlessly.
What material is the chassis made of?
The casing is constructed entirely from a rugged, black aluminum alloy, providing excellent durability, heat dissipation, and electromagnetic interference (EMI) shielding.
What are the power supply requirements?
The device requires a DC 12V power input and comes with a compatible power adapter.
📦 Package Content
What is included in the standard package?
The standard box includes everything you need for immediate deployment:
- 1 x Fanless Mini PC
- 1 x Power Adapter
- 1 x Power Cord
- 1 x VESA Mount bracket (with screws for monitor or wall mounting)
