Best Budget Fanless Mini PC (Multi-Network Port Design) for Network Security Devices: The Ultimate Guide
In the rapidly evolving world of cybersecurity, reliance on standard consumer hardware is no longer sufficient. For network administrators, SMB owners, and home lab enthusiasts, the hardware backbone of their security infrastructure is critical. This brings us to the rising star of the industry: the Fanless Mini PC.
Specifically, the Multi-Network Port Design has become a prerequisite for running advanced firewall operating systems, such as pfSense, OPNsense, Proxmox, and OpenWRT.
Today, we are reviewing two market-leading solutions from Hystou that strike the perfect balance between performance, energy efficiency, and cost:
- The Industrial Specialist: Hystou P09B 4L (N100/DDR5)
- The Connectivity King: Hystou N100 6-Port Firewall PC
Why “Fanless” and “Multi-Port” Are Non-Negotiable
Before diving into the models, it is essential to understand the SEO of your network hardware—Stability, Efficiency, and Organization.
1. The Fanless Advantage
A Fanless Mini PC uses passive cooling via a conductive chassis (usually aluminum).
- Zero Noise: Perfect for quiet offices or living rooms.
- High Reliability: With no moving parts, there is no risk of fan failure.
- Dust Resistance: Without airflow sucking in dust, the internal components last significantly longer in industrial or dusty environments.

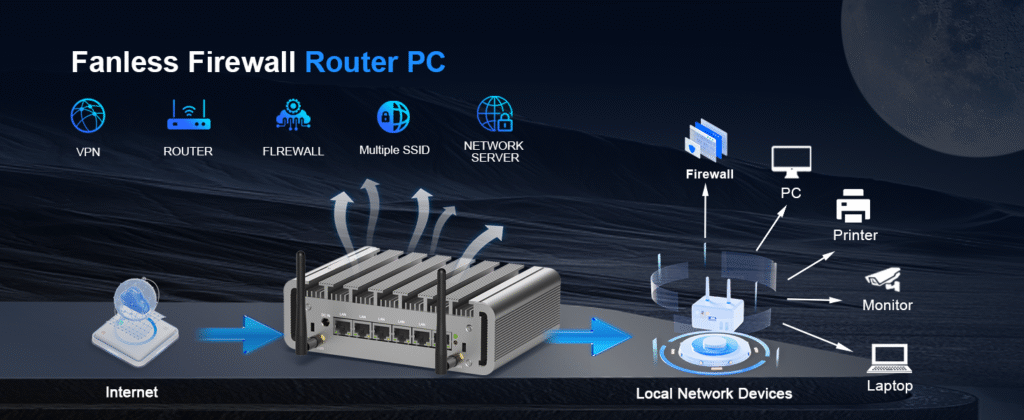

2. The Power of Multi-Network Port Design
A standard PC has one LAN port. A security device needs distinct physical paths for data:
- WAN (Wide Area Network): Direct connection to your modem.
- LAN (Local Area Network): Connection to your internal switch/Wi-Fi.
- DMZ & Failover: Extra ports allow you to isolate public servers or connect a second ISP for redundancy.

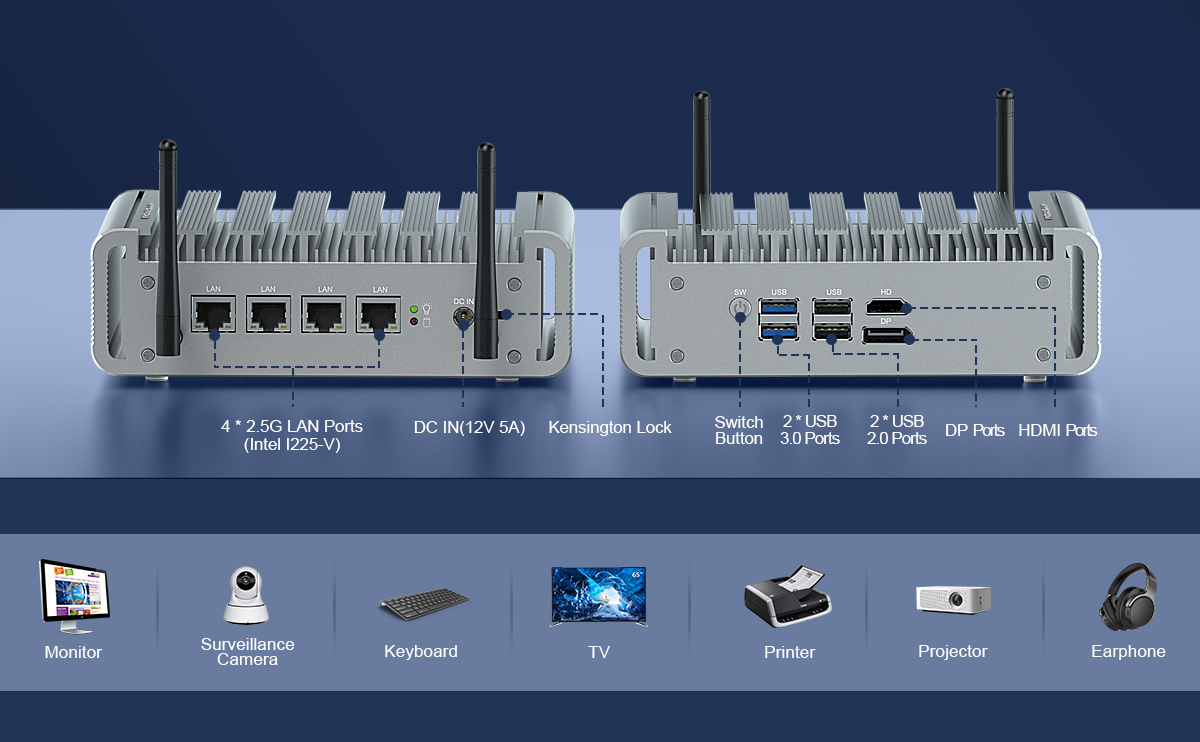

Deep Dive: Hystou P09B-4L Industrial Firewall
Tailored Configurations for Optimal Performance
Best For: Factories, Harsh Environments, and Minimalist Home Labs.
The Hystou P09B is built like a tank. It prioritizes durability and core performance over excessive expansion.
Core Specs & Performance
- CPU: Intel Alder Lake N100 (Quad-Core, 6W TDP).
- RAM: DDR5 Support (4800MHz).
- LAN: 4x Intel i226-V 2.5GbE.
Why It Stands Out
The inclusion of DDR5 memory is crucial. Firewall software performs deep packet inspection (DPI). Faster RAM allows the system to process logs and filter traffic with lower latency compared to older DDR4 systems.
The Industrial Design features a heavily finned top case. This maximizes heat dissipation, ensuring the N100 processor maintains peak turbo frequencies even under 24/7 load.
Deep Dive: Hystou N100 6-Port (6x 2.5G)
Best For: Virtualization (Proxmox), Small Offices, and Advanced Routing.
If your network topology is complex, the Hystou N100 6-Port is the ultimate budget solution.
The “6-Port” Use Case
Why do you need 6 ports?
- ISP Load Balancing: Combine two 1Gbps internet connections into one robust network.
- Physical Segmentation: Assign Port 3 to “IoT Devices” (Cameras), Port 4 to “Guest Wi-Fi,” and Port 5 to “Office Data,” physically preventing hackers from jumping across networks.
- NAS Direct Link: Use the 2.5GbE speed to transfer files directly to a storage server without clogging the main switch.
Storage & Expansion
This model typically supports M.2 NVMe SSDs, ensuring that boot times for your OS (like pfSense) are instantaneous and log writing is swift.
Technical Analysis: Why Intel N100 is the “Game Changer”
In the past, budget firewalls used Intel Celeron J4125 chips. The Intel N100 (featured in both Hystou models) is a massive leap forward.
- Performance: The N100 is roughly 40-50% faster than the J4125 in single-core performance, which is vital for VPN encryption (WireGuard/OpenVPN).
- Energy Efficiency: Built on the “Gracemont” architecture (Intel 7 process), it delivers this performance while sipping only 6 to 15 watts of power.
- AES-NI: Native encryption acceleration means your VPN speed is limited by your internet bandwidth, not your hardware.
Comparison: P09B vs. N100 6-Port
| Feature | Hystou P09B-4L | Hystou N100 6-Port |
Processor | Intel N100 (Alder Lake) | Intel N100 (Alder Lake) |
Ethernet Ports | 4x Intel 2.5GbE | 6x Intel 2.5GbE |
Memory Tech | DDR5 (Faster) | DDR5 (Faster) |
Chassis Style | Industrial Rugged (Heavy Fins) | Compact Consumer/Pro |
Ideal Deployment | Wiring Closets, Factories | Desktops, Server Racks |
Primary Benefit | Durability & Heat Management | Connectivity & Expansion |
Software Compatibility
Both units are x86-64 architecture, meaning they are compatible with almost all major operating systems:
- Firewalls: pfSense CE, OPNsense, OpenWRT, Sophos XG Home.
- Virtualization: Proxmox VE, VMware ESXi (Note: Requires i226-V driver support).
- General: Windows 11 Pro, Ubuntu, CentOS.
FAQ: Frequently Asked Questions
Q: Can these devices handle Gigabit Internet?
A: Yes. With Intel 2.5GbE ports and the N100 CPU, both models can easily route 1Gbps and even 2.5Gbps WAN speeds with firewall rules enabled.
A: Yes. With Intel 2.5GbE ports and the N100 CPU, both models can easily route 1Gbps and even 2.5Gbps WAN speeds with firewall rules enabled.
Q: Do these come with Wi-Fi?
A: Most Hystou Mini PCs have a Mini-PCIe or M.2 slot for a Wi-Fi card, but for a security device, it is recommended to use the Ethernet ports with a dedicated Wireless Access Point (AP) for better coverage and security.
A: Most Hystou Mini PCs have a Mini-PCIe or M.2 slot for a Wi-Fi card, but for a security device, it is recommended to use the Ethernet ports with a dedicated Wireless Access Point (AP) for better coverage and security.
Q: Is 8GB RAM enough for a firewall?
A: Yes. For pure firewall use (pfSense), 8GB is overkill (4GB is usually plenty). However, if you plan to use IDS/IPS (Suricata) or run Proxmox with multiple VMs, 16GB or 32GB is recommended.
A: Yes. For pure firewall use (pfSense), 8GB is overkill (4GB is usually plenty). However, if you plan to use IDS/IPS (Suricata) or run Proxmox with multiple VMs, 16GB or 32GB is recommended.
Conclusion
Choosing the Best Budget Fanless Mini PC comes down to your specific port requirements.
- For maximum durability and industrial reliability, the Hystou P09B 4L is the winner.
- For maximum network flexibility and virtualization, the Hystou N100 6-Port offers unbeatable value.
Upgrade your network security today with Hystou’s efficient, silent, and powerful multi-port solutions.
