HST1701 Industrial Tablet PC
Categories: Industrial Panel PC
- 3-Year Warranty
- 24/7 Tech Support
- Certificate
HST1701 Touch Screen Panel PC
Rugged Precision. Industrial Reliability.
Uncompromising Performance & Scalability
Tailor your processing power to match your industrial demands. Whether you need energy-efficient operation or high-performance multitasking, the HST1701 delivers. Processor Flexibility: Choose from cost-effective Intel Celeron J1900 or powerful 4th/6th/7th/8th Gen Intel Core i3/i5/i7 CPUs.

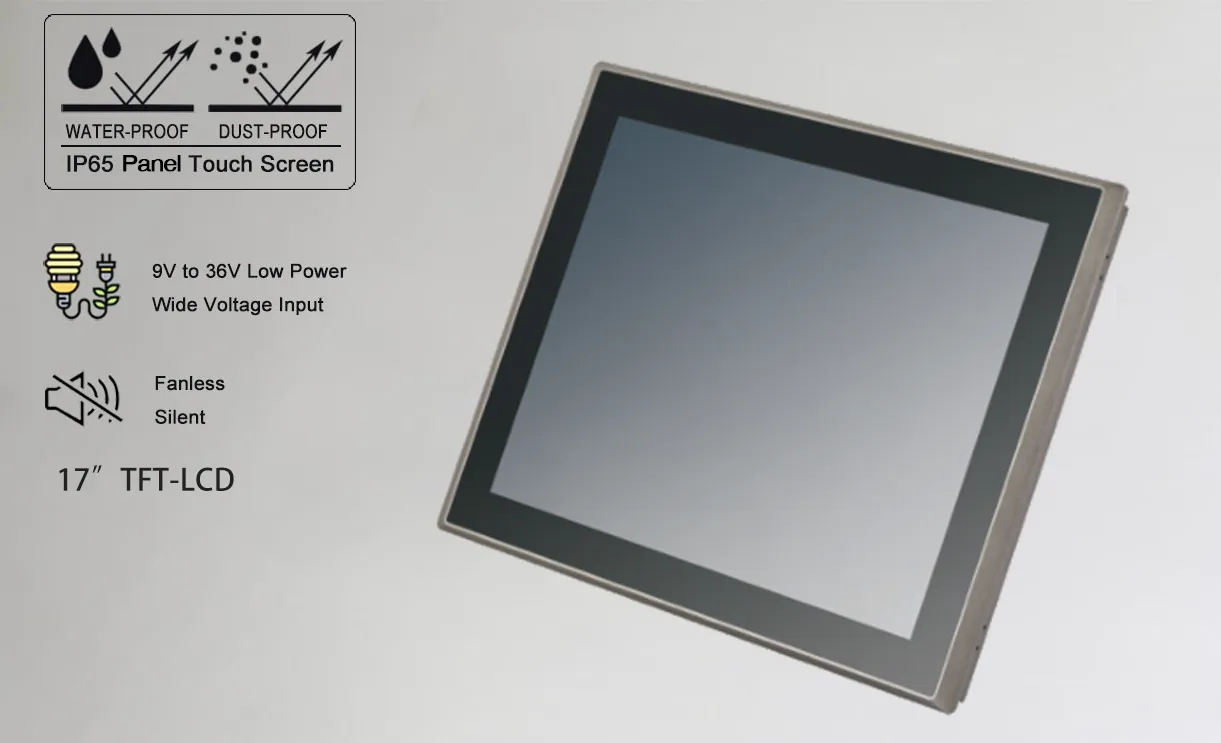

Built to Survive the Toughest Elements
- Fanless Architecture: Zero noise, low power consumption, and reduced maintenance costs.
- IP65 Rated Front: Full plane touch screen protected against water jets and dust ingress.
- Wide Temperature Range: Operates reliably from -20°C to 60°C (-4°F to 140°F).
- Power Stability: 9V~36V wide voltage input ensures stability even with fluctuating power sources.
Crystal Clear Visuals, Precise Interaction

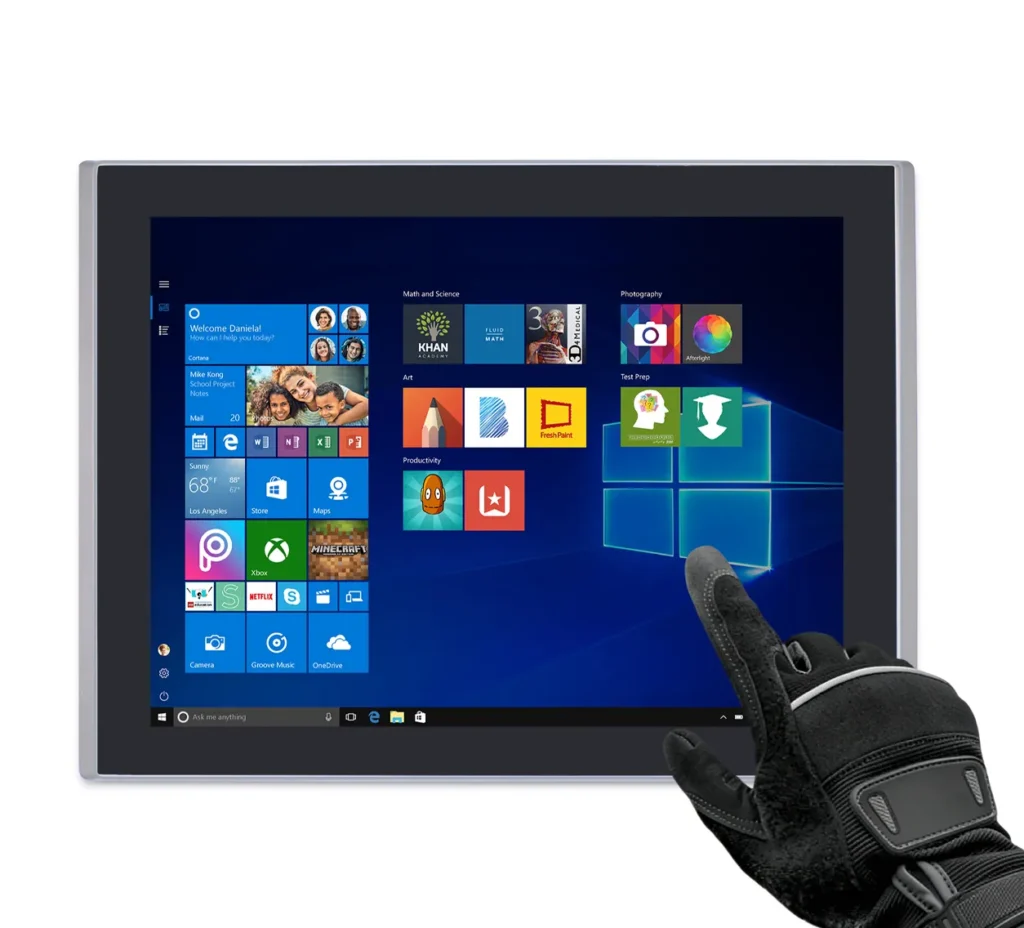

Experience precision with a 17-inch TFT-LCD industrial display. The 5-wire resistive touch technology ensures accurate input even when wearing gloves, making it ideal for factory floors.
Mounting Solutions for Every Scenario

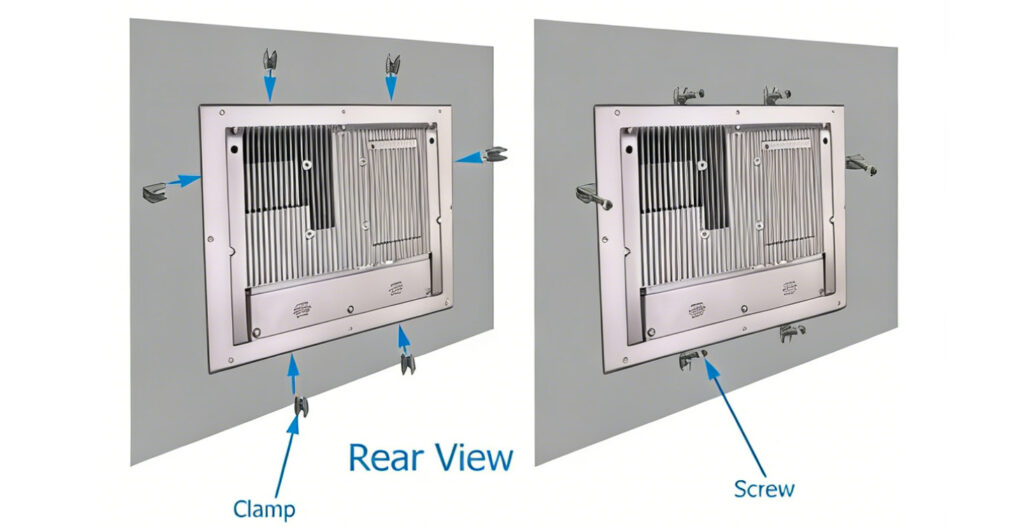

Panel Mount (Embedded):
Seamless Integration: Ideal for kiosks and control cabinets. The flat-panel design sits flush with your equipment surface.
- Cut-out Dimensions: 387.5 x 316.6 mm (Refer to the user manual)
- Accessories: Mounting clips included for secure vibration-proof installation.
VESA Mount:
Flexible Ergonomics: Standard VESA 75mm support allows compatibility with a wide range of industrial arms, wall mounts, and stands.
- Compact Form Factor:
Optimized Footprint: Despite the large 17” display, the slim aluminum profile (58.1mm depth) saves valuable space in tight enclosures.

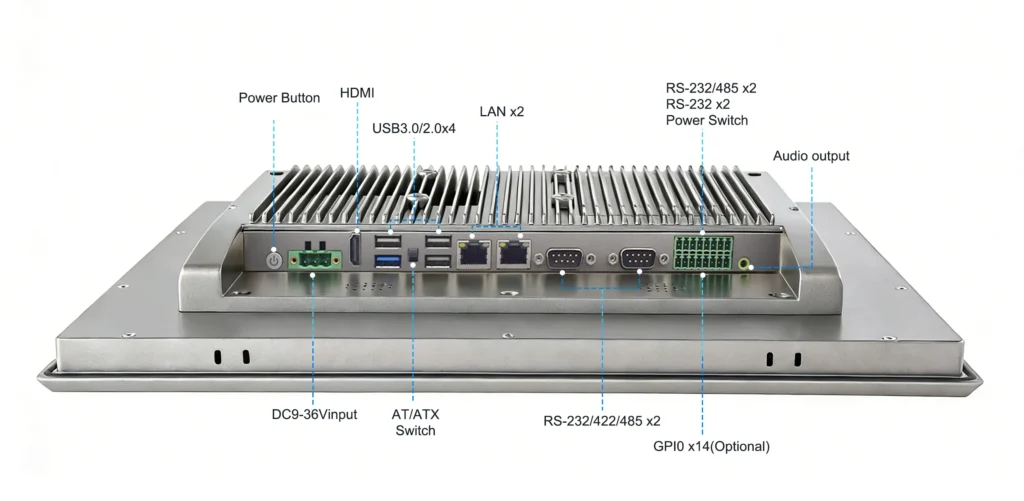

Rich I/O & Expansion Capability
Bridge the gap between legacy machinery and modern IoT infrastructure. The HST1701 offers a comprehensive array of ports to ensure seamless data transmission and peripheral control.
Empowering Digital & Intelligent Transformation Across Industries
Packing list:
- 1 x Panel PC
- 1 x Power adapter(correct power plug based on buyer’s country)
- 1 x VESA bracket(some model not support)
- 1 x Sata power cable and data cable.(some model just support one Msata)
- 1 x Warranty card & user manual
Specifications
Processor | Intel Celeron J1900 4/6/7/8 gen Intel Core i3/i5/i7 CPU |
Memory | Onboard DDR3L 4GB / DDR4 8GB optional Optional 1 SODIMM Slot, max 16GB |
Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
Lan | 2*GbE RJ45 Intel@i211-AT |
Interface Port | 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface |
2*DB9-RS232/422/485 COM | |
2*3-wire RS232/485 COM phoenix terminal | |
2*3-wire RS232 COM phoenix terminal | |
1*Audio Line-out | |
2*8Ω 1W Speak out(Optional) | |
1*Phoenix Terminal DC 9-36V Input | |
1*AT/ATX Switch | |
1*HDMI Output | |
1*14bit GPIO(Optional) | |
WIFI | 1*full height Mini PCI-E, onboard SIM slot, support 3G/4G |
Watchdog timer | 1-255 seconds programmable setting |
Support OS | Windows 7/8/10, WES 7, Linux |
Resolution | 16.2M Color, 1280*1024 |
Panel | TFT LCD (17″) |
Backlight Hour | (LED )30,000 |
Brightness | 250cd/m² |
Visual | -85~85°(H), -85~85°(V) |
Type | 5-wire resistance type |
Ttransmmittance | 80% |
Working Life | 250 g hits 10 million times |
Material | Aluminum alloy |
installation | VESA 75/ panel installation |
Dimension | Tablet 400.66*329.76*58.1MM(for 17”) Package 48.5 x 20.7 x 37.6 cm |
Weight | NW:5.7KG, GW:7kg |
