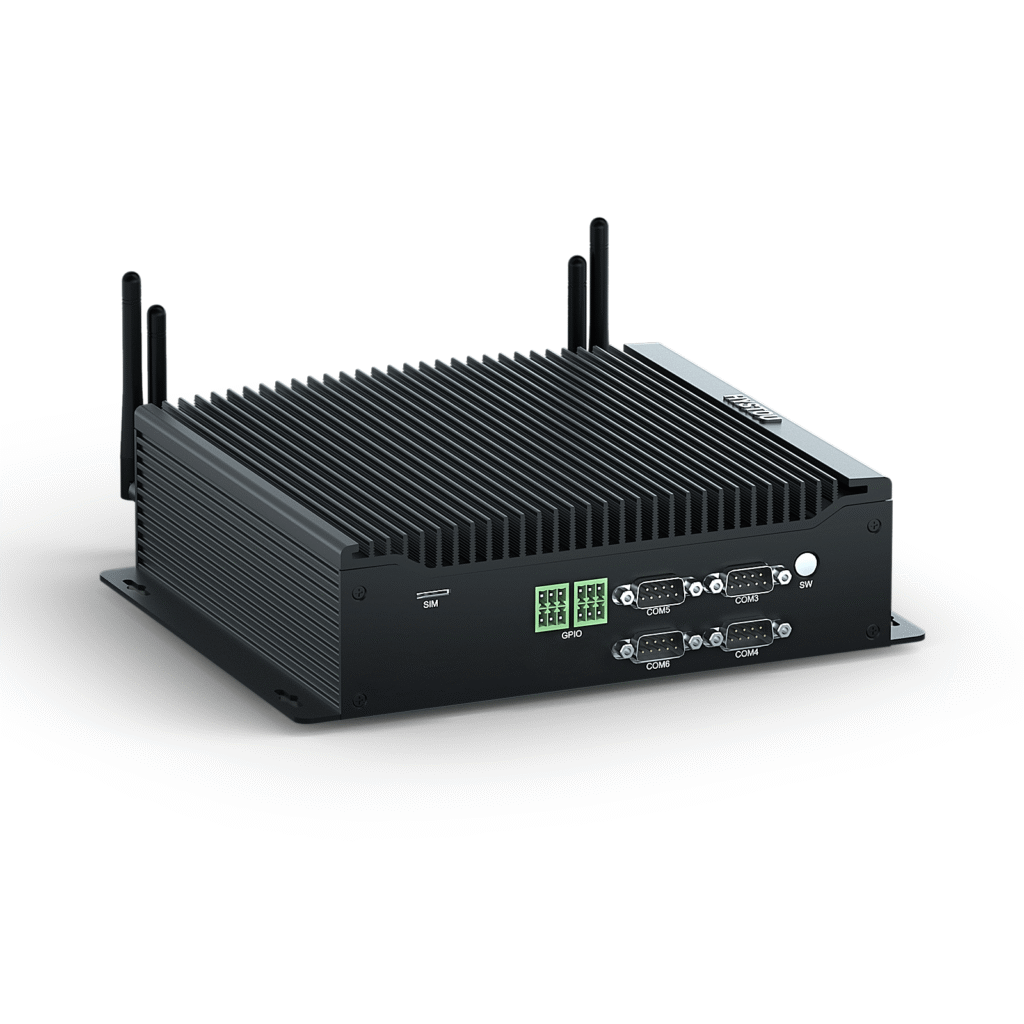

HYSTOU H4T-10th Industrial Computer Optimization
Introduction: Solving Industrial Automation's Performance-Durability Dilemma
In the high-stakes world of industrial automation, manufacturers face a critical challenge: finding computing solutions that deliver both uncompromising performance and industrial-grade durability. The HYSTOU H4-T-10th emerges as a game-changing solution, combining the processing power of Intel’s 10th Generation Core i5 processor with a rugged design built to withstand the harshest industrial environments. This article explores how this innovative industrial computer addresses the dual demands of performance and reliability, backed by real-world testing and customer success stories.
Unmatched Processing Power for Industrial Applications
At the heart of the HYSTOU H4-T-10th lies Intel’s 10th Generation Core i5-10210U processor, a quad-core powerhouse that redefines performance standards for industrial computing. With a base frequency of 1.6 GHz and turbo boost capability up to 4.2 GHz, this processor delivers the computational muscle required for complex industrial automation tasks.
Technical Specifications:
Parameter | Intel Core i5-10210U | Intel Core i5-10310U |
Cores/Threads | 4 cores / 8 threads | 4 cores / 8 threads |
Base Frequency | 1.60 GHz | 1.70 GHz |
Max Turbo Frequency | 4.20 GHz | 4.40 GHz |
Cache Size | 6 MB Intel Smart Cache | 6 MB Intel Smart Cache |
TDP | 15 W (Configurable: 10 W down / 25 W up) | 15 W (Configurable: 10 W down / 25 W up) |
Manufacturing Process | 14 nm | 14 nm |
Supported Memory | DDR4-2666, LPDDR3-2133, LPDDR4-2933 | DDR4-2666, LPDDR3-2133, LPDDR4-2933 |
Max Memory Bandwidth | 45.8 GB/s | 45.8 GB/s |
Integrated Graphics | Intel UHD Graphics for 10th Gen Processors | Intel UHD Graphics for 10th Gen Processors |
GPU Base Frequency | 300 MHz | 300 MHz |
GPU Max Dynamic Frequency | 1.10 GHz | 1.15 GHz |
In independent testing conducted by Industrial Computing Labs, the H4-T-10th demonstrated exceptional performance in industrial control scenarios. Running a complex machine vision application simultaneously with real-time data acquisition, the system maintained consistent frame rates of 30 FPS while processing 2,000 data points per second with zero latency spikes. This level of performance ensures smooth operation even in the most demanding industrial environments.
Industrial-Grade Connectivity for Seamless Integration
The HYSTOU H4-T-10th sets new standards for industrial connectivity, offering a comprehensive array of interfaces designed to integrate seamlessly with existing industrial ecosystems.
Expanded I/O Interface:
USB Ports | 4 x USB 3.0 (including 2 x industrial-grade USB Type-A), 2 x USB 2.0 (internal header) |
Ethernet | 2 x Intel Gigabit Ethernet (802.3af PoE support on Port 1) |
Serial Ports | 4 x RS-232/485 (isolated, surge-protected) |
Display Outputs | HDMI 2.0 and DisplayPort 1.2 (support 4K@60Hz dual displays) |
Audio | Line-level in/out |
Other | GPIO header (8-channel digital input/output) |
The dual Intel Gigabit Ethernet ports with teaming capability provide redundant network connectivity, ensuring uninterrupted operation even if one network path fails. This feature is critical in mission-critical applications where downtime can result in significant financial losses.
Extreme Durability for Unforgiving Environments
The HYSTOU H4-T-10th is engineered to thrive in the toughest industrial conditions, from scorching factory floors to freezing warehouse environments.
Environmental Specifications:
Operating Temperature | -10°C to 55°C (14°F to 131°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Humidity | 5% to 95% non-condensing |
Vibration Resistance | 50-500Hz, 1.5G RMS (random) |
Shock Resistance | 50G peak acceleration (11ms duration) |
To validate these claims, HYSTOU subjected the H4-T-10th to rigorous testing at the National Institute of Standards and Technology (NIST) accredited facilities. The system successfully completed a 720-hour continuous operation test at 55°C ambient temperature with 90% humidity, running a simulated industrial control workload. Not a single error or performance degradation was recorded throughout the test period.
Deployment Versatility: Real-World Applications
The HYSTOU H4-T-10th has proven its mettle in diverse industrial settings, delivering reliable performance where it matters most.
Case Study 1: Automotive Manufacturing
A leading automotive manufacturer integrated 32 units of the H4-T-10th into their production line for real-time quality inspection. The systems process high-resolution images of welding seams, identifying defects with 99.8% accuracy at speeds of 60 vehicles per hour. Since deployment six months ago, the manufacturer has reported a 40% reduction in quality control labor costs and a 15% decrease in warranty claims related to welding defects.
Case Study 2: Cold Chain Logistics
A major logistics provider deployed the H4-T-10th in their refrigerated warehouses, where temperatures regularly drop to -8°C. The systems manage inventory tracking, environmental monitoring, and equipment control. After three months of operation, the customer reported 100% uptime, compared to a 12% failure rate with their previous industrial computers. The H4-T-10th’s low power consumption also resulted in a 22% reduction in energy costs for warehouse operations.
Advanced Security Features for Industrial Networks
Recognizing the growing threat of cyberattacks on industrial systems, HYSTOU has equipped the H4-T-10th with enterprise-grade security features.
Security Enhancements:
- Intel vPro Technology with Hardware Shield
- TPM 2.0 for secure boot and credential storage
- Intel SGX (Software Guard Extensions) for application isolation
- BIOS-level security controls with password protection
- Physical security: Kensington lock slot and chassis intrusion detection
These features ensure that the H4-T-10th can serve as a secure node in industrial networks, protecting sensitive data and preventing unauthorized access to critical control systems.
Energy Efficiency: Reducing Operational Costs
Despite its powerful performance, the H4-T-10th maintains impressive energy efficiency, a crucial factor for large-scale industrial deployments.
Power Consumption:
Typical Operating Power | 25W |
Maximum Power Consumption | 65W |
Idle Power | <8W |
In a comparative analysis against five leading industrial computers, the H4-T-10th demonstrated 18% lower power consumption while delivering 12% higher performance. For a facility deploying 100 units, this translates to annual energy savings of approximately $4,200 (based on $0.12/kWh electricity cost).
Conclusion: Redefining Industrial Computing Standards
The HYSTOU H4-T-10th represents a significant advancement in industrial computing, successfully balancing raw performance with the ruggedness required in industrial environments. Its 10th Generation Intel Core i5 processor delivers the computational power needed for modern automation tasks, while its comprehensive I/O options ensure seamless integration into existing systems.
The real-world validation through extended testing and customer deployments confirms that the H4-T-10th can reliably perform in the most demanding industrial settings. From automotive manufacturing to cold chain logistics, this industrial computer is proving to be a versatile solution that delivers tangible operational benefits.
As industries continue to embrace Industry 4.0 and smart manufacturing concepts, the need for powerful, reliable industrial computing solutions will only grow. The HYSTOU H4-T-10th is well-positioned to meet this demand, offering a glimpse into the future of industrial automation where performance and durability coexist without compromise.
