HYSTOU N100 Fanless Firewall Mini PC with 6×2.5G Ethernet Ports
Categories: Office Mini PCs
- Processor: Intel Celeron N100
- Graphics Card: Integrated Graphics
- Memory: 1×DDR5 SODIMM slot (max 32GB, 4800MHz)
- Storage: 1×M.2 NVMe SSD + 1×SATA 3.0 HDD/SSD
- Network: 6×2.5G Ethernet (Intel I225/I226-V), Wi-Fi 5 + BT 4.2
- Additional Features: Fanless design, aluminum alloy body for heat dissipation， supports VESA wall mounting and DIN rail installation， Compatible with pfSense/OPNsense/Windows/Linux systems， 3-year hardware warranty + lifetime technical support
HYSTOU N100 Fanless Firewall Mini PC | 6×2.5G Ethernet Ports
HYSTOU N100 Fanless Firewall Mini PC with 6×2.5G Ethernet ports – ideal network security appliance for small businesses and home labs. Intel Celeron N100 processor delivers 20% faster throughput than J4125, ensuring silent 24/7 operation.
Key Features
- Powerful & Efficient Processing

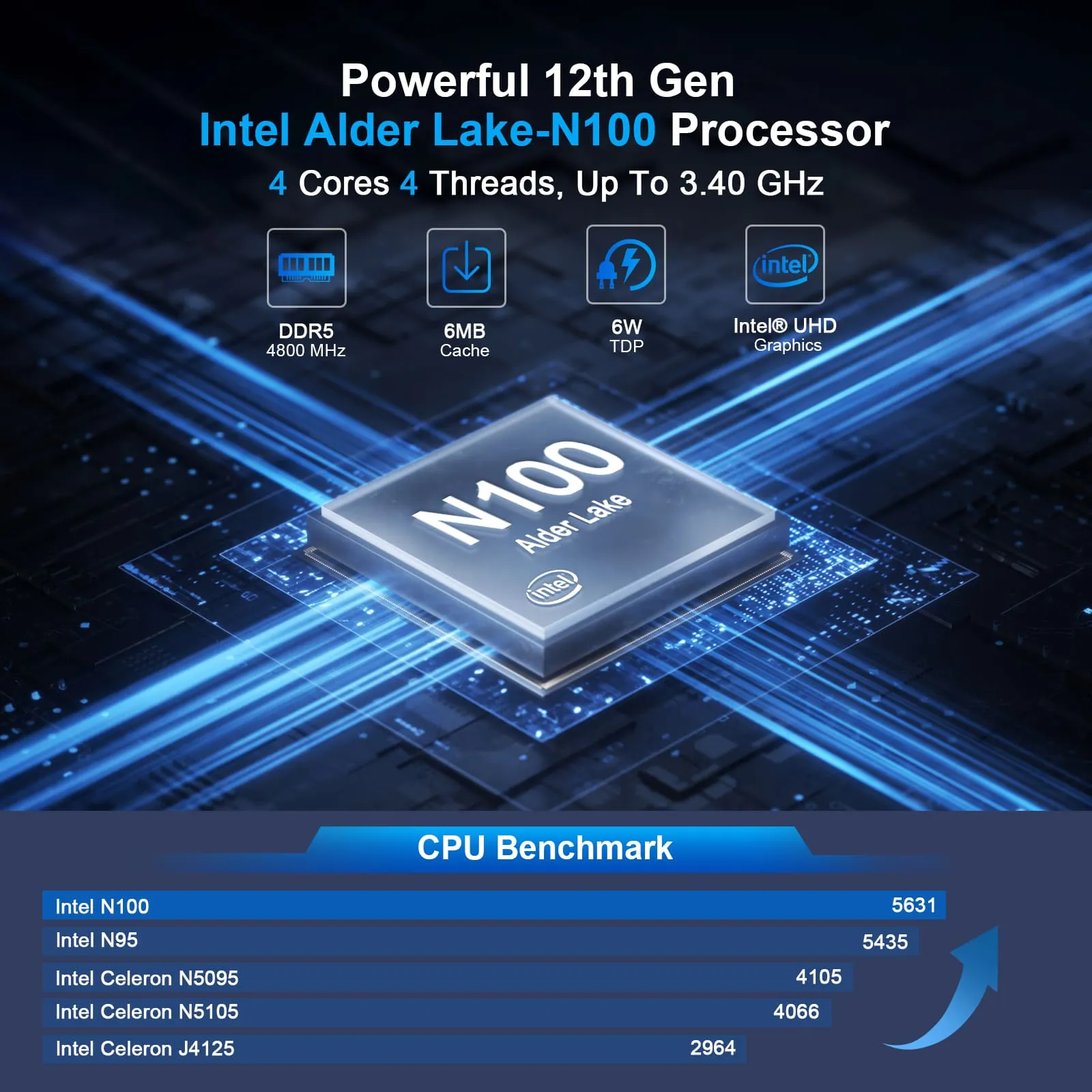

Equipped with Intel Celeron N100 (4 cores, 4 threads, up to 3.40 GHz), 6M cache, and 6W TDP, the P09B balances performance and energy efficiency. It outperforms legacy J4125 CPUs by 20% in network throughput tests, ensuring smooth firewall operations even under heavy loads.
- Enterprise-Grade Network Connectivity

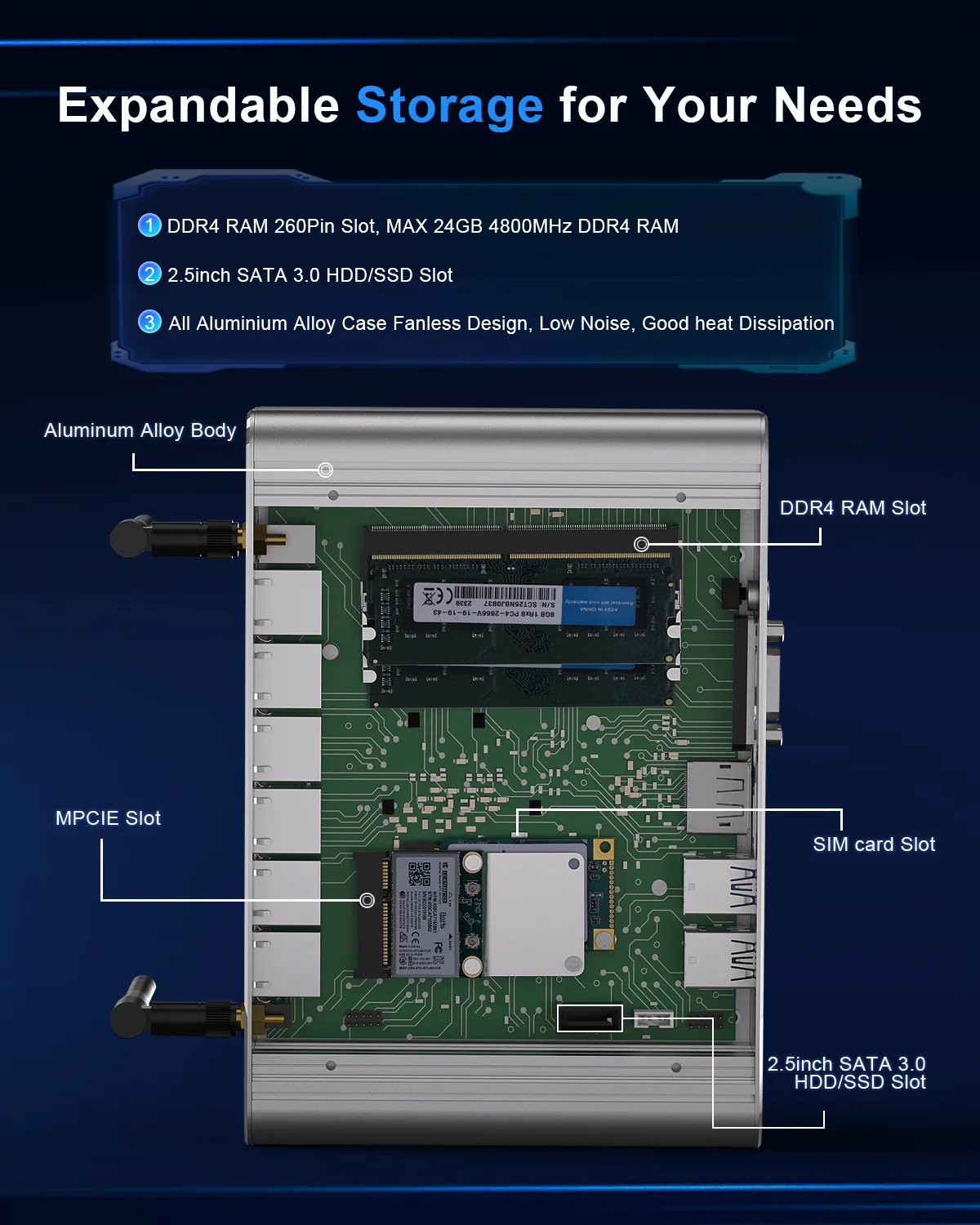

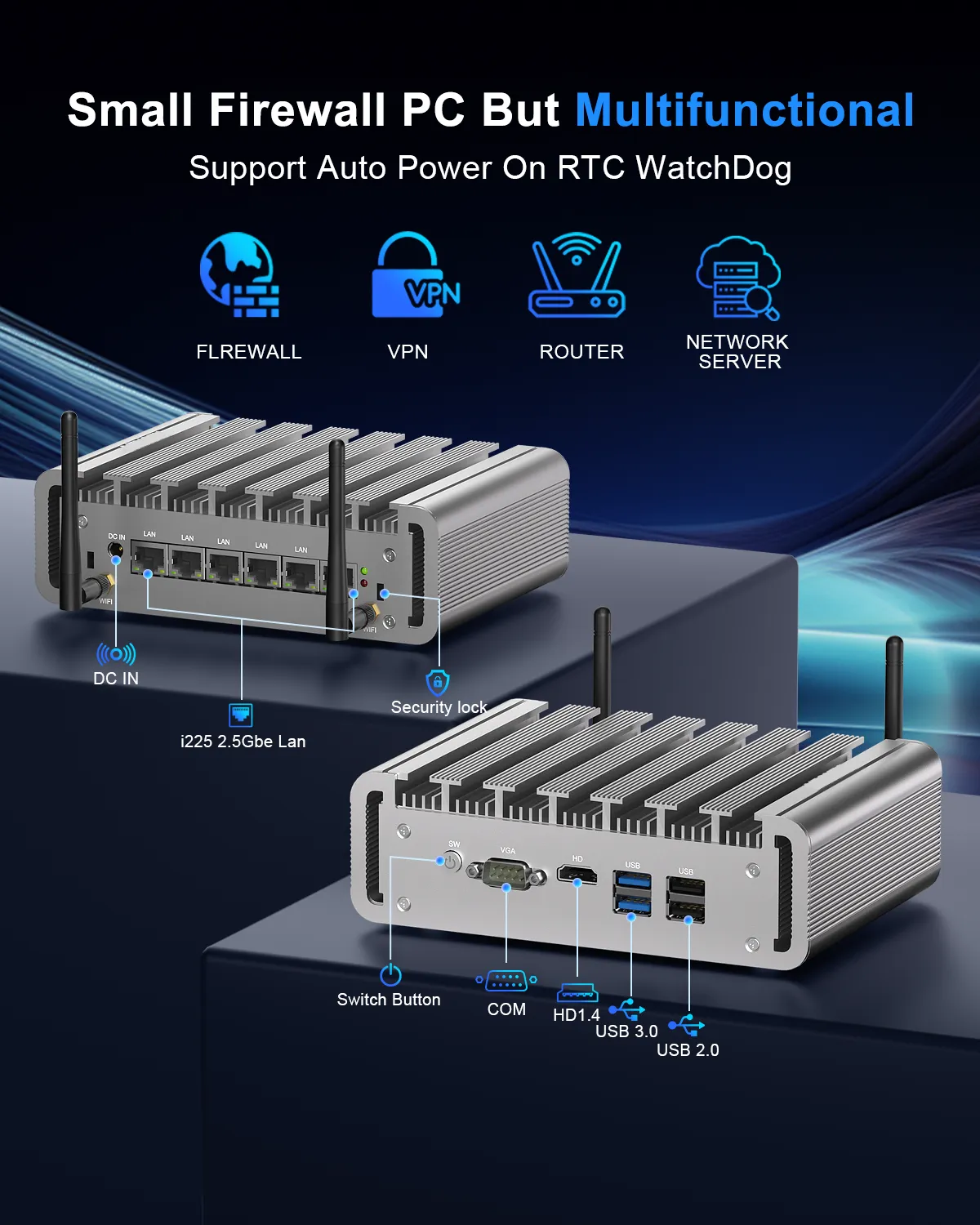

6x Intel I225/I226-V 2.5G Ethernet ports enable high-speed LAN/WAN routing, while dual Wi-Fi antennas (802.11ac) support flexible wireless deployment. The device also features M.2 and SATA slots for expandable storage, accommodating NVMe SSDs for faster data access.
Multi-Zone Network Isolation
Six independent physical Ethernet ports enable granular network segmentation without the need for additional hardware. Ideal for isolating:- DMZ (Demilitarized Zone) for public servers
- Office LAN for employee workstations
- IoT Network for smart devices
- Guest Wi-Fi with limited access
- Industrial Control Systems in Manufacturing Environments
- IP Surveillance cameras and security systems
This hardware-level isolation reduces attack surfaces and simplifies compliance with regulations such as PCI DSS (Payment Card Industry) and GDPR.
- Versatile Installation & Durability
The aluminum alloy body dissipates heat efficiently without fans, supporting 24/7 operation. It includes VESA mounting brackets, DIN rail kits, and desktop placement options, fitting seamlessly into industrial racks or home setups.
Technical Specifications
| Category | Details |
|---|---|
| CPU | Intel Celeron N100 (4C/4T, 3.40 GHz Turbo, 6M Cache) |
| Memory | 1x DDR5 SODIMM slot (max 32GB, 4800MHz) |
| Storage | 1x M.2 NVMe SSD + 1x SATA 3.0 HDD/SSD |
| Networking | 6x 2.5G Ethernet (I225/I226-V), Wi-Fi 5 + BT 4.2 |
| Power | 12V 5A DC input |
| Operating Systems | pfSense, OPNsense, Windows 10/11, Linux (Ubuntu/Debian), ESXi |

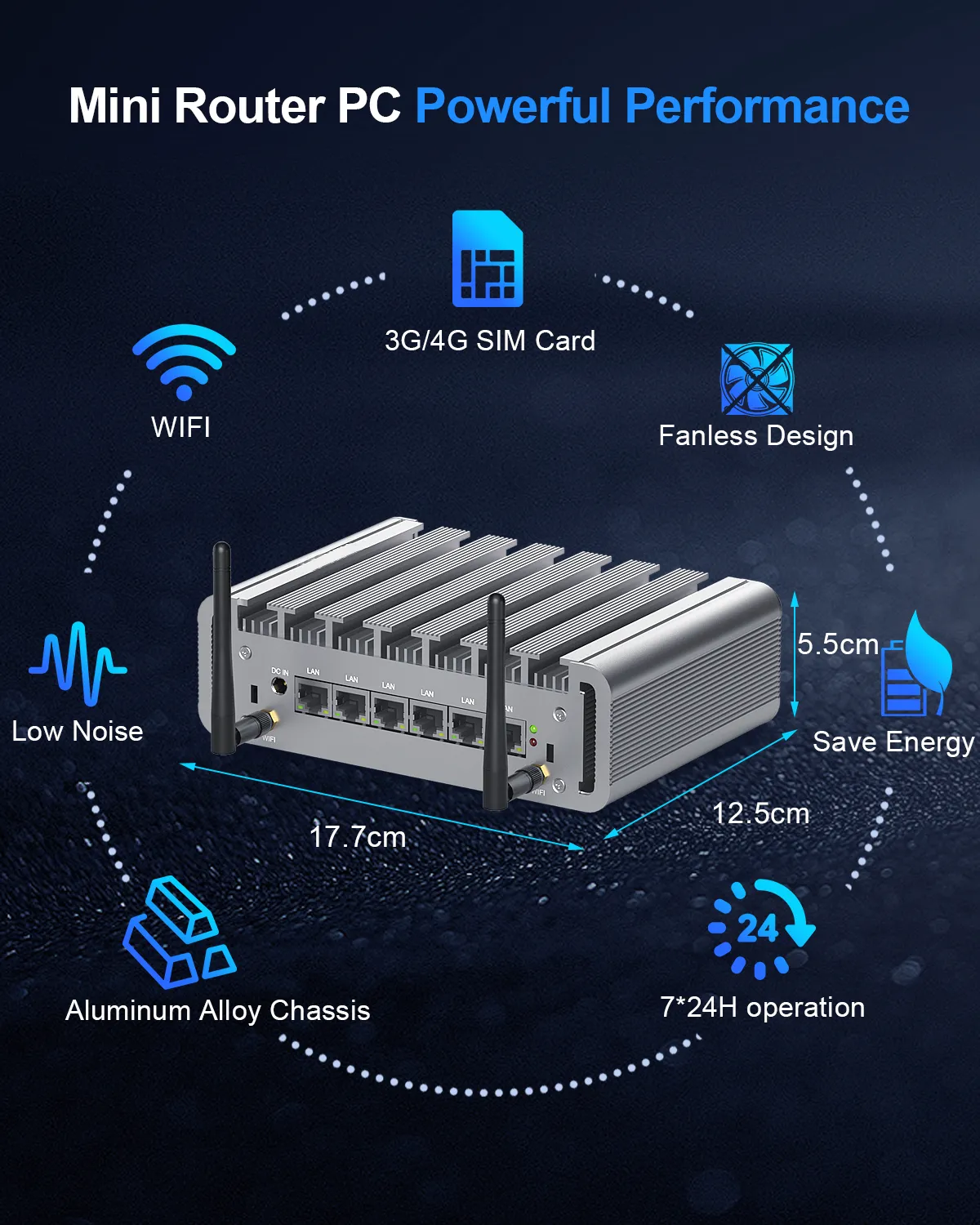

| Dimensions | 177mm × 125mm × 55mm (6.97″ × 4.92″ × 2.17″) |
| Weight | 1.3kg (net), 2.0kg (gross with accessories) |
Technical Specifications
Ideal for small-to-medium businesses (SMBs), remote offices, and industrial environments, the P09B excels as:
- A high-performance firewall/router
- A VPN gateway for secure remote access
- A network monitoring appliance
- An edge computing node in IoT deployments
What's Included
HYSTOU P09B N100 Fanless Mini PC
- 12V 5A Power Adapter
- SATA Cable
- VESA Mounting Kit + Screws
- DIN Rail Bracket
- 2x Wi-Fi Antennas
- Quick Start Guide
HYSTOU provides a 3-year warranty and lifetime technical support for all firewall appliances.
Enhanced Connectivity & Display

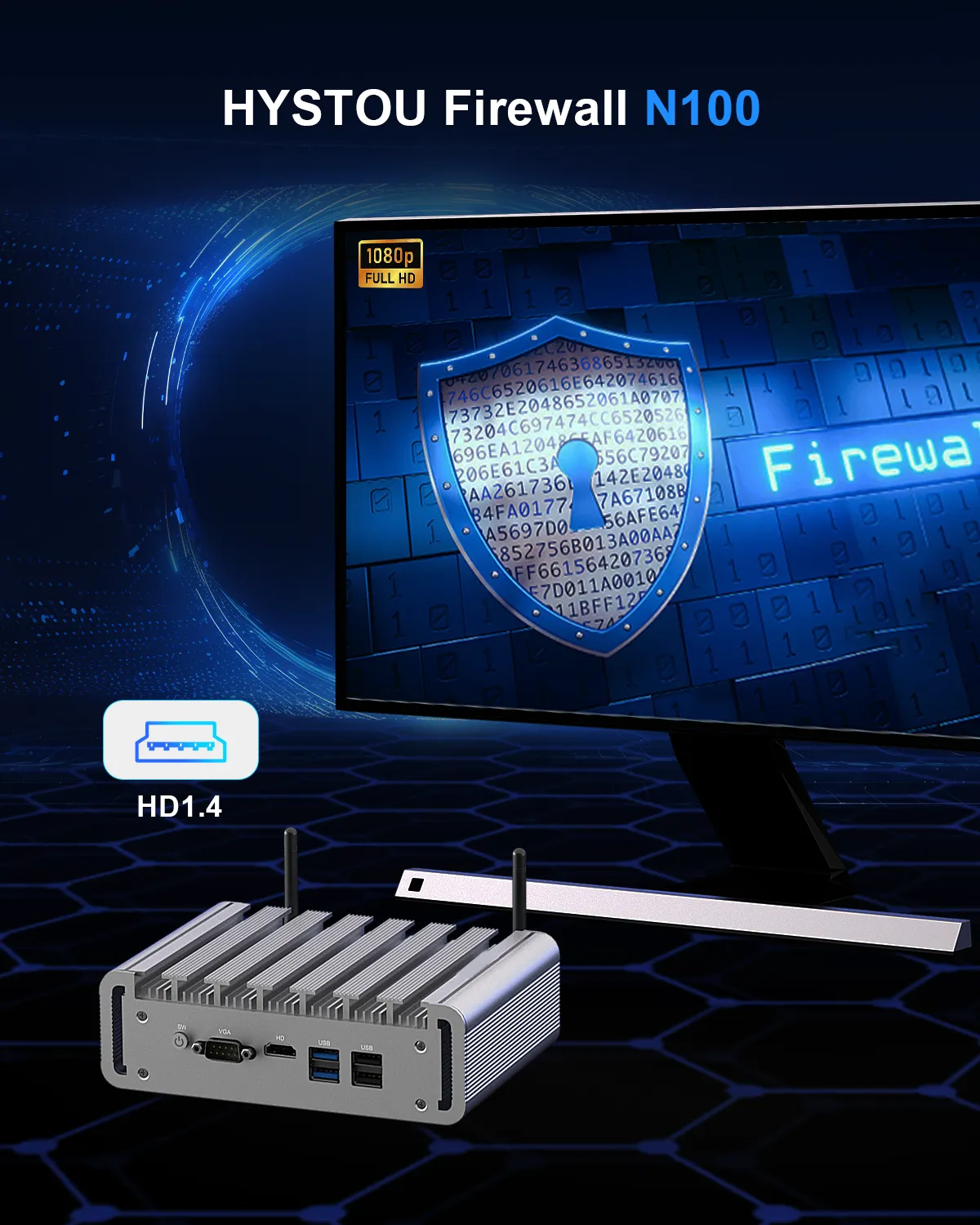

The P09B 6L features versatile video output options with 1x HDMI 1.4 and 1x DP 1.2 port, supporting dual displays up to 1080p@60Hz. This makes it suitable for monitoring dashboards or multi-screen setups in network operation centers.
Advanced Network Security
Equipped with Intel AES-NI encryption and support for pfSense/OPNsense, the device delivers enterprise-level firewall protection. Its integrated router capabilities include VPN, multiple SSID management, and QoS, ideal for securing home or office networks.
Frequently Asked Questions
The P09B supports three installation methods:
- Desktop placement (included rubber feet for stability)
- VESA mounting (kit included, compatible with 75x75mm and 100x100mm patterns)
- DIN rail mounting (industrial rack compatibility via included brackets)
You’ll receive the mini PC, 12V 5A power adapter, SATA cable, VESA mounting kit, DIN rail bracket, 2x Wi-Fi antennas, and a quick start guide.
It runs pfSense, OPNsense, Windows 10/11, Linux (Ubuntu/Debian), and VMware ESXi. Firewall-specific OS like OPNsense 24.1+ are fully optimized.
6x Intel I225/I226-V 2.5G Ethernet ports (no PoE), plus Wi-Fi 5 (802.11ac) and Bluetooth 4.2.
Input: 12V DC, 5A (power adapter included). Typical power consumption: 6W (idle) to 15W (max load).
The Intel Celeron N100 (4 cores, 3.40GHz Turbo) handles firewall rules, VPN tunnels, and light virtualization smoothly. It outperforms the J4125 by ~20% in network throughput tests.
Yes:
- Memory: 1x DDR5 SODIMM slot (max 32GB, 4800MHz)
- Storage: 1x M.2 NVMe SSD (PCIe 3.0 x1) + 1x 2.5″ SATA HDD/SSD
Press Delete during boot to enter BIOS Setup, or F7 for Boot Menu.
1. Check cable connections and try a different port
2. Verify OS network configuration
3. Update network drivers or firmware via HYSTOU official website
Yes, enable “Wake on LAN” in BIOS under Power Management settings.
3-year hardware warranty + lifetime technical support (email/online chat).
Yes, it meets CE (EU), FCC (US), and RoHS requirements for electromagnetic compatibility and safety.
For more details, visit the HYSTOU Support Center.
