HYSTOU M9 Mini PC – Intel i5-1340P WiFi 6 Desktop Computer (8K Triple Display)
Categories: Industrial Mini PC, Office Mini PCs
- Processor: Intel Core i5-1340P/i5-1235U/i5-1335U/i7-1255U/i7-1360P(TDP 28W)
- Graphics Card: Intel Iris Xe Graphics (supports 8K triple display)
- Memory: 2×DDR5-4800 SODIMM slots (260pin, max 64GB)
- Storage: 2×M.2 PCIe 4.0 SSD slots (NVMe 2 supports PCIe 4.0×4)/1×SATA 3.0 interface (for 2.5″ HDD/SSD, ≤7mm thickness)
- Network: Standard: 2×2.5G LAN, Intel AC3165 WiFi (Bluetooth 4.2)/Optional: WiFi 6 AX200 (Bluetooth 5.2)
HYSTOU M9
The HYSTOU M9 is a compact,
high-performance computer designed for demanding computing tasks.
Why choose HYSTOU M9?

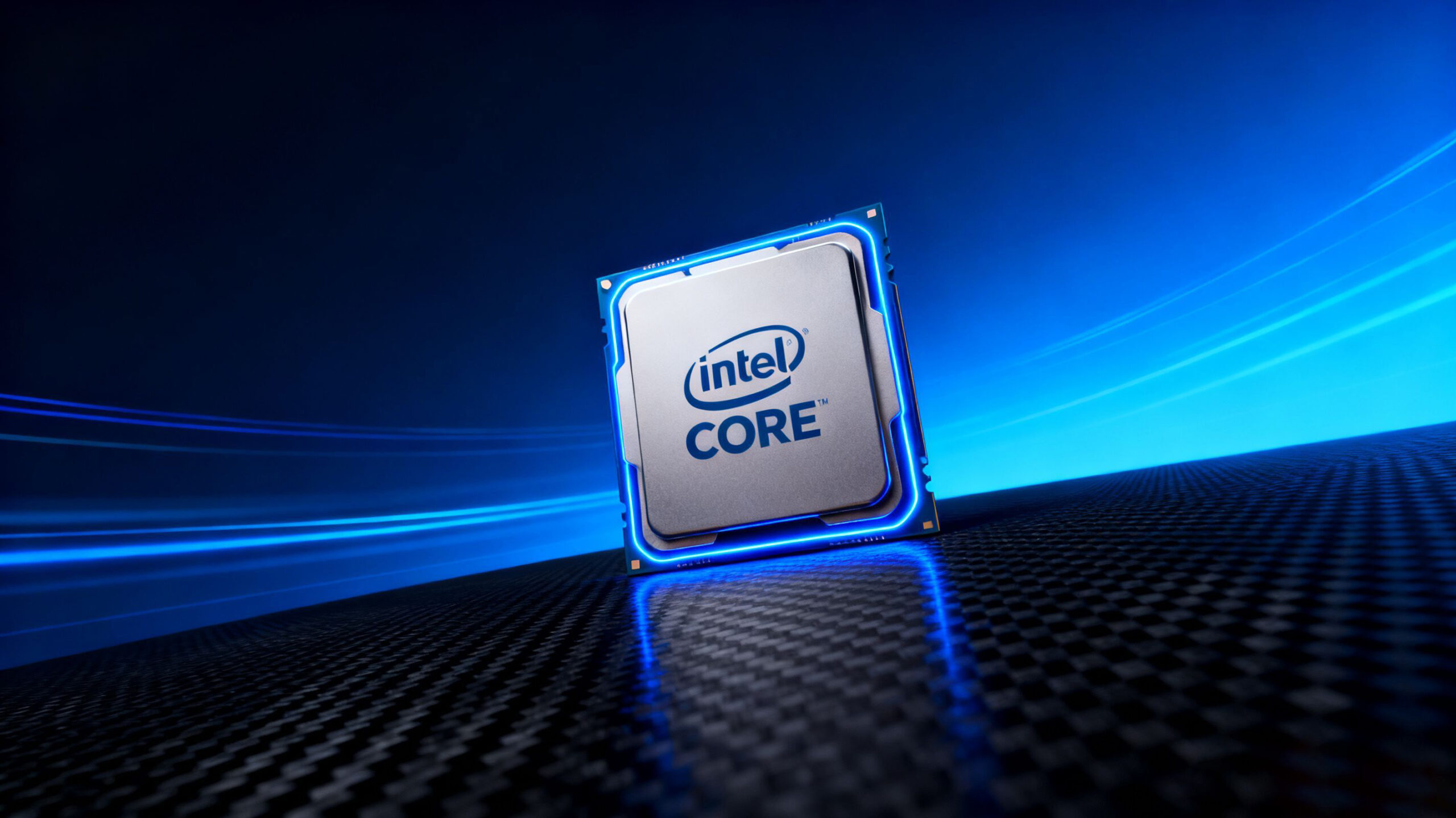

Intel Core i5/i7
2×M.2 2280 slots
Dual-channel DDR5
WiFi 6
Bluetooth 5.2
2RJ45
Supported Systems
3-year warranty
Cooling-System
VESA Mount
Mighty Power Unleashed, Surge Computing Power Released
With its low power consumption of 20-64W, it delivers high-performance capabilities within the compact body of a Mini PC, striking a balance between computing power and heat dissipation. Powered by Intel’s 7th-generation processing technology, its performance has been enhanced by 15% compared to the previous generation, providing Mini PCs with computing capabilities on par with traditional desktop computers. This makes them ideal for both professional office work and creative design tasks.
Intel Core I5-1235U
Cores
4.4GHz
MAX Frequency
Threads
15W
Basic Power
Cache
55W
Performance Unleashed
Intel Core I5-1340P
Cores
4.6GHz
MAX Frequency
Threads
28W
Basic Power
Cache
64W
Performance Unleashed
Intel Core I7-1255U
Cores
4.7GHz
MAX Frequency
Threads
15W
Basic Power
Cache
55W
Performance Unleashed
Intel Core I7-1360P
Cores
5.0GHz
MAX Frequency
Threads
28W
Basic Power
Cache
64W
Performance Unleashed
Memory ＆ Storage，Meeting your needs

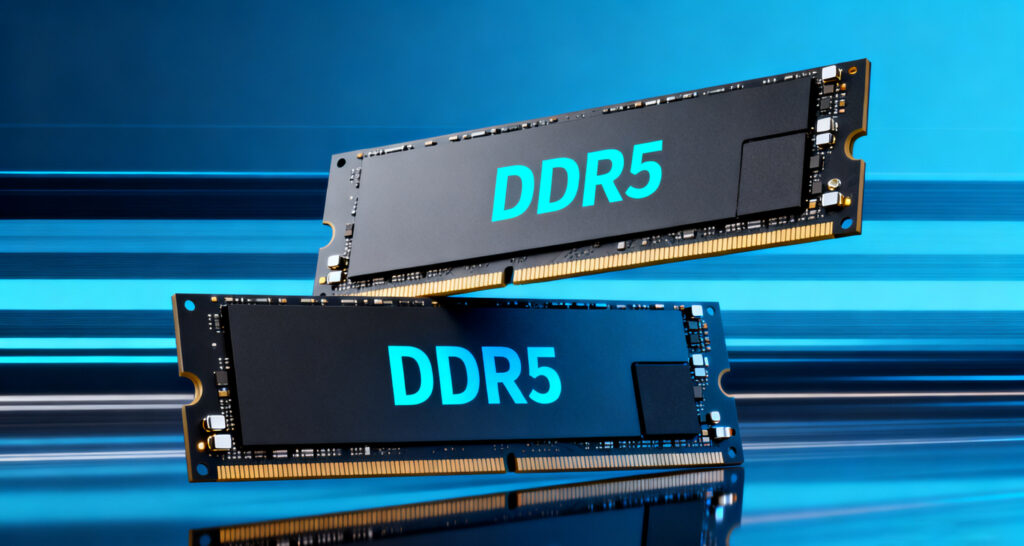

Dual-channel，DDR5 4800Ghz，up to 64GB

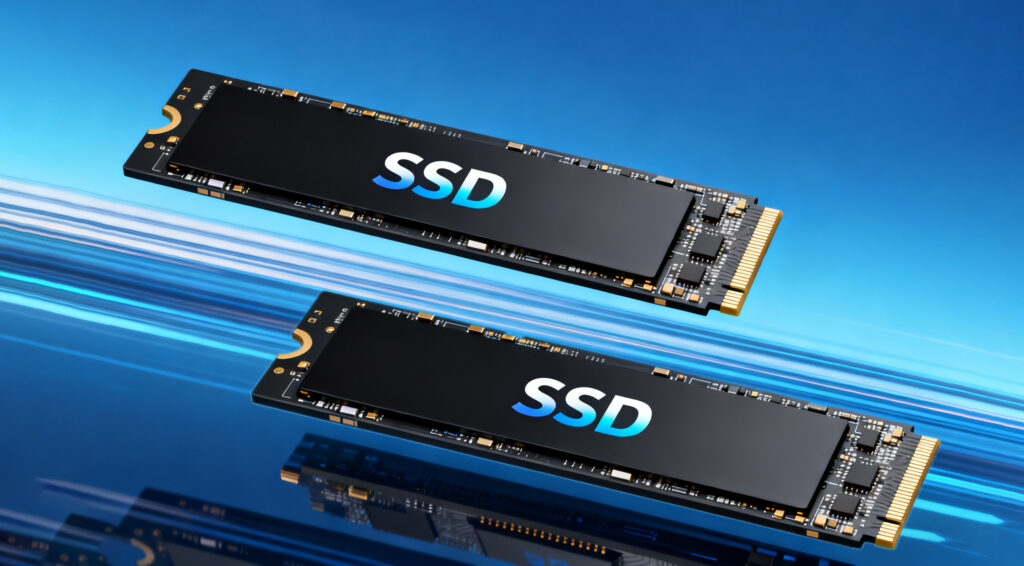

2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD
1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm)
Rich Interface
Triple-display Output
Supports three 4K displays simultaneously, or two 4K displays and one 8K display.
HDMI（2.0）4k DP 8k Type-c 4k
Cooling-System
Intelligent cooling design: Integrated fan system combined with honeycomb vents on both sides, utilizing advanced cooling technologies to ensure the stability and reliability of the computer during long periods of high-load operation. The intelligent temperature control system can dynamically adjust the fan speed based on the workload, balancing performance with cooling efficiency.
Compact & Efficient Design

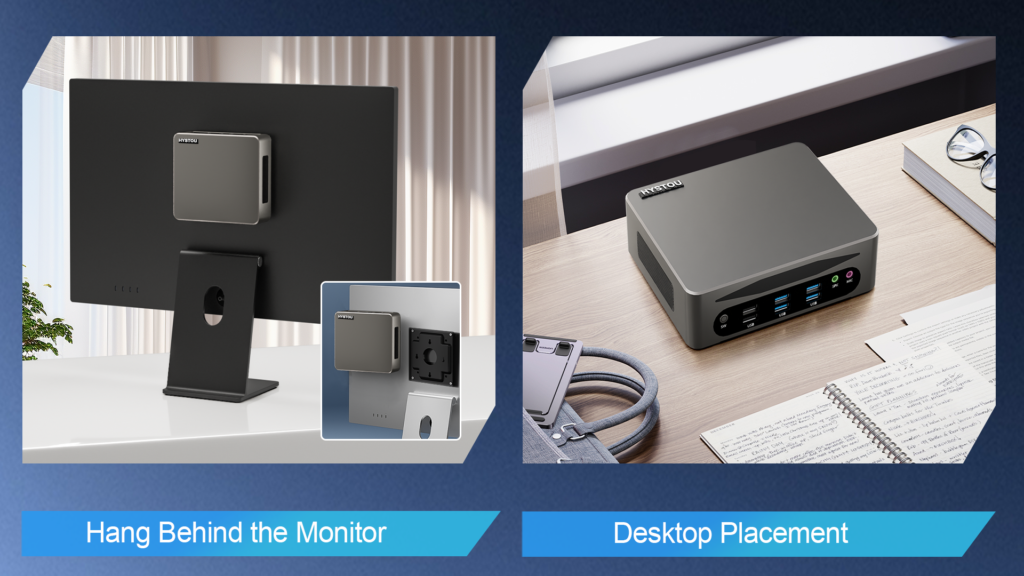

At 169 x 138 x 52 mm and 0.6 kg, the aluminum alloy chassis fits any workspace. The intelligent cooling system, featuring dual vents, maintains stable performance during extended use. VESA mount compatibility allows for under-monitor installation, saving desk space.
Product Structure
Taget Applicasiion
Equipped with Intel Core i5/i7 processors, our device delivers seamless performance for remote work, content creation, home entertainment, and study. Its intelligent cooling system ensures efficient operation, while the mountable design saves space in any environment. With wireless connectivity and high-speed data transfer, enjoy unrestricted productivity and entertainment—whether you’re working from home, editing videos, streaming media, or attending virtual classes.
Specifications
Dimensions | 169mm*138mm*52mm |
Net Weight | 600g |
Material | ABS (body) + aluminum alloy (chassis) |
CPU | i5-1235U/i5-1340P/i7-1255U/i7-1360P |
Graphics | When equipped with single-channel memory（ Intel® UHD Graphics） When using dual-channel memory （Intel® Iris® Xe Graphics） |
Memory | Dual-channel DDR5 4800MT/s up to 64GB |
Storage | 2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD 1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm) |
Ethernet | Intel 2.5Gbps RJ45 |
Supported System | Win10/Win11/Linux/Vmware Esxi |
Wireless LAN | WIFI 6 |
Bluetooth Wireless Technology | Bluetoothv5.2 |
I/O Ports | 2×USB 2.0（front panel） 4×USB 3.2 Gen2 (front panel) 1×3.5mm Audio Out (front panel) 1×3.5mm Audio Out (front panel) 1×Type-c 4K 60HZ （back panel） 1×Kensington Lock hole (back panel) 1×HDMI 4K 60HZ (back panel) 1×DP*1.2 8K 30HZ /4k 60HZ (back panel) 2×2.5 Gigabit RJ45 Lan Port (back panel) 2×USB 3.2 Gen2 (back panel) 1×19V DC IN (back panel) |
Internal Slot | 2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD 1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm) 1×M.2 key-E(22*30MM),default AC3165 Bluetooth 4.2,optional WIFI6 AX200 Bluetooth 5.2 1×M.2 key-B 5G/4G slot, compatible with 42mm*30mm adn 30mm*52mm
|
Kensington Lock | Yes |
Accessory | VESA mount (option) |
Working environment temperature | -10°C~55°C |
Cooling system CPU fan DB (MAX) | Air-cooled fan,55db |
Specifications
Dimensions
169mm*138mm*52mm
Net Weight
600g
Material
ABS (body) + aluminum alloy (chassis)
CPU
i5-1235U/i5-1340P/i7-1255U/i7-1360P
Graphics
When equipped with single-channel memory（ Intel® UHD Graphics）
When using dual-channel memory （Intel® Iris® Xe Graphics）
Memory
Dual-channel DDR5 4800MT/s , up to 64GB
Storage
2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD
1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm)
Ethernet
Intel 2.5Gbps RJ45
Supported System
Win10/Win11/Linux/Vmware Esxi
Wireless LAN
M.2 WIFI 6, Bluetoothv5.2
I/O ports
2×USB 2.0（front panel）
4×USB 3.2 Gen2 (front panel)
1×3.5mm Audio Out (front panel)
1×3.5mm Audio Out (front panel)
1×Type-c 4K 60HZ （back panel）
1×Kensington Lock hole (back panel)
1×HDMI 4K 60HZ (back panel)
1×DP*1.2 8K 30HZ /4k 60HZ (back panel)
2×2.5 Gigabit RJ45 Lan Port (back panel)
2×USB 3.2 Gen2 (back panel)
1×19V DC IN (back panel)
Internal Slot
2×M.2280 slots，NVMe1（PCle3.0×4/SATA3.0）,NVMe2(PCle4.0×4)SSD
1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 7mm)
1×M.2 key-E(22*30MM),default AC3165 Bluetooth 4.2,optional WIFI6 AX200 Bluetooth 5.2
1×M.2 key-B 5G/4G slot, compatible with 42mm*30mm adn 30mm*52mm
Kensington Lock
Yes
Accessory
VESA mount (option)
Working environment temperature
-10°C~55°C
Cooling system CPU fan DB (MAX)
Air-cooled Fan,55db
