HYSTOU Industrial H4-12th Edge Computing Platform – 6-Serial 4K Rugged Embedded PC
Categories: Industrial Mini PC
- Processor: Intel Core i5-1235U
- Graphics card： Intel® UHD Graphics, Intel Iris Xe Graphics
- Memory: Dual-channel DDR5
- Storage: Dual M.2 NVMe (7,400MB/s) + 6TB SATA3
- Network: Dual 2.5GbE + Gigabit Ports
- Additional Features: Industrial-grade Design: CNC aluminum alloy chassis, IP-rated protection, operating temperature -10°C to 55°C， Triple 4K Display: 2×HDMI 4K@30Hz + DP 4K@60Hz， Expandability: 4G/LTE module support, WiFi 6/BT 5.2, PCIe 4.0 storage

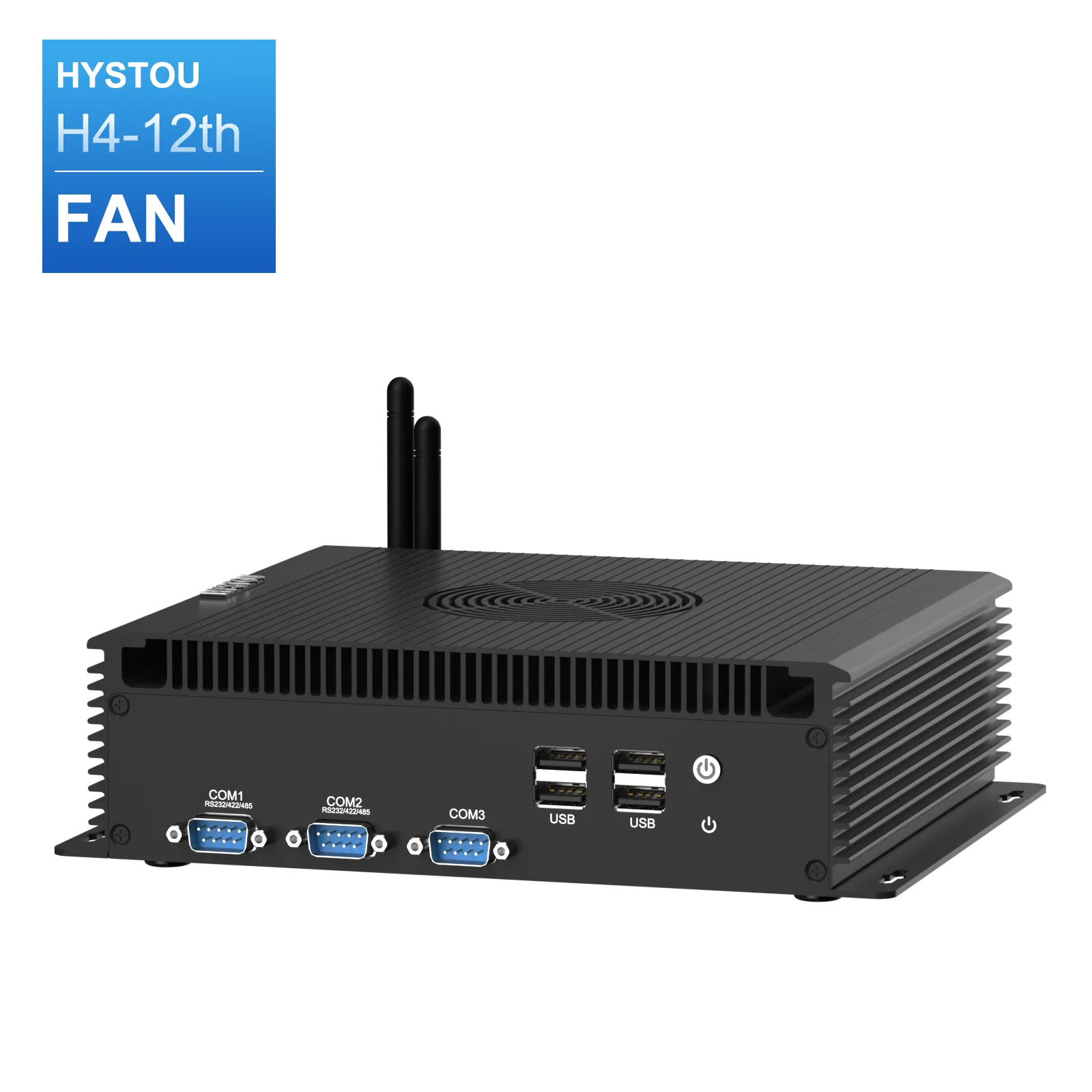

HYSTOU H4-12th
The HYSTOU H4-12th is a rugged, industrial-grade edge computing mini PC, engineered specifically for mission-critical applications and demanding environments.
DDR5 Dual-Channel, up to 64 GB
2 Intel i226-V 2.5GbE Ethernet ports

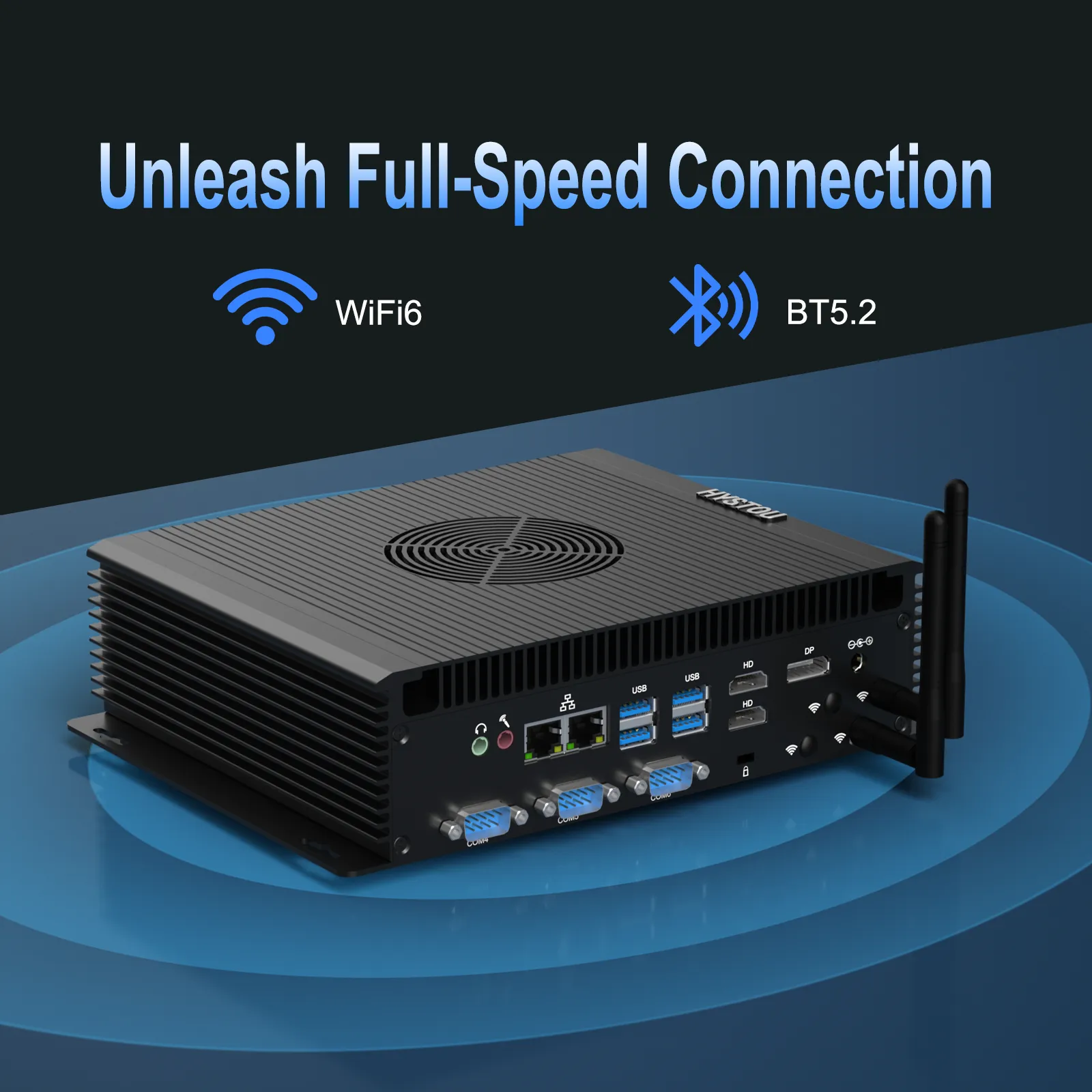

M.2 Key-E Slot (Supports WiFi 6/BT 5.2)
Supports triple-screen synchronization (2x HDMI 1.4 + 1x DisplayPort 1.2)

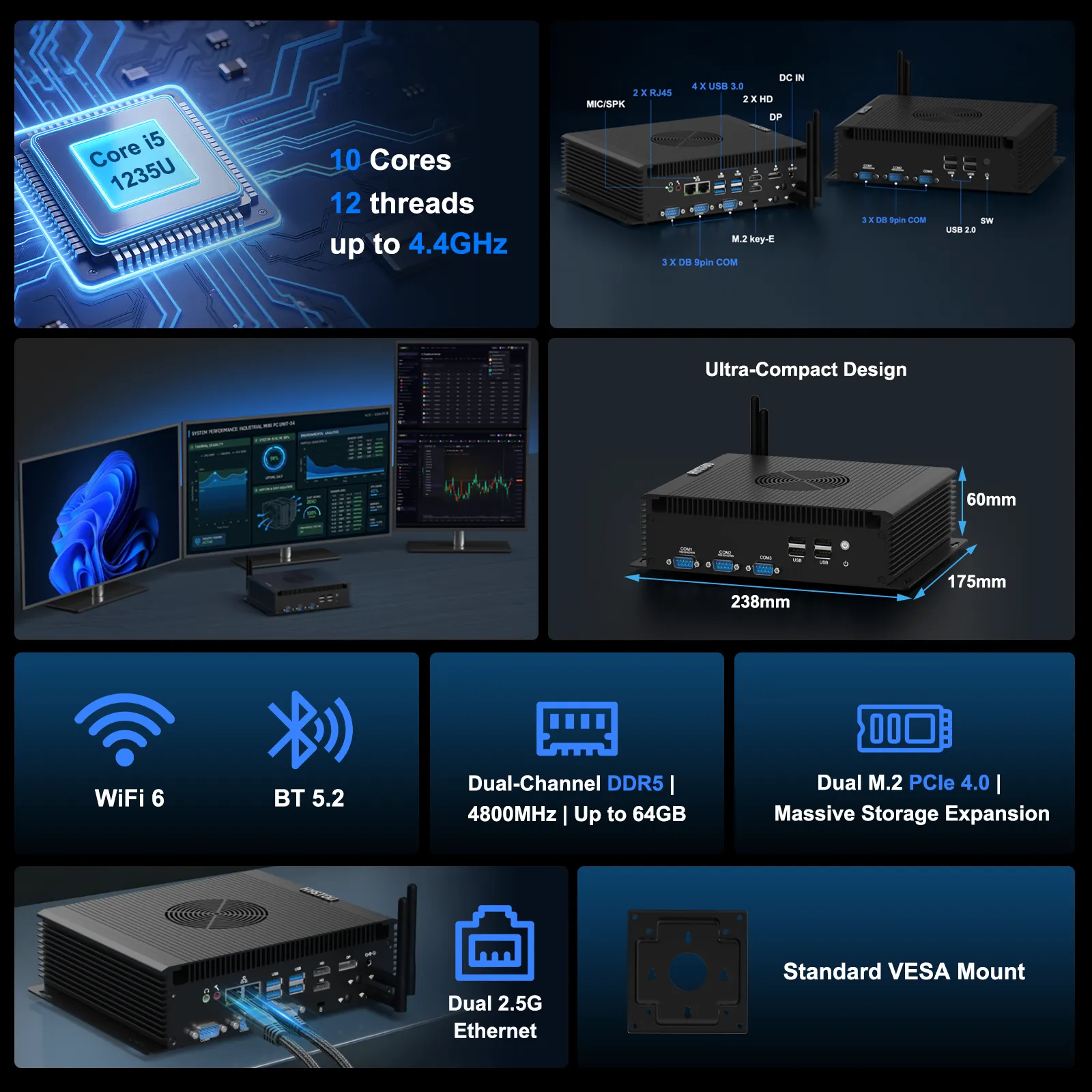

10 Cores 12 Threads
Max Frequency：4.4GHz
Multi-mount design for optimized space utilization
Rich Interface
Active Cooling and Quiet Balance
Why choose HYSTOU H4-12th?
Industrial-Grade Reliability: Rugged,Versatile, and Protected
- Robust Construction: The chassis is CNC-machined from a single aluminum alloy block, providing high rigidity and strong EMI resistance.
- Innovative Hybrid Cooling: With an active-passive hybrid cooling system, large aluminum fins and a long-life fan (50,000+ hours) keep the motherboard dustproof. PWM-controlled ultra-quiet cooling avoids performance throttling even under heavy loads.
- Extreme Environmental Resilience: The H4-12th operates reliably from -10°C to 55°C, suitable for harsh environments including cold storage and high-temperature workshops.
- Unwavering Power Stability: Supports a wide 9V–36V DC input with a redundant power adapter, filtering voltage fluctuations to ensure stable 24/7 operation.
12th-Gen Hybrid Architecture, DDR5 for Blazing-Fast Response
- Memory Upgrade: Supports dual-channel DDR5 4800MHz memory (up to 64GB), delivering far greater bandwidth than DDR4 for lightning-fast responsiveness in high-throughput edge computing and data acquisition applications.
- Graphics Processing: Equipped with Intel® Iris® Xe Graphics (in dual-channel mode), it provides robust video encoding/decoding capabilities to easily handle complex visual inspection and multi-display requirements.

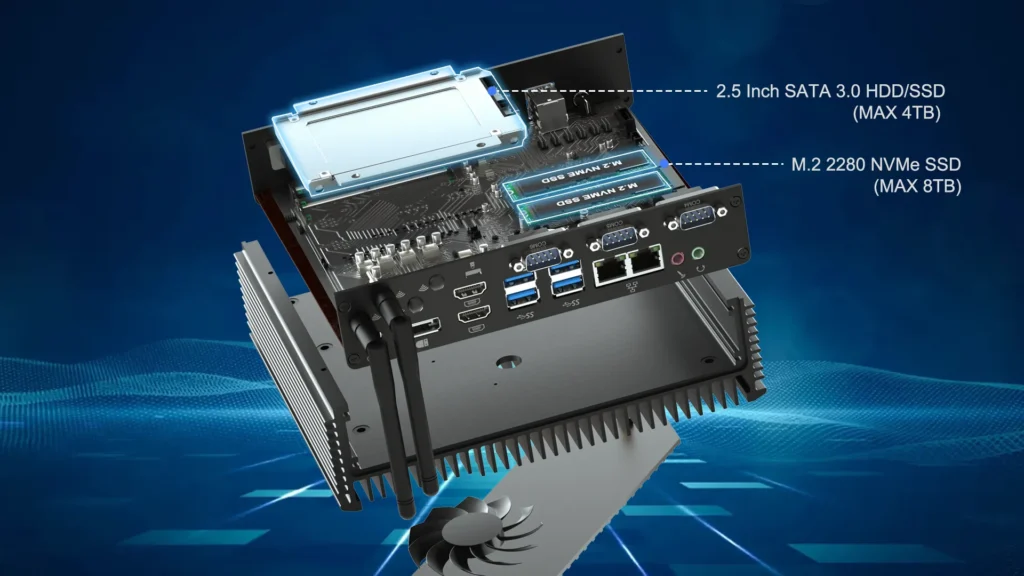

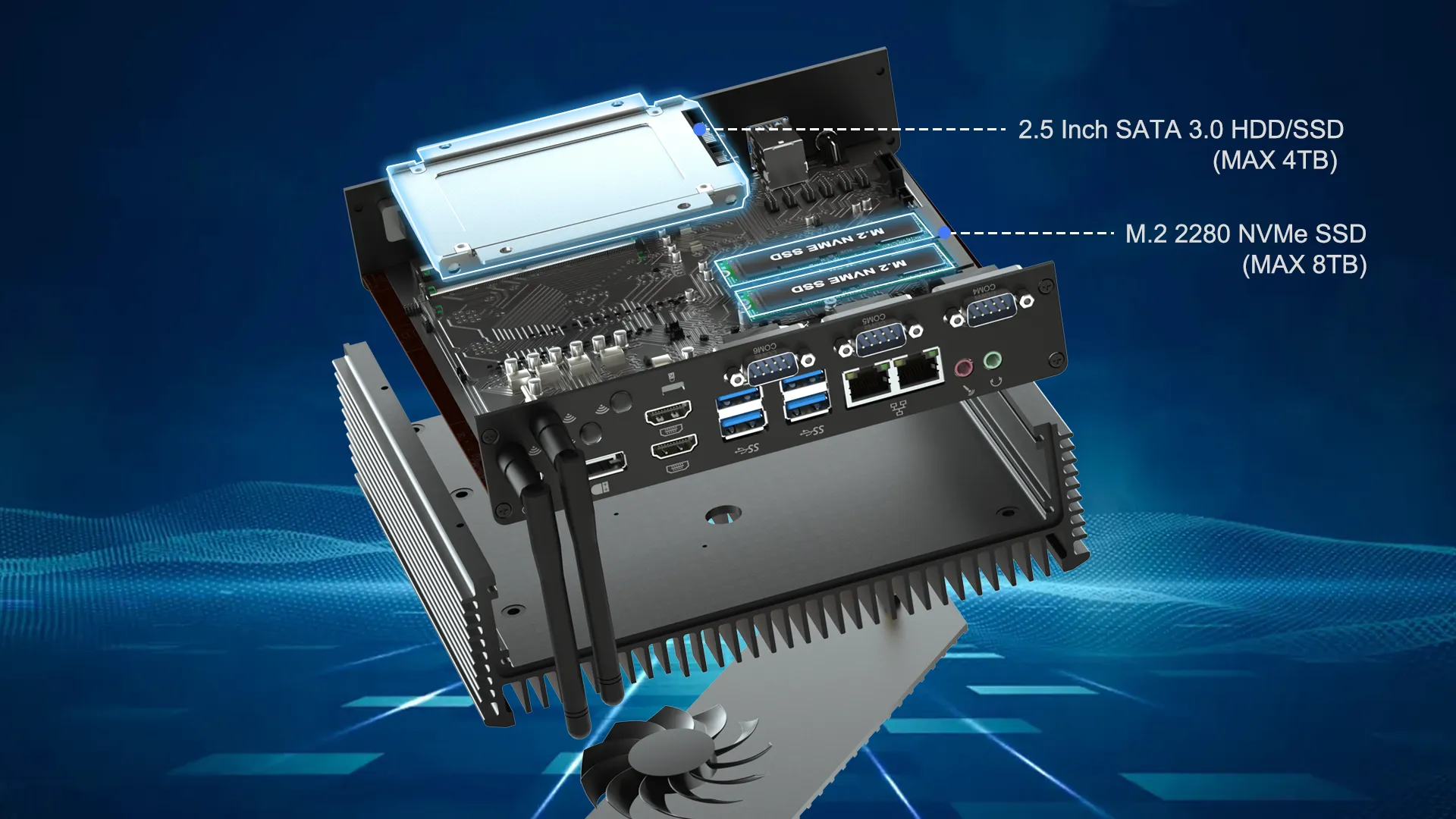

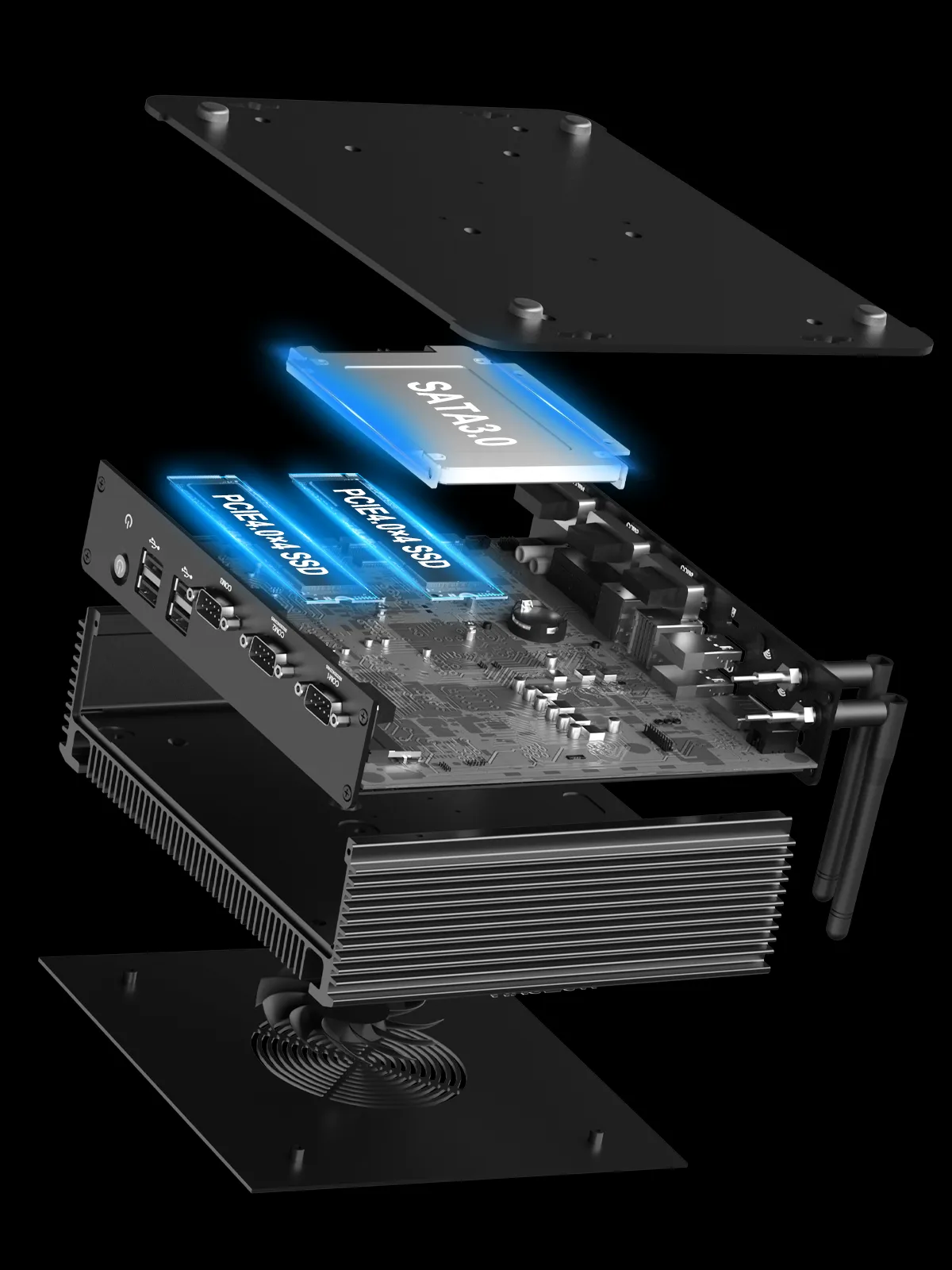

Flexible Storage Combination, Massive Space Expansion at Will
Supports dual M.2 2280 PCIE4.0 X4 interfaces, compatible only with NVME protocol SSDs. A single drive supports up to 4TB, and the total capacity of dual drives can reach 8TB. Additionally equipped with 1 SATA3.0 interface, supporting 2.5-inch HDD/SSD with a maximum capacity of 6TB, easily storing massive files, videos and data. For memory, it is equipped with 2 DDR5 262Pin SODIMM slots, supporting up to 64GB memory capacity with a frequency of up to 4800MHz. High-speed memory effectively improves system response speed and ensures smooth multitasking without lag.

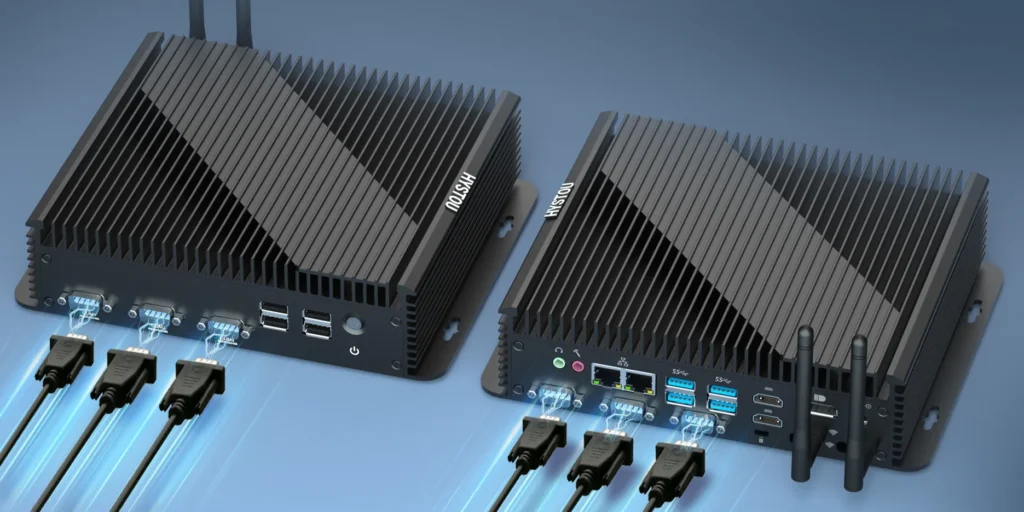

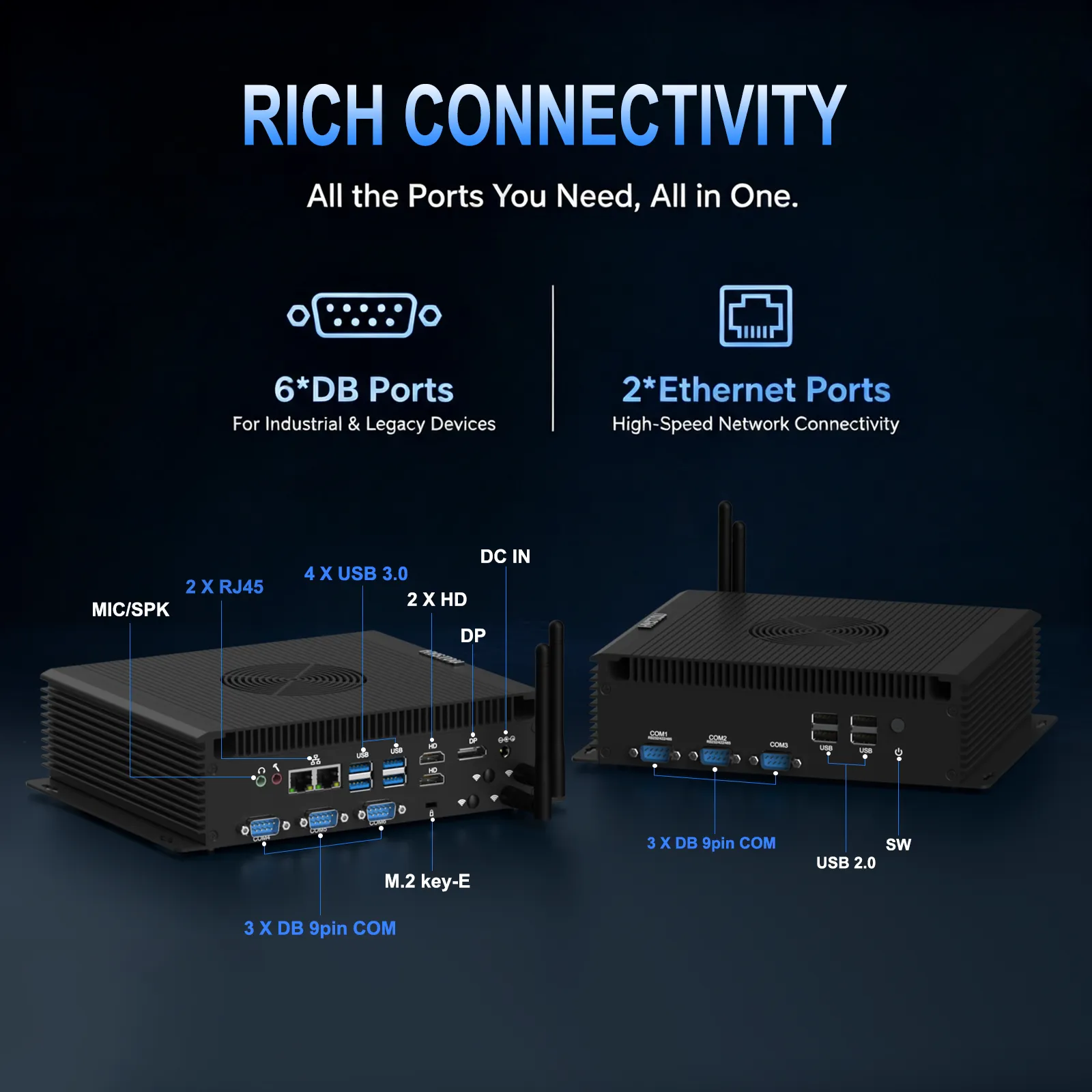

Abundant Industrial Connectivity

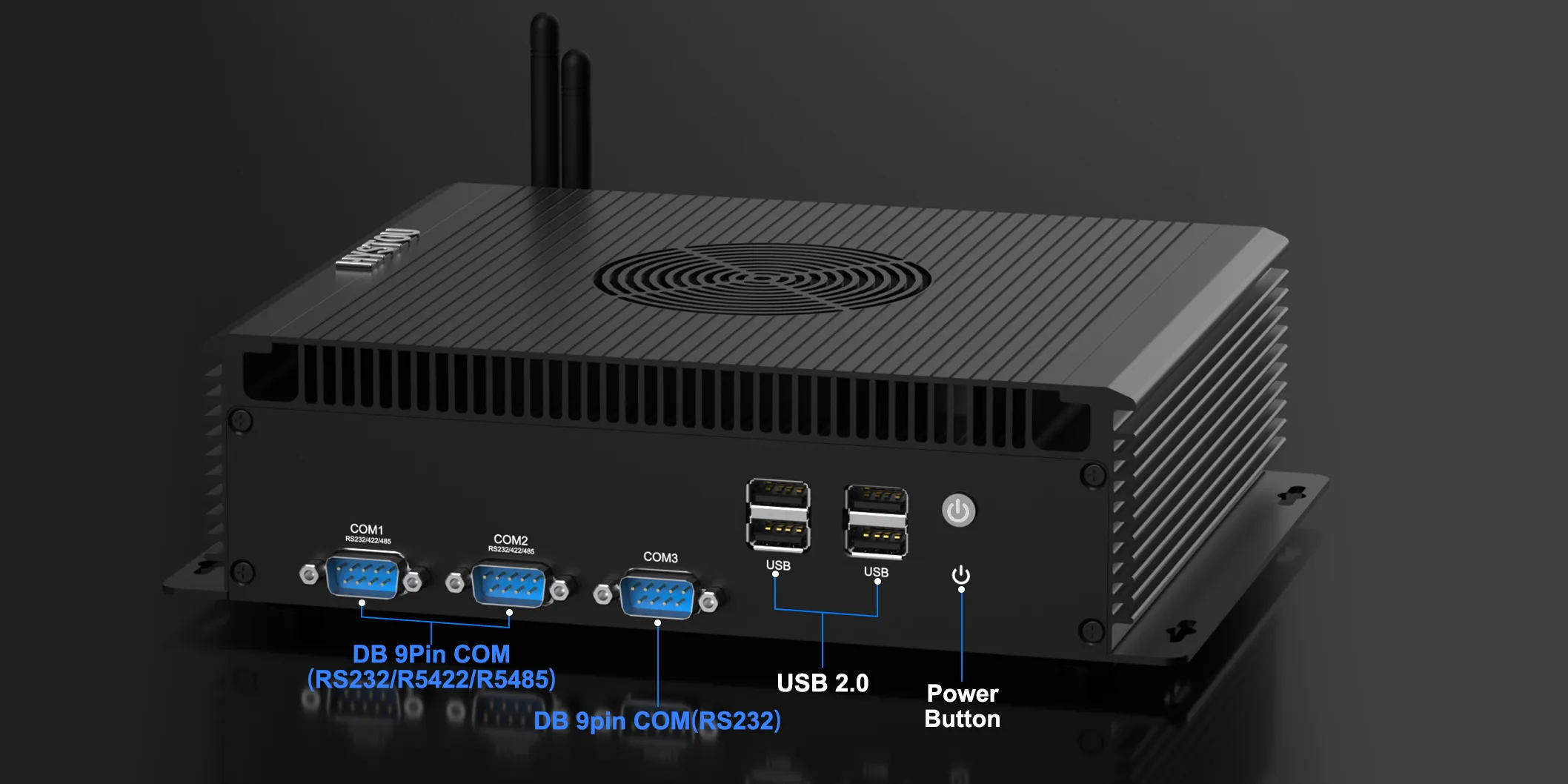

- Multi-Serial Port Support: Equipped with 6 DB9 COM ports. COM1/2 support RS232/422/485 mode switching (via BIOS configuration), while COM3-6 support RS232, ensuring seamless compatibility with traditional industrial equipment such as PLCs, sensors, and barcode scanners.
- High-Speed Networking: Comes standard with 2 Intel i226-V 2.5GbE Ethernet ports, backward compatible with 1G/100M, supporting applications like soft routing, link aggregation, and internal/external network isolation.
- USB Expansion: Features 4 USB 3.0 and 4 USB 2.0 ports to meet the demands of connecting a wide range of peripherals.

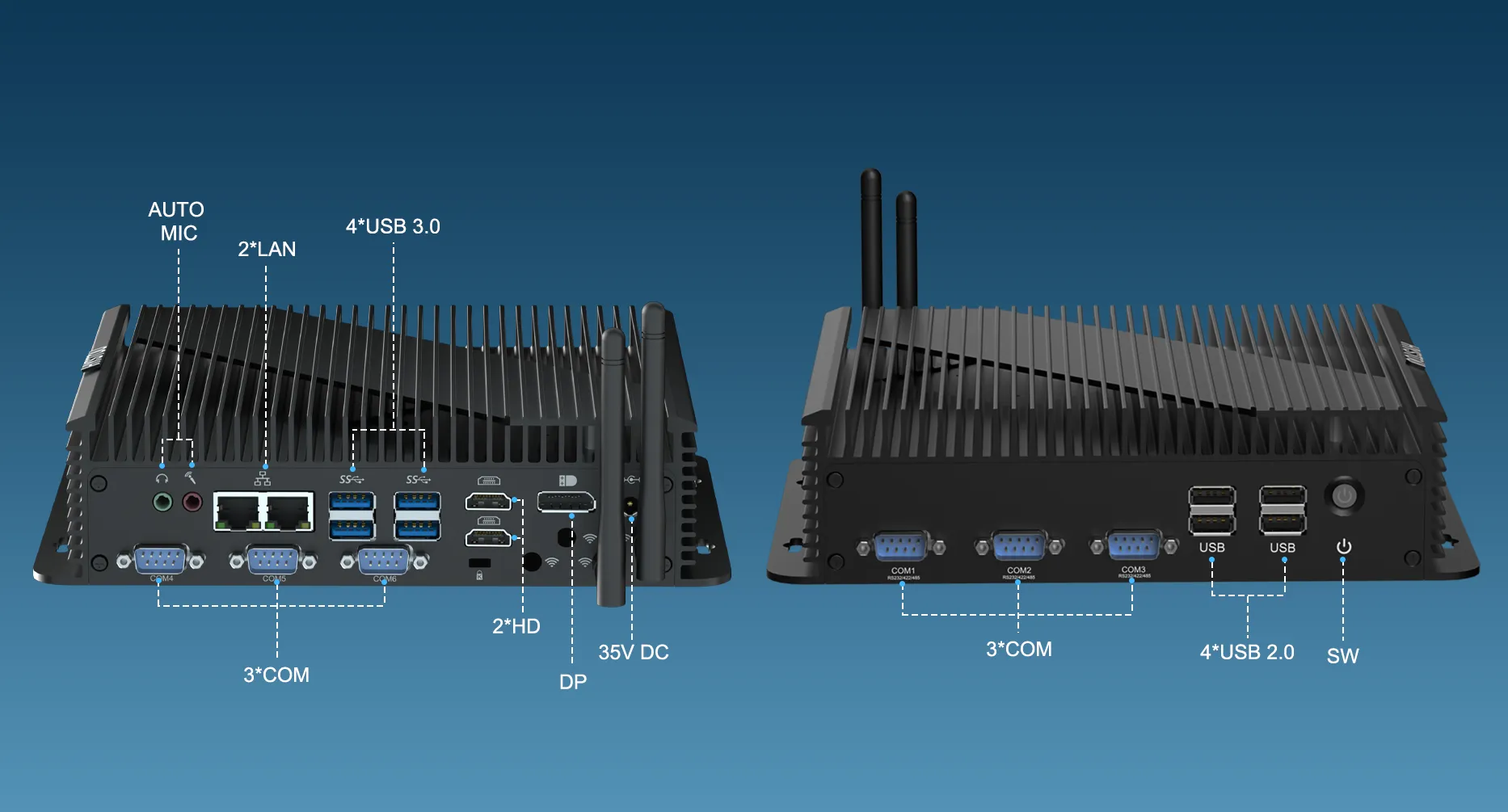

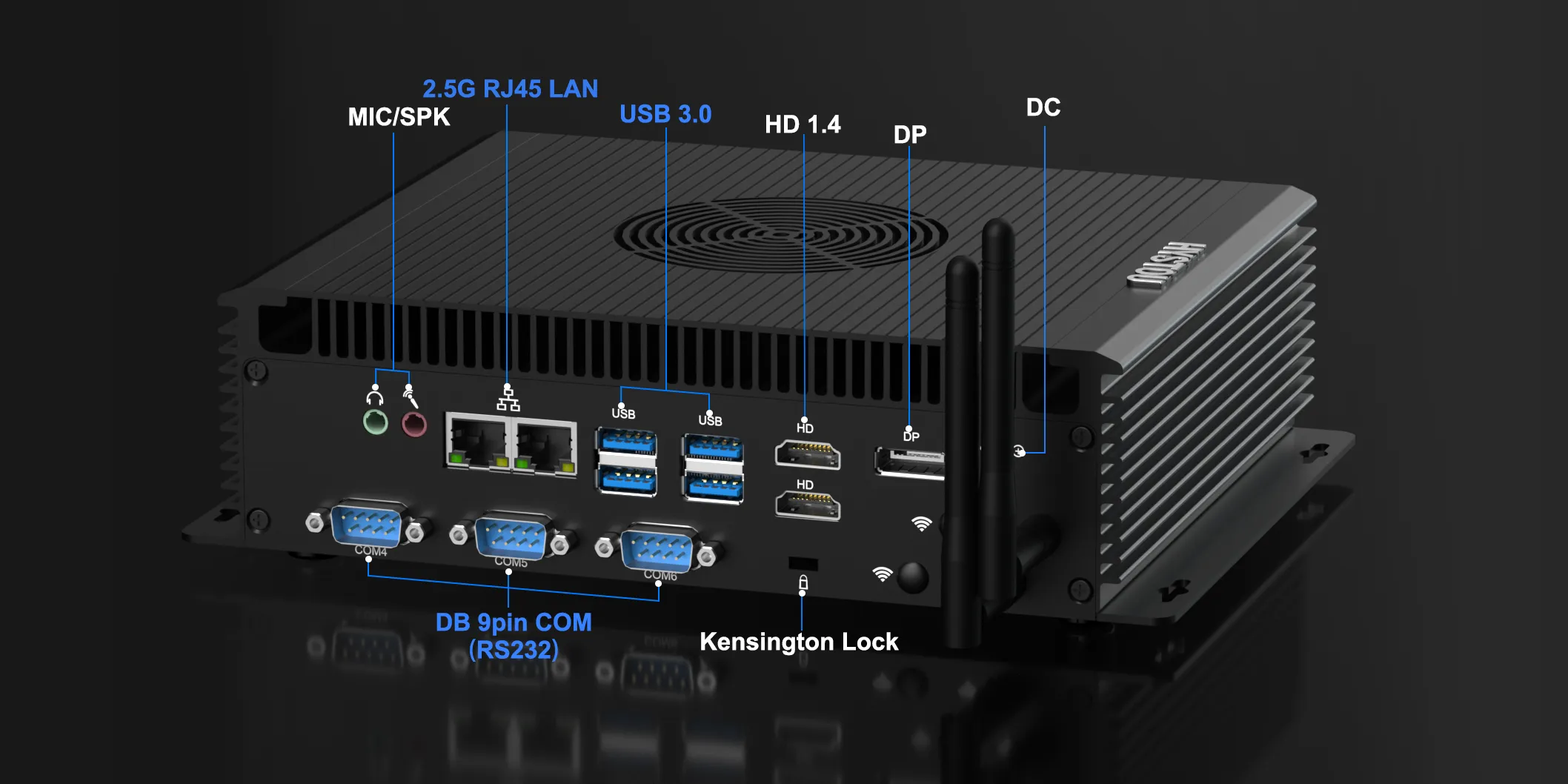

Rich Interface

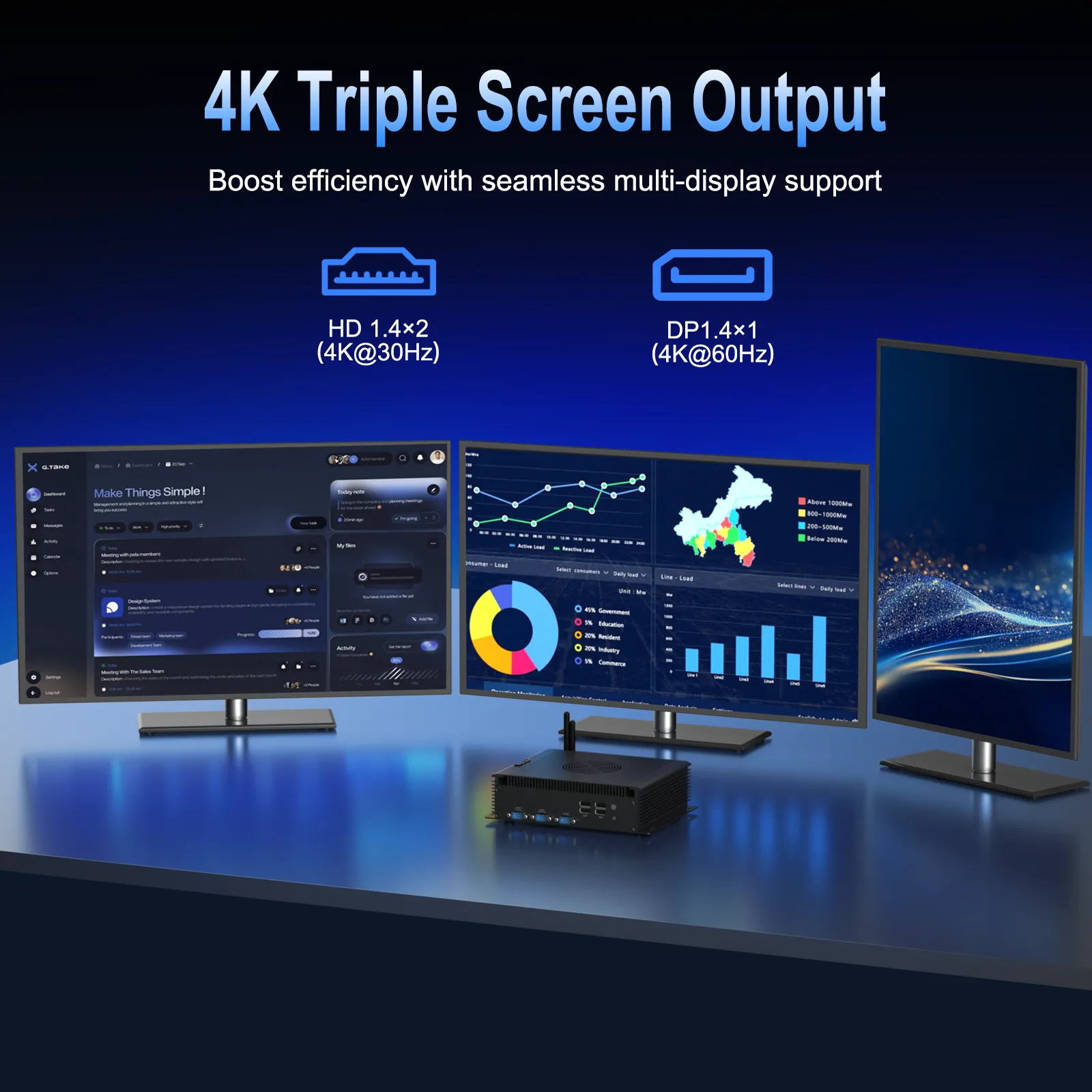

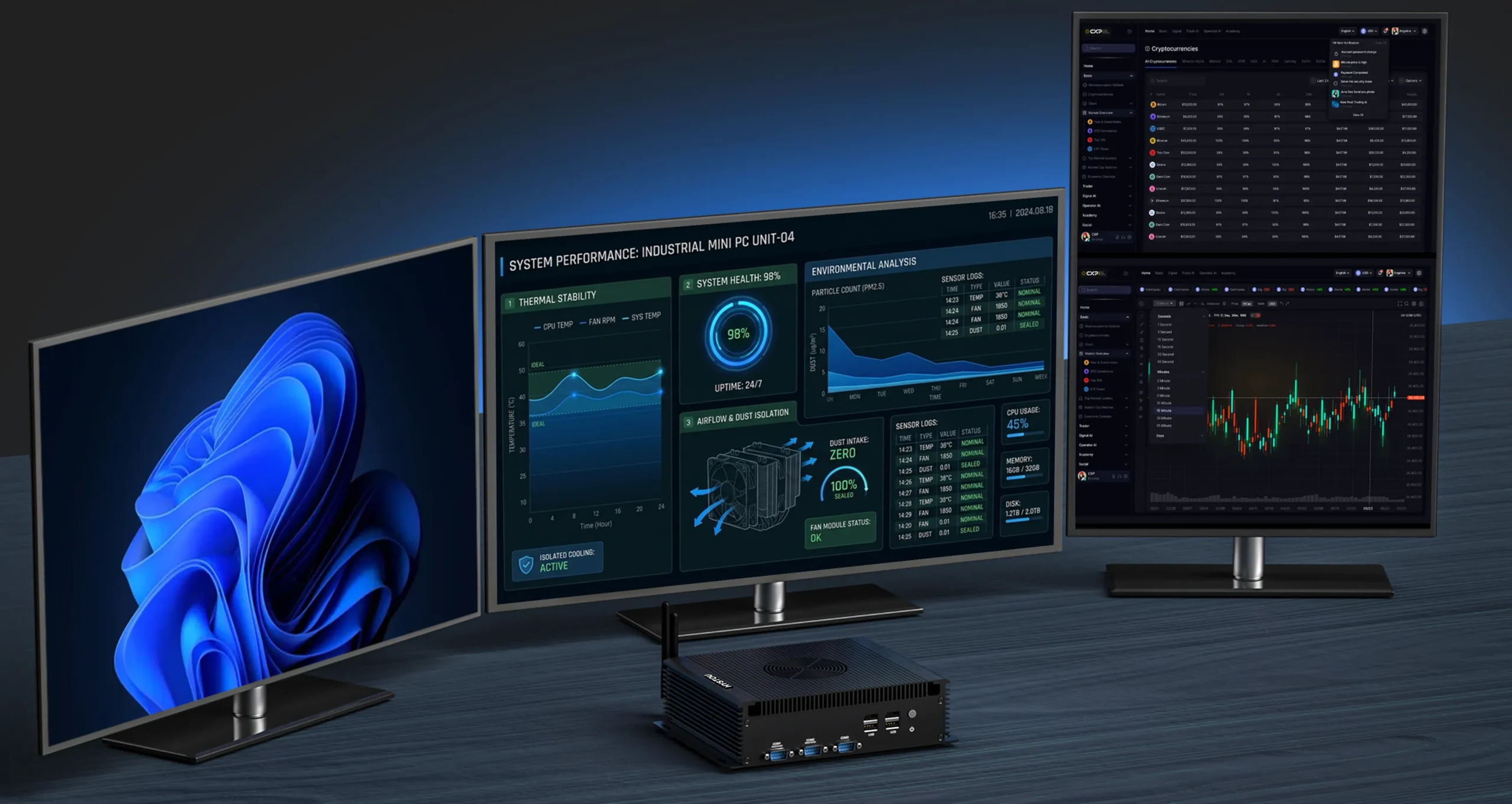

Triple Screen Linkage Output, Boundless Visual Experience
- Supports triple simultaneous display output, equipped with 2 HDMI 1.4 ports and 1 DP 1.2 port, easily realizing multi-screen extended office work. HDMI ports support 4K resolution (3840×2160) @30Hz, and DP port supports 4K resolution @60Hz, all supporting synchronous audio and video transmission with clear and smooth images.

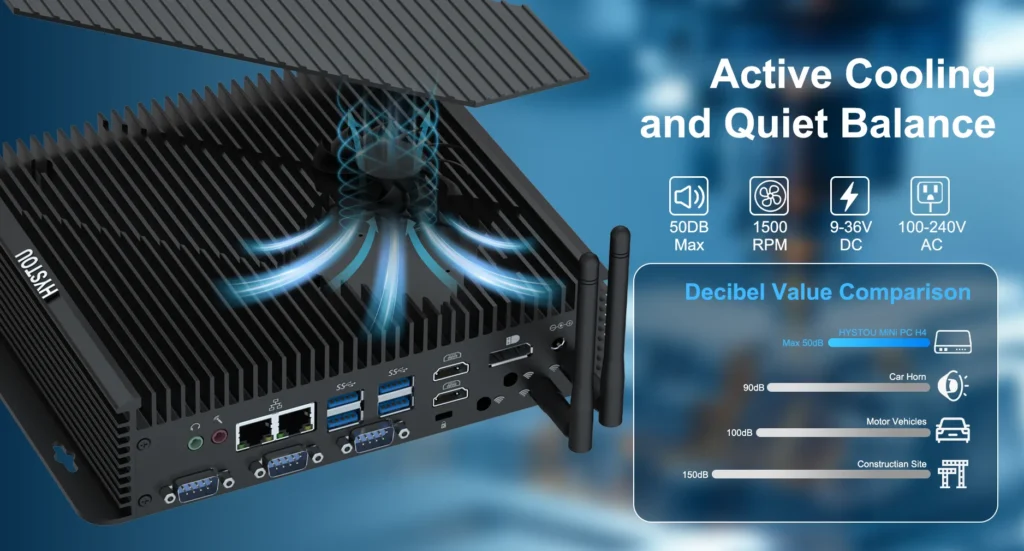

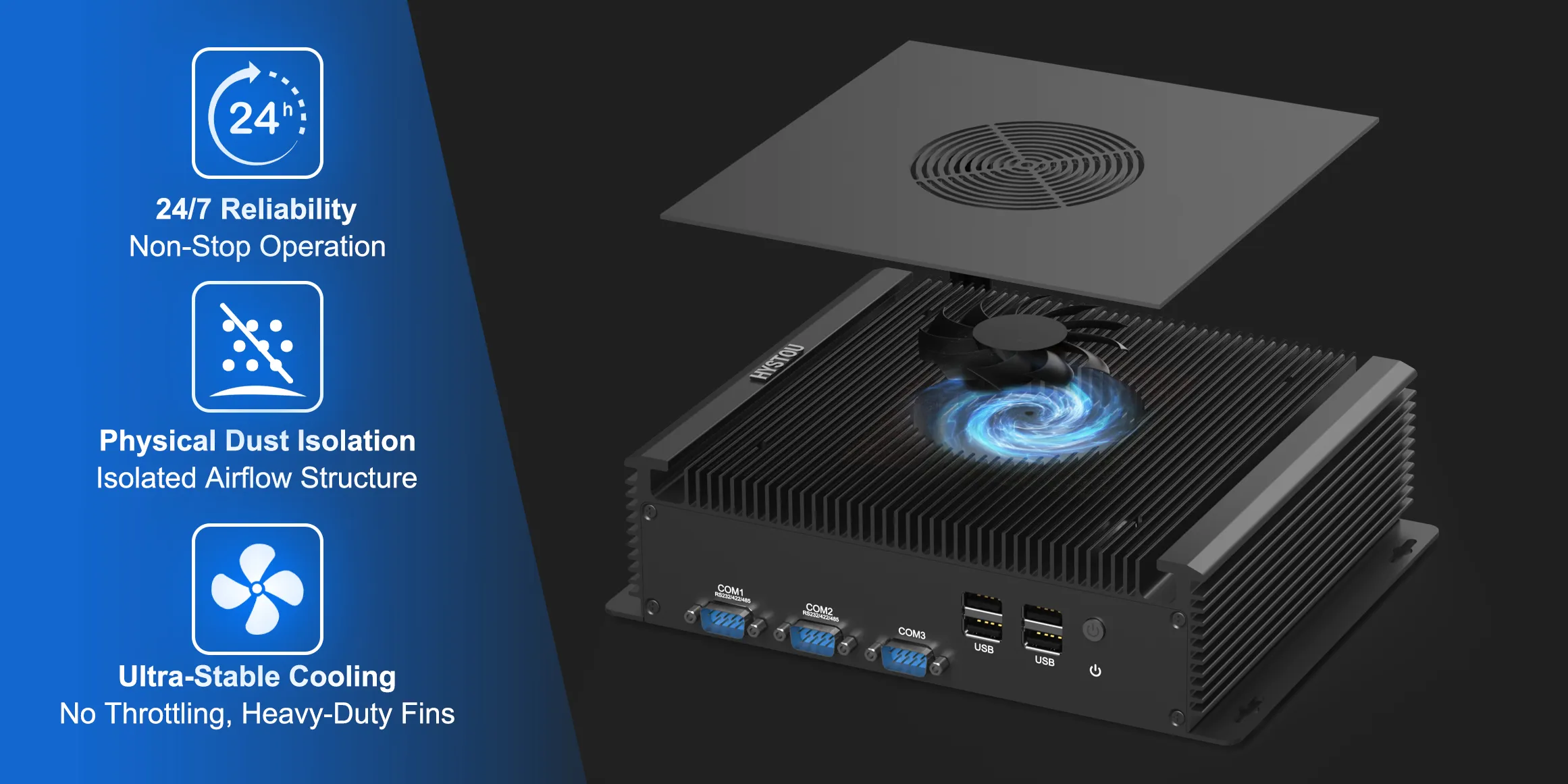

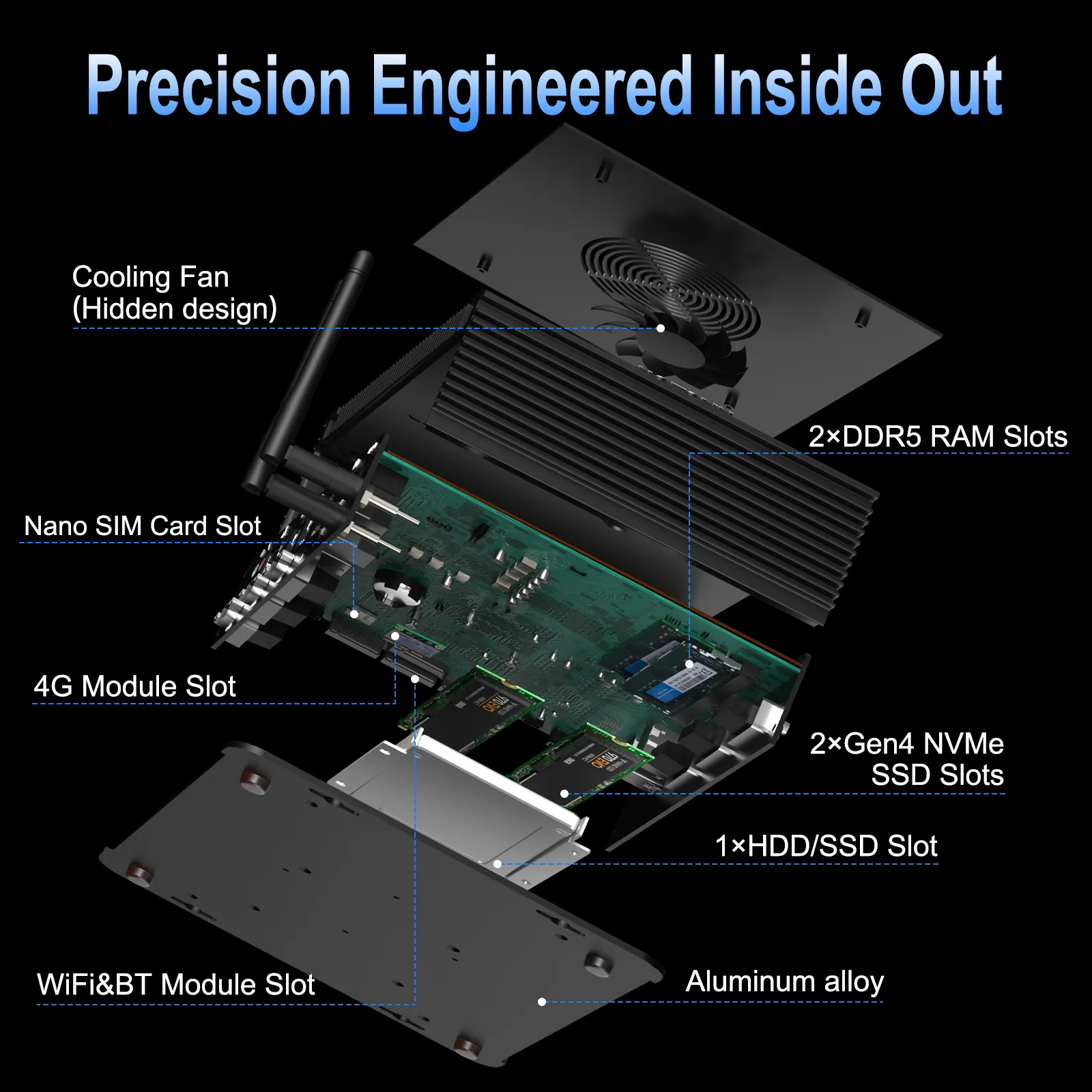

Intelligent Fan Cooling, Stable Operation for Longer Duration
Equipped with a 4pin CPU_FAN dedicated cooling fan, adopting intelligent temperature control technology that can automatically adjust the fan speed according to the real-time temperature of the device. It runs at low speed to reduce noise under low load, and automatically speeds up to enhance heat dissipation under high load, balancing quiet experience and heat dissipation efficiency. The fan accurately cooperates with the large-area heat dissipation structure, which can quickly dissipate heat from the CPU and core components, ensuring the device operates stably in a wide temperature range of -10～55℃.

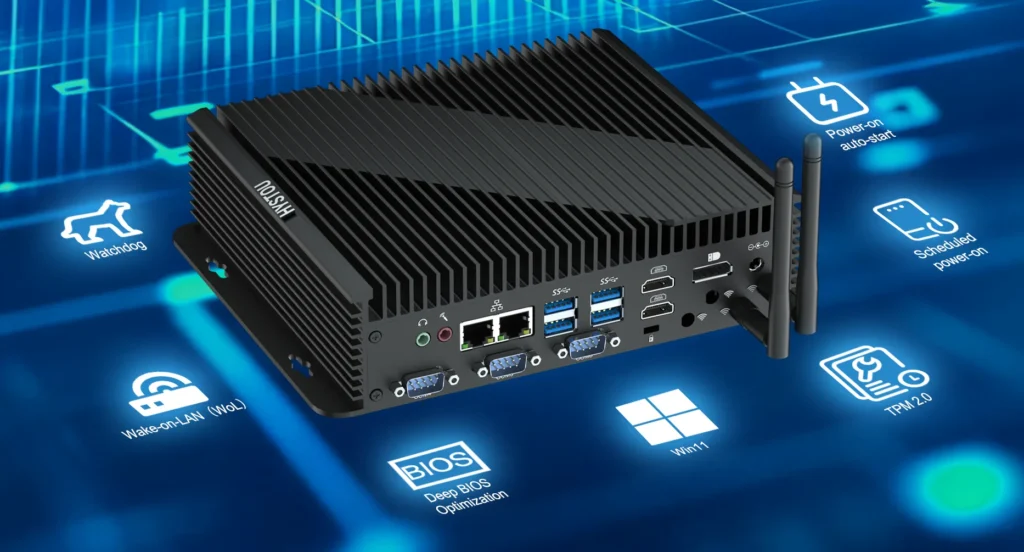

Multiple Intelligent Protections

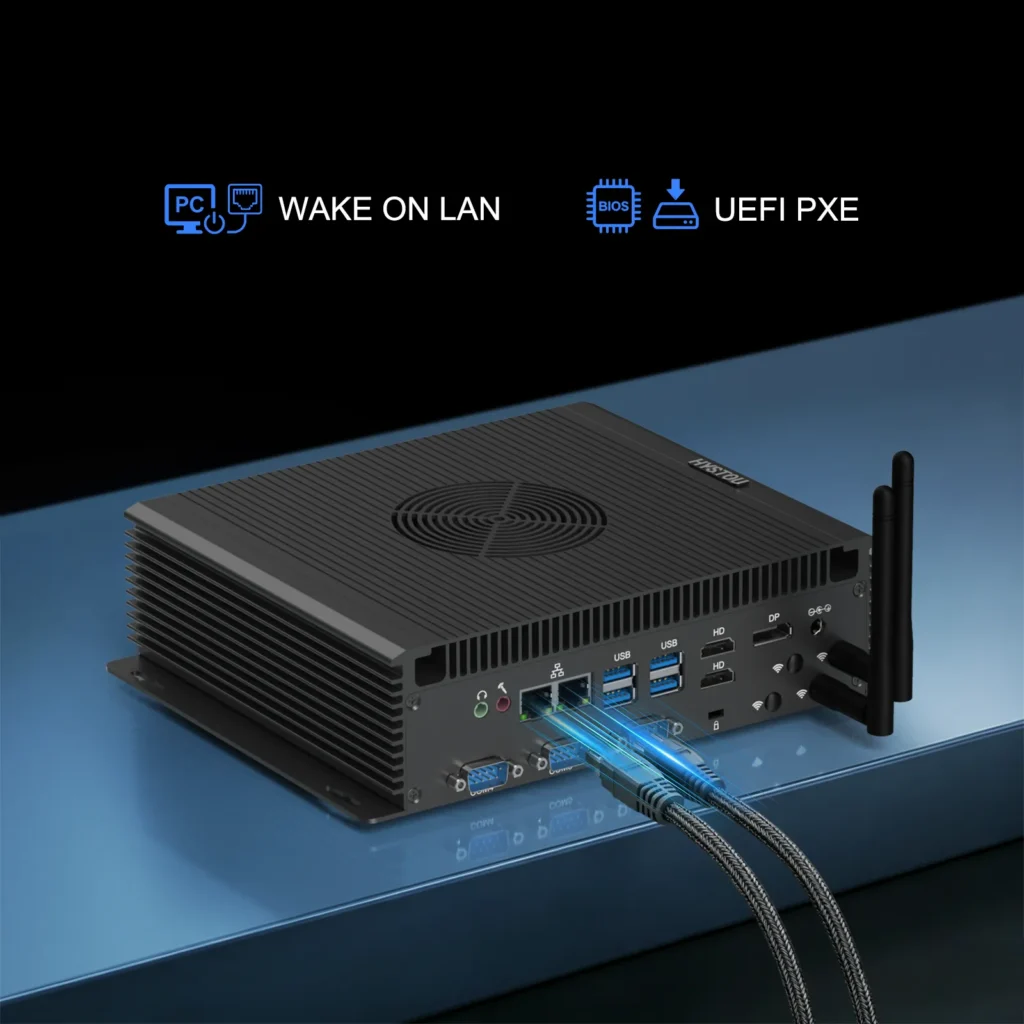

Built-in TPM 2.0 security chip provides hardware-level encryption to protect data and prevent leakage risks. Supports Wake on Lan for remote device wake-up to improve management efficiency. Auto power-on and scheduled power-on/off can be configured in BIOS for unattended scenarios. Compatible with Windows and Linux systems, paired with Intel® AES-NI acceleration for faster encryption and decryption.

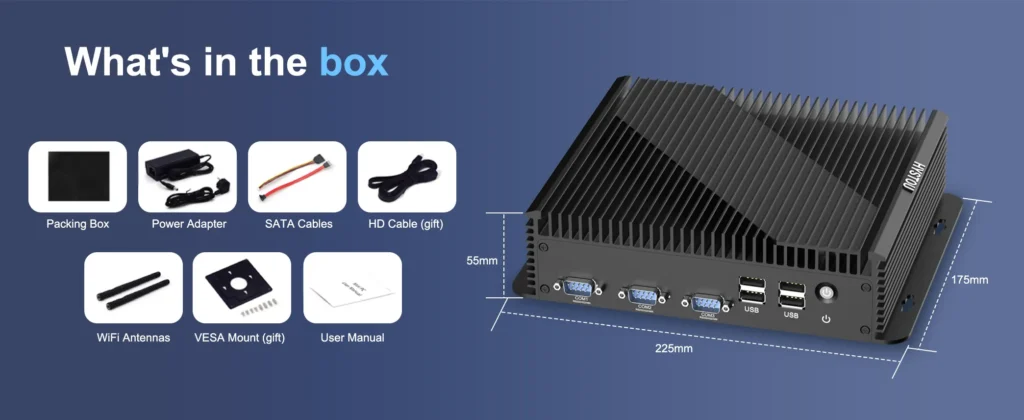

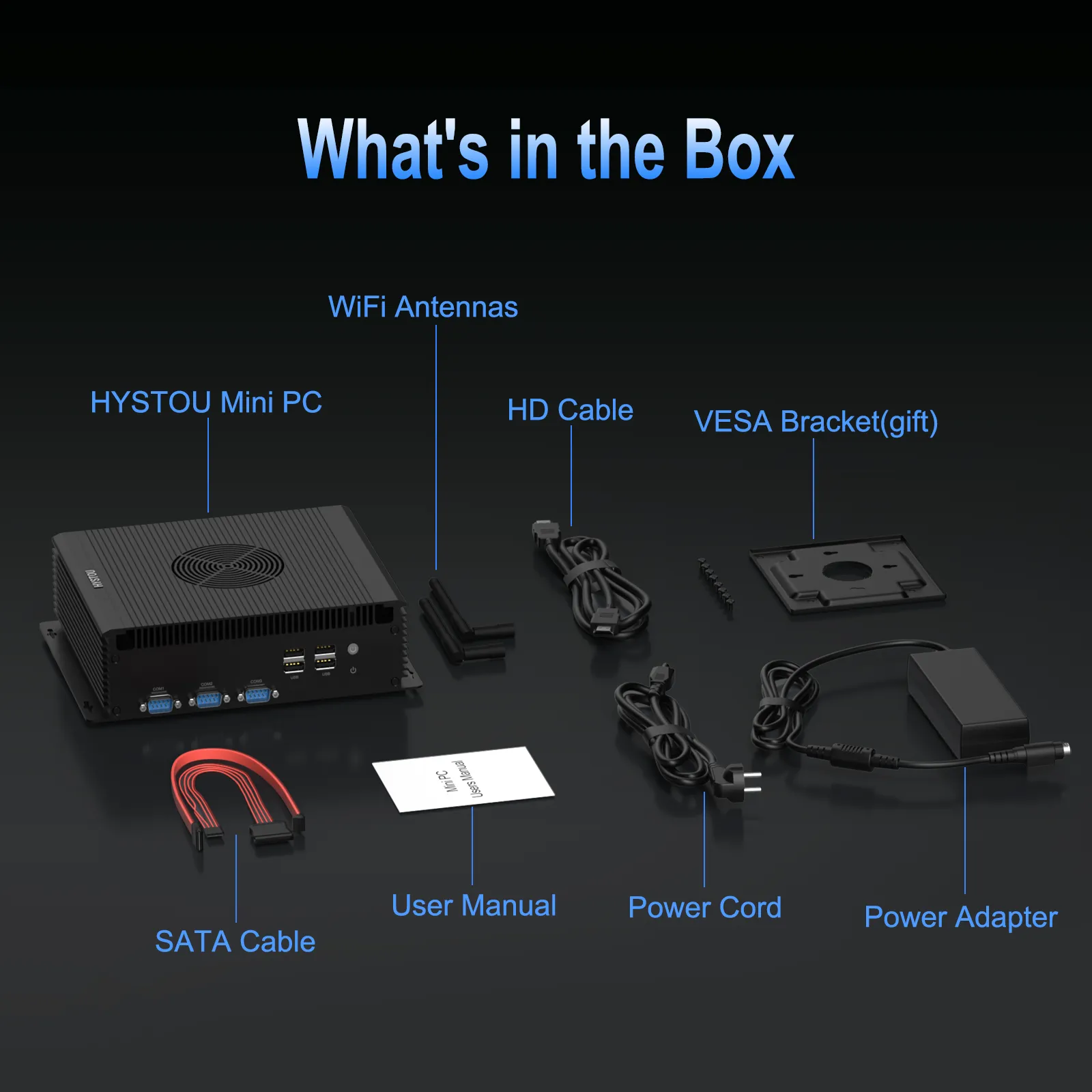

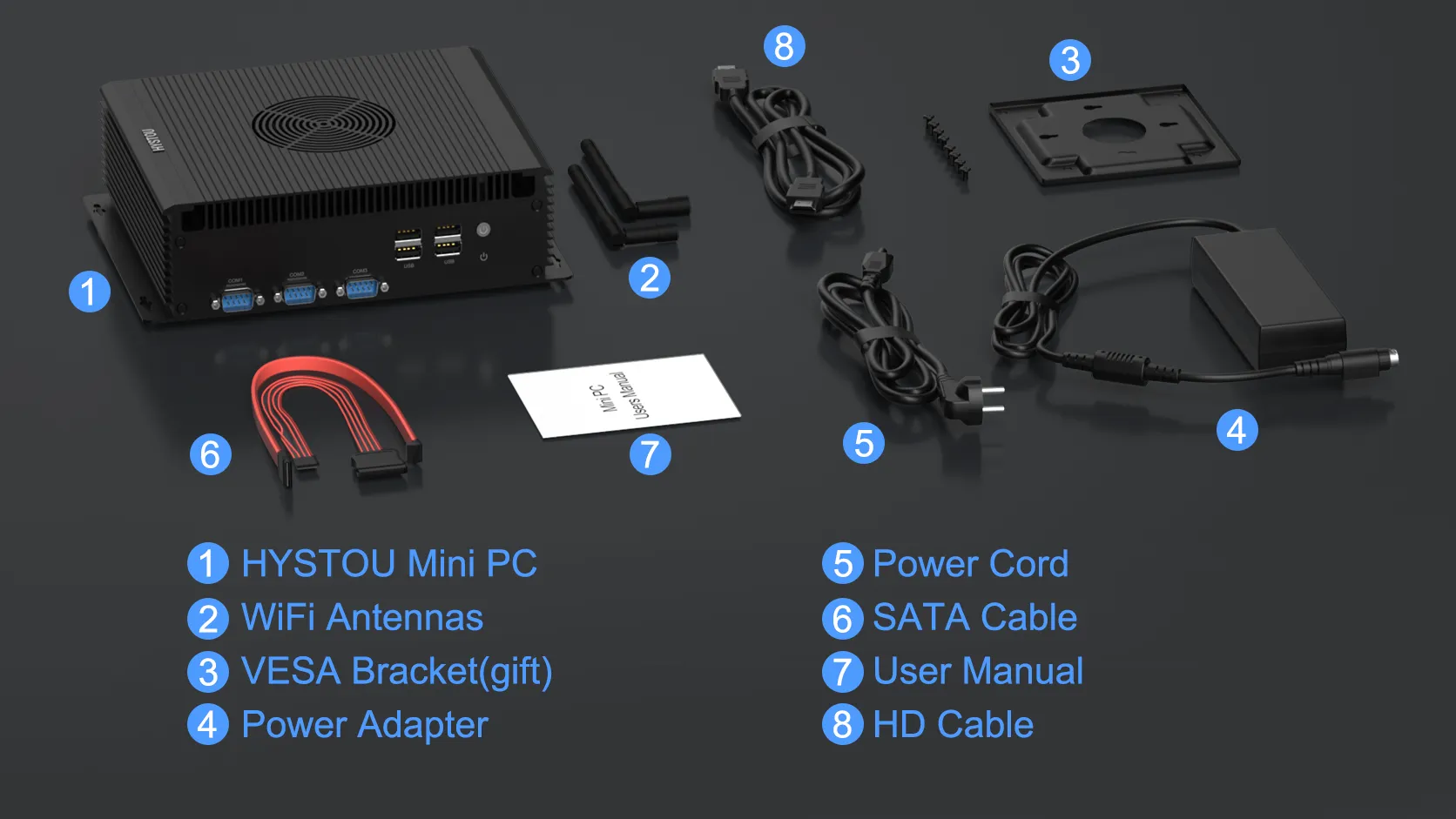

Packing List：
Specifications
Dimensions | 255mm*175mm*55mm |
Net Weight | 2.4kg |
Material | Aluminum alloy |
CPU | i5-1235U |
Graphics | When equipped with single-channel memory（ Intel® UHD Graphics） When using dual-channel memory （Intel® Iris® Xe Graphics） |
Memory | Dual-channel DDR5 4800MT/s up to 64GB |
Storage | 2×M.2 2280 NVMe SSD(MAX 8TB) 1×SATA 3.0 for 2.5 inch HDD/SSD(Max 6TB） |
Ethernet | Intel 2.5Gbps RJ45 |
Supported System | Win10\Win11\Linux(Ubuntu\Debain\Rocky Linux\Vmware Esxi) |
Wireless LAN | Default WIFI 5, Optional WIFI 6 |
Bluetooth Wireless Technology | Default Bluetooth 4.2, Optional Bluetooth 5.2 |
I/O Ports | 4×USB 3.0（Type-A） 4×USB 2.0（Type-A） 1×3.5mm Audio Output 1×3.5mm Microphone input 2×HDMI 1.4 4K 30Hz 1×DP 1.2 4K 60HZ 1×Kensington Lock hole 2×2.5 Gigabit RJ45 Lan Port 1×9~36V DC IN 6*DB 9pin COM port, supports 6 RS232 ports or 4 RS232 ports + 2 RS422/RS485 ports. |
Internal Slot | 2×M.2 2280 NVMe SSD(MAX 8TB) 1×SATA 3.0 for 2.5 inch HDD/SSD(Max 6TB） 1× M.2 key-E (22*30MM), default AC7265 Bluetooth 4.2, optional WIFI6 AX200 Bluetooth 5.2 1×Nano SIM card slot, compatible with Nano SIM cards 12.3mm*8.8mm 1*MPCIE full height (51.0mm × 30.0mm), for expanding 4G module. |
Kensington Lock | Yes |
Accessory | VESA mount (option) |
Working environment temperature | -10°C~55°C |
Cooling system CPU fan DB (MAX) | Air-cooled fan,50db |
Frequently Asked Questions
How many devices can I connect at once?
All six DB9 ports work simultaneously – connect PLCs, sensors, and legacy equipment without interference.
Technical details:
• COM1/2: Support tri-mode (RS232/422/485)
• COM3-6: RS232 only
• Each port operates independently
Is maintenance required for the cooling system?
No maintenance needed. The StealthCool™ design uses sealed bearings that never require lubrication.
Lifespan:
• PWM fan rated for 50,000 hours
• Typically lasts 5+ years in industrial environments
• Automatic speed control extends longevity
Can this replace multiple industrial PCs?
Yes – consolidate 3-5 devices into one unit.
Benefits:
• Save up to 80% rack space
• Reduce power consumption
• Lower total cost of ownership
• Simplify deployment and maintenance
Ideal for smart manufacturing, digital signage, and edge computing applications.
What's the power consumption?
Energy-efficient operation:
• Idle mode: ~18W (all ports active)
• Full load: Peak 70W
Power options:
• 9-36V DC (industrial standard)
• 100-240V AC (global compatibility)
Dual-mode input provides backup flexibility.
Can I manage this system remotely?
Full remote management capabilities:
Out-of-band management:
• Intel AMT for hardware-level control
• Wake-on-LAN for remote power-up
• Scheduled power management
Cloud integration:
• AWS IoT Greengrass ready
• Microsoft Azure Edge compatible
• Supports automated maintenance windows
