12th Gen Intel i7/i5 Mini Workstation – Hystou M7 4K Dual Display Compact PC
Categories: Office Mini PCs
- Processor: Intel Core i7-12650H/i5-12450H
- Graphics Card: Integrated graphics (supports 4K dual display output)
- Memory: Up to 64GB DDR4-3200MHz dual-channel RAM
- Storage: Supports M.2 NVMe SSD (capacity not specified)
- Network: 1000Mbps Gigabit Ethernet + WiFi 6 (2400Mbps)
- Additional Features: VESA mountable， Rich interface expansion， Efficient cooling system

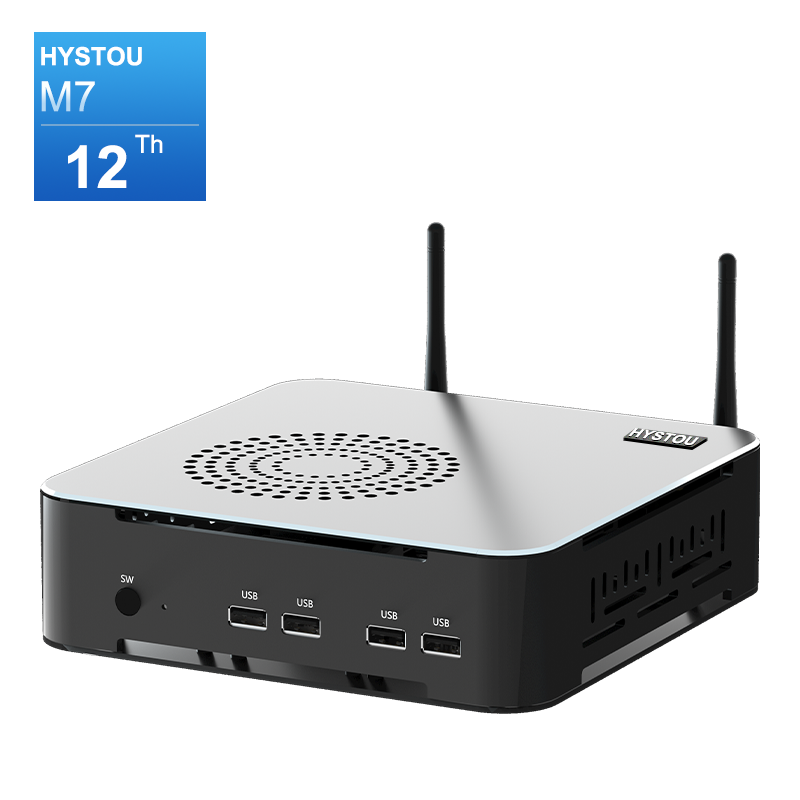

HYSTOU M7 Mini Workstation
Desktop-Grade Power, Palm-Sized Control
First Look at the selling points

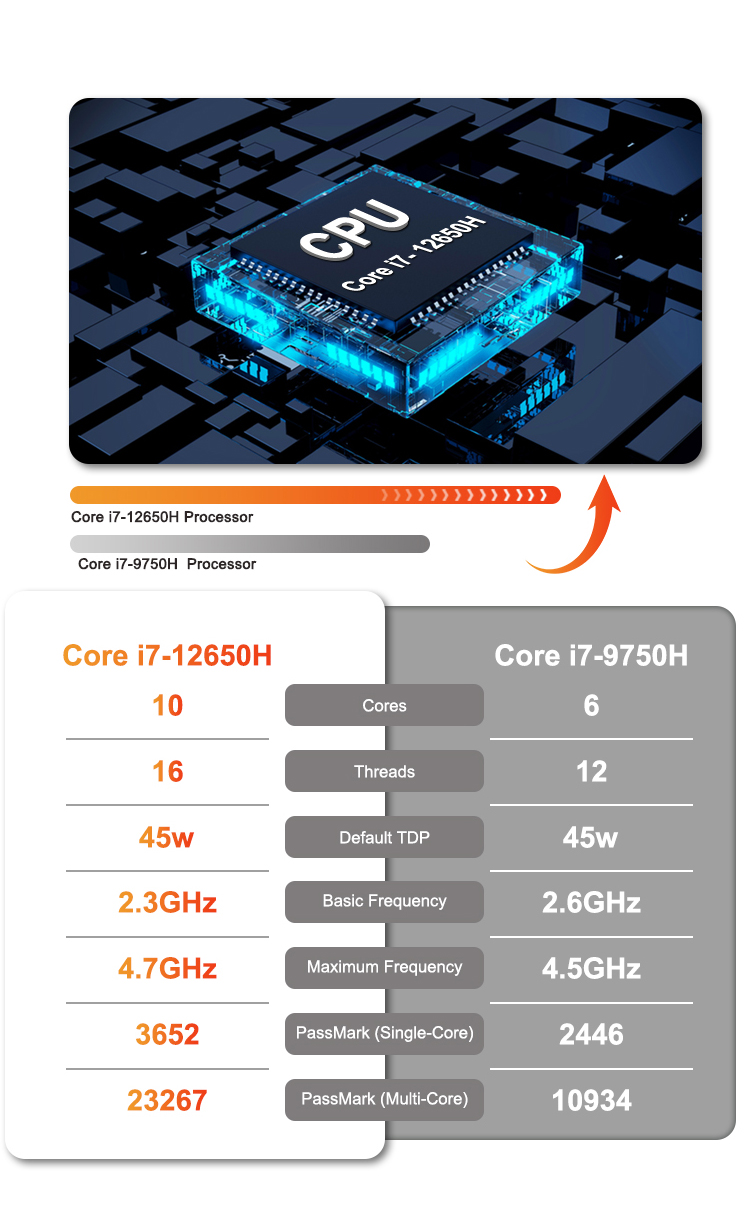

I7-12650H
Efficient， quiet， energy-saving cooling

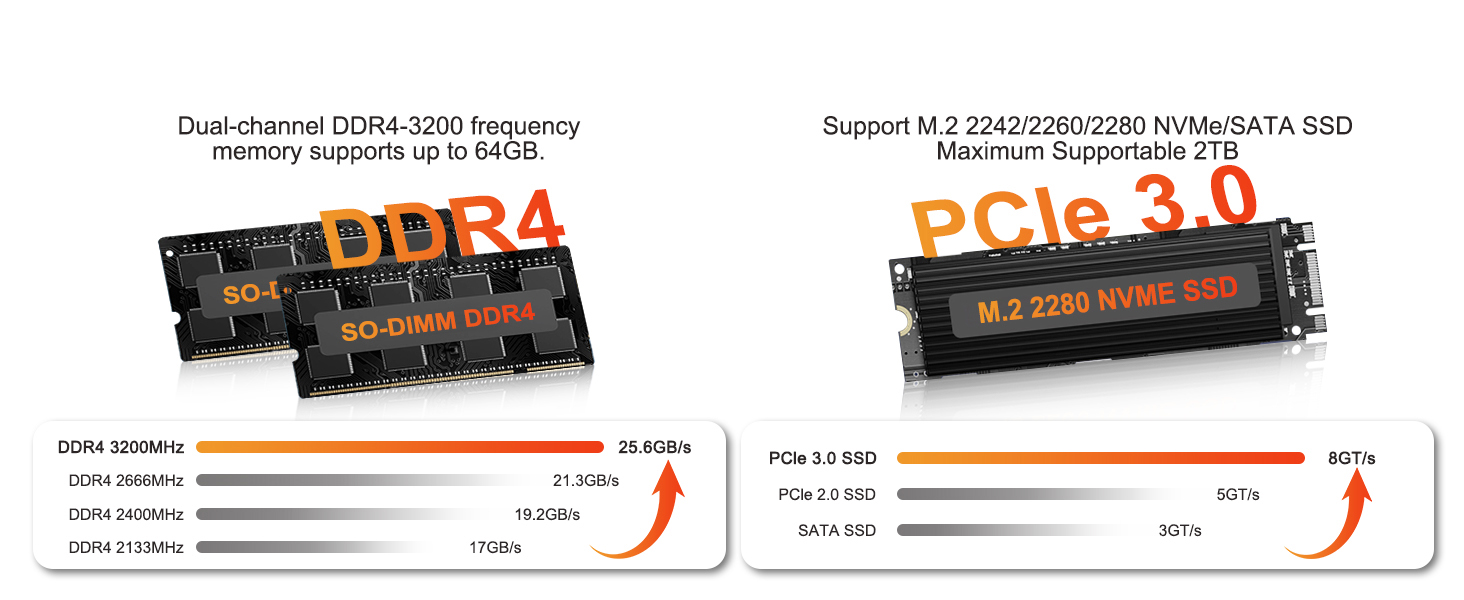

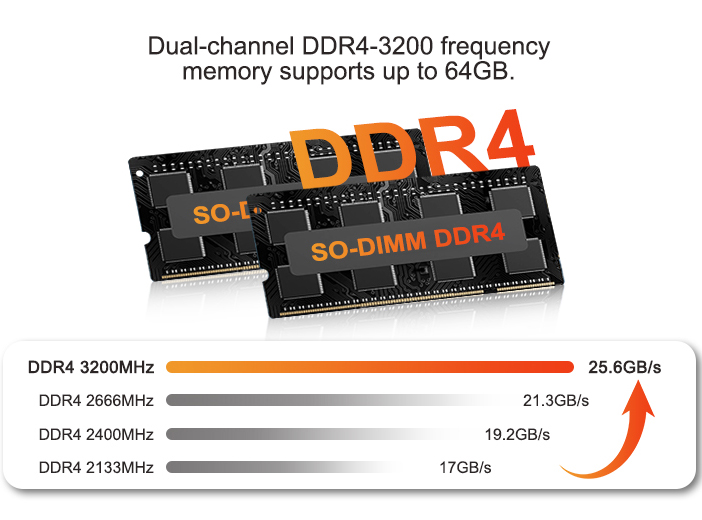

Dual-channerl DDR4

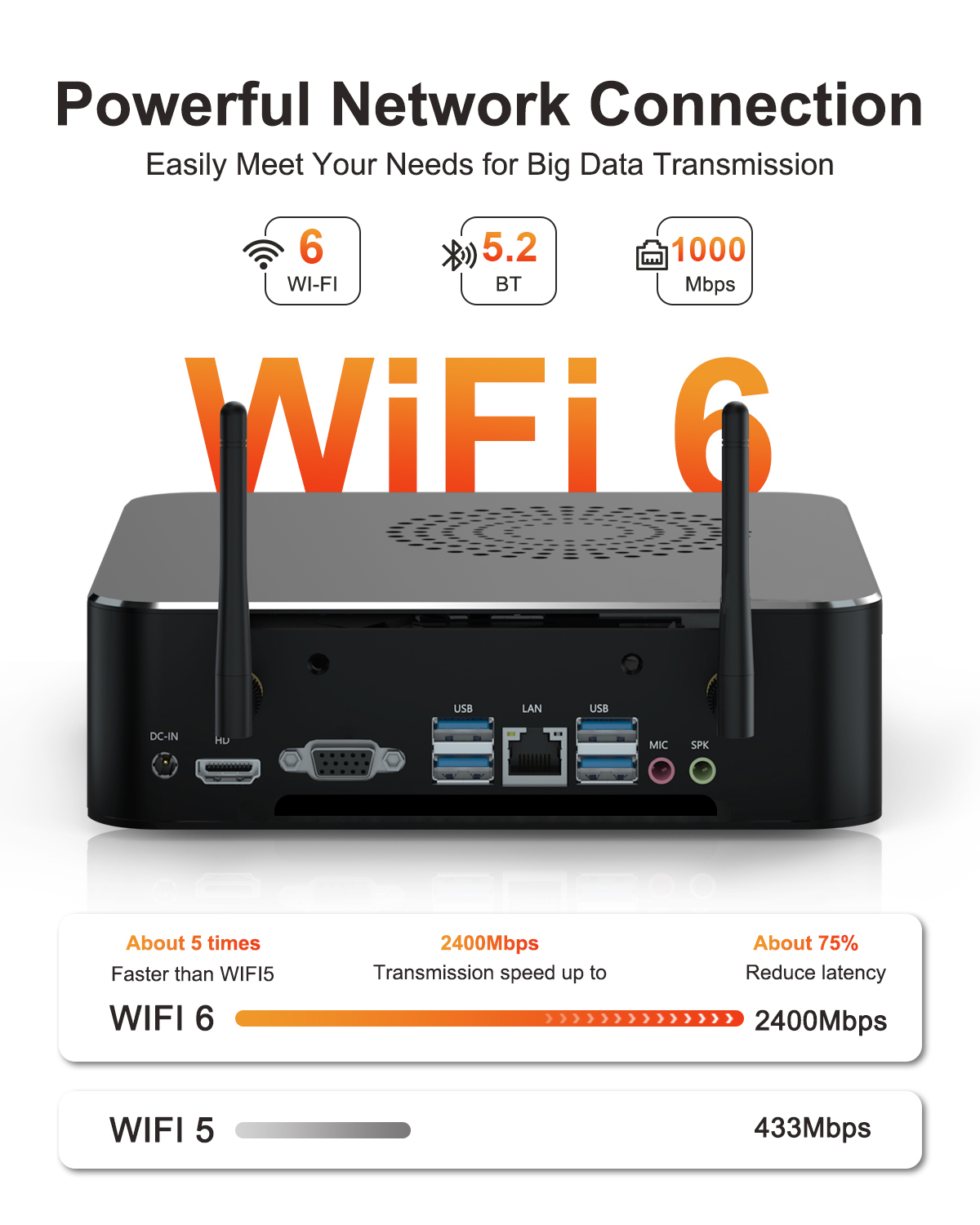

WIFI 6, Bluetooth 5.2

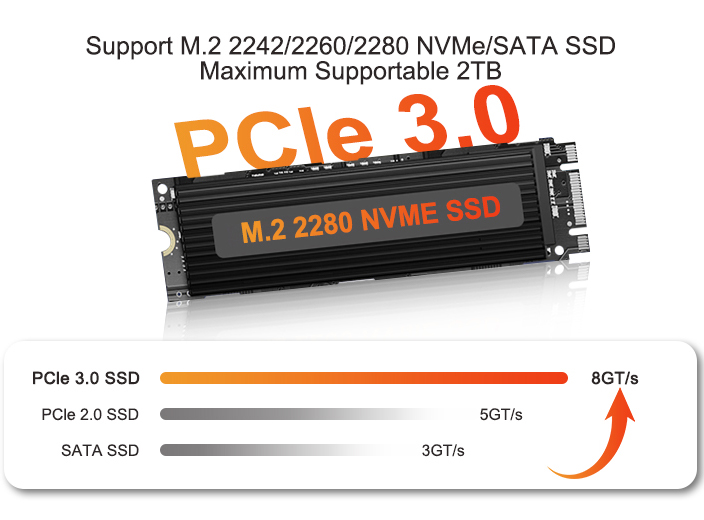

M.2 2280 PCle 3.0
Dual screen output

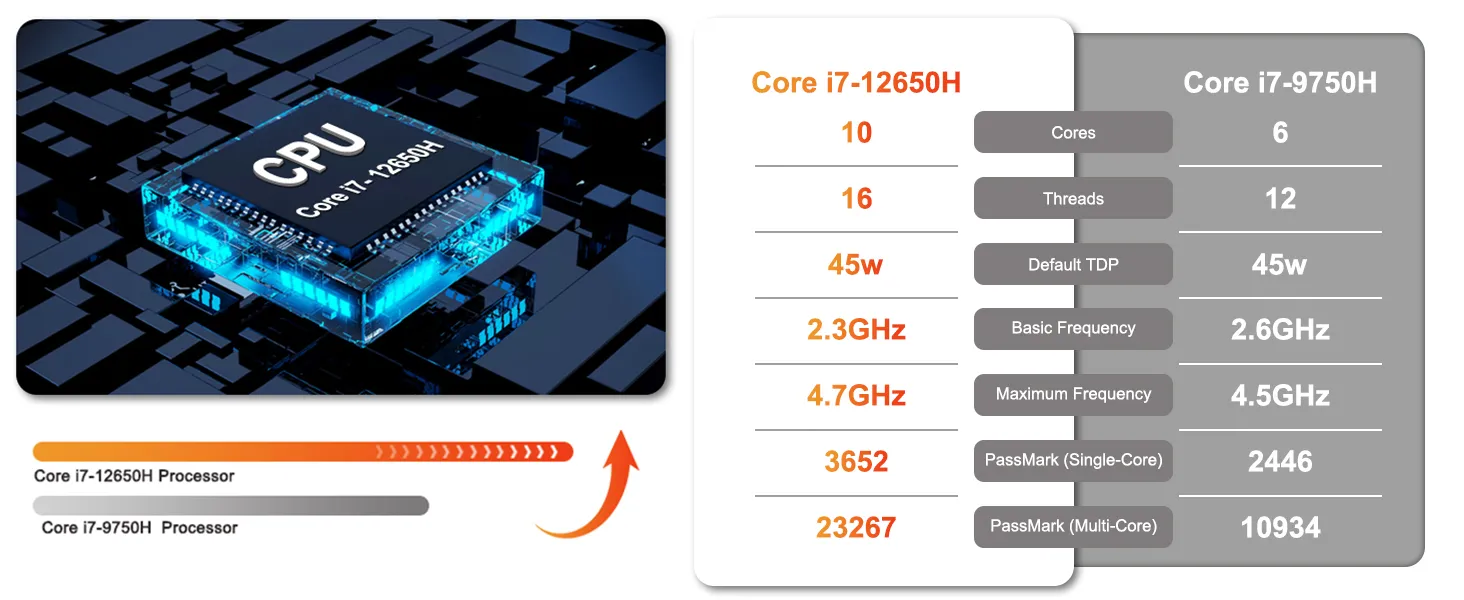

Powerful Core Driven, Boundless Performance

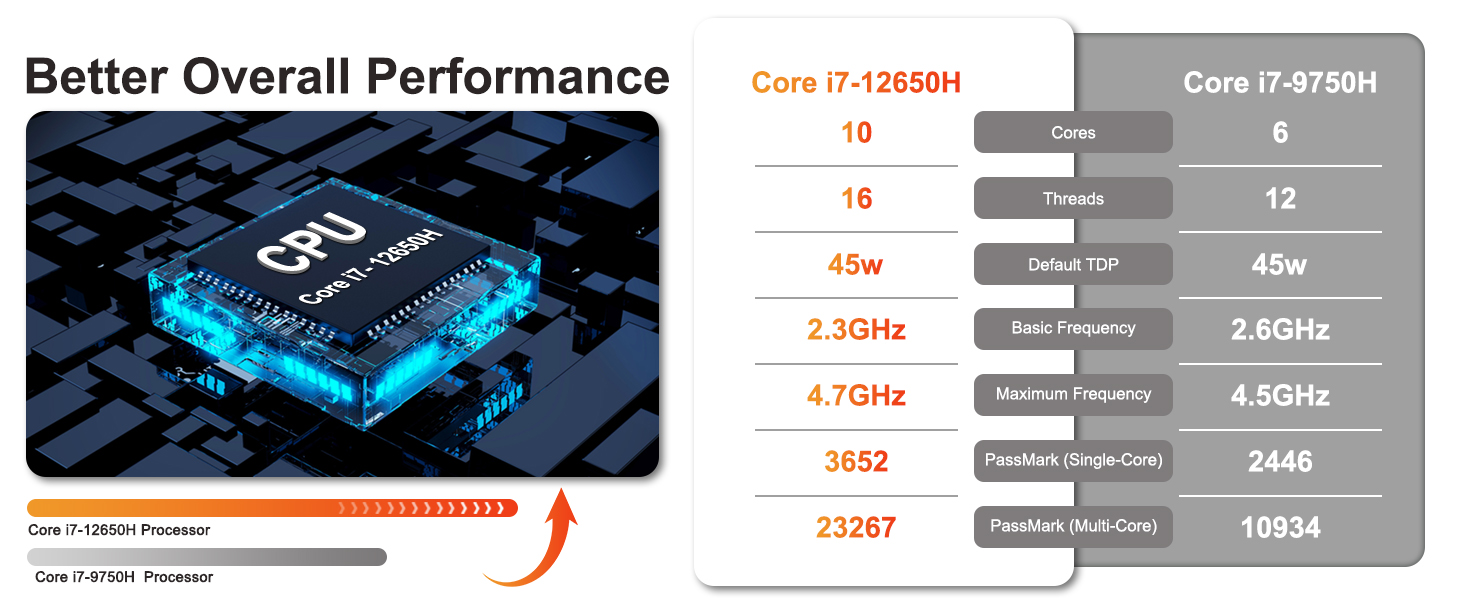

Ultra-Speed Computing, Smooth Experience
Powerful & Cool-Running, Tackles High Loads Effortlessly

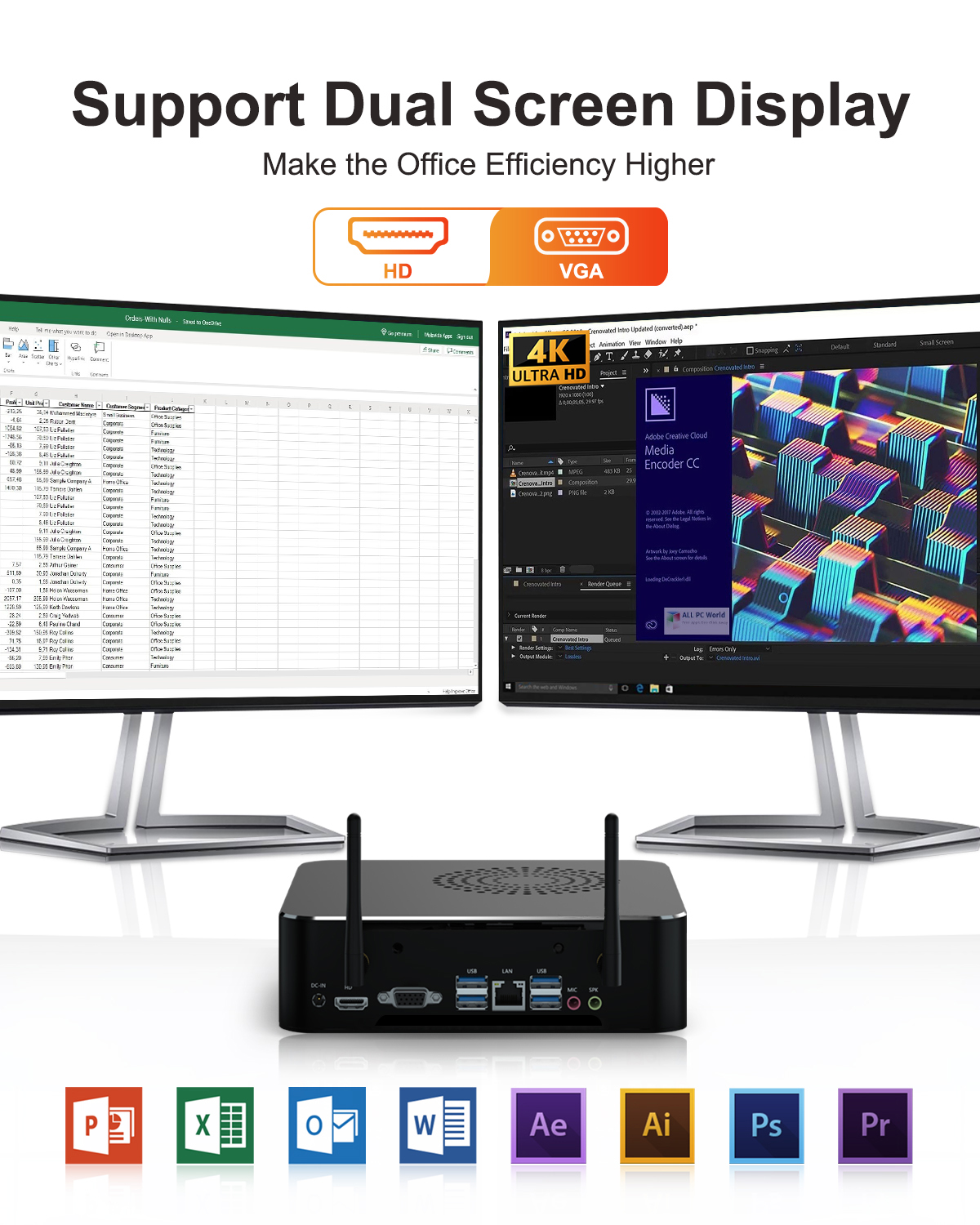

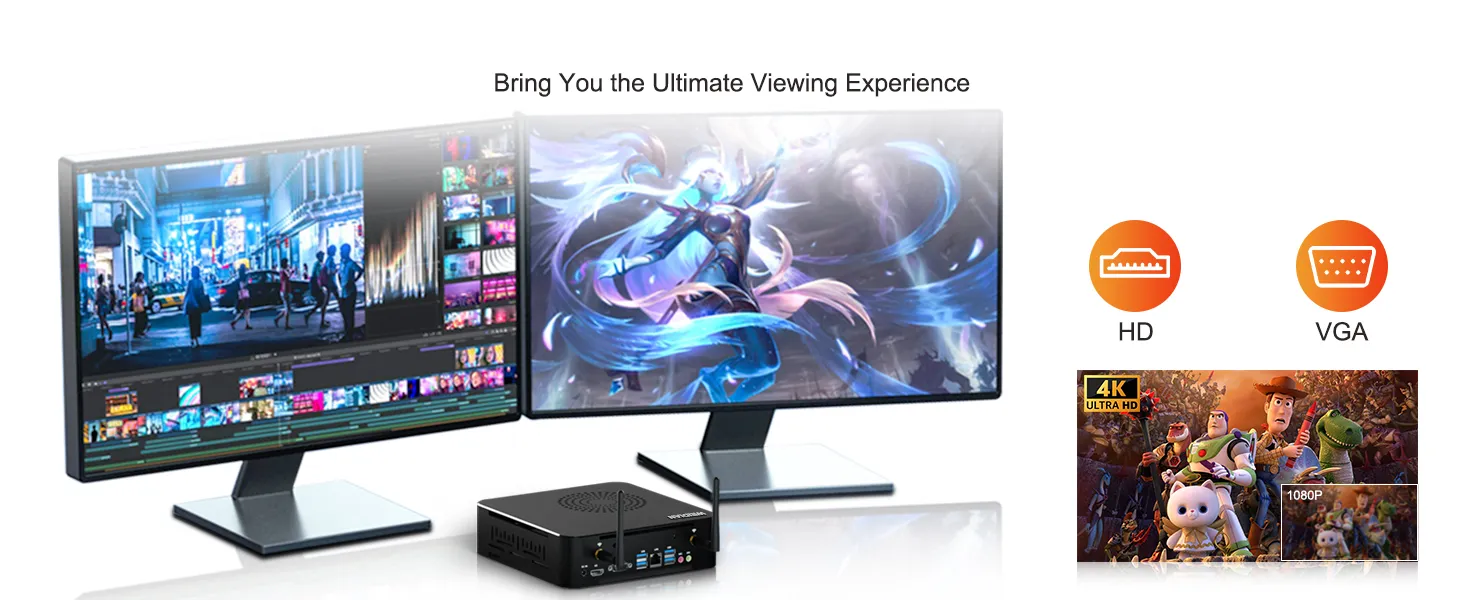

4K HD Dual Screen Vision
• Configuration A: HDMI (4K 30Hz) + VGA (1080P) – Classic dual-screen setup, compatible with older devices.
• Configuration B: HDMI (4K 30Hz) + COM (RS232) – Designed specifically for industrial control and related applications.

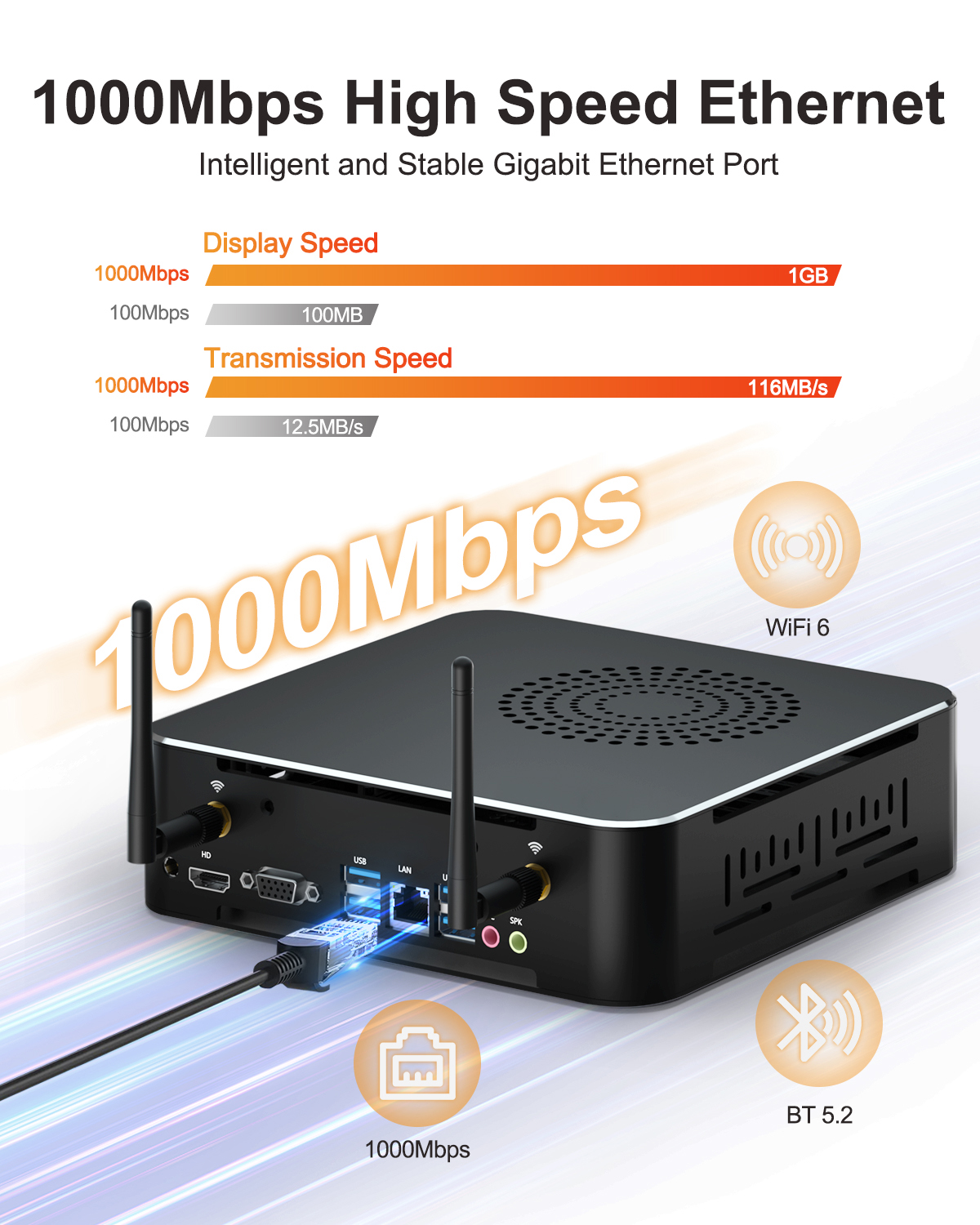

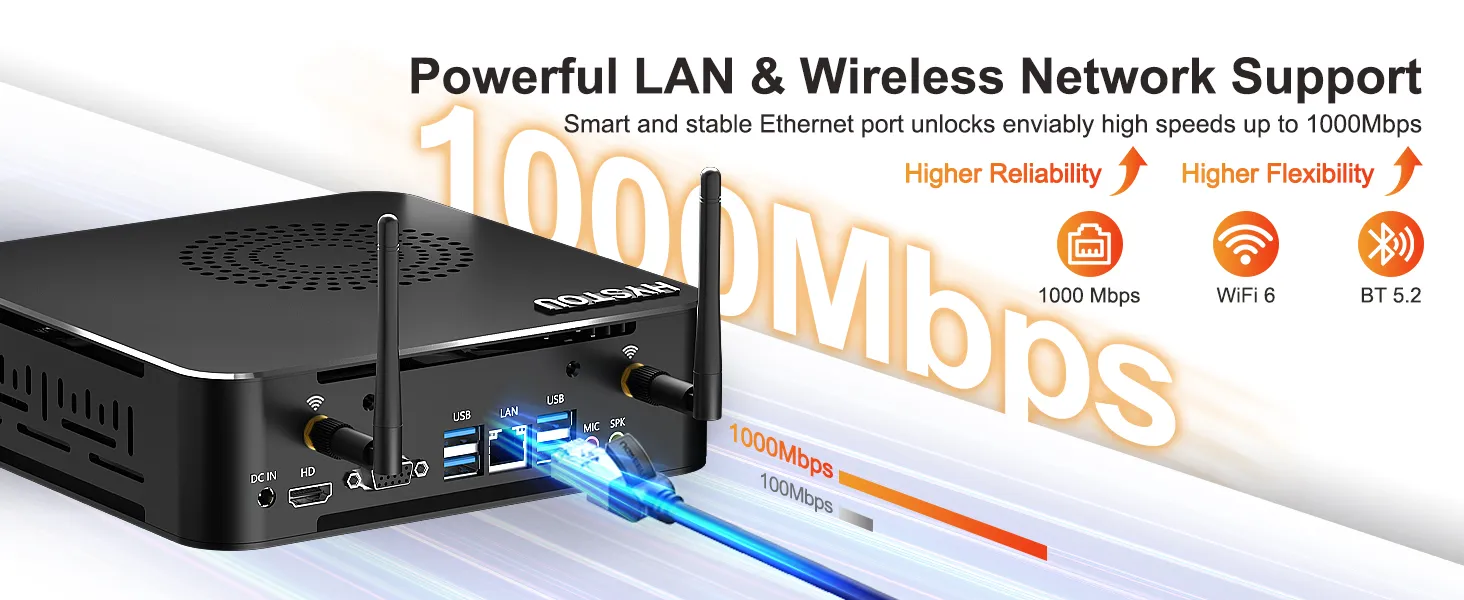

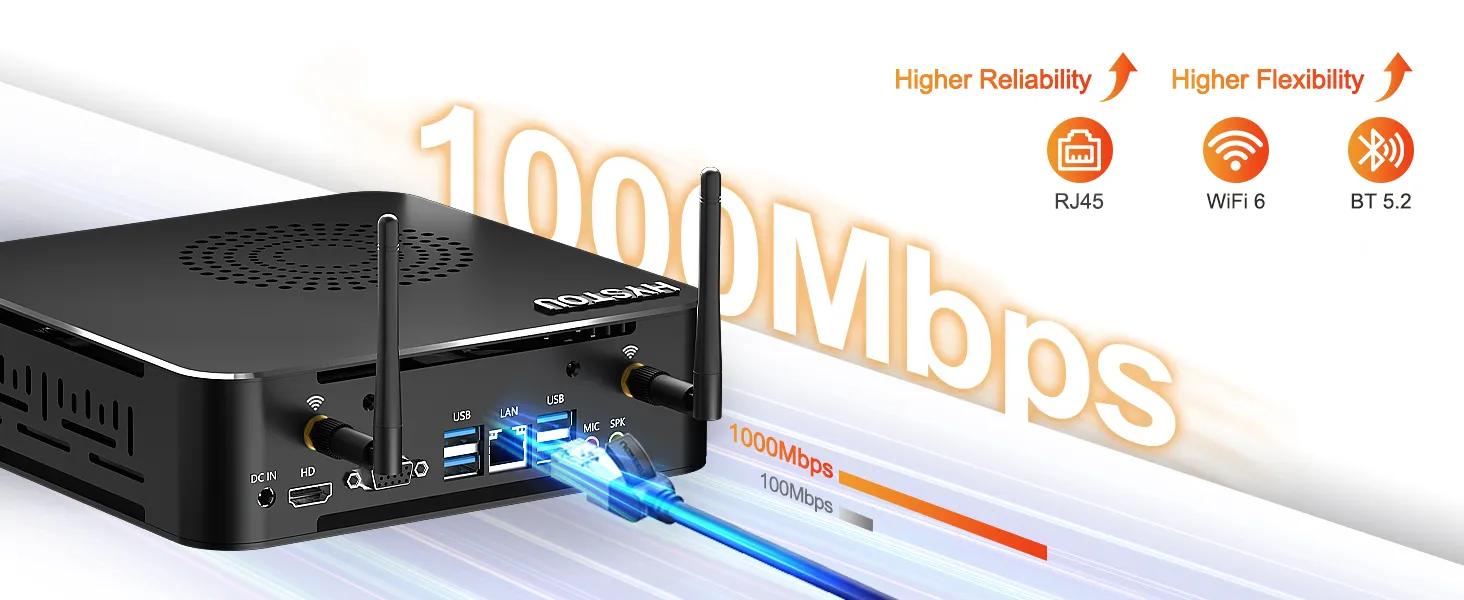

Gigabit Ethernet. Seamless Streaming.
Realtek RTL 8111/8168 Gigabit Ethernet + WiFi 6/Bluetooth 5.2 expansion (standard AC3165) – both wired and wireless deliver blistering speeds.

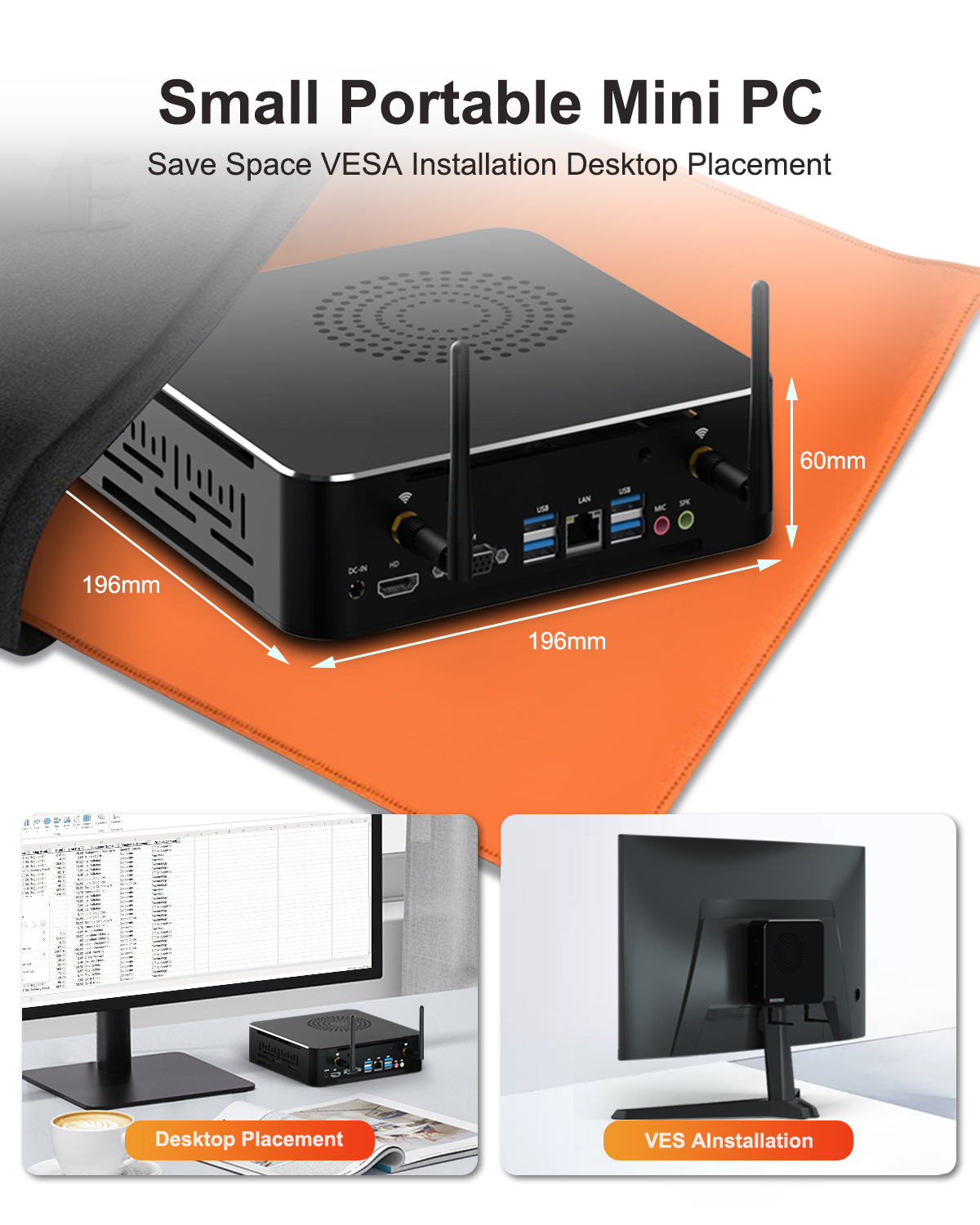

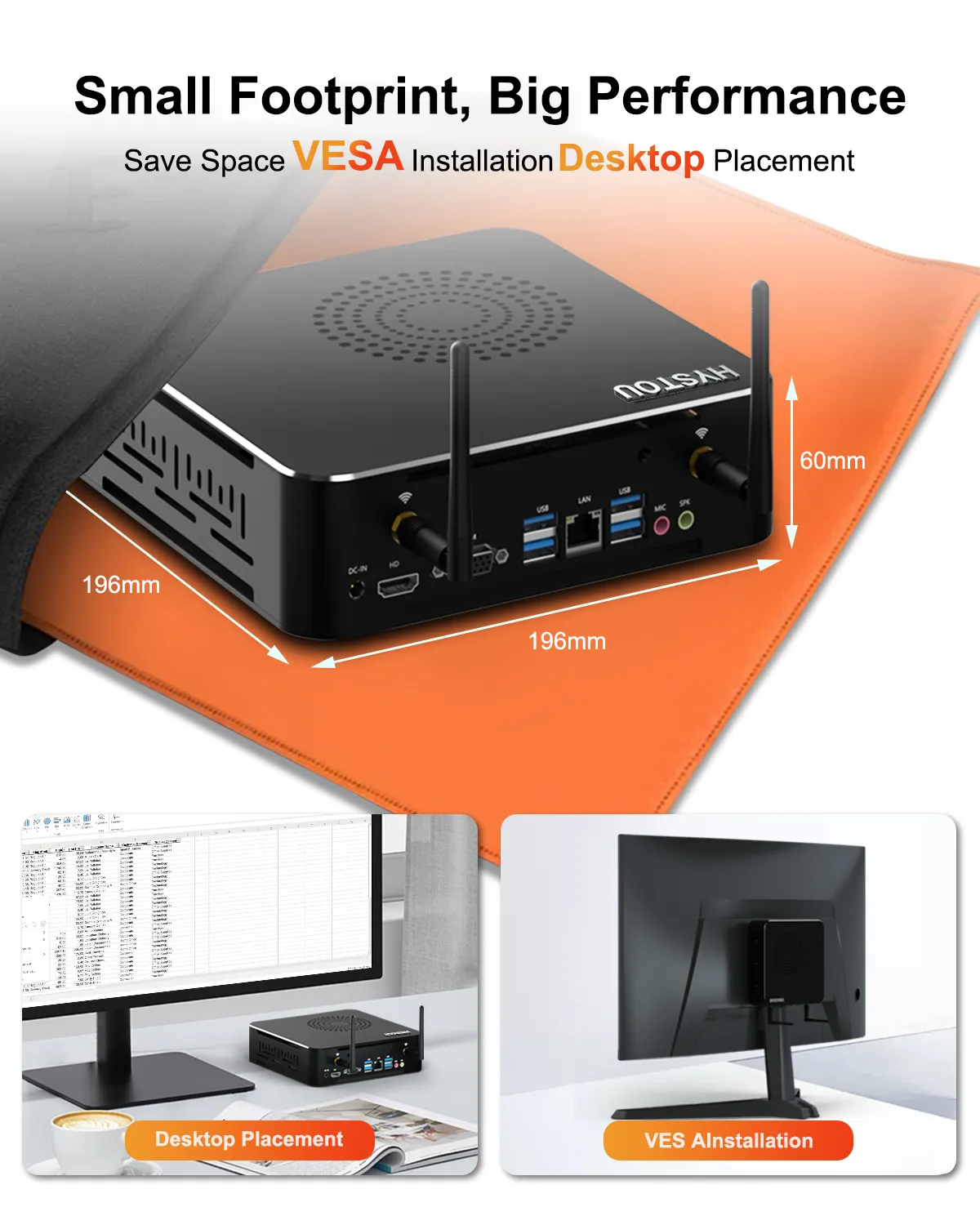

Compact Design,Free Placement

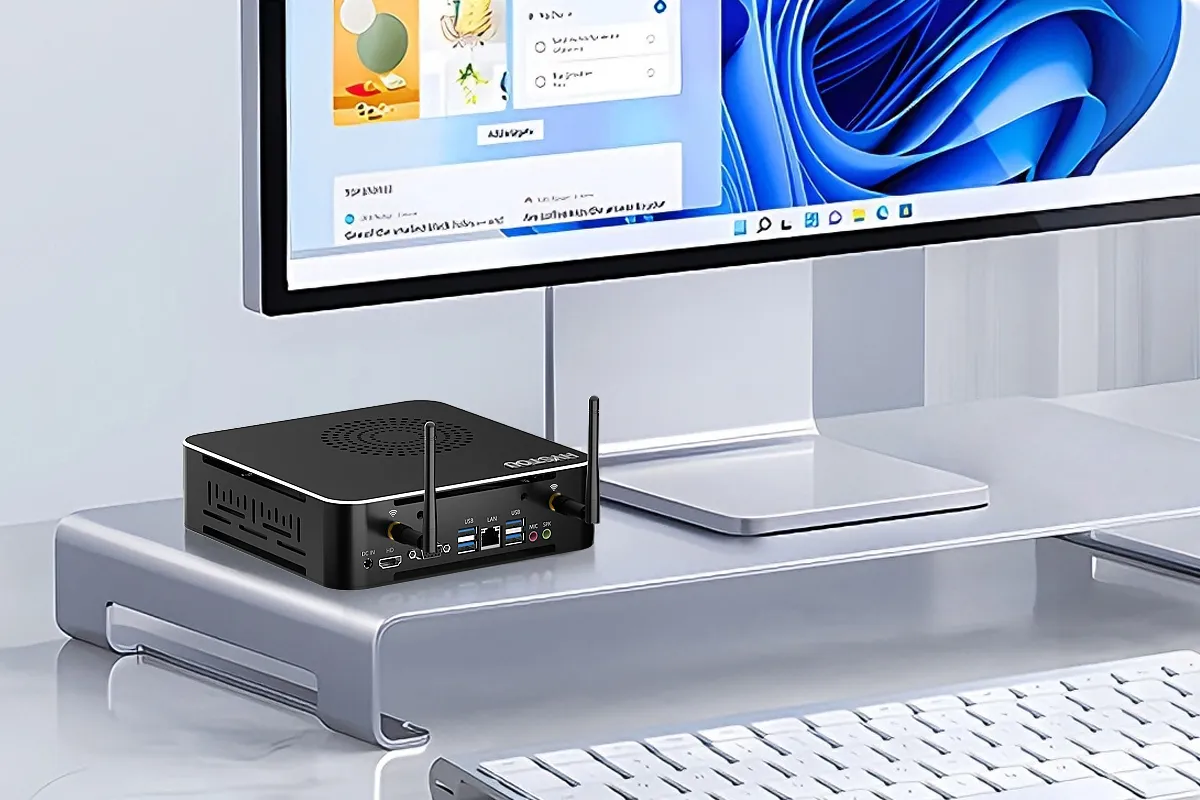

Desktop Placement

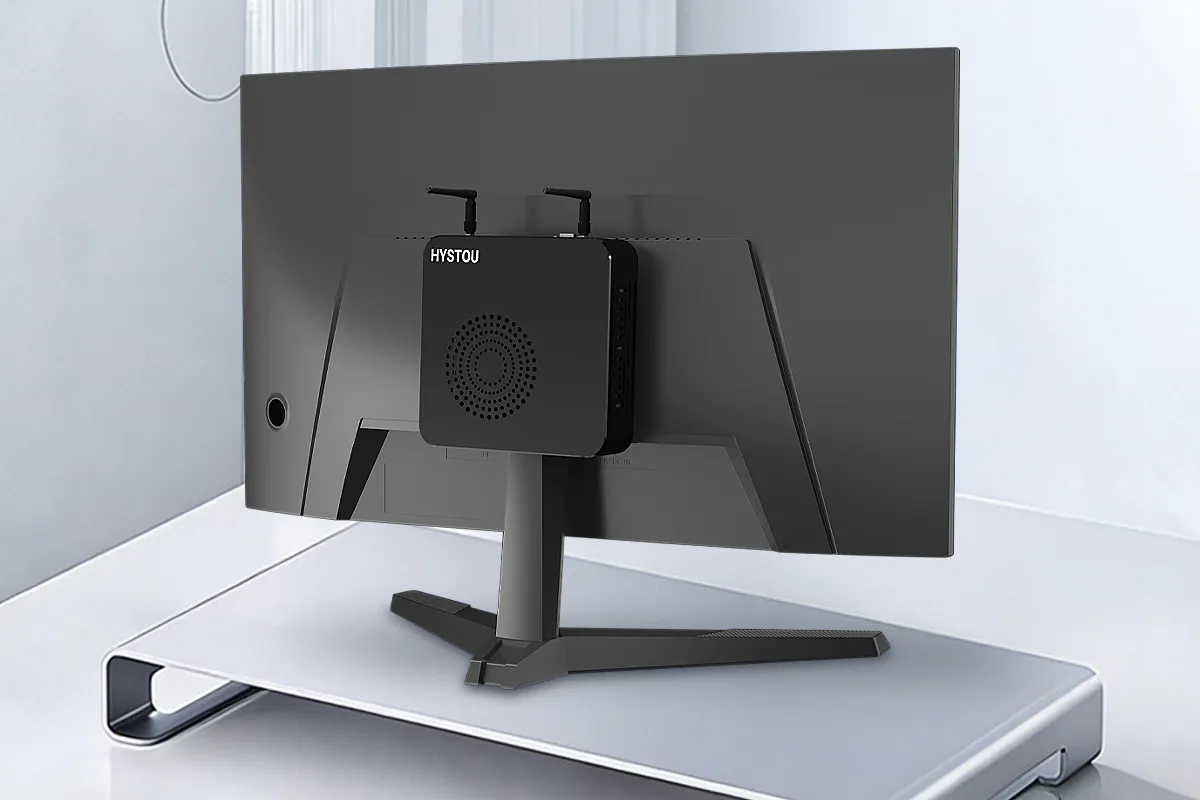

VESA Installation
Suitable for multiple scenarios
Office, industrial control, digital signage, home entertainment, support Win10/11 and Linux systems.
Office scenario
Efficient office, multitasking, support multi-screen display, save desktop space.
Industrial control
Stable operation at wide temperature, adaptable to industrial environment, support various control software.
Digital signage
4K HD output, stable operation, support remote content update and management.
Family entertainment
4K video playback, smooth gaming experience, and support for various home entertainment applications.
Specifications
CPU
i5-12450H/i7-12650H
GPU
Intel UHD Graphics
RAM
2×DDR4，3200MHz， up to 64GB
Storage
1×M.2 M Key/2242/2260/2280 PCIe 3.0 x4/SATA, supports NVMe/SATA protocol SSD
2×SATA3.0 ports for installing 2.5-inch HDDs/SSDs
Dimensions & Weight
196mm×196mm×60mm
2.2Kg
Material
Aluminum
Supported System
Win10\Win11\Linux
Wireless LAN
WIFI 6
Bluetooth 5.2
Ethernet
1×RJ45 1000M
Kensington Lock
No
Accessory
VESA Mount（optional）
Operating temperature
-20°C~60°C

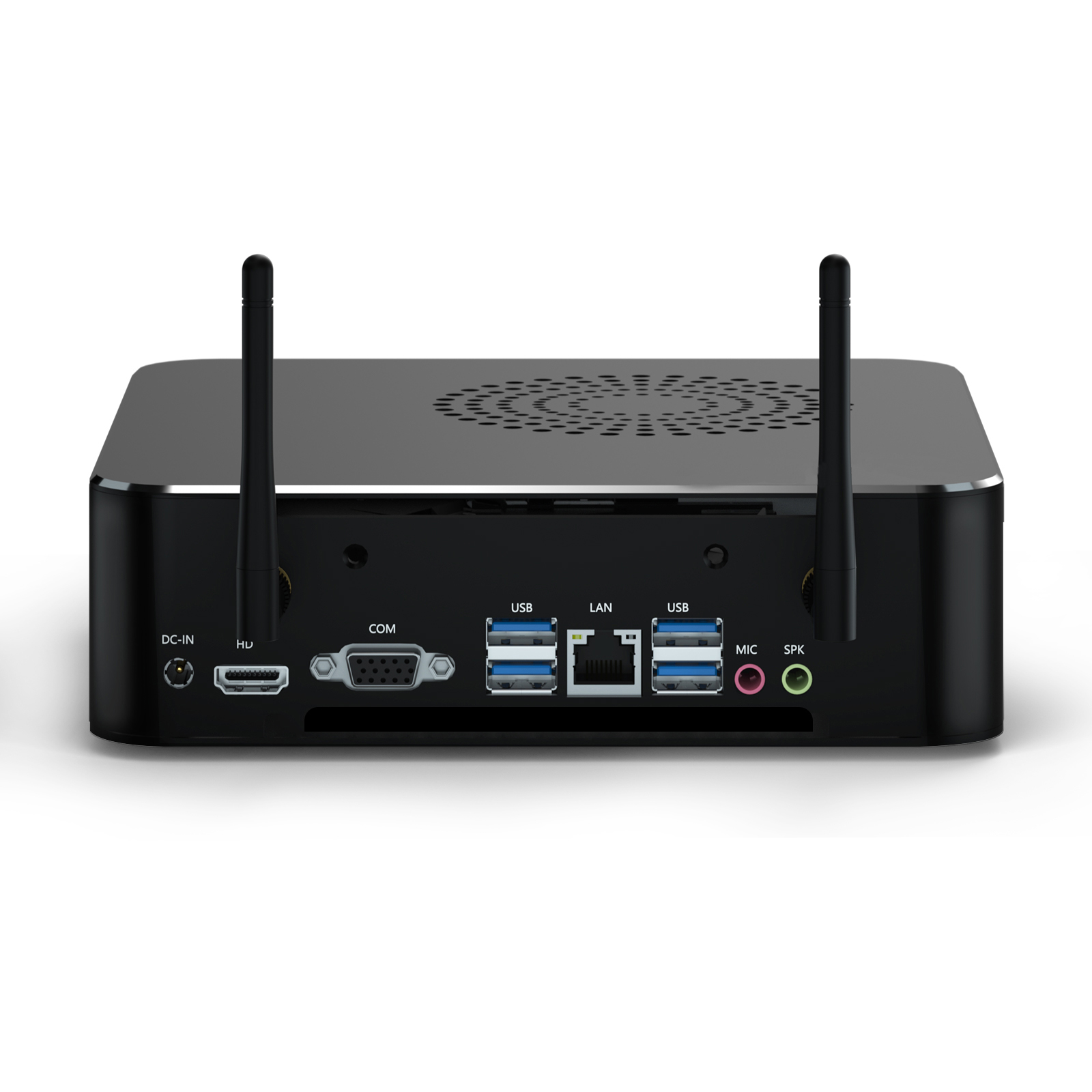

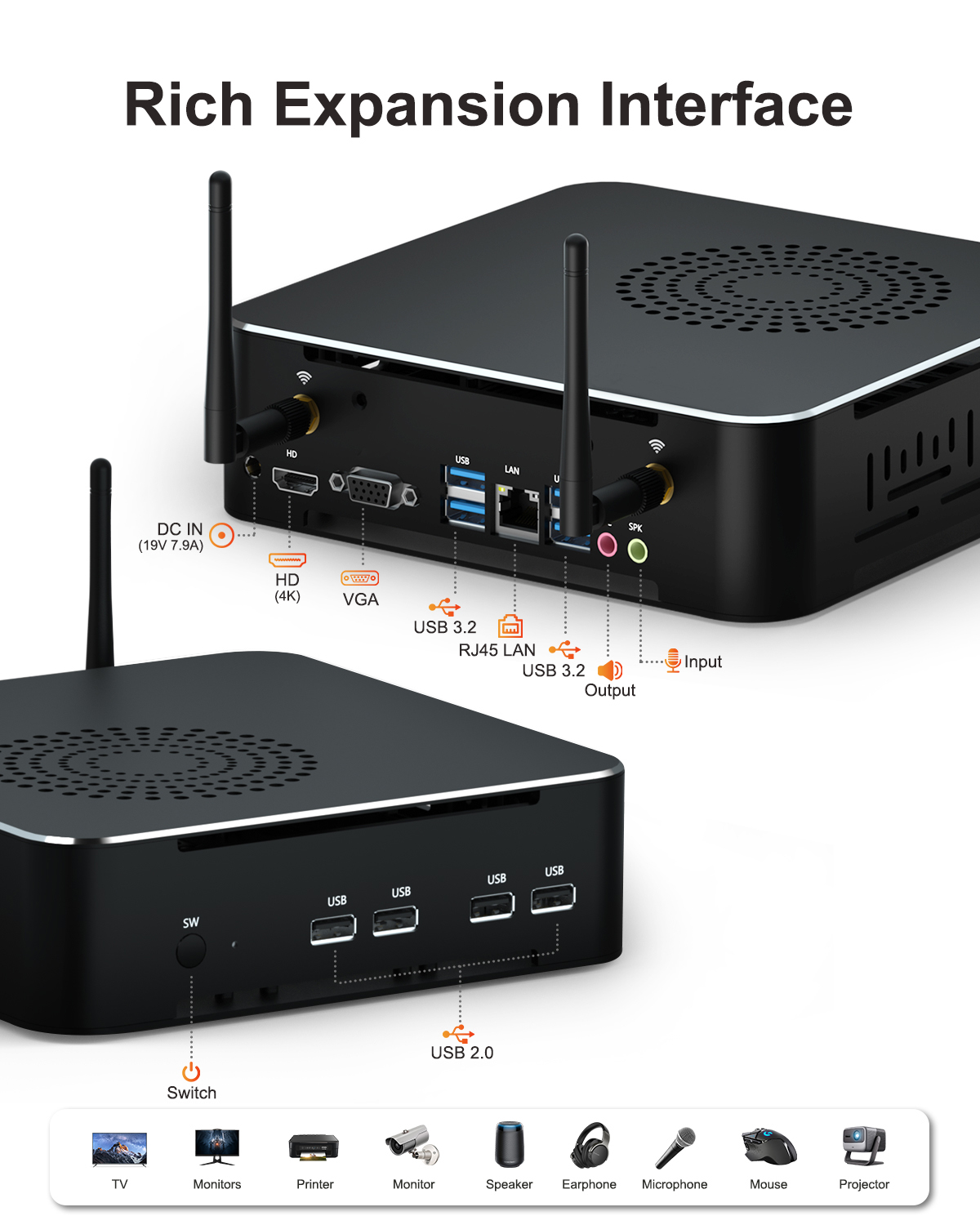

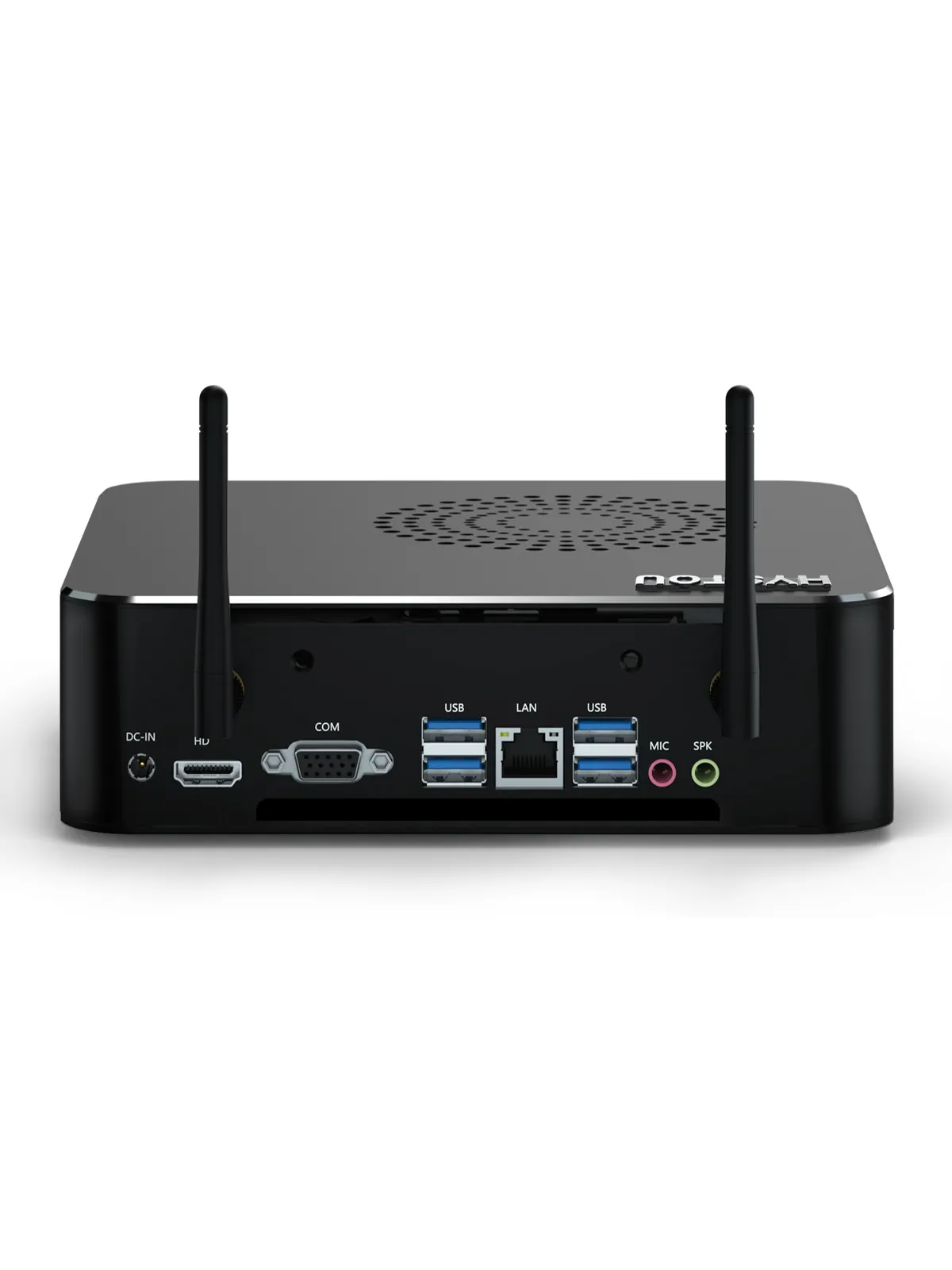

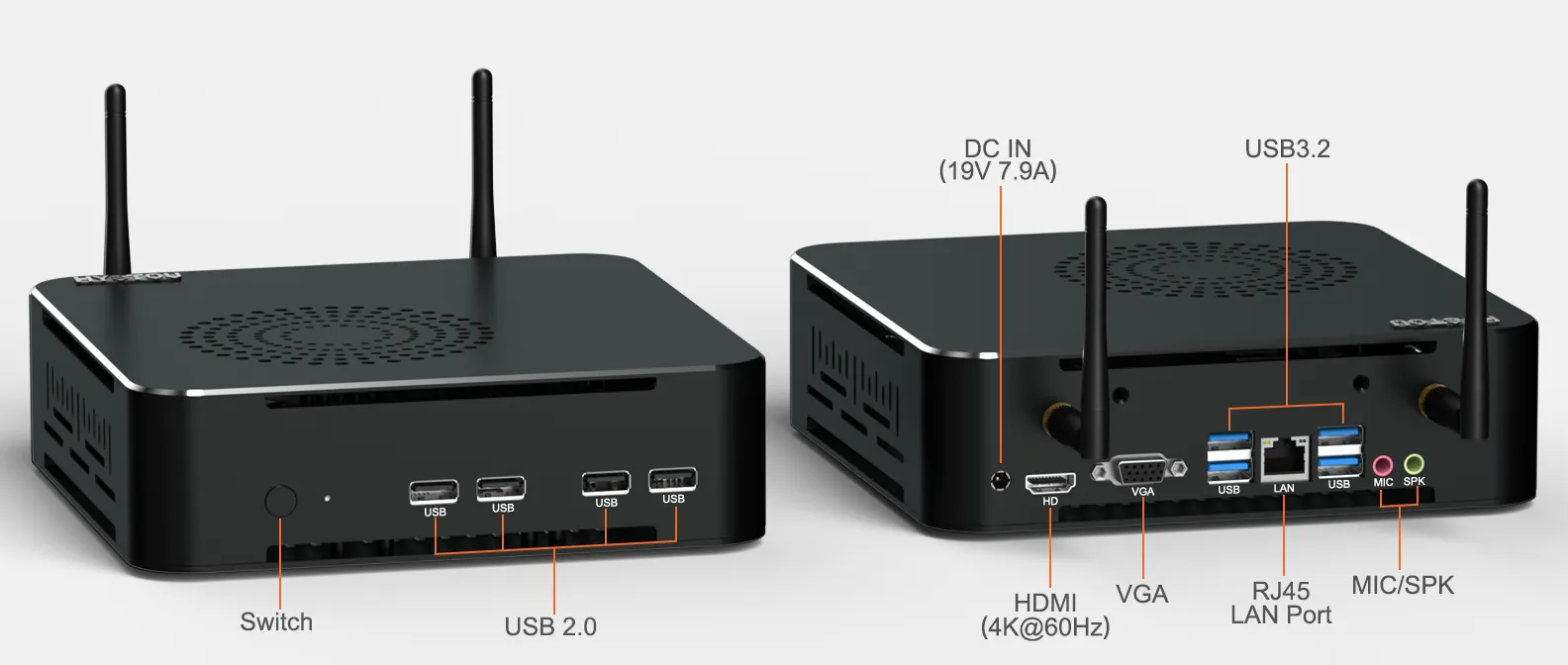

I/O
4×USB2.0+4×USB3.2(Type-A)
1×3.5mm audio output, 1×3.5mm microphone input
1×HDMI（1.4）4K 30Hz 1×VGA 1080P 60Hz 1×COM（RS232）
1×RJ45 8168/8111
1×DC（19V 7.9A）
Internal Slot
1×EDP port, 1×LVDS port
1×M.2 (22*30MM), default AC3165 Bluetooth 4.2. Optional: Wi-Fi 6 Bluetooth 5.2.
Supported Function
Supports TPM2.0, automatic power-on (implemented in BIOS), Wake-on-LAN (can be woken up from any power-off mode), and PXE.
