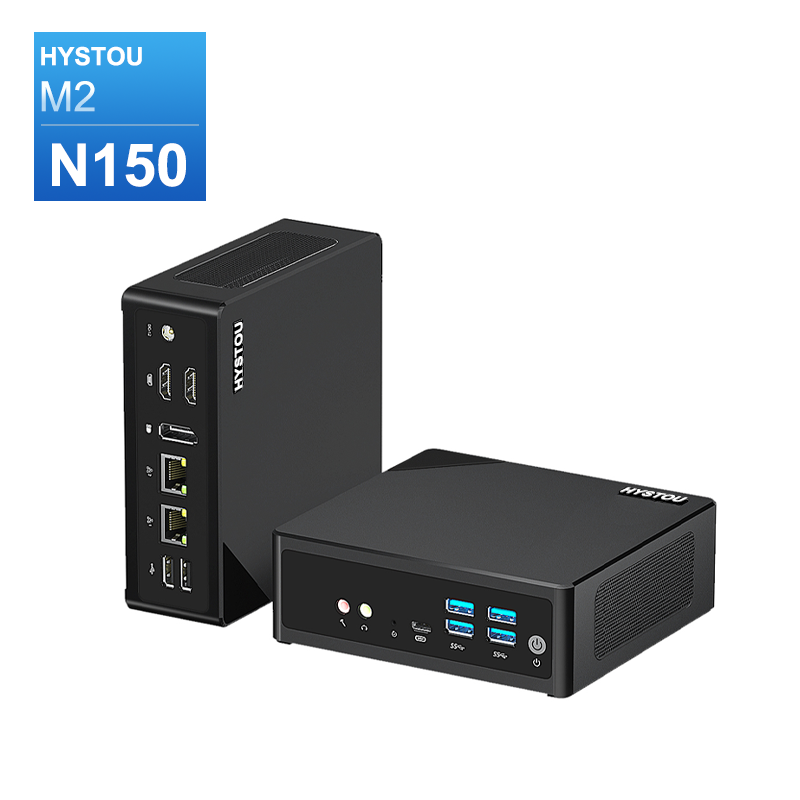

Hystou M2 Dual LAN Mini PC | Intel N150/N305 Soft Router & Edge Gateway
Categories: Office Mini PCs
- Processor: Intel N150 (4 cores/4 threads, 0.8GHz base, up to 3.6GHz turbo)
- Graphics Card: Integrated graphics
- Memory: 1×DDR5 262Pin SODIMM slot, supporting up to 32GB DDR5-4800MHz
- Storage: 1×M.2 NVMe SSD slot (2280 form factor, max 4TB) + 1×SATA3.0 port (2.5-inch HDD/SSD, max 7mm thickness)
- Network: Dual Gigabit Ethernet (Realtek RTL8168/8111), Wi-Fi 5 + Bluetooth 4.2 standard (optional upgrade to Wi-Fi 6 + Bluetooth 5.2)
- Additional Features: 4K triple display output， VESA mount compatible， Low-noise cooling system
Hystou M2 Mini PC: Intel N100 Dual-LAN Industrial Computer
Intel® Alder Lake-N Series | Dual Gigabit Ethernet | DDR5 Speed | Pocket-Sized
Why Choose HYSTOU M2?
Premium Network Appliance & Hardware Firewall (N150, Dual Gigabit)
Powered by energy-efficient N150 processors and Dual Gigabit Ethernet ports, this device supports the seamless deployment of pfSense, OPNsense, OpenWrt, or iKuai systems.
Superior Throughput: Delivers performance exponentially higher than traditional routers, easily saturating Gigabit bandwidth for high-speed networking.
Enterprise Security: Capable of running complex workloads including ad-blocking, VPN services, and enterprise-grade firewall protocols to secure your intranet.
Eco-Friendly Efficiency: Designed for reliable 24/7 continuous operation with ultra-low power consumption (only a few watts).
Triple 4K Display Workstation for Day Trading & Coding (2x HDMI + 1x DP
Specifically engineered for financial analysts, programmers, and power users who require extensive screen real estate for simultaneous data processing.
Triple-Screen Matrix: Equipped with 2x HDMI and 1x DisplayPort, driving three independent 4K monitors. Ideal for viewing K-Line trend, global news, and trading platforms side-by-side.
Zero-Latency Multitasking: Powered by next-gen DDR5 high-speed memory, ensuring a fluid, stutter-free experience when switching between heavy applications and data streams.
Commercial Digital Signage Player & Media Hub (4K Ready, VESA Mount)
Optimized for high-traffic environments such as Retail Ad Displays, Digital Menu Boards, Queuing Kiosks, and Airport Information Screens.
Maintenance-Free Operation: Features Auto Power On (AC Recovery). The system automatically reboots and resumes tasks upon power restoration, ensuring high availability.
Invisible Installation: The ultra-compact chassis supports VESA mounting, allowing it to be discreetly hidden behind monitors for a clean, wire-free look.
Cinema-Grade Visuals: Robust Integrated Graphics drive smooth, continuous 4K video looping and dynamic content rendering.
Industrial Edge Controller & IoT Gateway (RS232 & Wide-Temp)
Designed for mission-critical applications, including Automated Production Line Monitoring, Data Acquisition (DAQ) Gateways, and Smart Vending Machine Terminals.
Seamless Legacy Connectivity: Features onboard RS232 Serial Headers for secure, internal connection to industrial peripherals like PLCs, barcode scanners, and sensors.
24/7 Uninterrupted Operation: Built-in hardware Watchdog Timer (WDT) automatically resets the system in case of software freezes, ensuring zero downtime.
Rugged Stability: Engineered with wide operating temperature capabilities, guaranteeing reliable performance in harsh manufacturing environments.
Perfect for controlling factory robotic arms, running 24/7 digital kiosks, or acting as a reliable office workstation.
Hystou M2 Series: Compact Powerhouse (Intel Alder Lake-N & DDR5)
Engineered for Efficiency: Designed for users demanding the ultimate performance-per-watt. The M2 Series packs desktop-grade power into a miniature form factor.
Next-Gen Processing: Powered by Intel’s Alder Lake-N architecture, offering a choice between the efficient Quad-Core N150 for responsive multitasking.
High-Speed Memory: Features a DDR5 4800MHz slot supporting up to 32GB RAM. This bandwidth upgrade ensures a seamless experience for business productivity, media streaming, and home server deployments.

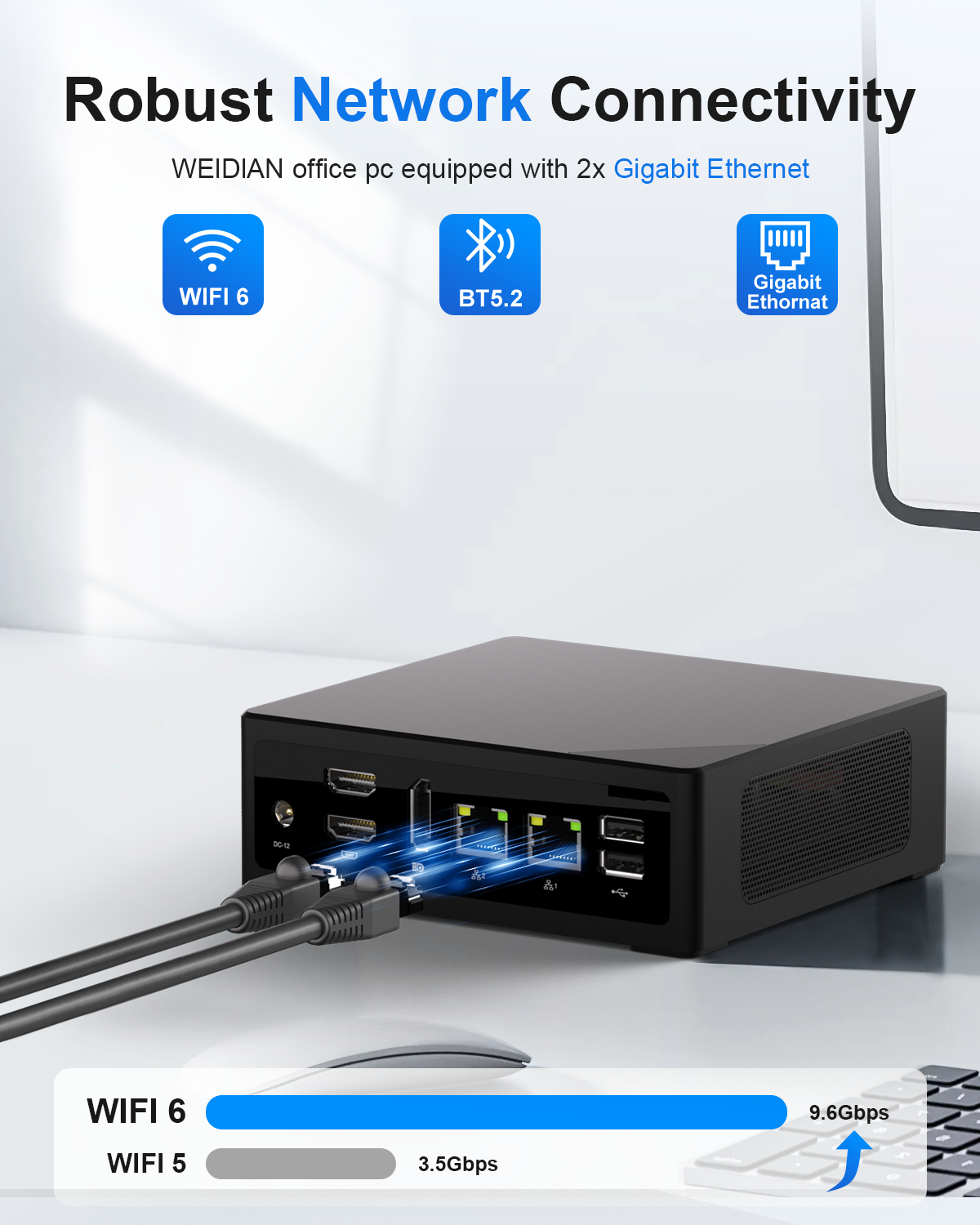

Dual Gigabit LAN: The Network Enthusiast’s Choice
Robust Network Appliance: Equipped with Dual Gigabit RJ45 ports, the M2 serves as the ultimate hardware platform for custom network solutions.
Versatile Deployment: Effortlessly install pfSense, OPNsense, or Ubuntu to transform the device into an enterprise-grade hardware firewall, soft router, or centralized home media hub.
Wireless Flexibility: Features an onboard M.2 E-Key slot specifically for WiFi 6 expansion, ensuring high-speed wireless connectivity complements its wired performance.
With Dual Gigabit LAN, you can set up a dedicated firewall or aggregate bandwidth for smoother transfers, making it ideal for home labs and soft routing

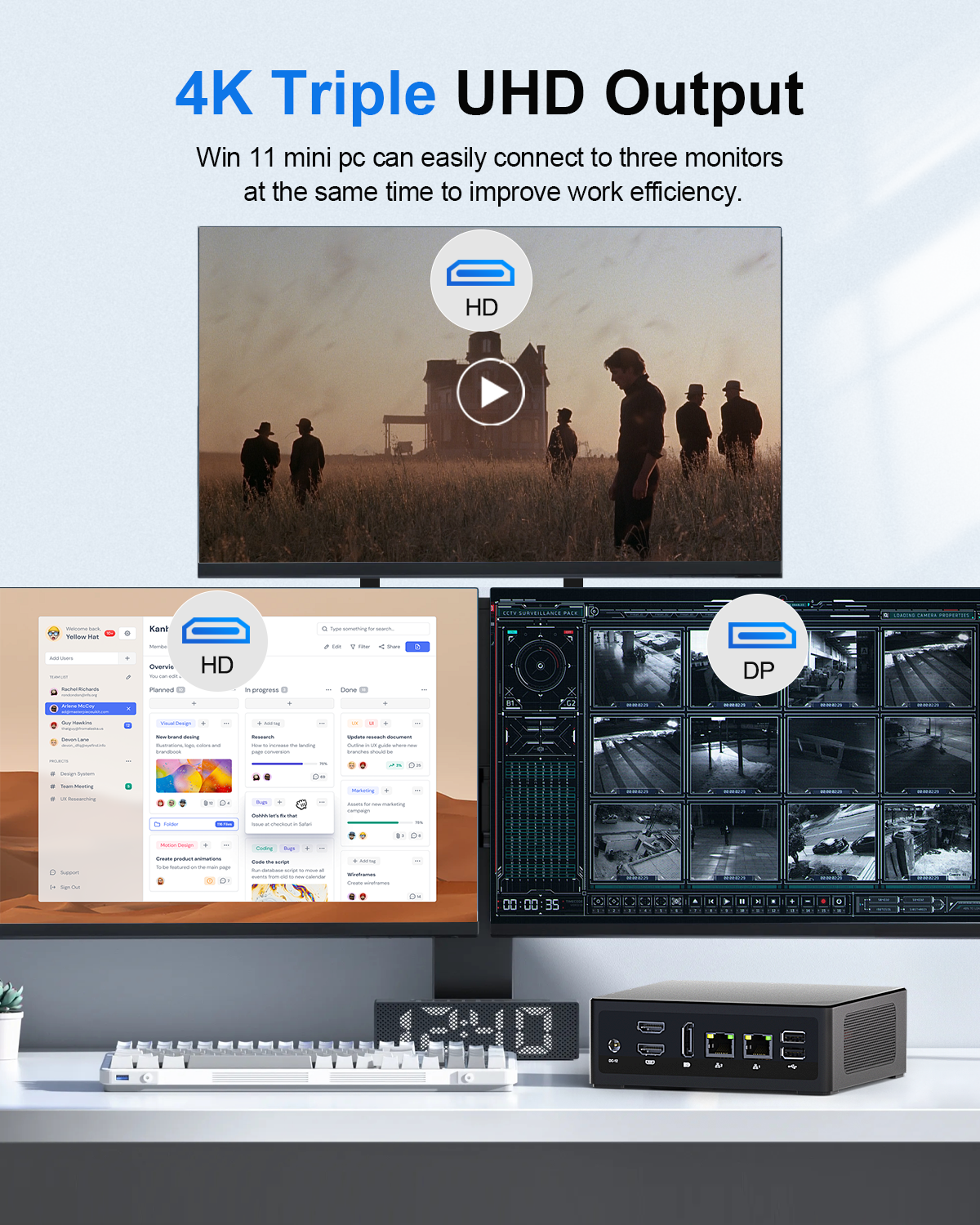

Triple 4K Display Support (2x HDMI + 1x DP)
Maximize Productivity: Eliminate the need for constant window switching. The M2 is capable of driving three independent monitors simultaneously via Dual HDMI and DisplayPort interfaces.
UHD Visual Performance: Featuring DisplayPort 1.2, the system supports smooth 4K @ 60Hz output, delivering crystal-clear UHD visuals for immersive viewing.
ptimized Scenarios: The perfect multi-screen solution for professional workflows, including stock trading, software coding, and commercial digital signage displays.
Flexible Expansion & Industrial-Grade Features (TPM 2.0)

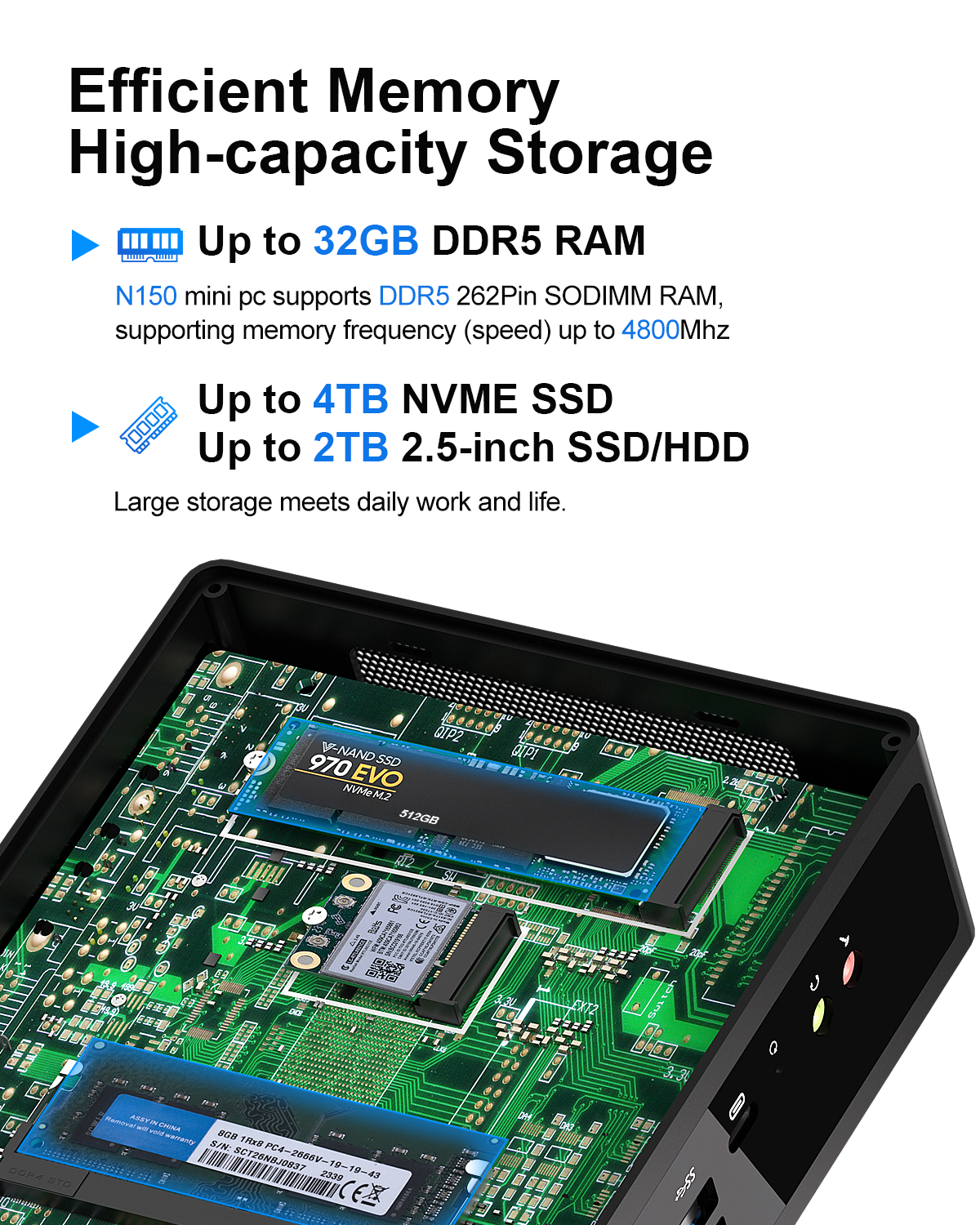

Compact Yet Expandable: Despite its ultra-compact 135mm x 127mm footprint, the M2 offers robust dual-storage capability, accommodating 1x M.2 NVMe SSD and 1x 2.5-inch SATA HDD/SSD.
Mission-Critical Reliability: Engineered for commercial stability. Essential features include Auto Power On, Watchdog Timer, and a TPM 2.0 security module, ensuring secure, unattended operation in demanding business environments.

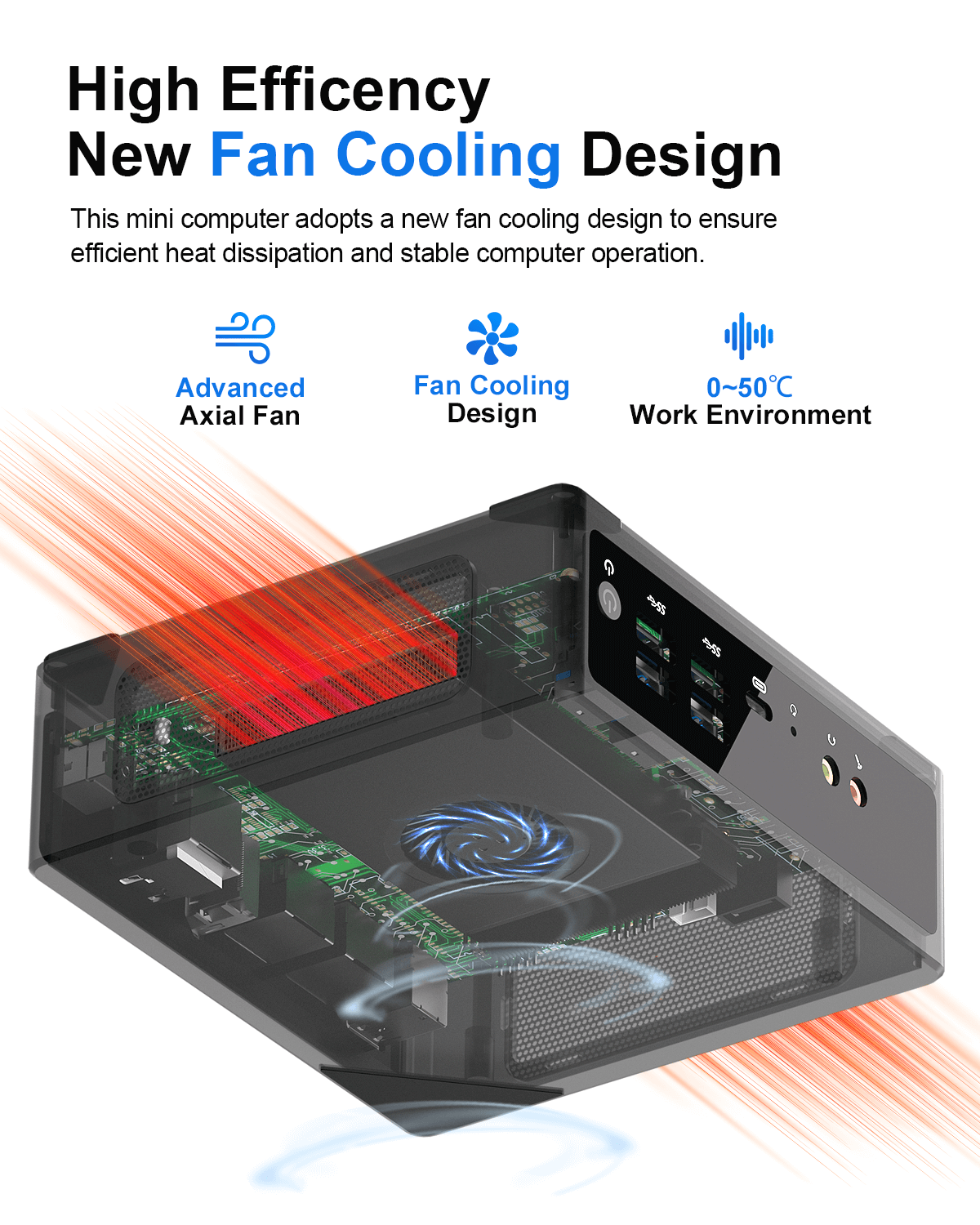

Silent Operation & Efficient Cooling
The active cooling system is tuned for low noise (≤30dB), ensuring the device runs quietly even under load. With a TDP of just 6W (N150) , it is an eco-friendly solution for 24/7 operation.
Technical Specifications
| Category | Details |
|---|---|
|
Processor |
Intel® N150 |
|
Memory |
1x DDR5 SO-DIMM Slot, Max 32GB, 4800MHz Speed |
|
Storage |
1x M.2 2280 NVMe SSD (PCIe 3.0, Max 4TB) 1x SATA 3.0 (Supports 2.5″ HDD/SSD, Max 7mm thickness) |
|
Network |
2x Realtek RTL8168/8111 Gigabit Ethernet Ports |
|
Wireless |
M.2 E-Key Slot (Default WiFi 5 + BT 4.2, Optional WiFi 6) |
|
Video Output |
2x HDMI 1.4 (4K @ 30Hz) 1x DP 1.2 (4K @ 60Hz) |
|
I/O Ports |

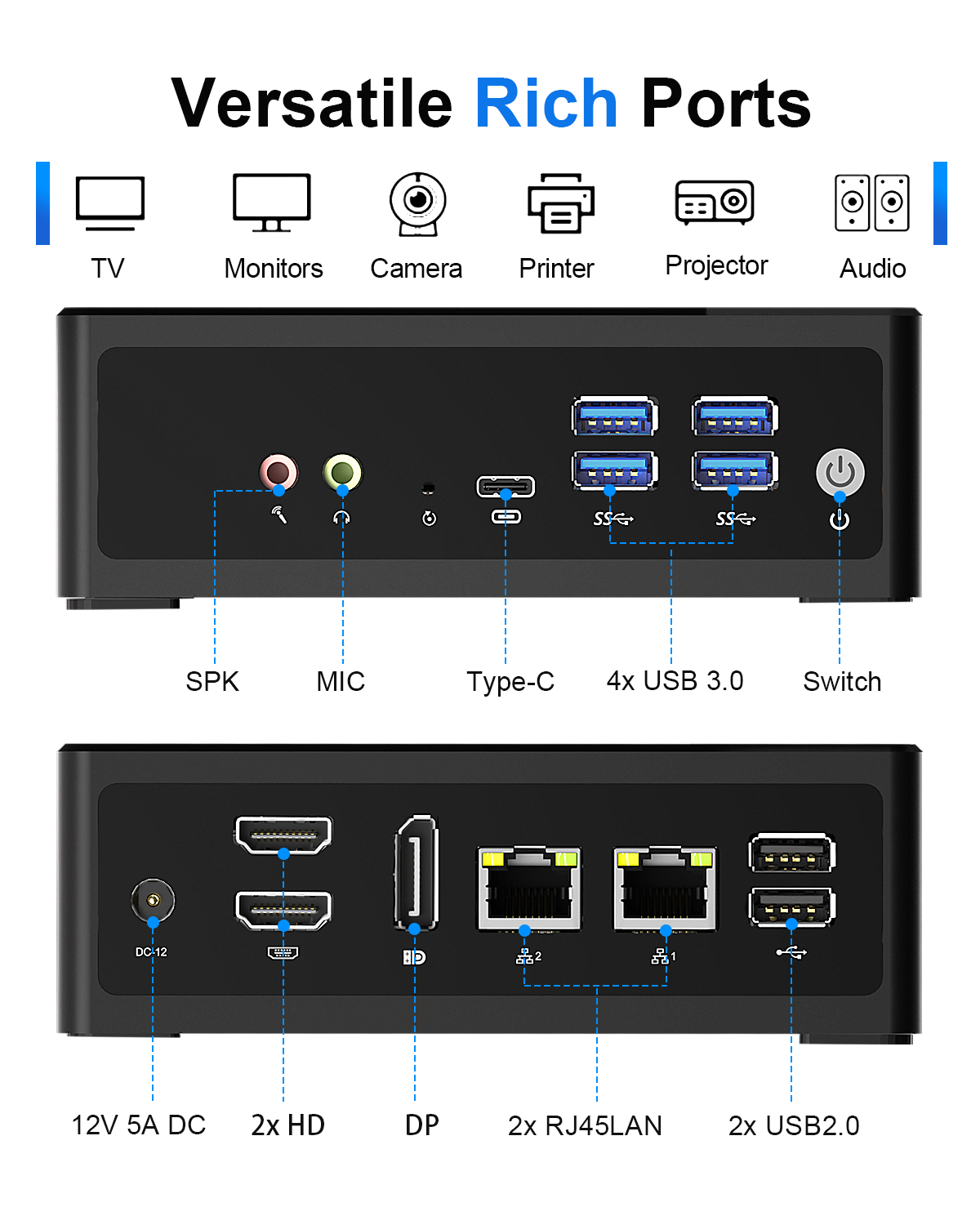

Front: 4x USB 3.0, 1x Type-C, Audio/Mic, CMOS Reset Button Rear: 2x USB 2.0, 2x RJ45 LAN, 2x HDMI, 1x DP, DC-IN |
|
Onboard Features |
Flexible Expansion & Industrial-Grade Features (TPM 2.0) | Industrial-Grade Security & Expansion (TPM 2.0) |
|
OS Support |
Windows 10/11, Windows Server, Ubuntu, pfSense, OPNsense |
|
Dimensions |
35 x 127.6 x 45 mm (0.6L); Aluminum Alloy + ABS Material |
