Industrial Fanless Mini PC | Intel 10th Gen i5 | Hystou H4T-10th
Categories: Industrial Mini PC
- Processor: Intel 10th Gen i5-10210U/i5-10310U / i7-10710U(up to 4.4GHz Turbo, 15W TDP)
- Graphics: Intel UHD Graphics
- Memory: 2×DDR4 SODIMM slots (max 64GB)
- Storage: 1×M.2_2280 SATA SSD slot (up to 2TB)
- Network: 2×Gigabit RJ45 LAN, Intel 802.11ac dual-band WiFi (Bluetooth 4.2)
- Display Output: HDMI/EDP/Type-C triple display support
- Fanless design for silent operation
- Aluminum alloy casing for industrial environments

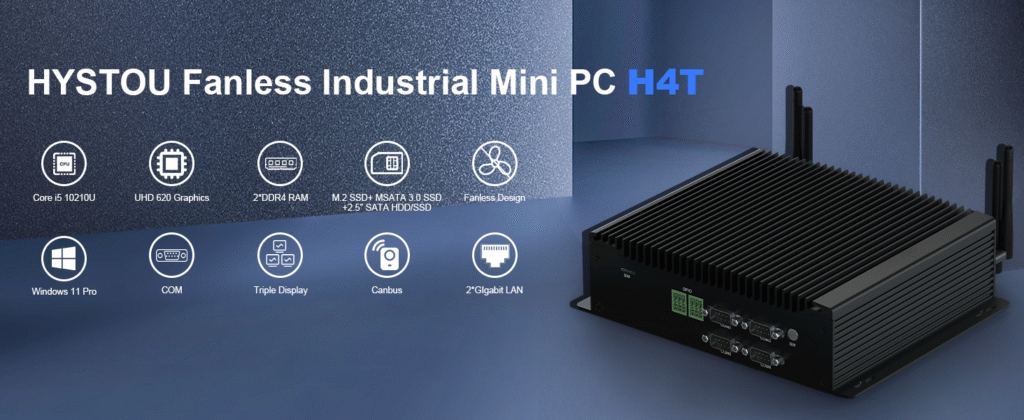

HYSTOU H4T
Industrial-Grade Stability
Mini-Sized Form Factor
Professional-Grade Experience
What is HYSTOU H4T
i7-10710U
6
Core
4.7GHz
Max Turbo Frequency
12
Threads
2×Gigabit RJ45
WIFI 5
Bluetooth 4.2
Dual-channel DDR4 3200MHz, up to 64GB
M.2 2280 PCle3.0/SATA, up to 2TB
Various Installation Methods
Fanless Design
6COM Ports
Additonal Features:
- PXE
- Wake on Lan
- Automatic startup
- Scheduled power-on
- Watchdog
Powerful Core, Tailored to Your Needs
From Energy Efficiency to Blazing-Fast Computing, We Offer Versatile i5/i7 Configurations to Deliver the Optimal Balance for Your Specific Applications
4
Core
4.2GHz
Max Turbo Frequency
8
Threads
6MB
Cache
15W
Basic Power
25W
Performance Unleashed
4
Core
4.4GHz
Max Turbo Frequency
8
Threads
6MB
Cache
15W
Basic Power
25W
Performance Unleashed
6
Core
4.7GHz
Max Turbo Frequency
12
Threads
12MB
Cache
15W
Basic Power
25W
Performance Unleashed

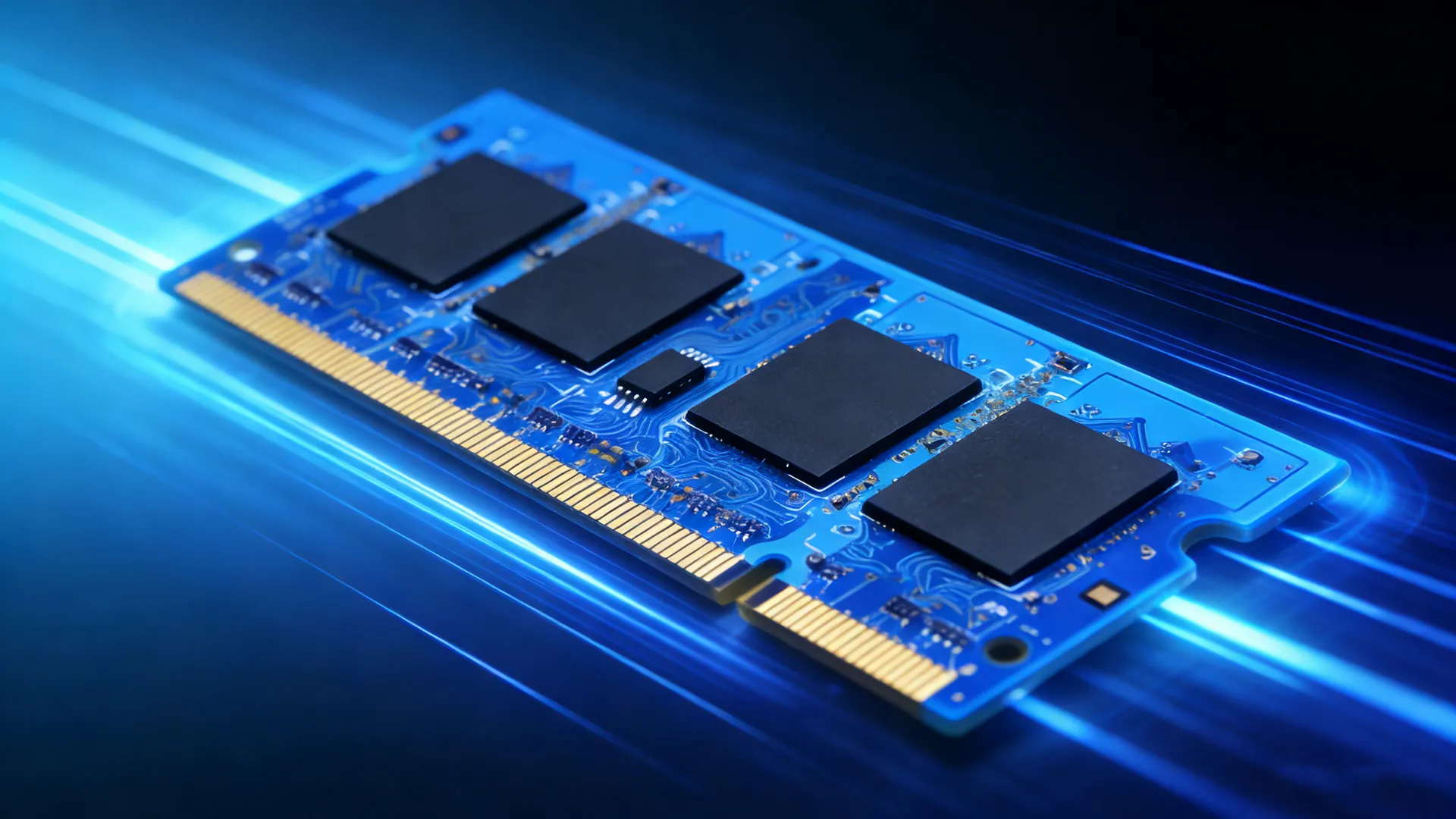

Maximize Uptime, Minimize Lifecycle Cost
Industrial systems demand reliability that translates directly to bottom-line results. Our dual-channel, 64GB memory architecture isn’t just about speed; it’s about preventing costly crashes and data bottlenecks in 24/7 operations. By ensuring stable multitasking and providing easy, slot-in upgrade paths, it protects your initial investment and eliminates the need for premature system replacement.

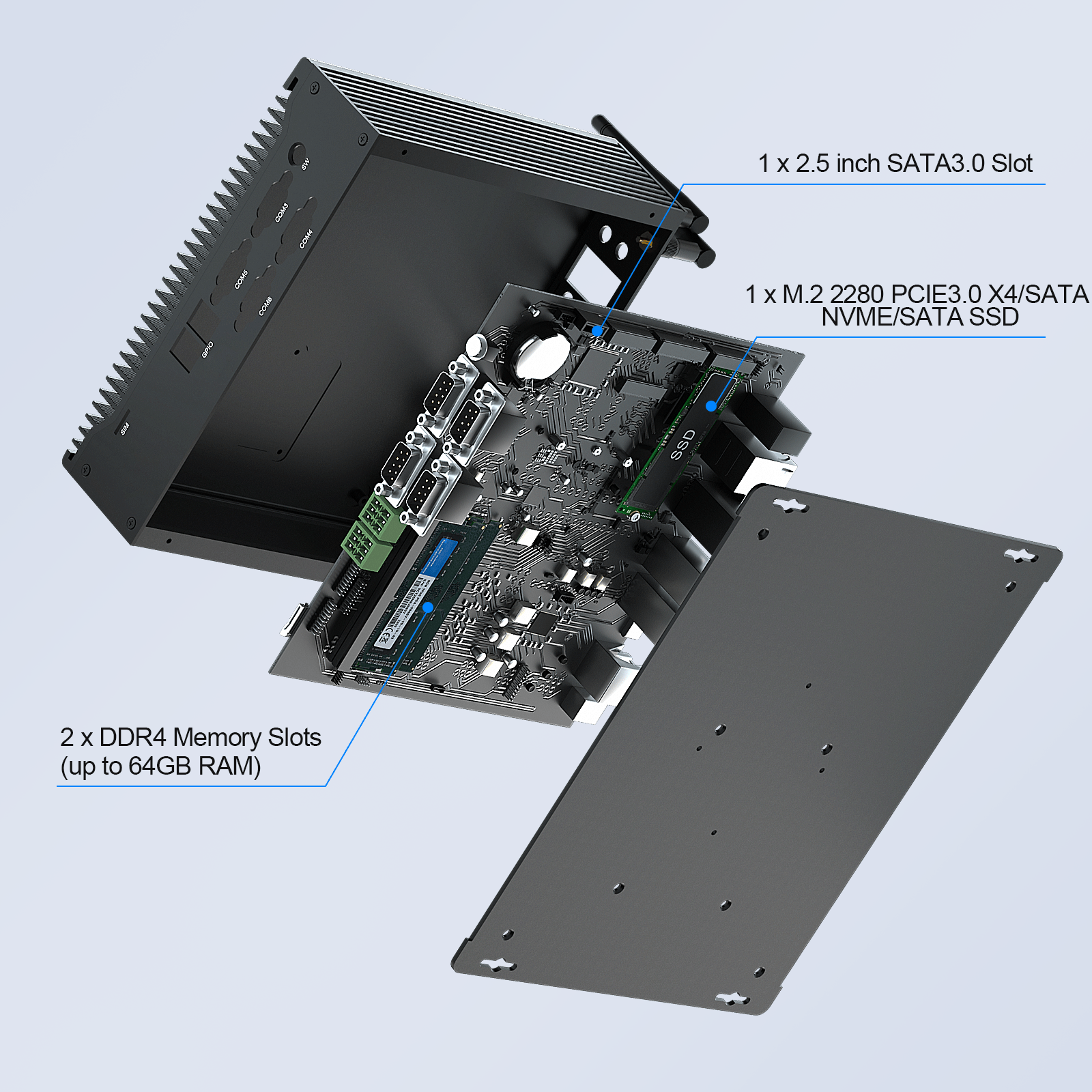

Expandable & Resilient Storage
- The Performance Core: A PCIe 3.0 x4 M.2 2280 slot supports high-speed NVMe or SATA SSDs (up to 2TB), drastically reducing application and system latency.
The Capacity Hub: A dedicated 2.5-inch SATA 3.0 bay accommodates large-capacity HDDs or SSDs (up to 6TB) for massive data storage.

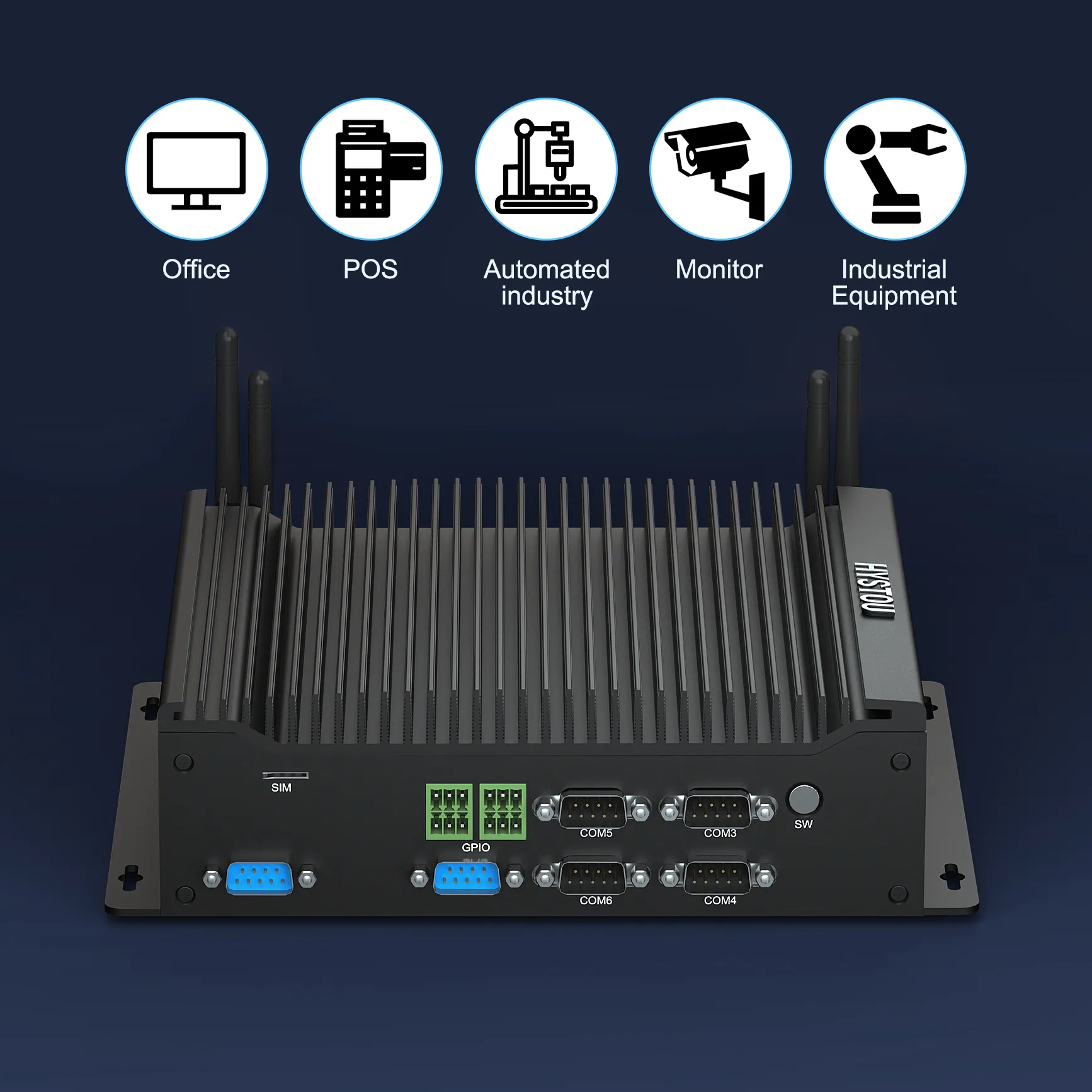

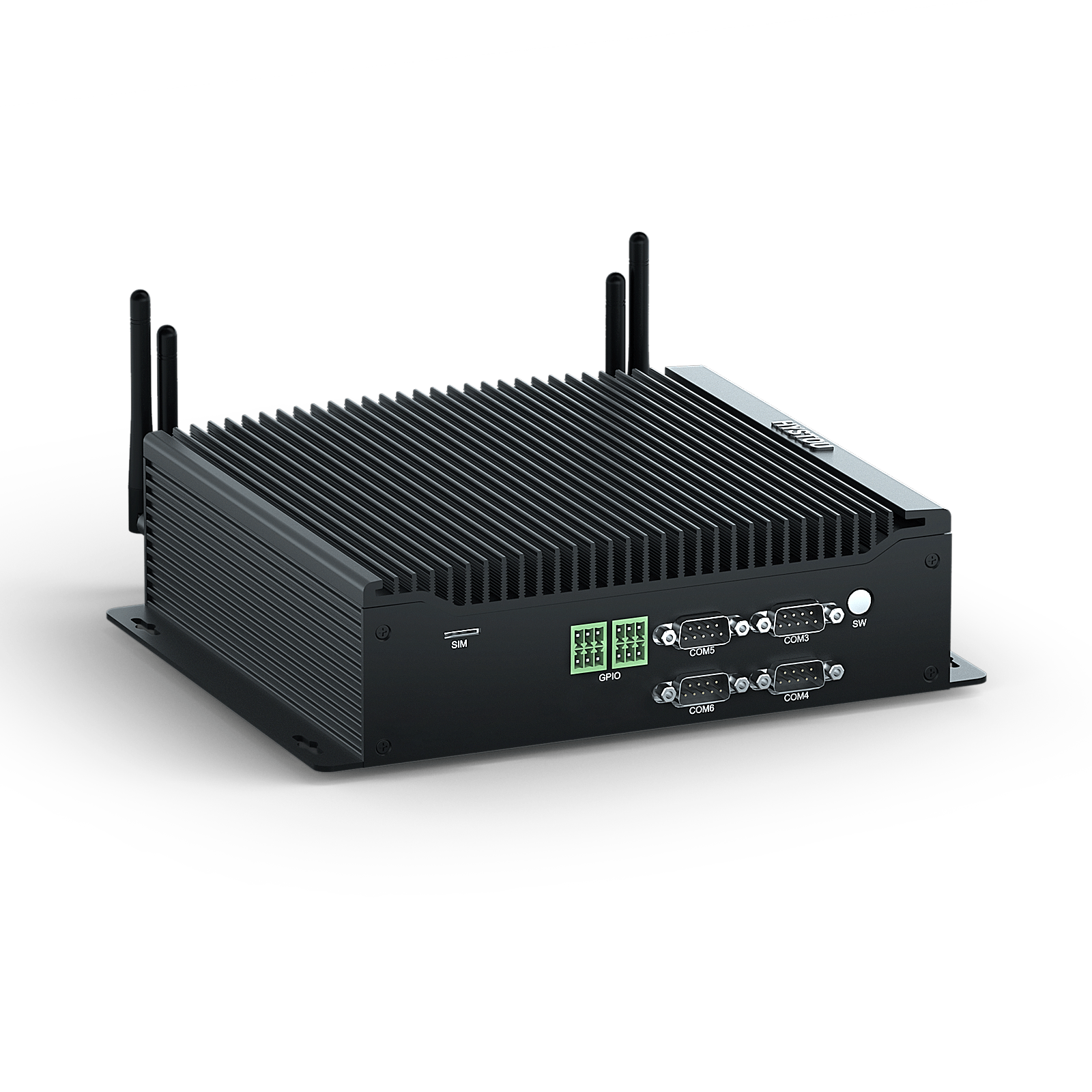

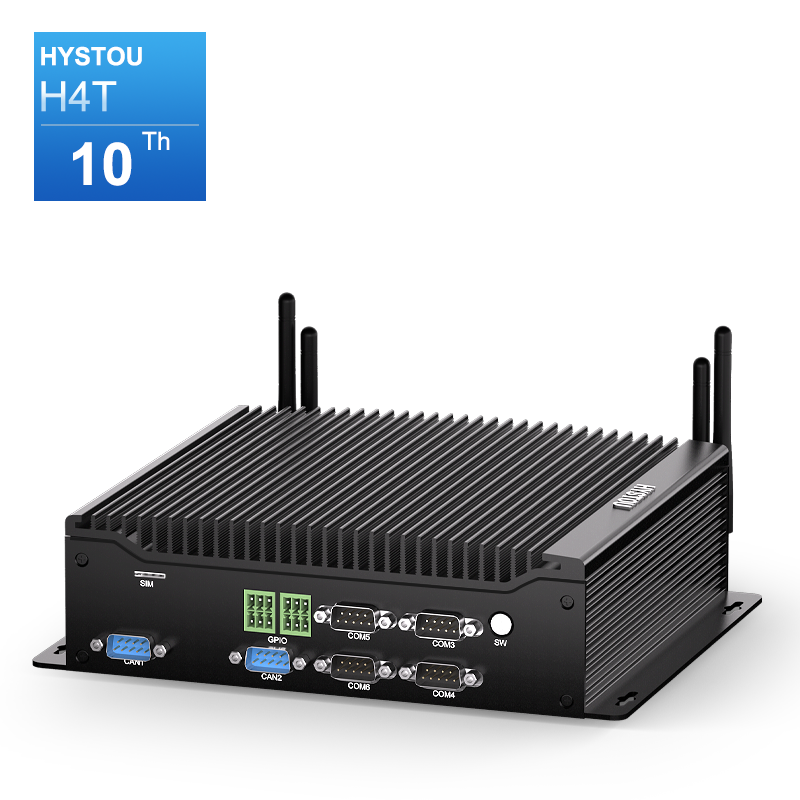

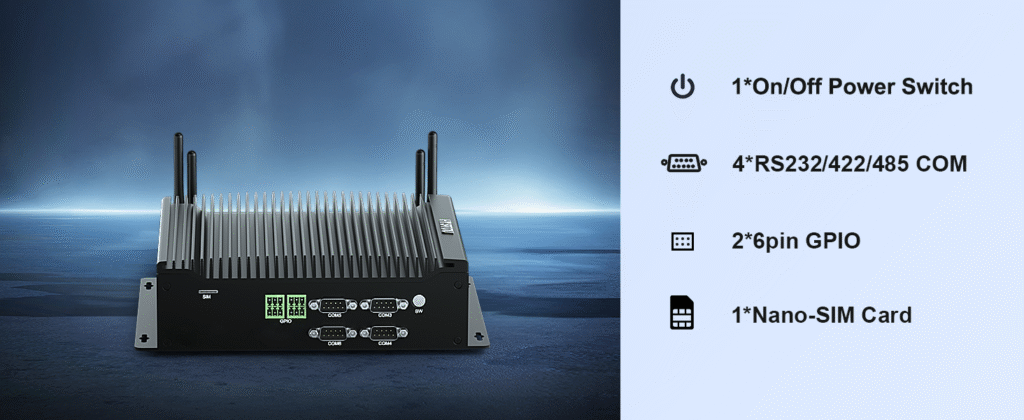

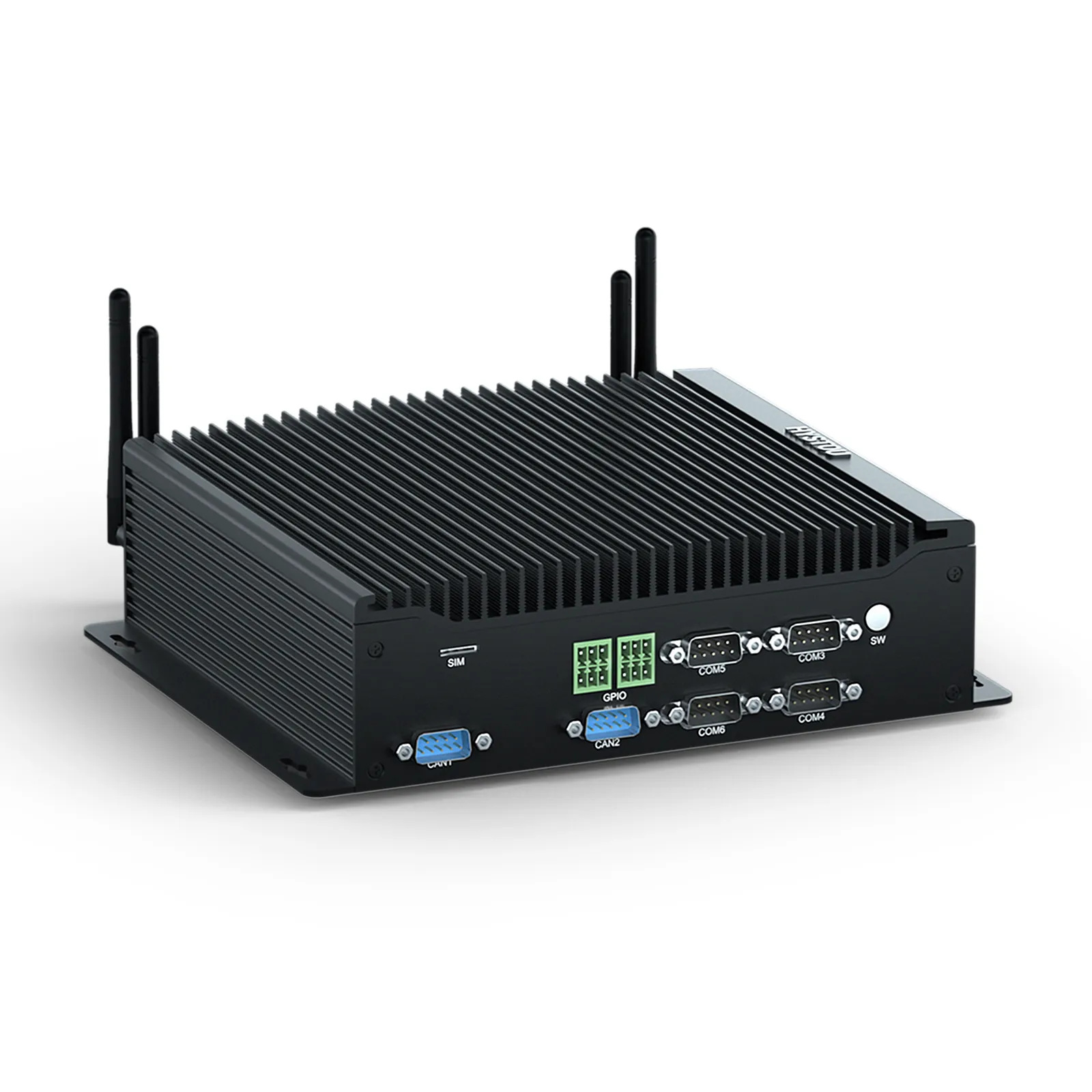

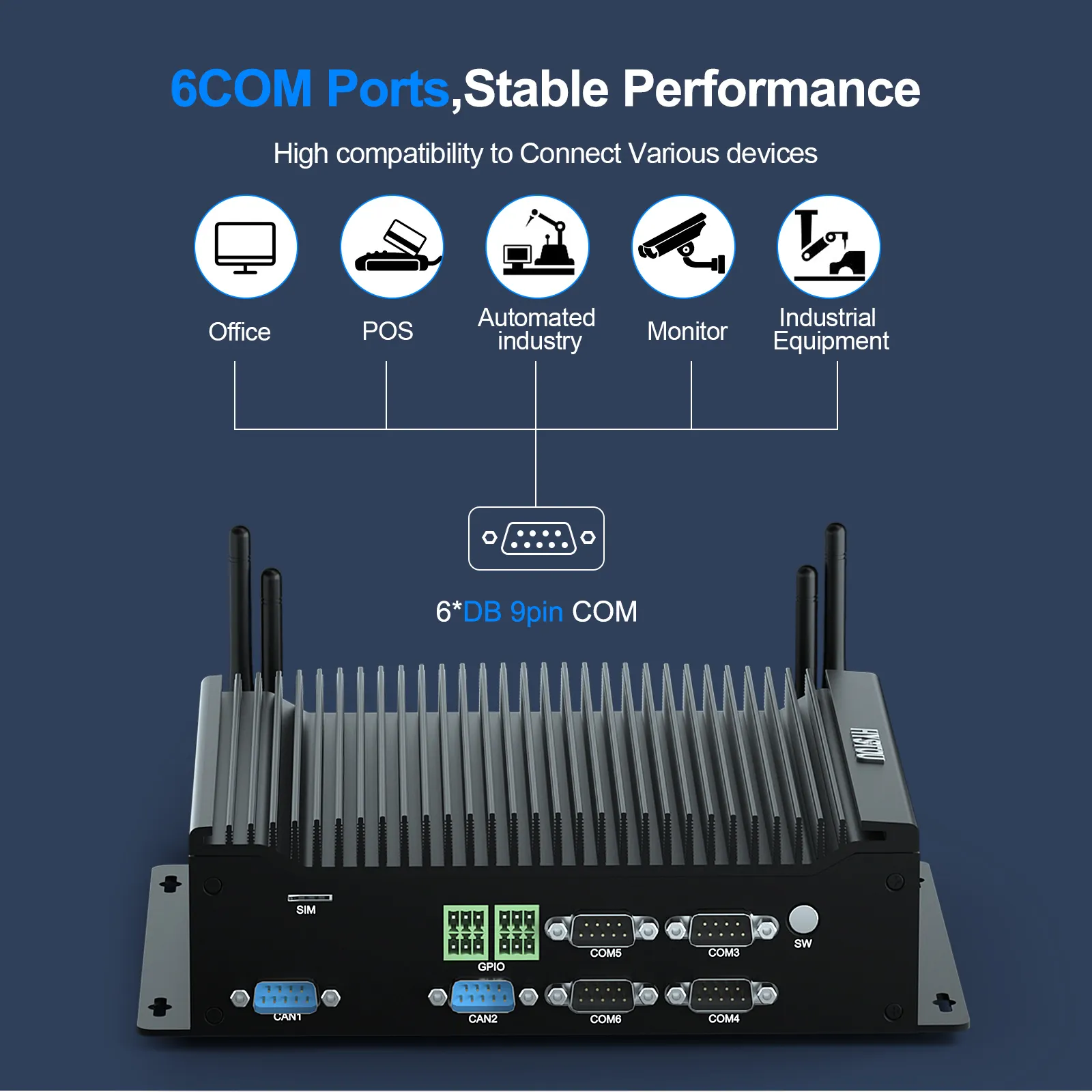

6 COM Ports, Central Hub for IoT Connectivity

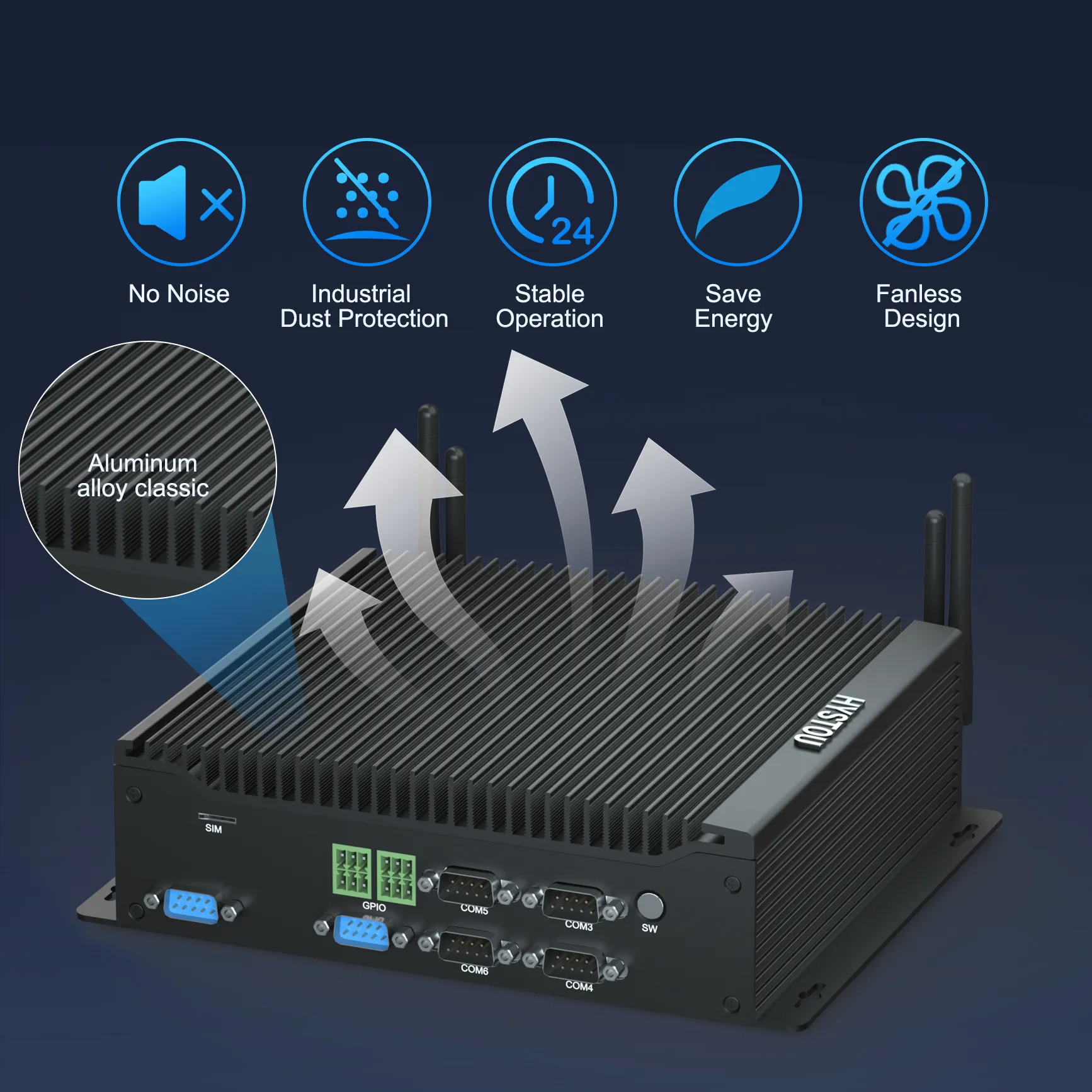

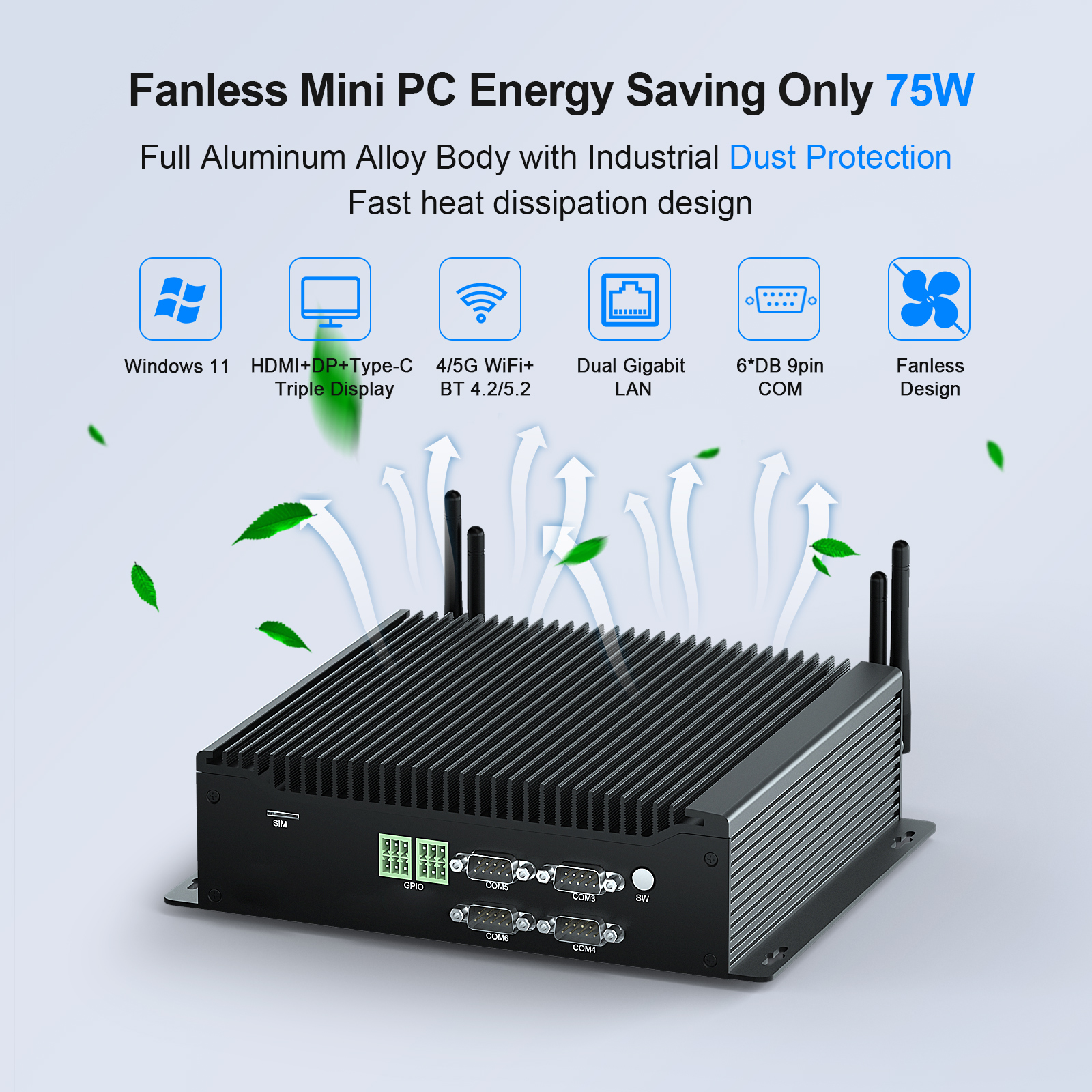

Fanless Design, Industrial-Grade Reliability
Advanced Fanless Passive Cooling Architecture with a unique wave-shaped aluminum alloy heat-dissipating fin design. Its fully enclosed structure blocks dust, iron filings, and oil contaminants from entering the chassis—significantly extending motherboard lifespan while delivering an ultra-quiet operating environment. Boasting a wide operating temperature range of -10°C to 55°C, it performs reliably in extreme hot and cold conditions, ideal for harsh industrial settings.

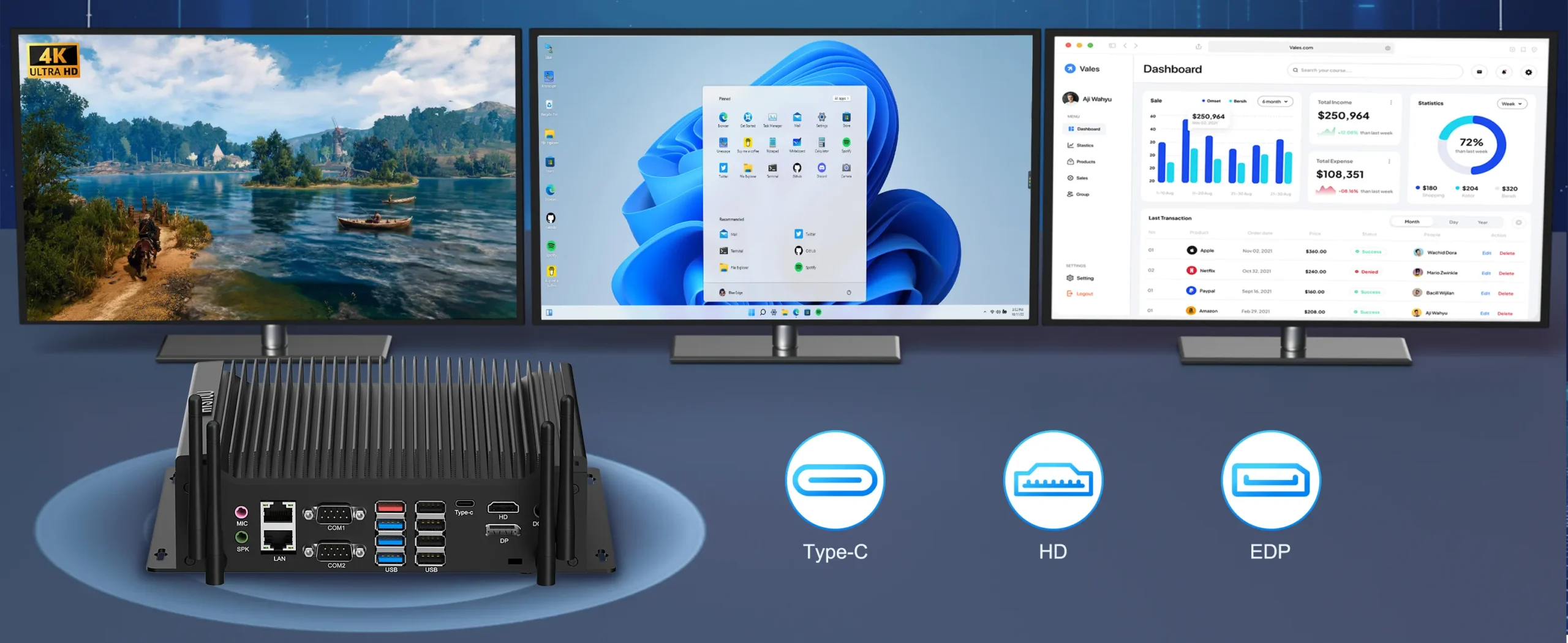

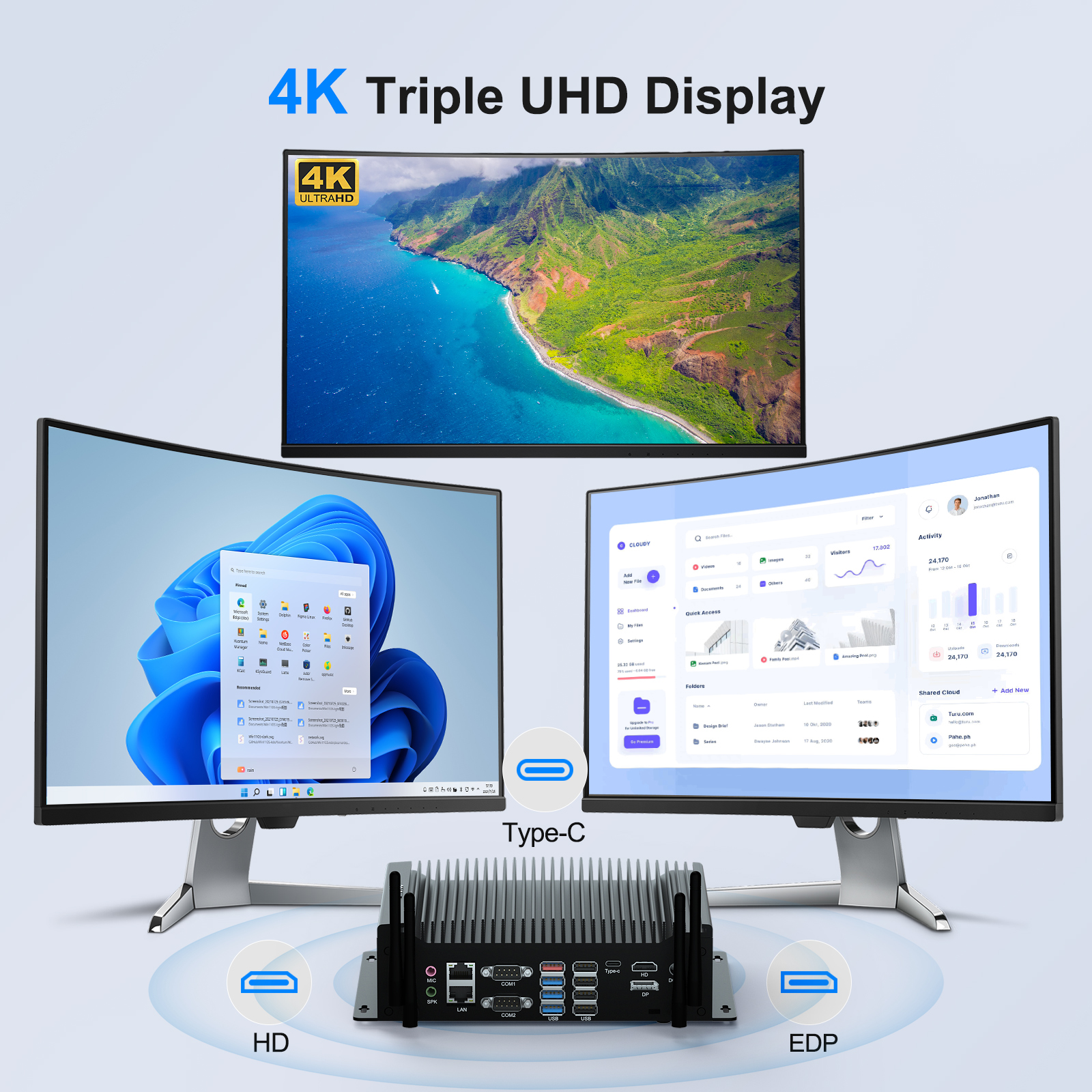

Triple-Screen Display, Full-Round Control
HDMI (1.4) 4K 30Hz
Type-c 4K 60Hz
EDP 4K 60Hz

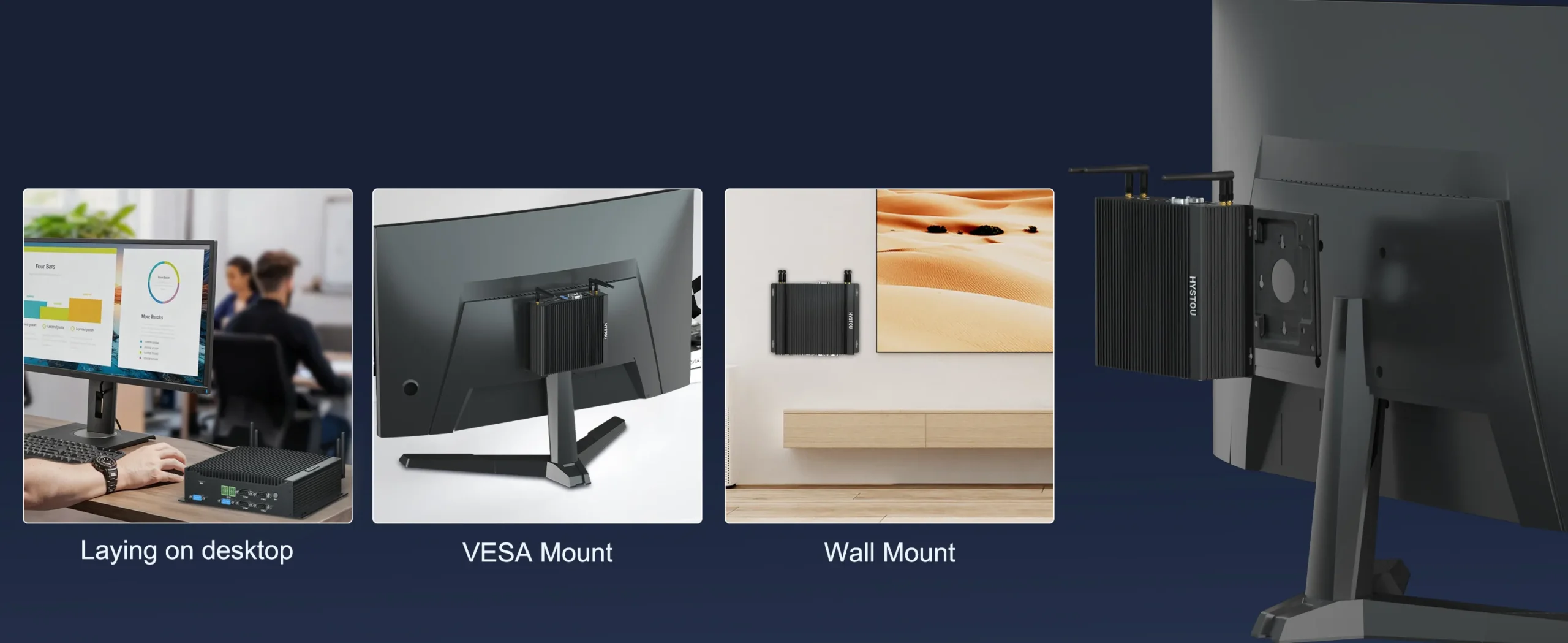

Versatile Mounting Options, Hassle-Free Remote Management
Support Multiple Systems
Preinstalled with Windows 11, it also supports Windows 10 and a wide range of Linux distributions including Ubuntu, Debian, and VMware ESXi. This ensures full compatibility and flexibility to meet the personalized needs of diverse users.

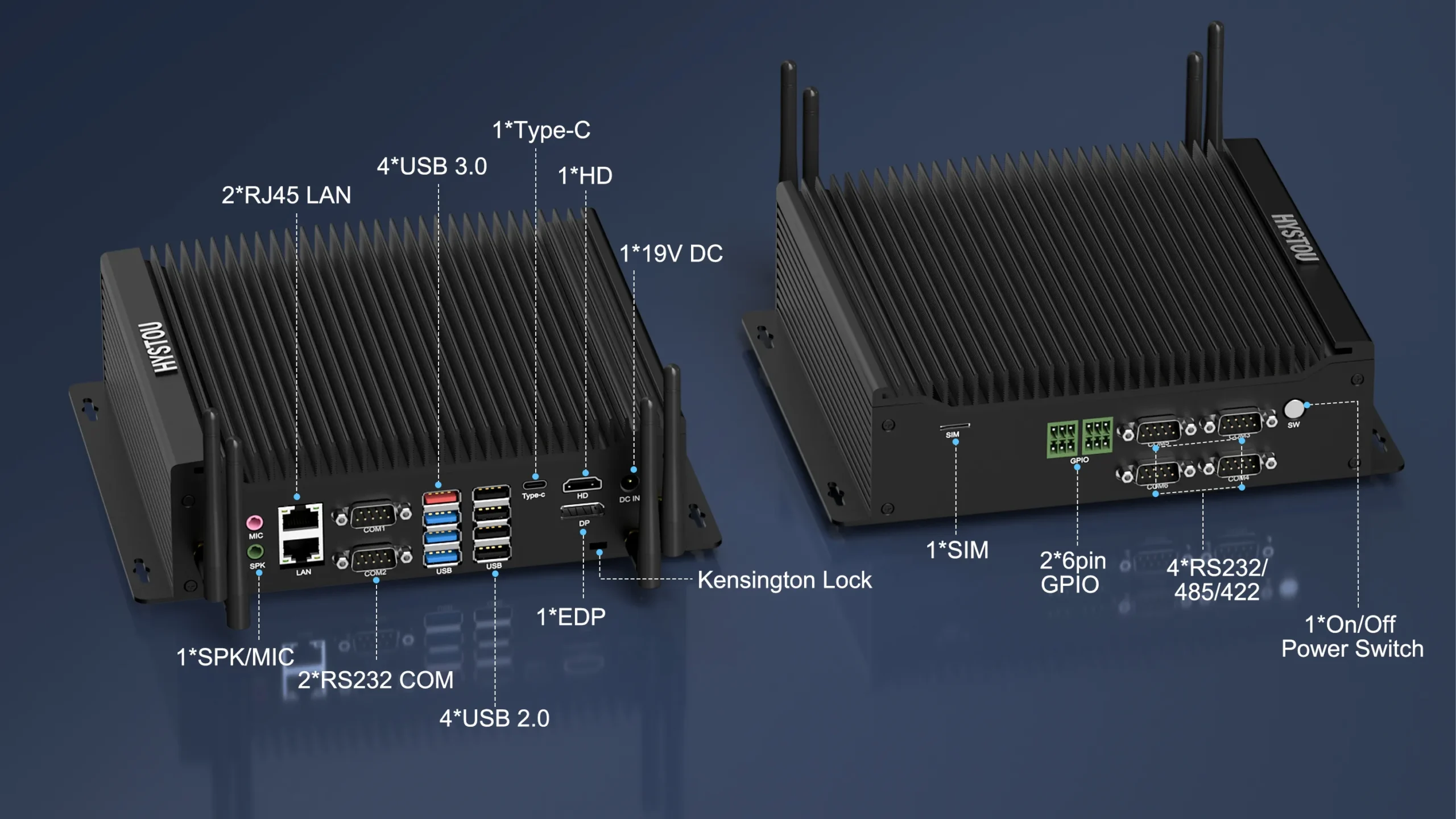

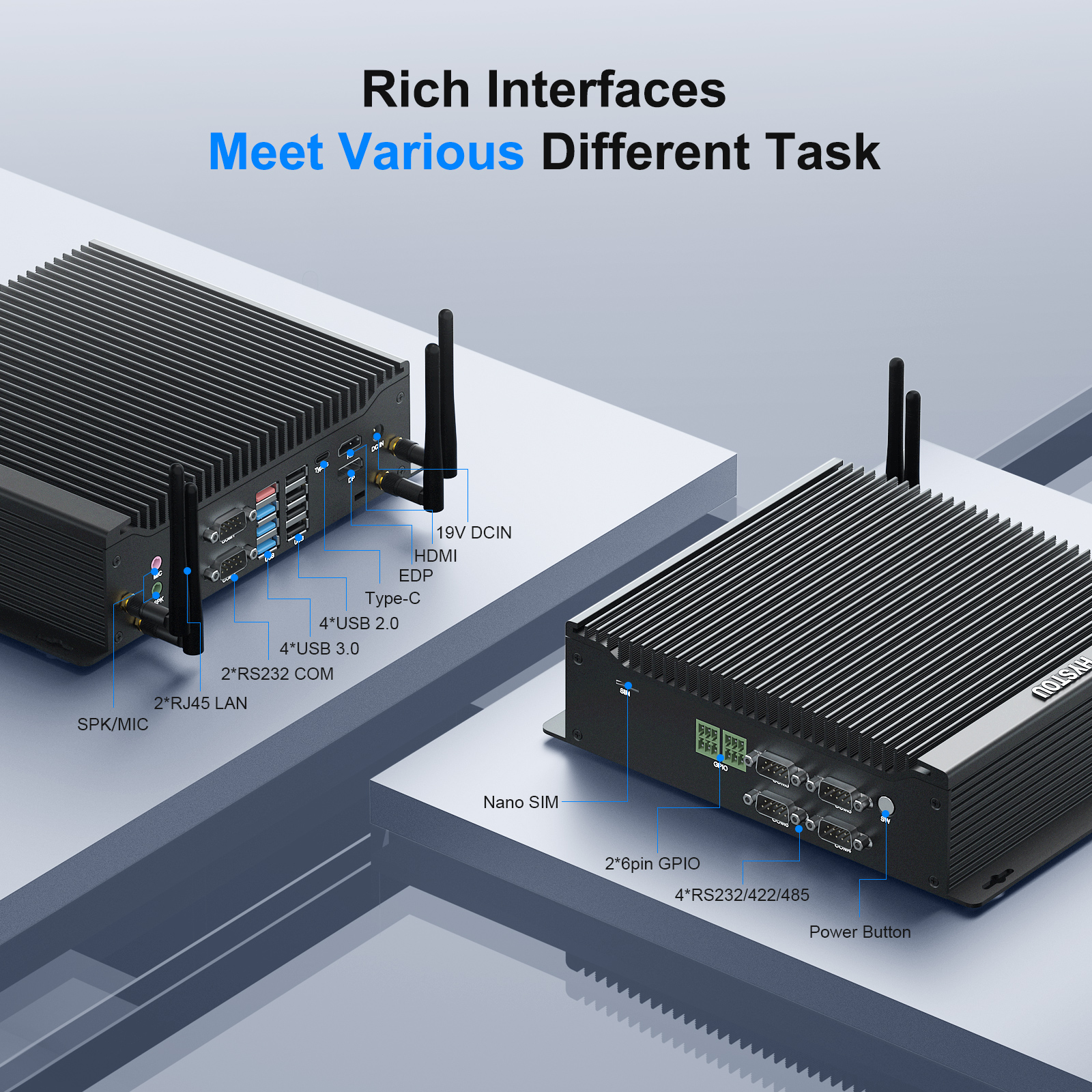

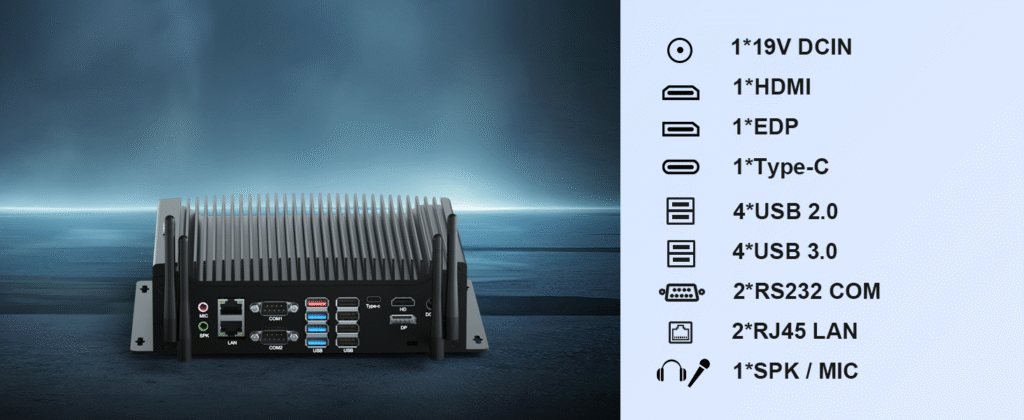

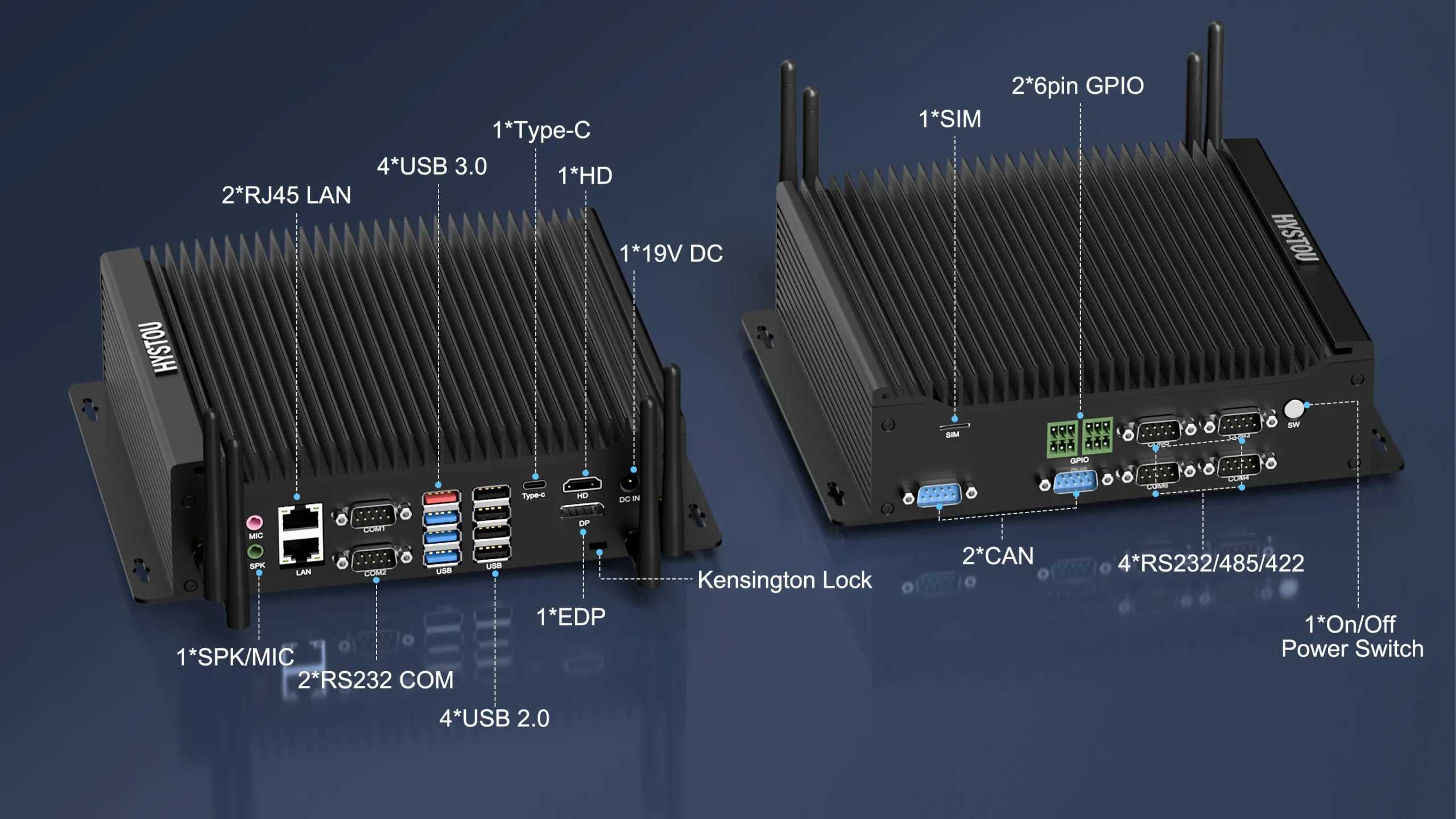

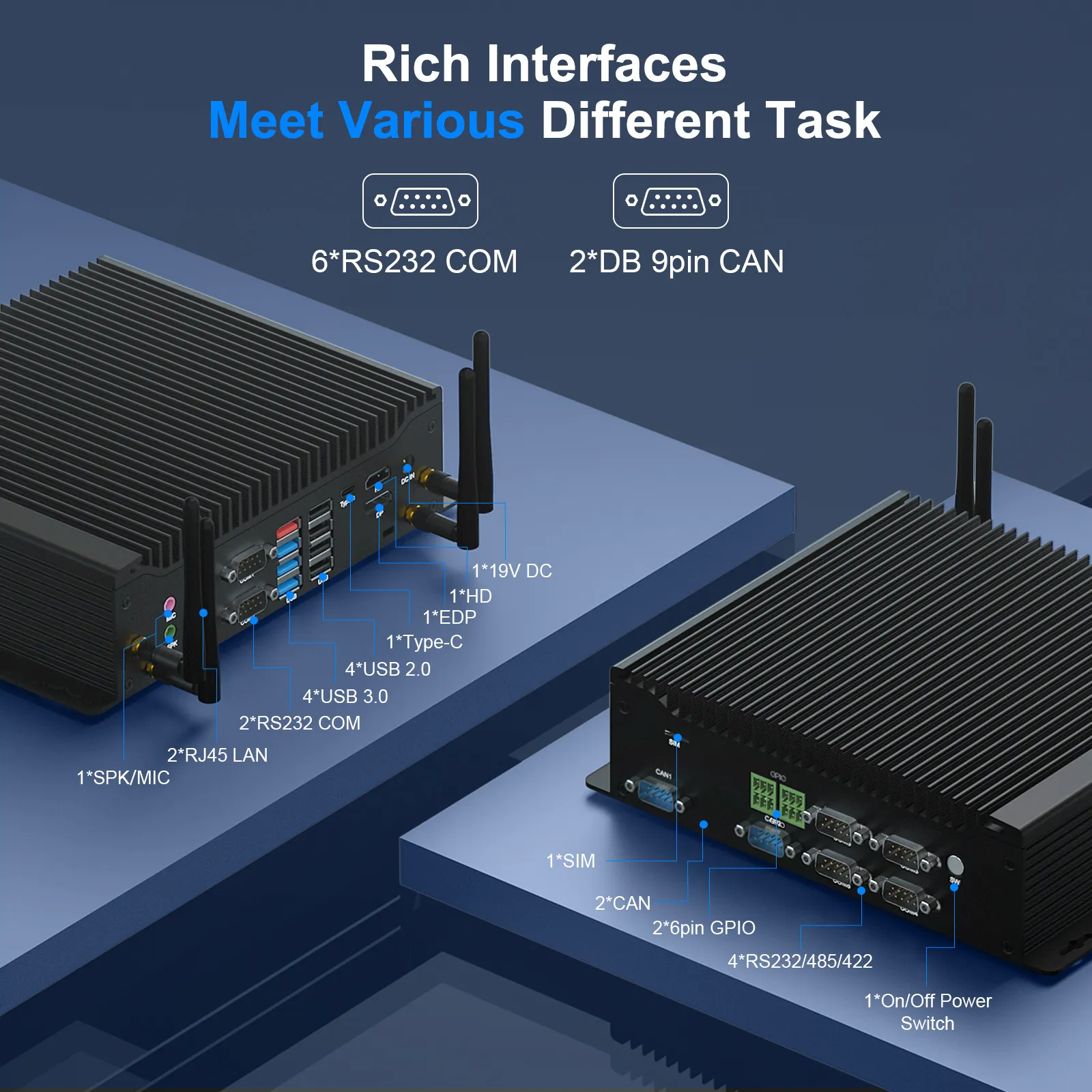

Rich Interface

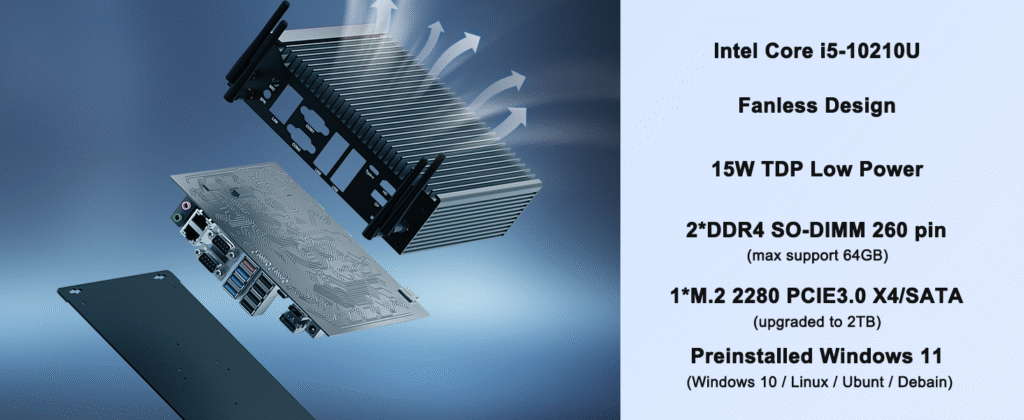

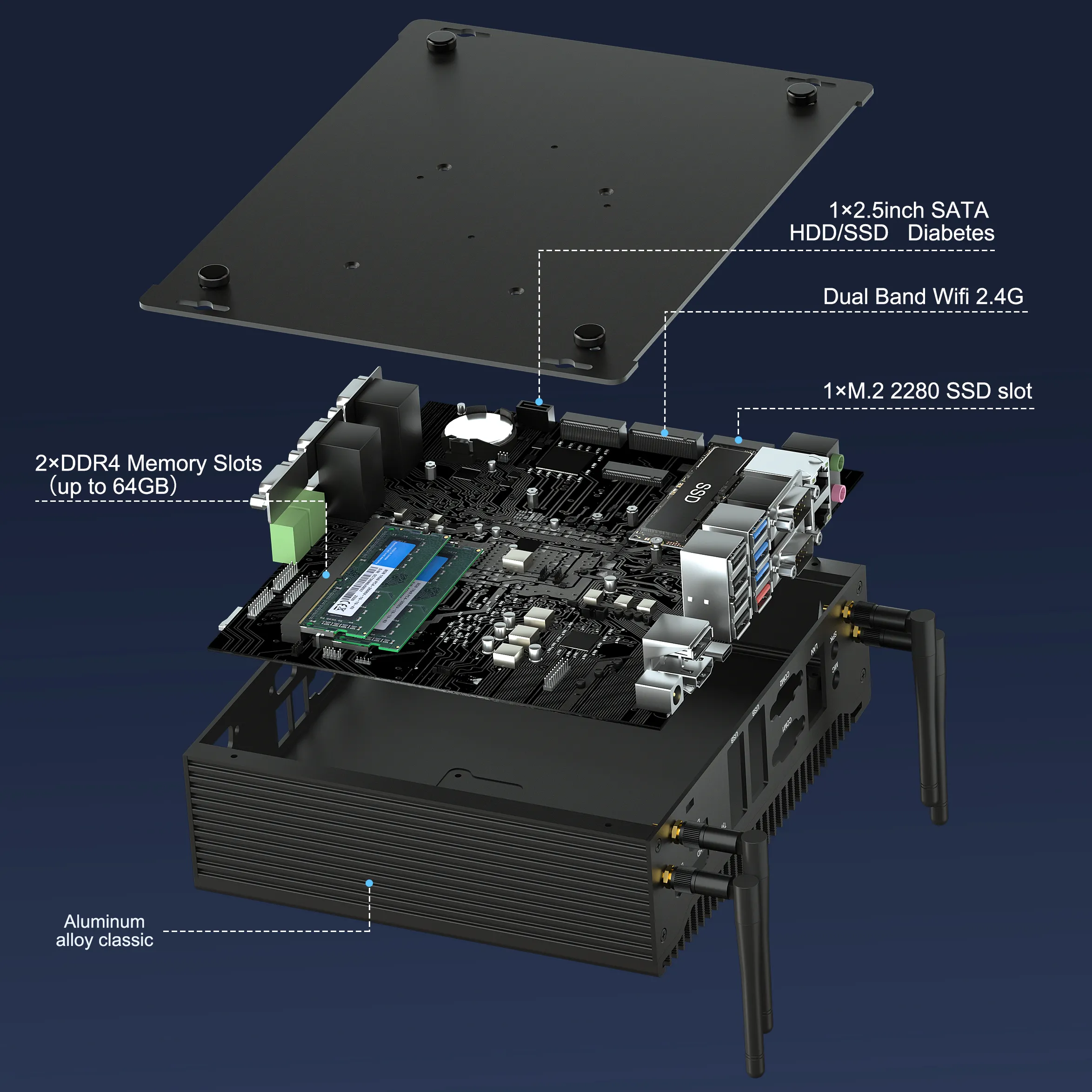

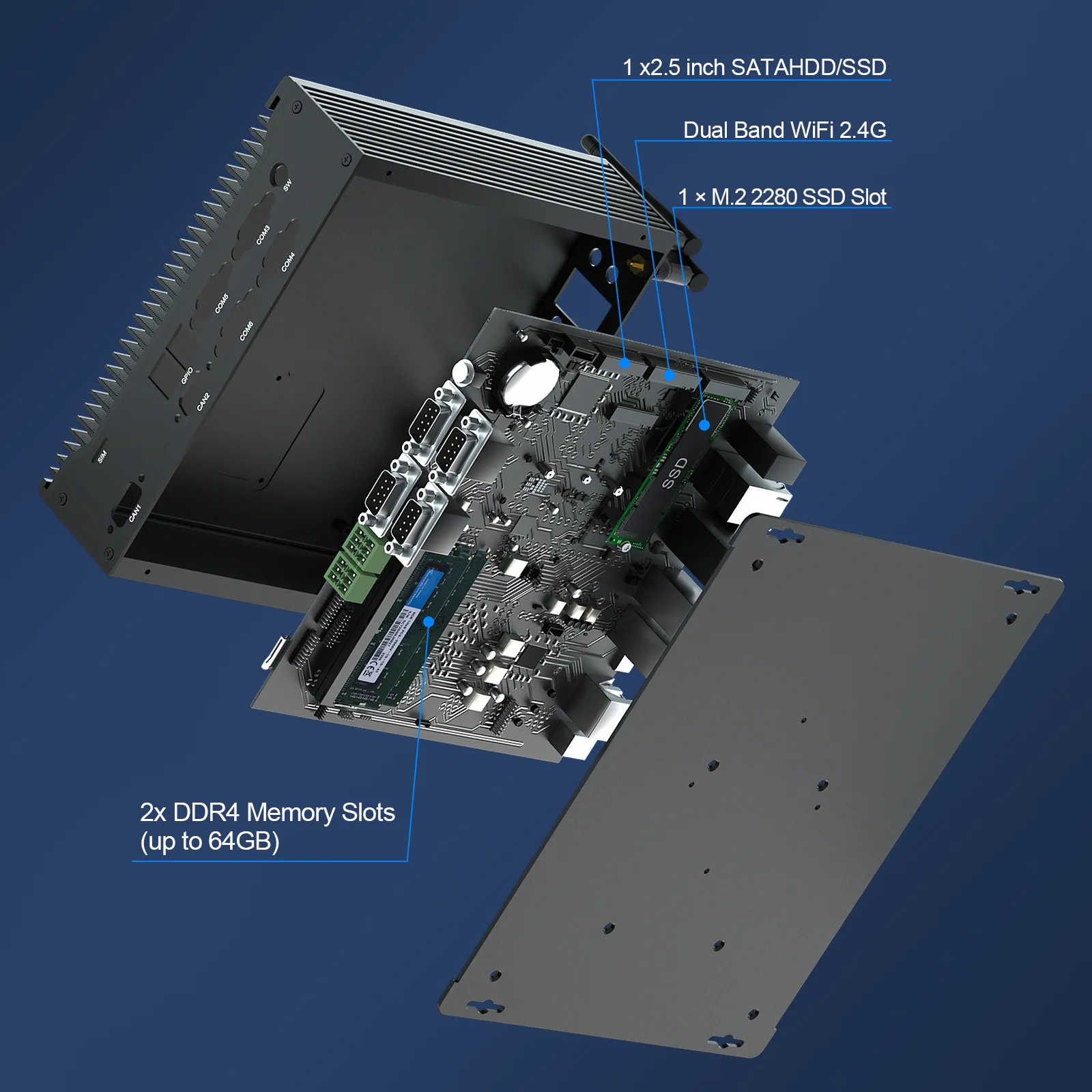

Product Structure
Reliable Service, Guaranteed Quality
HYSTOU provides a 3-year warranty and lifetime online technical support, ensuring that any issues encountered by customers during usage are resolved promptly.
Our products have obtained multiple international certifications, including CE, FCC, RoHS, and ISO9001, fully complying with global standards and industry requireiver solid quality assurance forments to del customers.

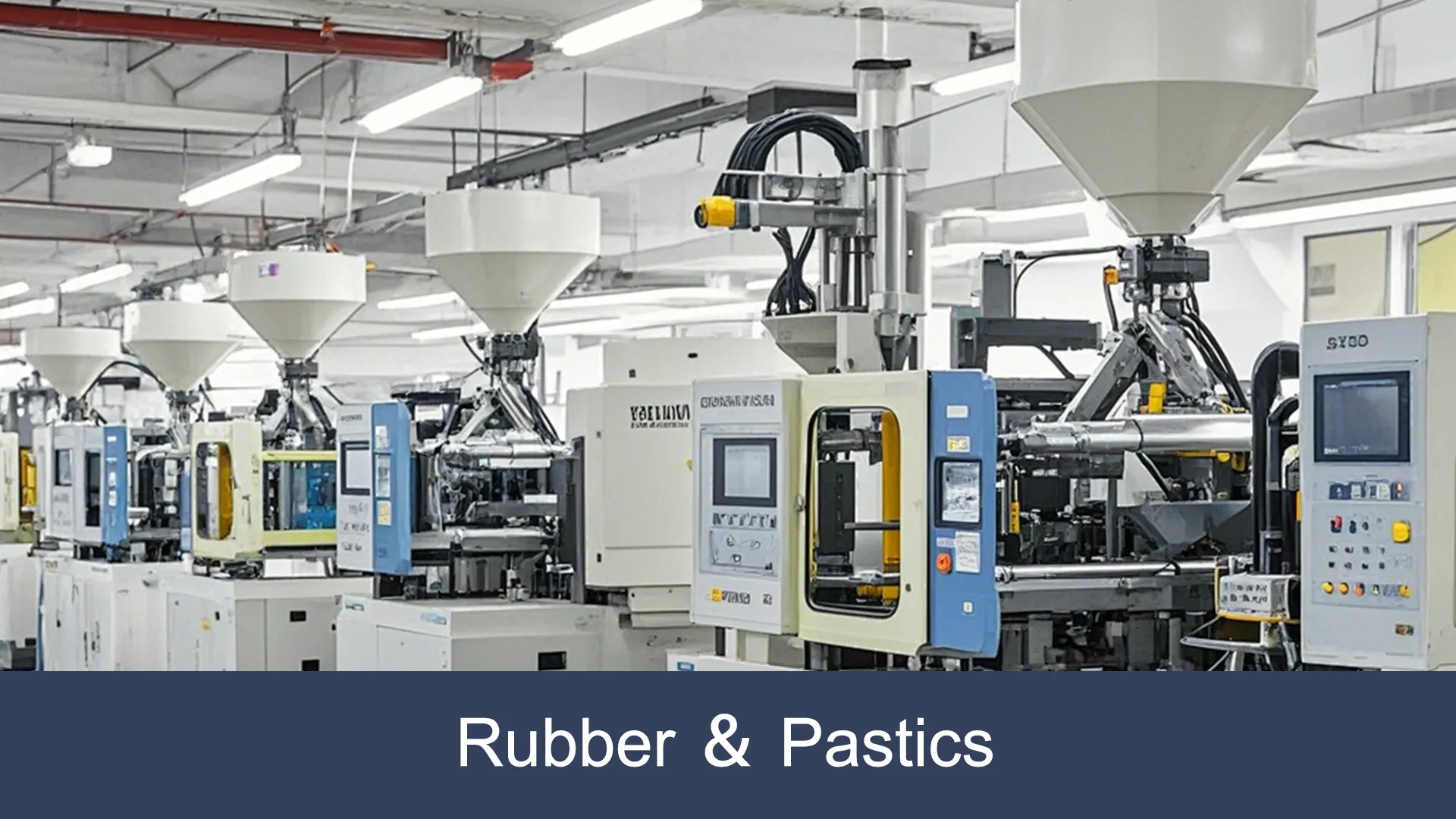

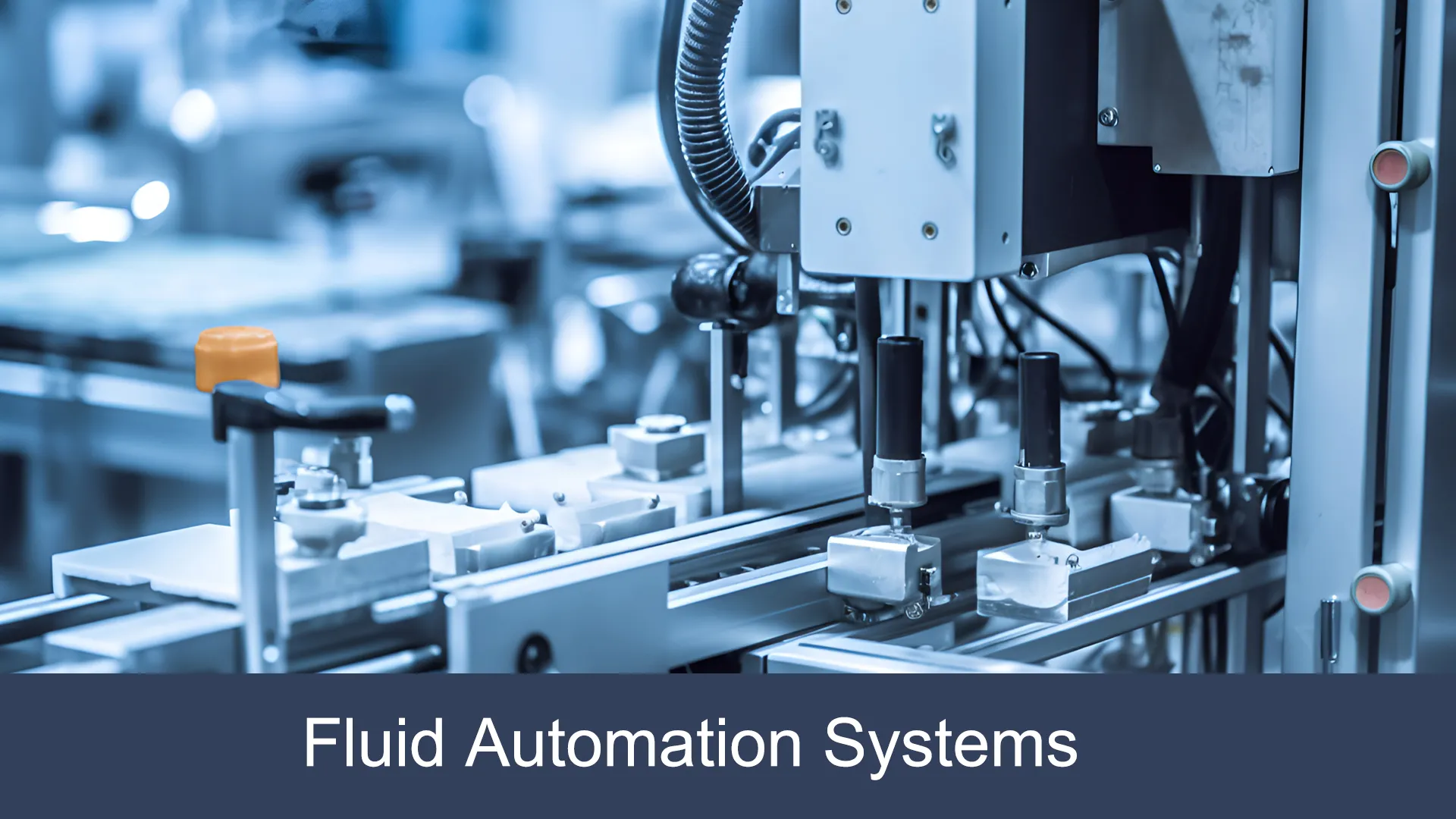

Where can H4T be applied?
Specifications
Dimensions | 230mm*182mm*65mm |
Net Weight | 2.7Kg |
Material | Aluminum |
CPU | i5-10210U/15-10310U/i7-10710U |
Graphics | Intel UHD Graphics |
Memory | Dual-DDR4 3200MHz up to 64GB |
Storage | 1×M.2280 slot， Supports PCIe 3.0 X4/SATA, supports NVMe/SATA SSD, max 2TB 1×SATA 3.0 for 2.5-inch HDD/SSD max 6TB |
Ethernet | 2×Gigabit RJ45 |
Supported System | Win10/Win11/Linux |
Wireless LAN | WIFI 5, Supports WIFI6 |
Bluetooth Wireless Technology | Bluetooth 4.2, supports Bluetooth 5.2 |
I/O Ports | 4×USB 2.0 4×USB3.0 1×HDMI 1.4 4K 30Hz 1×Type-c 4K 60Hz 1×EDP 4K 60Hz 2×Gigabit RJ45 LAN Port 1×DC (5.5*2.5mm) 19V 4.74A 4×External Antenna Ports 2×DB 9-pin CAN (Controller Area Network) Bus (optional) 6×DB 9pin COM 2×6pin GPIO 1×Nano SIM slot 1×3.5mm audio output , 1×3.5mm microphone input |
Expansion slot | 1×M.2 key-E , default equipped with AC3165 Bluetooth 4.2, optional WIFI6 AX200 Bluetooth 5.2 1×MPCIE(51mm×30mm) slot for extending CAN Bus converters 1×M.2 KEY-B 5G/4G slot, compatible with 42.0mm × 30.0mm / 30.0mm × 52.0mm 1×4pin USB header, used to expand internal USB ports of the case (optional later) 1×19-pin TPM header, used for expanding the TPM encryption module 1×3pin JPWR1 header, used to enable/disable the power-on auto-start function 1×2pin CMOS reset header, used to restore CMOS to default values |
Kensington Lock | Yes |
Accessory | VESA mount (option) Wall-mounted |
Working environment temperature | -10°C~55°C |
Cooling system CPU fan DB (MAX) | Fanless, 0db |
Specifications
Dimensions
230mm*182mm*65mm
Net Weight
2.7Kg
Material
Aluminum
CPU
i5-10210U/i5-10310U/i7-10710U
Graphics
Intel UHD Graphics
Memory
Dual-channel DDR4 3200MHz , up to 64GB
Storage
1×M.2280 slot， Supports PCIe 3.0 X4/SATA, supports NVMe/SATA SSD, max 2TB
1×SATA 3.0 for 2.5-inch HDD/SSD max 6TB
Ethernet
2×Gigabit RJ45（10/100/1000M）
Supported System
Win10/Win11/Linux
Wireless LAN
M.2 WIFI 6, Bluetoothv5.2
I/O ports
4×USB 2.0 4×USB3.0
1×HDMI 1.4 4K 30Hz
1×Type-c 4K 60Hz
1×EDP 4K 60Hz
2×Gigabit RJ45 LAN Port
1×DC (5.5*2.5mm) 19V 4.74A
4×External Antenna Ports
2×DB 9-pin CAN (Controller Area Network) Bus (optional)
6×DB 9pin COM
2×6pin GPIO
1×Nano SIM slot
1×3.5mm audio output , 1×3.5mm microphone input
Internal Slot
1×M.2 key-E , default equipped with AC3165 Bluetooth 4.2, optional WIFI6 AX200 Bluetooth 5.2
1×MPCIE(51mm×30mm) slot for extending CAN Bus converters
1×M.2 KEY-B 5G/4G slot, compatible with 42.0mm × 30.0mm / 30.0mm × 52.0mm
1×4pin USB header, used to expand internal USB ports of the case (optional later)
1×19-pin TPM header, used for expanding the TPM encryption module
1×3pin JPWR1 header, used to enable/disable the power-on auto-start function
1×2pin CMOS reset header, used to restore CMOS to default values
Kensington Lock
Yes
Accessory
VESA mount (option) Wall-mounted
Working environment temperature
-10°C~55°C
Cooling system CPU fan DB (MAX)
Fanless, 0db
