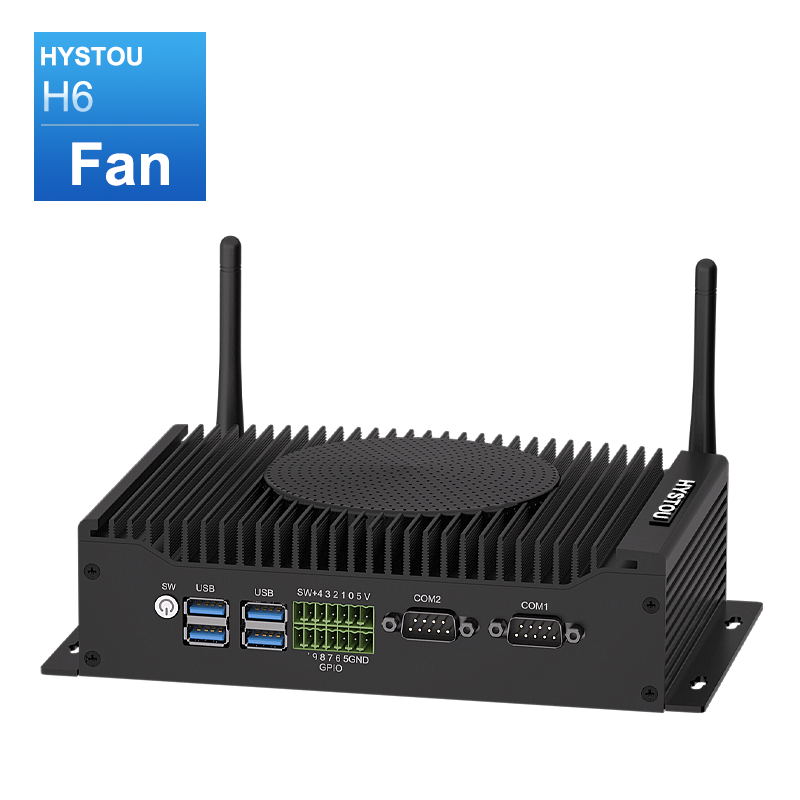

Hystou H6 Industrial Mini PC – Fan-Cooled Triple Display

(1.5k customers review)
Rated 4.5 out of 5

Categories: ,

  • Processor:Intel Core i5-10210U/i3-10110U/i7-10510U
  • Memory: 2×DDR4 SODIMM slots (max 64GB)
  • Storage: 2×M.2 2280 SSD slots + 1×2.5-inch SATA interface (supports HDD/SSD ≤7mm thickness)
  • Network: Standard: Dual Gigabit Ethernet, Intel AC3165 Wi-Fi (Bluetooth 4.2)/Optional: Wi-Fi 6 AX200 (Bluetooth 5.2)
  • Efficient cooling system: Multiple heat pipes + heat sinks + silent-optimized fan for stable component operation
  • Versatile applications: Industrial control, supermarket retail, home entertainment, office use, etc.

HYSTOU H6

Personalized. Powerful. Performance-optimized.

Why choose HYSTOU H6

Intel Core i7-10810U

Dual-channel DDR4, an SSD

Triple Display

Aluminum alloy

AIR- Cooling,<40db

WIFI 5/6

Bluetooth 4.2

-10°C~60℃

[████▉_____]

VESA Compatible

3-year warranty

3-Year Manufacturer Warranty

HYSTOU backs every Mini PC with a 3-year limited warranty, which takes effect from the official date of purchase. This warranty comprehensively covers all hardware defects arising from faulty design or substandard workmanship.

In addition to standard offerings, HYSTOU provides comprehensive customization services tailored to your unique requirements. Our team will design and configure Mini PC solutions that align precisely with your specific hardware, software, and functional needs, ensuring the device perfectly fits your professional or personal use cases.

Choose the CPU that fits your needs

10

Cores

3.9GHz

MAX Frequency

12

Threads

15W

Basic Power

4MB

Cache

25W

Performance Unleashed

4

Cores

3.9GHz

MAX Frequency

8

Threads

15W

Basic Power

6MB

Cache

25W

Performance Unleashed

4

Cores

4.2GHz

MAX Frequency

8

Threads

15W

Basic Power

6MB

Cache

25W

Performance Unleashed

6

Cores

4.9GHz

MAX Frequency

12

Threads

15W

Basic Power

12MB

Cache

25W

Performance Unleashed

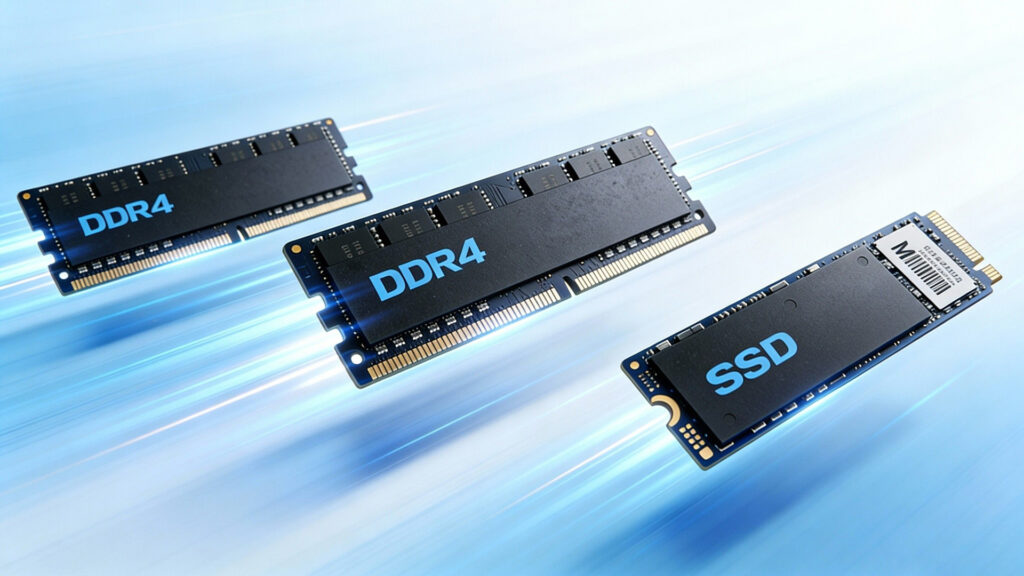

High-Performance and Expandable

Equipped with 64GB high-speed DDR4 RAM and an M.2 2280 SSD, the HYSTOU mini PC delivers smooth performance for memory-intensive tasks like large graphics file processing. For expanded storage needs, it supports 2.5-inch SSD upgrades to create secure, high-performance databases.

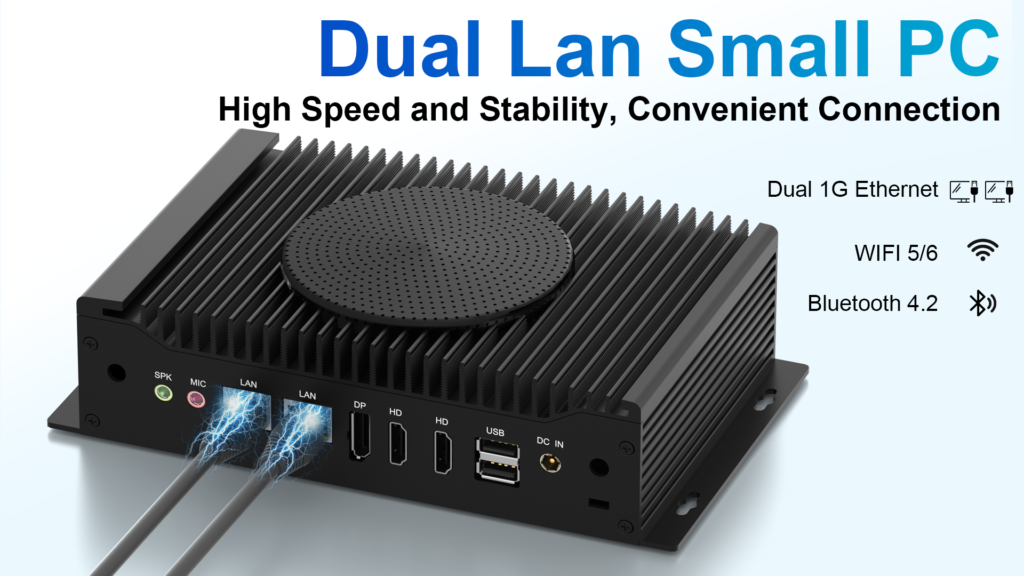

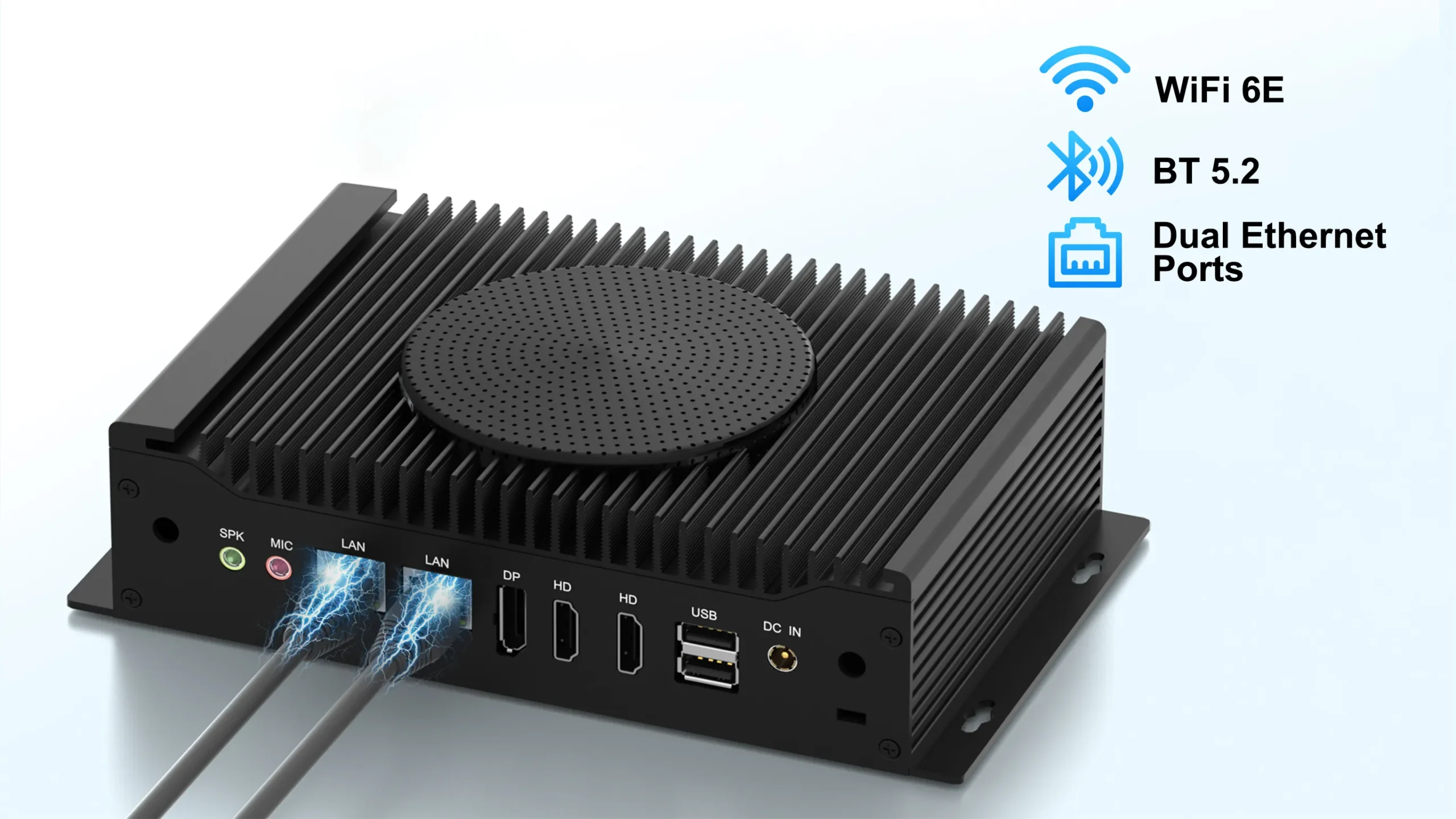

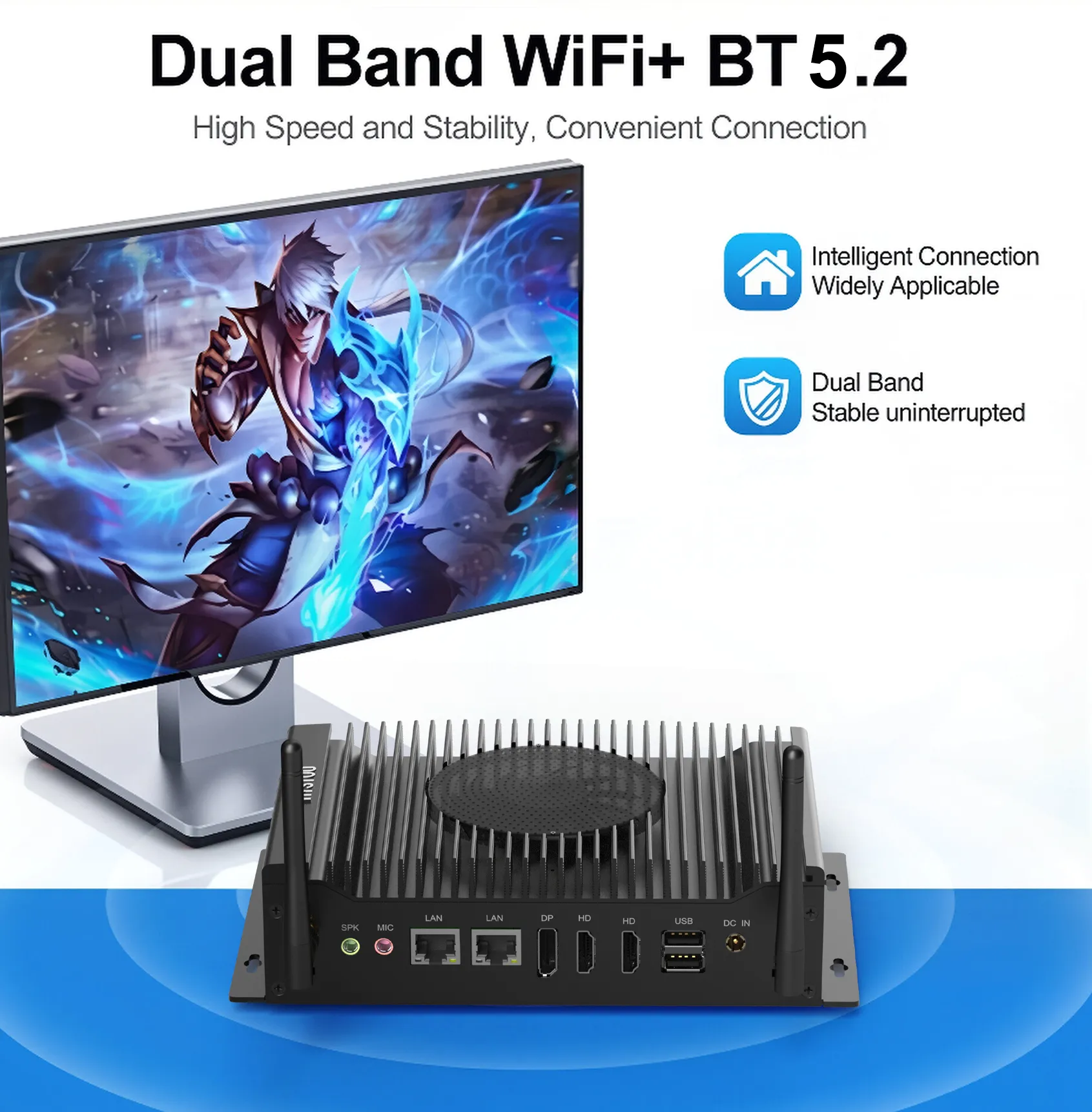

High-Speed and Versatile

The Hystou H6 industrial mini PC chassis features a Gigabit Ethernet port for high-speed, stable wired connectivity. It offers optional Wi-Fi 5/6 dual-band modules (2.4G+5.0G) and Bluetooth 4.2 for wireless flexibility and seamless peripheral integration. With versatile I/O compatibility spanning servers, surveillance systems, office equipment, and AV displays, it delivers an all-in-one industrial-grade connectivity solution.

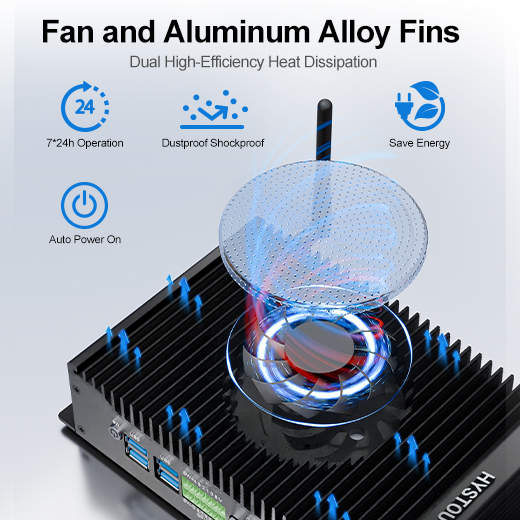

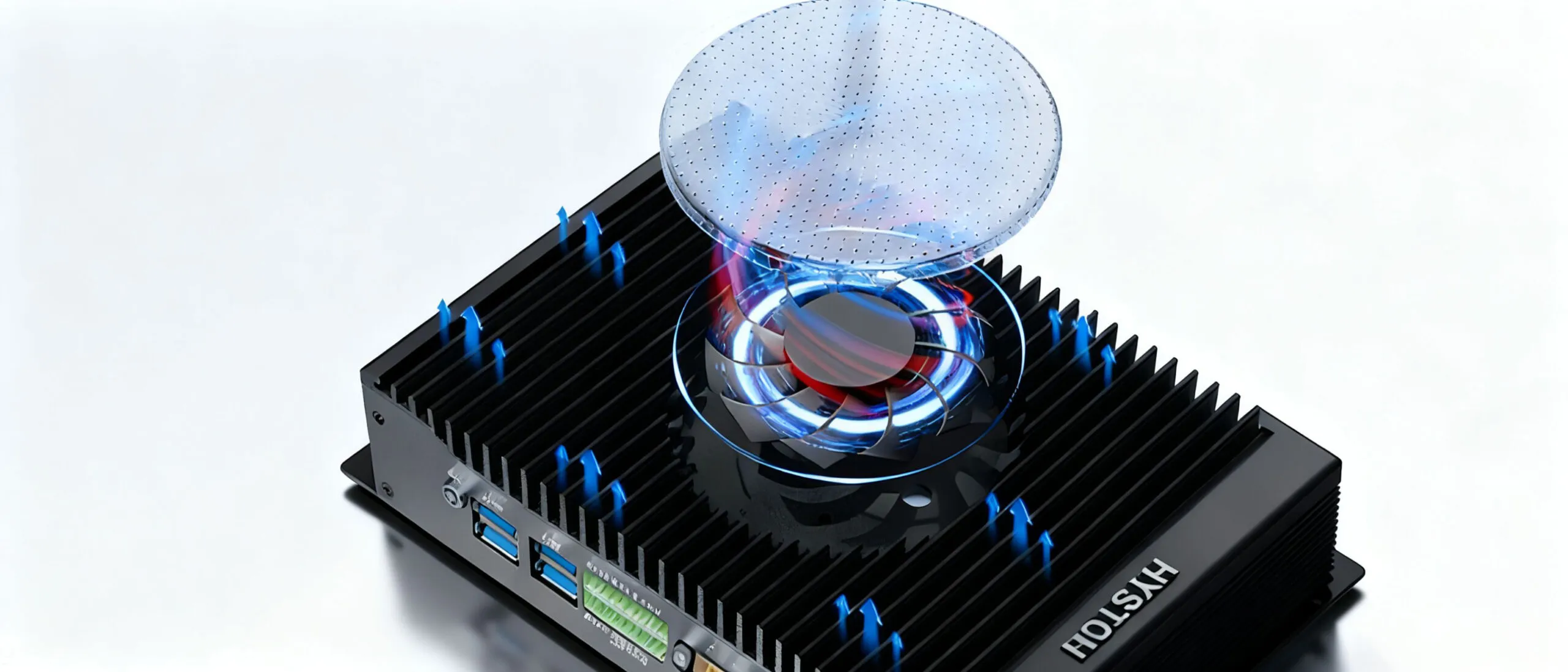

Efficient Cooling and Silent Operation

Equipped with a multi-heat pipe design, high-density heatsinks, and a silent fan, the HYSTOU Mini PC delivers efficient cooling while ensuring ultra-quiet operation. Enhanced with dustproof and shockproof features, it supports 24/7 non-stop reliability for demanding workflows—perfect for home offices, industrial setups, or continuous task processing.

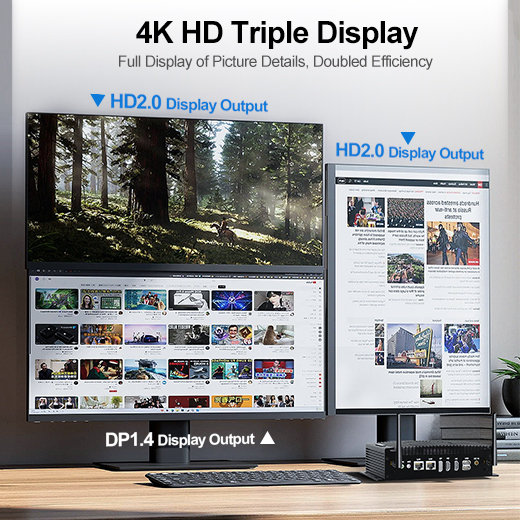

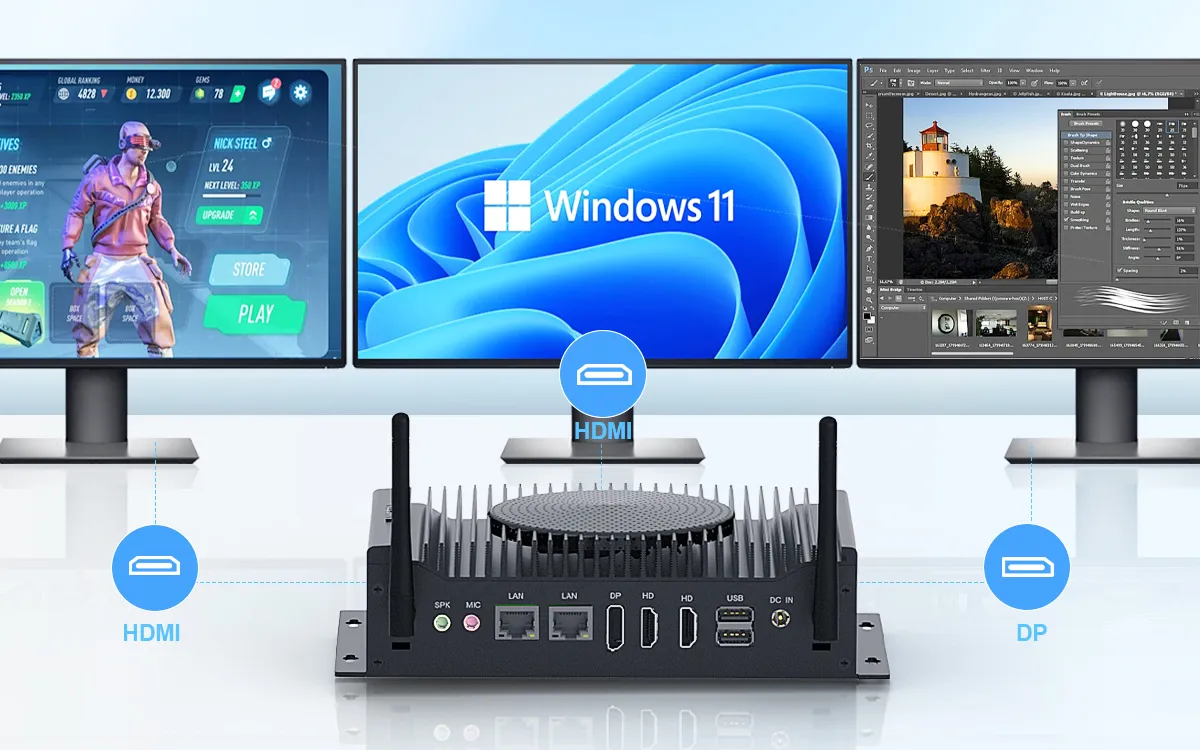

Triple 4K Displays and Multitasking Productivity

This mini PC supports triple 4K displays, effortlessly creating a multitasking workspace for enhanced productivity and immersive entertainment.

1×HDMI 2.0

（4K @60HZ）

1×HDMI 1.4

（4K @30HZ）

1×DP 1.2

（4K @60HZ）

Hystou H6 Triple Monitor Setup Showing Simultaneous Display Output

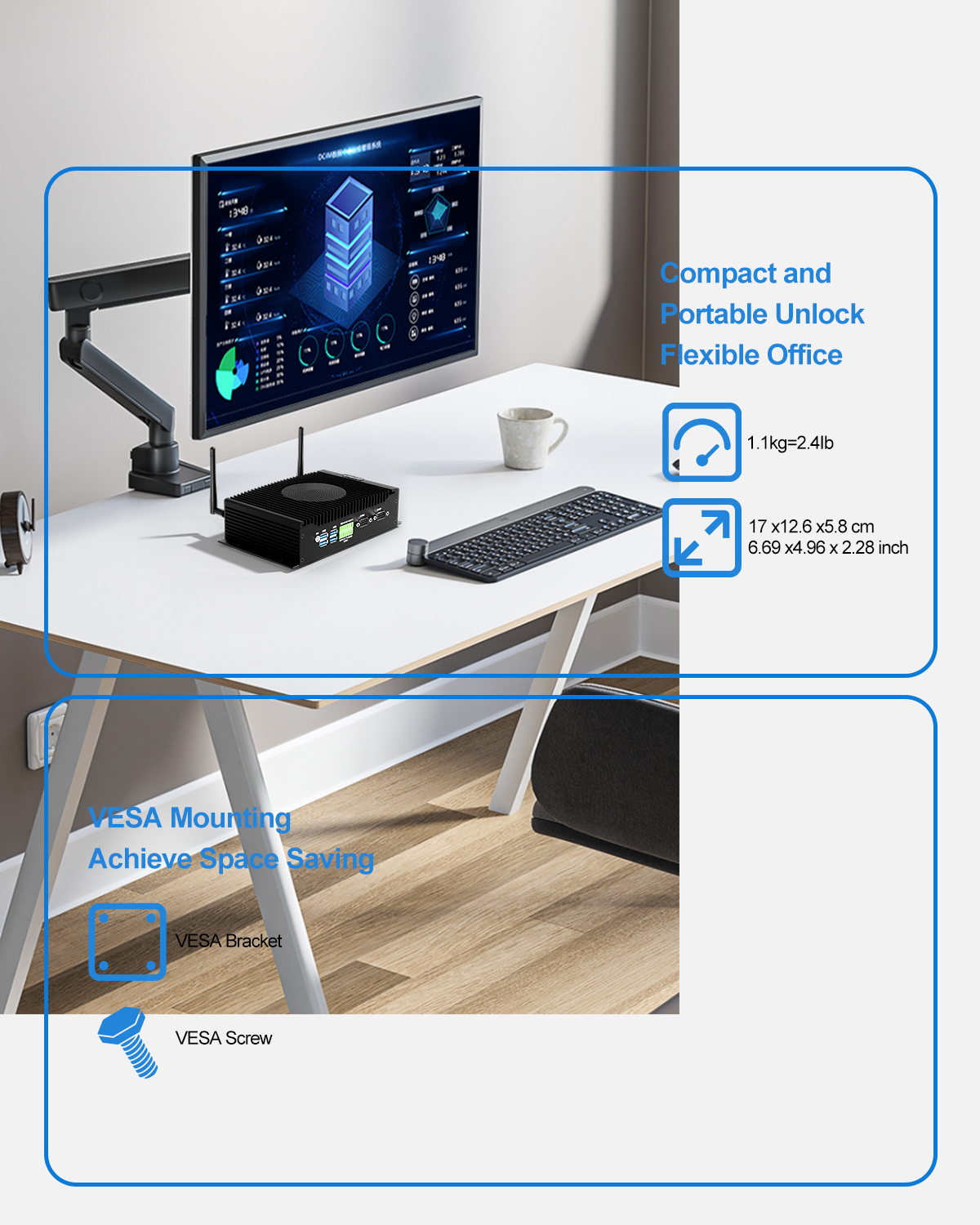

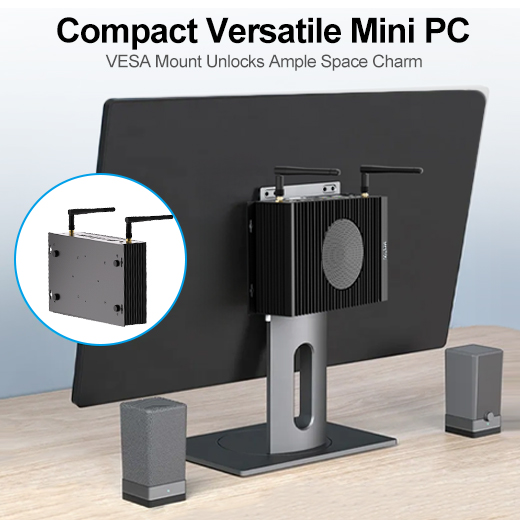

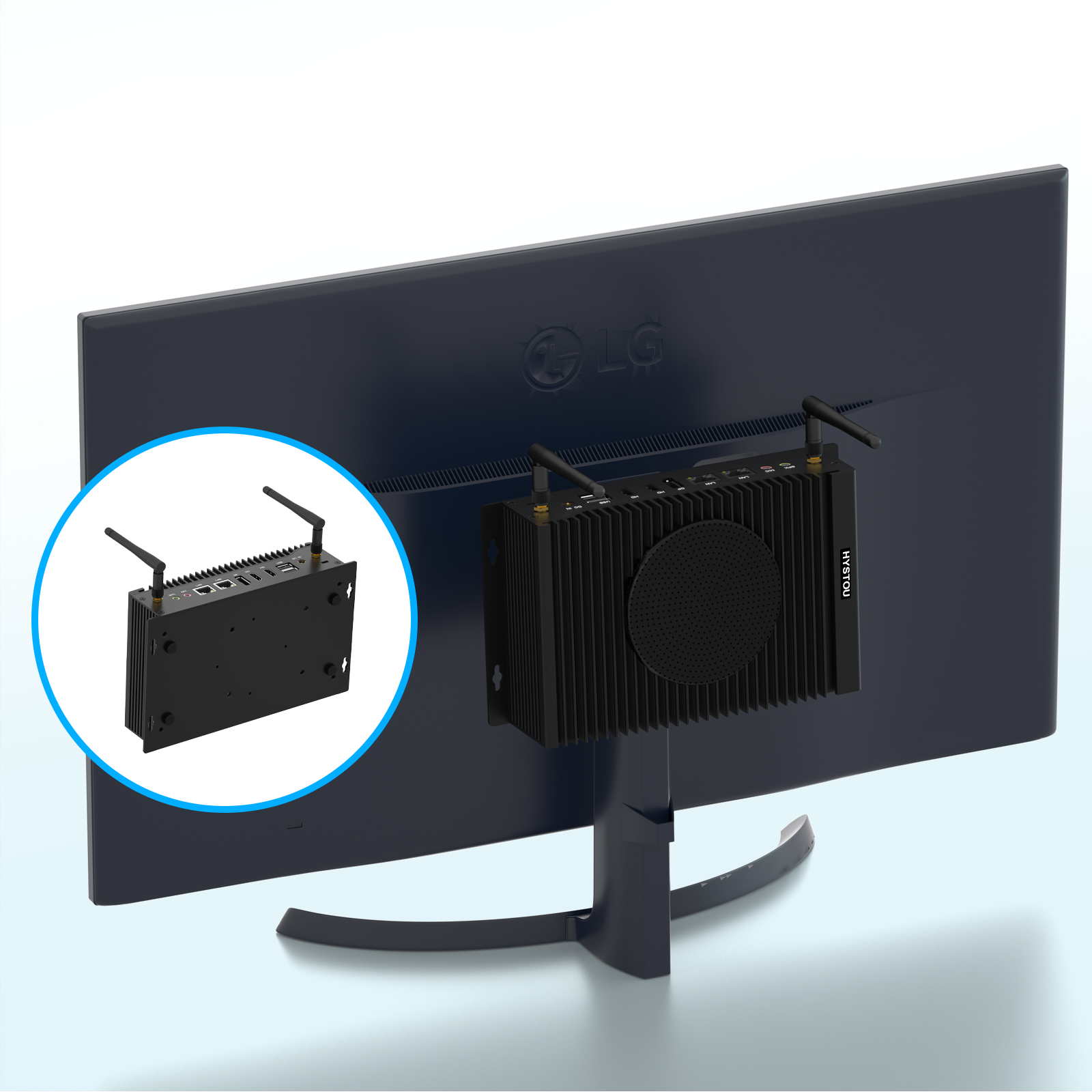

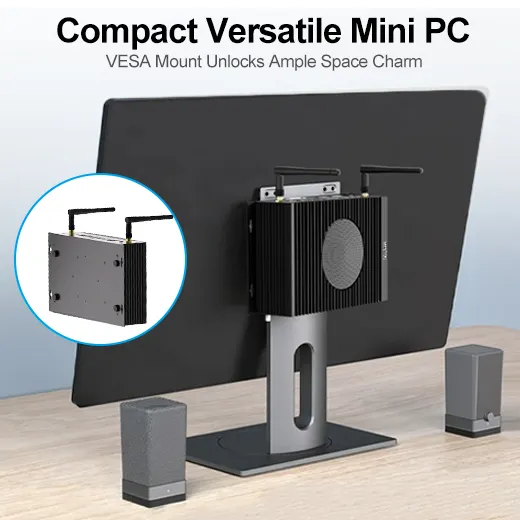

Efficient Space Design

With its compact size and versatile VESA mount compatibility, this mini PC seamlessly integrates into any space, maximizing desk real estate—ideal for minimalist workstations and home theater setups.

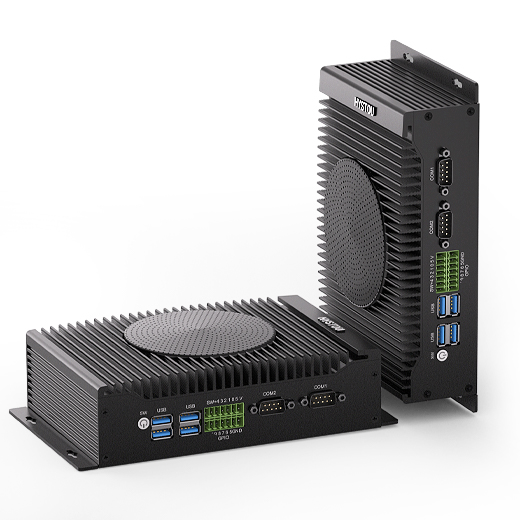

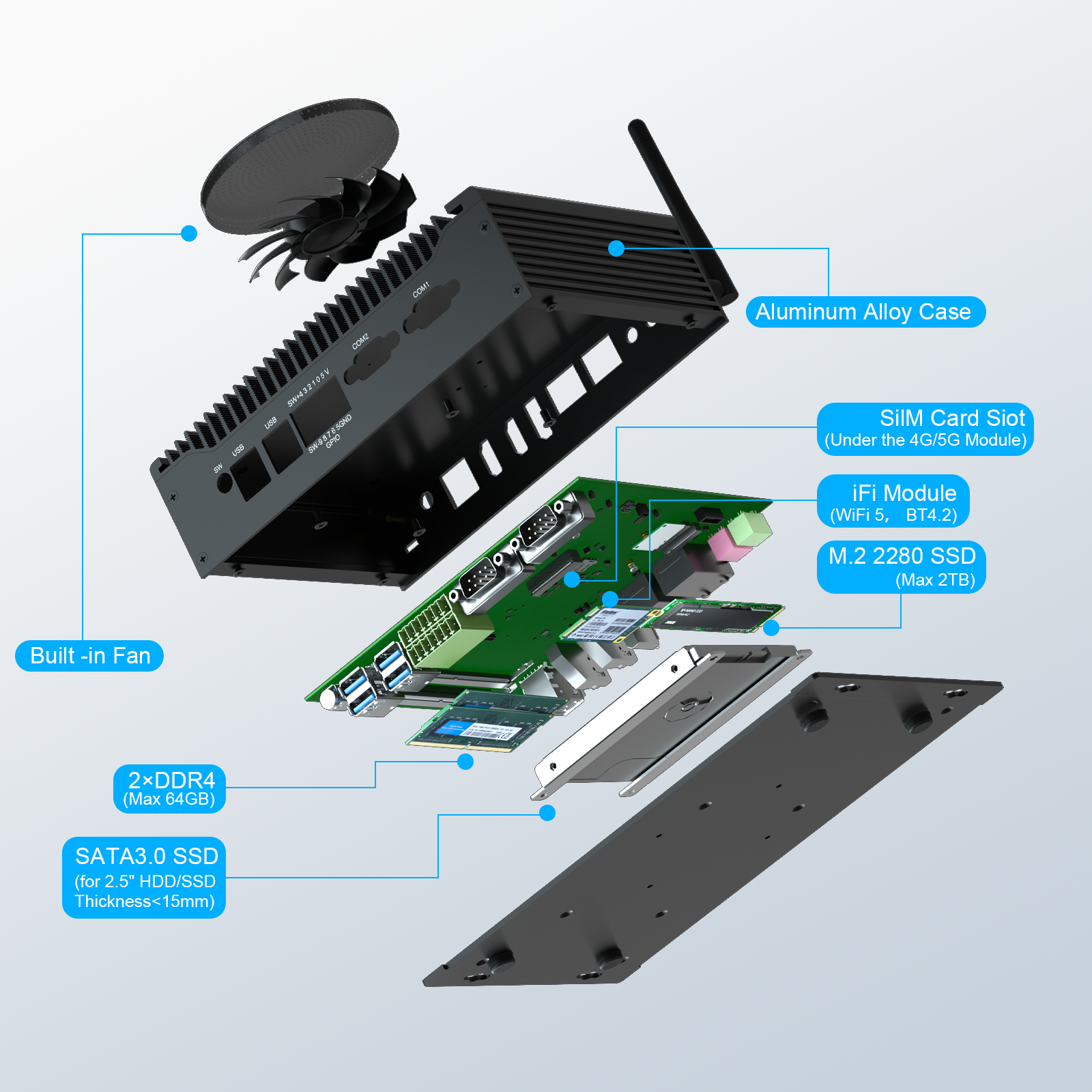

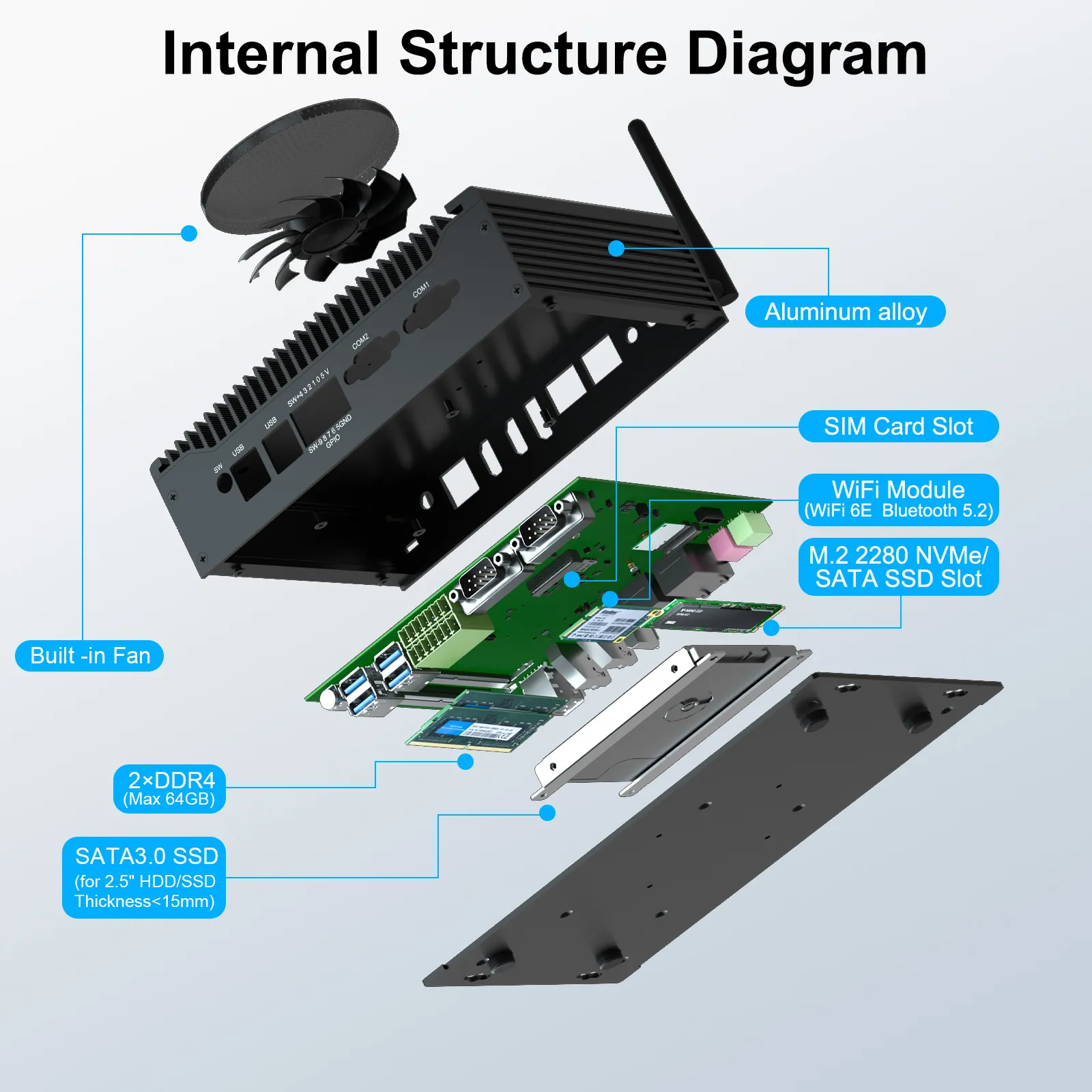

Product Structure

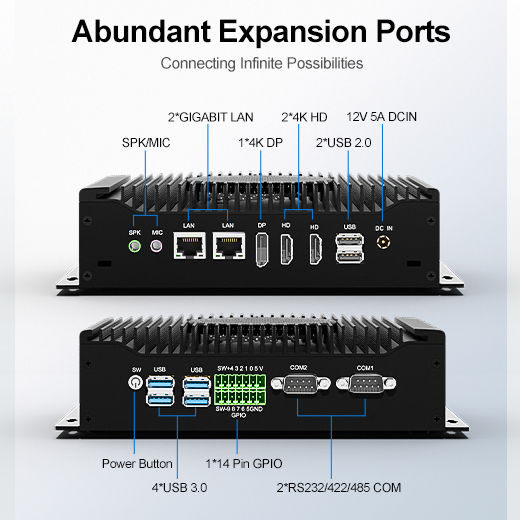

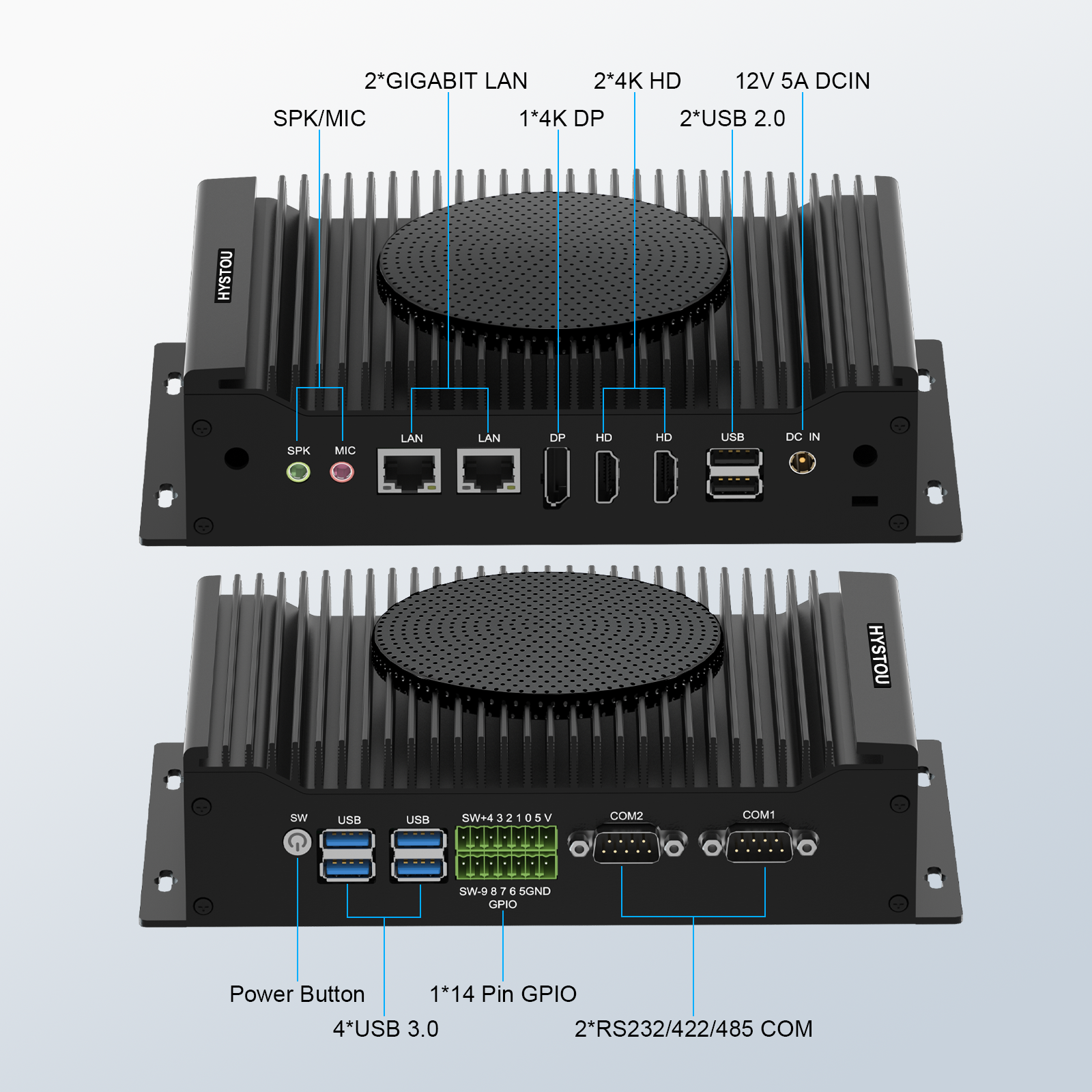

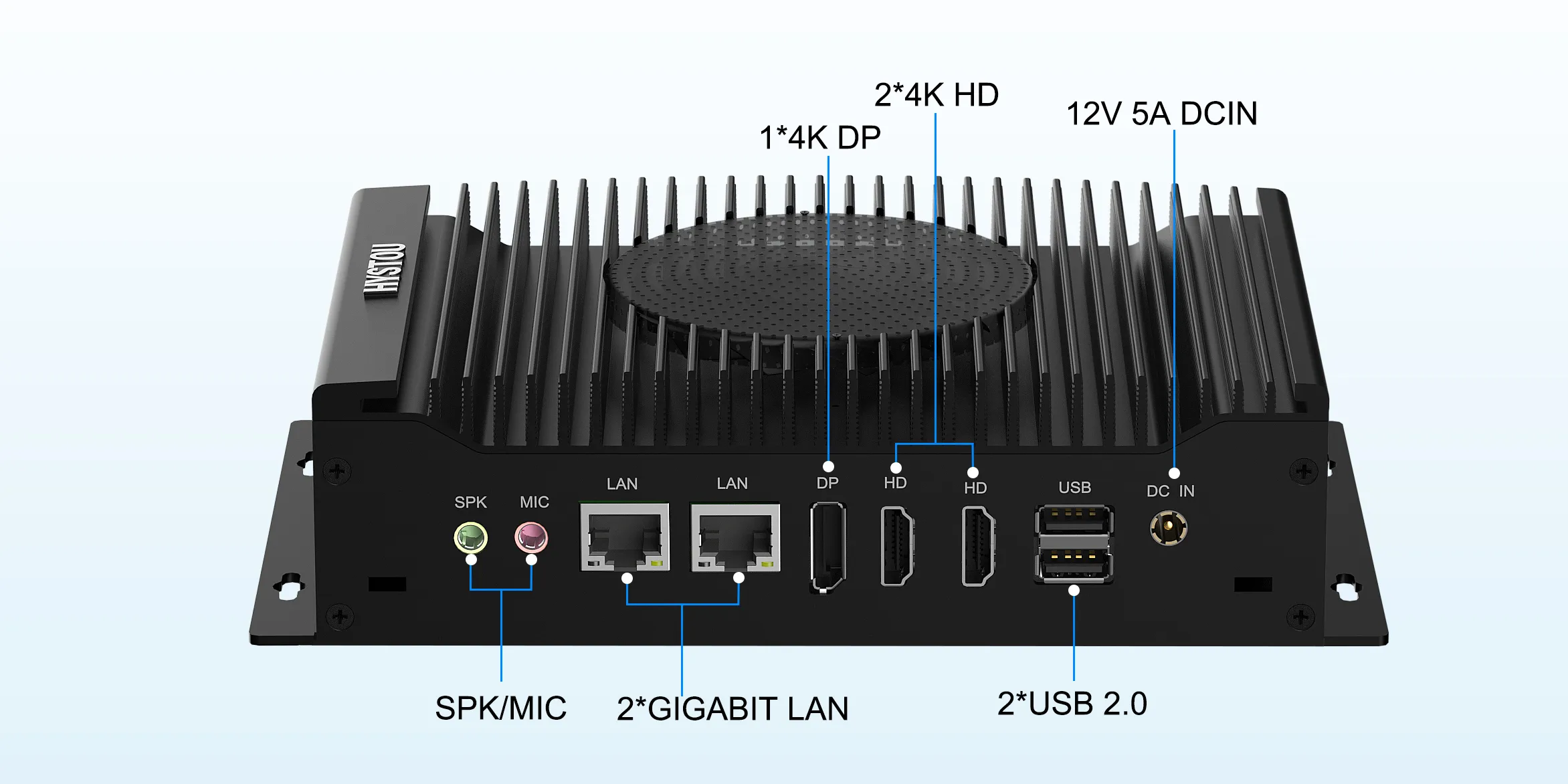

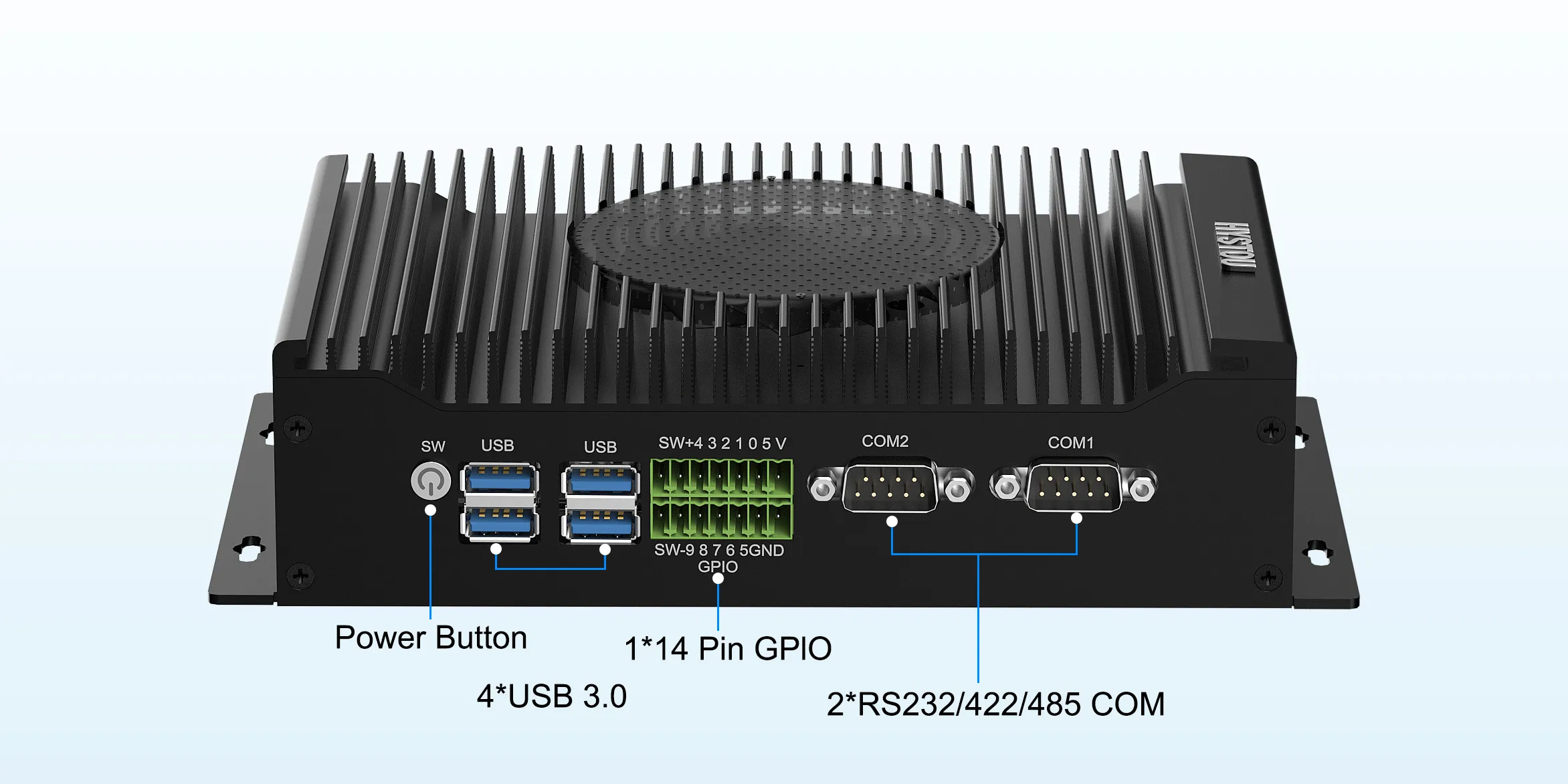

Abundant Expansion Ports

Supported Function

RAID storage array support

Supports RAID array configuration, with flexible options for RAID 0 (performance-boosting mode) or RAID 1 (data redundancy protection mode). Note that setting up a RAID array requires at least two SATA channels and corresponding SATA hard drives to enable multi-disk collaborative storage.

Wake-on-LAN

Equipped with Wake-on-LAN (WoL) functionality, it supports remote device wake-up in any shutdown mode without manual startup. This feature is enabled by default in the BIOS and is directly compatible with scenarios such as remote work and centralized device management.

Power-on Self-Starting

Supports Power-on Self-Starting functionality. No additional software configuration is required; it can be enabled simply by adjusting the physical position of the PWRON1 jumper on the motherboard. This feature is disabled by default and can be configured as needed.

Wake System from S5

Features Wake System from S5 (scheduled boot) capability. The startup time can be customized by modifying parameters in the BIOS system. It is suitable for scenarios that require scheduled task execution, such as automated data collection and timed startup of office devices.

PXE

Supports Preboot Execution Environment (PXE) boot functionality. The device can bypass local storage media and directly load the boot image from a local area network (LAN) server. This feature is commonly used in scenarios such as enterprise batch device deployment and unified system maintenance.

Supported Function

RAID storage array support

Wake-on-LAN

Power-ono Self-Starting

Wake System from S5

PXE

Where can the H6 industrial computer be used?

Industrial control Place

Its compact size requires minimal space for seamless deployment, and its performance rivals desktop computers. It serves as an industrial automation control core while handling data processing, device monitoring, remote diagnostics, and IoT access—with low power consumption, robust computing power, and high flexibility, making it ideal for space-constrained, high-performance industrial environments.

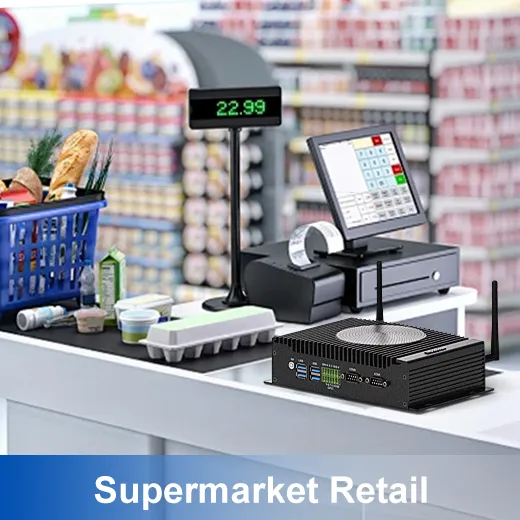

Supermarket Retail

Mini PCs are rapidly becoming the mainstream solution in supermarket and retail store environments, serving as an ideal tool to boost operational efficiency, enhance customer experiences, and cut equipment costs. Beyond powering POS systems, these compact devices can also integrate with wireless networks via store management systems to update pricing, promotions, and other key information to shelf electronic tags in real time. This not only drastically reduces labor costs for supermarkets but also ensures 100% information accuracy. Additionally, Mini PCs can support customer interaction initiatives and digital advertising displays.

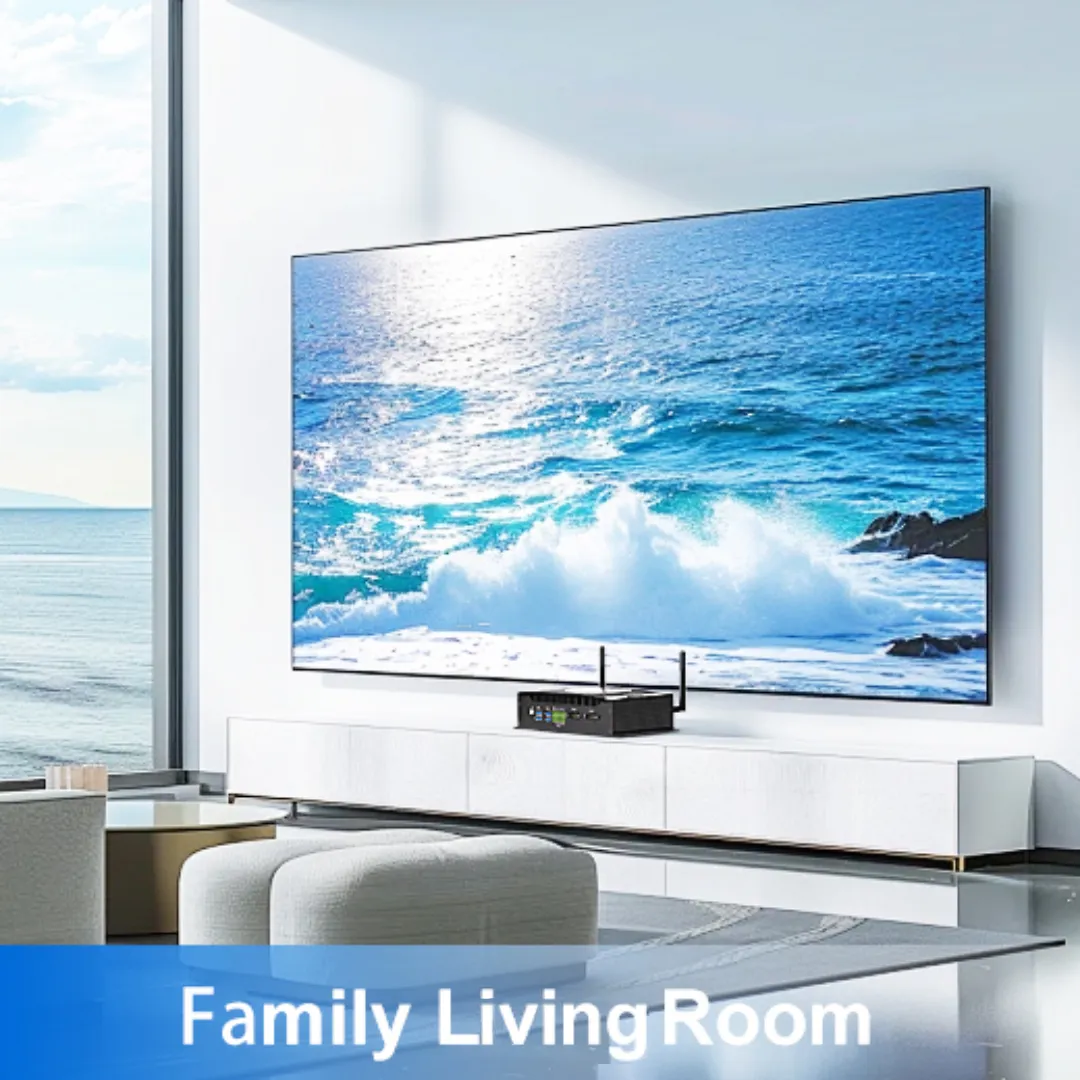

Family Living Room

The HYSTOU Industrial Mini PC (H6 fan model) doubles as a versatile home entertainment hub—perfect for modern families seeking elevated multimedia experiences. More cost-effective than traditional home theaters or high-end media devices, it supports streaming media, basic computer functions, and even triple-screen connectivity—all without stretching your budget. It delivers an enhanced entertainment experience for you and your family, blending functionality and affordability seamlessly.

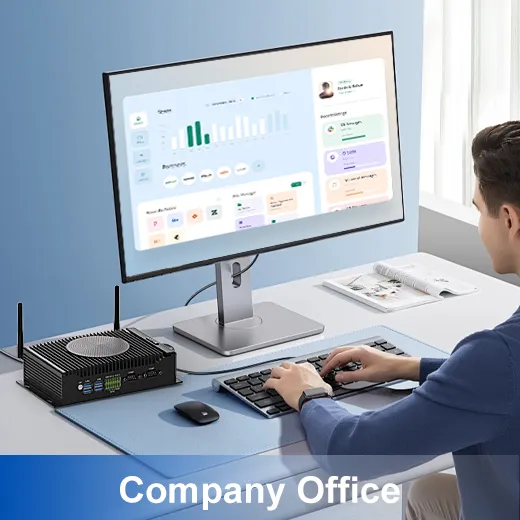

Company Office

 It delivers strong performance with an ultra-quiet built-in cooling fan, fostering a peaceful, comfortable office environment. It also doubles as a reliable video conferencing terminal, easily connecting to conference room displays whenever needed. Overall, thanks to their efficiency, compact footprint, quiet operation, and cost-effectiveness, Mini PCs have become a top solution for businesses looking to boost office productivity.

Where can the H6 industrial computer be used?

Its compact size requires minimal space for seamless deployment, and its performance rivals desktop computers. It serves as an industrial automation control core while handling data processing, device monitoring, remote diagnostics, and IoT access—with low power consumption, robust computing power, and high flexibility, making it ideal for space-constrained, high-performance industrial environments.

Mini PC for Family Living Room

The HYSTOU Industrial Mini PC (H6 fan model) doubles as a versatile home entertainment hub—perfect for modern families seeking elevated multimedia experiences. More cost-effective than traditional home theaters or high-end media devices, it supports streaming media, basic computer functions, and even triple-screen connectivity—all without stretching your budget. It delivers an enhanced entertainment experience for you and your family, blending functionality and affordability seamlessly.

Hystou H6 Installed in Industrial Control Cabinet with Monitoring Screens

Mini PCs are rapidly becoming the mainstream solution in supermarket and retail store environments, serving as an ideal tool to boost operational efficiency, enhance customer experiences, and cut equipment costs. Beyond powering POS systems, these compact devices can also integrate with wireless networks via store management systems to update pricing, promotions, and other key information to shelf electronic tags in real time. This not only drastically reduces labor costs for supermarkets but also ensures 100% information accuracy. Additionally, Mini PCs can support customer interaction initiatives and digital advertising displays.

Hystou H6 Installed in Industrial Control Cabinet with Monitoring Screens

 It delivers strong performance with an ultra-quiet built-in cooling fan, fostering a peaceful, comfortable office environment. It also doubles as a reliable video conferencing terminal, easily connecting to conference room displays whenever needed. Overall, thanks to their efficiency, compact footprint, quiet operation, and cost-effectiveness, Mini PCs have become a top solution for businesses looking to boost office productivity.

Specifications

Dimensions

220mm*127mm*60mm

Net Weight

1.15Kg

Material

aluminum alloy

CPU

i3-8140U/i5-8260U/i5-10210U/i7-10810U

Graphics

Intel UHD Graphics 620

Memory

Dual-channel DDR4 2666MT/s

up to 64GB

Storage

1×M.2280 slot， Supports M.2 SATA or PCIe (NVMe) channels SSD

1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

Ethernet

Intel 2.5Gbps RJ45 Realtek 8168/8111(1000M)

Supported System

Win10/Win11/Linux（Ubuntu\Centos\Pfsense\opnsense\proxmox）

Wireless LAN

WIFI 5, Supports WIFI6/WIFI6E

Bluetooth Wireless Technology

Bluetoothv4.2

I/O Ports

2×USB 2.0（back panel）

4×USB 3.0 (front panel)

1×3.5mm Audio Out (back panel)

1×3.5mm Audio In (back panel)

1×14 Pin GPIO (0-4 Output, 5-9 Input) (front panel)

1×HDMI 2.0 4K 60HZ (back panel)

1×HDMI 1.4 4K 30HZ(back panel)

1×DP*1.2 4K 60HZ (back panel)

2×2.5 Gigabit RJ45 LAN Port (back panel)

1×DC (5.5*2.5mm) (back panel)

2×DB 9Pin, Default RS232 mode, supports switching to RS422/RS485(front panel)

Internal Slot

1×M.2280 slot,  Supports M.2 SATA or PCIe (NVMe) channels SSD

1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

1×M.2 2230 slot for installing a Wi-Fi/Bluetooth module

1×MPCIE(51mm×30mm) slot for installing a 3G/4G module

1×SIM slot for Nano-SIM, 9mm×12mm

Kensington Lock

No

Accessory

VESA mount (option)

Working environment temperature

-10°C~60℃

Cooling system

CPU fan DB

(MAX)

Air-cooled fan, <40db

Specifications

Dimensions

 220mm*127mm*60mm

Net Weight

 1.15Kg

Material

 Aluminum alloy

CPU

 i5-1235U/i5-1340P/i7-1255U/i7-1360P

Graphics

 Intel UHD Graphics 620

Memory

 Dual-channel DDR4 2666MT/s,up to 64GB

Storage

 Dual-channel DDR4 2666MT/s,up to 64GB

Ethernet

 Intel 2.5Gbps RJ45 Realtek 8168/8111(1000M)

Supported System

 Win10/Win11/Linux

Wireless LAN

 WIFI 5, Supports WIFI6/WIFI6E Bluetoothv4.2

I/O ports

2×USB 2.0（back panel）

4×USB 3.0 (front panel)

1×3.5mm Audio Out (back panel)

1×3.5mm Audio In (back panel)

1×14 Pin GPIO (0-4 Output, 5-9 Input) (front panel)

1×HDMI 2.0 4K 60HZ (back panel)

1×HDMI 1.4 4K 30HZ(back panel)

1×DP*1.2 4K 60HZ (back panel)

2×2.5 Gigabit RJ45 LAN Port (back panel)

1×DC (5.5*2.5mm) (back panel)

2×DB 9Pin, Default RS232 mode, supports switching to RS422/RS485(front panel)

Internal Slot

 1×M.2280 slot,  Supports M.2 SATA or PCIe (NVMe) channels SSD

 1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

 1×M.2 2230 slot for installing a Wi-Fi/Bluetooth module

 1×MPCIE(51mm×30mm) slot for installing a 3G/4G module

 1×SIM slot for Nano-SIM, 9mm×12mm

Kensington Lock

 No

Accessory

 VESA mount (option)

Working environment temperature

-10°C~60°C

Cooling system CPU fan DB (MAX)

 Air-cooled Fan,<40db
