HYSTOU H6 Fanless Industrial Mini PC – Intel Core i7, Dual LAN & Triple Display

(1.5k customers review)
Rated 4.5 out of 5

Categories:

  • Processor: Intel Core i7-10510U /i5-10210U/i3-10110U
  • Graphics: Intel UHD Graphics (supports 4K UHD video playback at 4096×2160@60Hz, triple-display output)
  • Memory: Up to 64GB DDR4 RAM
  • Storage: Built-in M.2 2280 SSD, support for 2.5-inch SSD expansion
  • Network：2×Gigabit Ethernet ports, 2.4G+5.0G dual-band Wi-Fi, Bluetooth 4.2

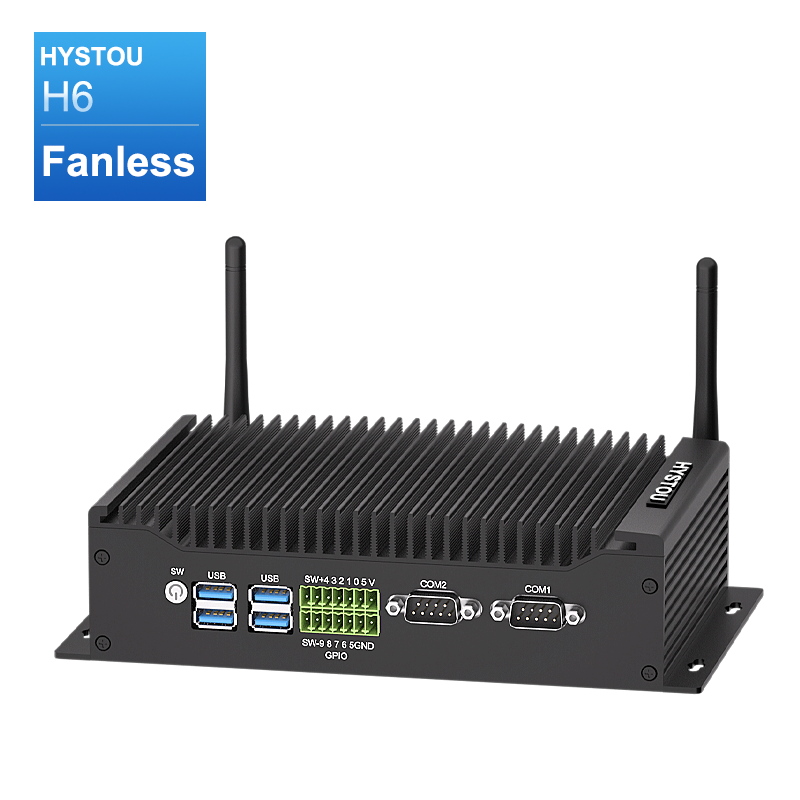

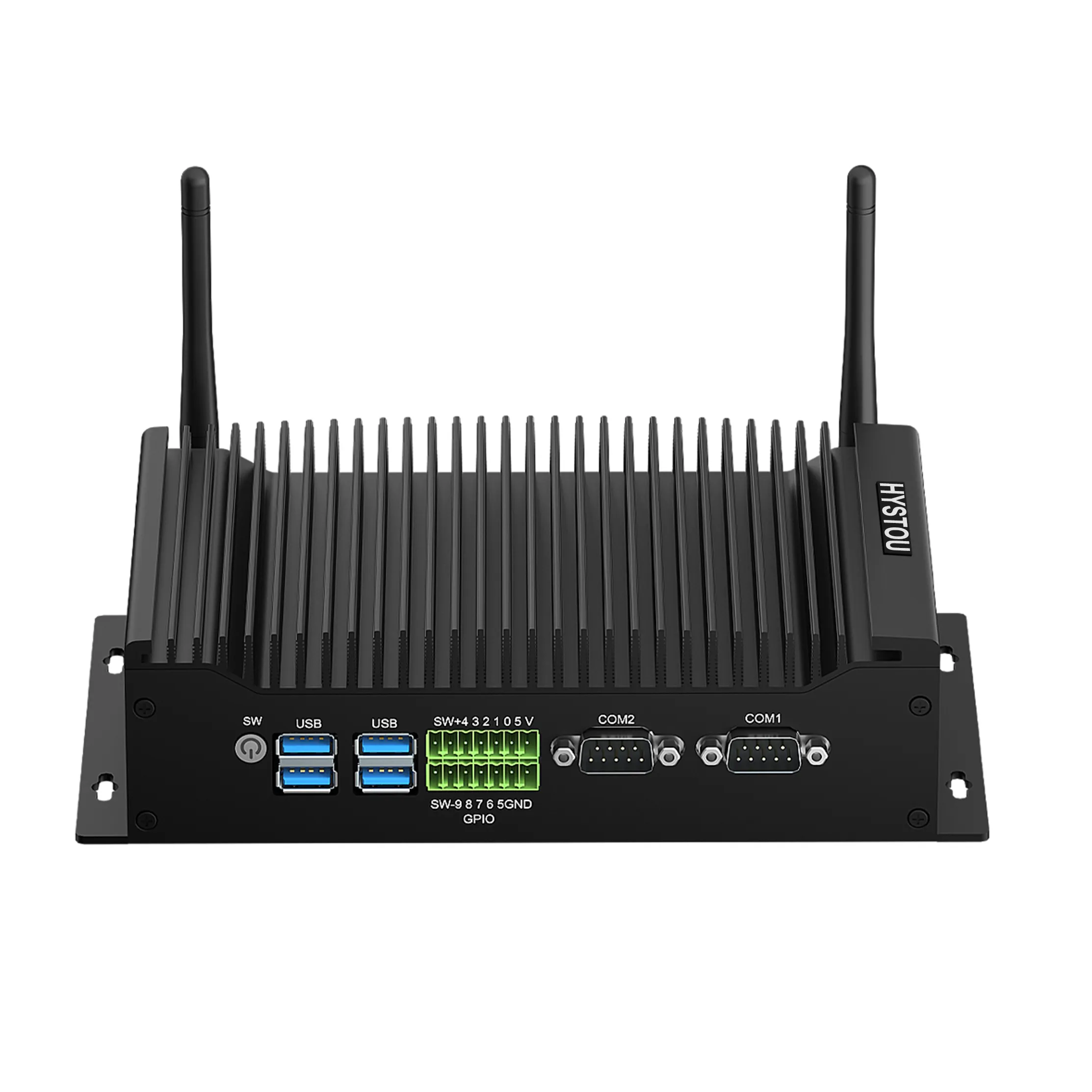

HYSTOU H6 Fanless

Versatile Fanless Industrial Mini PC

What is HYSTOU H6 Fanless

"0 failure" industrial gene

  • Pain point: Dust accumulation of traditional mini PC fans leads to a 30% failure rate
  • Solution: All-aluminum passive heat dissipation dustproof, stable operation at -10°C~60°C
  • Data support: MTBF (mean time between failures) > 100,000 hours (industry average 50,000 hours)

"Three-screen productivity" Revolution

  • Scenario-based benefits: Securities traders/industrial monitoring can display real-time data + monitoring screen + operation interface at the same time
  • Technical highlights: Intel UHD graphics card supports 4096×2160@60Hz three–screen heterogeneous output

"Dual Ethernet Ports + Full Interface" Expansion Freely

  • Interface matrix: 2× Gigabit Ethernet ports (support link aggregation) + 6×USB (including USB3.0) + 2×COM serial ports
  • Comparison advantage: products in the same price range have only 1 network port + 4USB on average, and H6 supports direct connection of 2 industrial cameras

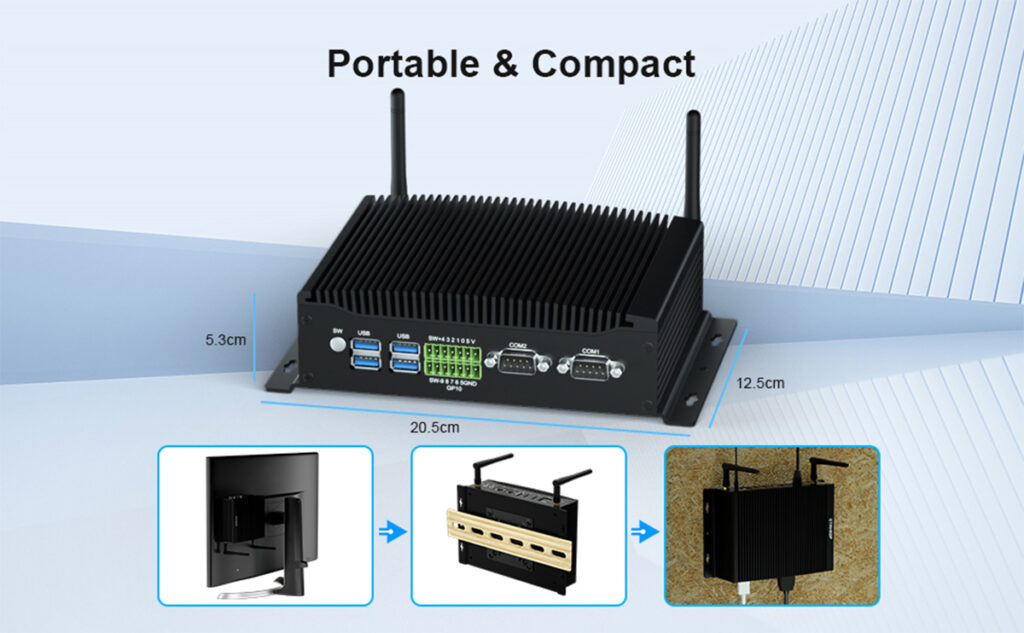

"205mm mini body" space magic

  • Visual comparison: 30% smaller than A4 paper, wall–mounted/rack–mountable
  • Scene value: Exclusive to small spaces such as production line control cabinets/elevator shafts/vehicle environments

Aluminum alloy

Sturdy, corrosion-resistant and sleek.

Triple-Display

Work, stream & create in silence.

VESA Compatible

Attach to walls/monitors effortlessly.

Efficient passive cooling

Silent, efficient heat dissipation.

Key Specs & Performance

Intel Core Processor database

Memory, Speed & Connectivity – Seamless Performance

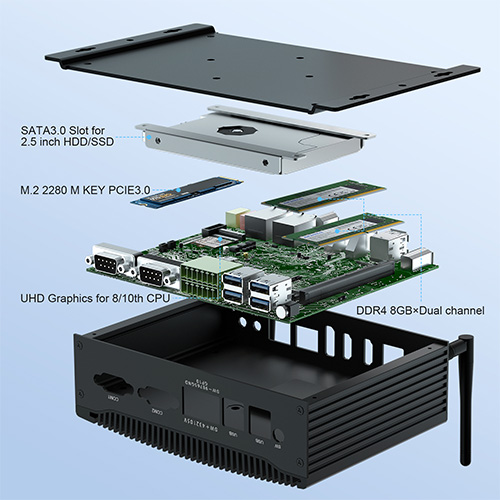

HYSTOU H6 Fanless Ample Memory & Storage

Ample Memory & Storage: Power to Handle Any Task

Equipped with 64GB high-speed DDR4 RAM and M.2 2280 SSD, the HYSTOU H6 delivers instant responsiveness for memory-intensive workloads—from large graphic file editing to multi-virtual machine operation. Need more space? Expand with a 2.5-inch SSD for a secure, high-capacity data bank.

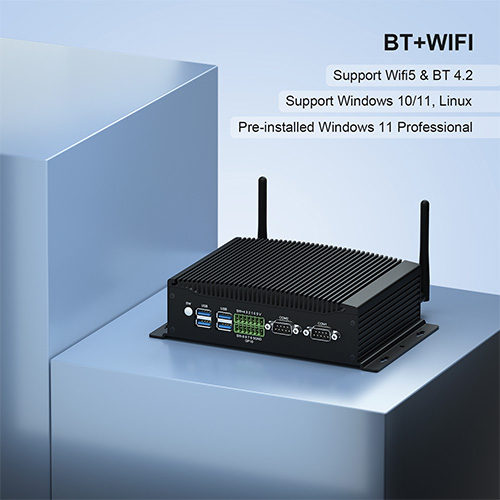

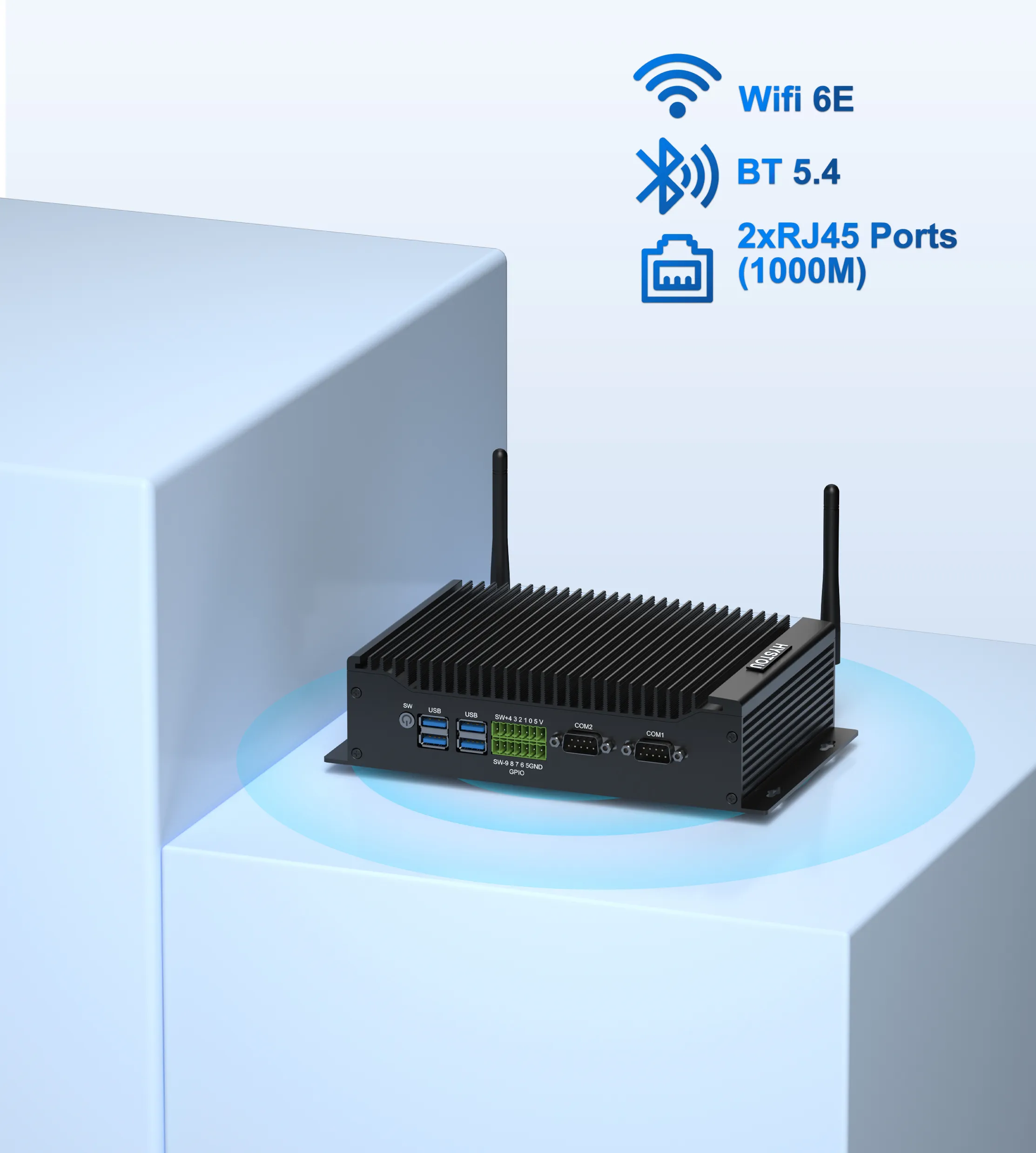

Multi-Network Connectivity: Blazing-Fast, Zero Latency

Experience uninterrupted performance with dual Gigabit Ethernet ports (for redundant networks), 2.4G/5.0G dual-band Wi-Fi, and Bluetooth 4.2. Seamlessly connect to peripherals (mice, headsets, speakers) and enterprise-grade equipment—including industrial monitors, projectors, and smart TVs.

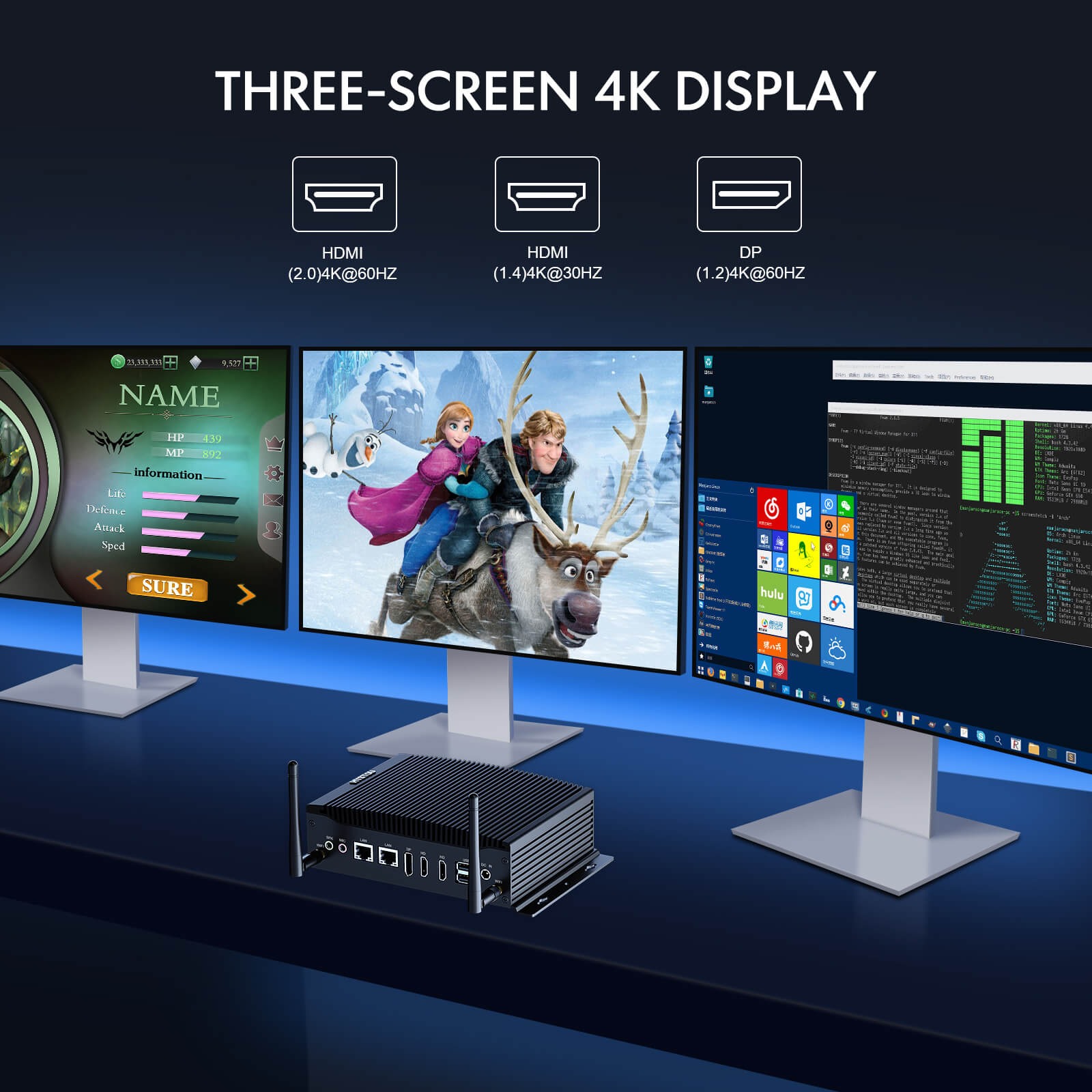

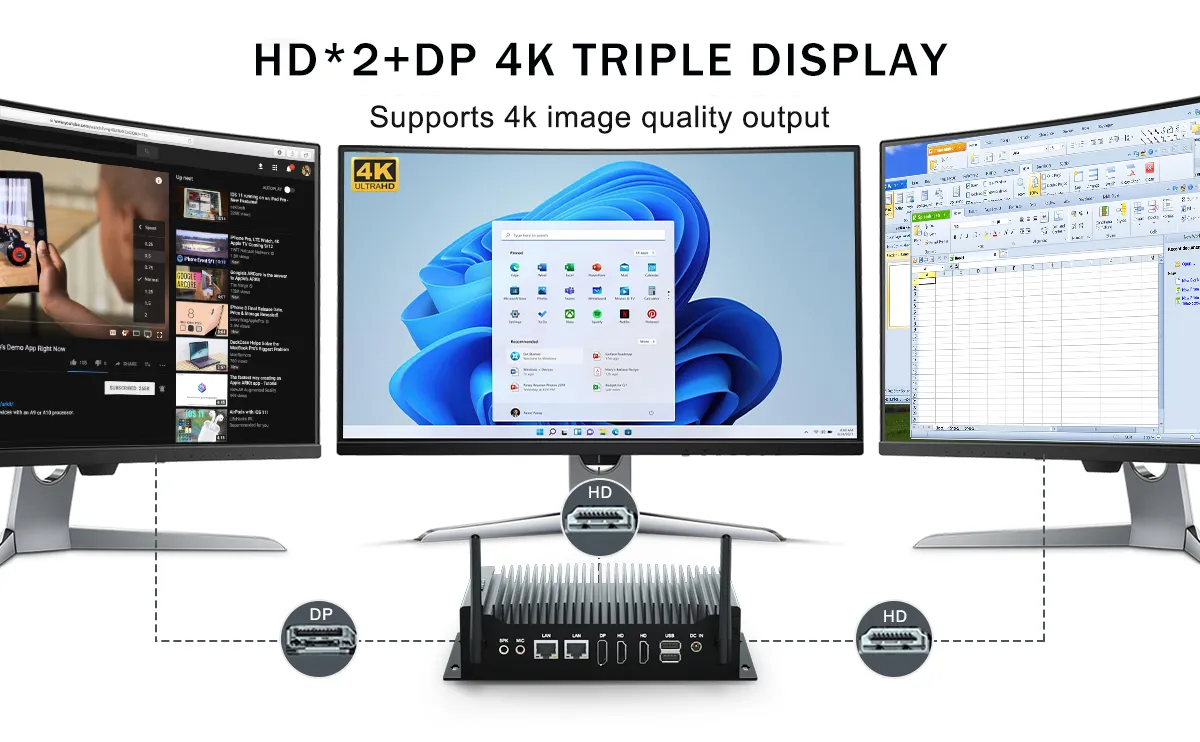

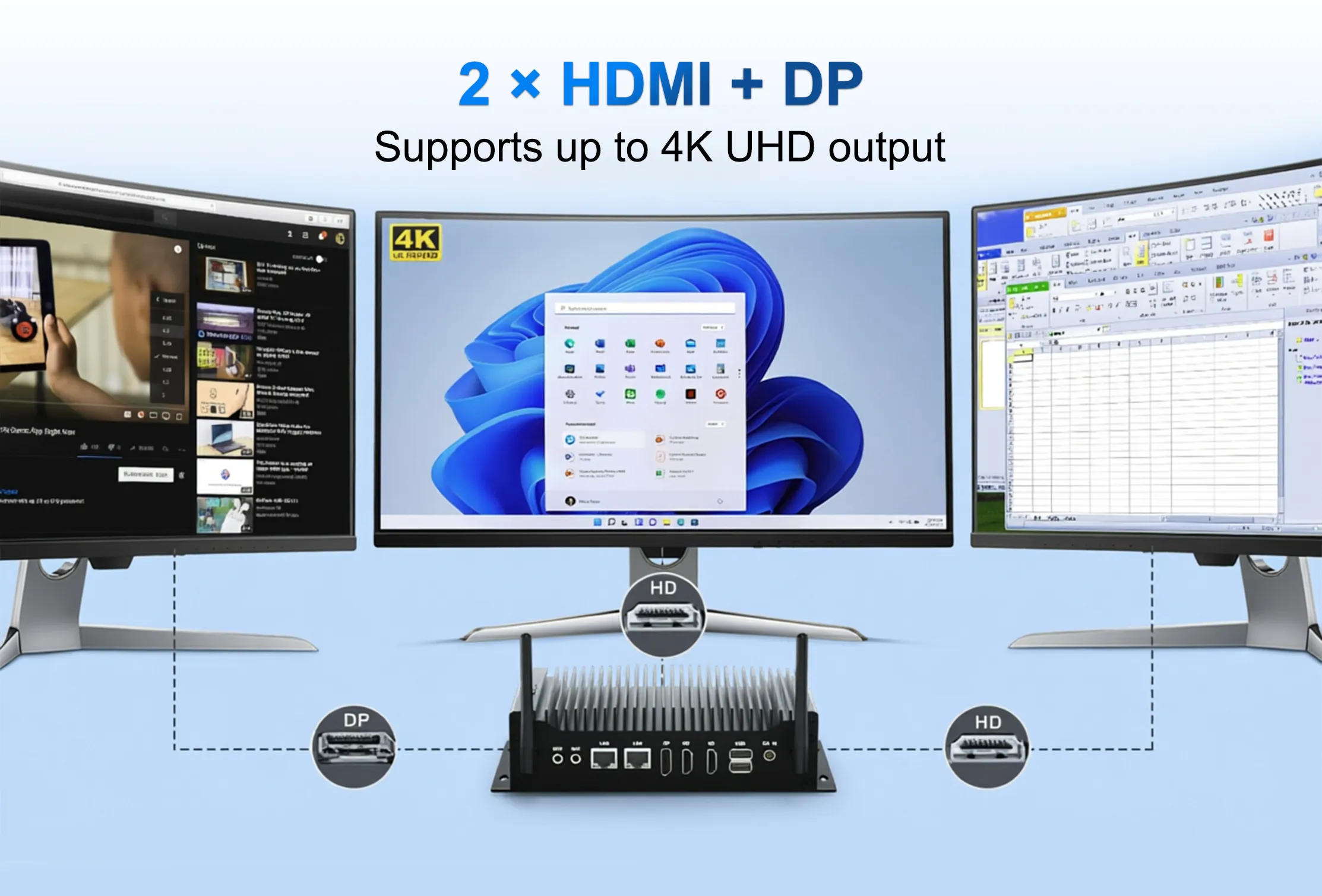

Multimedia Mastery

Work, Create, Entertain—All in One

Powered by Intel UHD Graphics, the HYSTOU H6 delivers 4K UHD video playback at 4096×2160@60Hz with smooth image processing. Triple-display support transforms your workflow: edit videos across multiple screens, host immersive video conferences, or enjoy theater-quality streaming at home. Perfect for visual creators, remote workers, and home entertainment enthusiasts.

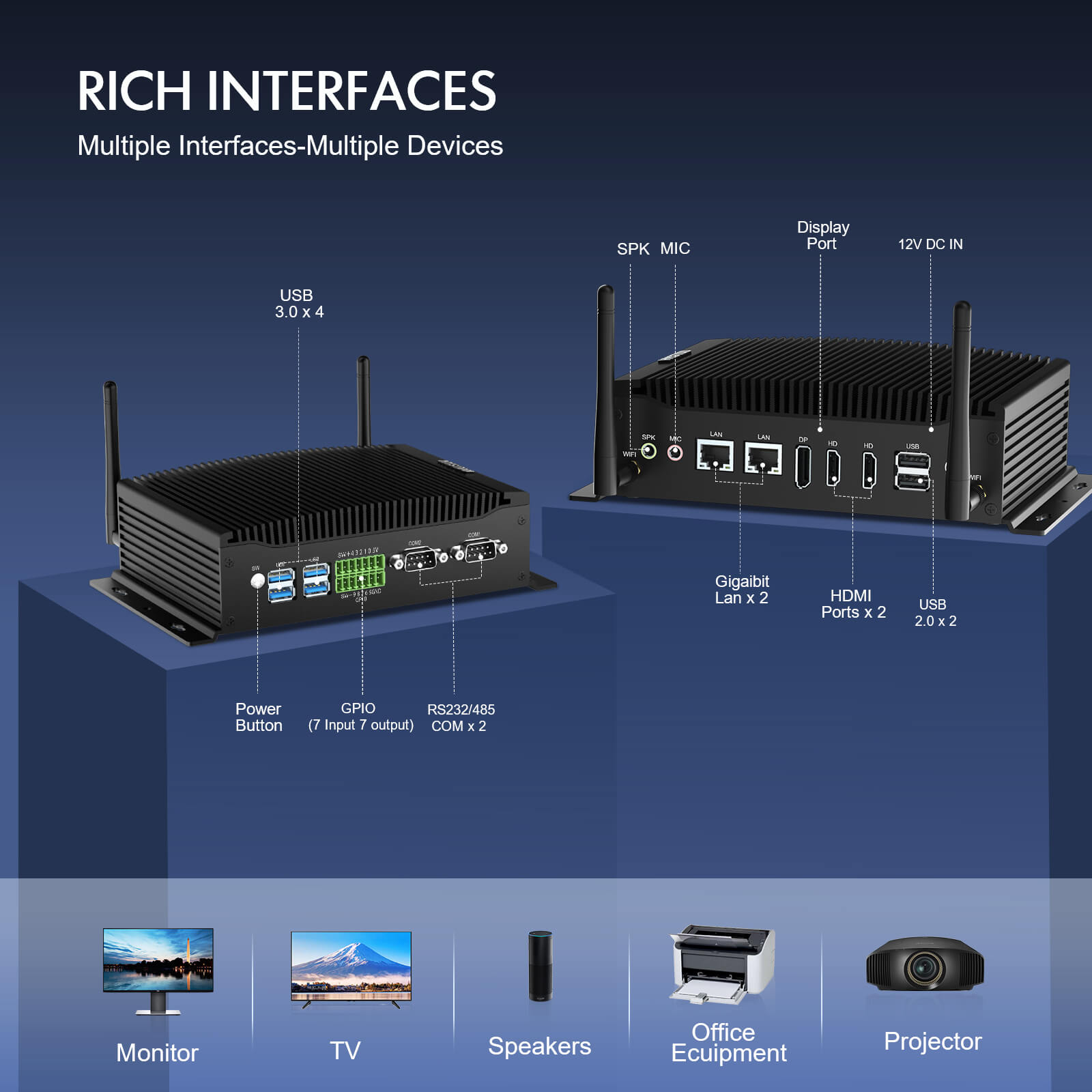

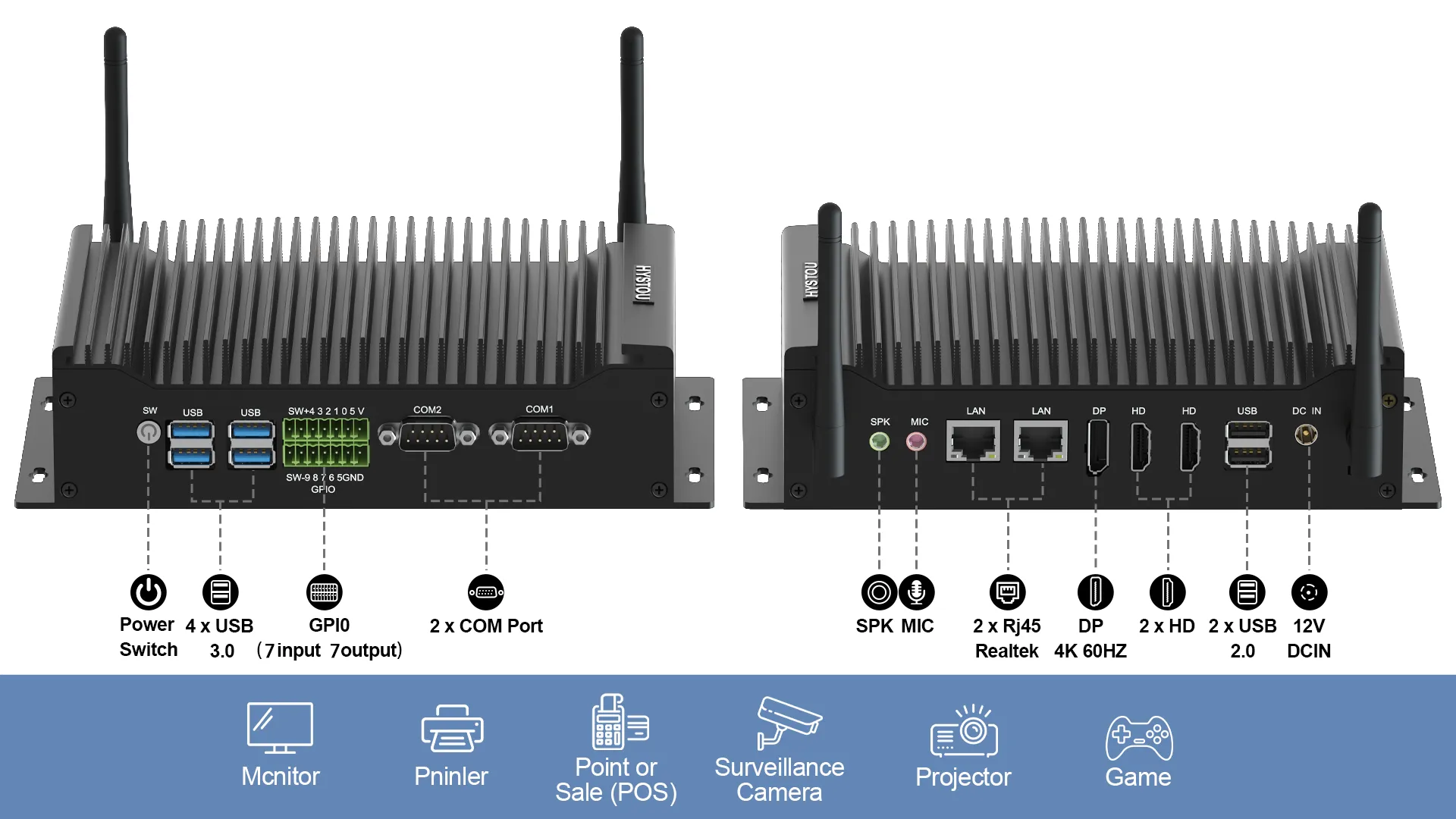

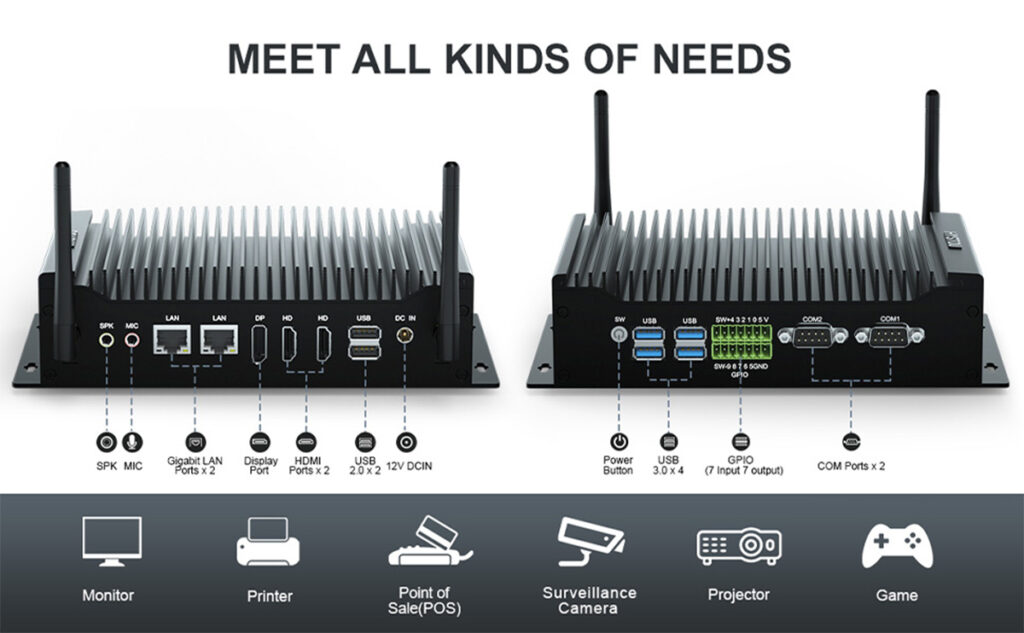

Diverse Interfaces, All Needs Met

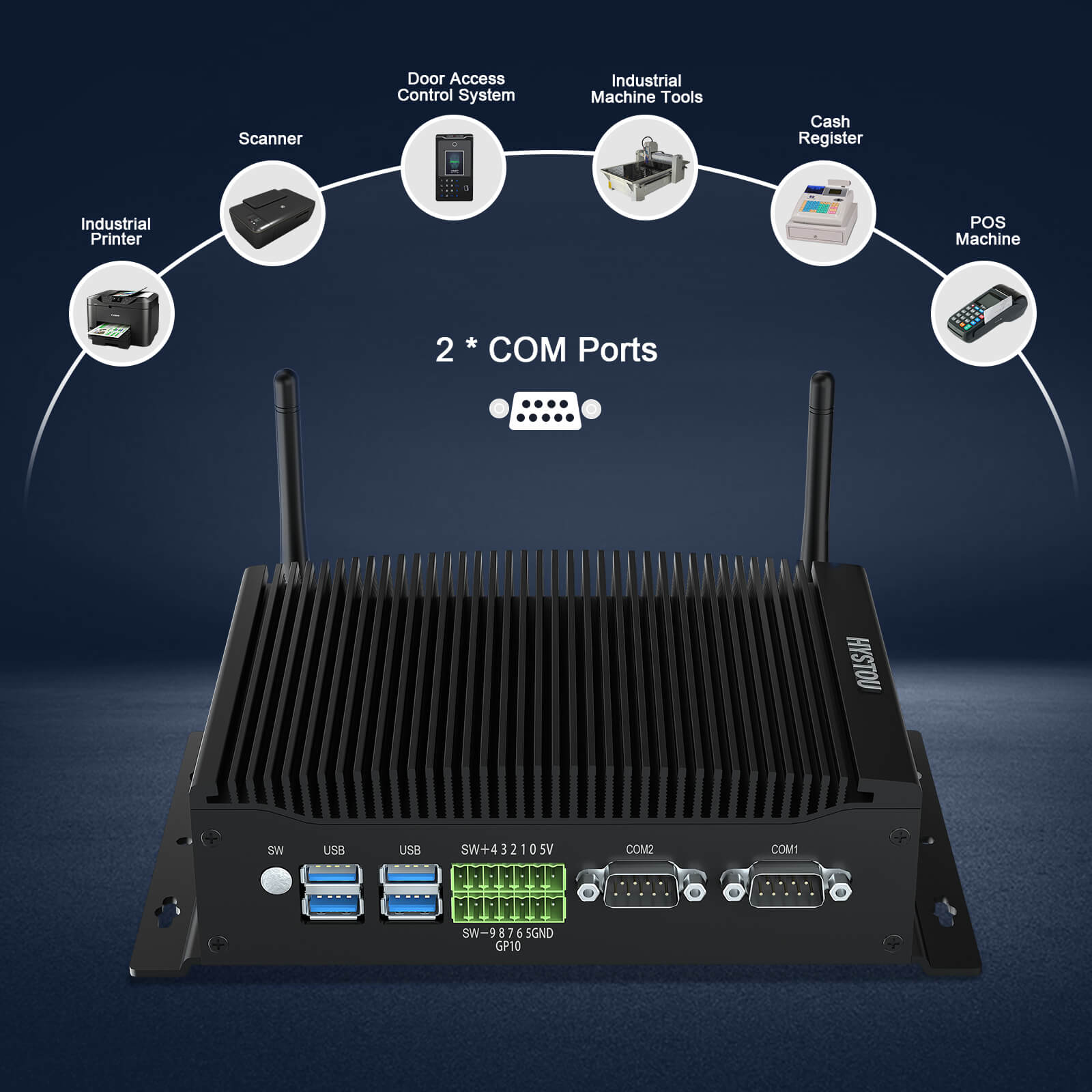

Fanless Industrial computer H6 equipped 6*USB, 2*COM, 2*LAN, 1*DP, 2*HD etc. USB 3.0 provides fast transfer speed,  increases your productivity, and saves your time. It supports many peripherals, such as TVs, monitors, scanners, receipt printers, projectors, office equipment, monitoring equipment, and so on.

HYSTOU H6 Fanless interface

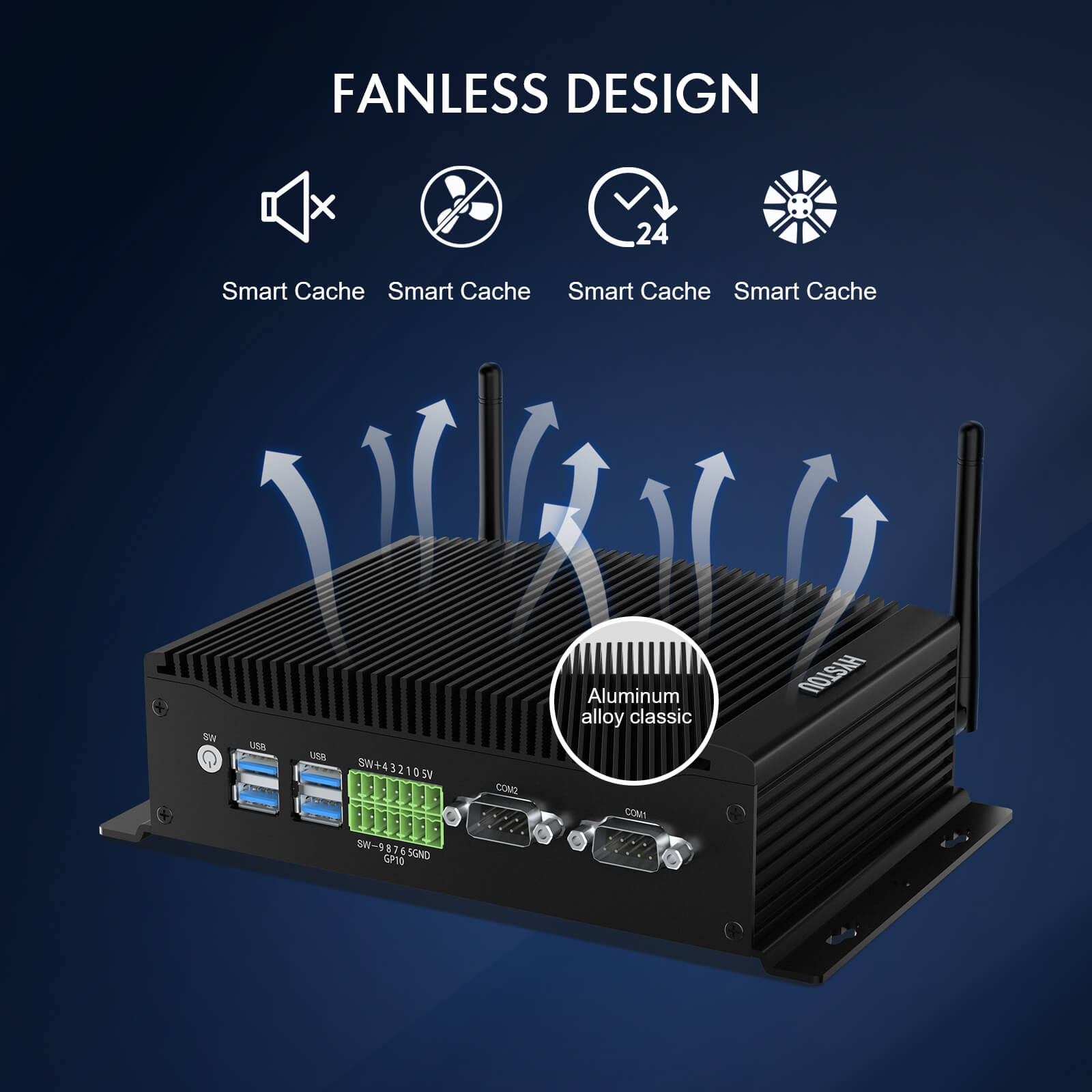

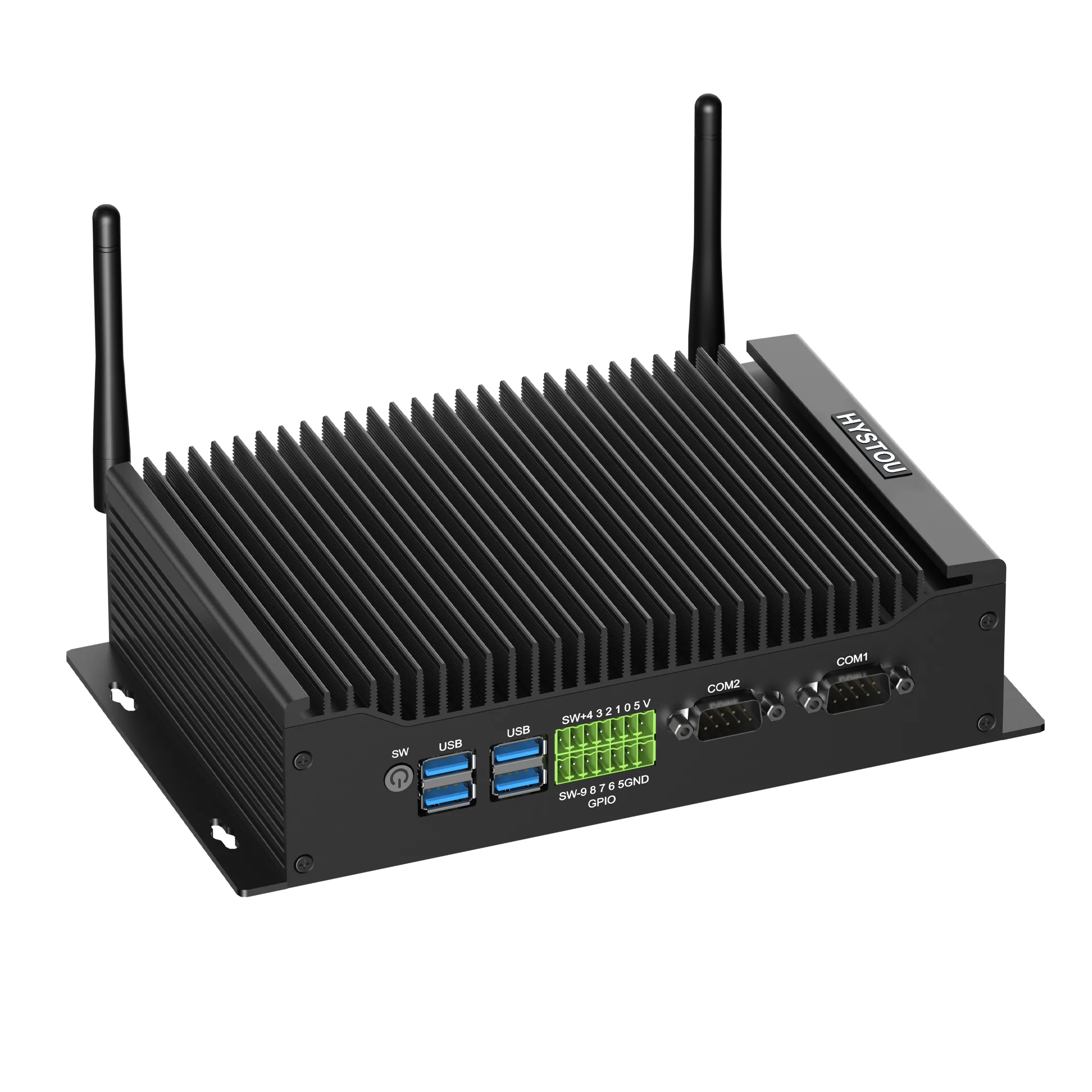

Passive Cooling, Silent Efficiency

Our fanless Mini PC features advanced passive cooling technology, dissipating heat efficiently via large-area heat sinks. Dense heat fins are visible on the top and sides of the chassis—these fins maximize air contact area to boost cooling performance. Additionally, the case is crafted from specialized thermal conductive material, which rapidly transfers internal heat to the exterior for reliable, effective heat management.

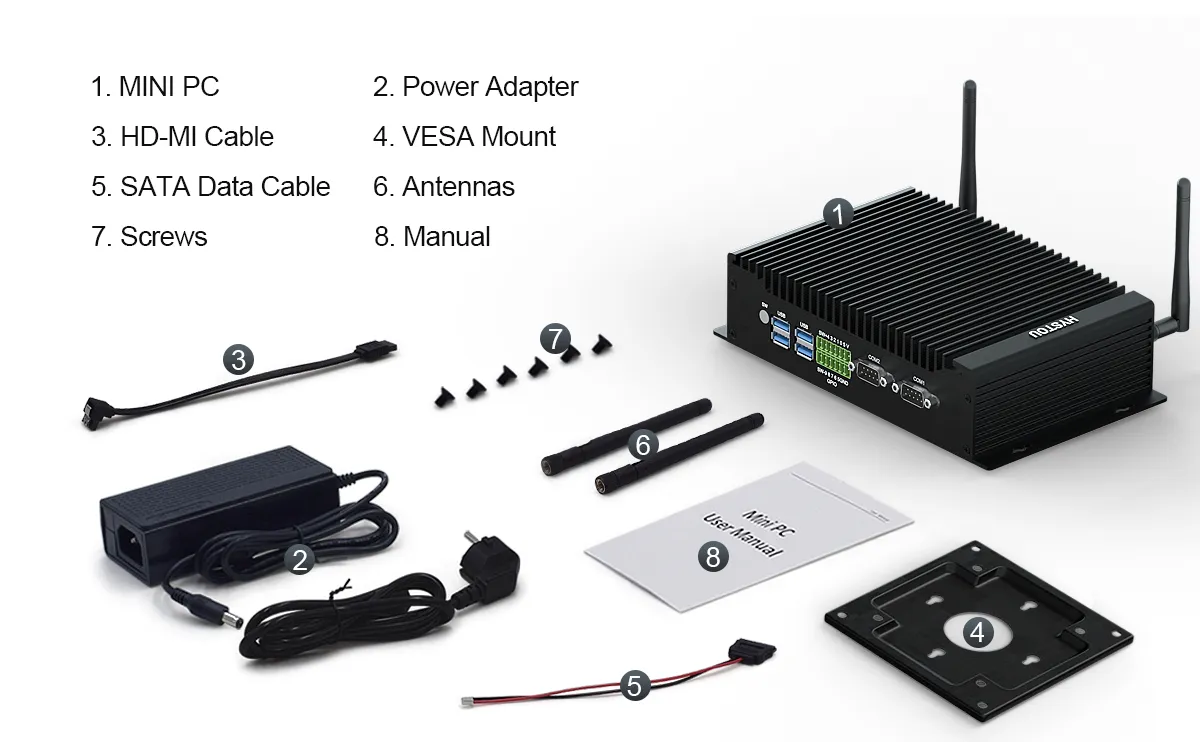

What's In The Box

what is in the box

Specifications

Dimensions

205mm*126mm*58mm

Net Weight

1.15Kg

Material

aluminum alloy

CPU

I3-8140U/i5-8260U/i5-10210U/i5-1031U/i7-10610U/i7-10810U

Graphics

Intel UHD Graphics 620

Memory

Dual-channel DDR4 2666MT/s

up to 64GB

Storage

1×M.2280 slot， Supports M.2 SATA or PCIe (NVMe) channels SSD

1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

Ethernet

Intel 2.5Gbps RJ45 Realtek 8168/8111(1000M)

Supported System

Win10/Win11/Linux/

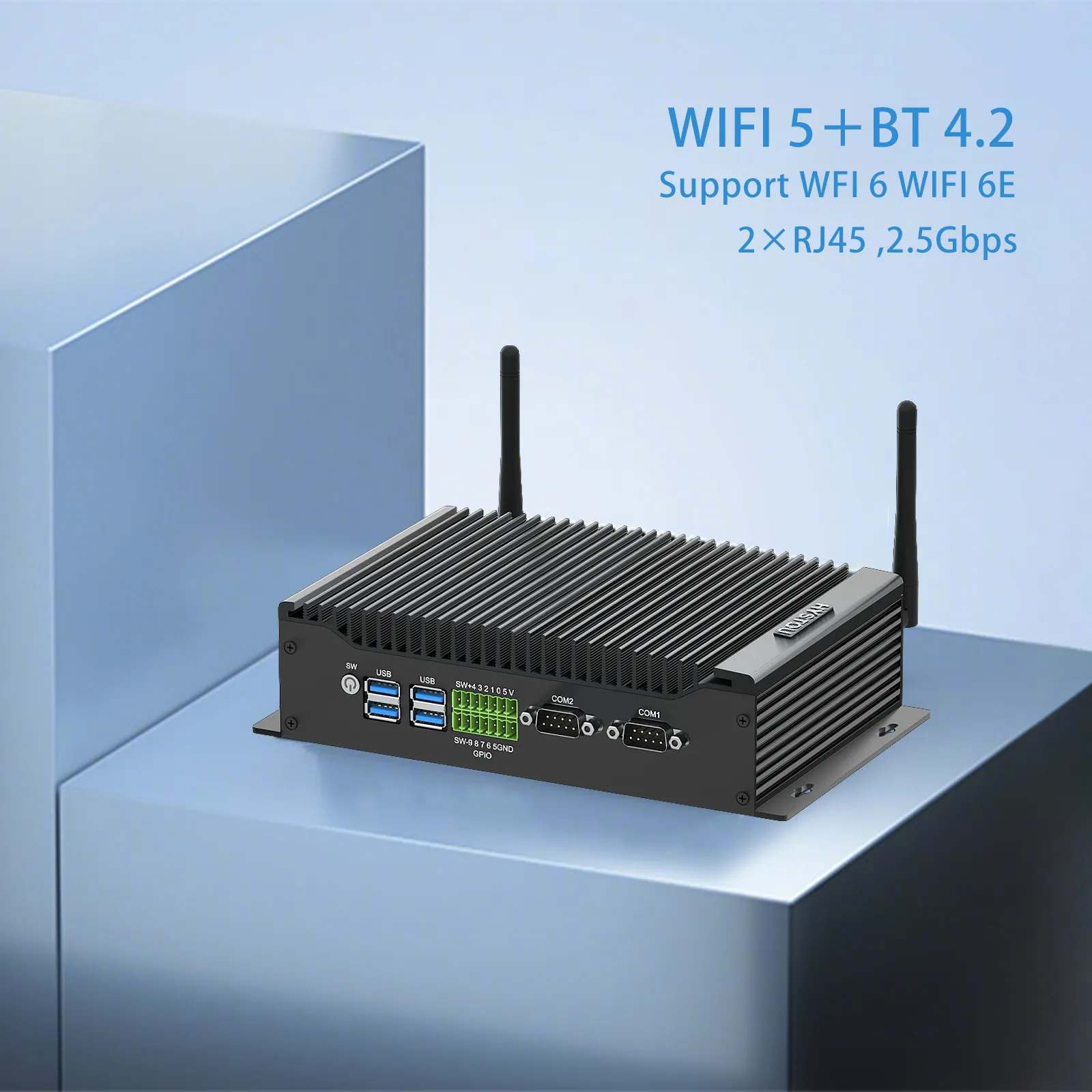

Wireless LAN

WIFI 5, Supports WIFI6/WIFI6E

Bluetooth Wireless Technology

Bluetoothv4.2

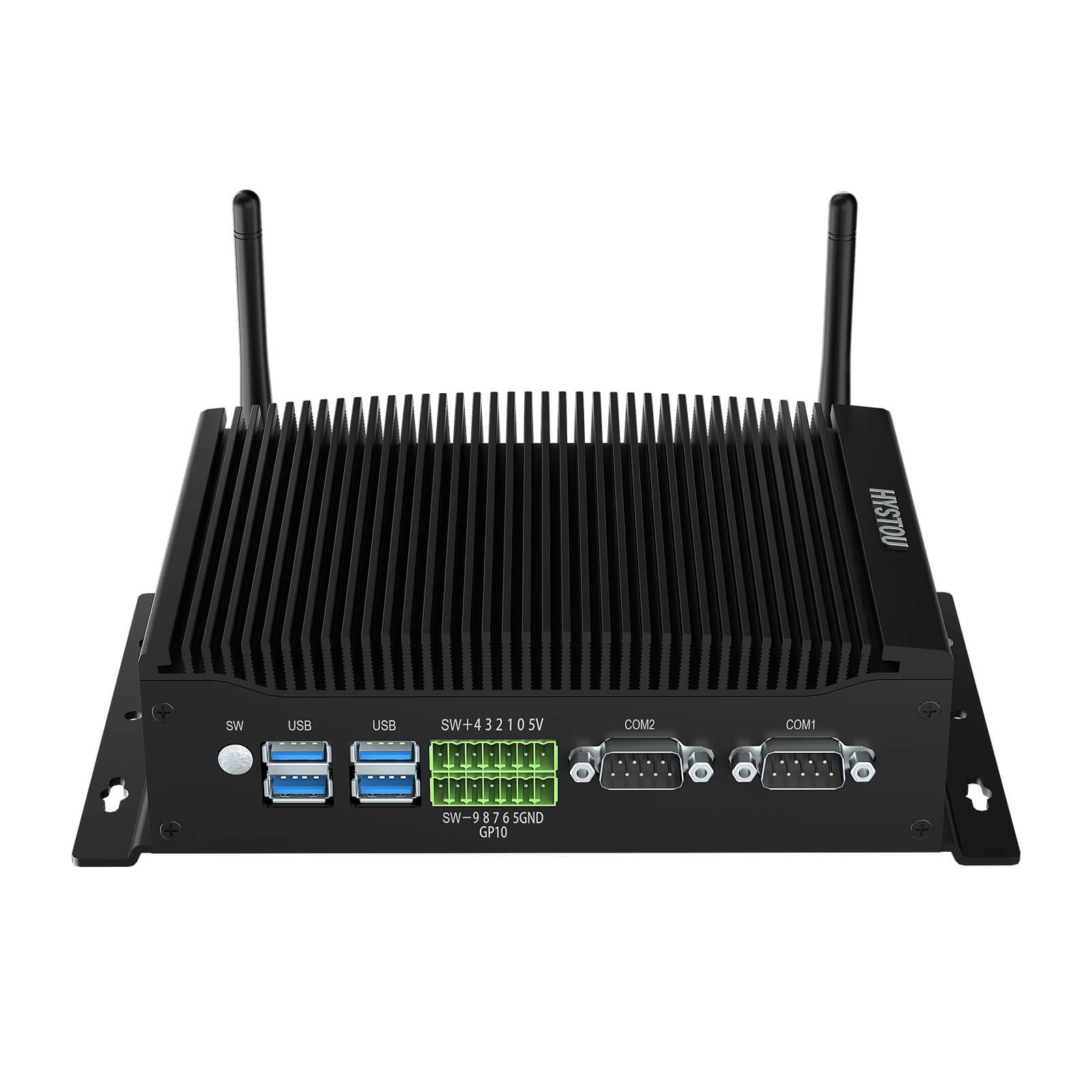

I/O Ports

2×USB 2.0（back panel）

4×USB 3.0 (front panel)

1×3.5mm Audio Out (back panel)

1×3.5mm Audio In (back panel)

1×14 Pin GPIO (0-4 Output, 5-9 Input) (front panel)

1×HDMI 2.0 4K 60HZ (back panel)

1×HDMI 1.4 4K 30HZ(back panel)

1×DP*1.2 4K 60HZ (back panel)

2×2.5 Gigabit RJ45 LAN Port (back panel)

1×DC (5.5*2.5mm) (back panel)

2×DB 9Pin, Default RS232 mode, supports switching to RS422/RS485(front panel)

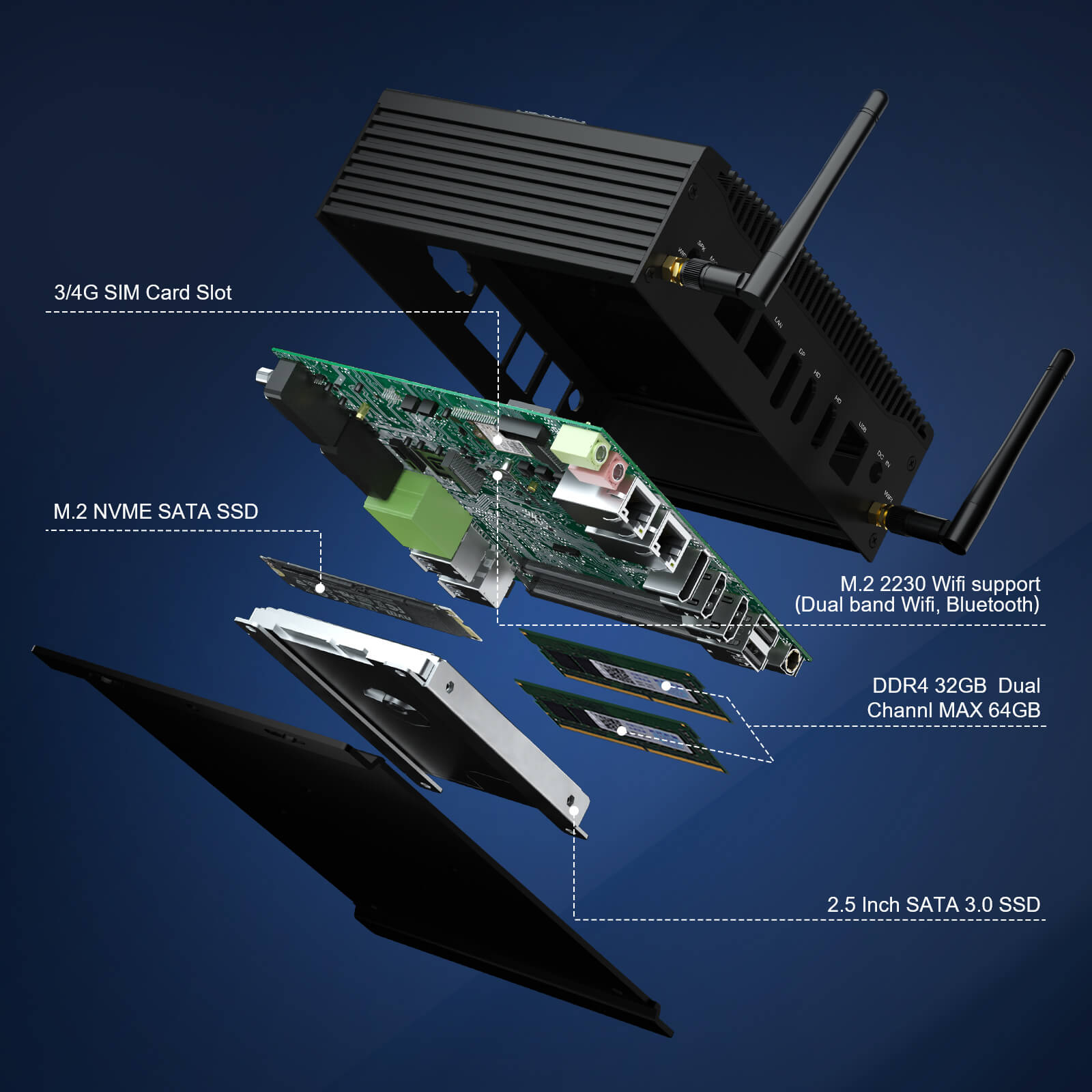

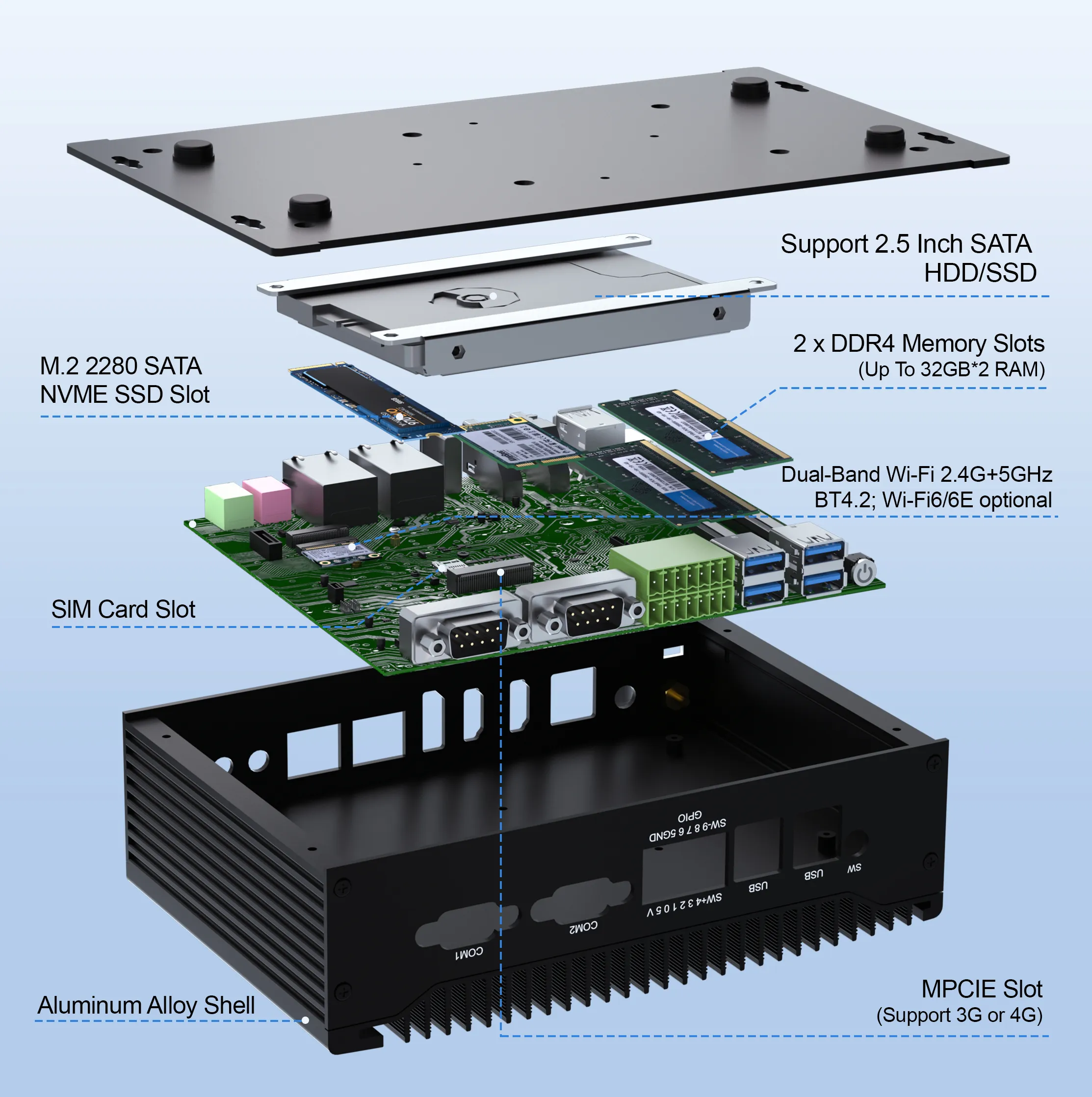

Internal Slot

1×M.2280 slot,  Supports M.2 SATA or PCIe (NVMe) channels SSD

1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

1×M.2 2230 slot for installing a Wi-Fi/Bluetooth module

1×MPCIE(51mm×30mm) slot for installing a 3G/4G module

1×SIM slot for Nano-SIM, 9mm×12mm

Kensington Lock

No

Accessory

VESA mount (option)

Working environment temperature

-10°C~60°C

Cooling system

CPU fan DB

(MAX)

Fanless, 0db

Specifications

Dimensions

205mm*126mm*58mm

Net Weight

1.15Kg

Material

Aluminum alloy

CPU

I3-8140U/i5-8260U/i5-10210U/i5-1031U/i7-10610U/i7-10810U

Graphics

 Intel® UHD Graphics

Memory

 Dual-channel DDR5 4800MT/s ,  up to 64GB

Storage

Dual-channel DDR4 2666MT/s   up to 64GB

Ethernet

 Intel 2.5Gbps RJ45 Realtek 8168/8111(1000M)

Supported System

 Win10/Win11/Linux

Wireless LAN

WIFI 5, Supports WIFI6/WIFI6E Bluetoothv4.2

I/O ports

2×USB 2.0（back panel）

4×USB 3.0 (front panel)

1×3.5mm Audio Out (back panel)

1×3.5mm Audio In (back panel)

1×14 Pin GPIO (0-4 Output, 5-9 Input) (front panel)

1×HDMI 2.0 4K 60HZ (back panel)

1×HDMI 1.4 4K 30HZ(back panel)

1×DP*1.2 4K 60HZ (back panel)

2×2.5 Gigabit RJ45 LAN Port (back panel)

1×DC (5.5*2.5mm) (back panel)

2×DB 9Pin, Default RS232 mode, supports switching to RS422/RS485(front panel)

Internal Slot

1×M.2280 slot,  Supports M.2 SATA or PCIe (NVMe) channels SSD

1×SATA 3.0 for 2.5 inch HDD/SSD(no more than 15mm)

1×M.2 2230 slot for installing a Wi-Fi/Bluetooth module

1×MPCIE(51mm×30mm) slot for installing a 3G/4G module

1×SIM slot for Nano-SIM, 9mm×12mm

Kensington Lock

No

Accessory

 VESA mount (option)

Working environment temperature

-10°C~60°C

Cooling system CPU fan DB (MAX)

Fanless, 0db
