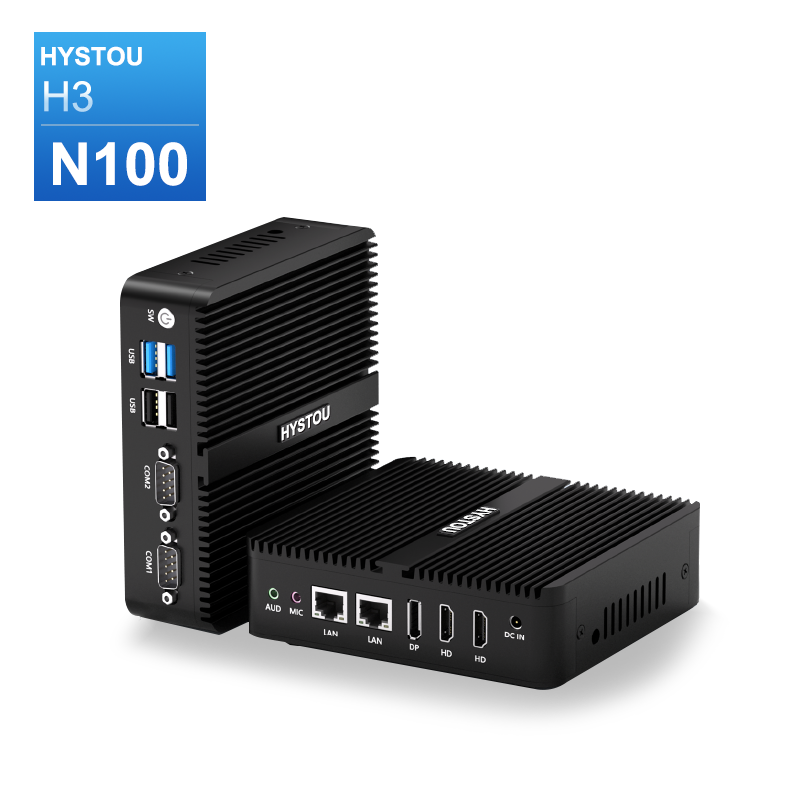

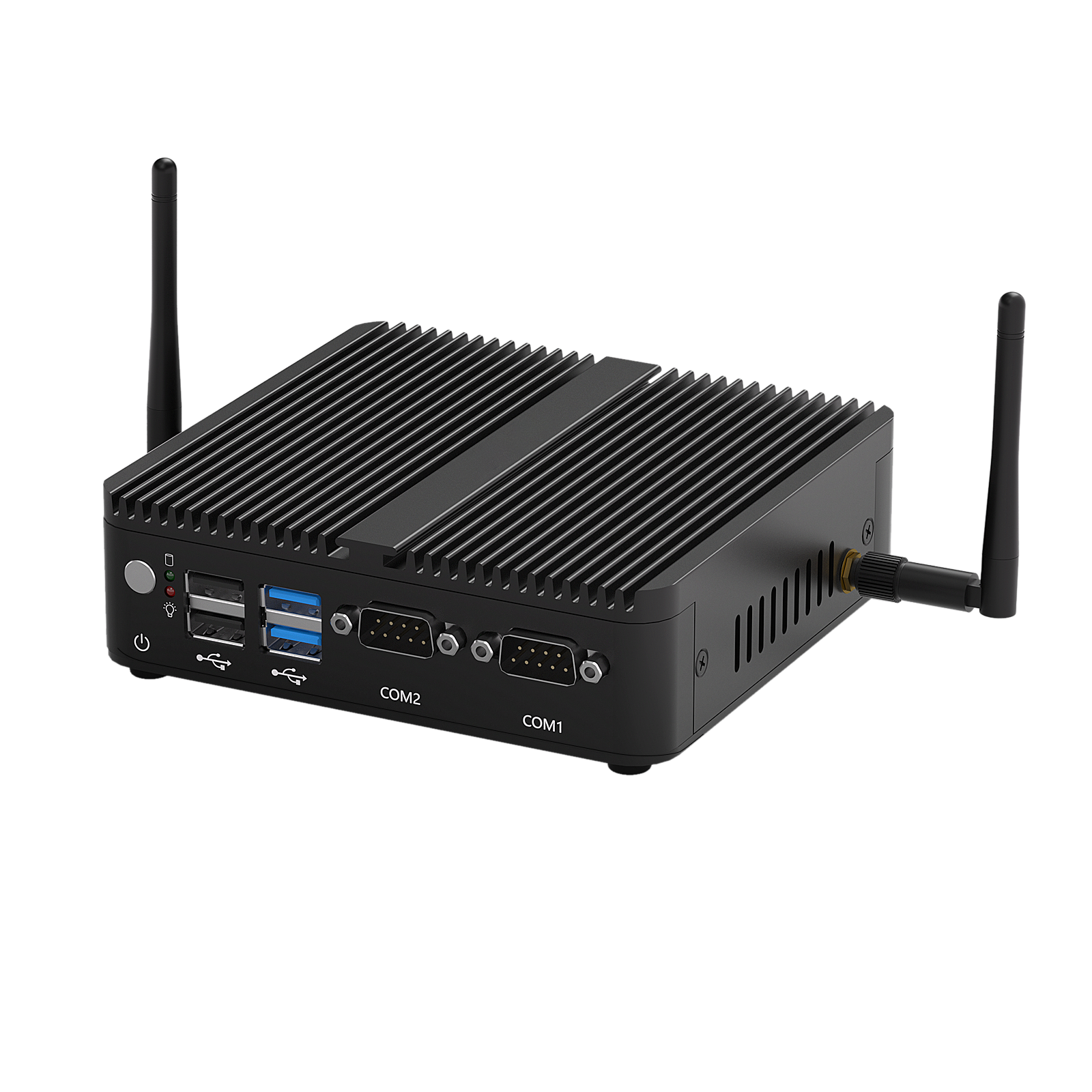

HYSTOU H3-N100 Intel N100 Fanless Industrial Mini PC
Categories: Industrial Mini PC, Office Mini PCs
- Processor: Intel N100
- Graphics Card: Intel UHD Graphics (supports 4K resolution)
- Memory: DDR4 SODIMM slot, max 32GB @ 3200MHz
- Storage:
- M.2 NVMe slot (up to 2TB)
- MSATA slot (up to 1TB)
- SATA 3.0 interface (compatible with 2.5-inch HDD/SSD, ≤7mm thickness)
- Network: Dual Gigabit Ethernet (Realtek RTL8168/8111 controllers)
- Additional Features:
- Fanless design for silent operation
- Dual display outputs: HDMI 2.0 (4K@60Hz) + VGA (1080P@60Hz)
HYSTOU H3
All-in-One Silent Mini PC | Perfect for Office & Entertainment
What is HYSTOU H3-N100
Factory equipment’s "stable core brain", dual serial ports directly link to PLCs/sensors
Scenario Description
Core Compatibility Advantages
- Dual COM RS232 ports for direct connection to industrial devices
- Watch Dog functions to prevent system crashes
- Wide-temperature design for resistance to harsh environments
4K high-definition output, 24/7 low power consumption, and uninterrupted advertising display.
Scenario Description：
Core Compatibility Advantages：
1 Device Replaces 3 – NAS Storage + Smart Home Control + Home Theater
Scenario Description:
High Performance. Low Power.
Intel 7 process technology, featuring 4 cores and 4 threads with a max turbo frequency of 3.4GHz—effortlessly handles multitasking. Boasting a total system power consumption of ≤40W, it’s energy-efficient and eco-friendly.

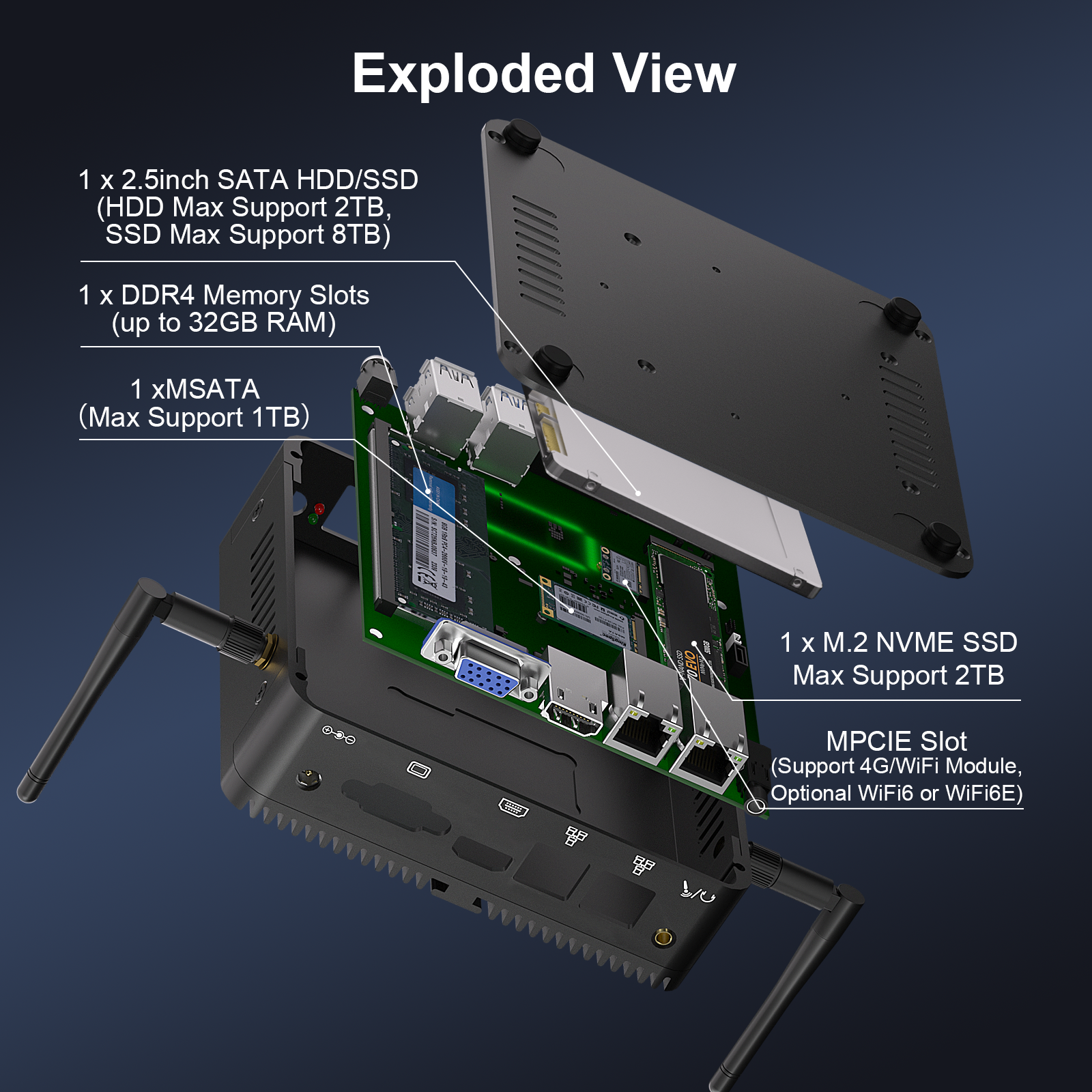

Triple Storage Ports. Unlimited Capacity Freedom
M.2 2280 NVME SSD, up to 2TB
MSATA SSD, up to 2TB
2.5 inch SATA SSD/HDD, up to 4TB
Single DDR4 3200MHz, up to 32GB

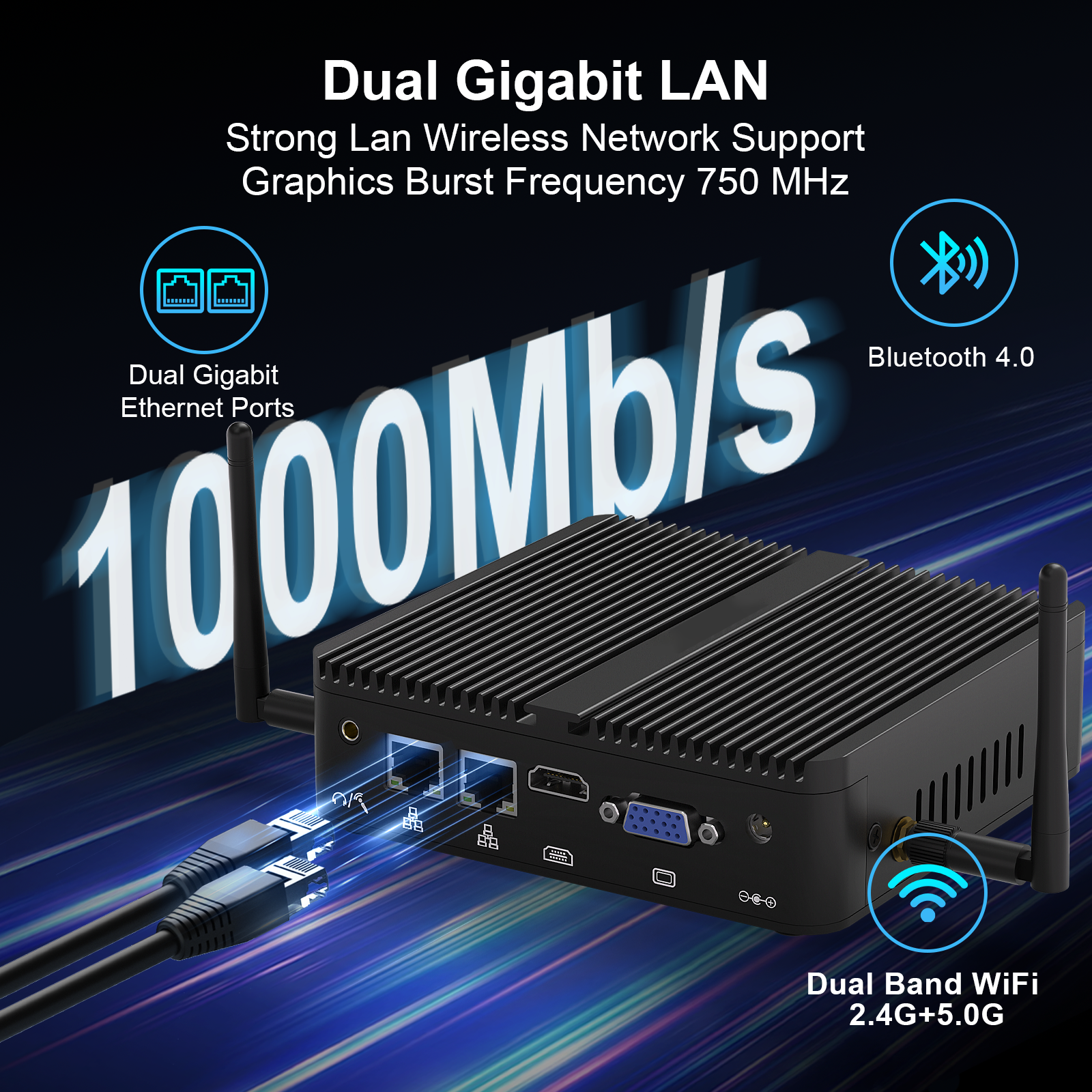

Dual-Wired + Dual-Serial Ports. All-Round Connectivity.
Two Gigabit Ethernet ports enable link aggregation, dual-network segmentation, and fail-safe redundancy—ideal for industrial control, multi-device networking, and uninterrupted data transmission. Two RS-232 serial ports deliver seamless compatibility with legacy industrial peripherals (PLCs, sensors, meters) and retro devices.

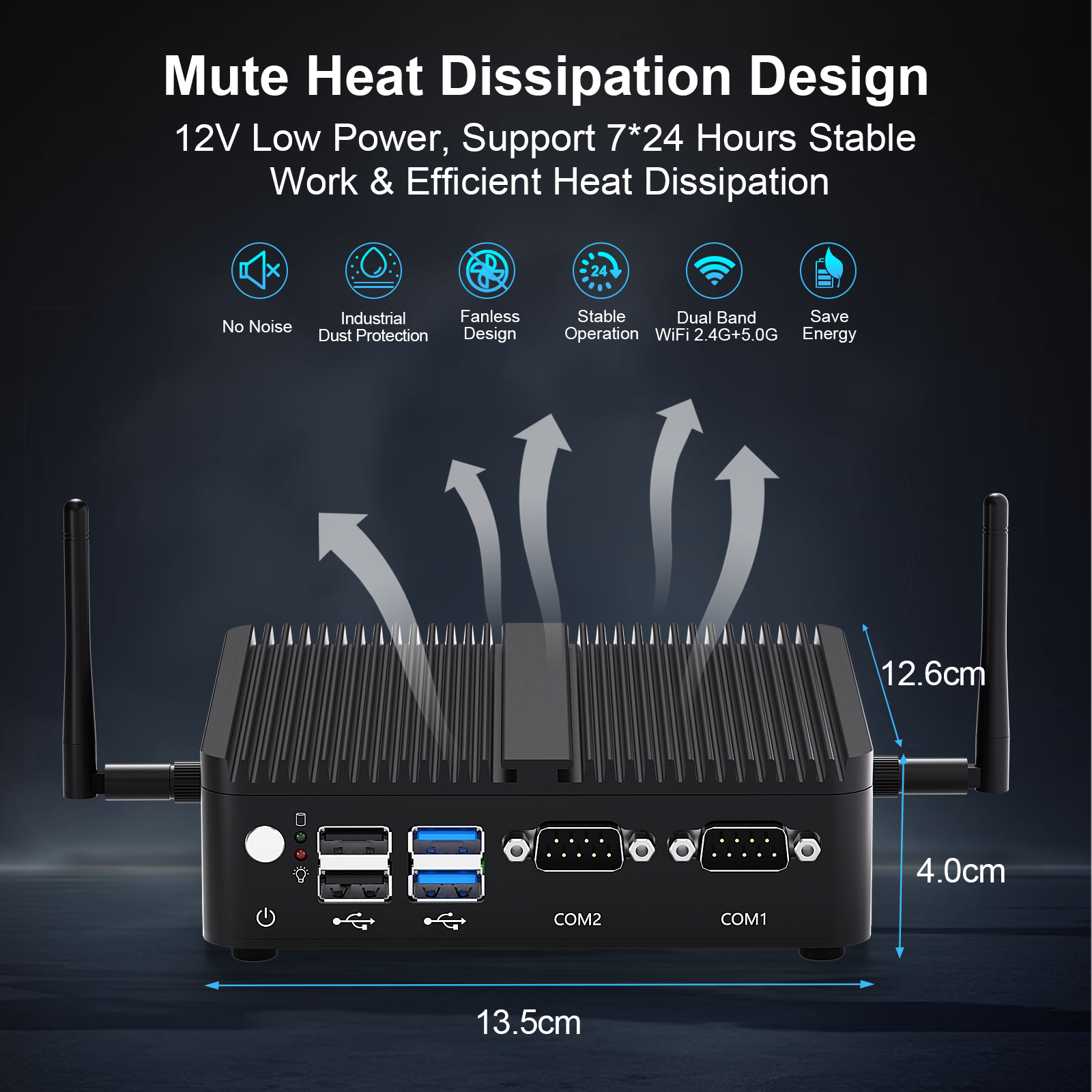

Broad Temp Tolerance.Perform Reliably Fanless
- Aluminum alloy body with passive cooling
- Fanless design minimizes mechanical failures
- Supports watchdog function, automatically recovering from system anomalies
- No lag during -20℃ low-temperature startup; no crashes during 50℃ high-temperature operation
TPM2.0 Certified. Enterprise-Grade Security.
Built-in TPM 2.0 security chip delivers hardware-level encryption protection, ensuring data security and system integrity.
Data IN
→
↓
TPM2.0
→
↓
Encrypt
→
↓
Transfer
→
↓
Decrypt
→
↓
Data OUT
Compatible Operating Systems
- Windows: Windows 10, Windows 11, Windows Server
- Linux: Ubuntu 22.04, Debian 11-12, Linux Mint, Rocky Linux 9
- Firewall: pfSense, OPNsense

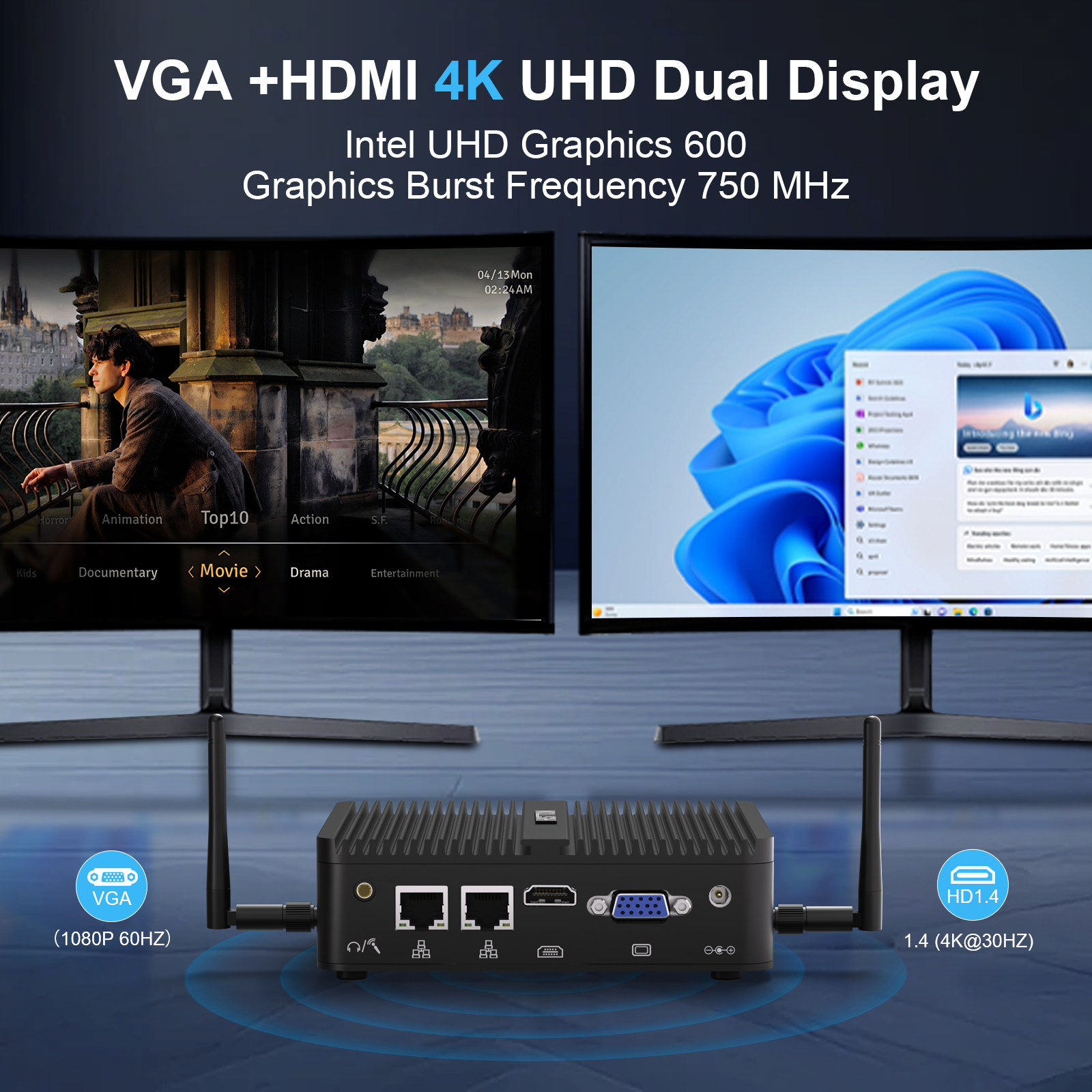

HDMI 2.0 & VGA Dual Interfaces. Seamless Multi-Display Compatibility
HDMI 2.0 Port: Supports 4K@60Hz UHD output and transmits digital audio and video signals. With support for 32-channel audio and a 1536kHz high sampling rate, it delivers stunningly detailed visuals and immersive surround sound for movie watching and design work.
VGA Port: As a classic analog interface, it is compatible with legacy monitors, projectors, and other devices. Supporting a maximum resolution of 1080P, it connects to traditional display devices without the need for adapters, making it suitable for more usage scenarios.

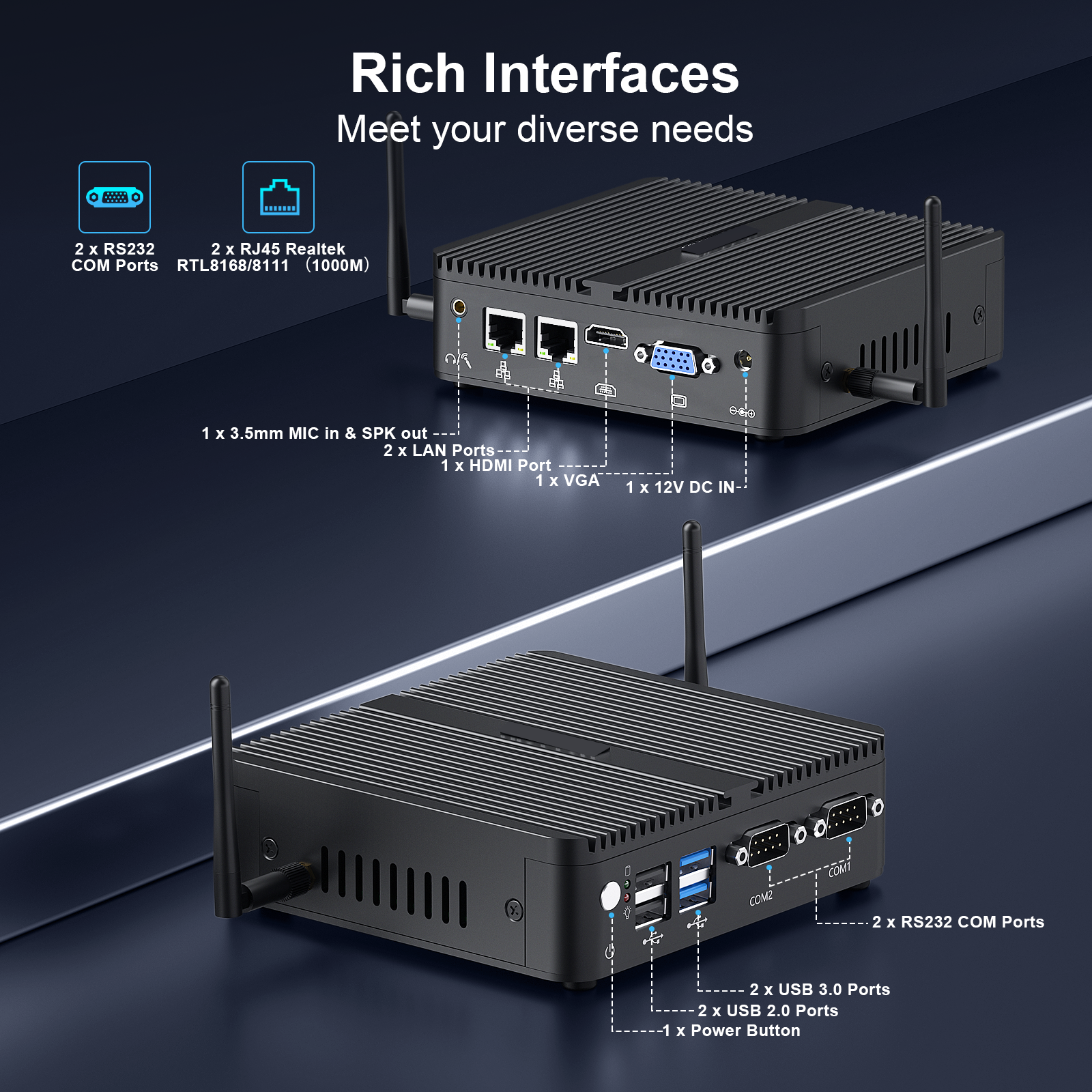

Rich Ports Meet Daily Needs
Display Interface
HDMI 2.0 4K 60Hz ＋ VGA 1080P 60Hz
Supports 4K@60Hz dual-screen output
Network Interface
2× Gigabit Ethernet ports, supporting network redundancy and load balancing
USB
2×USB 2.0
2×USB 3.0 （Type-A）

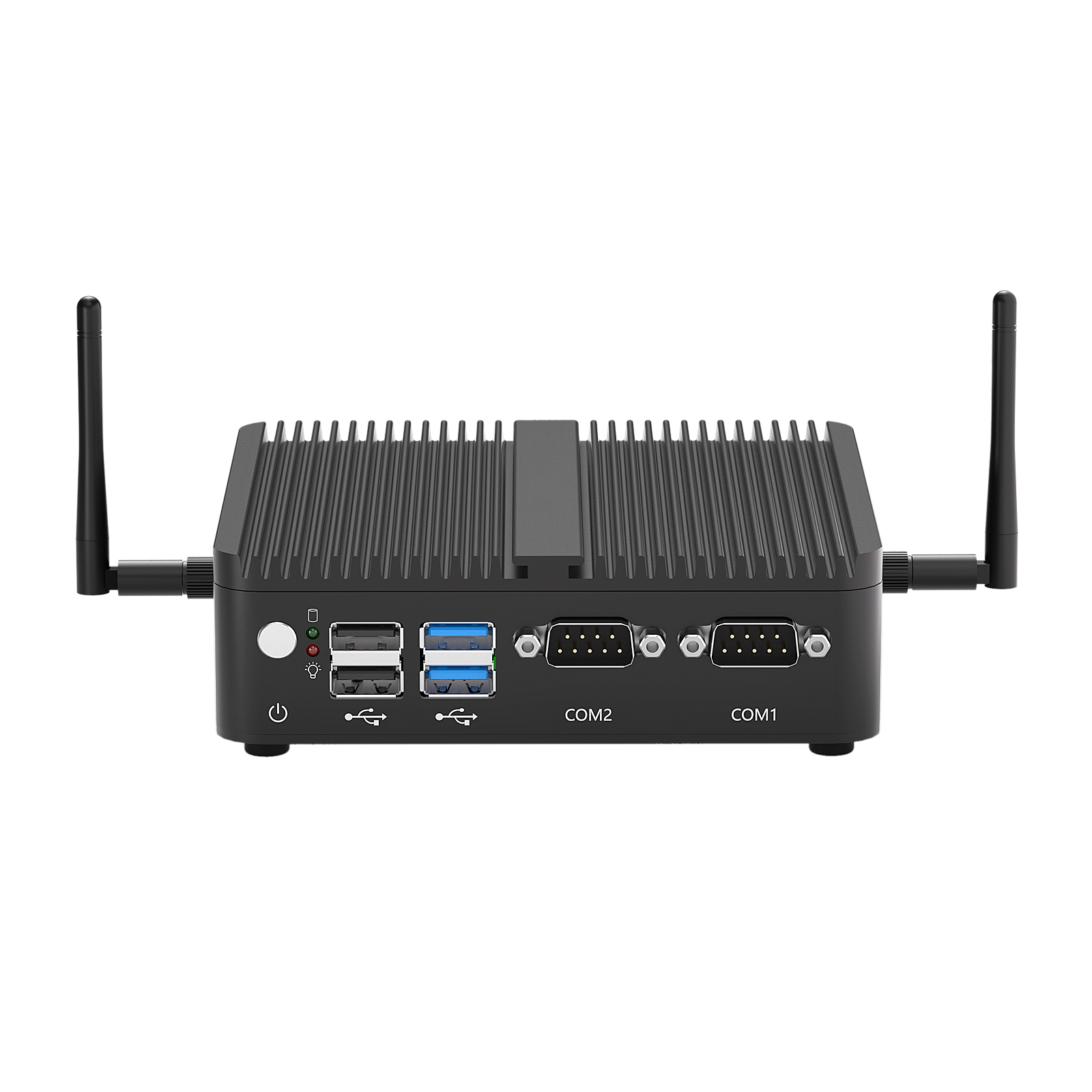

Serial port
2×RS232 serial ports, supporting industrial device connections
Specifications
Dimensions | 135mm*127mm*39mm |
Net Weight | 1.2Kg |
Material | Aluminum |
CPU | Intel Alder Lake N100 |
Graphics | Intel UHD Graphics |
Memory | single-DDR4 3200MHz up to 32GB |
Storage | 1×M.2280 slot， NVMe SSD, up to 2TB 1×SATA 3.0 for 2.5-inch HDD/SSD（no more than 7mm） 1×MSATA slot MSATS SSD， up to 1TB |
Ethernet | 2×RJ45 8168/8166 1000M |
Supported System | Win10/Win11/Linux/pfSense/OPNsense |
Wireless LAN | WIFI 5, Supports WIFI 6 |
Bluetooth Wireless Technology | Bluetooth 4.2， Supports 5.2 |
I/O Ports | 2×USB 2.0 2×USB 3.0（Type-A） 1×HDMI 2.0 4K 60Hz 1×VGA 1080P 60Hz 2×Gigabit RJ45 LAN Port 1×DC 12V 5A(5.5*2.5mm) 2×DB RS232 2×RP-SMA Antenna Interface 1×3.5mm Headset/Microphone Combo Jack |
Internal Slot | 1×M.2280 slot， NVMe SSD, up to 2TB 1×SATA 3.0 for 2.5-inch HDD/SSD（no more than 7mm） 1×MSATA slot MSATS SSD， up to 1TB 1×M.2 Socket (Key E), supports Type 2230. Default is equipped with WiFi 5 and Bluetooth 4.2. Optional WiFi 6 (AX200) and Bluetooth 5.2. 1×10Pin FP1 header, used for connecting external switch, reset, HDD-LED, PWR-LED |
Kensington Lock | No |
Accessory | VESA mount (option) |
Working environment temperature | -20°C~50°C |
Cooling system CPU fan DB (MAX) | Fanless, 0db |
Specifications
Dimensions
135mm*127mm*39mm
Net Weight
1.2Kg
Material
Aluminum
CPU
Intel Alder Lake N100
Graphics
Intel® UHD Graphics
Memory
Single-channel DDR4 3200MHz, up to 32GB
Storage
1×M.2280 slot， NVMe SSD, up to 2TB
1×SATA 3.0 for 2.5-inch HDD/SSD（no more than 7mm）
1×MSATA slot MSATS SSD， up to 1TB
Ethernet
2×Gigabit RJ45
Supported System
Win10/Win11/Linux/pfSense/OPNsense
Wireless LAN
WIFI 6, Bluetoothv5.2
I/O ports
2×USB 2.0
2×USB 3.0（Type-A）
1×HDMI 2.0 4K 60Hz
1×VGA 1080P 60Hz
2×Gigabit RJ45 LAN Port
1×DC 12V 5A(5.5*2.5mm)
2×DB RS232
2×RP-SMA Antenna Interface
1×3.5mm Headset/Microphone Combo Jack
Internal Slot
1×M.2280 slot， NVMe SSD, up to 2TB
1×SATA 3.0 for 2.5-inch HDD/SSD（no more than 7mm）
1×MSATA slot MSATS SSD， up to 1TB
1×M.2 Socket (Key E), supports Type 2230. Default is equipped with WiFi 5 and Bluetooth 4.2. Optional WiFi 6 (AX200) and Bluetooth 5.2.
1×10Pin FP1 header, used for connecting external switch, reset, HDD-LED, PWR-LED
Kensington Lock
No
Accessory
VESA mount (option)
Working environment temperature
-20°C~50°C
Cooling system CPU fan DB (MAX)
Fanless, 0db
