HST1201 Industrial Tablet PC
12.1-Inch Industrial-Grade Tablet: Redefining the New Standard for Industrial Computing
HST1201 Tablet PC
12.1-Inch Industrial-Grade Tablet: Redefining the New Standard for Industrial Computing
Powerful Core, Tailored Computing Power
- Processor Options: Available with cost-effective Intel Celeron J1900 quad-core processor or high-performance 4th/6th/7th/8th Generation Intel Core i3/i5/i7 processors, easily capable of efficient multitasking.
- Memory & Storage: Onboard DDR3L 4GB memory, optional SODIMM slot (max support 8GB expansion); supports dual hard drive expansion of mSATA and 2.5-inch SATA. The exclusive M.2 interface for the Core series provides faster transmission speed.
- Operating System Compatibility: Fully compatible with Windows 7/8/10, Windows Embedded 7, and Linux systems, adapting to the needs of different industrial application scenarios.

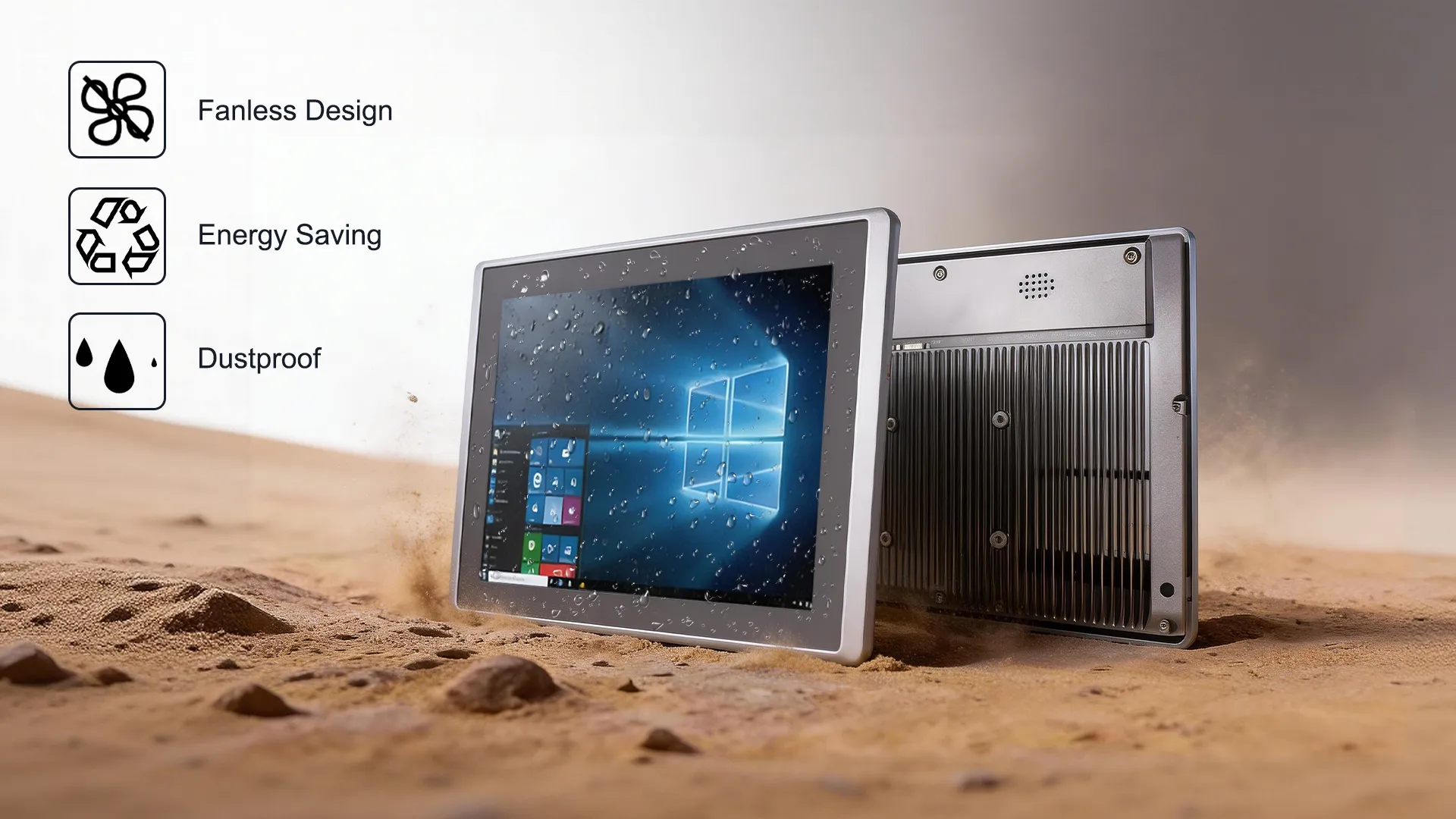

Industrial Aesthetics, Silent & Low-Power
- Full-aluminum chassis with sleek metallic finish and minimalist industrial aesthetics
- Fanless heat dissipation structure for true silent operation and a focused working environment
- Low-power processor + intelligent power management for reduced energy consumption
- 9~36V wide-voltage input, compatible with various industrial power scenarios
- IP65-rated front panel resists dust and water splashes, ideal for harsh industrial conditions

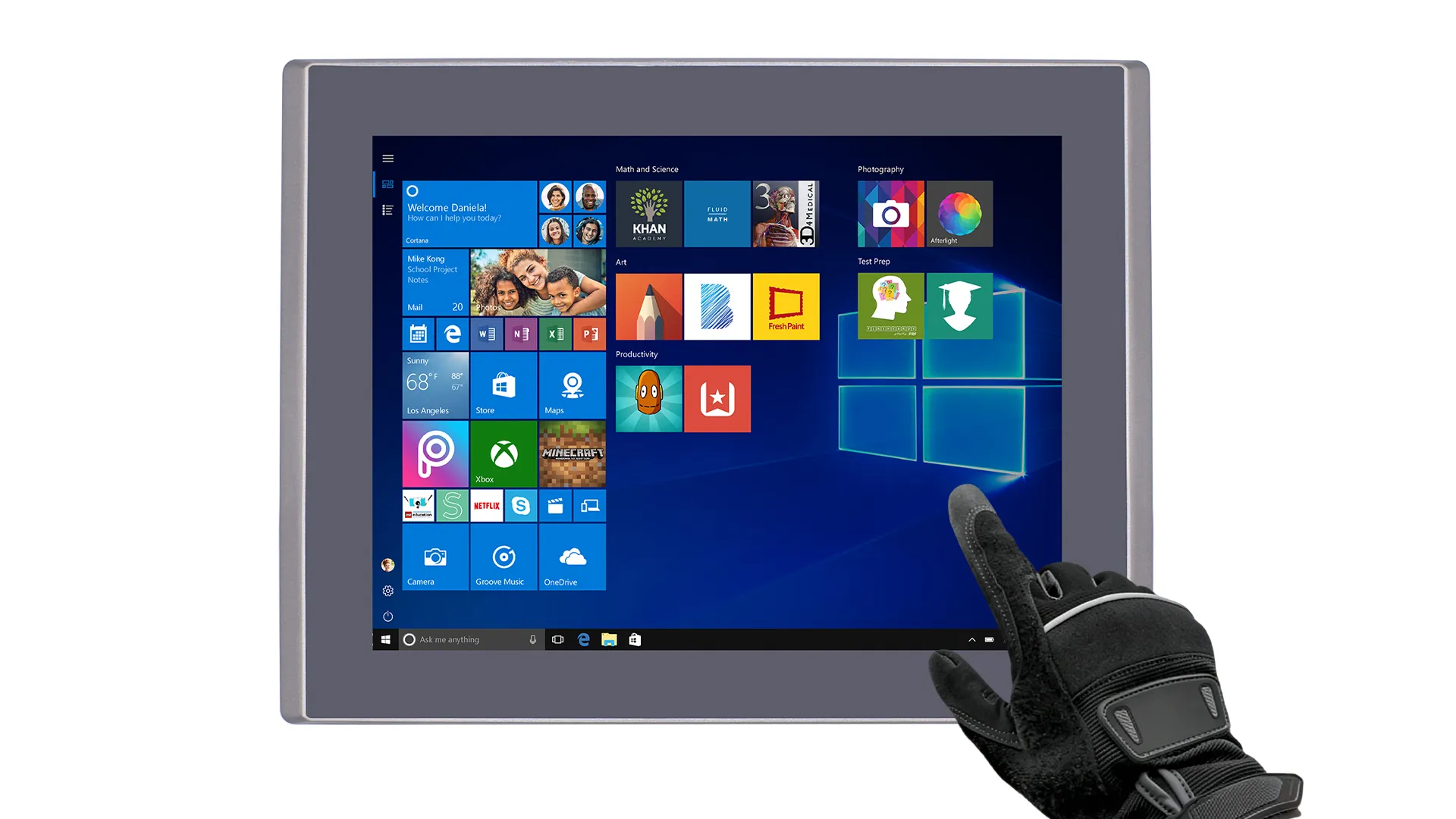

12.1" High Brightness, Precision Touch
- Industrial Grade-A Panel: 1024×768 HD resolution, 500 cd/m² high brightness, LED backlight with a 30,000-hour lifespan, ensuring clear visibility even in bright sunlight
- 5-Wire Resistive Touch: Engineered for harsh environments, supports glove-friendly operation, resists oil and moisture, features >78% light transmittance, and over 10 million click durability
Flexible Mounting, Scenarios as You Wish

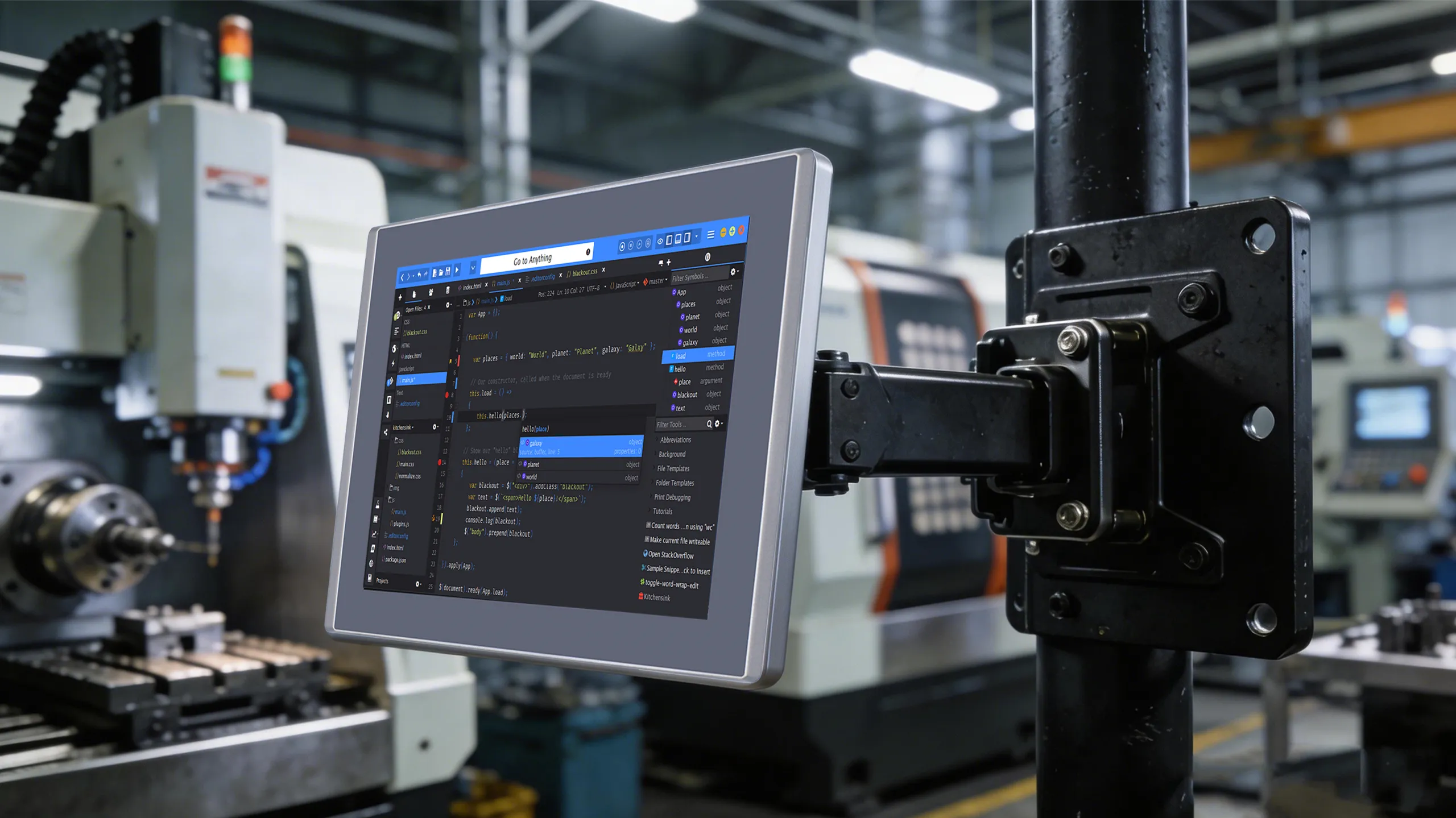

VESA Installation:

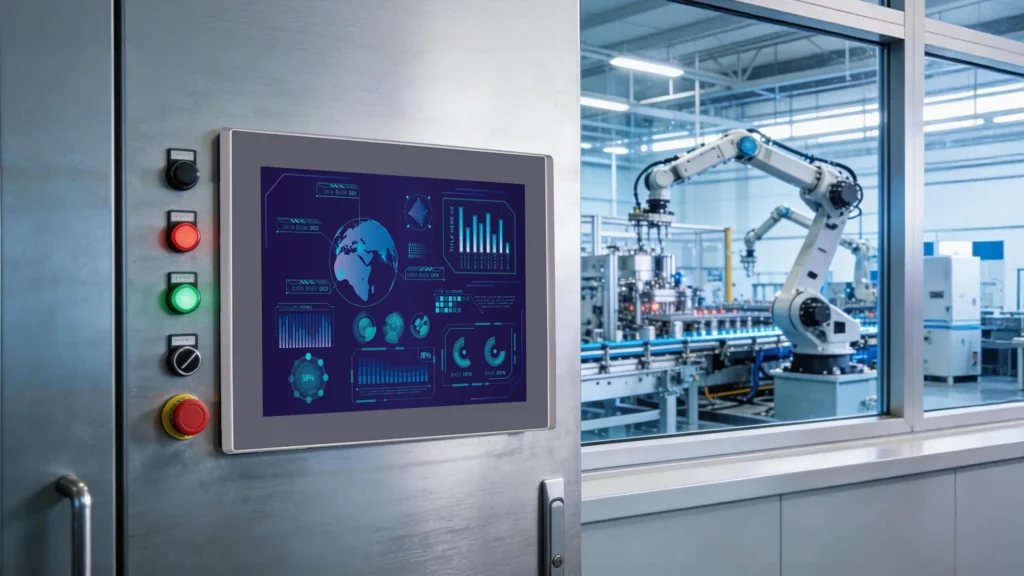

Panel Mounting:

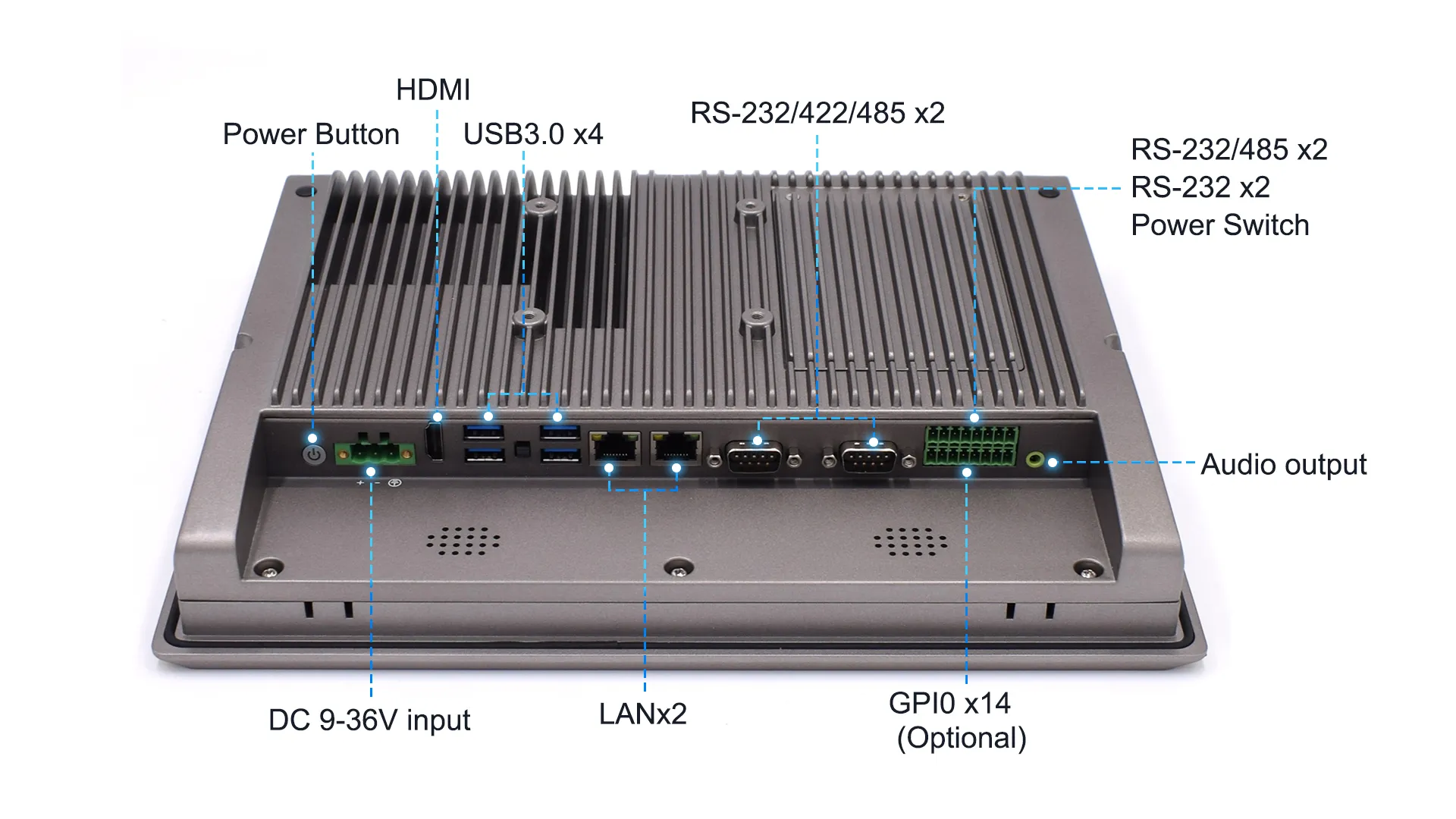

Comprehensive Interfaces, Efficient Interconnection
Empowering Digital & Intelligent Transformation Across Industries
Specifiacations
Processor | Intel Celeron J1900 4/6/7/8 gen Intel Core i3/i5/i7 CPU |
Memory | Onboard DDR3L 4G/DDR4 4G Optional 1 SODIMM Slot, max 8GB |
Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
Lan | 2*GbE RJ45 Intel@i211-AT |
Interface Port | 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface |
2*DB9-RS232/422/485 COM | |
2*3-wire RS232/485 COM phoenix terminal | |
2*3-wire RS232 COM phoenix terminal | |
1*Audio Line-out | |
2*8Ω 1W Speak out(Optional) | |
1*Phoenix Terminal DC 9-36V Input | |
1*AT/ATX Switch | |
1*HDMI Output | |
1*14bit GPIO(Optional) | |
WIFI | 1*Full height Mini PCI-E, onboard SIM slot, support 3G/4G 1*Half-height Mini-PCIE, support WIFI&Bluetooth |
Watchdog timer | 1-255 seconds programmable setting |
Support OS | Windows 7/8/10, WES 7, Linux |
Resolution | 16.2M Color, 1024*768 ( 800*600 optional) |
Panel | 12.1″ TFT LCD |
Backlight Hour | (LED )30,000 |
Brightness | 500cd/m² |
Visual | -85~85°(H), -85~85°(V) |
Type | 5-wire resistance type |
Ttransmmittance | 78% |
Working Life | 250 g hits 10 million times |
Material | Aluminum alloy |
installation | VESA 75/ panel installation |
Dimension | Tablet 318.8*245.0*56.6MM(for 12.1”) Package 43.5 x 20.7 x 37.6 cm |
Weight | NW:3.2KG, GW:5.0KG |
