HYSTOU P09B-6L | N100 Fanless Firewall Mini PC 6×2.5G
Categories: Office Mini PCs
HYSTOU N100 Fanless Firewall Mini PC – 6x 2.5G Ethernet Low Power Security Appliance
Designed for enterprise-grade network security, the HYSTOU P09B Fanless Firewall Mini PC delivers exceptional performance with Intel’s 12th Gen Celeron N100 processor. Its fanless aluminum chassis ensures silent operation, making it ideal for noise-sensitive environments like offices and home labs. With 6x 2.5G Ethernet ports, support for multiple firewall OS, and a wide operating temperature range (-20°C to +50°C), this compact appliance (177mm×125mm×55mm) redefines reliability in network security.
Key Features
- Powerful & Efficient Processing
Equipped with Intel Celeron N100 (4 cores, 4 threads, up to 3.40 GHz), 6M cache, and 6W TDP, the P09B balances performance and energy efficiency. It outperforms legacy J4125 CPUs by 20% in network throughput tests, ensuring smooth firewall operations even under heavy loads.
- Enterprise-Grade Network Connectivity

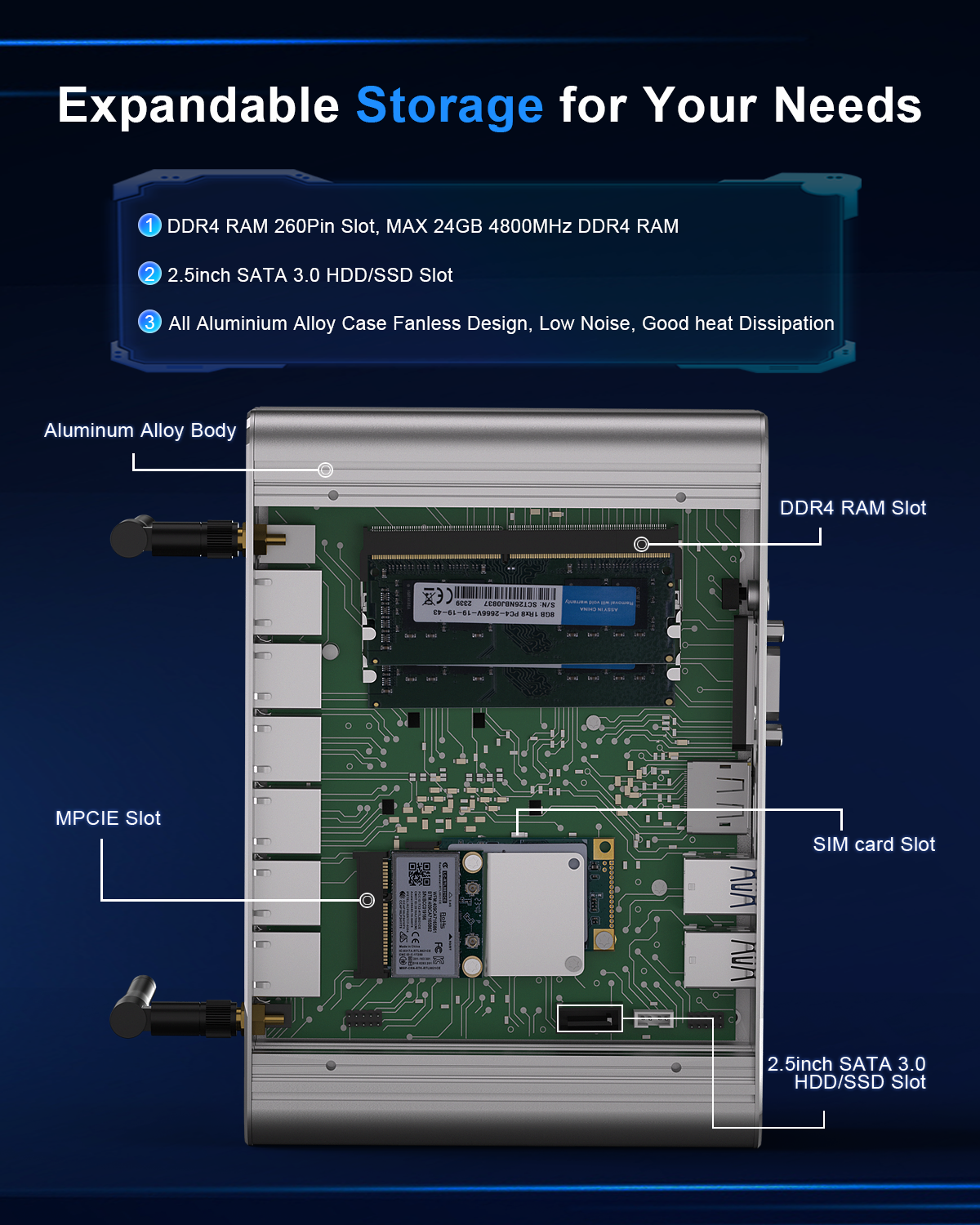

6x Intel I225/I226-V 2.5G Ethernet ports enable high-speed LAN/WAN routing, while dual Wi-Fi antennas (802.11ac) support flexible wireless deployment. The device also features M.2 and SATA slots for expandable storage, accommodating NVMe SSDs for faster data access.
Multi-Zone Network Isolation
Six independent physical Ethernet ports enable granular network segmentation without the need for additional hardware. Ideal for isolating:- DMZ (Demilitarized Zone) for public servers
- Office LAN for employee workstations
- IoT Network for smart devices
- Guest Wi-Fi with limited access
- Industrial Control Systems in Manufacturing Environments
- IP Surveillance cameras and security systems
This hardware-level isolation reduces attack surfaces and simplifies compliance with regulations such as PCI DSS (Payment Card Industry) and GDPR.
- Versatile Installation & Durability
The aluminum alloy body dissipates heat efficiently without fans, supporting 24/7 operation. It includes VESA mounting brackets, DIN rail kits, and desktop placement options, fitting seamlessly into industrial racks or home setups.
Technical Specifications
| Category | Details |
|---|---|
| CPU | Intel Celeron N100 (4C/4T, 3.40 GHz Turbo, 6M Cache) |
| Memory | 1x DDR5 SODIMM slot (max 32GB, 4800MHz) |
| Storage | 1x M.2 NVMe SSD + 1x SATA 3.0 HDD/SSD |
| Networking | 6x 2.5G Ethernet (I225/I226-V), Wi-Fi 5 + BT 4.2 |
| Power | 12V 5A DC input |
| Operating Systems | pfSense, OPNsense, Windows 10/11, Linux (Ubuntu/Debian), ESXi |

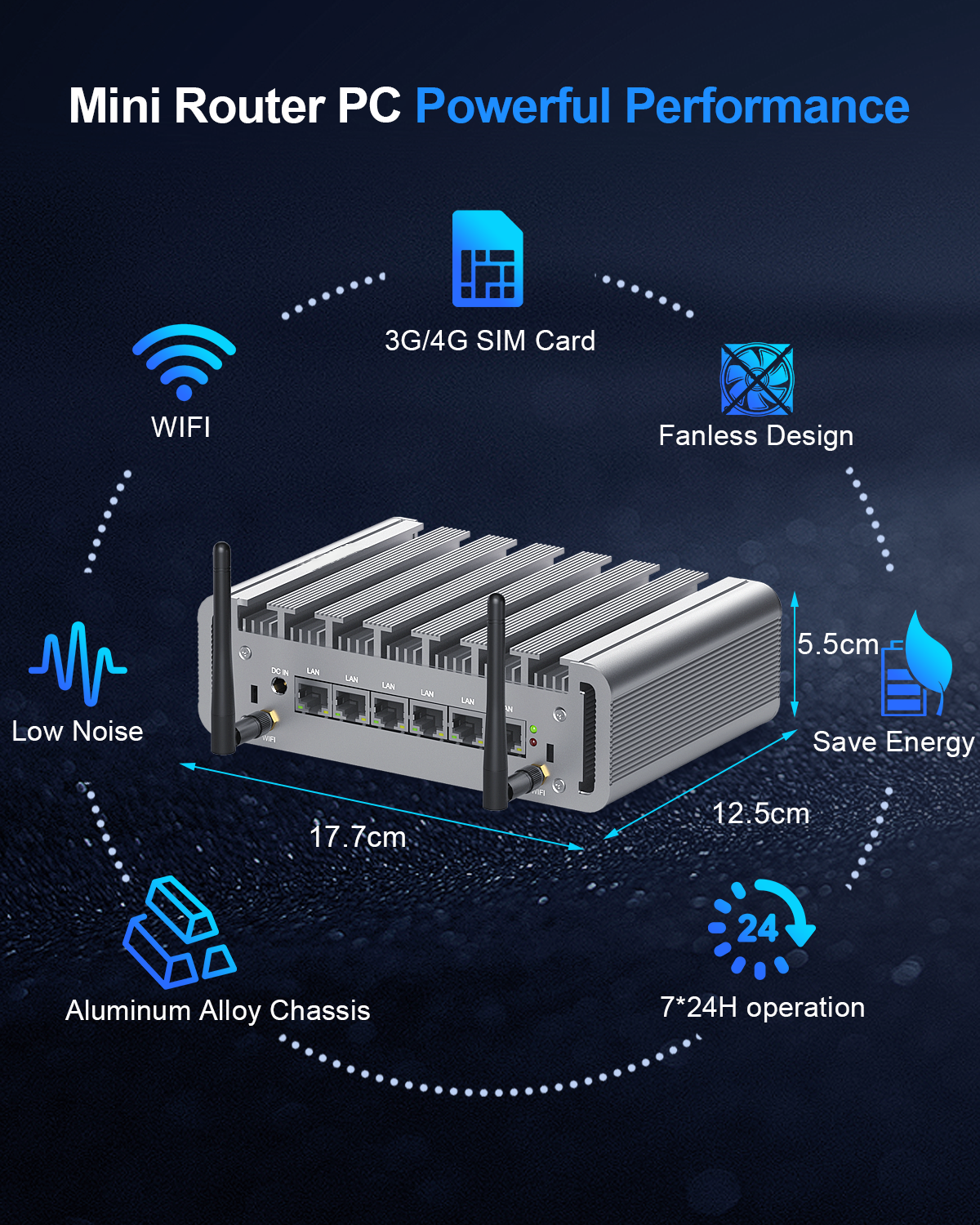

| Dimensions | 177mm × 125mm × 55mm (6.97″ × 4.92″ × 2.17″) |
| Weight | 1.3kg (net), 2.0kg (gross with accessories) |
Applications
Ideal for small-to-medium businesses (SMBs), remote offices, and industrial environments, the P09B excels as:
- A high-performance firewall/router
- A VPN gateway for secure remote access
- A network monitoring appliance
- An edge computing node in IoT deployments
What’s Included
- HYSTOU P09B N100 Fanless Mini PC
- 12V 5A Power Adapter
- SATA Cable
- VESA Mounting Kit + Screws
- DIN Rail Bracket
- 2x Wi-Fi Antennas
- Quick Start Guide
HYSTOU provides a 3-year warranty and lifetime technical support for all firewall appliances.
Enhanced Connectivity & Display
The P09B 6L features versatile video output options with 1x HDMI 1.4 and 1x DP 1.2 port, supporting dual displays up to 1080p@60Hz. This makes it suitable for monitoring dashboards or multi-screen setups in network operation centers.
Advanced Network Security
Equipped with Intel AES-NI encryption and support for pfSense/OPNsense, the device delivers enterprise-level firewall protection. Its integrated router capabilities include VPN, multiple SSID management, and QoS, ideal for securing home or office networks.
Frequently Asked Questions
The P09B supports three installation methods:
- Desktop placement (included rubber feet for stability)
- VESA mounting (kit included, compatible with 75x75mm and 100x100mm patterns)
- DIN rail mounting (industrial rack compatibility via included brackets)
You’ll receive the mini PC, 12V 5A power adapter, SATA cable, VESA mounting kit, DIN rail bracket, 2x Wi-Fi antennas, and a quick start guide.
It runs pfSense, OPNsense, Windows 10/11, Linux (Ubuntu/Debian), and VMware ESXi. Firewall-specific OS like OPNsense 24.1+ are fully optimized.
6x Intel I225/I226-V 2.5G Ethernet ports (no PoE), plus Wi-Fi 5 (802.11ac) and Bluetooth 4.2.
Input: 12V DC, 5A (power adapter included). Typical power consumption: 6W (idle) to 15W (max load).
The Intel Celeron N100 (4 cores, 3.40GHz Turbo) handles firewall rules, VPN tunnels, and light virtualization smoothly. It outperforms the J4125 by ~20% in network throughput tests.
Yes:
- Memory: 1x DDR5 SODIMM slot (max 32GB, 4800MHz)
- Storage: 1x M.2 NVMe SSD (PCIe 3.0 x1) + 1x 2.5″ SATA HDD/SSD
Press Delete during boot to enter BIOS Setup, or F7 for Boot Menu.
1. Check cable connections and try a different port
2. Verify OS network configuration
3. Update network drivers or firmware via HYSTOU official website
Yes, enable “Wake on LAN” in BIOS under Power Management settings.
3-year hardware warranty + lifetime technical support (email/online chat).
Yes, it meets CE (EU), FCC (US), and RoHS requirements for electromagnetic compatibility and safety.
For more details, visit the HYSTOU Support Center.
